Bernardo | SKU:
05-1453XL
Pre-order

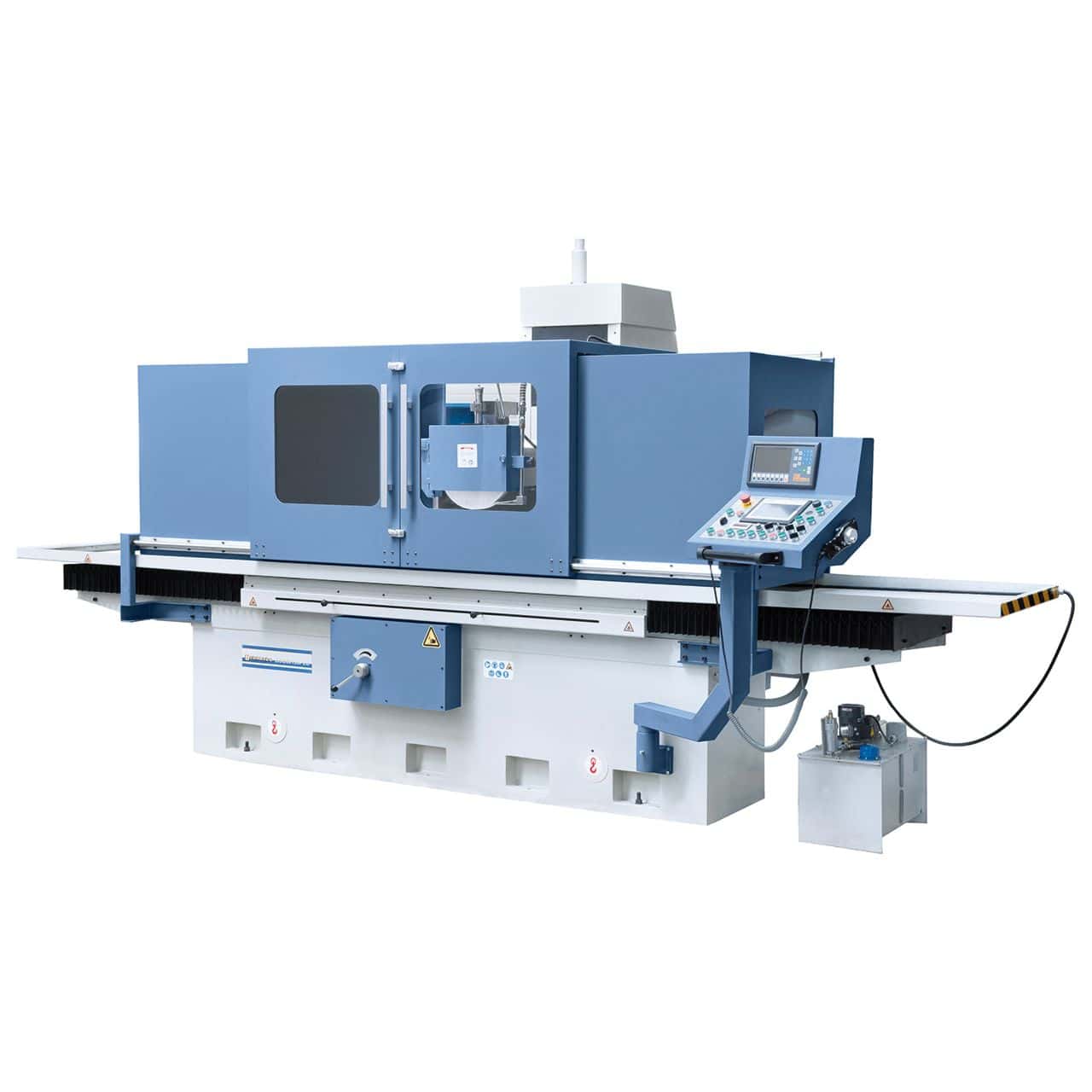

BSG 60160 PLC Flat Grinder
€74.505,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
BSG 60160 PLC Flat Grinder is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Hardened and longitudinally and transversely ground bench guide belts; counter guides with Turcite B coating for high wear resistance and low friction
- The longitudinal or transverse movement takes place via a flat V-shaped guide
- Computer-controlled rapid approach to the workpiece height, adjustable reconciliation stroke and spark suppression; automatic lifting to the starting position after the end of the program
- Special preloaded bearings without axial and radial play in the grinding spindle
- The annealed and tension-free machine base body ensures high precision
- High stability thanks to strong ribs and large walls
- Adjustable longitudinal and transverse table movement by limit switches
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- PLC control unit for programming simple grinding cycles via touchscreen included
Standard accessories
- ES-12 H 2-axis position display with LCD display
- Siemens SMART IE V3 panel with touch control
- Electronic crank
- Grinding wheel boring
- Disc flange
- LED work light
- Magnetic clamping plate
- Balance Stand
- Balance shaft
- Protective covers
- Parallel extractor device
- Degaussing device
- Refrigeration system
- Diamond extractor
- Machine feet
- Central lubrication system
- Hydraulic oil cooling
- Control device
technical specifications
| Table clamping surface | 600 x 1600 mm |
| Number of T-slots / width | 3 / 18 mm |
| Electronic magnetic clamping plate | 600 x 800 mm (2 pieces) |
| Maximum travel, longitudinal | 1750 mm |
| Maximum travel, transverse | 660 mm |
| Distance spindle center / table max. | 600 mm |
| Max. piece weight * | 1300 kg |
| Grinding wheel boring | 350 x 50 x 127 mm |
| Table speed, hydraulic | 5 - 25 mm/min |
| Transverse adjustment | |
| Automatic, transversal approach | 0.5 - 20 mm/stroke |
| Rapid, transverse run | 50 - 600 m/min |
| Vertical approach | |
| Automatic vertical approach | 0.005 / 0.01 / 0.015 / |
| 0.02 / 0.03 / 0.04 mm | |
| Rapid, vertical run | 50 - 500 mm/min |
| Grinding spindle motor | 7.5 kW |
| Spindle speed | 1450 rpm |
| Hydraulic pump motor | 5.5 kW |
| Overall connection value | 18 kW |
| Length | 5500 mm |
| Depth | 2750 mm |
| Height | 2700 mm |
| Weight approx. | 7000 kg |
| * with magnetic clamping plate |
Technical Specifications
La macchina offre rigidità elevata, tavola idraulica fluida, doppia piastra magnetica e cicli automatizzati di smerigliatura tramite controllo Siemens PLC.
È dotata di due piastre magnetiche da 600 x 800 mm che permettono di fissare pezzi fino a 1300 kg in totale.
Il PLC Siemens consente di programmare sgrossatura, finitura, avanzamento rapido e ritorno automatico alla posizione iniziale.
La corsa longitudinale è di 1750 mm, la trasversale 660 mm e la distanza mola-tavola arriva a 600 mm, con pezzi fino a 1300 kg.
La smerigliatrice viene spedita su pallet protetto con tutti gli accessori inclusi: DRO, piastre magnetiche, mola, sistema di raffreddamento, utensili e smagnetizzatore.
