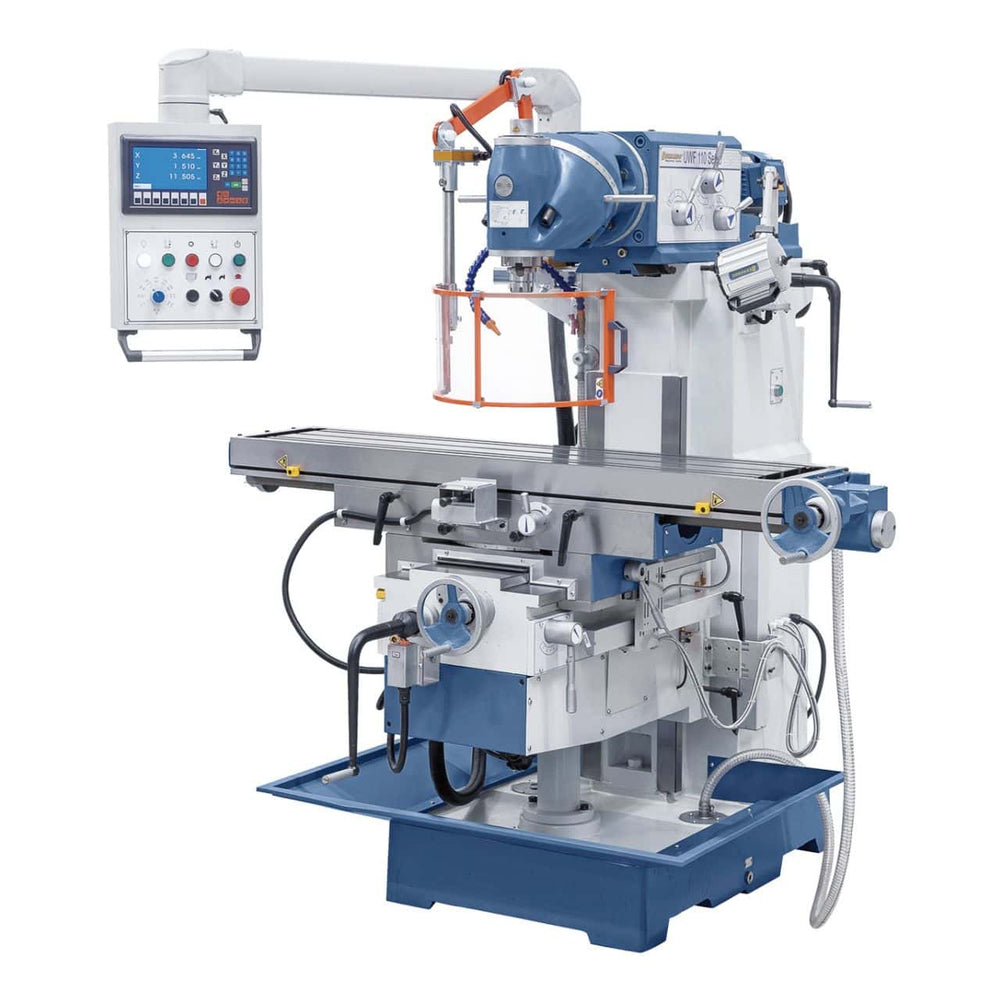

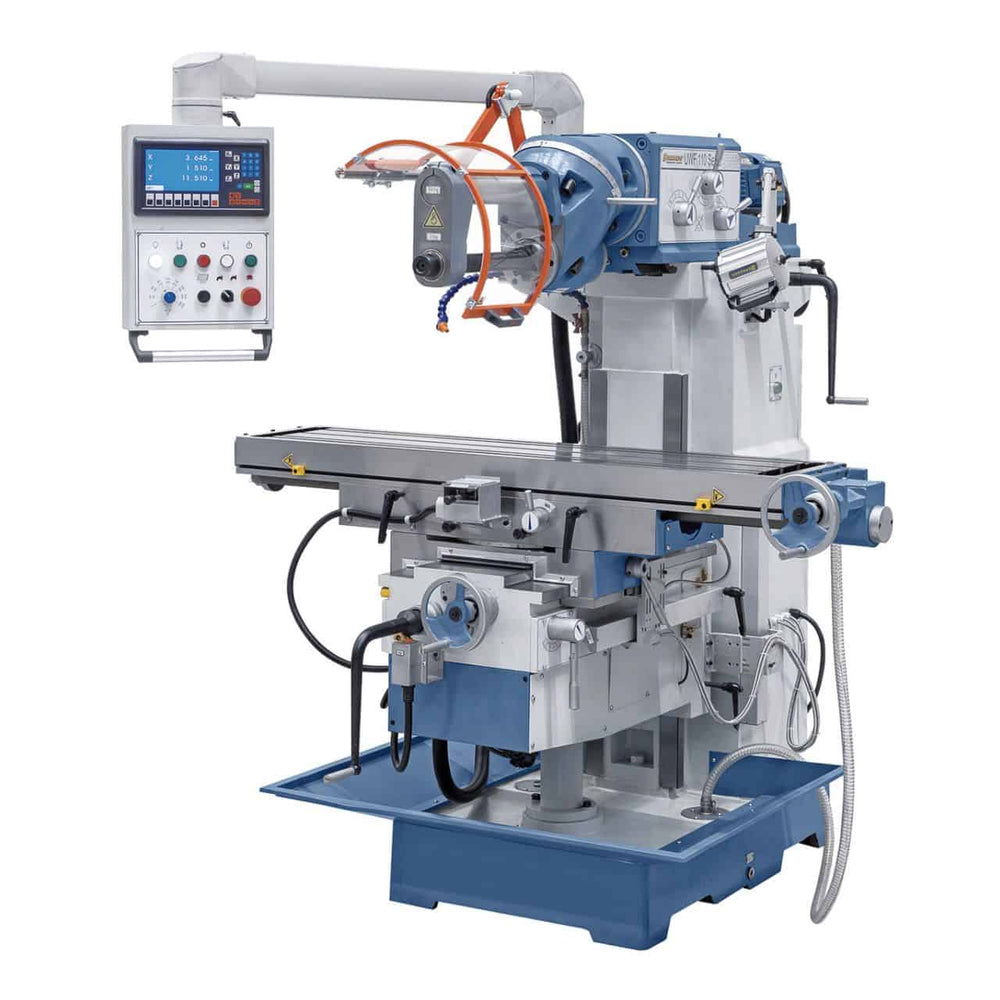

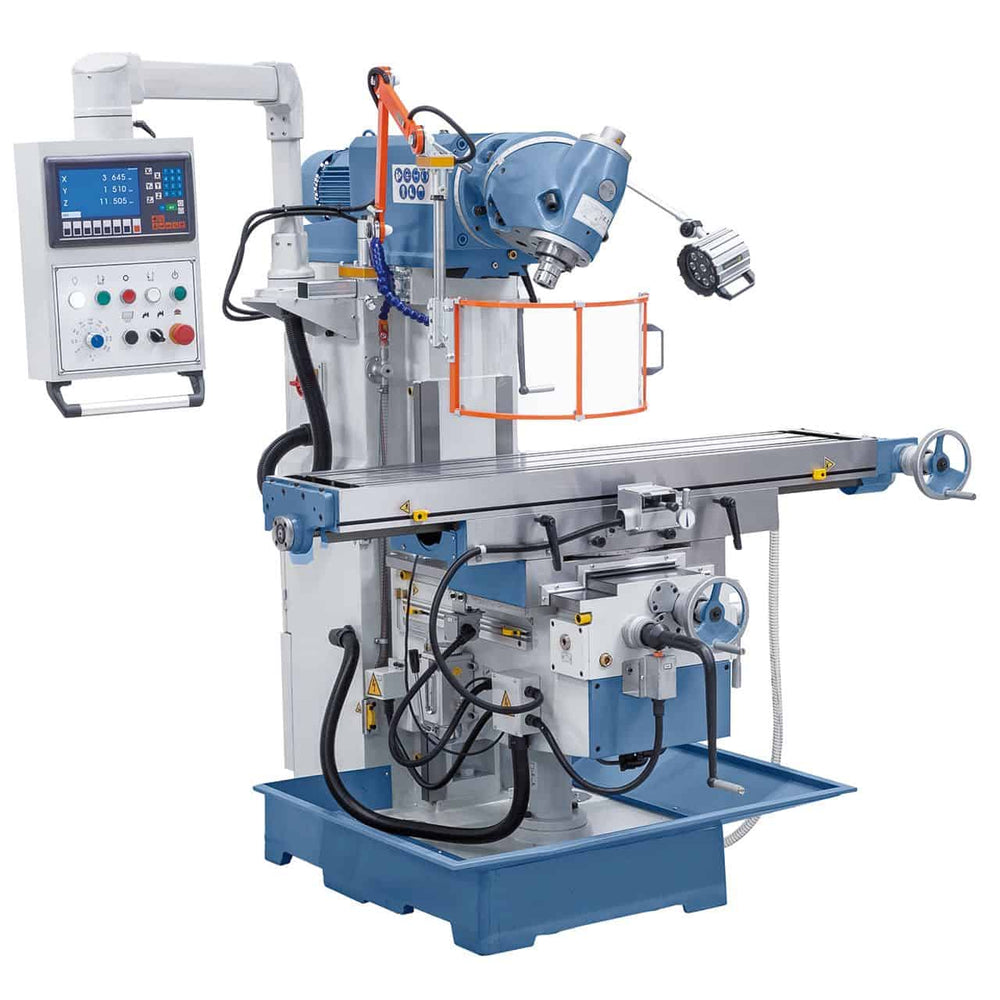

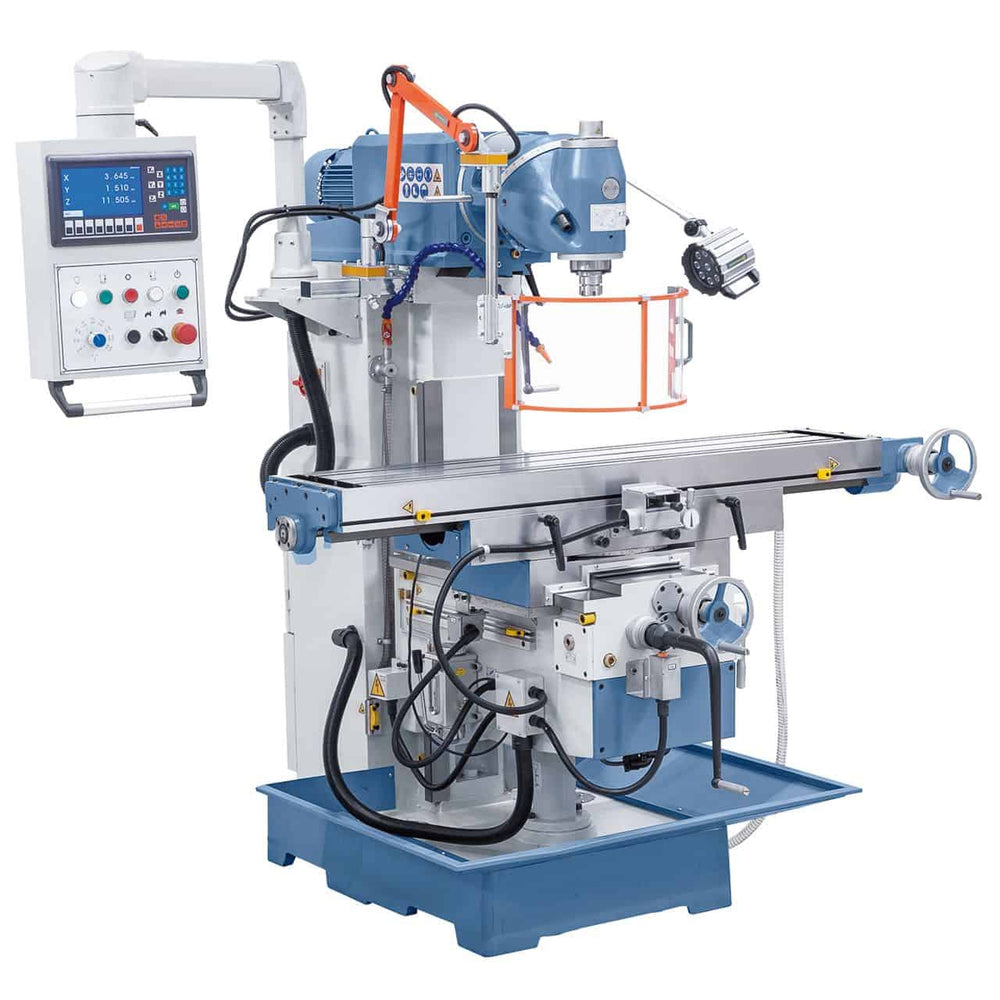

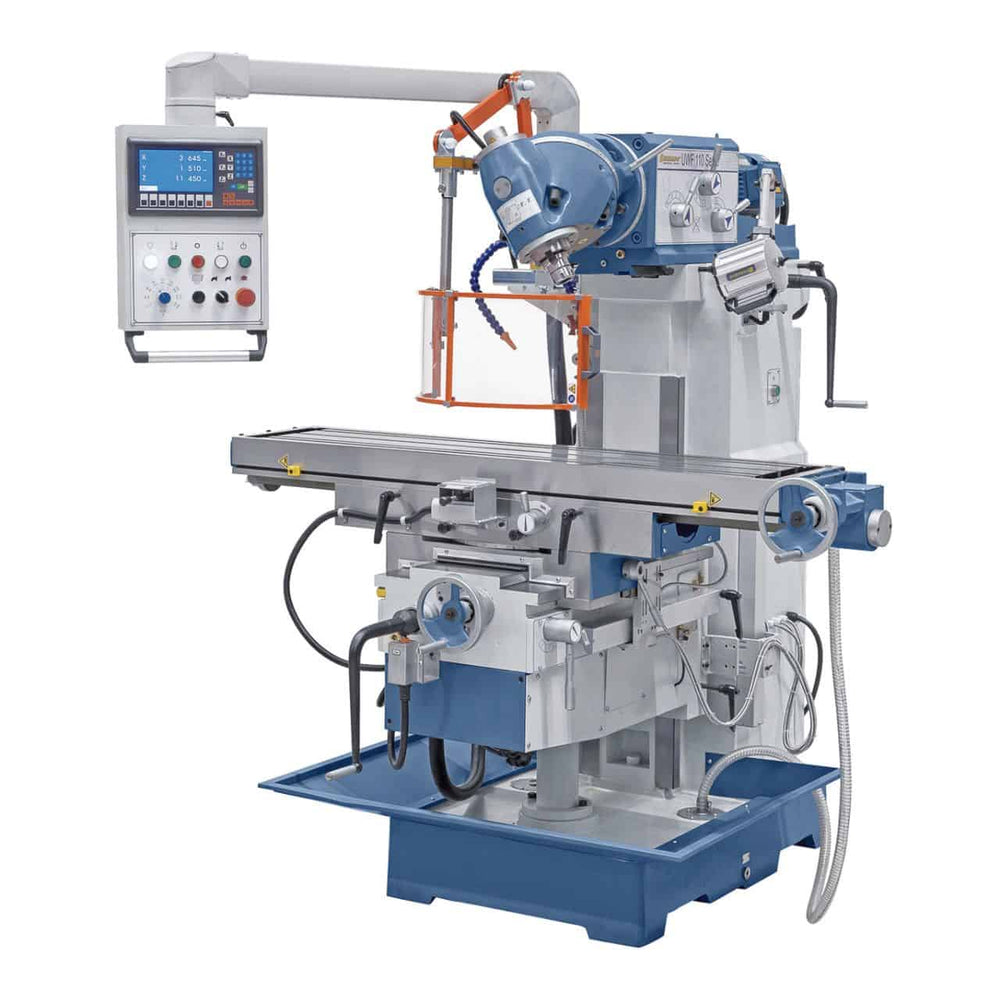

UWF 110 Servo Universal Milling Machine
The UWF 110 Servo Universal Milling Machine is a versatile and robust machine designed for light to medium-duty milling. Thanks to its ease of use and adaptation, it is ideal for workshops requiring flexibility and precision in small to medium-duty production runs. This milling machine features a solid cast iron frame, ensuring stability and reducing vibration during use, and is equipped with a universal milling head adjustable to any angle, ideal for complex machining. The servo motor ensures automatic feed and rapid traverse on all axes, increasing operational efficiency.
Main Features:

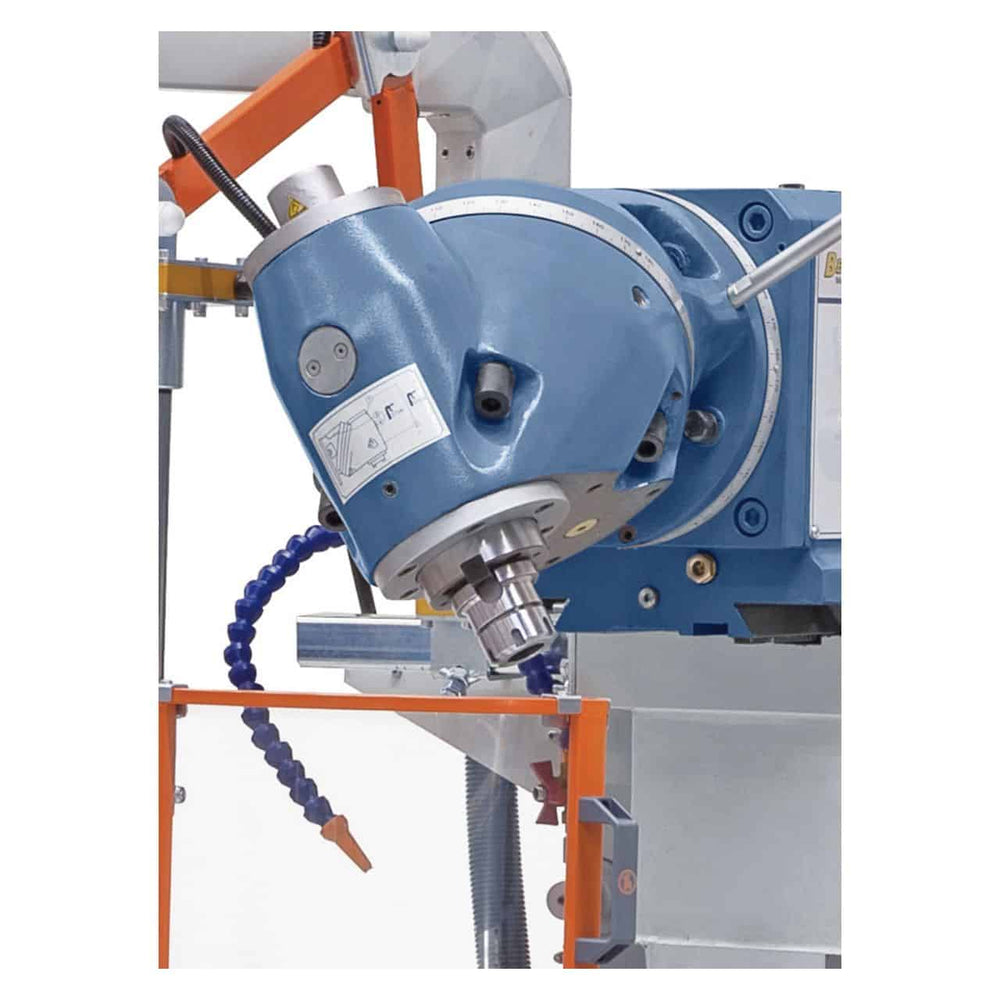

- Universal Milling Head "Huron" : Adjustable in all angular positions, it allows a wide range of applications, making the machine extremely flexible.

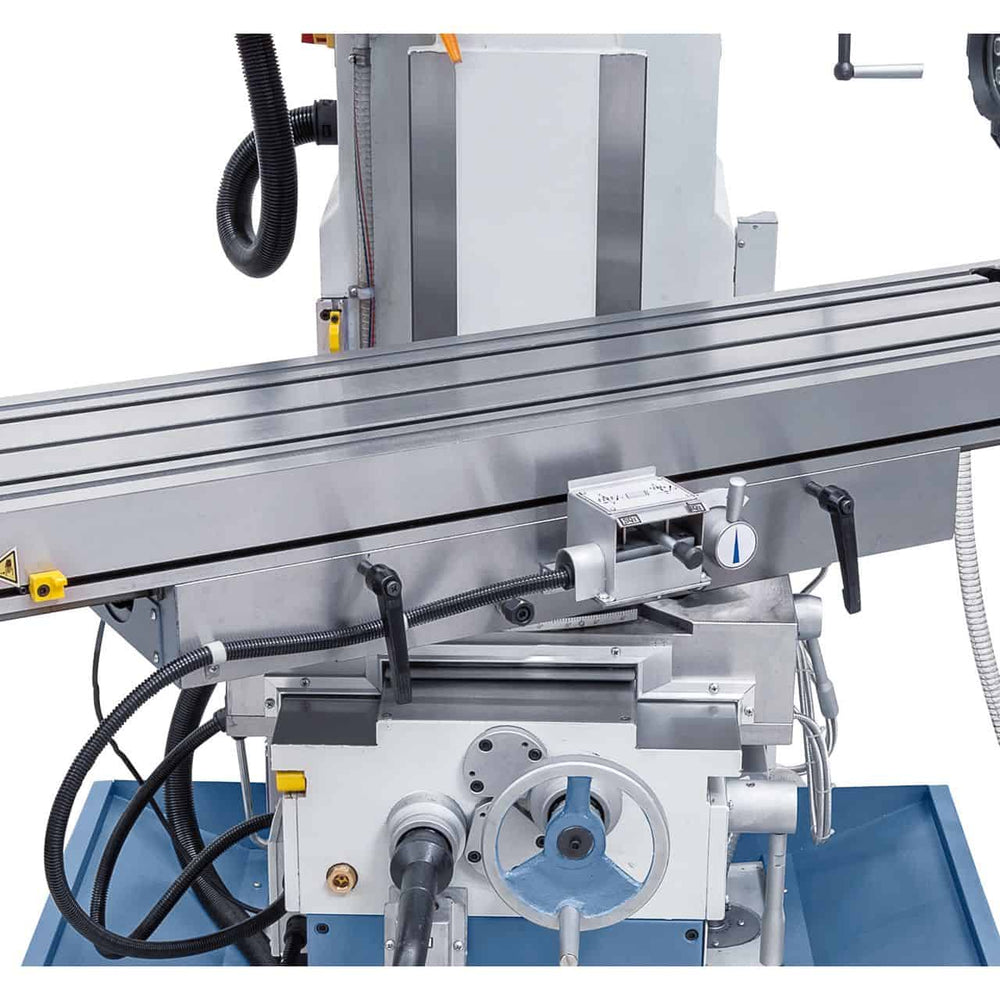

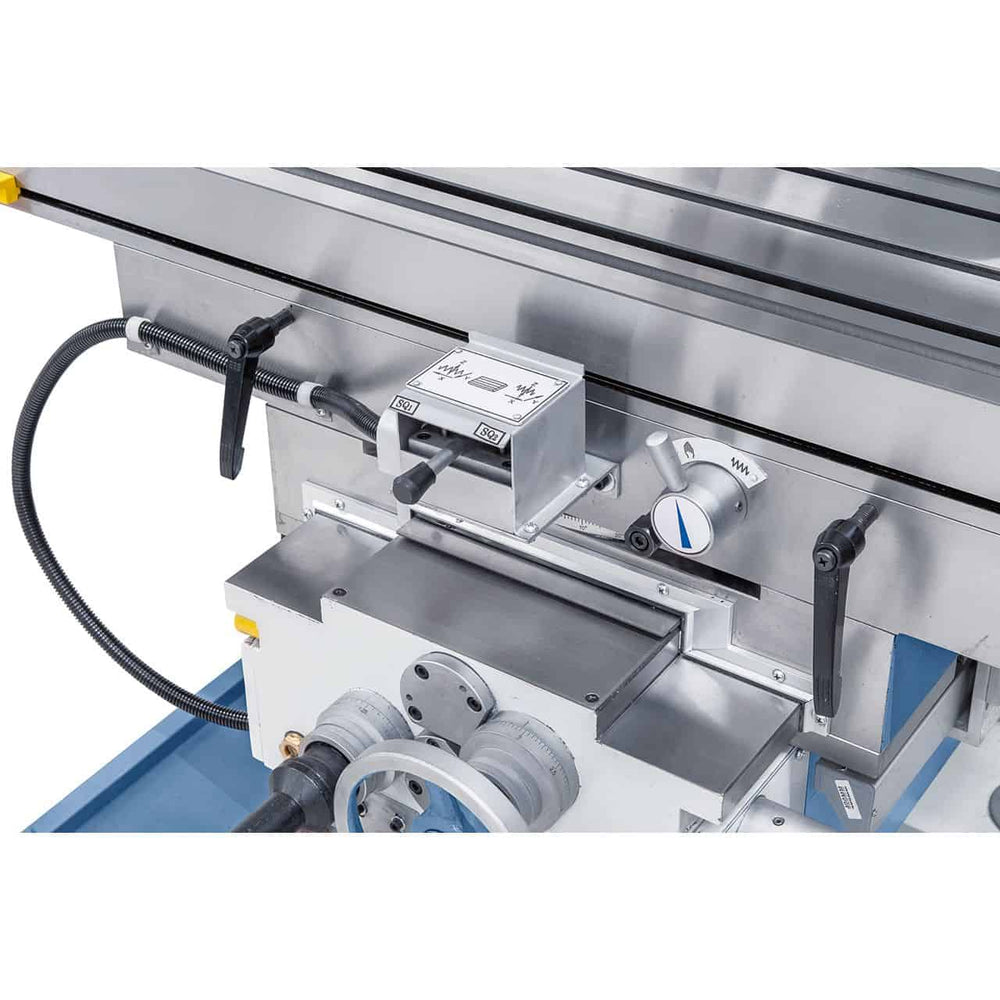

- Large Rectangular Guides : In the Y and Z axes, the rectangular guides ensure stability and precision, even when machining with high loads.

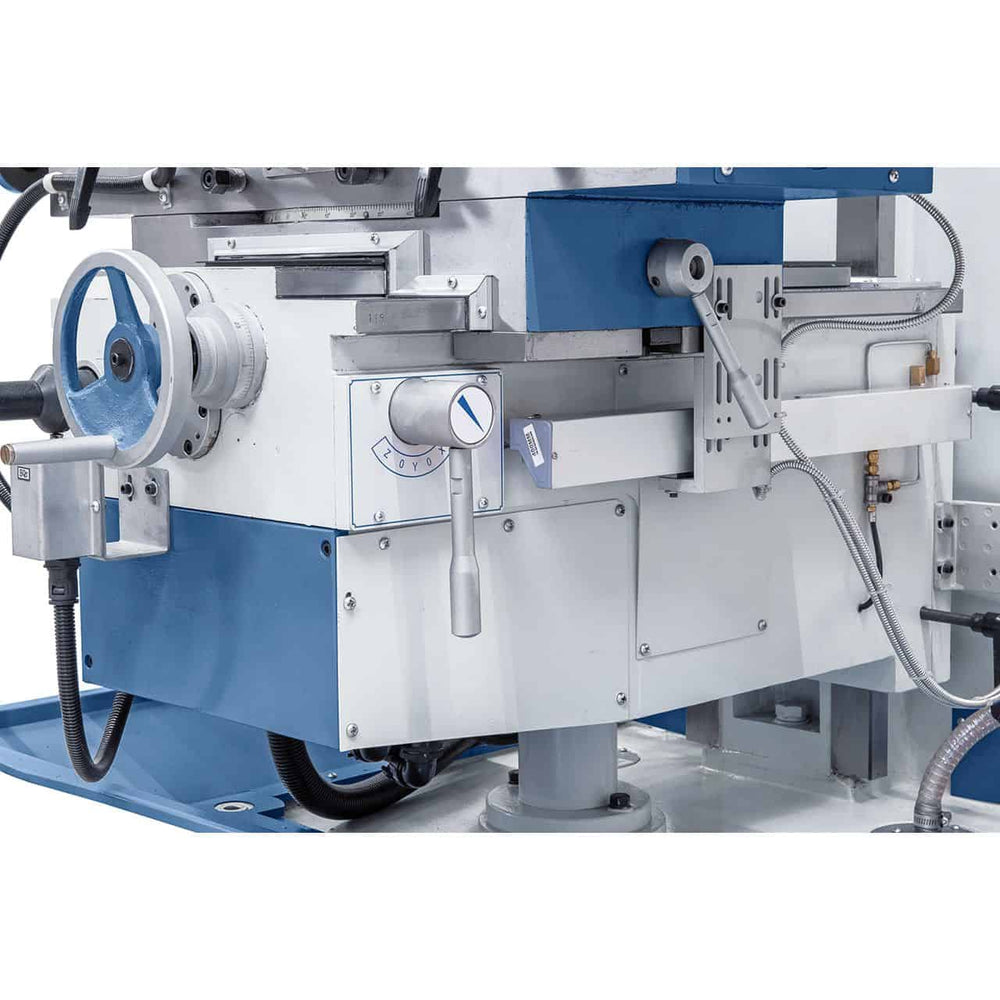

- Automatic Feeds : The machine is equipped with 8 automatic feeds, operated by a servo motor, which guarantee precision and speed in processing.

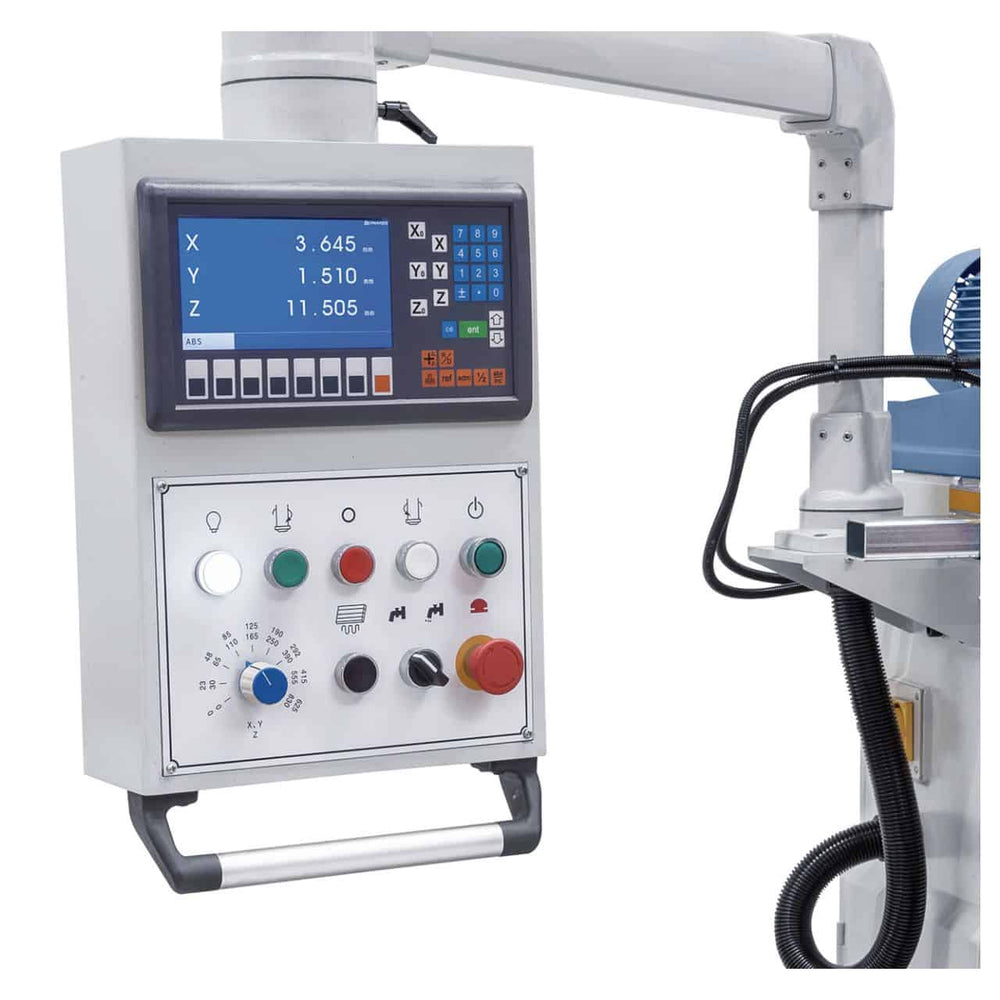

- Ergonomic Control Panel : The tilting panel, with ergonomically arranged controls, makes using the machine easy and intuitive.
- Robust Cast Iron Structure : The heavy cast iron base reduces vibrations, ensuring consistent work quality.

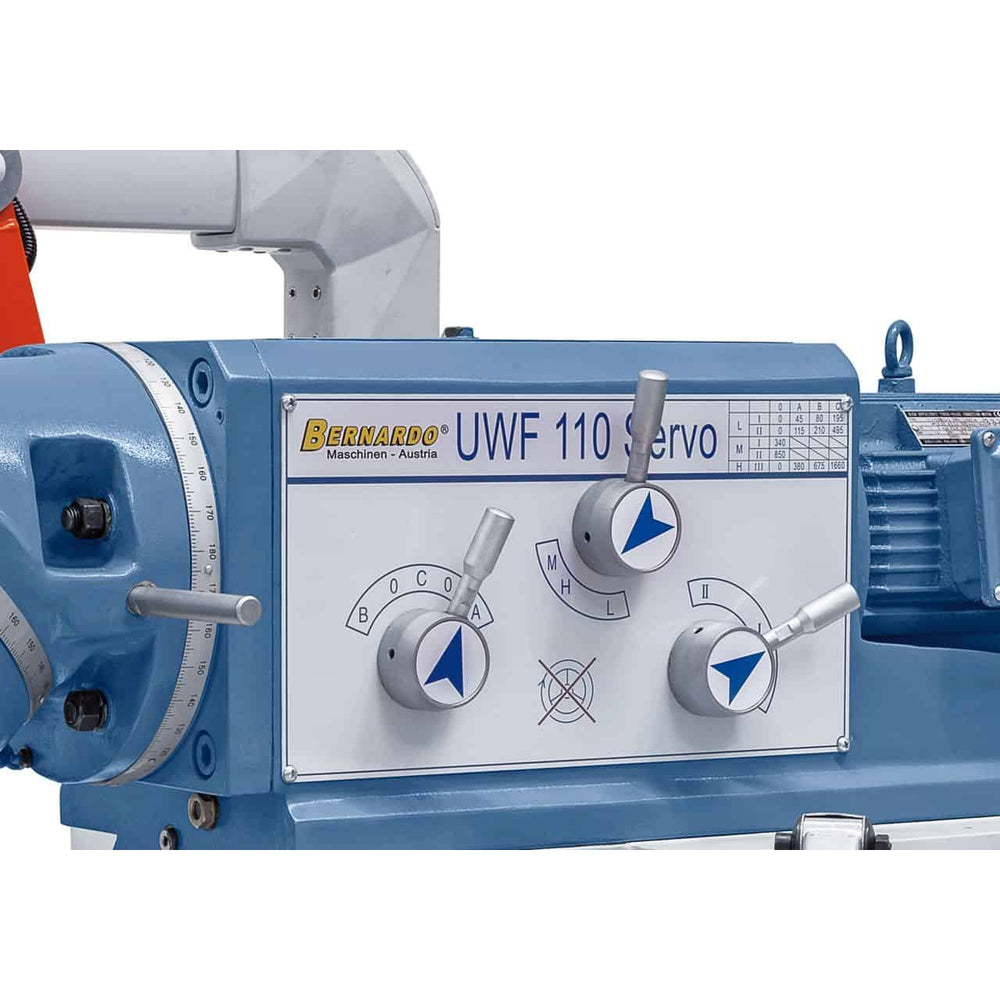

- Silent Gears : The transmission gears, operating in an oil bath, minimize noise and improve the durability of the machine.

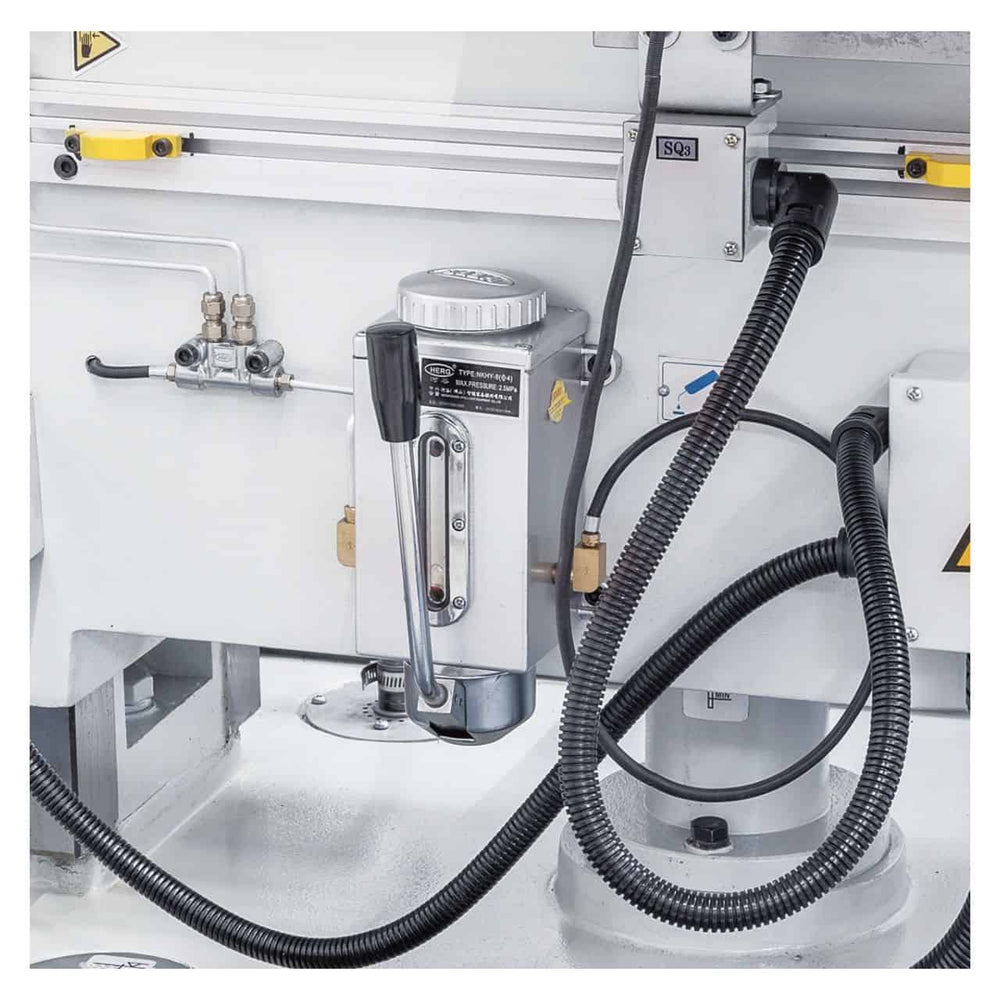

- Central Lubrication : Automatic centralized lubrication of the X, Y and Z axes ensures long life of the guides and reduces wear.
Standard Accessories:
- ES-12 H 3-Axis Position Display with LCD Display
- M16 clamping chuck
- Integrated LED light
- Refrigeration system with cooling tank
- Long and combined drill chuck ISO 40 / 27 mm
- External support

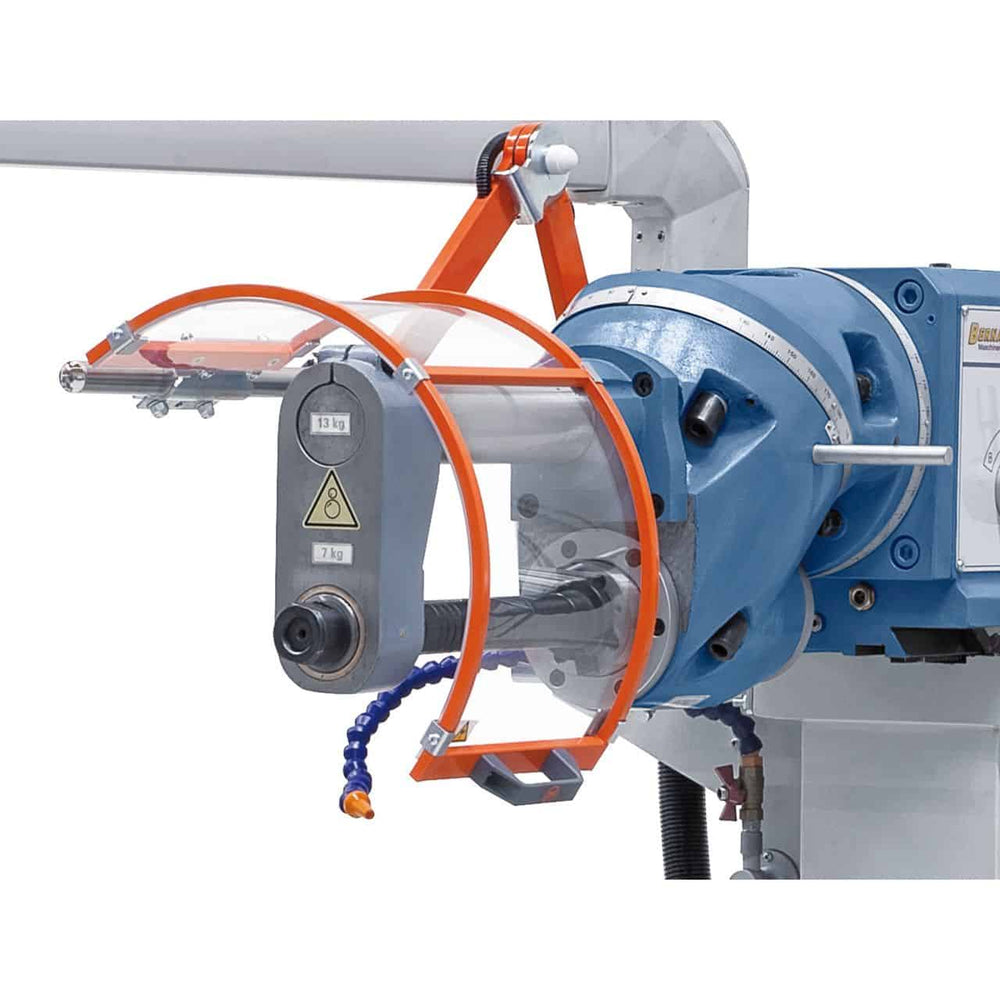

- Adjustable protection device
- Central lubrication for X, Y and Z axes
- Advanced control device
Technical Specifications :
| Characteristic | Detail |
|---|---|

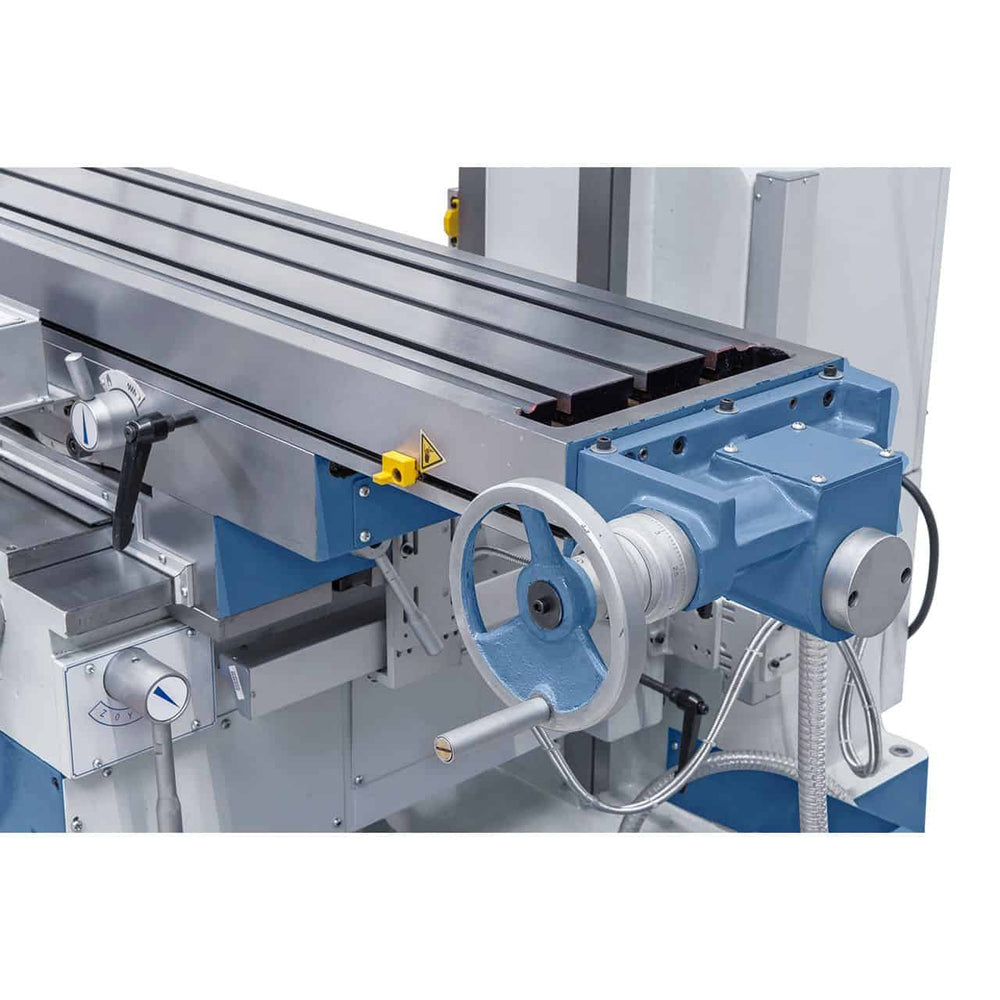

| Table dimensions | 1370 x 300 mm |
| Spindle attachment | ISO 40 |
| Spindle speed | (11) 45 – 1660 rpm |
| Longitudinal travel (X) | 1000 mm |
| Transverse stroke (Y) | 360 mm |
| Vertical stroke (Z) | 400 mm |
| Spindle/table distance | 60 – 460 mm |
| Length of the arms | 95 – 575 mm |
| Tilting table | from -45° to +45° |
| Maximum piece weight | 250 kg |
| Longitudinal / transverse advancement area | (8) 30 – 830 mm/min |
| Vertical advancement area | (8) 23 – 625 mm/min |
| Rapid travel X, Y and Z axes | 1000 / 1000 / 750 mm/min |

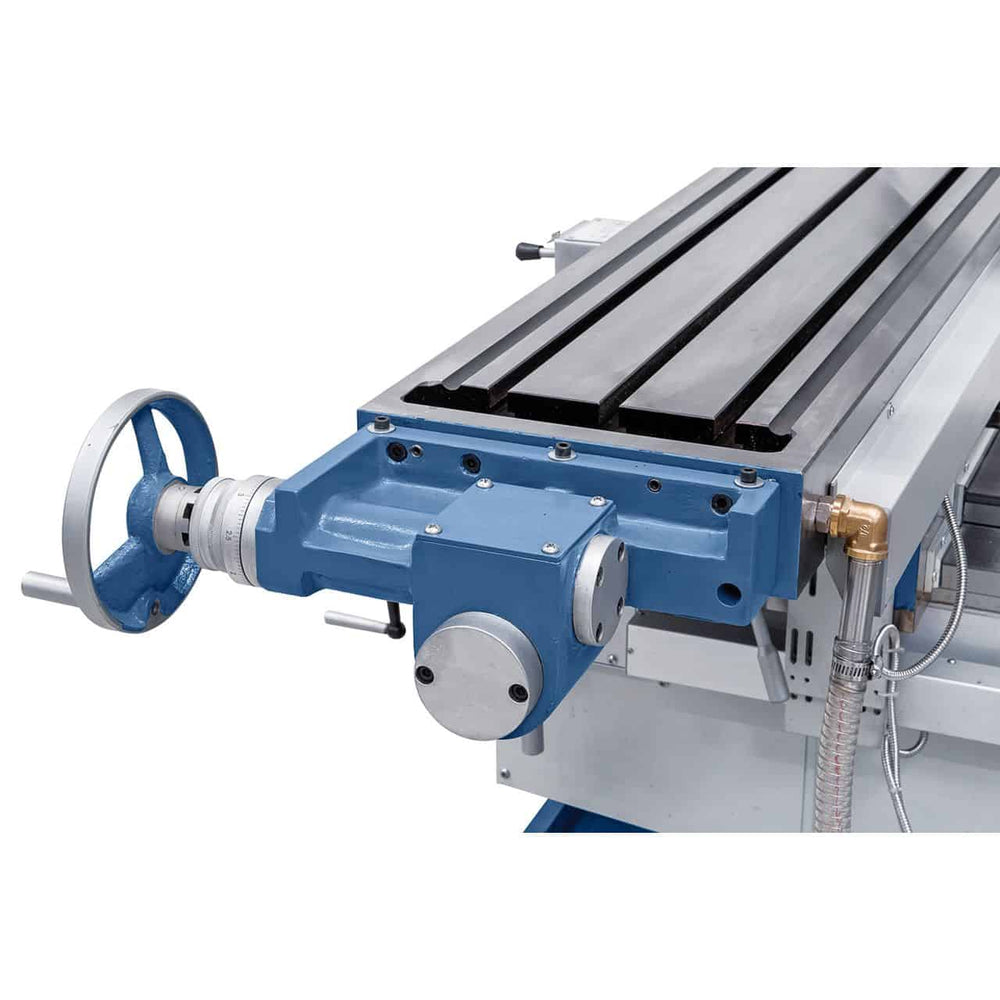

| T-slots (number, width, spacing) | 3 / 14 mm / 80 mm |
| Main engine power | 3.0 kW |
| Servo motor (torque / power) | 10 Nm / 1.5 kW |
| Pump power for coolant circulation | 60 W |
| Coolant circulation pump flow rate | 12 l/min |
| Machine dimensions (L x W x H) | 1740 x 1860 x 1900 mm |
| Weight | 1505 kg |
The UWF 110 Servo Universal Milling Machine is the ideal choice for workshops seeking a versatile and robust machine for precision machining in small and medium runs. The universal milling head, combined with the automatic feed system and servo motor for rapid travel on all axes, offers flexibility and operational efficiency, ensuring maximum stability thanks to its rectangular guideways. With a wide range of included accessories and a central lubrication system, this milling machine is an ideal investment for those seeking quality and reliability.
