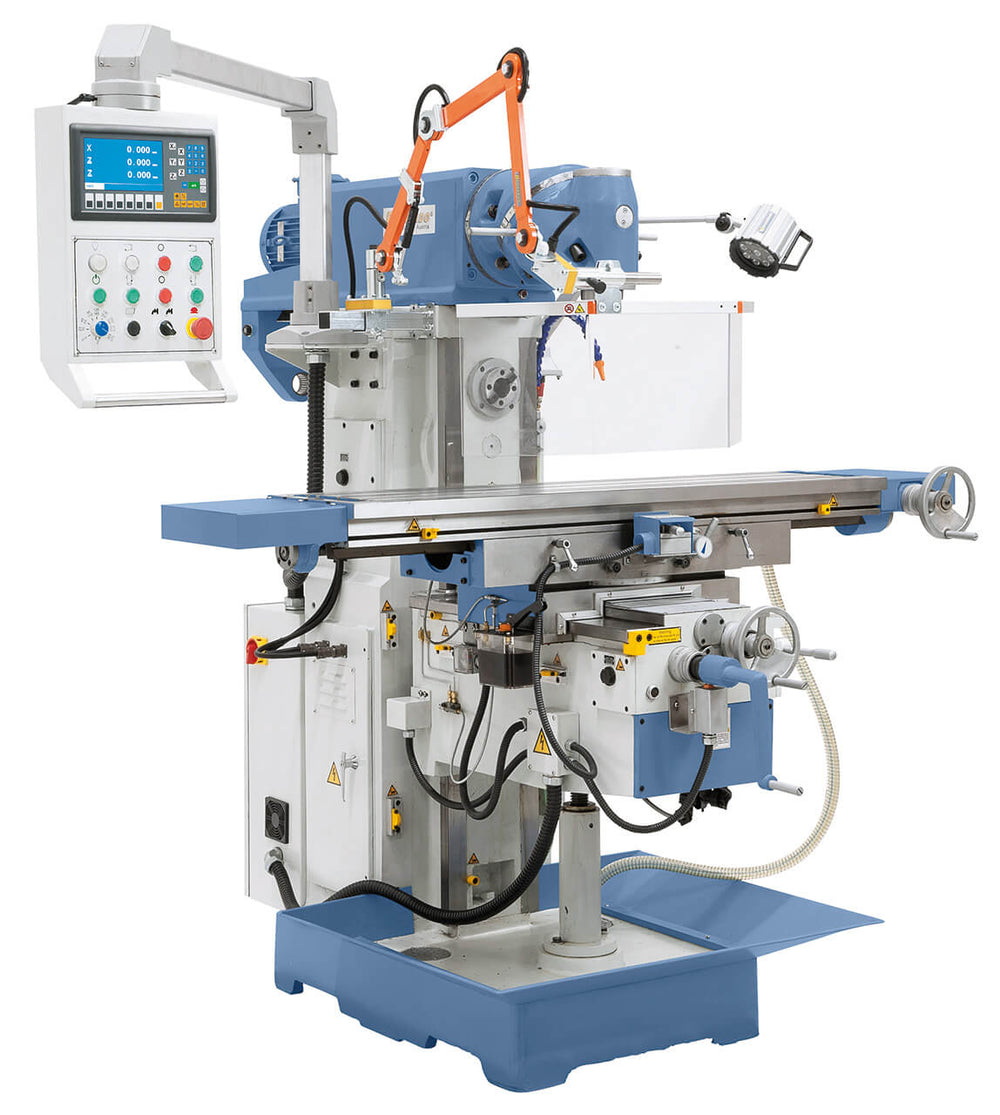

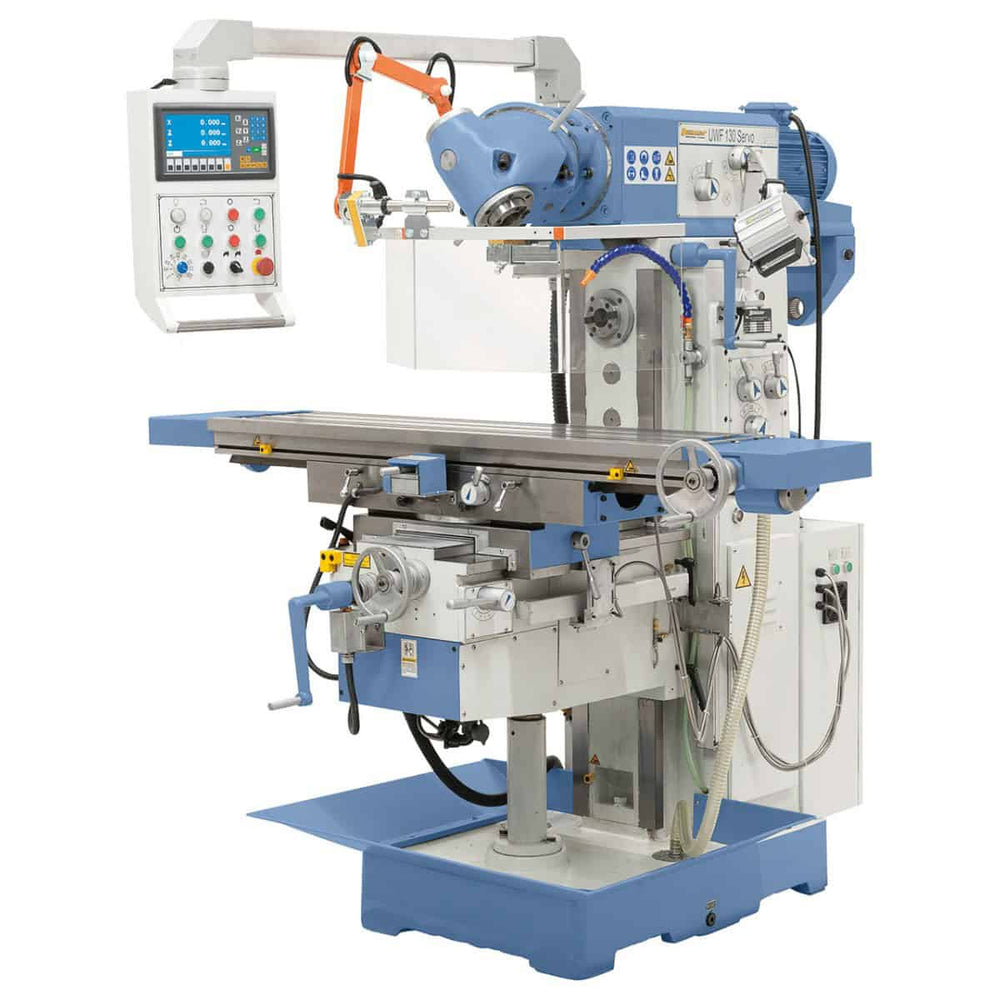

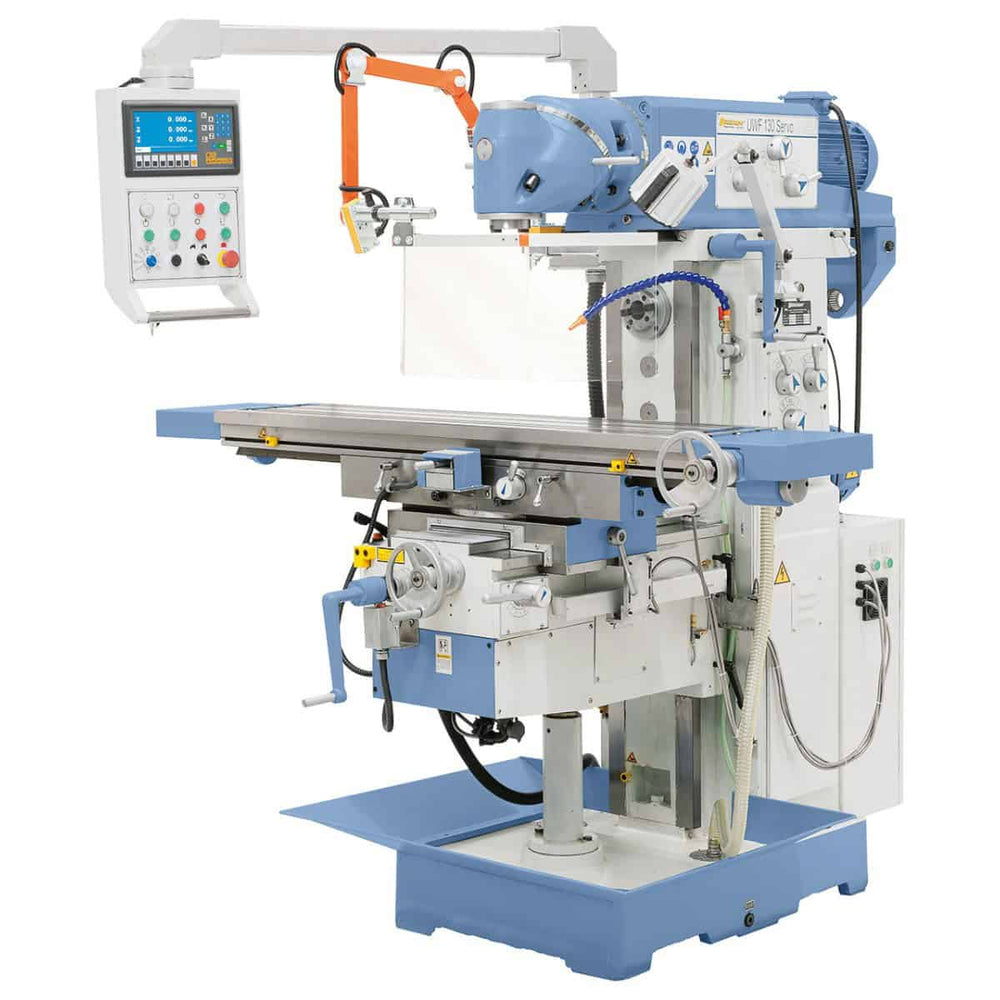

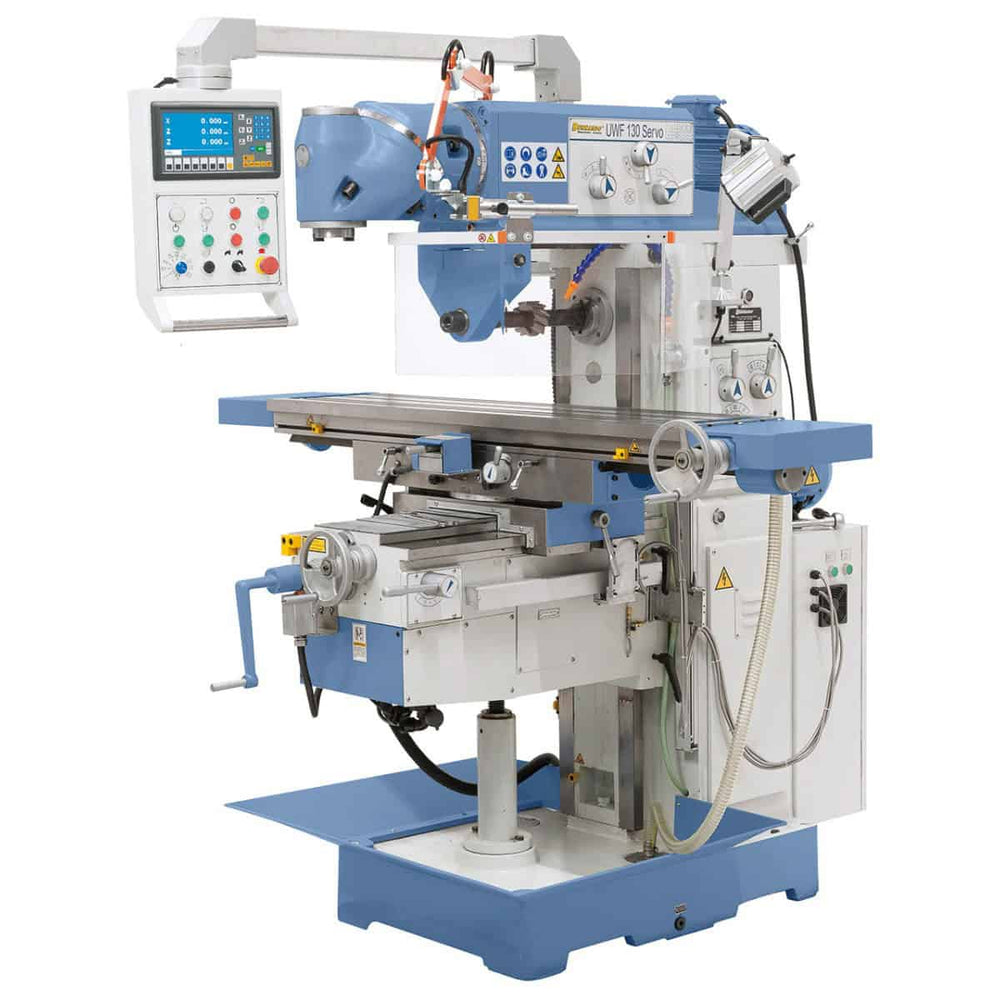

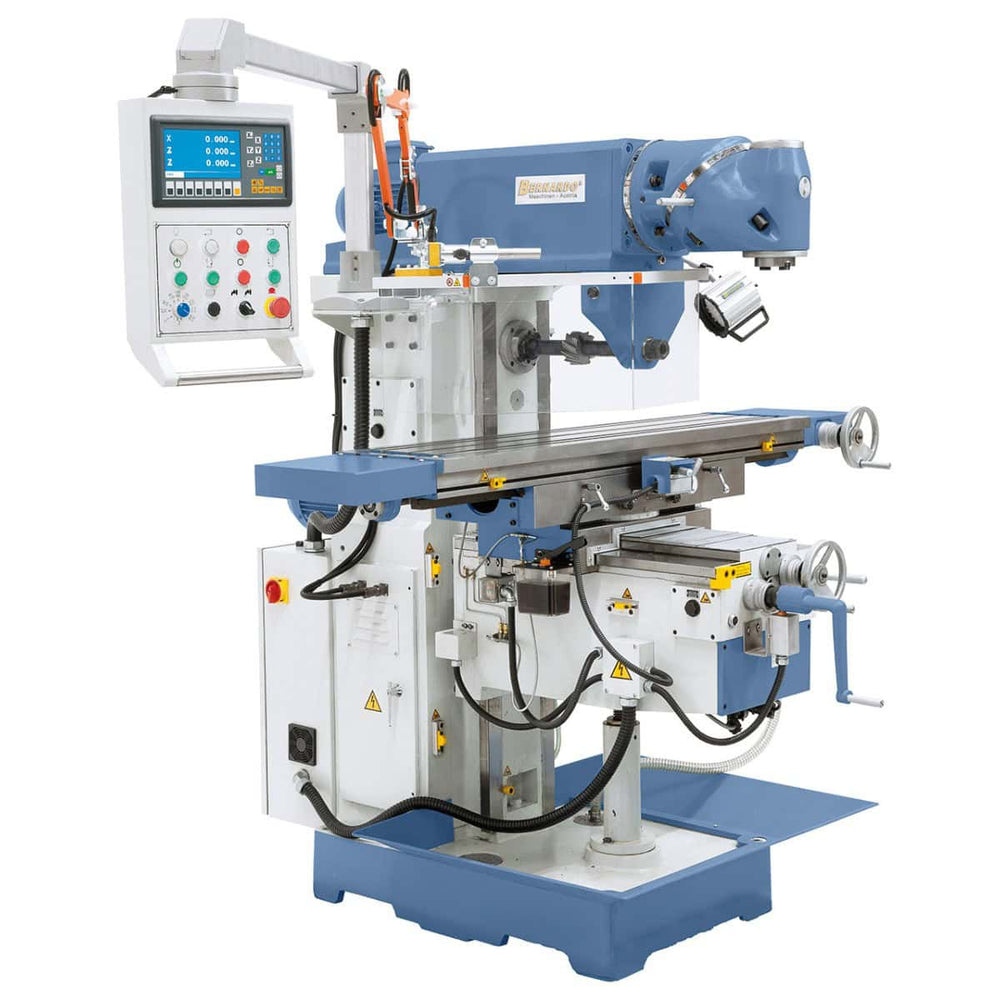

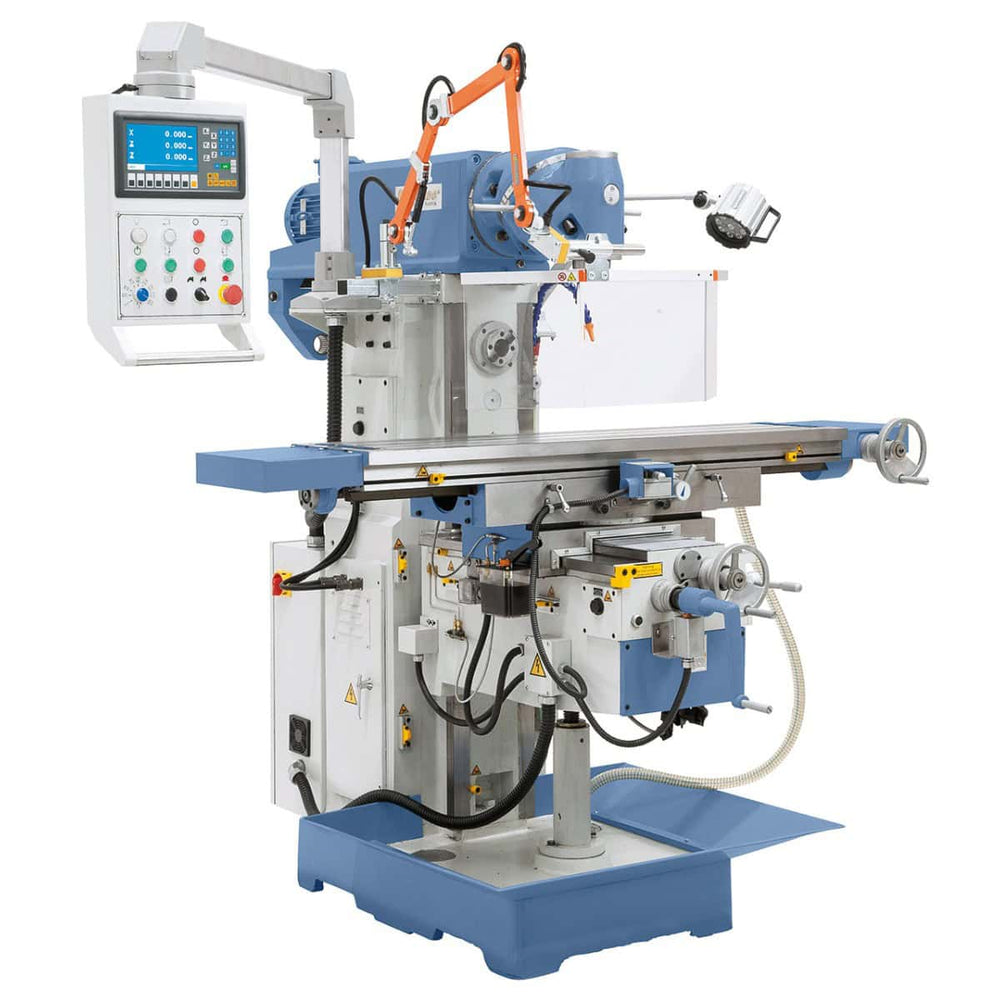

UWF 130 Servo Universal Milling Machine with Movable Arm
The UWF 130 Servo Universal Milling Machine is an advanced model that represents an evolution of the popular UWF 130, equipped with features ideal for precision machining. Thanks to its universal milling head, adjustable in all angular positions, and its extended 1000 mm travel on the X-axis, this machine offers great versatility and machining capacity. The combination of servo motors for automatic feed on all axes and rapid traverse reduces downtime and improves operational efficiency.
Main Features:

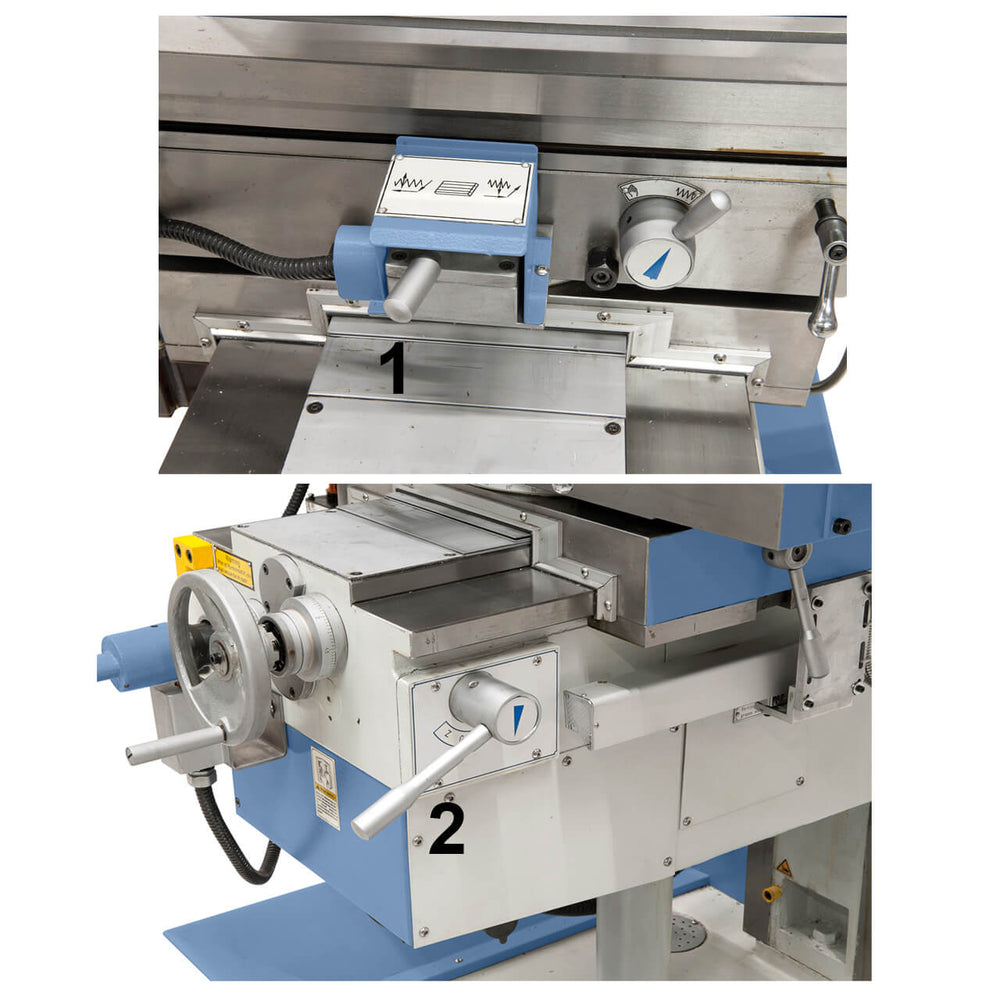

- Servo Motors for Automatic Feeds : The milling machine is equipped with servo motors that allow automatic and precise feeds on all axes (X, Y, Z), with rapid travel to increase productivity.

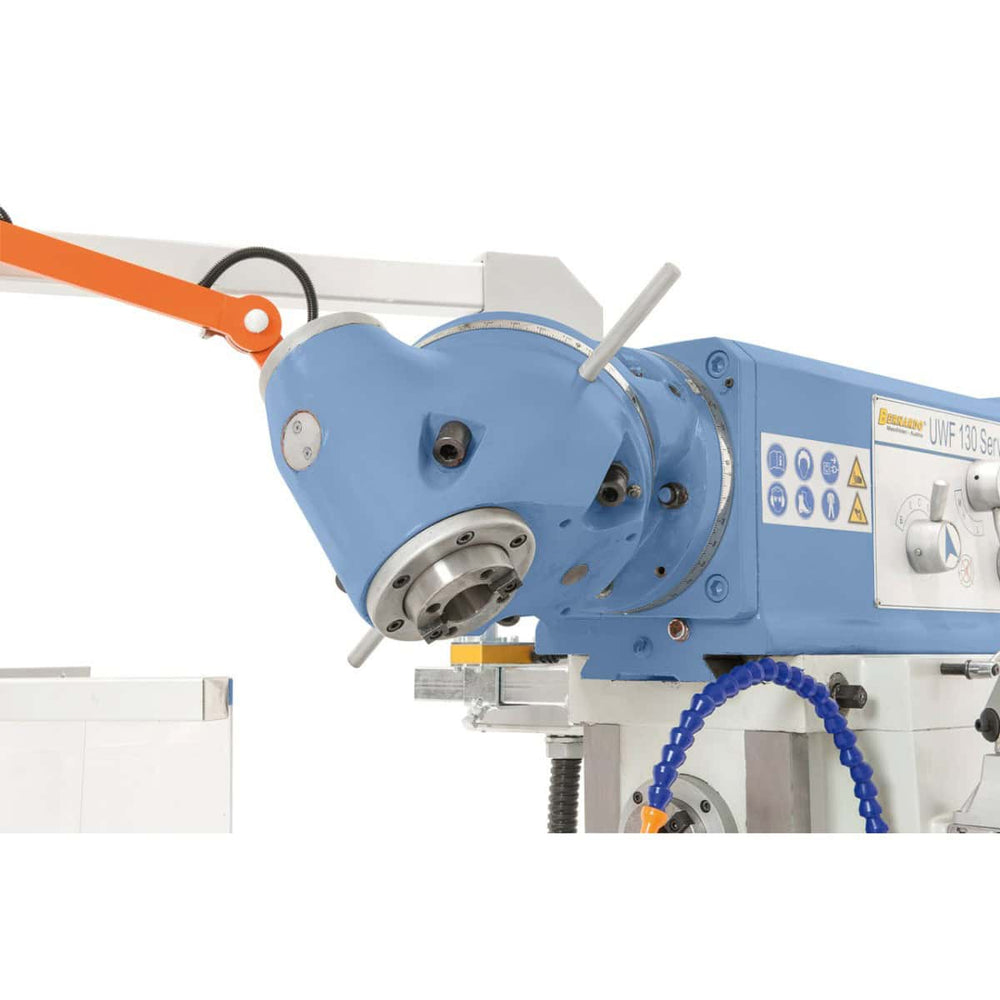

- Universal Milling Head : The head is adjustable in all angular positions, expanding the range of applications and allowing complex machining from different angles.

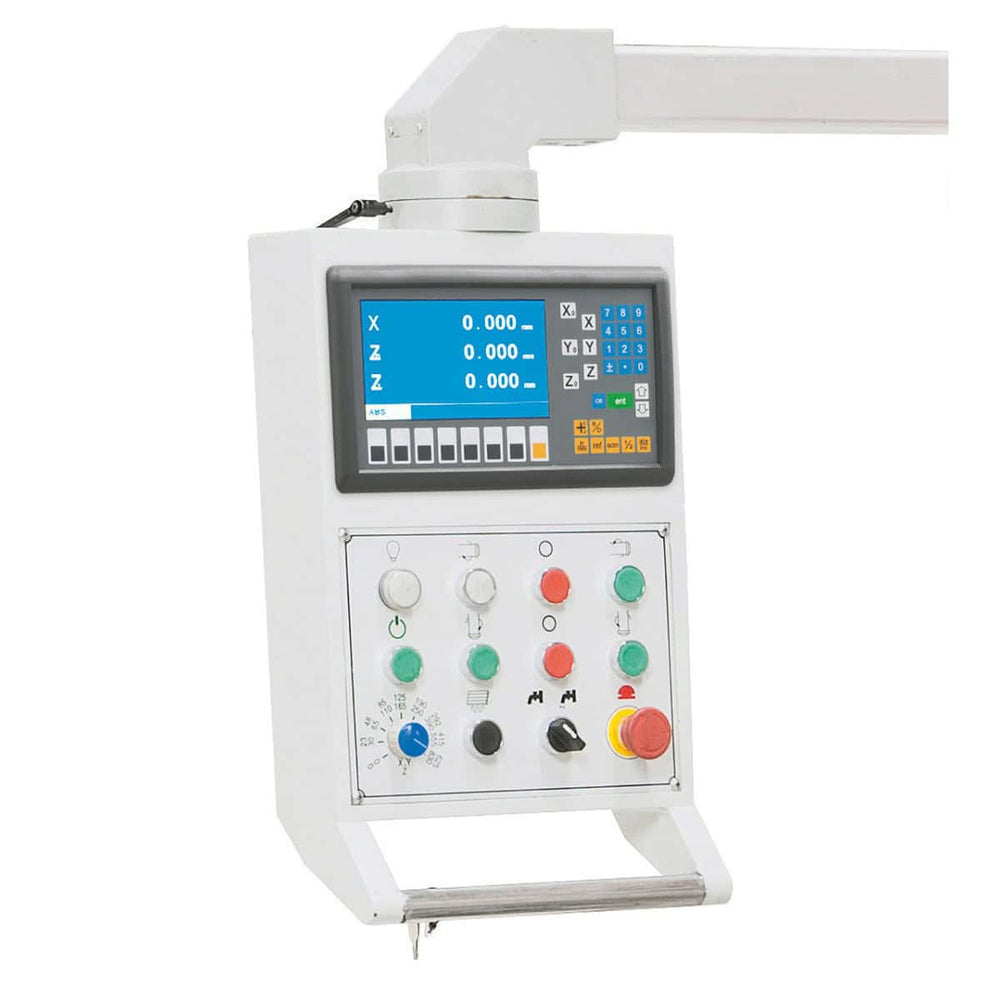

- Ergonomic Control Panel : The tilting panel is designed to facilitate access to the controls and adjustment of the machine, improving ergonomics and safety.

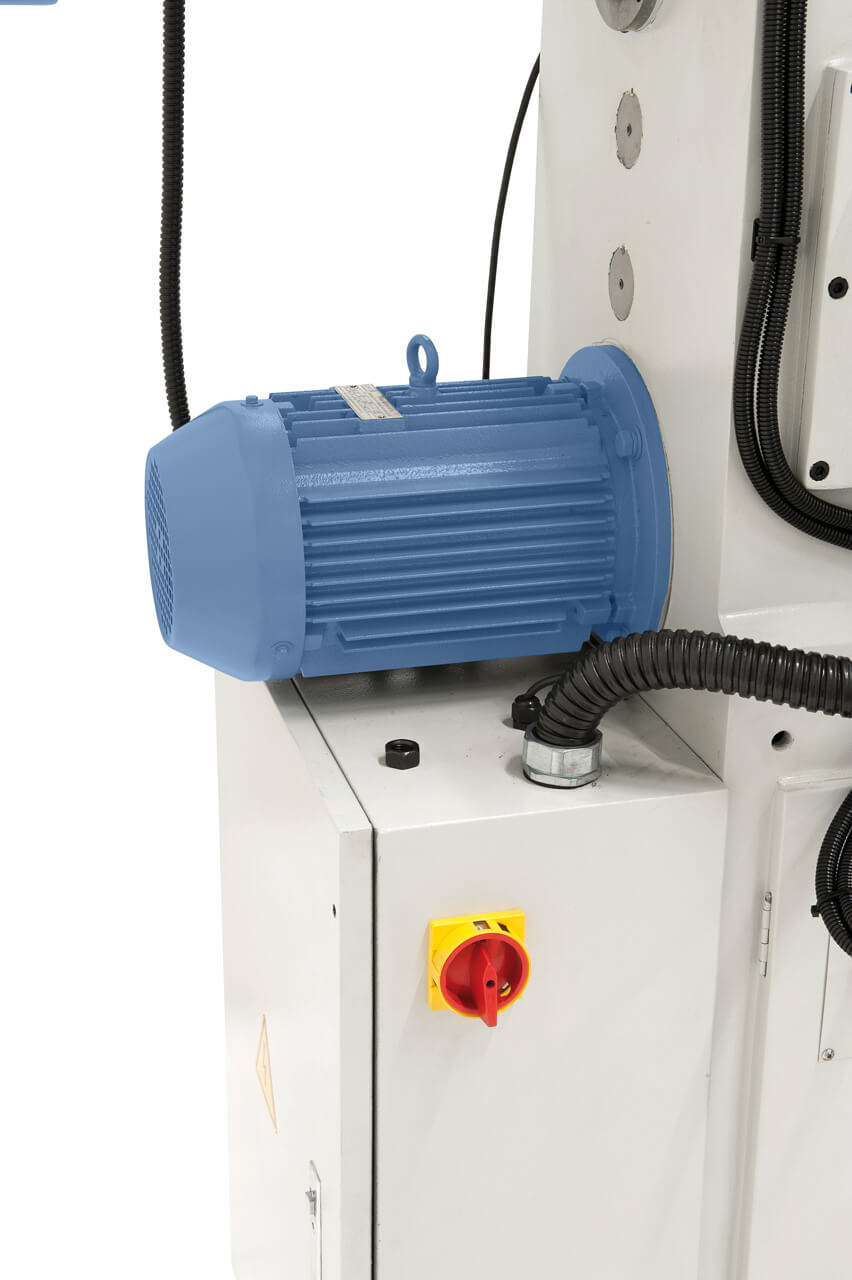

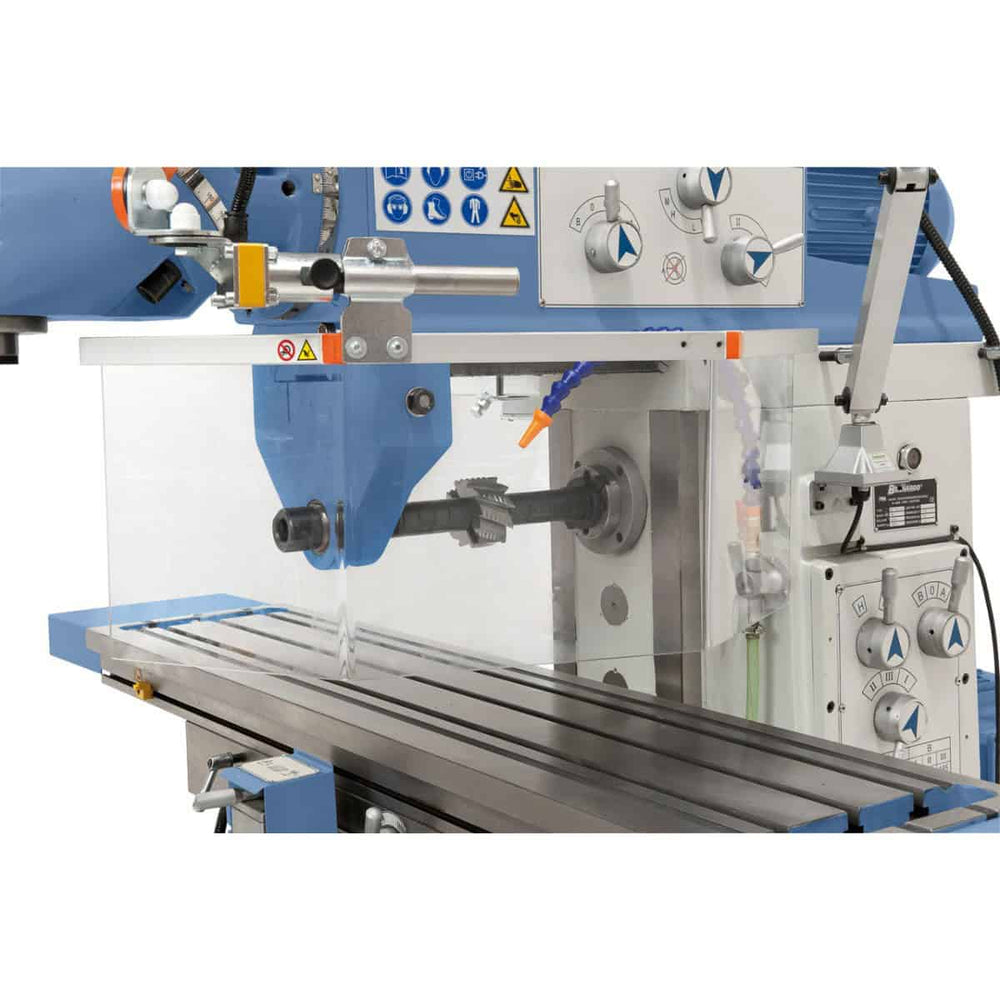

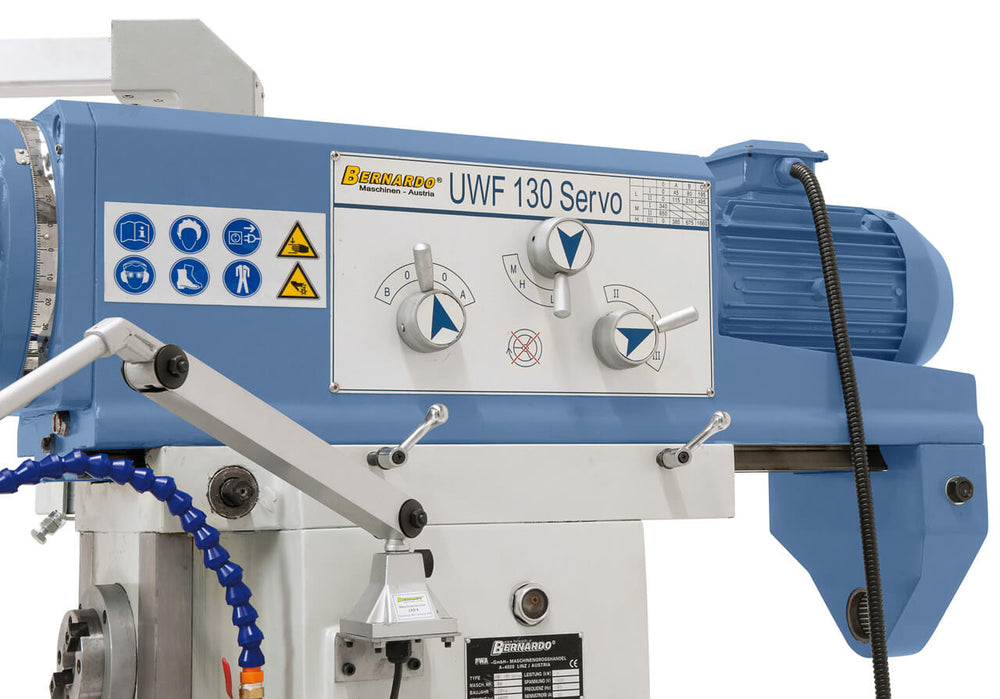

- Independent Horizontal and Vertical Spindles : The horizontal spindle and universal milling head are powered by two independent motors, ensuring flexibility and power in every operation.

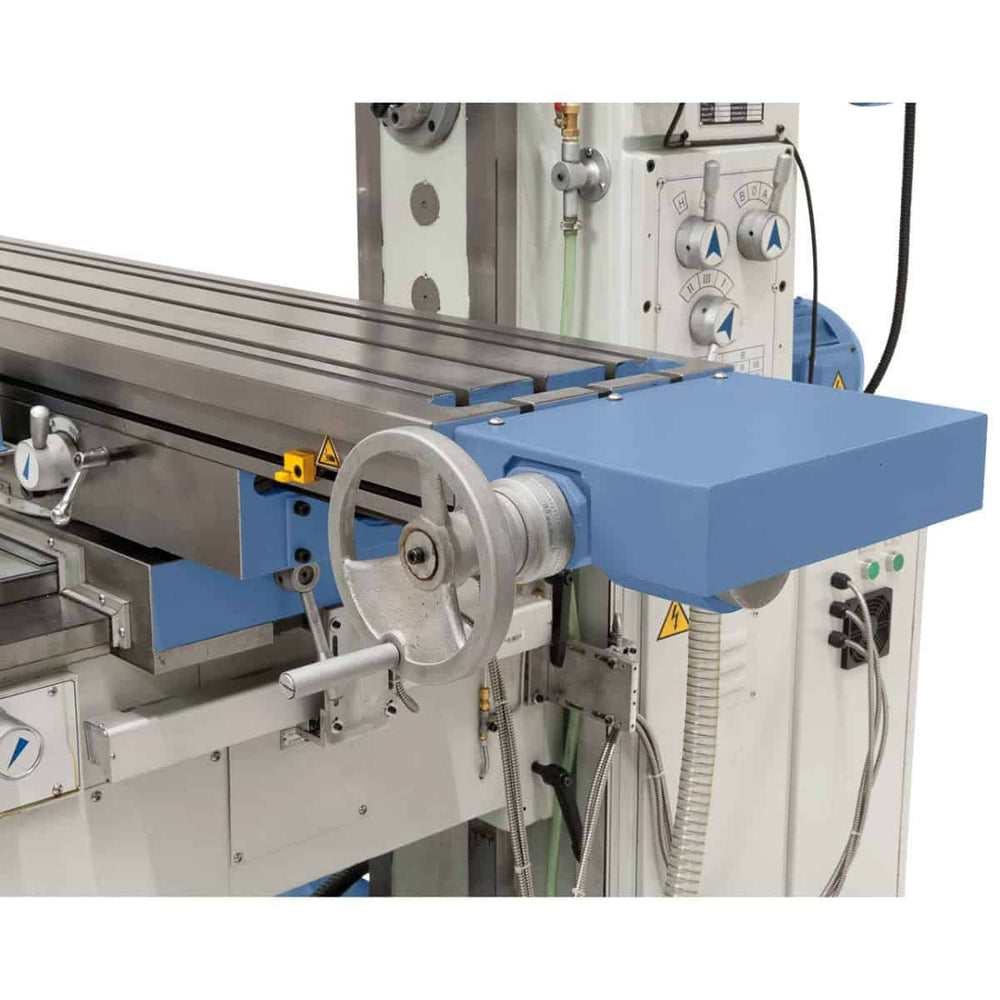

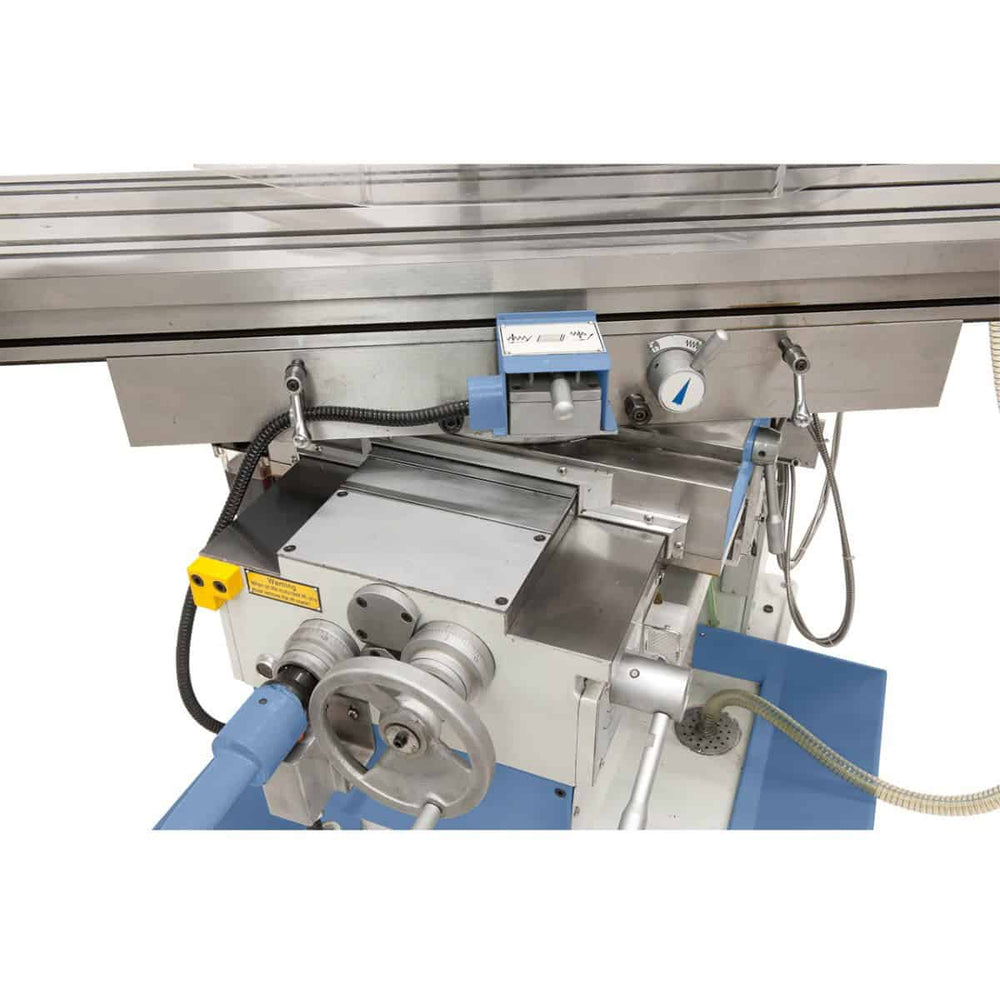

- Finely Crafted Work Table : The large composite T-slot table is designed to provide a large work surface, with stability and precision even when clamping heavy workpieces.
- Central Lubrication : The machine is equipped with a central lubrication system for the X, Y and Z axis guideways, improving machine life and machining accuracy.
Standard Accessories:
- ES-12 H 3-Axis Position Display with LCD Display
- M 16 clamping chuck
- LED light to illuminate the work area
- Automatic feed for X, Y and Z axes
- Refrigeration system with cooling tank
- Horizontal external support
- Long drilling chuck ISO 40/27 mm, ISO 40/40 mm
- Reduction socket ISO 40 / MK 4, ISO 40 / MK 3, ISO 40 / MK 2
- Universal protection device
- Central lubrication for X, Y and Z axes
- Advanced control device
Technical Specifications :
| Characteristic | Detail |
|---|---|
| Table dimensions | 1370 x 320 mm |
| Horizontal spindle attachment | ISO 40 |
| Vertical spindle attachment | ISO 40 |

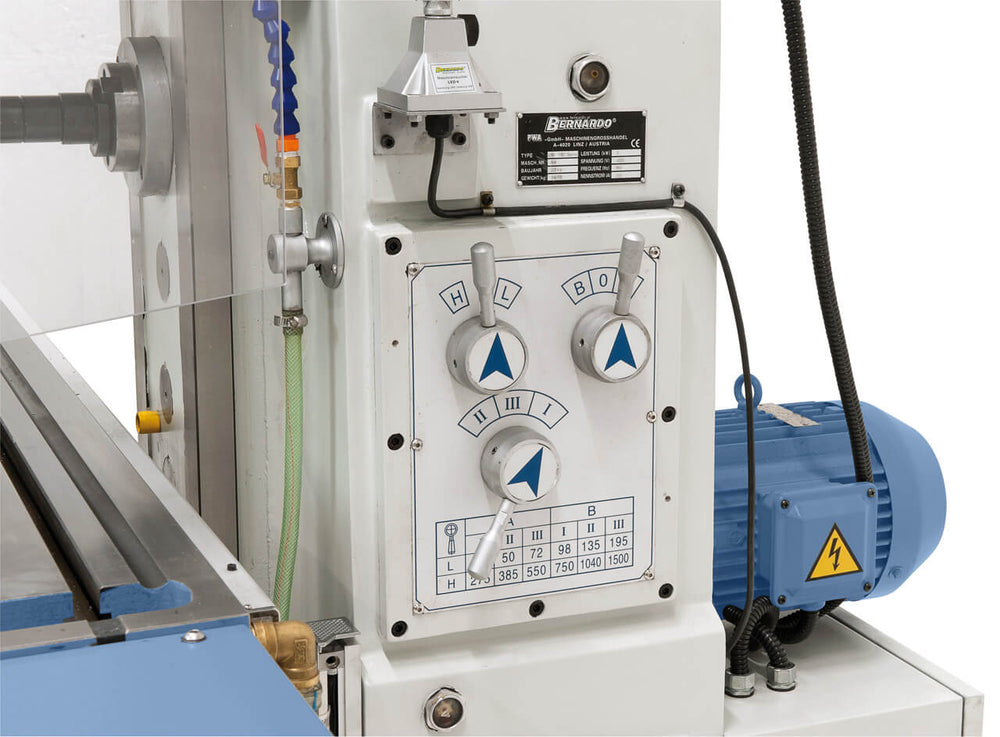

| Horizontal spindle speed | (12) 35 – 1500 rpm |
| Number of revolutions of the vertical spindle | (11) 45 – 1660 rpm |
| Longitudinal travel (X) | 1000 mm |
| Transverse stroke (Y) | 360 mm |
| Vertical stroke (Z) | 400 mm |
| Distance between spindle and horizontal table | 30 – 430 mm |
| Distance between spindle and vertical table | 210 – 610 mm |
| Length of the arms | 305 – 805 mm |
| Tilting table | from -45° to +45° |
| Maximum piece weight | 300 kg |
| Longitudinal / transverse advancement area | (8) 30 – 830 mm/min |
| Vertical advancement area | (8) 23 – 625 mm/min |
| Rapid travel X, Y, Z axes | 1000 / 1000 / 750 mm/min |
| T-slots (number, width, spacing) | 3 / 14 mm / 80 mm |
| Horizontal engine power | 3.0 kW |
| Vertical motor power | 3.0 kW |
| Servo motor (torque / power) | 10 Nm / 1.5 kW |
| Pump power for coolant circulation | 90 W |
| Coolant circulation pump flow rate | 25 l/min |
| Machine dimensions (L x W x H) | 1840 x 1830 x 2050 mm |
| Weight | 1540 kg |
The UWF 130 Servo Universal Milling Machine is a versatile and powerful solution for advanced milling operations. With its movable arm, adjustable milling head, and extended axis travel, this model is ideal for industrial applications requiring precision and reliability. Servo motors for automatic feeds and rapid traverse on the X, Y, and Z axes increase efficiency, while the ergonomic design and centralized lubrication ensure long-lasting, safe operation.
