Description

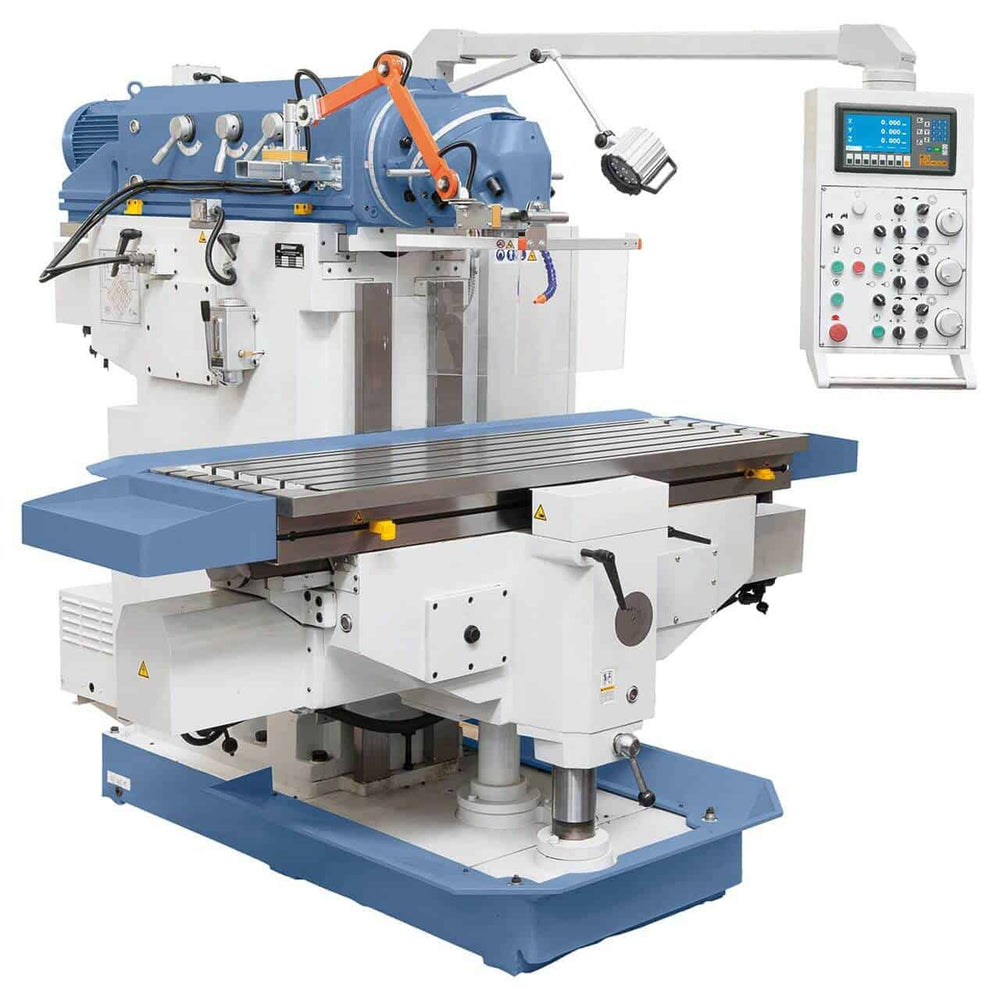

Variomill FU 1600 E Servo Universal Milling Machine

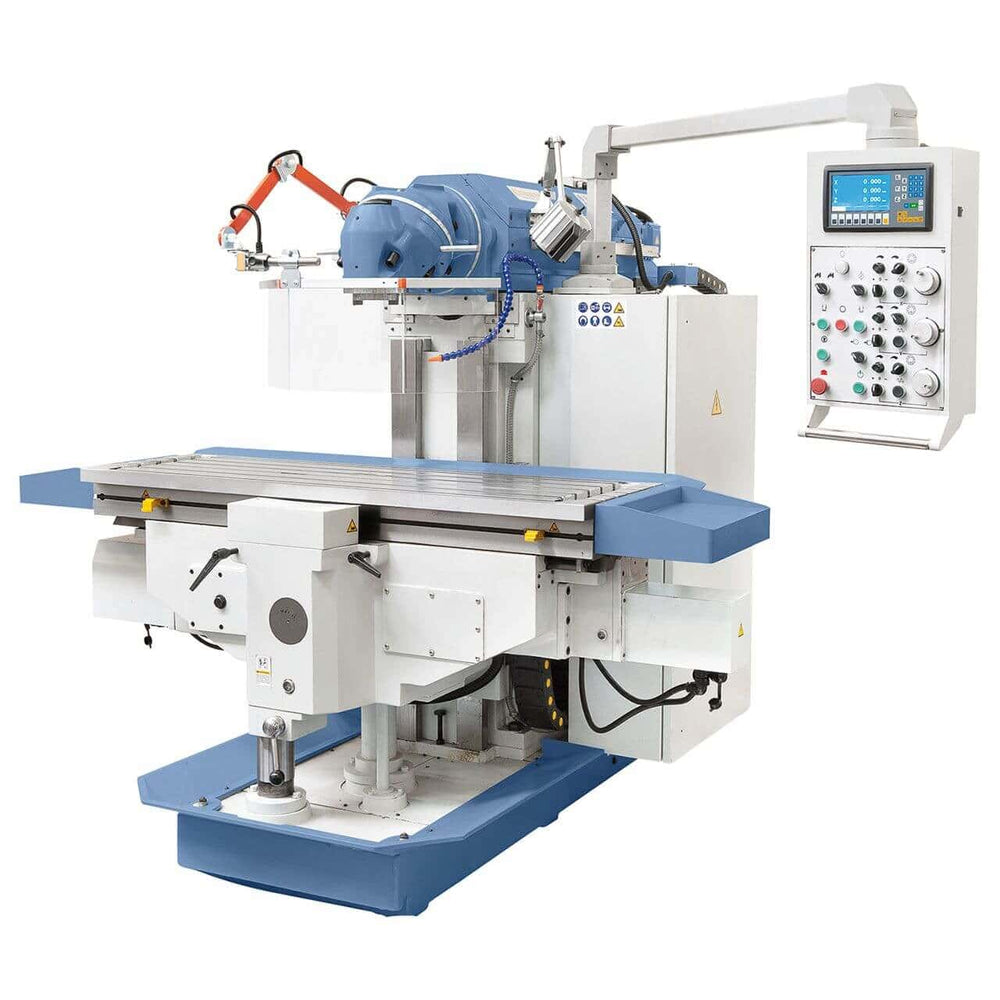

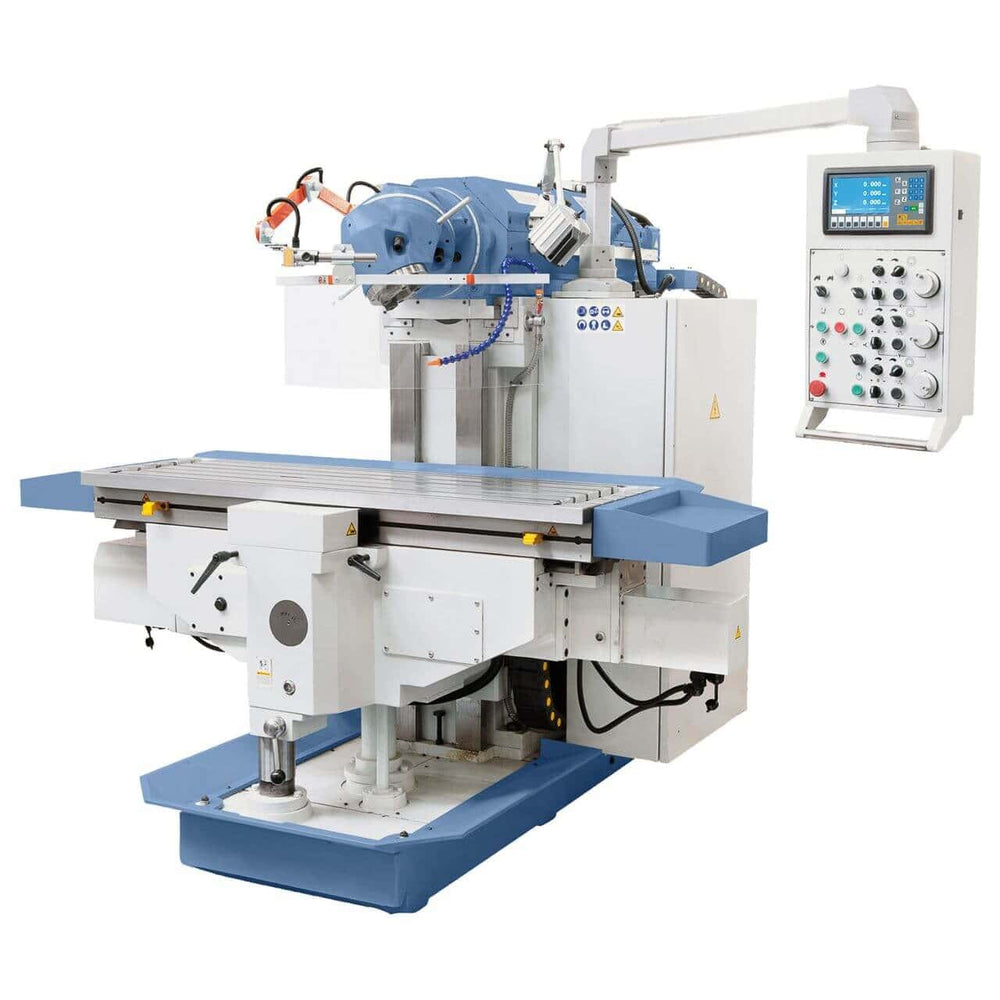

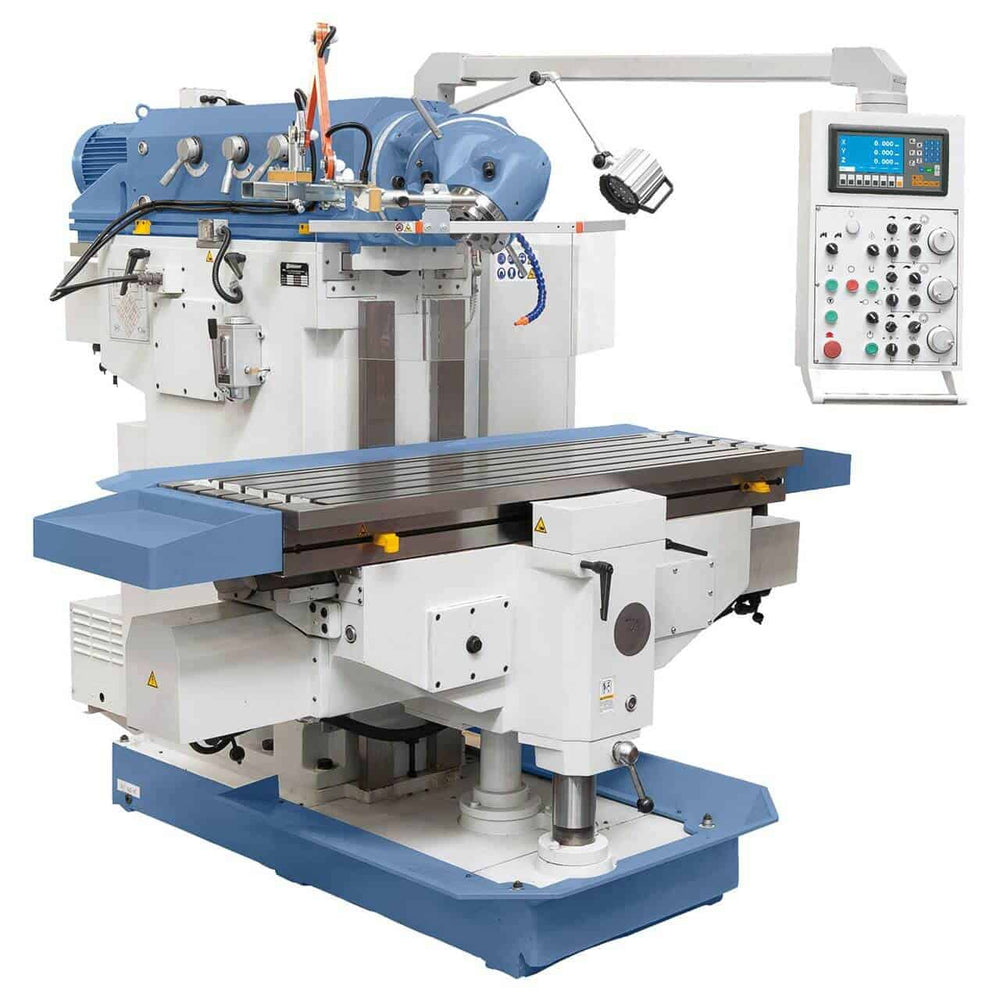

The Variomill FU 1600 E Servo is a high-precision universal milling machine designed for heavy-duty machining of large workpieces. Built with a robust, solid cast iron frame, this machine guarantees stability and reliability, even under the most demanding working conditions. With a servo motor powering the axes for continuous automatic feed and rapid traverses, the Variomill FU 1600 E Servo is a versatile and powerful solution for advanced milling operations.
Main Features:
- Solid Cast Iron Construction : The machine is constructed from heavy cast iron to ensure a sturdy base, minimizing vibration, ideal for precision machining on large workpieces.

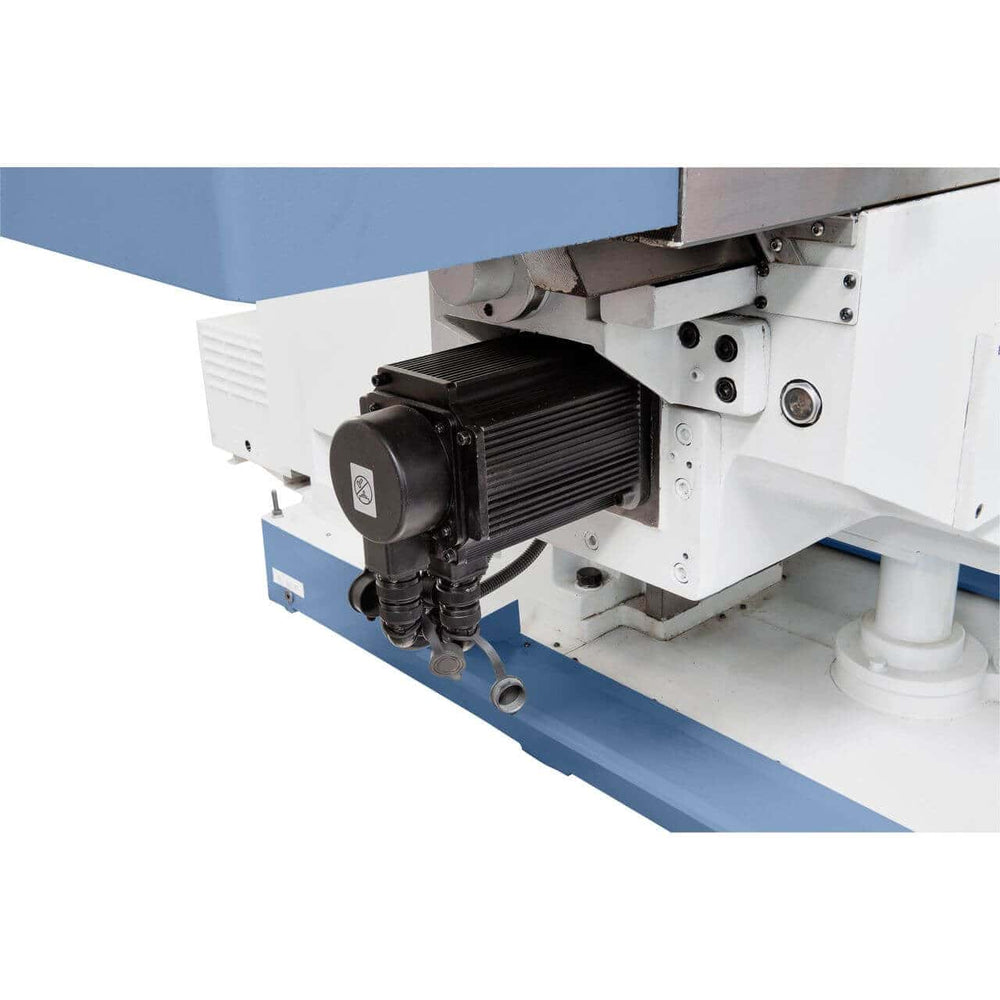

- Servo-assisted feed : The servo motor allows for continuous automatic feed and rapid travel in all axes, improving productivity and precision.
- Turcite B Coating : The coating on the X-axis reduces the slip-stick effect, offering smoother movement and a longer operating life.
- Preloaded Rotary Ball Spindles : Featured on all three axes, they eliminate backlash, ensuring precision during movement.

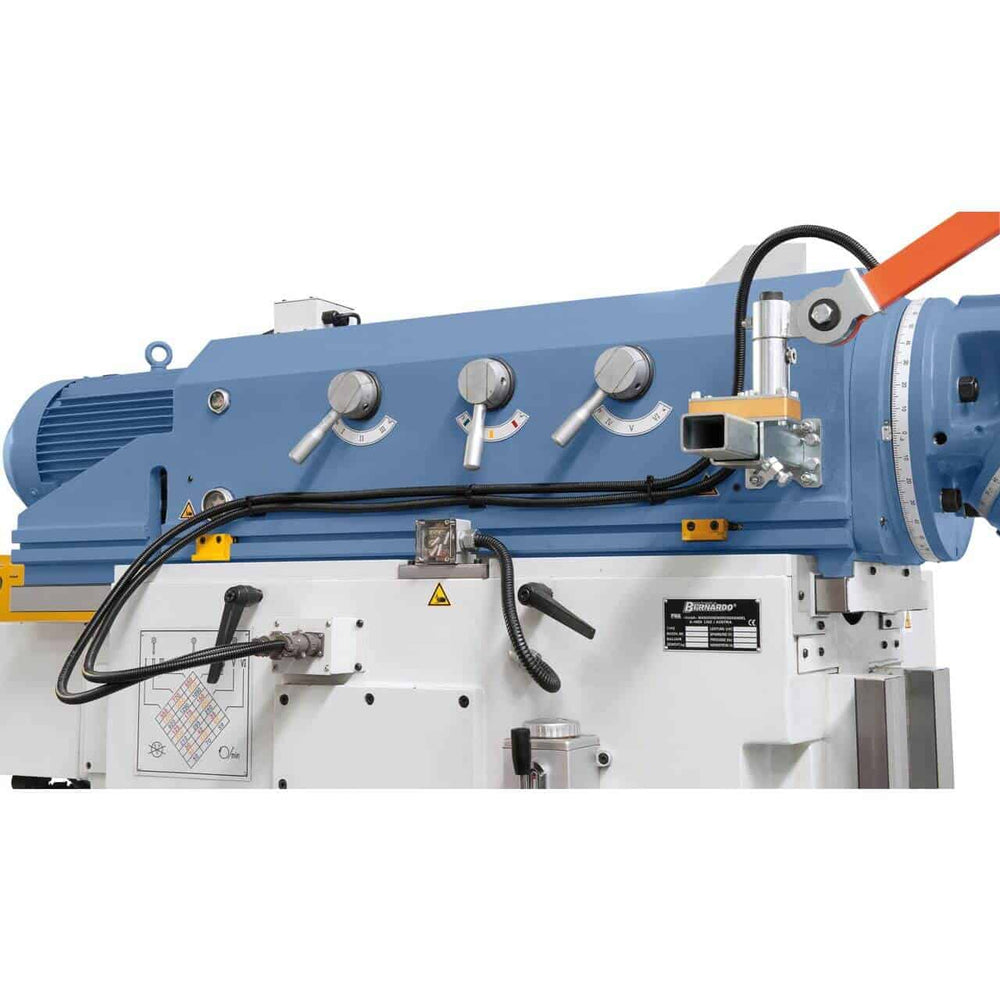

- Nitrided and Ground Gears : The hardened and nitrided gears, immersed in an oil bath, ensure long life and silent operation.
- Large Work Table : With a work surface of 1600 x 500 mm, the T-slot composite table provides ample space for positioning and clamping large workpieces.
- Automatic Lubrication : The central lubrication system keeps the guides always optimally lubricated, reducing wear and improving overall efficiency.
Standard Accessories:

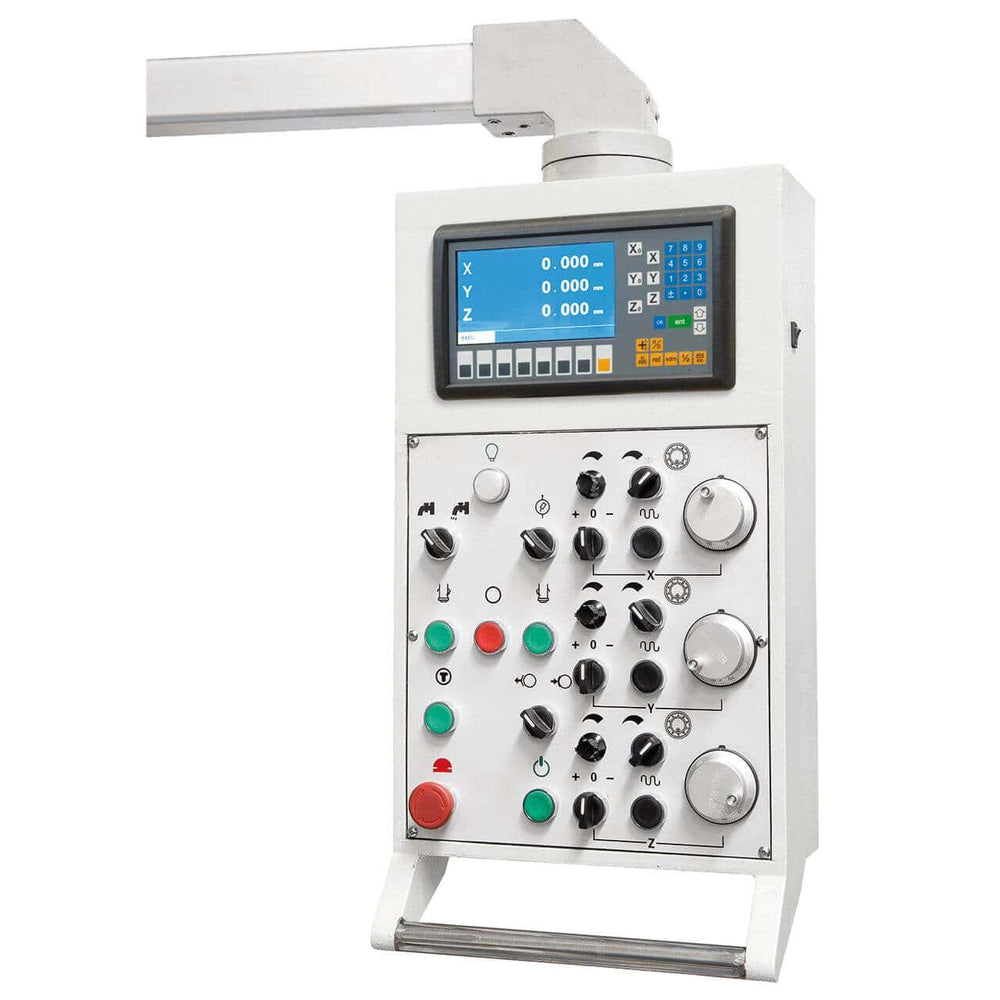

- ES-12 H 3-Axis Position Display with LCD Display
- Electronic flyers
- Clamping chuck
- Refrigeration system with cooling tank
- Integrated LED light

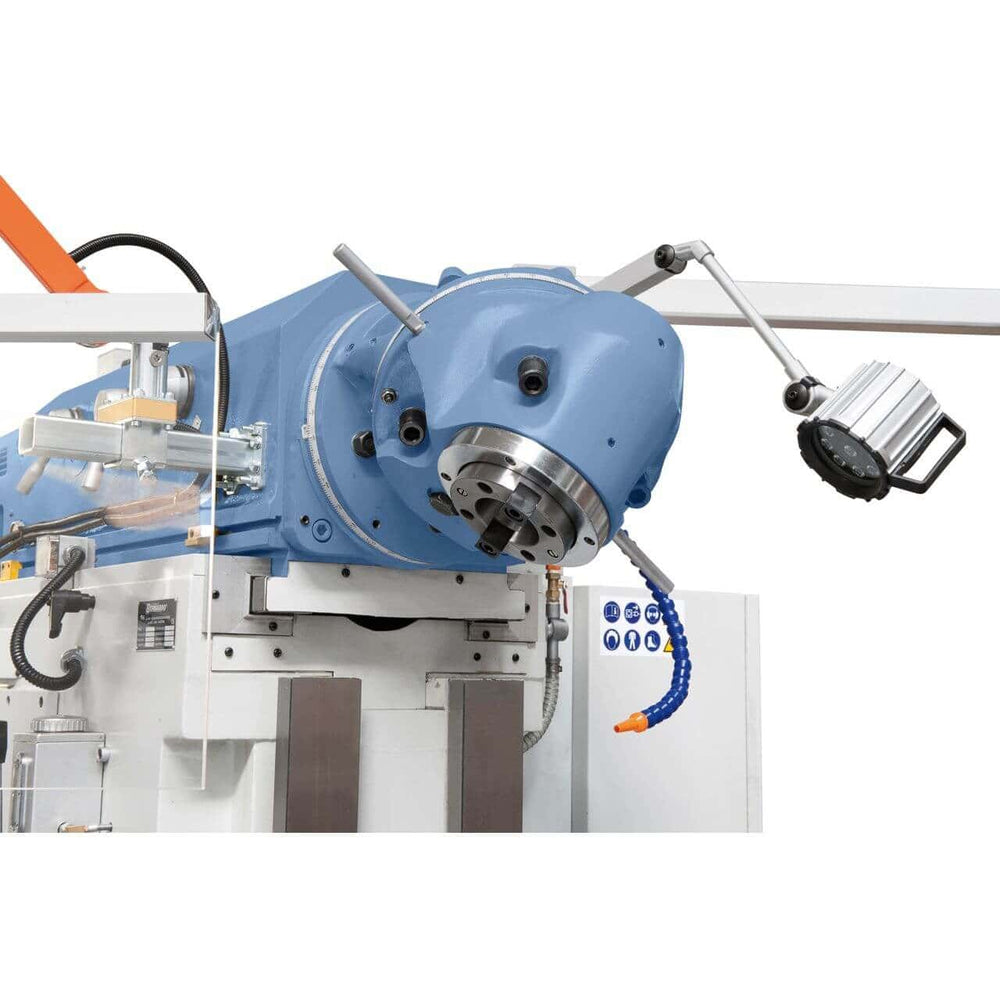

- Universal milling head

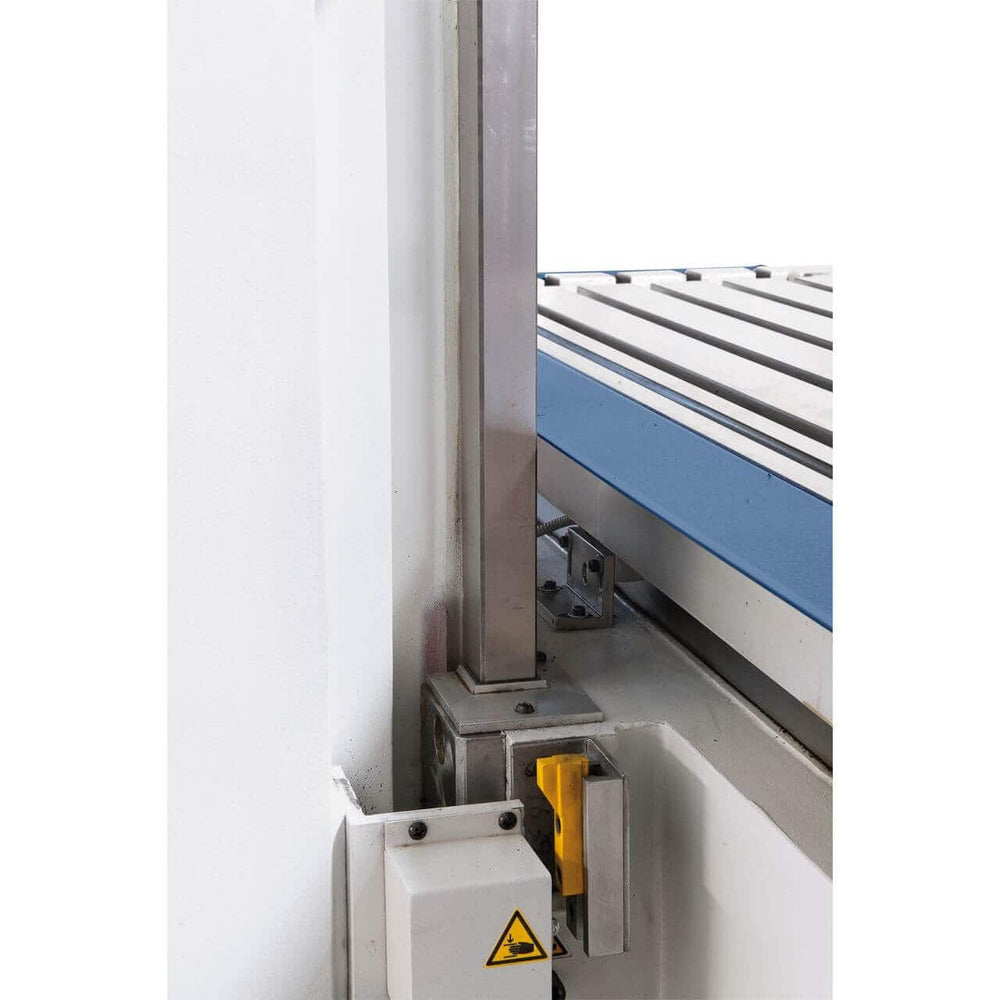

- Universal protection device
- Spindle brake
- Ball spindles rotating in all axes
- Automatic central lubrication
- Combination drill chuck

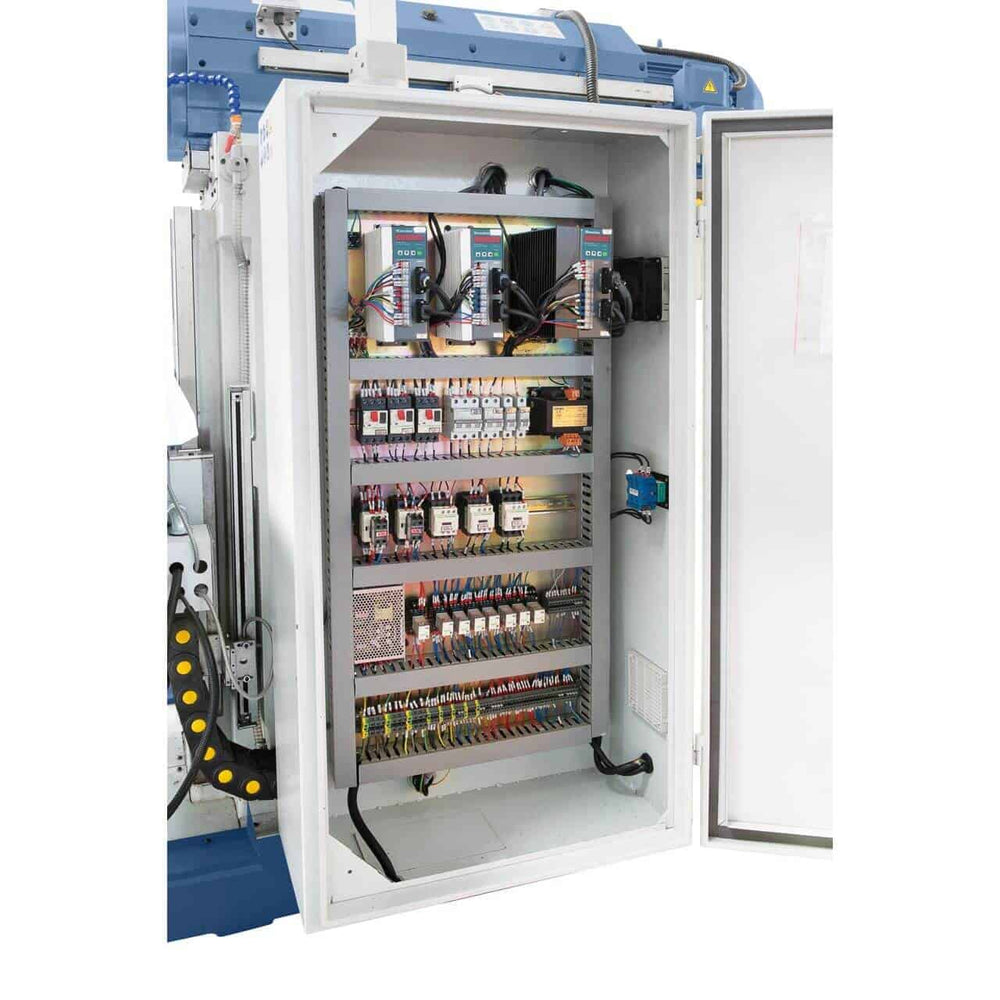

- Advanced control device
Technical Specifications :
| Characteristic | Detail |
|---|---|
| Table dimensions | 1600 x 500 mm |
| Spindle attachment | ISO 50 |
| Spindle speed | (27) 30 – 2050 rpm |
| Longitudinal travel (x) | 1200 mm |
| Transverse travel (y) | 700 mm |
| Vertical travel (z) | 500 mm |
| Spindle/table distance | 50 – 550 mm |
| Length of the arms | 28 – 728 mm |
| Longitudinal advancement area | 10 – 1000 mm/min |
| Transverse advancement area | 10 – 1000 mm/min |
| Vertical advancement area | 5 – 500 mm/min |
| Rapid travel on the x and y axes | 2200 mm/min |
| Z-axis rapid traverse | 1100 mm/min |
| Table load | 1800 kg |
| T-slots (width, distance, number) | 5 / 18 mm / 80 mm |

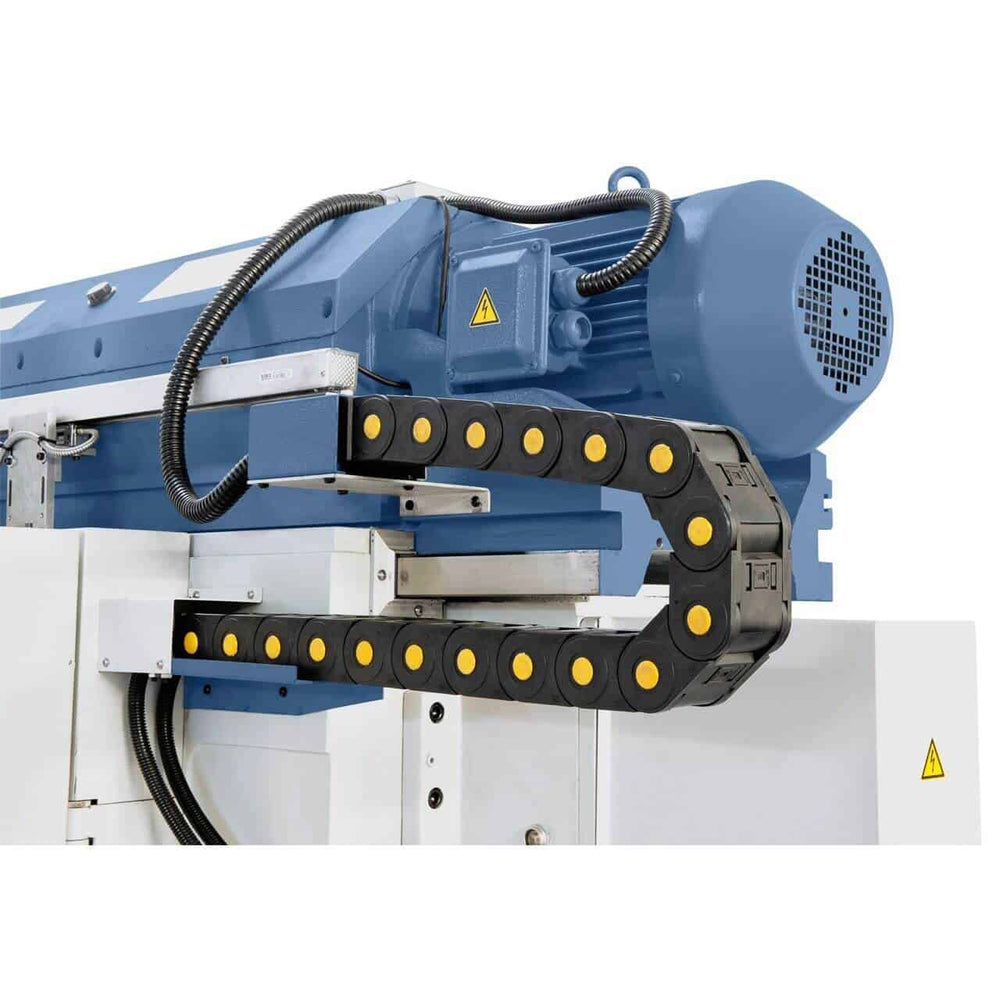

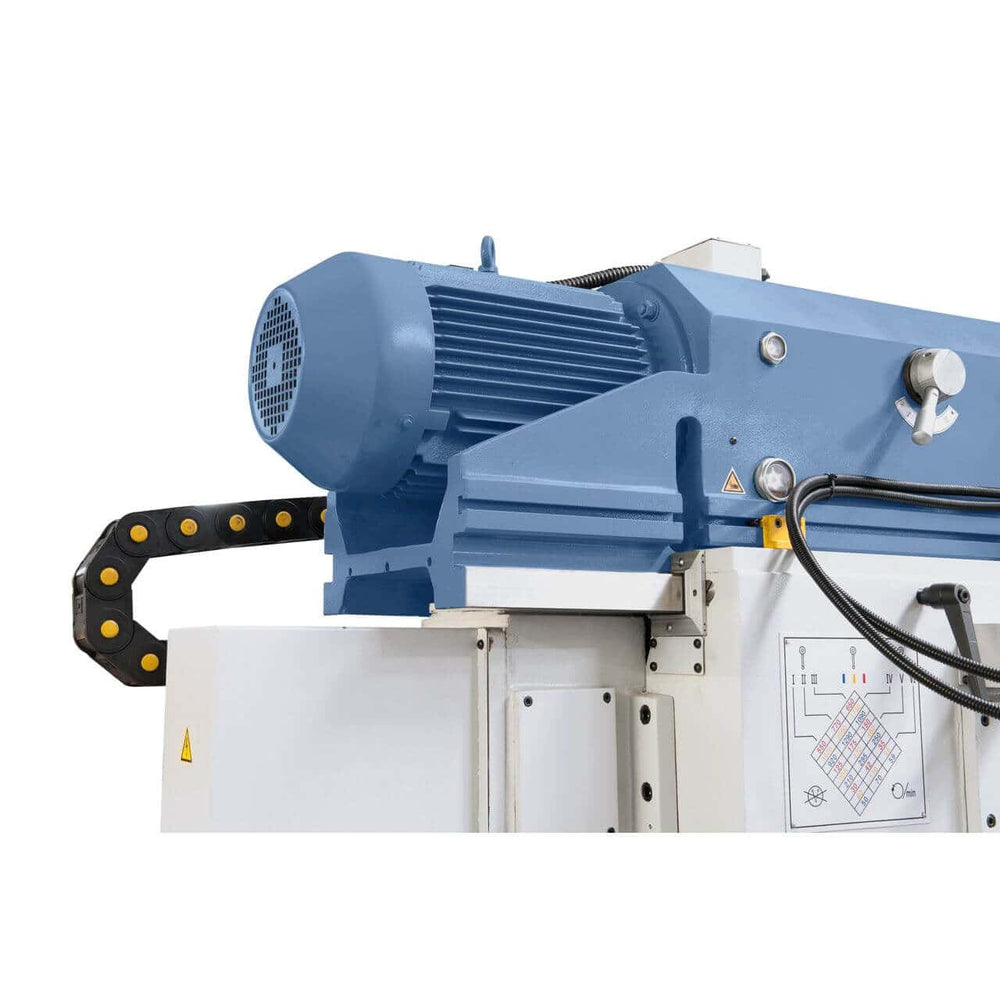

| Main engine | 7.5 kW |
| Machine dimensions (L x W x H) | 2200 x 2285 x 2100 mm |
| Weight | 4500 kg |
The Variomill FU 1600 E Servo universal milling machine is the perfect choice for heavy-duty machining of large workpieces. Its robust construction, servo-assisted feed on all axes, and large worktable make it ideal for a wide range of industrial applications. Equipped with advanced control systems, such as a 3-axis display and automatic centralized lubrication, this milling machine guarantees precision, reliability, and high efficiency in the most demanding milling operations.
