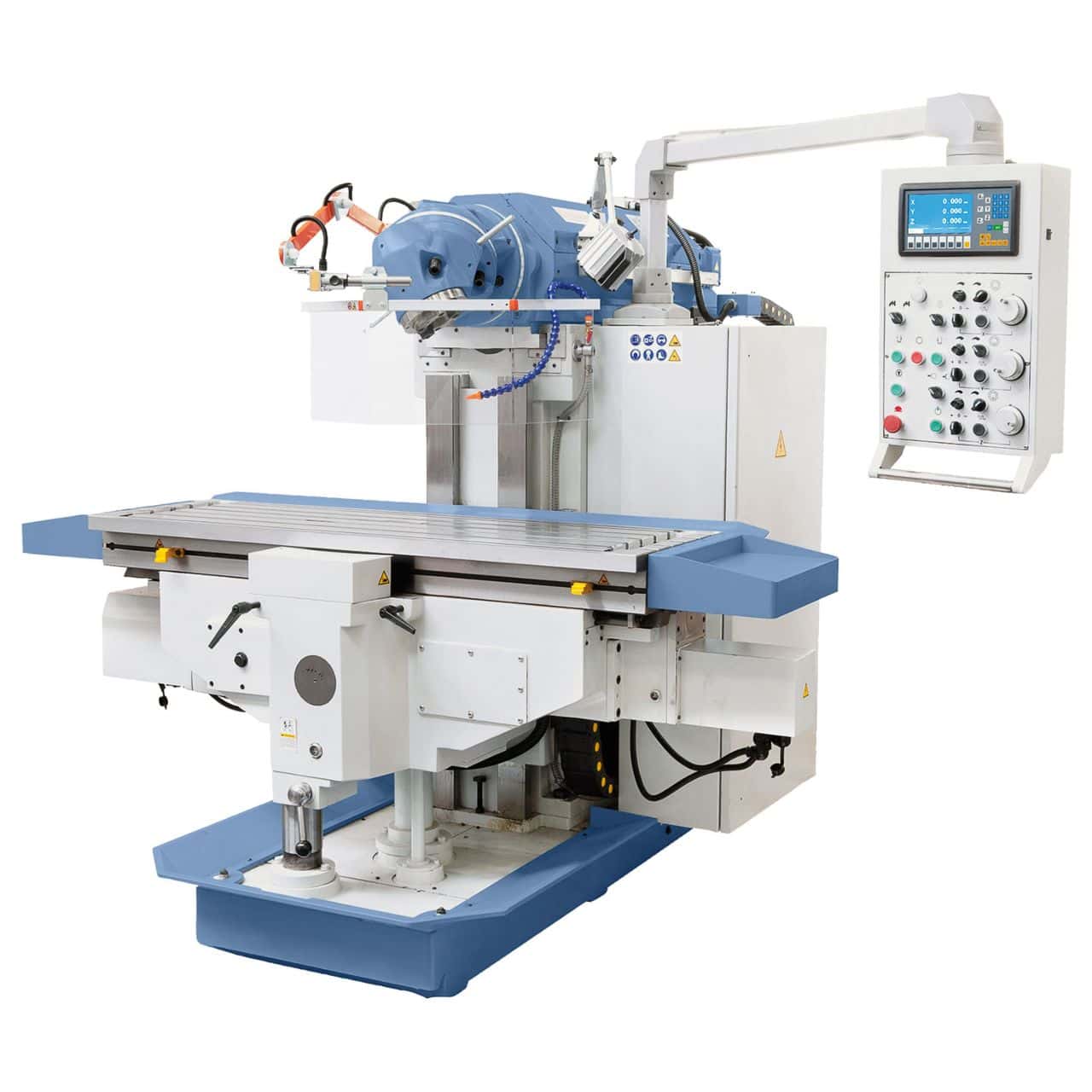

Variomill FU 2000 E Servo Universal Milling Machine
The Variomill FU 2000 E Servo is a universal milling machine designed for heavy-duty industrial applications, ideal for machining large workpieces thanks to its robust, solid cast iron construction. Equipped with advanced technologies such as servo assistance on all axes and a preloaded ball spindle, this machine ensures precision and stability even in the most demanding machining operations. With a large worktable and generous travel on all axes, the Variomill FU 2000 E Servo stands out for its efficiency, versatility, and ability to handle heavy loads.
Main Features:
- Solid Cast Iron Construction : The heavy cast iron construction ensures a stable, vibration-free base, essential for precise, defect-free machining even on large workpieces.
- Servo-assisted on all axes : Continuous automatic movement and rapid traverse in all axes are driven by a servo motor for optimal control.
- Preloaded Rotary Ball Spindles : Featured on all three axes, the preloaded rotary ball spindle reduces friction, improving accuracy and machine life.
- Reduced Slip-Stick Effect : Thanks to the Turcite B coating on the X-axis, the machine offers better smoothness and less friction during feed operations.
- Nitrided and Ground Gears : The hardened and nitrided gears immersed in an oil bath guarantee smooth and silent transmission, as well as increasing the life of the entire machine.
- Large Worktable : The large composite table with T-slots allows for the machining of large workpieces, with a finely machined surface to improve accuracy.
- Central Lubrication : The automatic centralized lubrication system always maintains optimal working conditions, reducing wear and improving performance.
Standard Accessories:
- ES-12 H 3-Axis Position Display with LCD Display
- Electronic handwheels for fine control
- Clamping chuck
- Refrigeration system with cooling tank
- Integrated LED light for optimal visibility
- Universal milling head
- Universal protection device
- Spindle brake
- Automatic central lubrication
- Combination drill chuck
- Advanced control device
Technical Specifications :
| Characteristic | Detail |
|---|---|
| Table dimensions | 2000 x 500 mm |
| Spindle attachment | ISO 50 |
| Spindle speed | (27) 30 – 2050 rpm |
| Longitudinal travel (x) | 1400 mm |
| Transverse travel (y) | 700 mm |
| Vertical travel (z) | 500 mm |
| Spindle/table distance | 50 – 550 mm |
| Length of the arms | 28 – 728 mm |
| Longitudinal advancement area | 10 – 1000 mm/min |
| Transverse advancement area | 10 – 1000 mm/min |
| Vertical advancement area | 5 – 500 mm/min |
| Rapid travel on the x and y axes | 2200 mm/min |
| Z-axis rapid traverse | 1100 mm/min |
| Table load | 1800 kg |
| T-slots (width, distance, number) | 5 / 18 mm / 80 mm |
| Main engine | 7.5 kW |
| Machine dimensions (L x W x H) | 2600 x 2285 x 2100 mm |
| Weight | 5000 kg |
The Variomill FU 2000 E Servo universal milling machine is the ideal machine for those seeking a versatile, robust, and precise solution for machining large workpieces. Thanks to the combination of servo-assisted feed, high-precision spindle, and large worktable, this milling machine is perfect for the most demanding machining operations. Its solid construction and extensive accessories make the Variomill FU 2000 E Servo an excellent choice for industry and heavy-duty mechanical manufacturing.
