Description

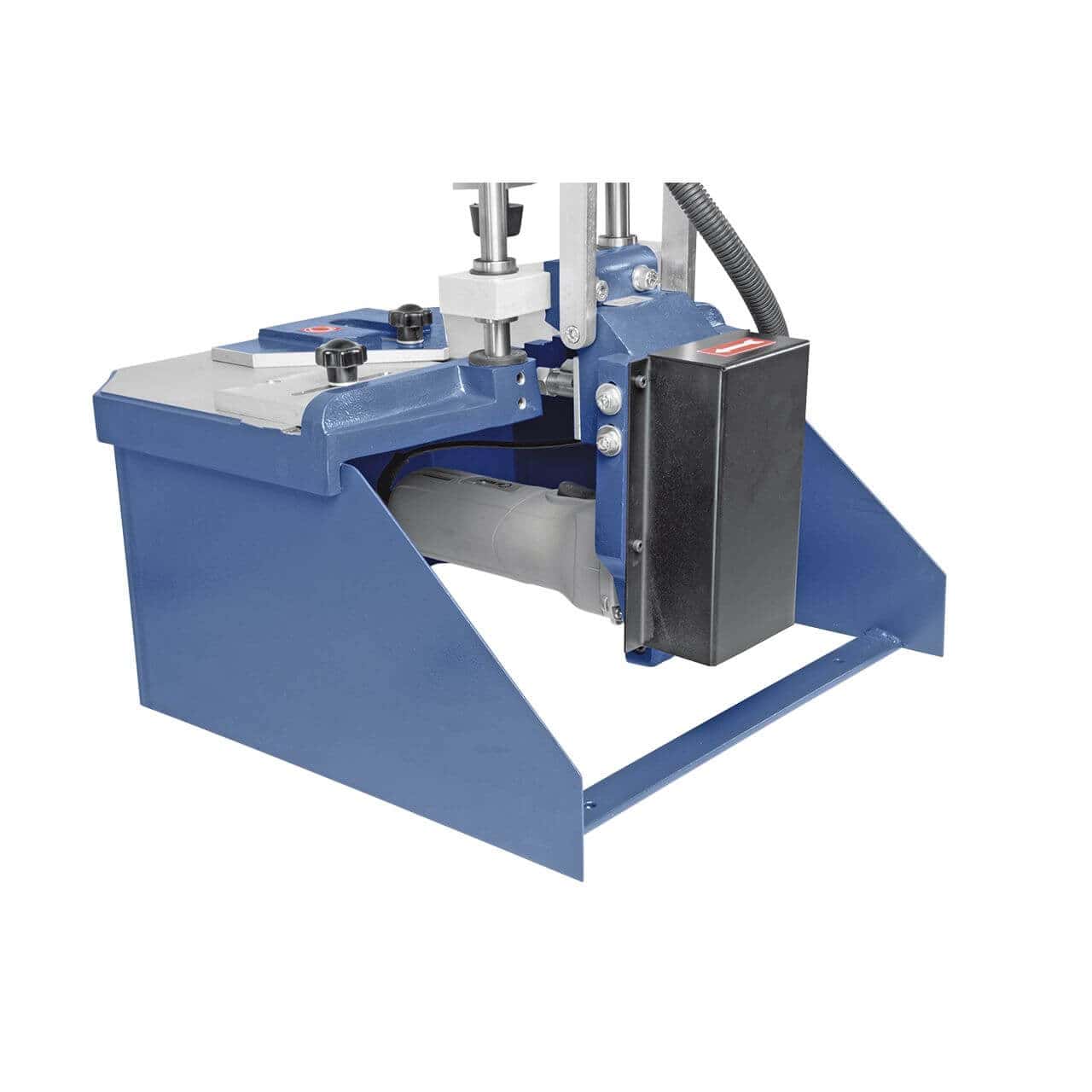

KNF 2 Double Slot Milling Machine – Perfect for Jointing Wide Elements
The KNF 2 router is the ideal solution for producing two dovetail grooves simultaneously, optimizing processing times on large elements such as handrails, segmented arches, curved windows, corner benches, and cornices. Compact and easy to use, this machine is designed to combine strength and precision without the use of glue.
Main features
• Performs two quarries in a single operation

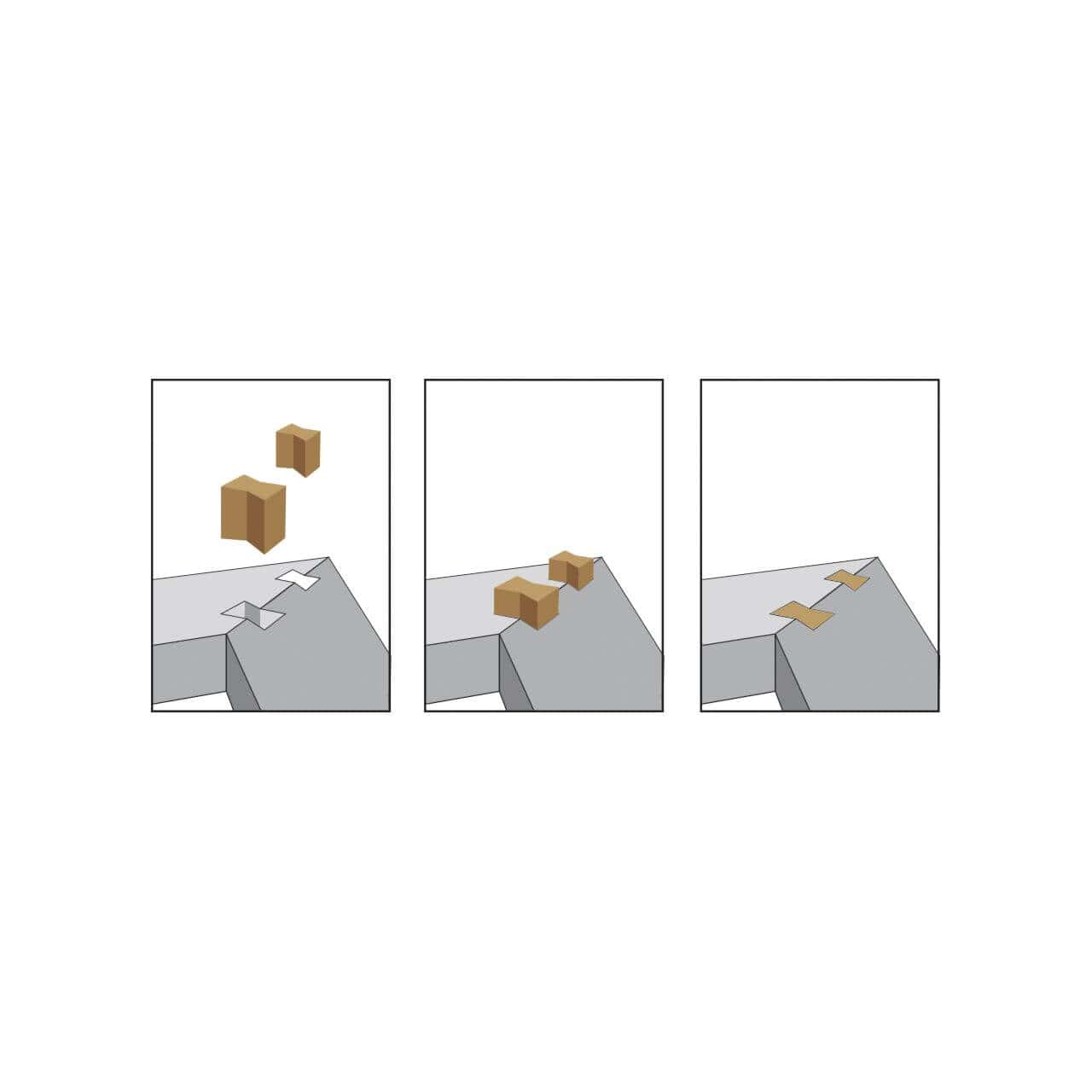

• Solid and adhesive-free connections thanks to the geometry of the groove

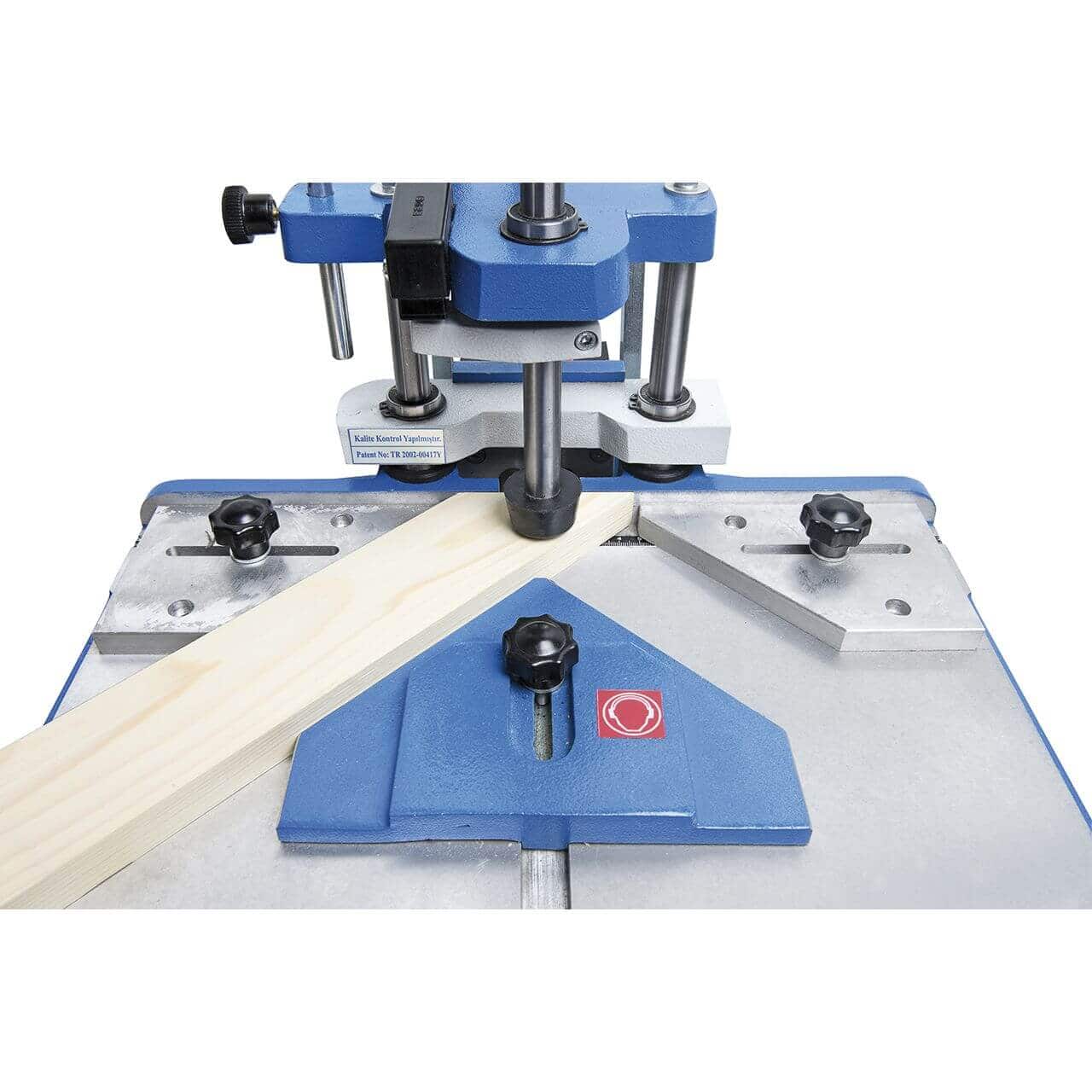

• Adjustable guides for precise positioning of the piece

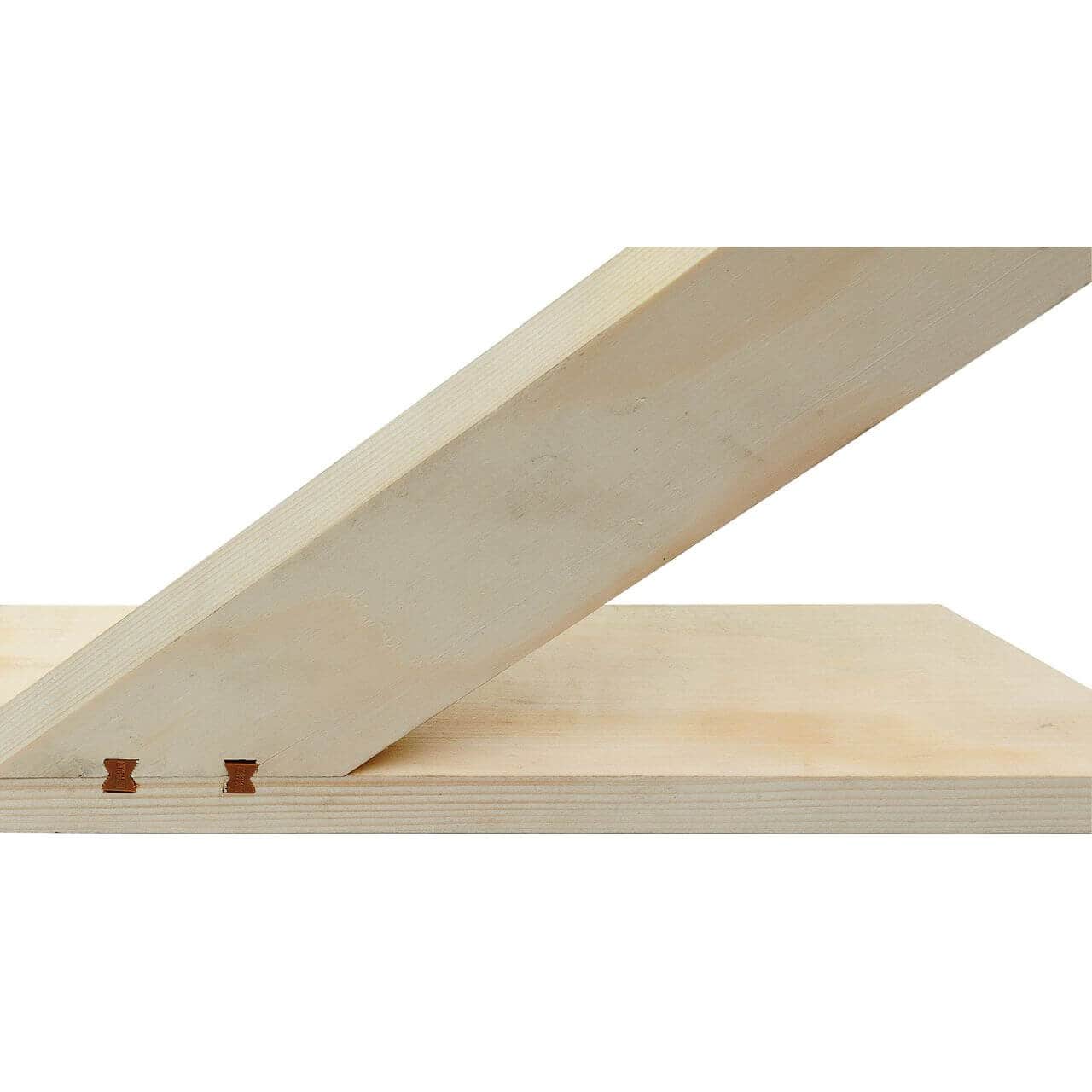

• Ideal for joining frames, cornices, doors, arches and much more
• Simplified operation via lever: lock piece, mill, release
• Powerful motor with integrated automatic start/stop
• Economical solution for small and medium productions
• Compatible with various lengths and sizes of dovetail keys
Technical table
| Function | Characteristic |
|---|---|
| Cutter holder diameter | 6 mm |
| Milling depth | 0 – 55 mm |
| Table dimensions | 380 x 220 mm |
| Check | Manual |
| Workpiece clamping | Manual |
| Distance between cutters | 28 mm |
| Guide length | 390 mm |
| Maximum profile width | 185 mm |
| Maximum light | 85 mm |
| Rotation speed | 32,000 rpm |
| Engine power | 0.85 kW |
| Voltage | 230 V |
| Machine dimensions (WxDxH) | 400 x 500 x 730 mm |
| Weight | 16 kg |
Package Contents
• 2 W-2 type slot cutters
• 45° angle guide
• 2 side guides
• Manual presser
