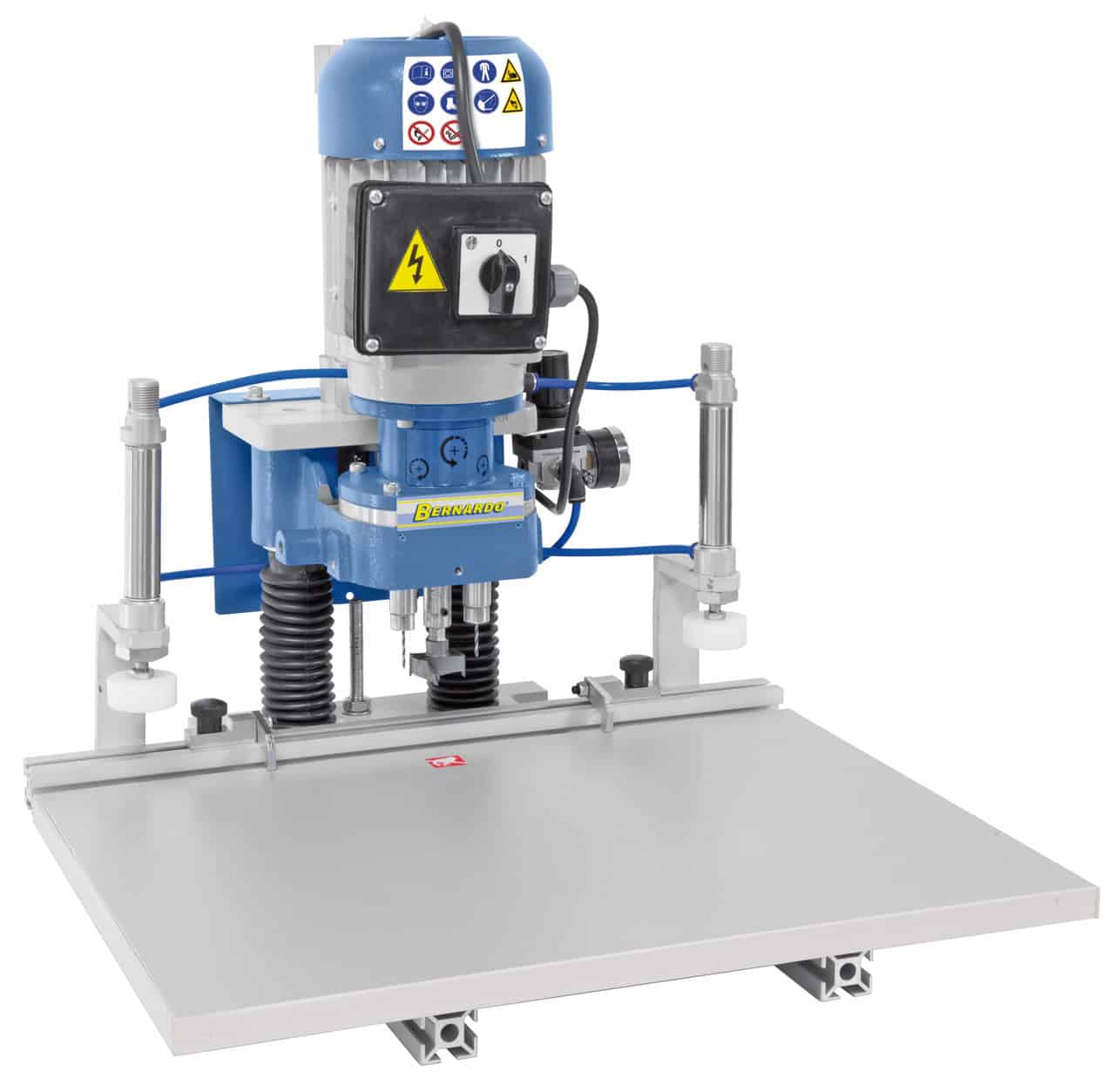

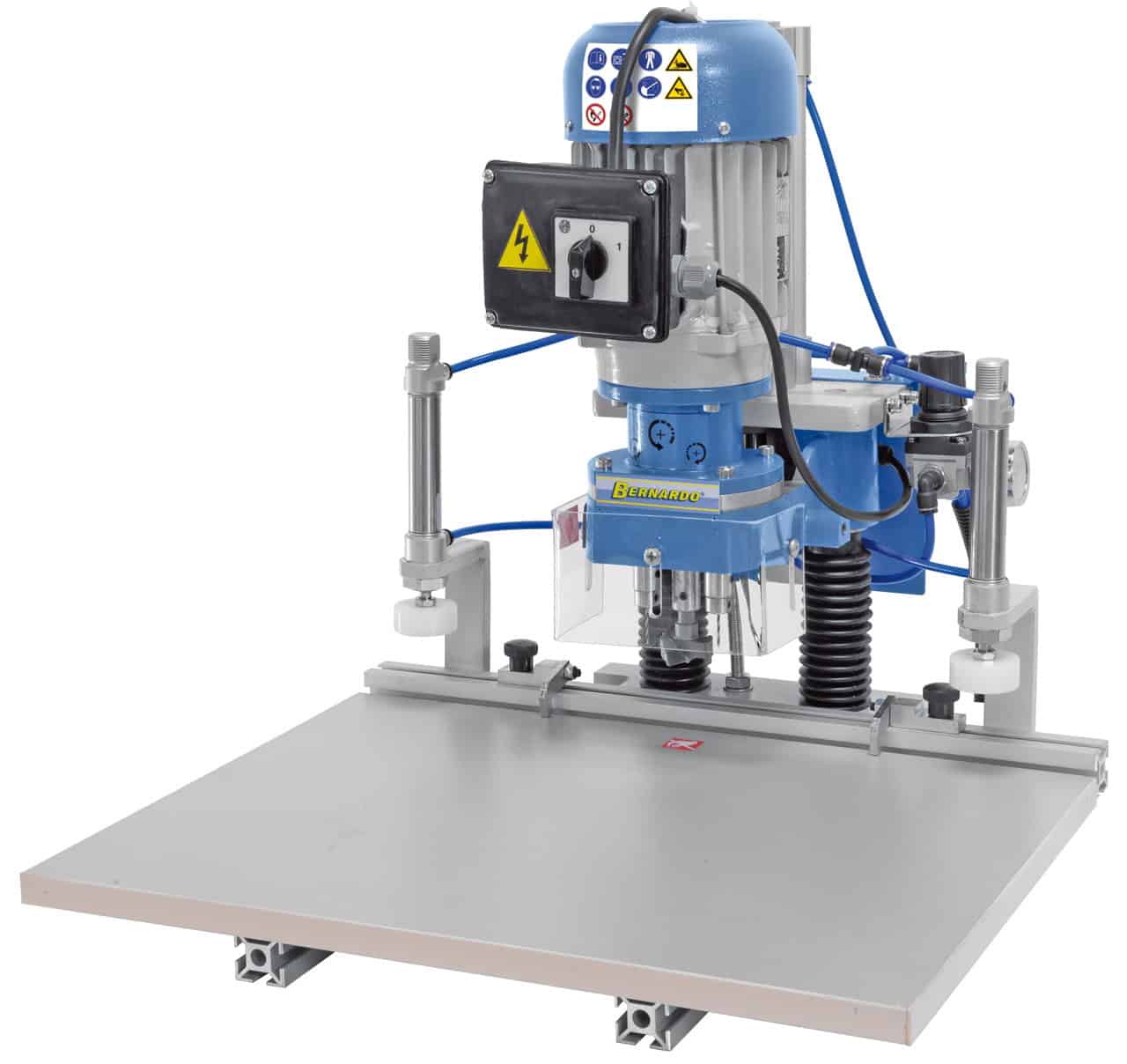

BBM 35 P Pneumatic Hinge Drill – Compatible with Grass and Blum

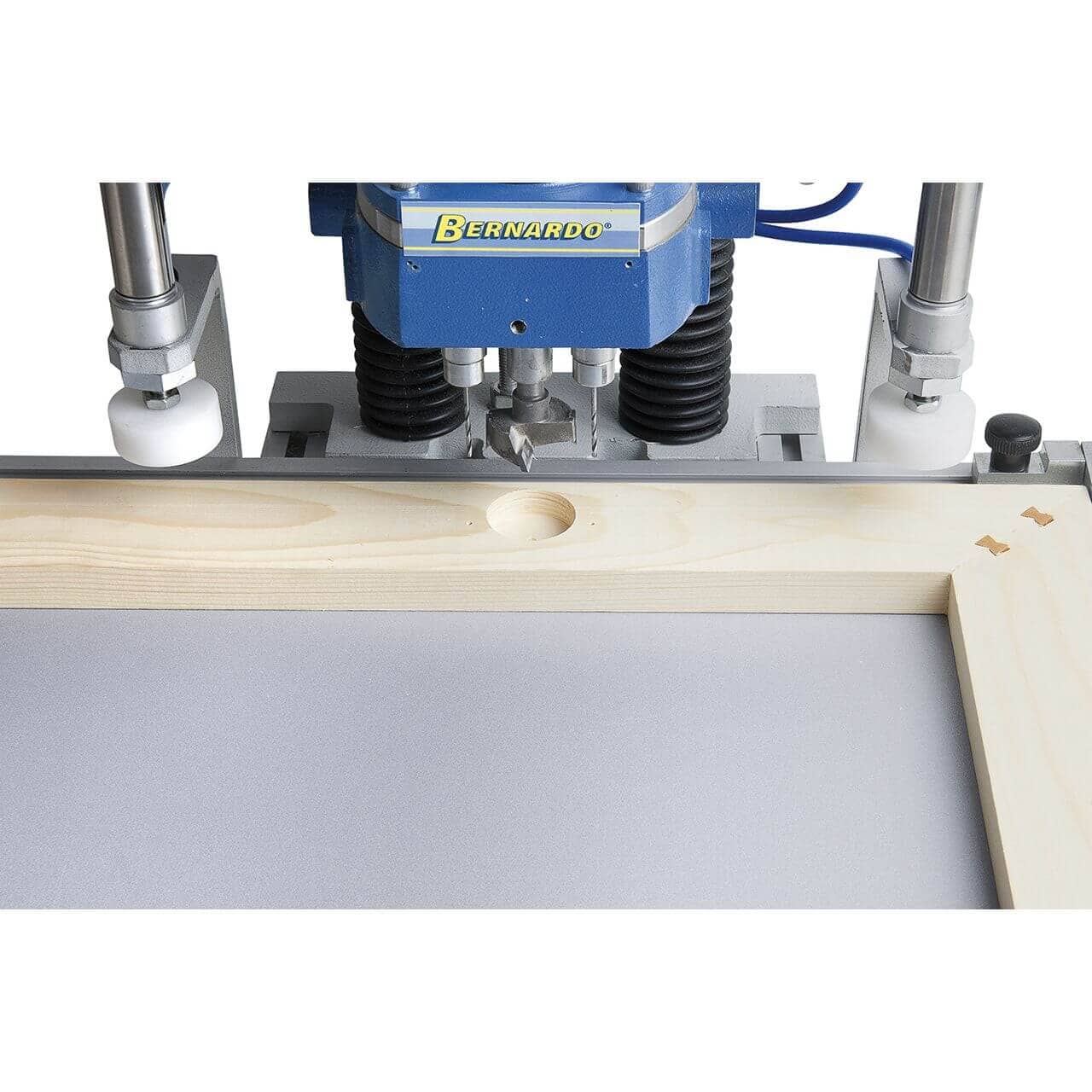

The BBM 35 P is a professional drilling machine with pneumatic feed, designed for the precise and rapid drilling of holes for Grass and Blum hinges. Ideal for carpenters and small businesses, it allows for serial operations thanks to its 1.5-meter long guide and pneumatic workpiece clamping.
Main features

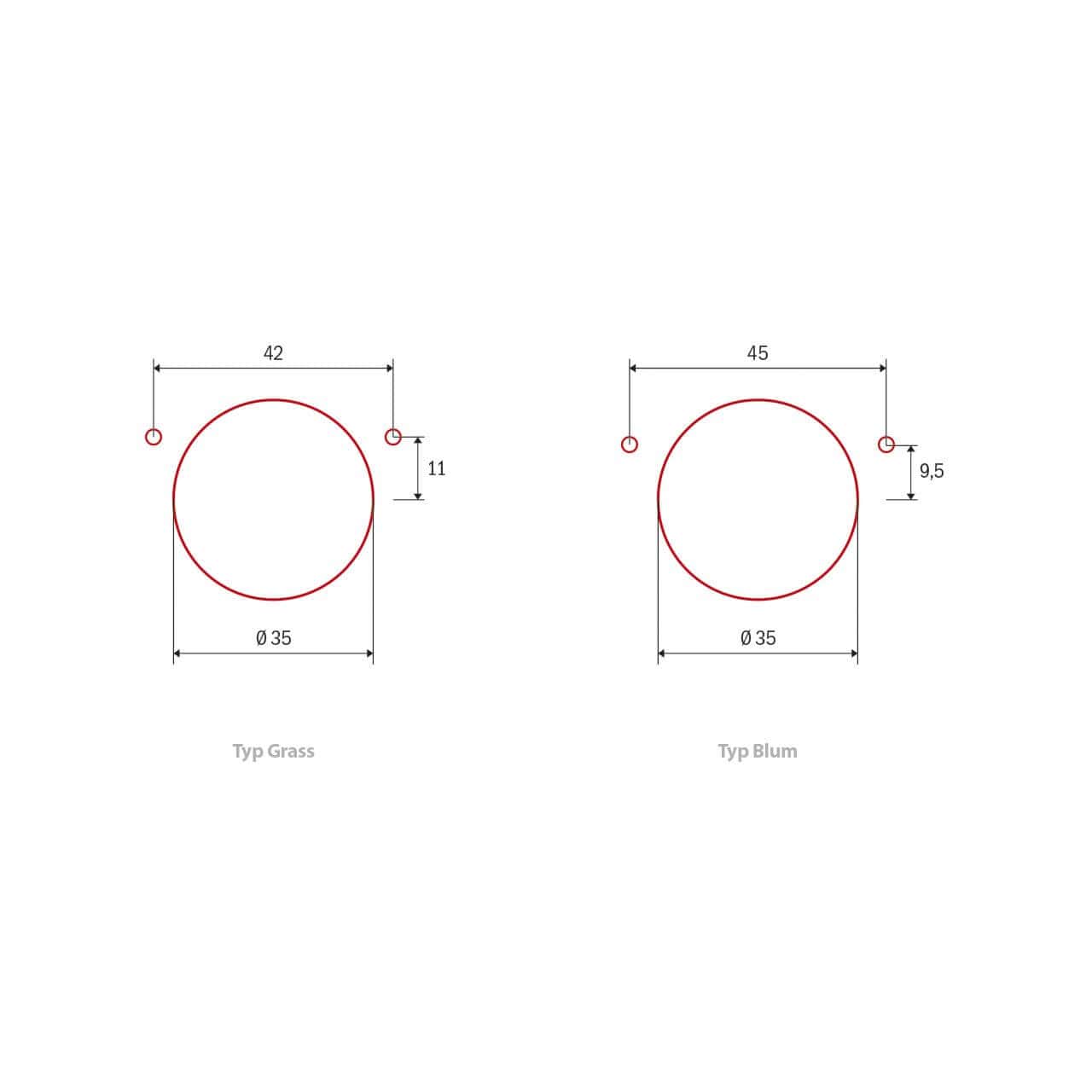

• Compatible with Grass and Blum hinge systems
• Pneumatic feed via pedal for rapid processing
• 0.75 kW motor suitable for continuous use

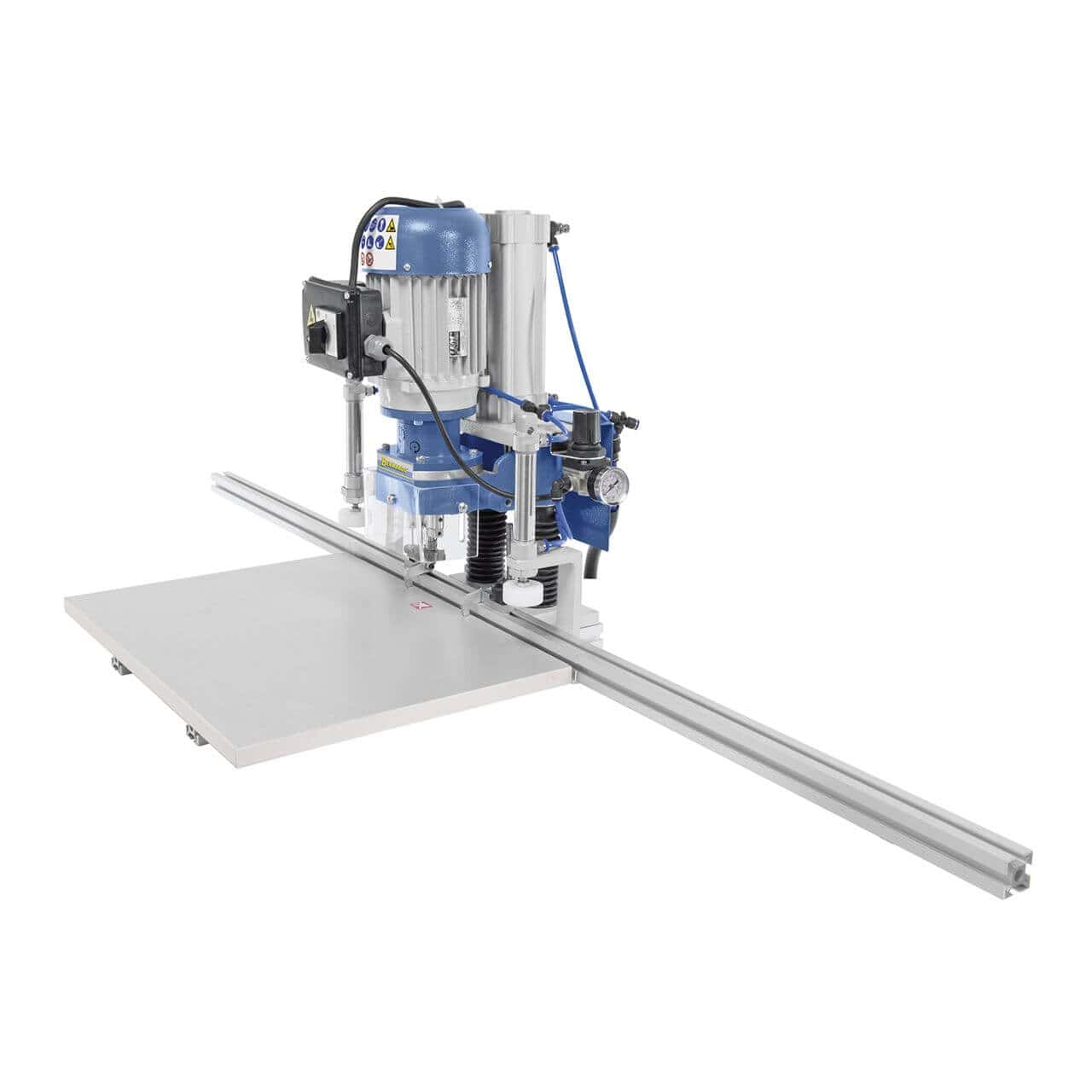

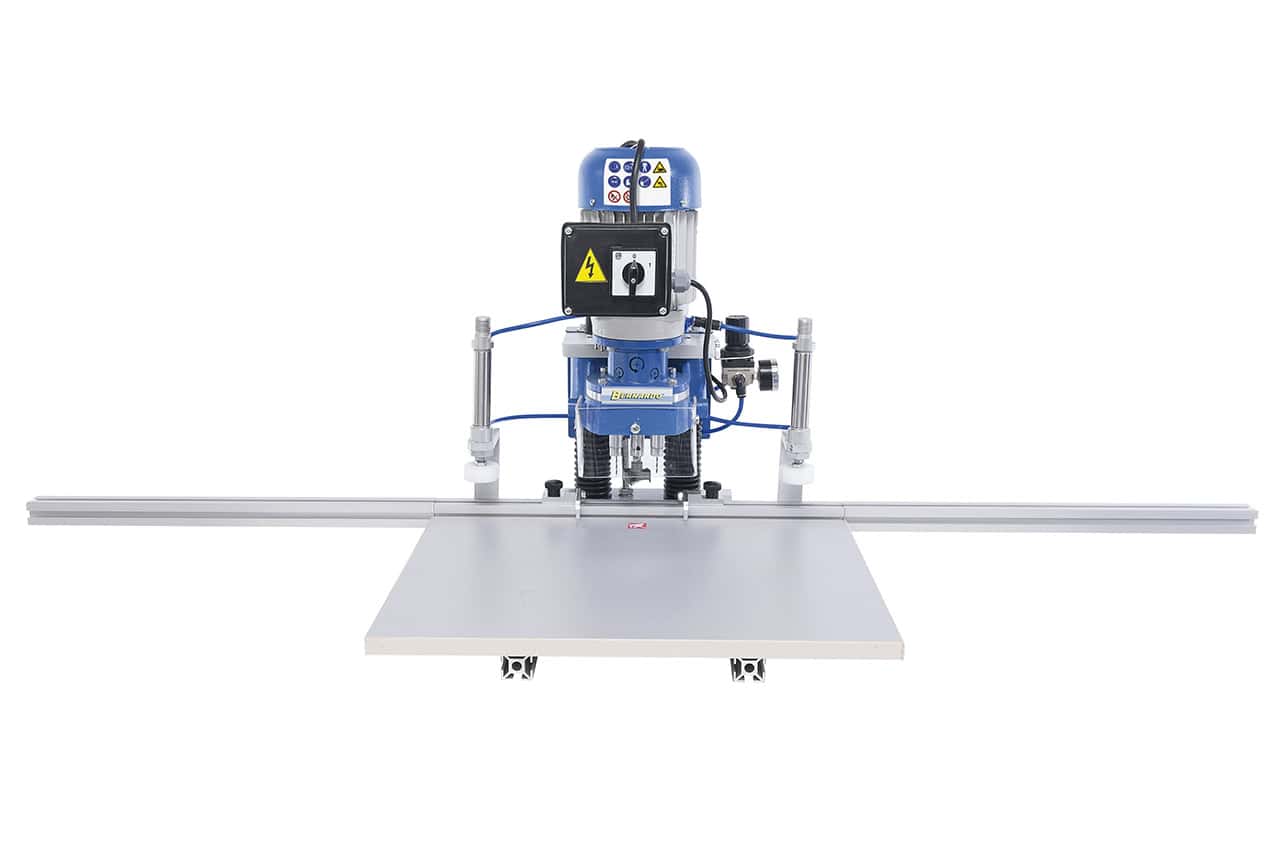

• 1.5m guide with stops for accuracy and repeatability
• Compact construction, easily transportable
• Wide range of accessories for maximum operability
Technical table
| Function | Characteristic |
|---|---|
| Drilling diameter | 35 mm |
| Number of spindles | 3 |
| Check | tire |

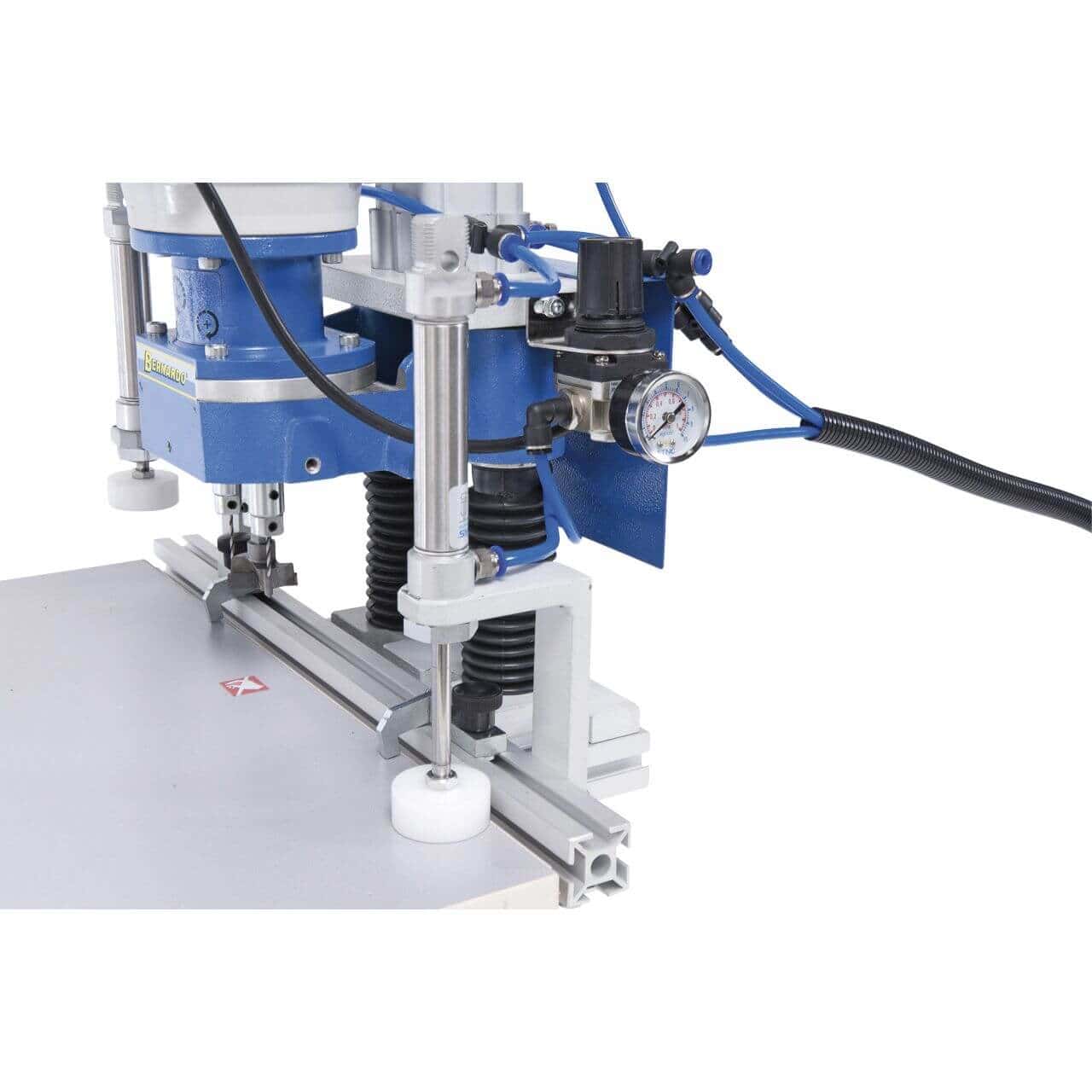

| Workpiece clamping | tire |
| Max table/spindle distance | 85 mm |
| Max table/drill distance | 50 mm |
| Table size | 500 x 350 mm |
| Board race | 105 mm |
| Guide length (with extension) | 1500 mm |
| Operating pressure | 6 – 8 bars |
| Rotation speed | 3000 rpm |
| Engine power | 0.75 kW |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 500 x 520 x 500 mm* |
| Weight | 25 kg |
* without side guide
Package Contents

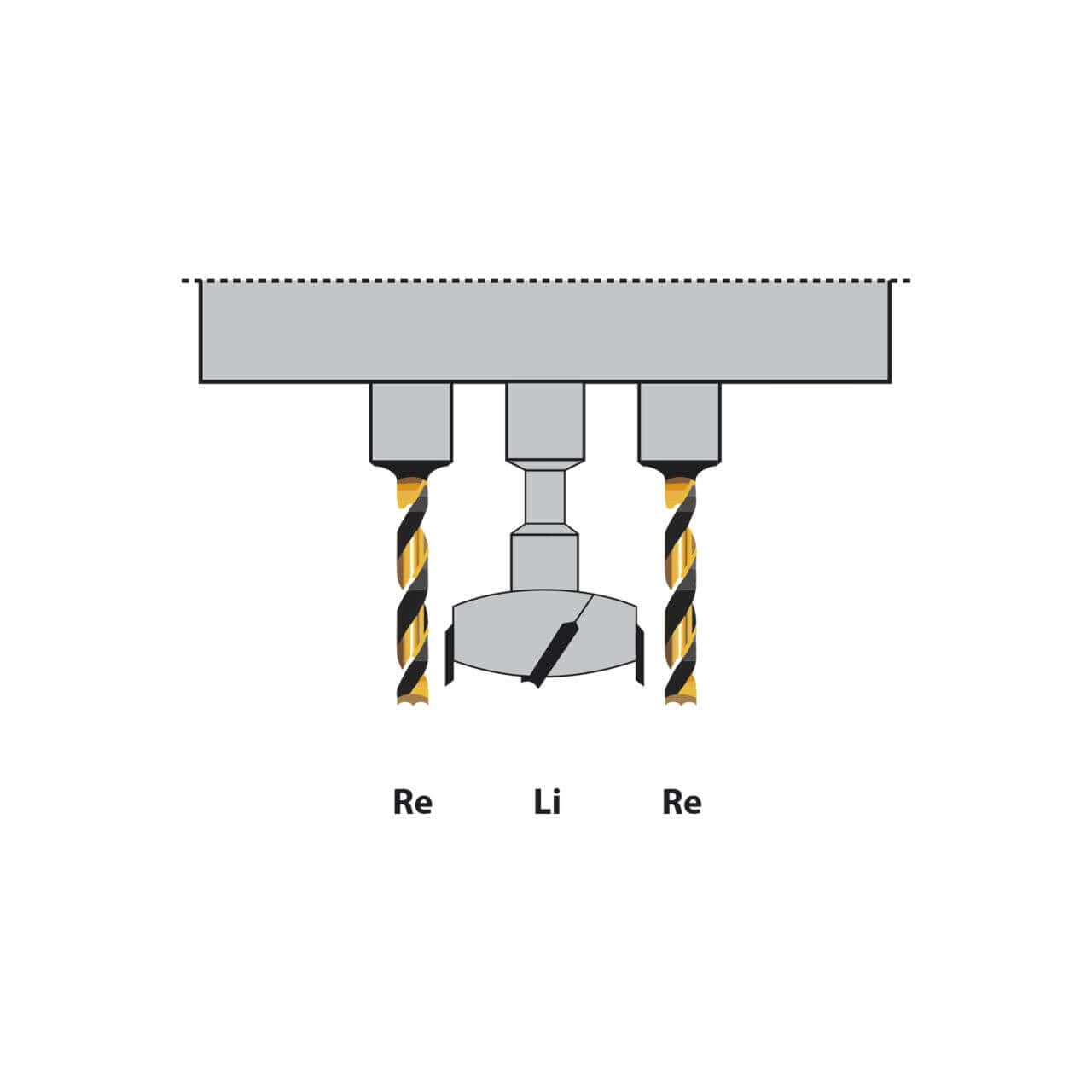

• Hinge bit Ø 35 mm left
• 2 tips Ø 2 mm right
• 3-spindle drilling unit
• Drilling unit with pneumatic feed

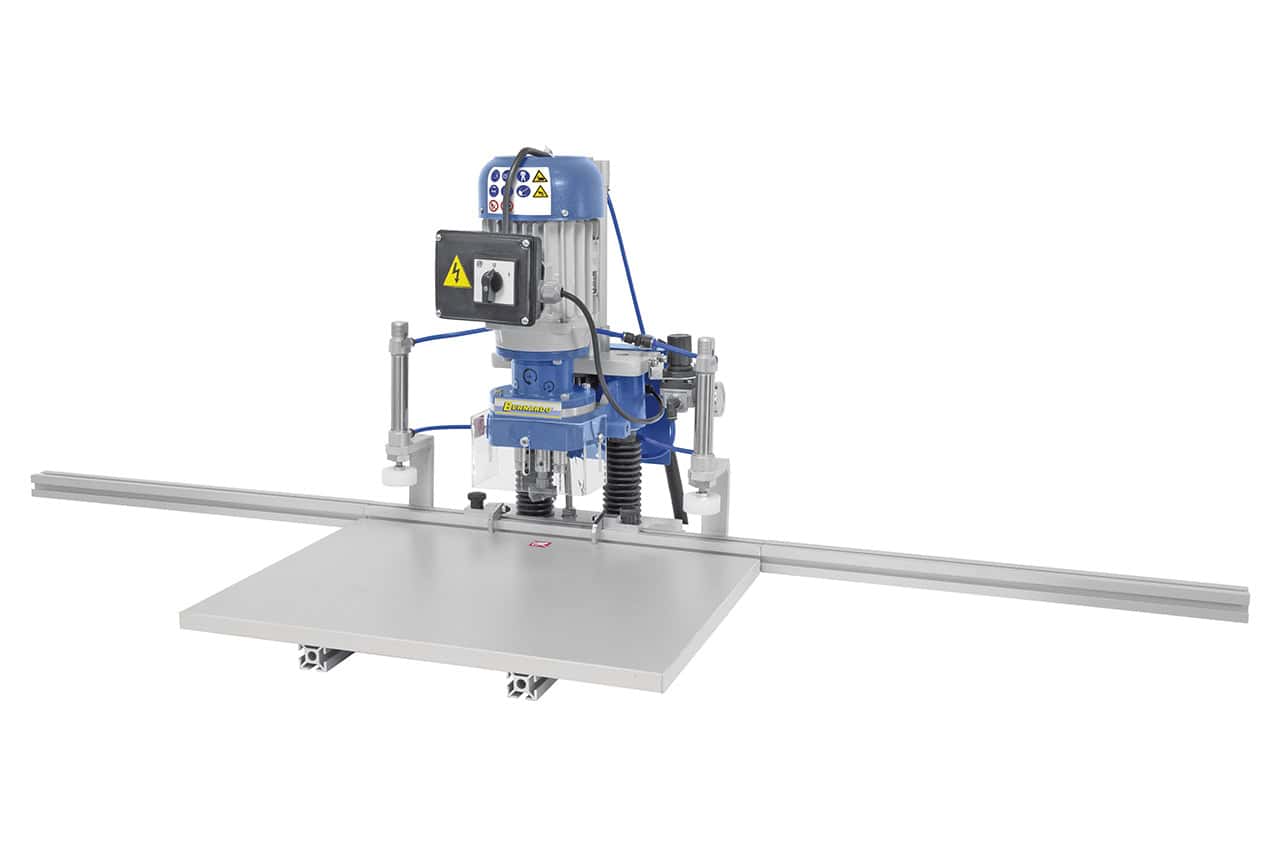

• 1.5 m guide with 2 stops
• 2 pneumatic presses
• Air gun

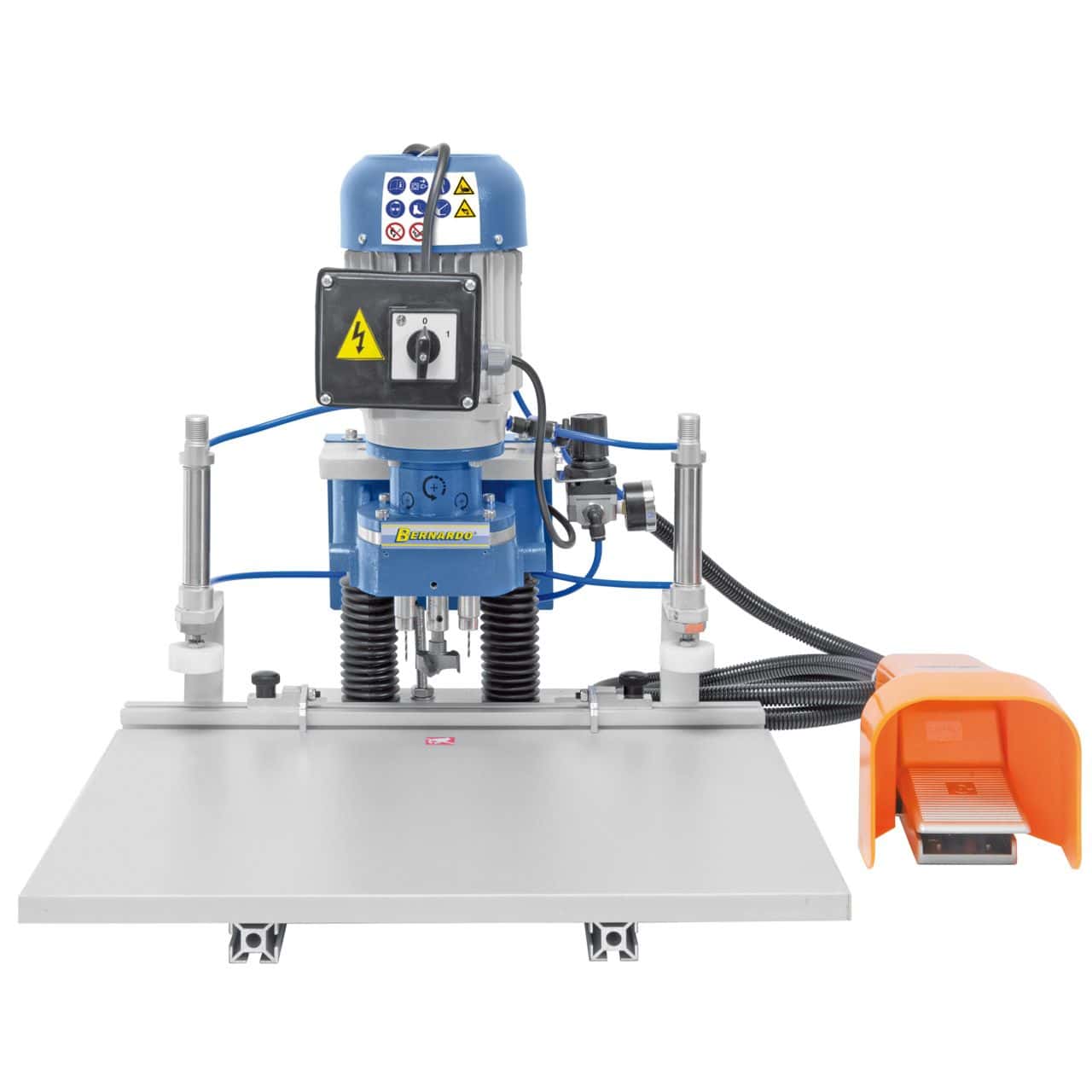

• Foot pedal
• Worktop
