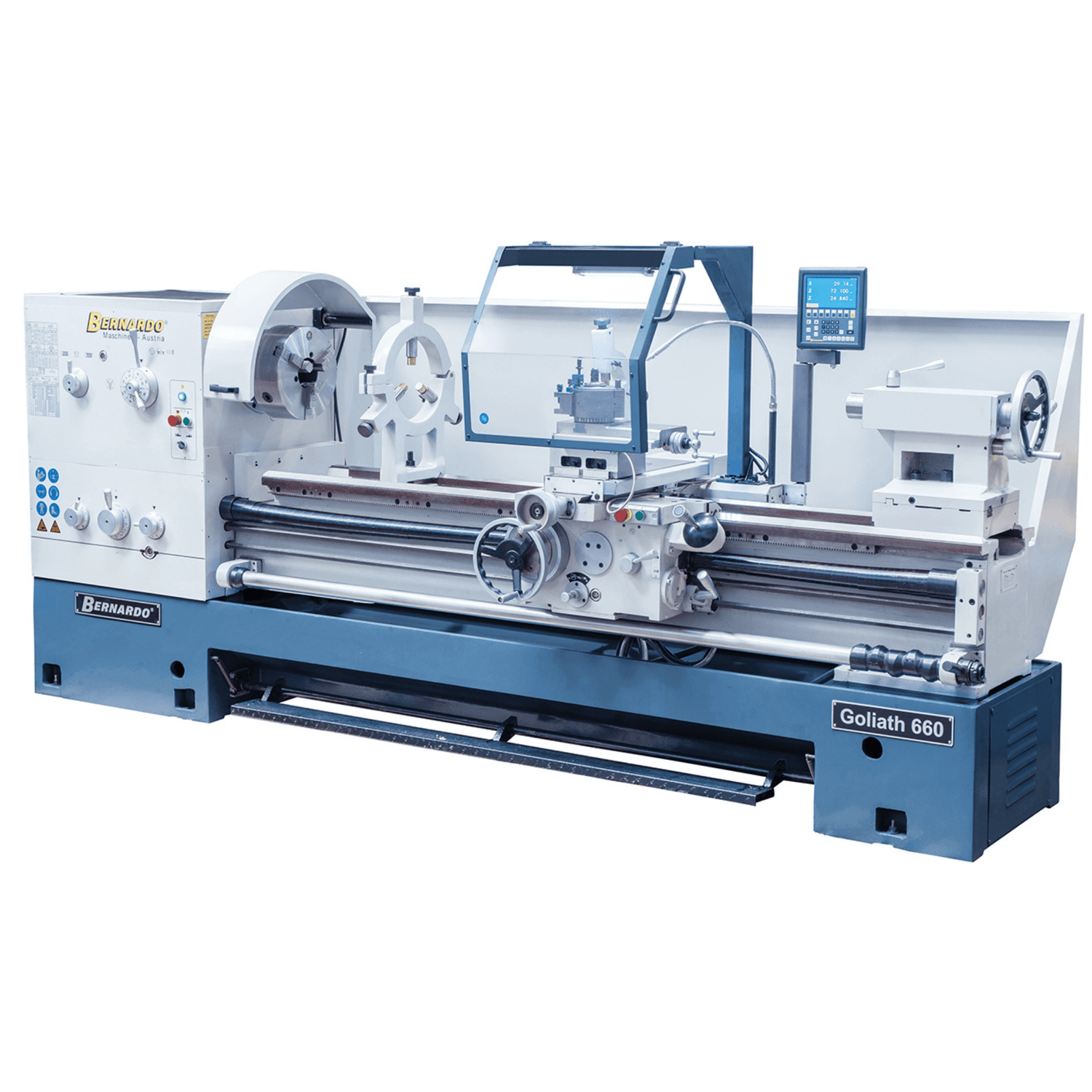

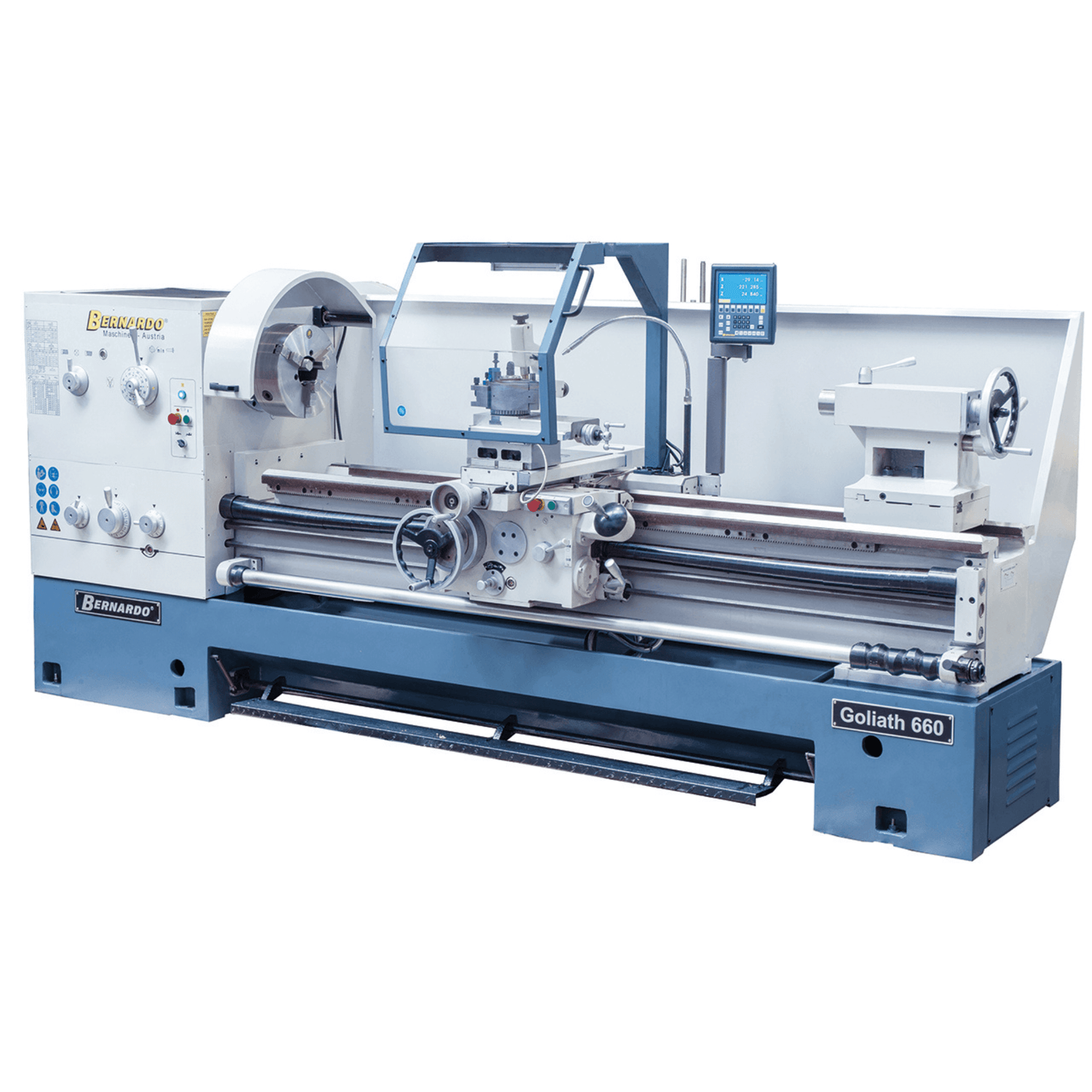

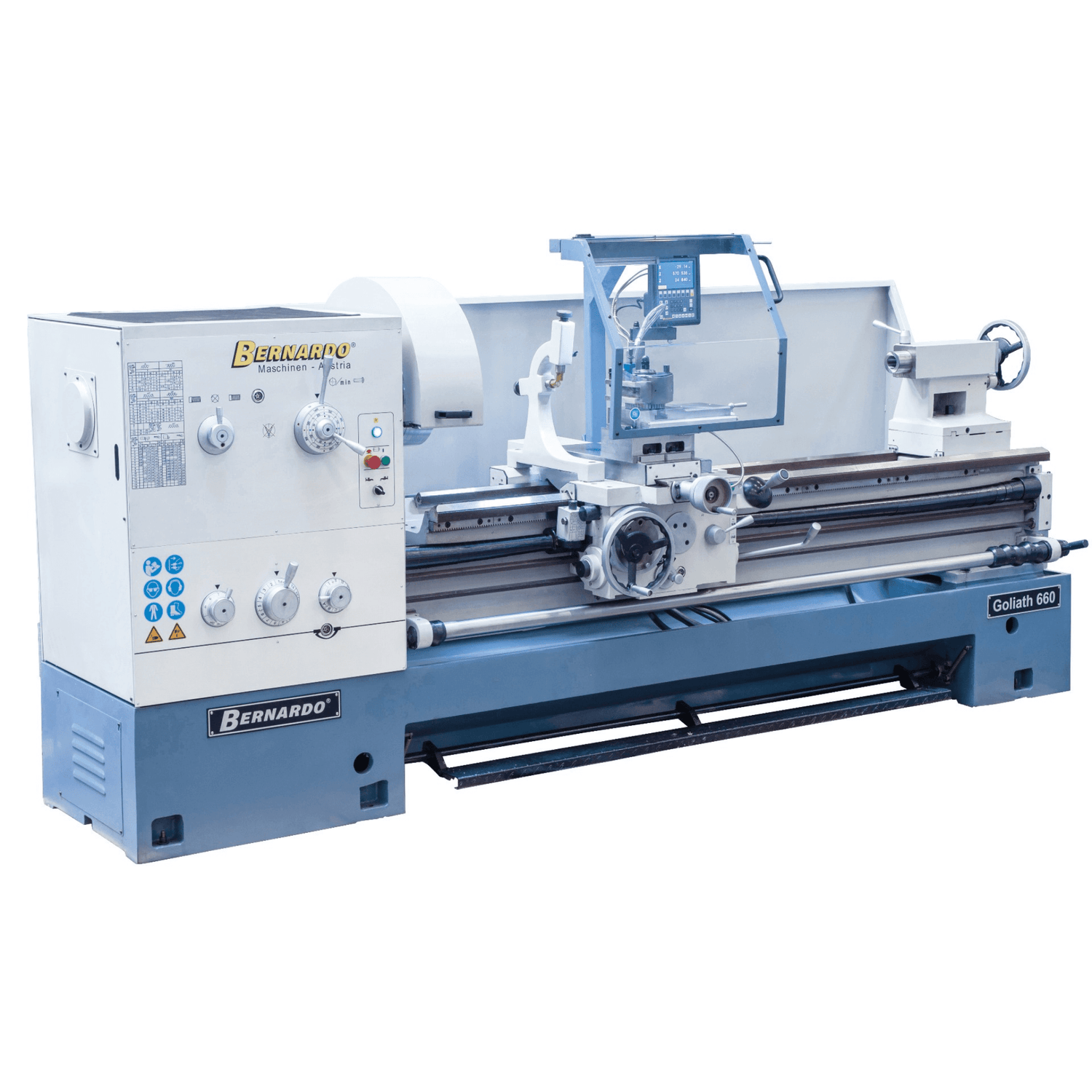

Goliath lathe 660 x 1500

The Goliath 660 is a revolutionary, cutting-edge production lathe. Its wide range of standard features, including a 3-jaw chuck, steady and follow-up rests, gear changer, and 3-axis digital readout, along with 40 tool holder positions and a tool set, make this model extremely versatile.

Property

• Various possible applications in general machine construction, in production, in the production of single parts, etc.
• The machine base, cast in a single piece, eliminates torsion and vibration, ensuring the best possible precision.
• State-of-the-art main spindle bearing with high-quality angular contact ball bearings

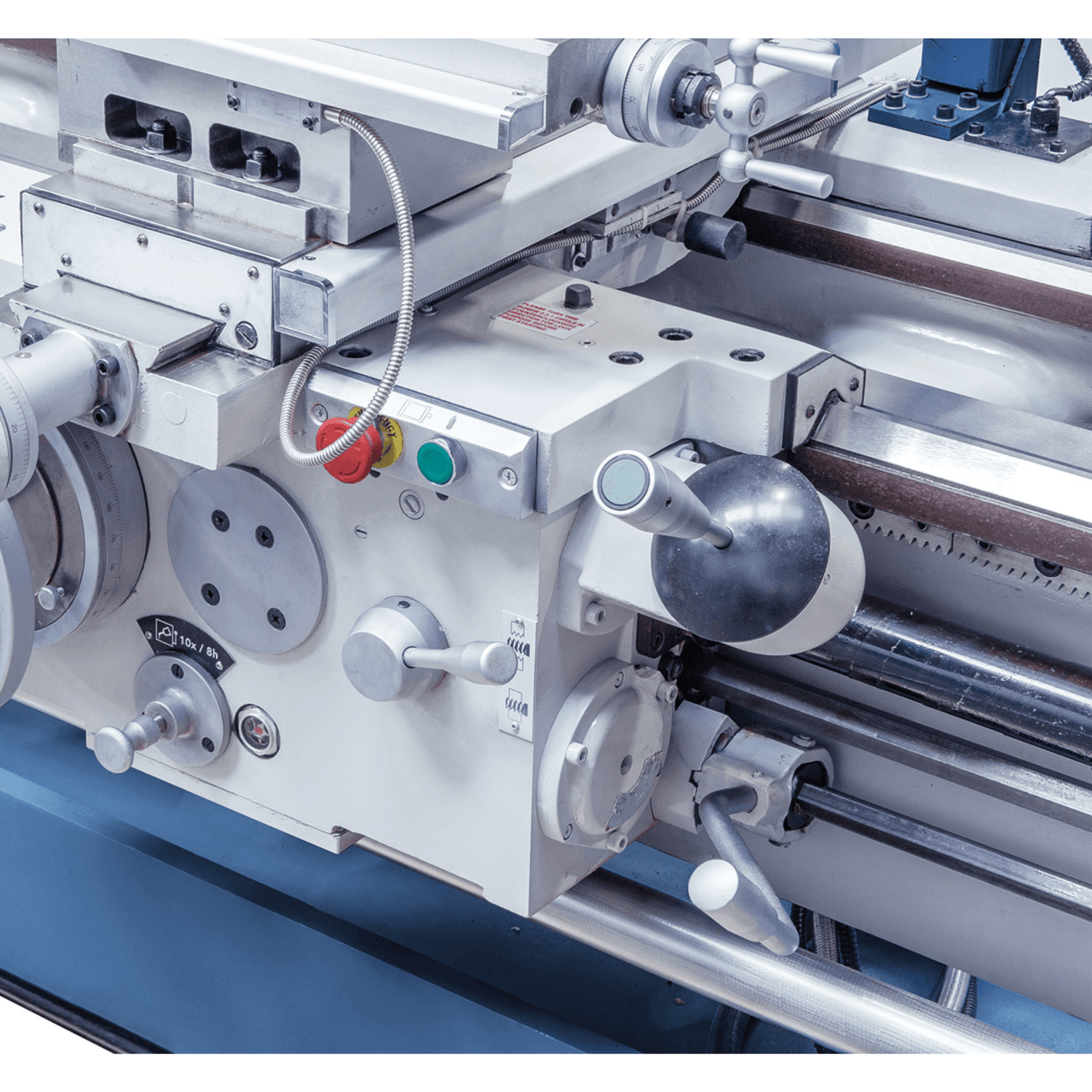

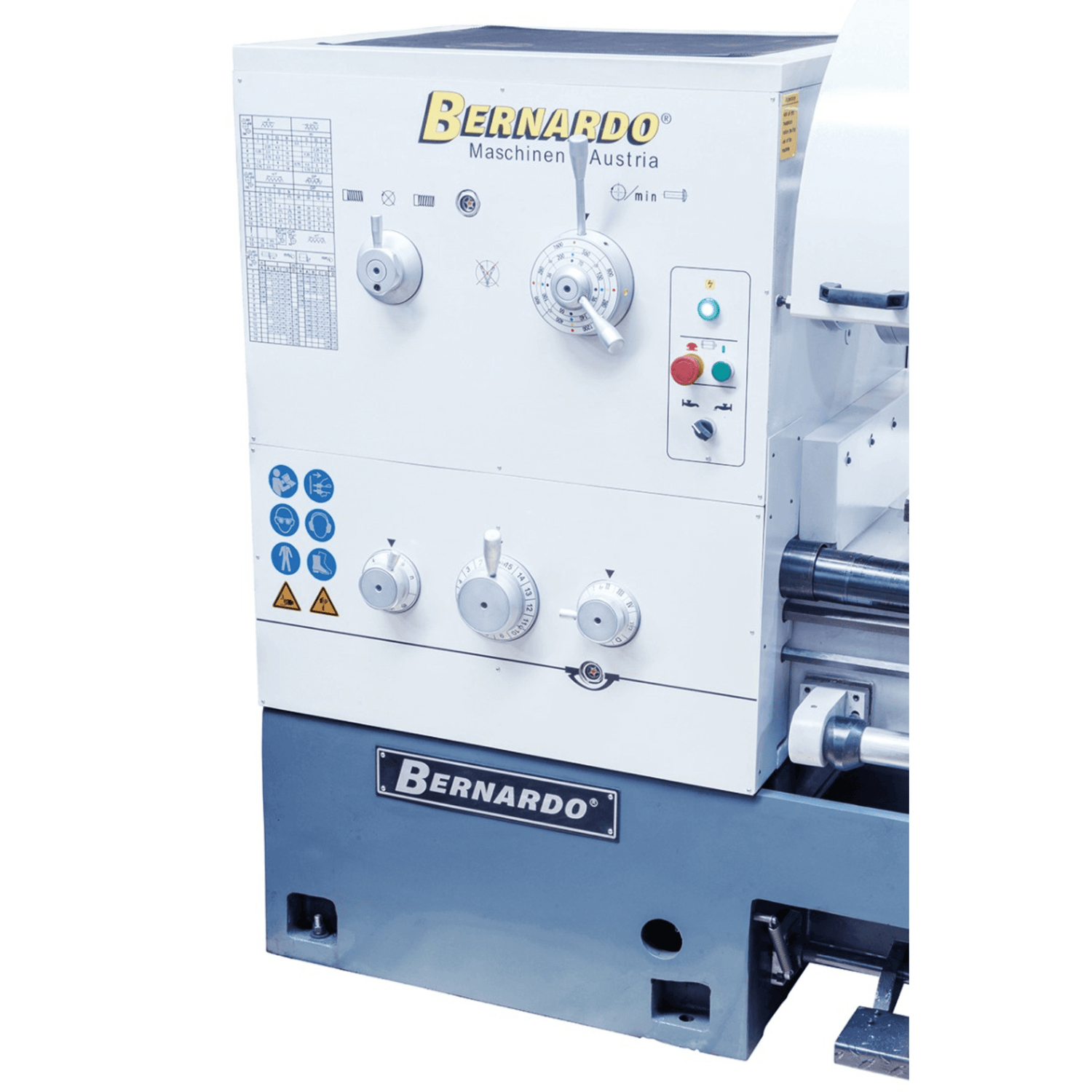

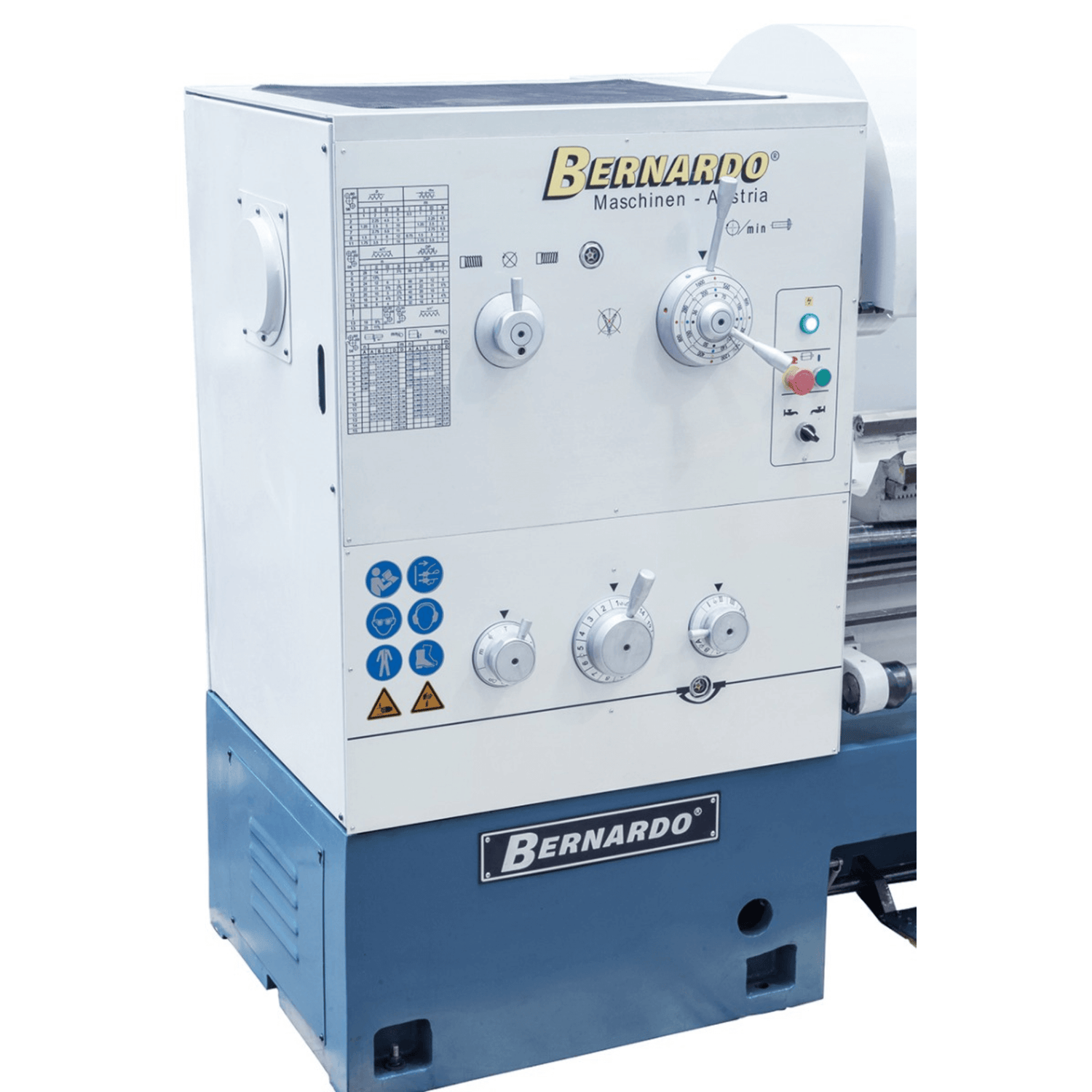

• Convenient, centrally positioned feed and thread controls (with feed screw and rod)
• Complete with rapid longitudinal and transverse advance to reduce downtime

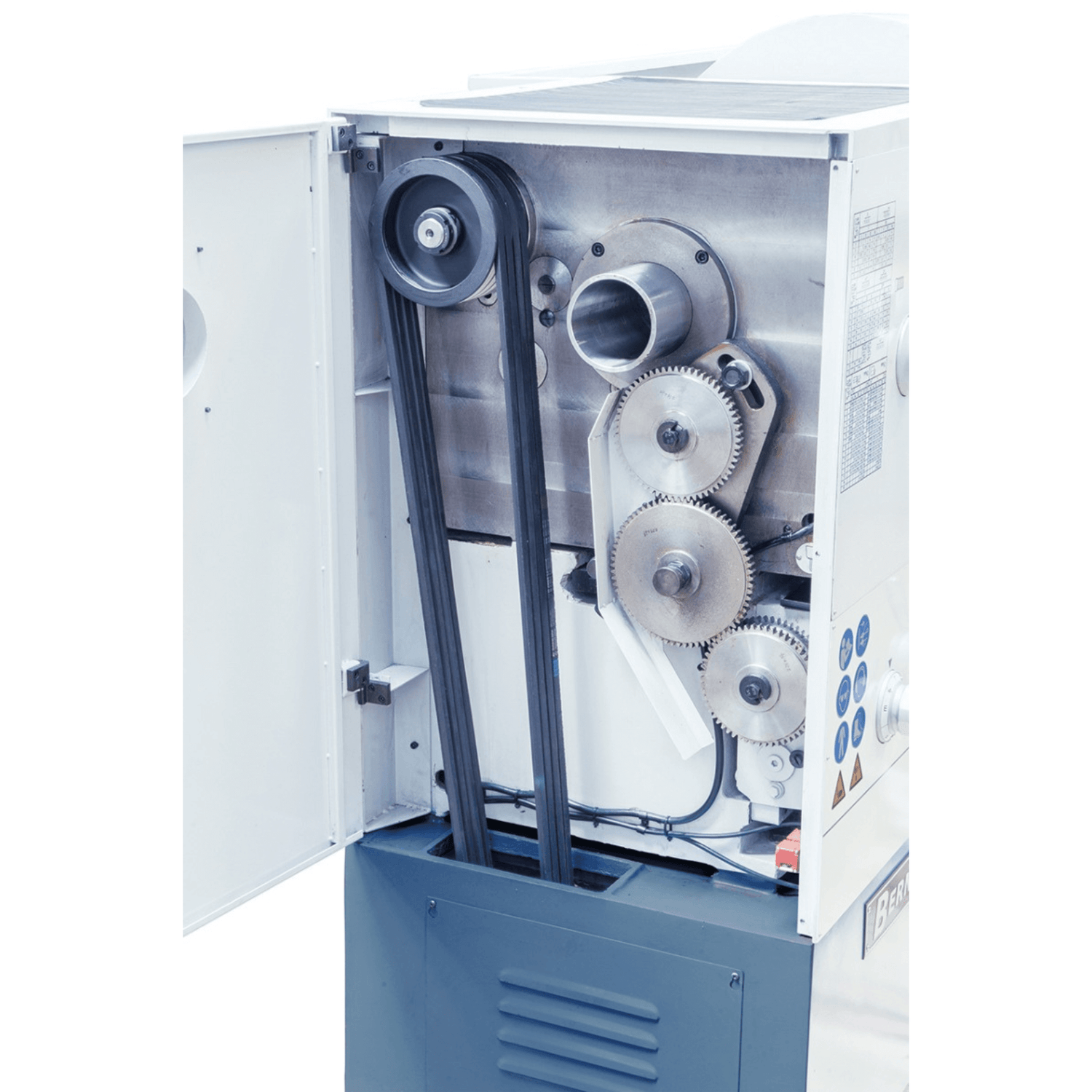

• Large gear wheels, hardened and polished
• The removable bridge allows the machining of large workpieces

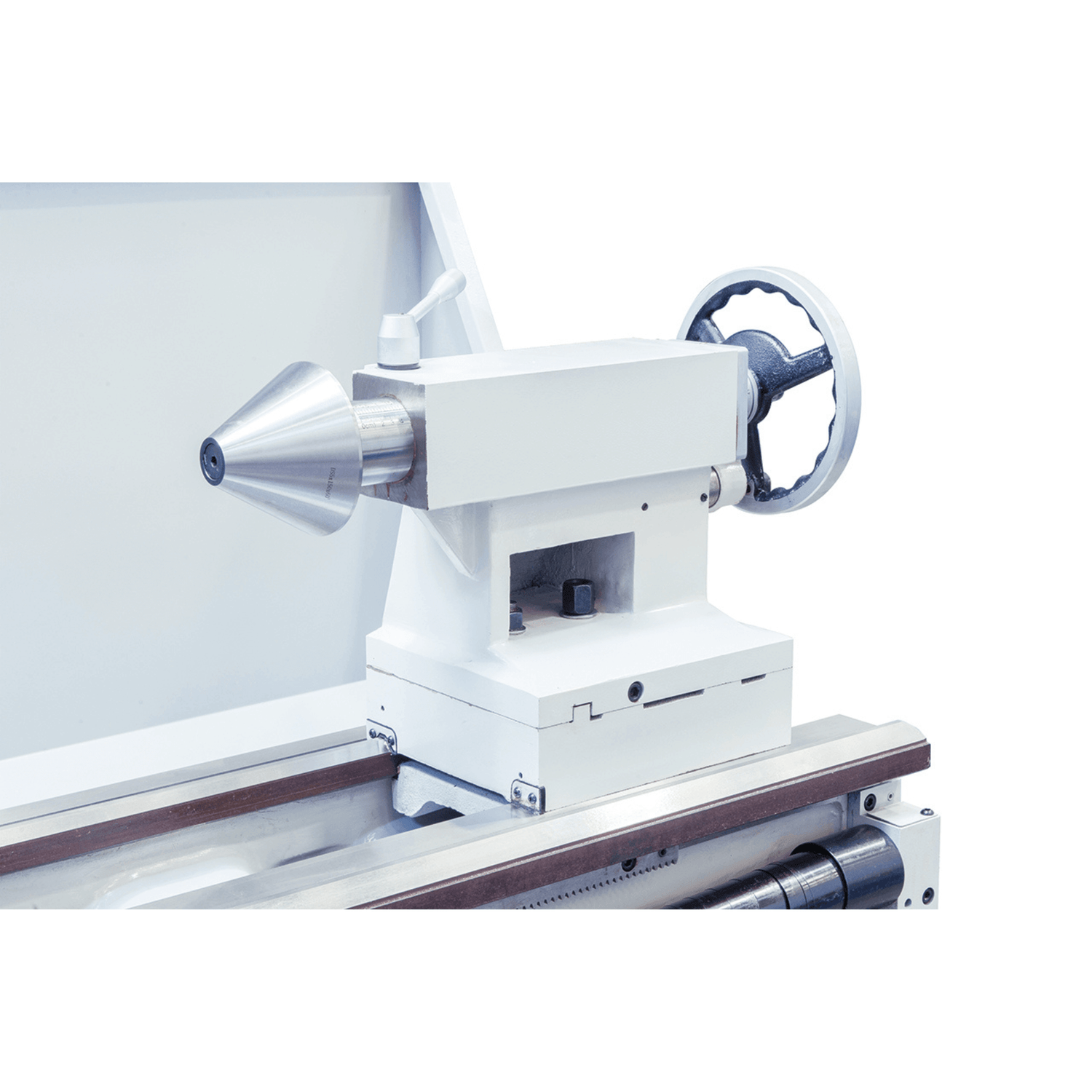

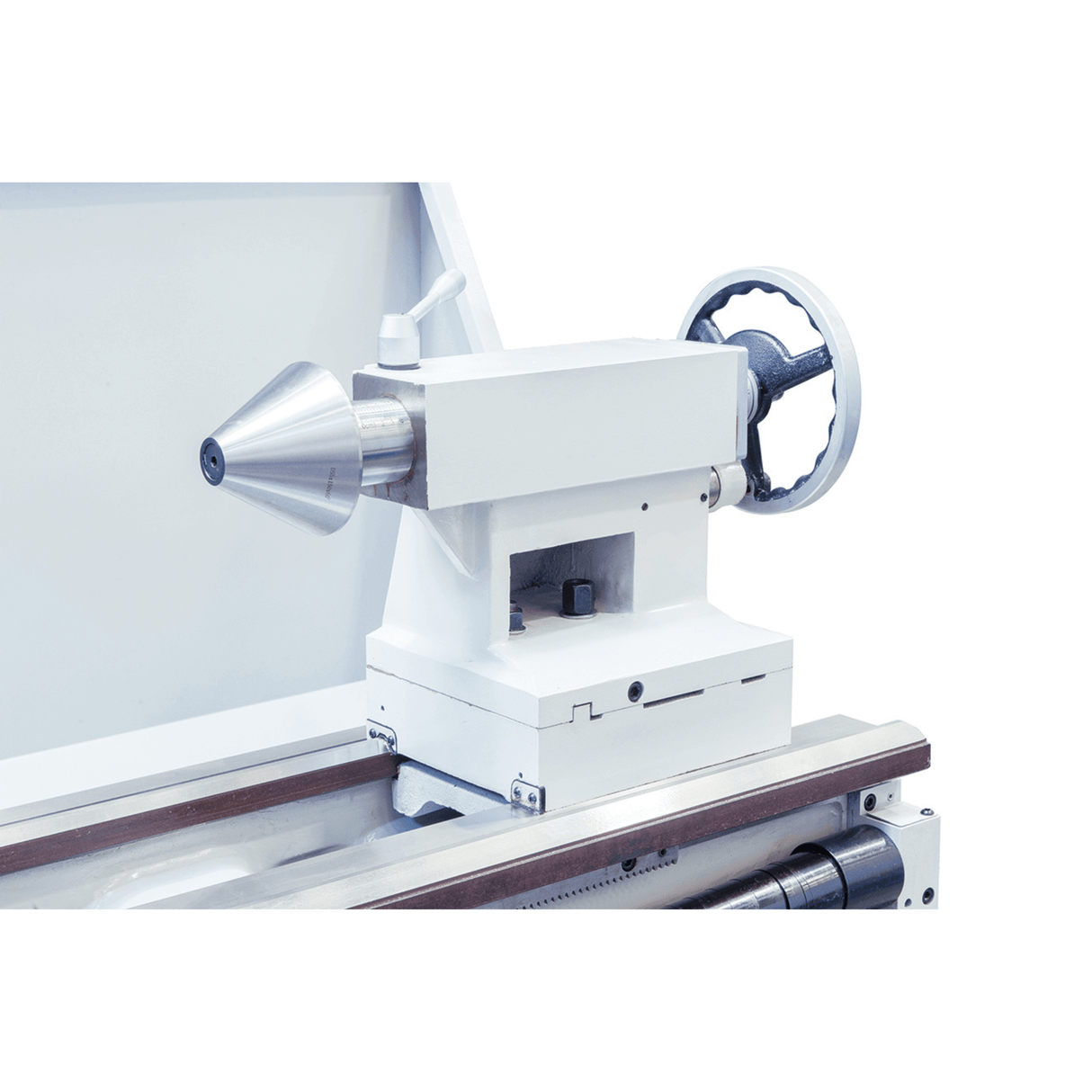

• Tailstock can be repositioned for taper turning, scale adjustable with handwheel (0.02 mm)
• Electromechanical foot brake minimizes downtime
• High performance even in facing

Standard accessories

• Safety clutch
• Rapid longitudinal and transverse advance
• LED car light

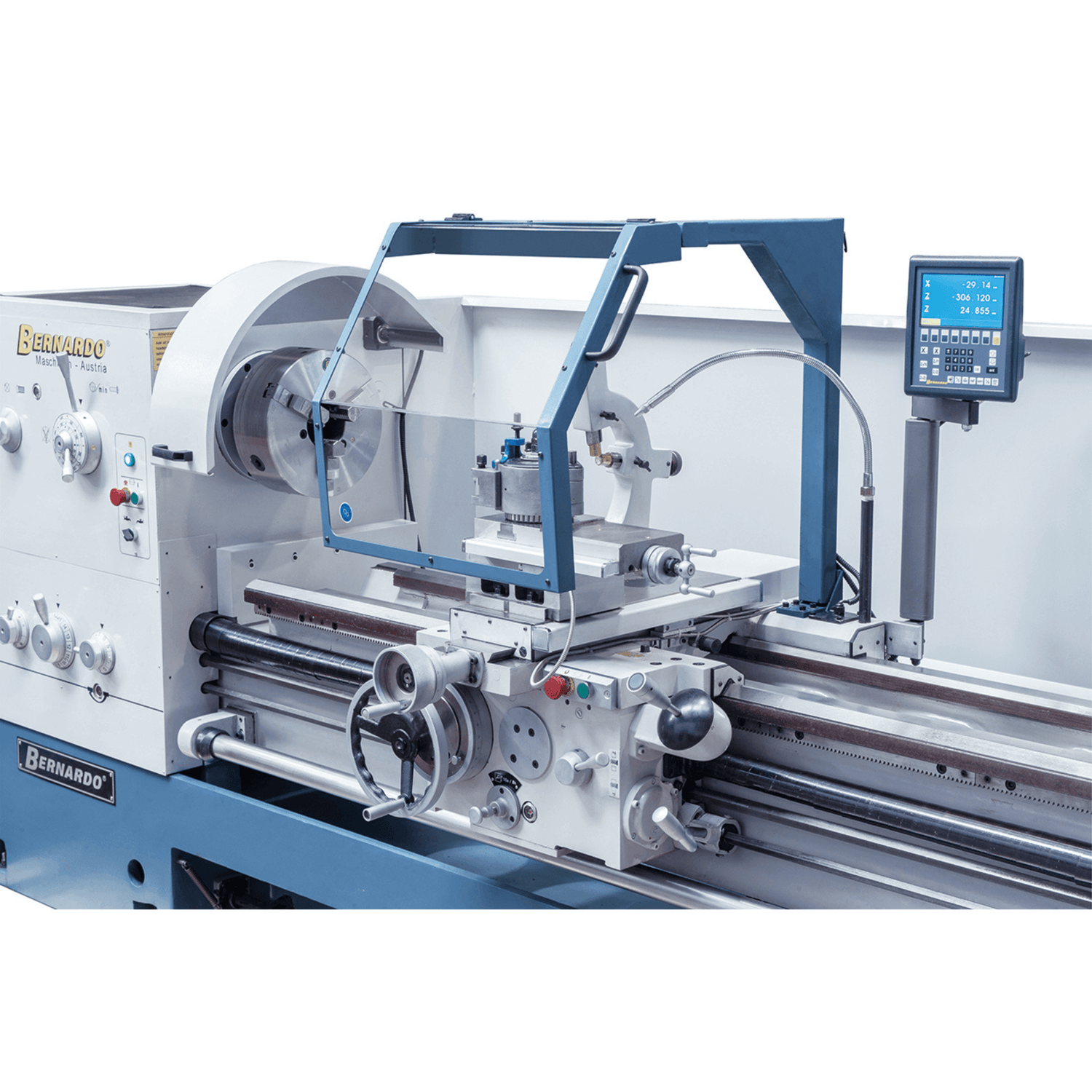

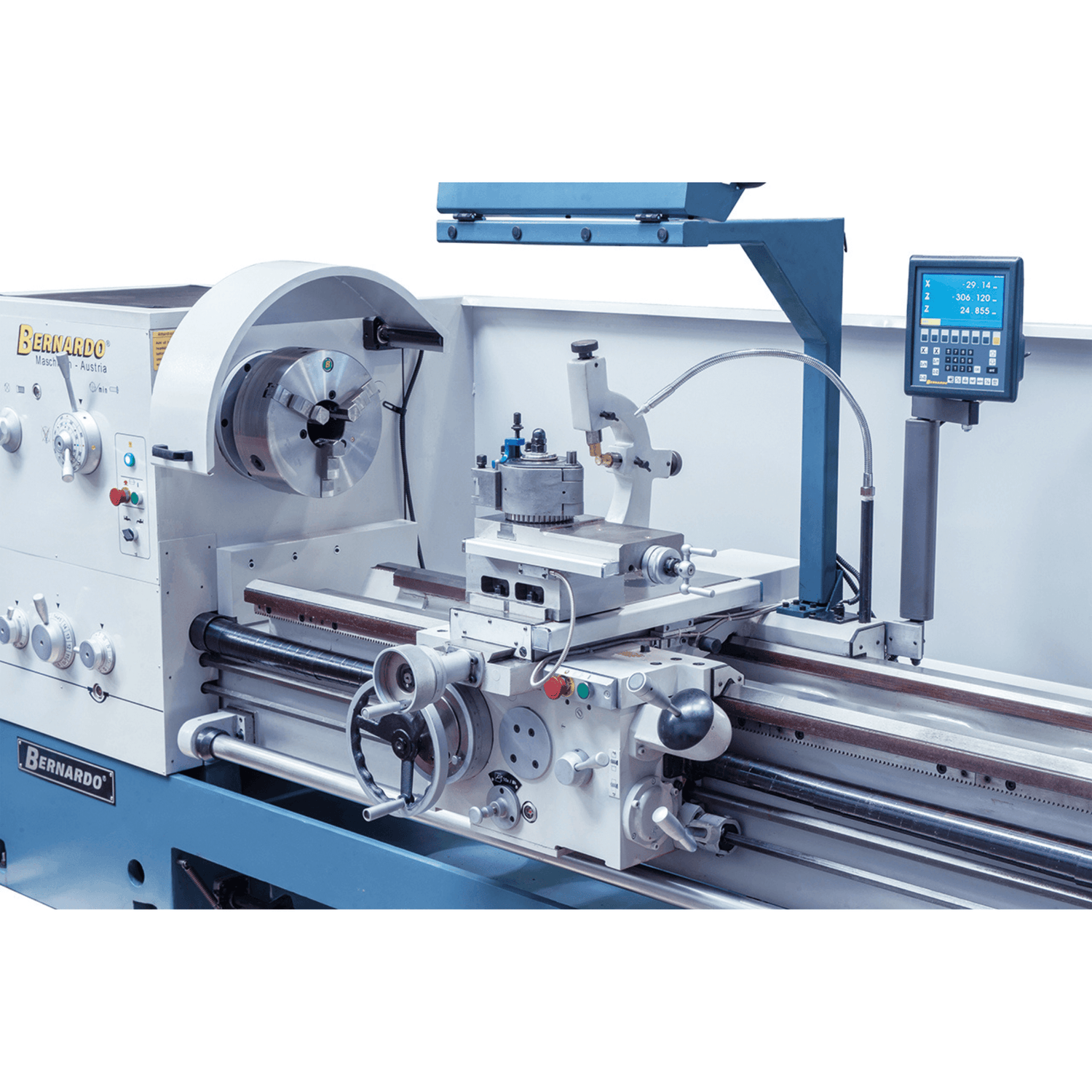

• ES-12V 3-Axis Digital Readout with LCD Display

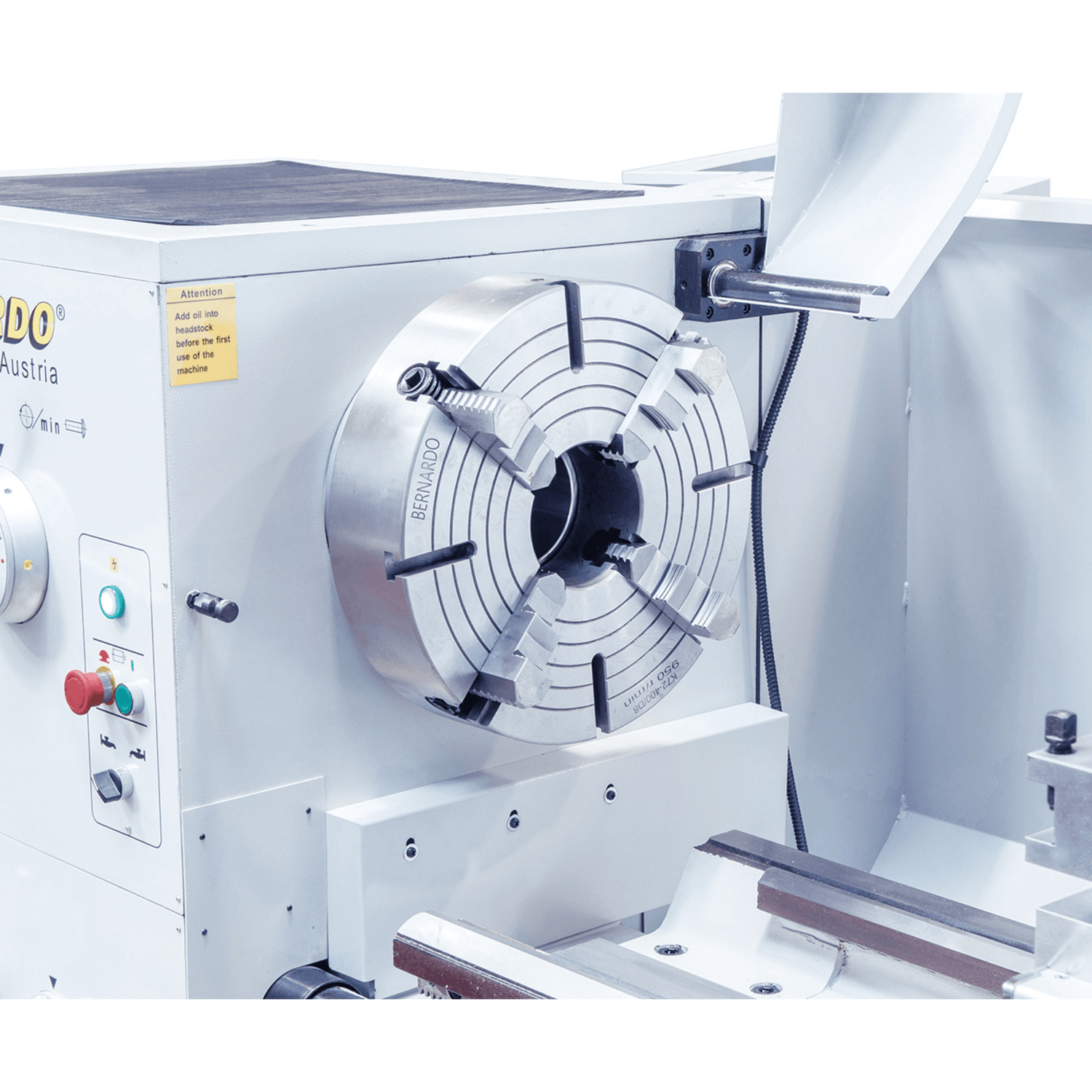

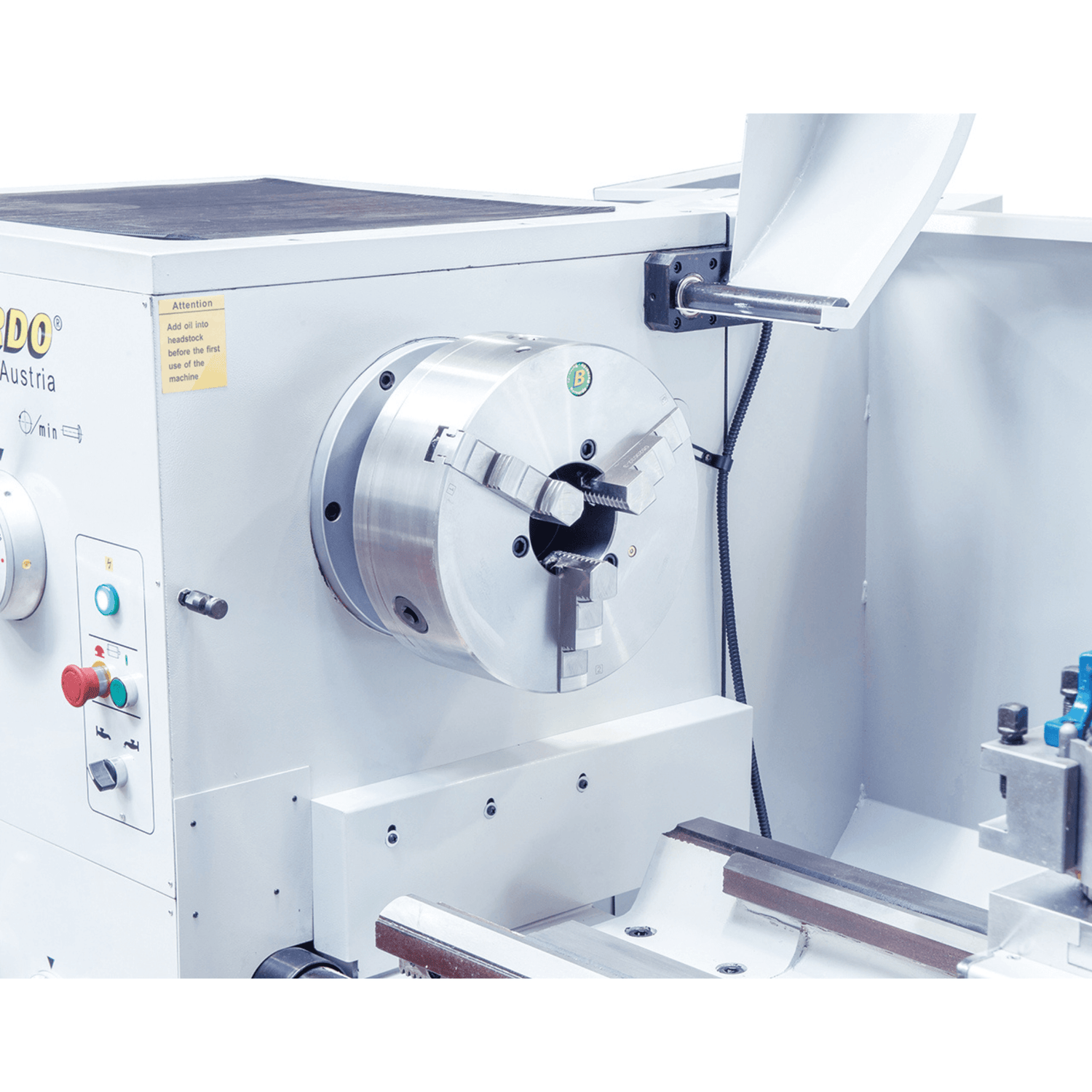

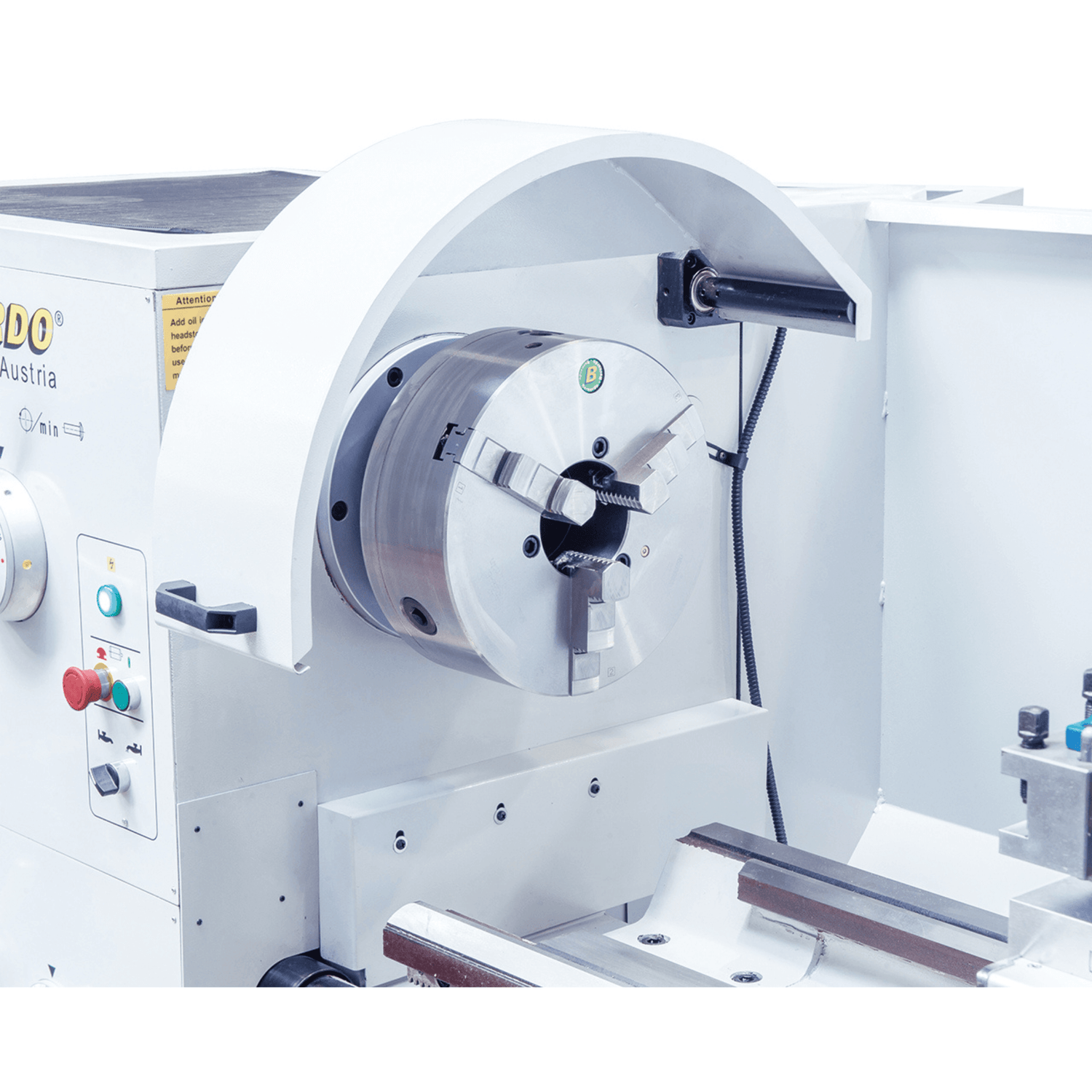

• 3-jaw chuck PS3-315 mm / D8
• Front 630 mm

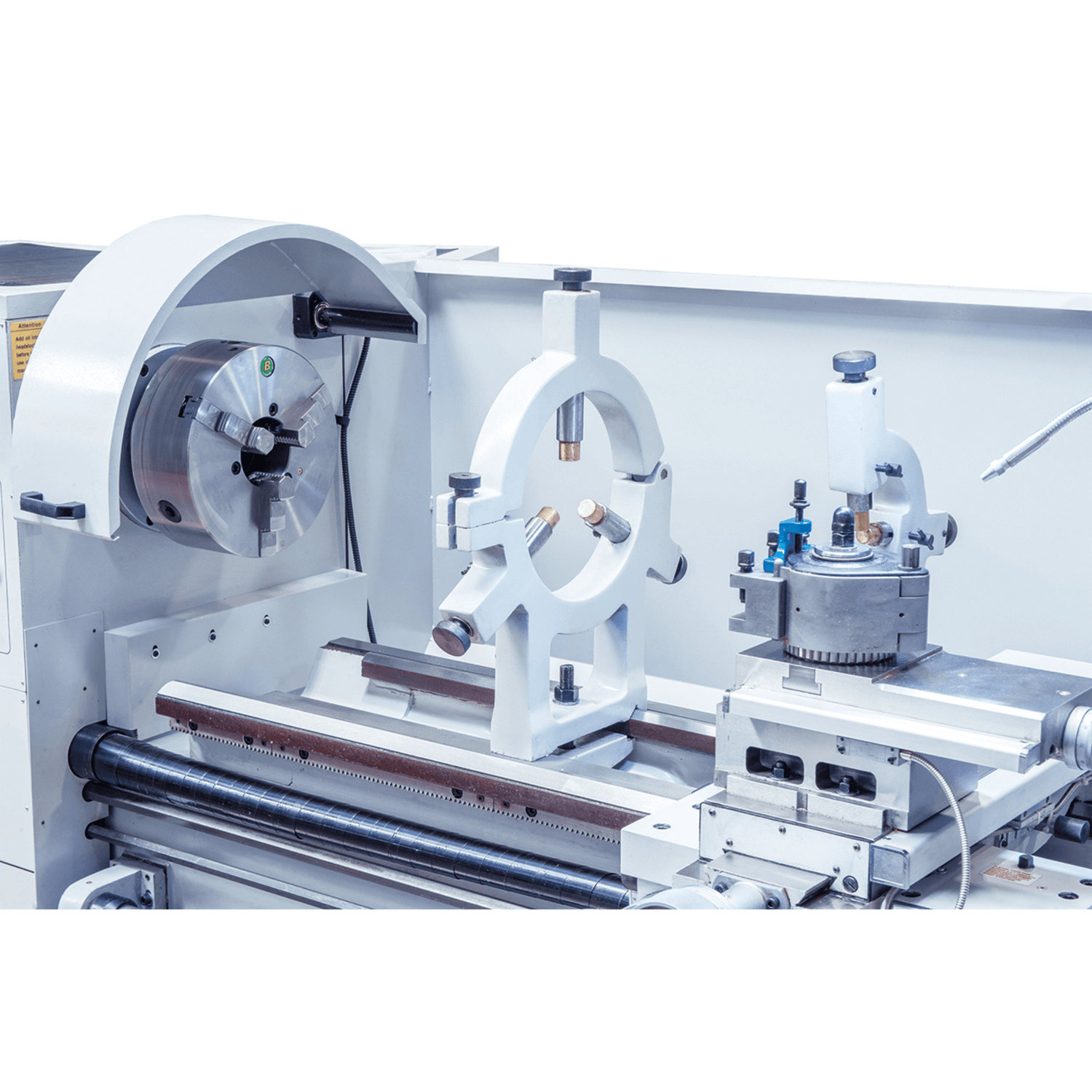

• Fixed bezel - Passage up to max. 250 mm
• Follow rest - Passage up to max. 110 mm
• 1 dead center / 1 live center
• Motor with CE compliant magnetic brake
• Pedal with brake function acc. to CE
• Initial fill with Shell Tellus 46
• Cooling device

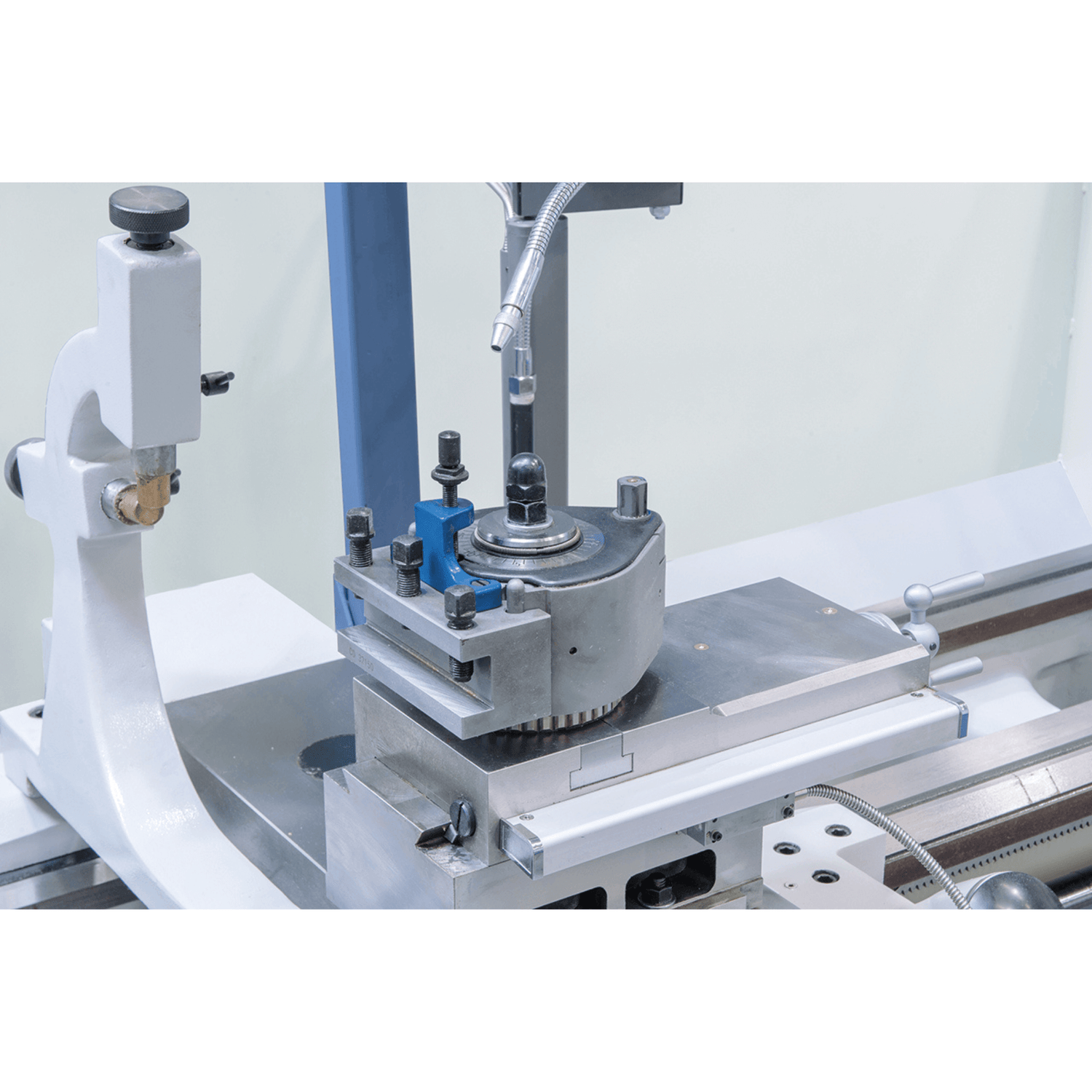

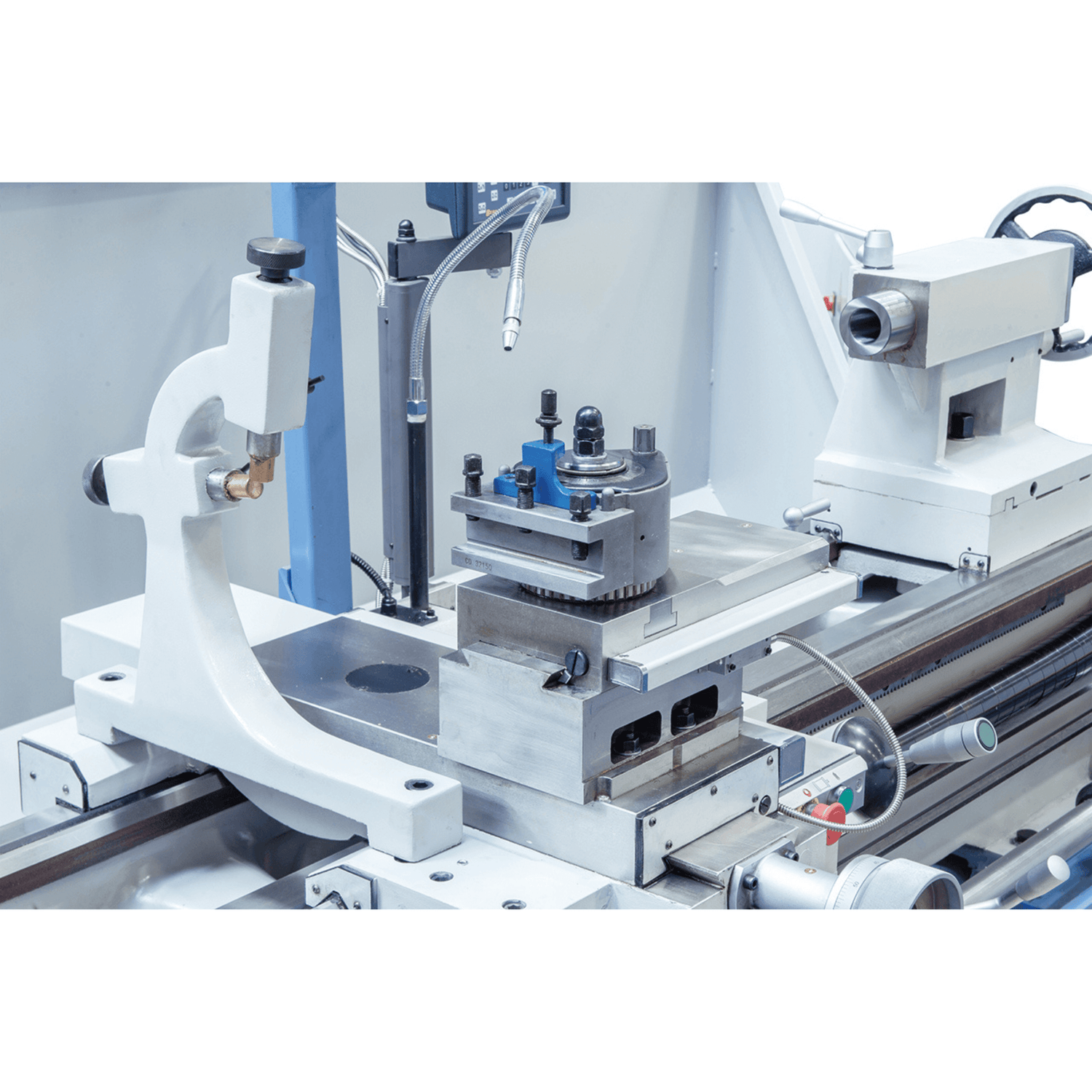

• 40-position tool holder and holder set with 4 inserts
• Tool holder protection device
• Morse taper drill guide
• Mudflaps
• Tools

Technical specifications

• Wheelbase 1500 mm
• Center height 330 mm
• Swing on the bed 660 mm
• Swing clearance* 870 mm
• Oscillation on cross slide 420 mm
• Bed with 400 mm
• Spindle hole 105 mm
• Spindle nose fixing DIN 55029, D1-8
• Speed range (16) 36 - 1600 rpm
• Longitudinal feed (65) 0.063 - 2.52 mm/rev.
• Cross feed (65) 0.027 - 1.07 mm/rev.
• Metric thread (22) 1 - 14 mm
• Inch thread (26) 2 - 28 threads/1“
• Tailstock sleeve diameter 75 mm
• Tailstock sleeve travel 150 mm
• Tailstock quill cone MT 5
• Engine power 7.5 kW (10.0 hp)
• Machine dimensions (W x D x H) 3000 x 1280 x 1650 mm
• Weight approx. 3630 kg
• * Removable bed length: 240 mm
