Description

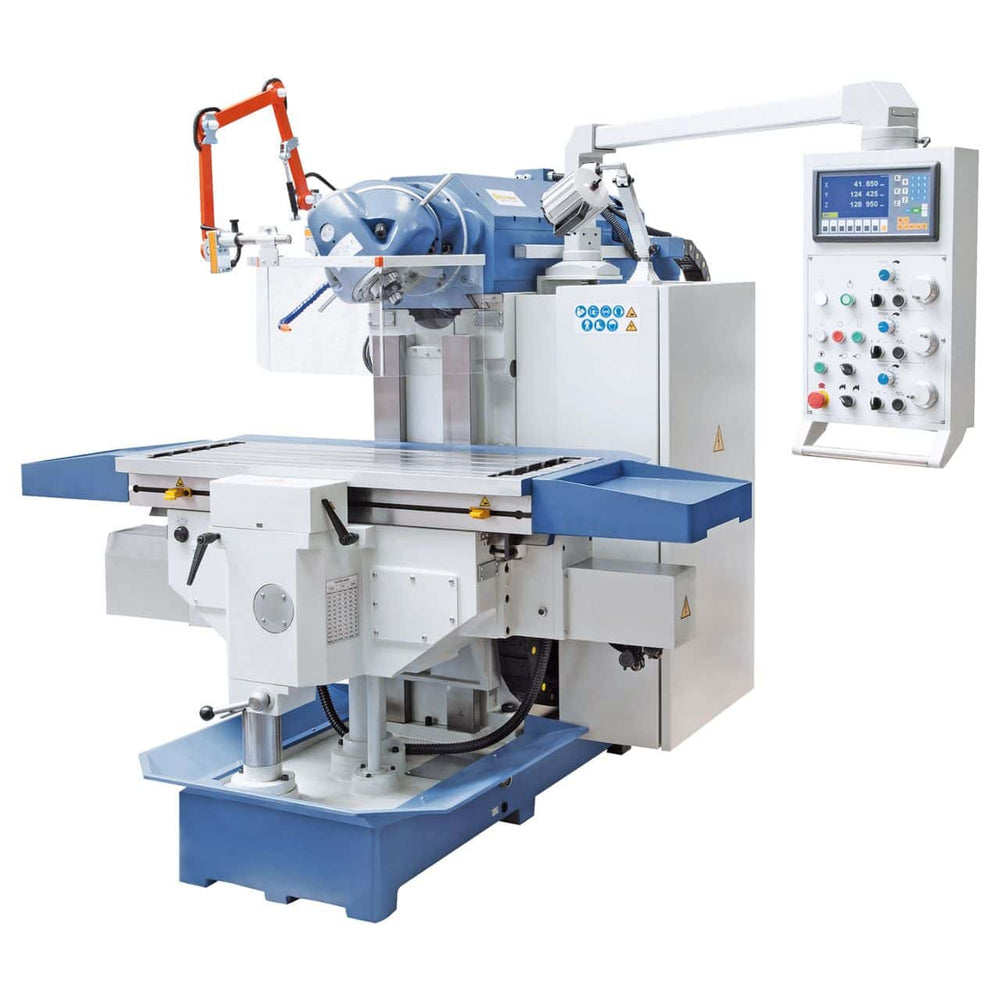

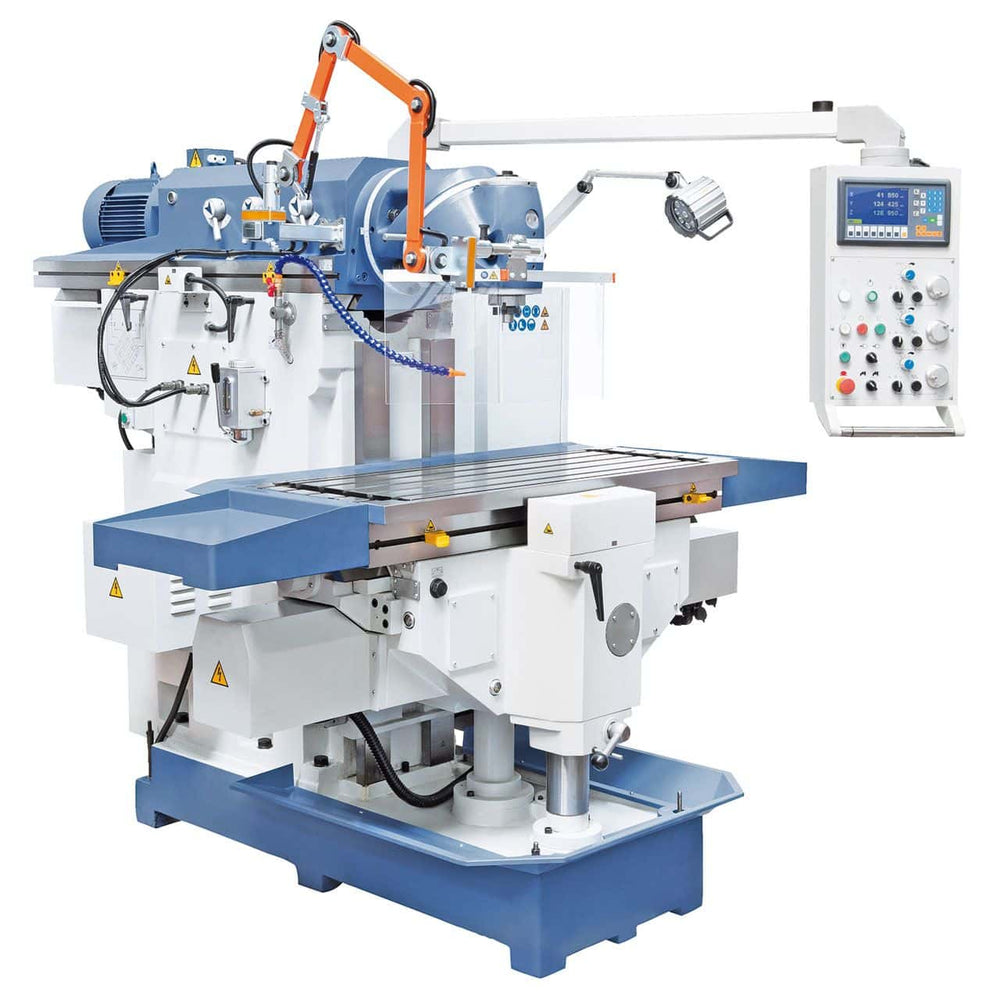

Variomill FU 1200 E Servo Universal Milling Machine
The Variomill FU 1200 E Servo is a universal milling machine designed for machining large workpieces, perfect for heavy-duty industrial applications. Thanks to its robust cast iron construction, this machine offers stability and precision, even in the most demanding operations. Equipped with servo-assisted feed in all axes and a large worktable, it guarantees high performance, versatility, and durability.
Main Features:
- Robust Cast Iron Structure : Built to ensure a solid base and minimize vibration, the FU 1200 E Servo provides a stable working environment for precision operations on large workpieces.

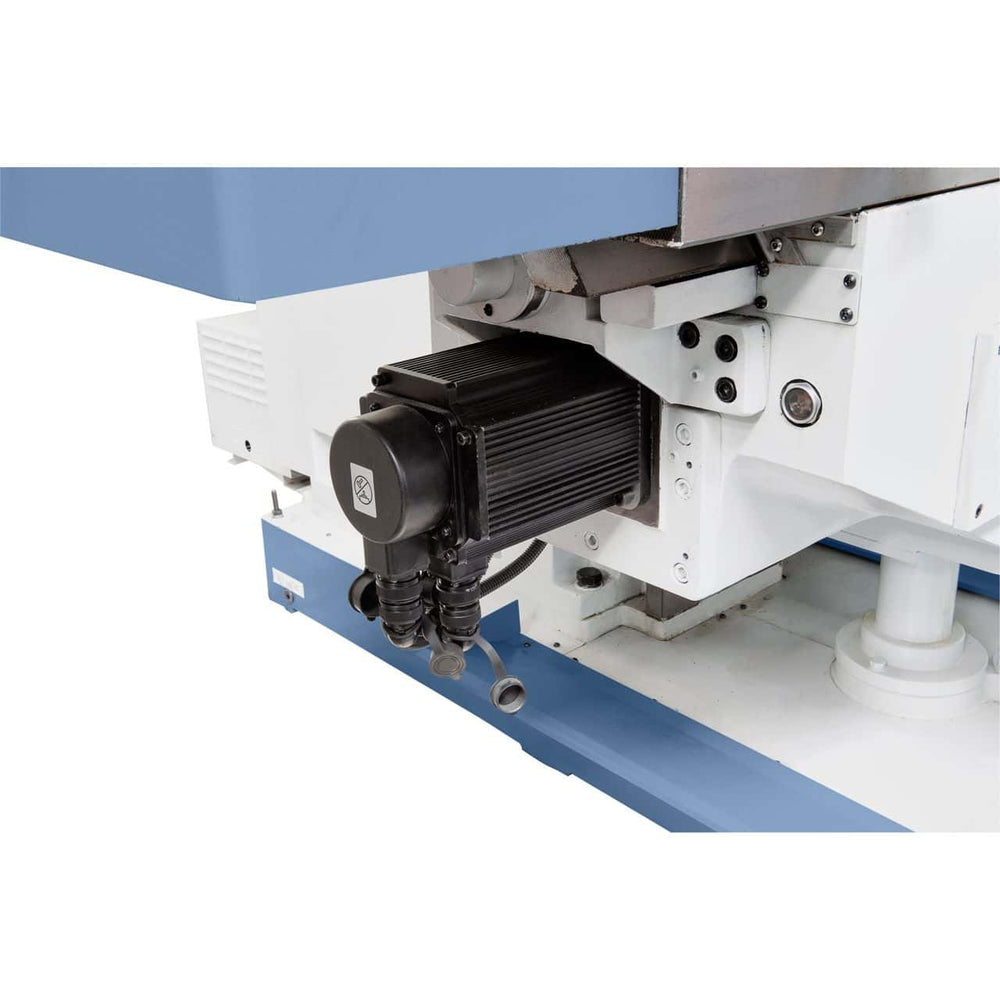

- Servo-assisted Feed : With servo motor powering continuous automatic feed and rapid traverse in all axes, the machine ensures precise control and high productivity.
- Turcite B Coating : The X-axis is coated with Turcite B material to reduce slip-stick, improving motion smoothness and ensuring longer life.
- Preloaded Rotary Ball Spindles : These spindles are present on all three axes, eliminating backlash and ensuring maximum precision of movement.
- Hardened and Nitrided Gears : The gears are hardened and ground in an oil bath to ensure smooth, quiet and long-lasting operation.

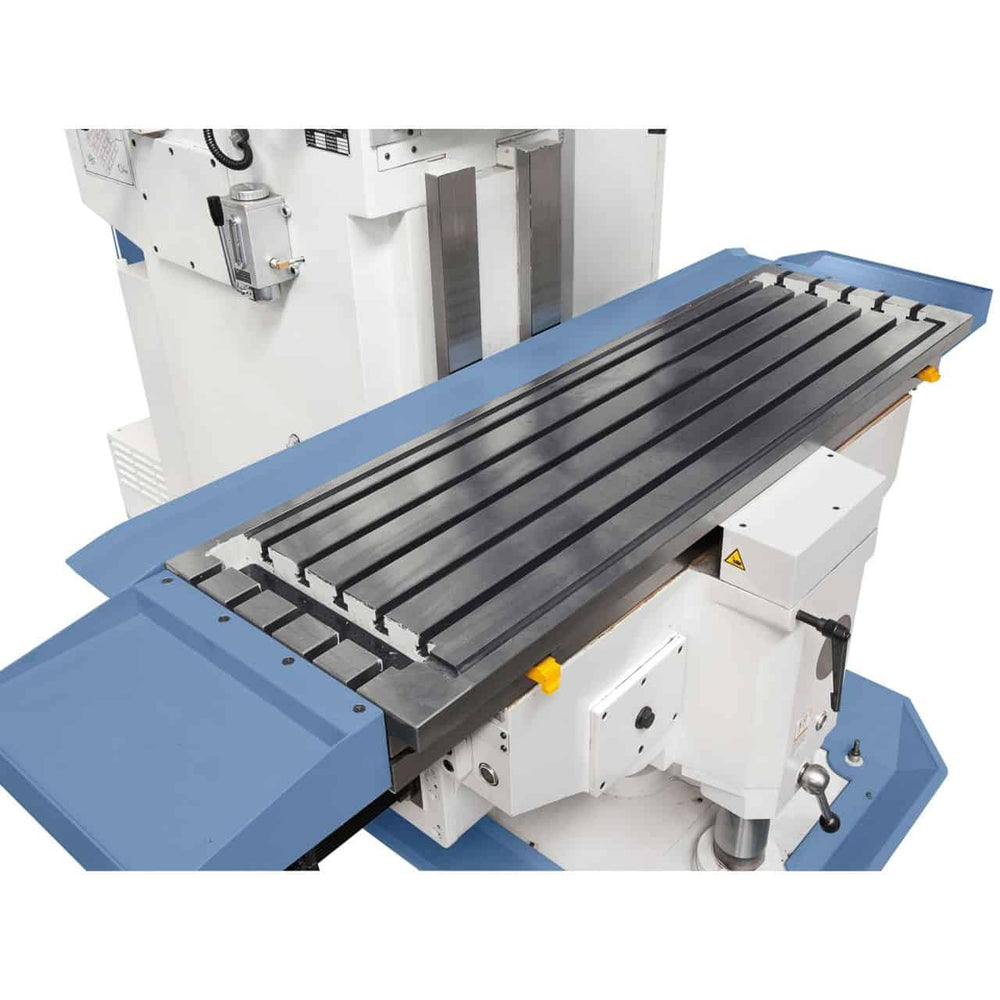

- Large Work Table : The T-slot composite table is finely machined to provide a large and versatile work space, perfect for clamping large workpieces.
- Automatic Lubrication : The centralized lubrication system ensures simple and regular maintenance, reducing wear on the guides and improving operating efficiency.
Standard Accessories:

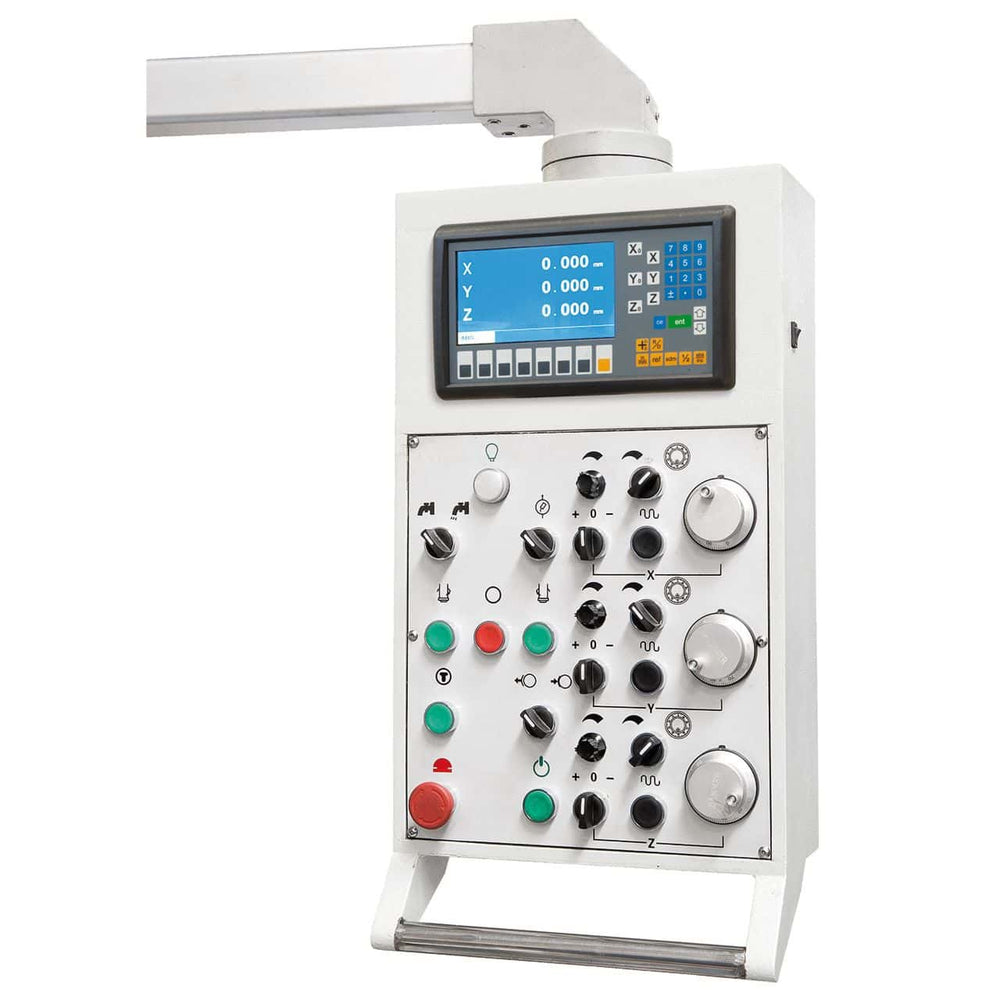

- ES-12 H 3-Axis Position Display with LCD Display
- Electronic flyers
- Clamping chuck
- Refrigeration system with cooling tank
- Integrated LED light for optimal visibility

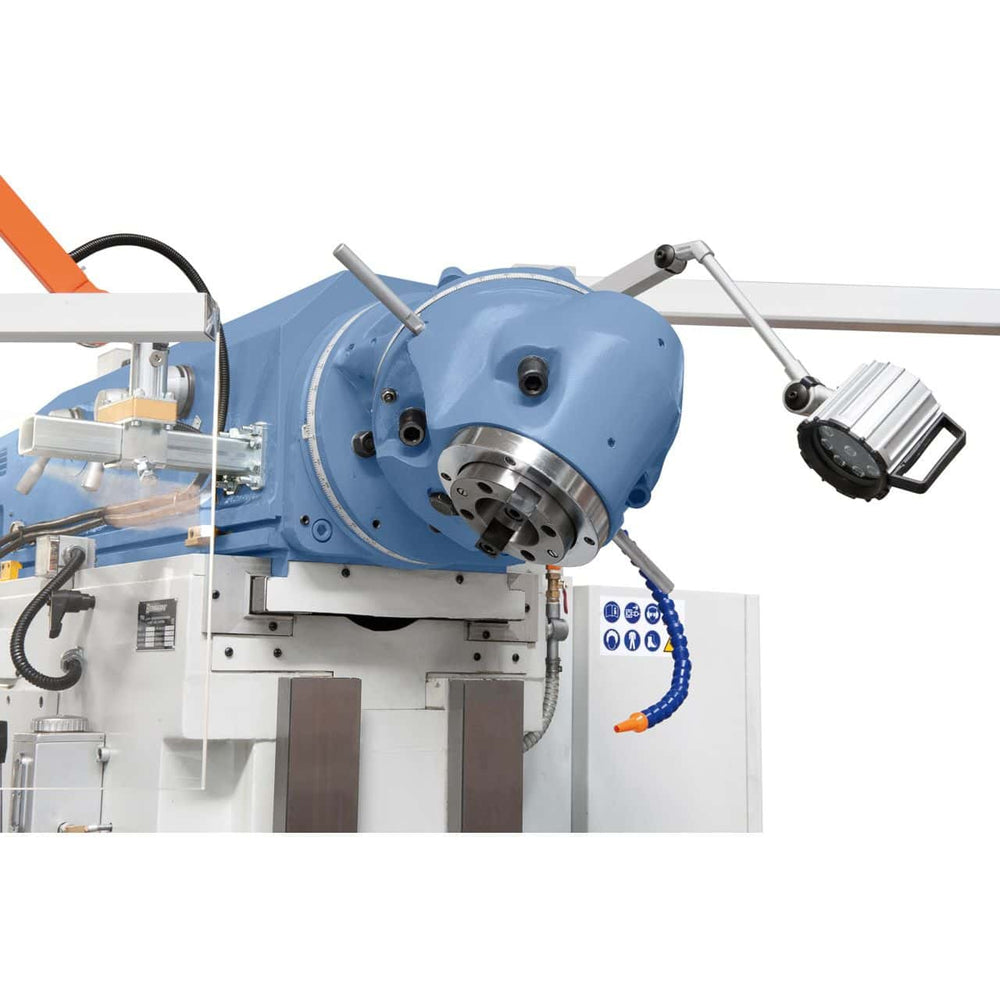

- Universal milling head
- Universal protection device
- Spindle brake
- Automatic central lubrication
- Combination drill chuck
- Advanced control device
Technical Specifications :
| Characteristic | Detail |
|---|---|
| Table dimensions | 1235 x 460 mm |
| Spindle attachment | ISO 40 |
| Spindle speed | (27) 30 – 2050 rpm |
| Longitudinal travel (x) | 900 mm |
| Transverse travel (y) | 650 mm |
| Vertical travel (z) | 450 mm |
| Spindle/table distance | 35 – 485 mm |
| Length of the arms | 20 – 670 mm |
| Longitudinal advancement area | 10 – 1000 mm/min |
| Transverse advancement area | 10 – 1000 mm/min |
| Vertical advancement area | 5 – 500 mm/min |
| Rapid travel on the x and y axes | 2500 mm/min |
| Z-axis rapid traverse | 1500 mm/min |
| Table load | 800 kg |
| T-slots (width, distance, number) | 5 / 18 mm / 80 mm |

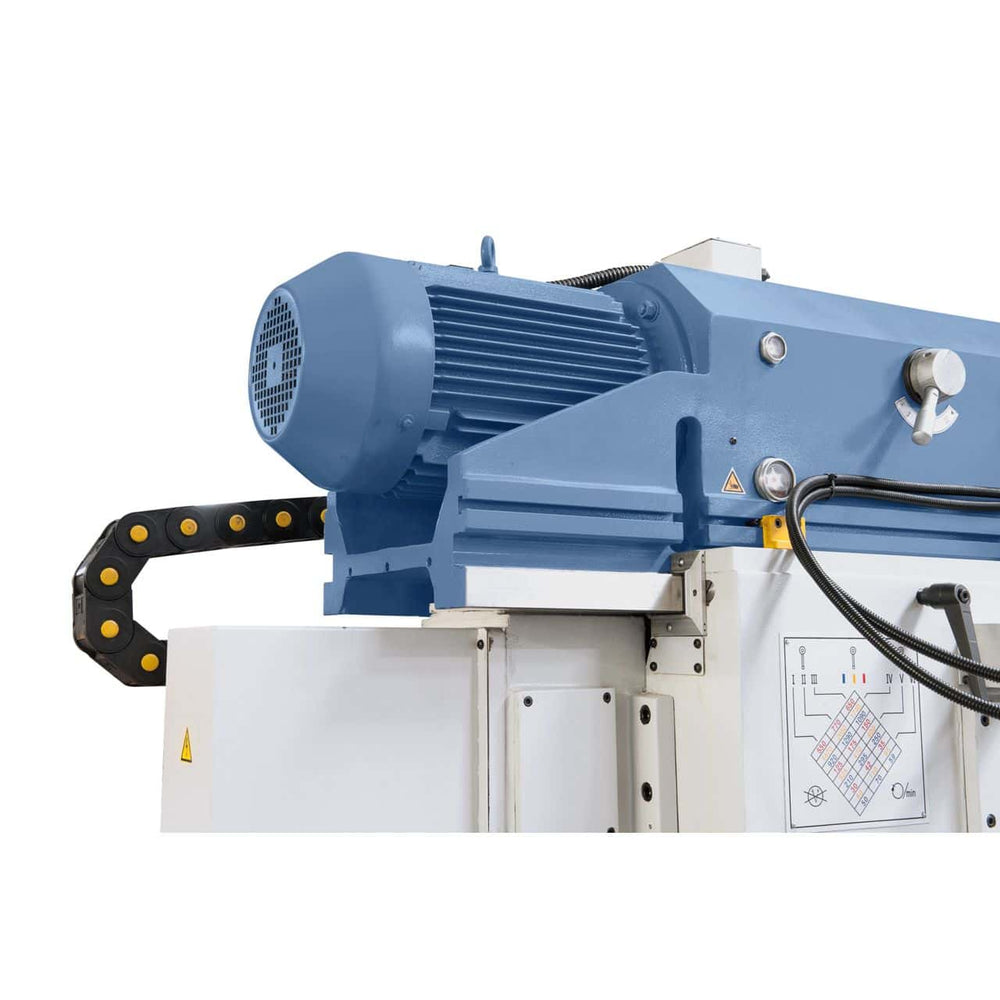

| Main engine | 5.5 kW |
| Machine dimensions (L x W x H) | 1835 x 2285 x 2100 mm |
| Weight | 4000 kg |
The Variomill FU 1200 E Servo universal milling machine is a professional machine designed for machining large workpieces with maximum precision and stability. Thanks to its robust design, advanced servo motor for continuous and rapid feed, and large worktable, the FU 1200 E Servo is perfect for demanding work environments that require reliability, efficiency, and high performance.
