Bernardo  |  SKU: 10-10040

Mortising machine LBM 220 - 230 V

€1.701,90
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

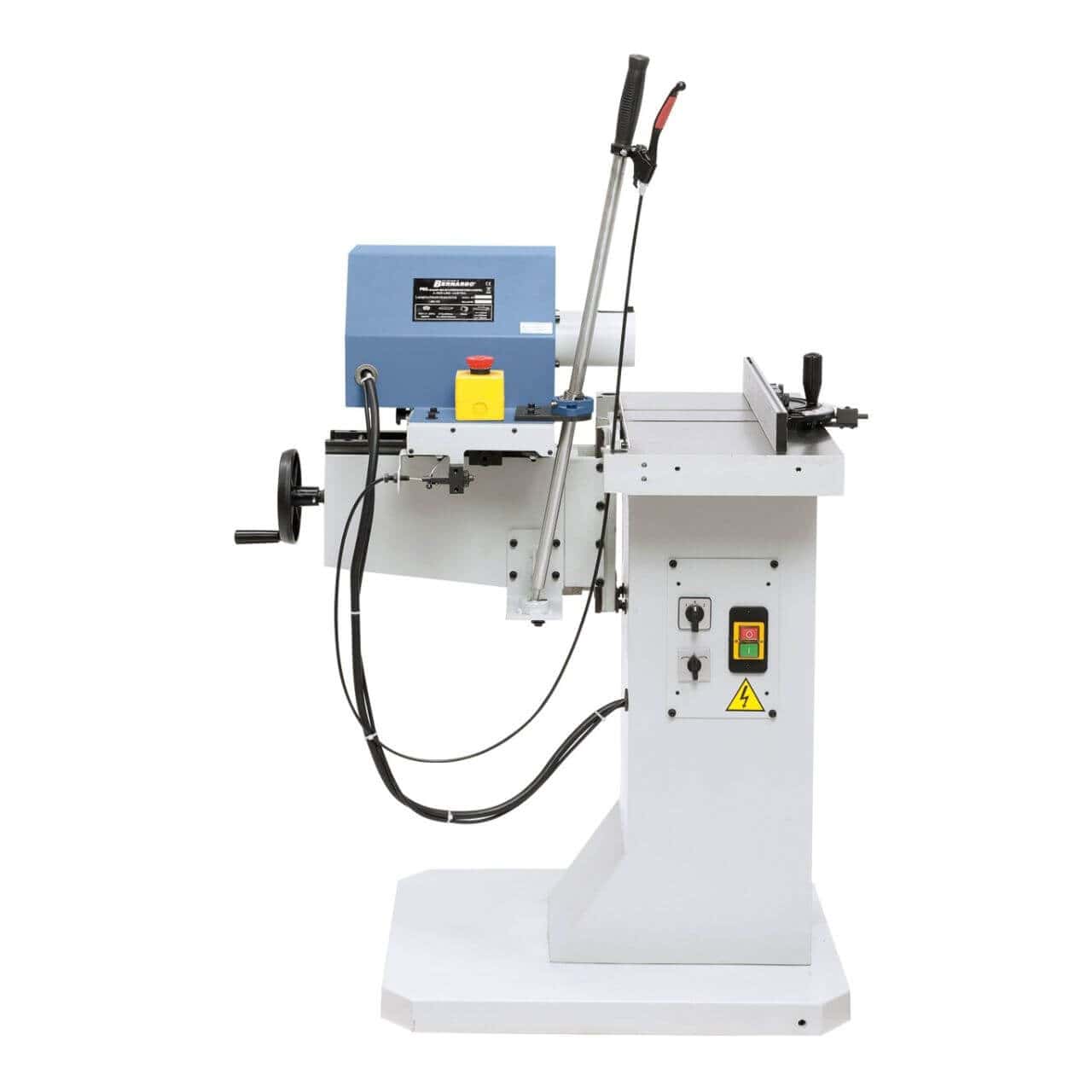

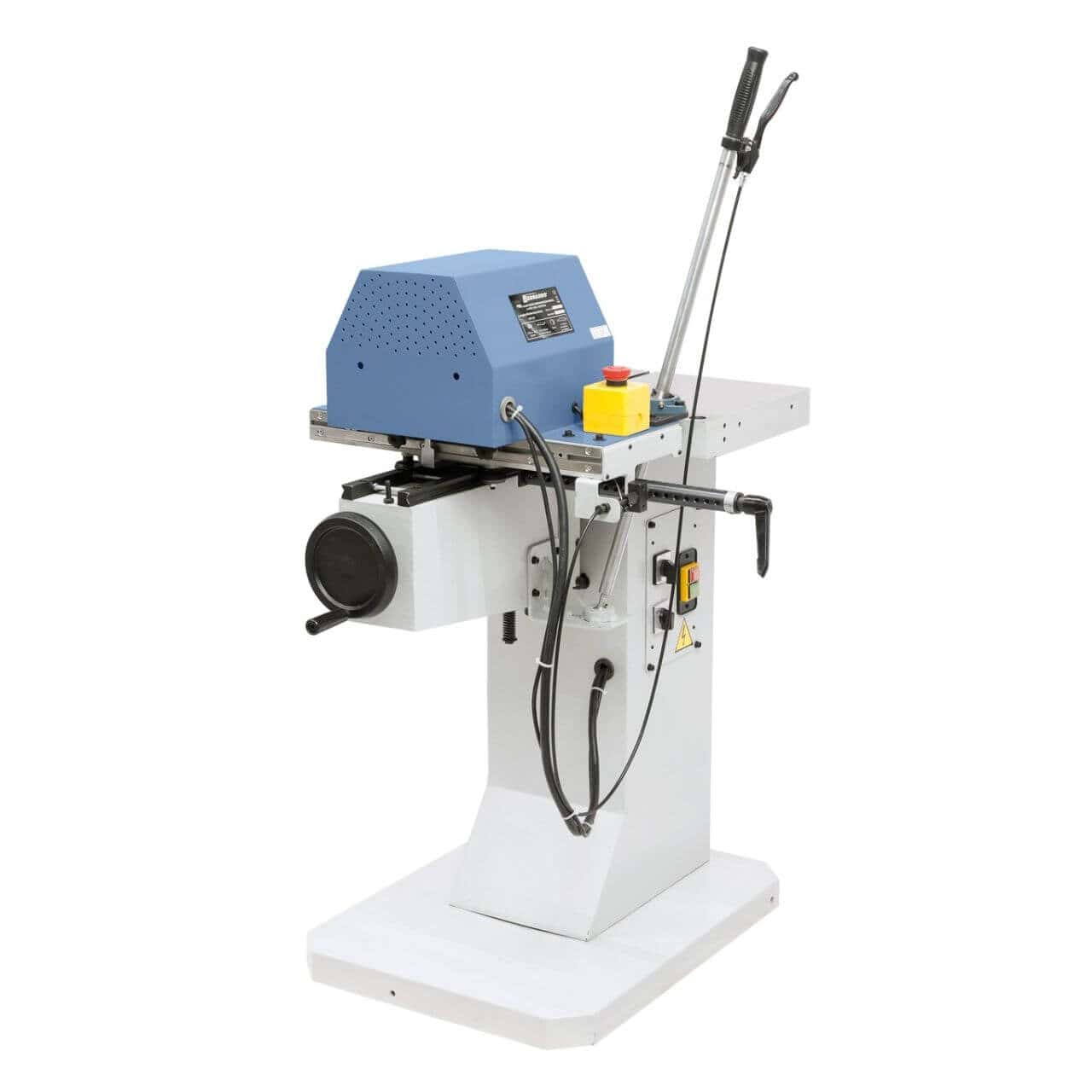

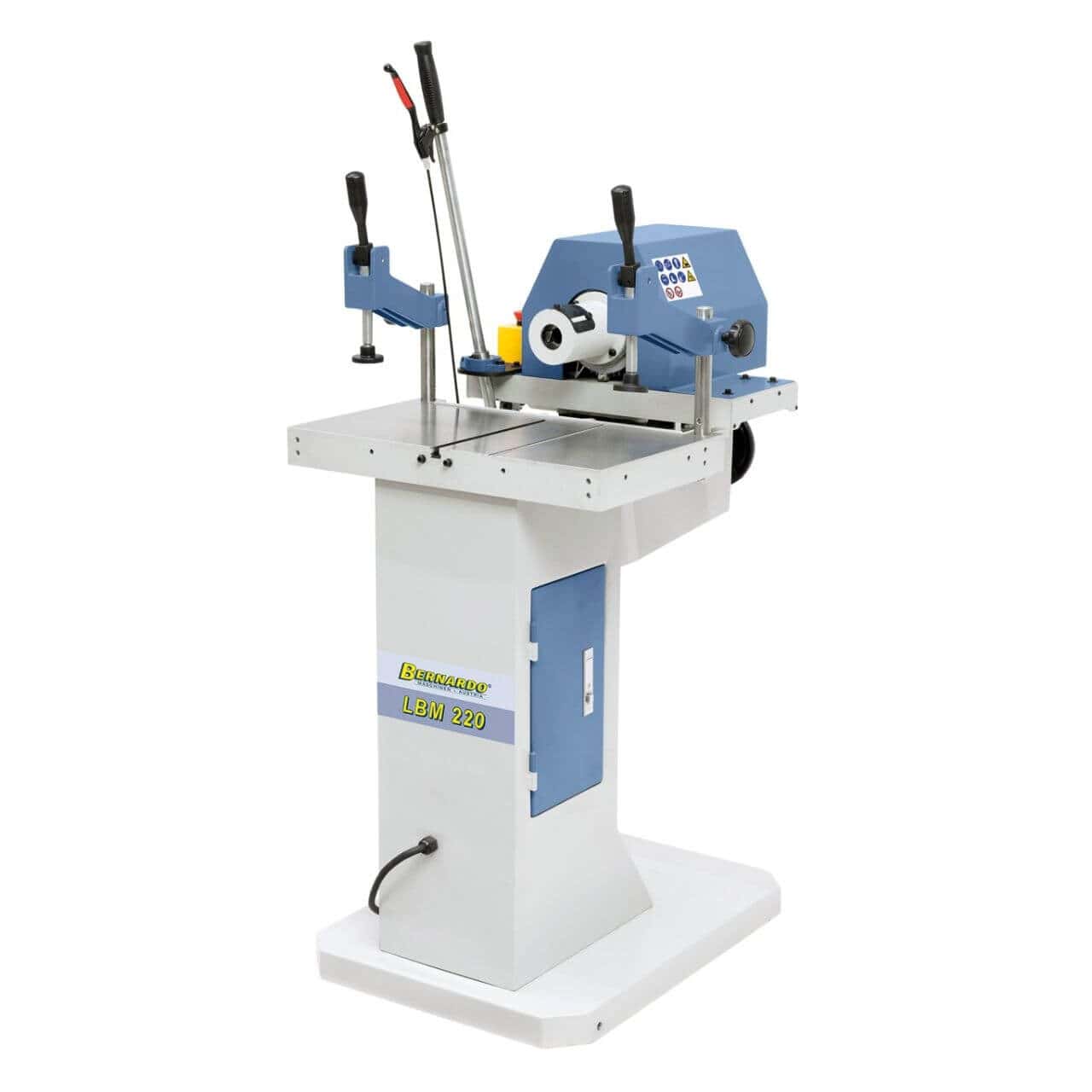

LBM 220/230 V mortising machine with extendable tables and parallel guide

The LBM 220 is a professional mortising machine constructed from torsion-resistant steel, with a large, treated gray cast iron table and a series of extensions and widenings. Ideal for working on window frames, doors, and tenon joints, it offers high performance thanks to a powerful 3.0 kW motor and the option of clockwise and counterclockwise rotation.

Main features
• Rigid steel construction for vibration-free work
• Large cast iron table with treated surface

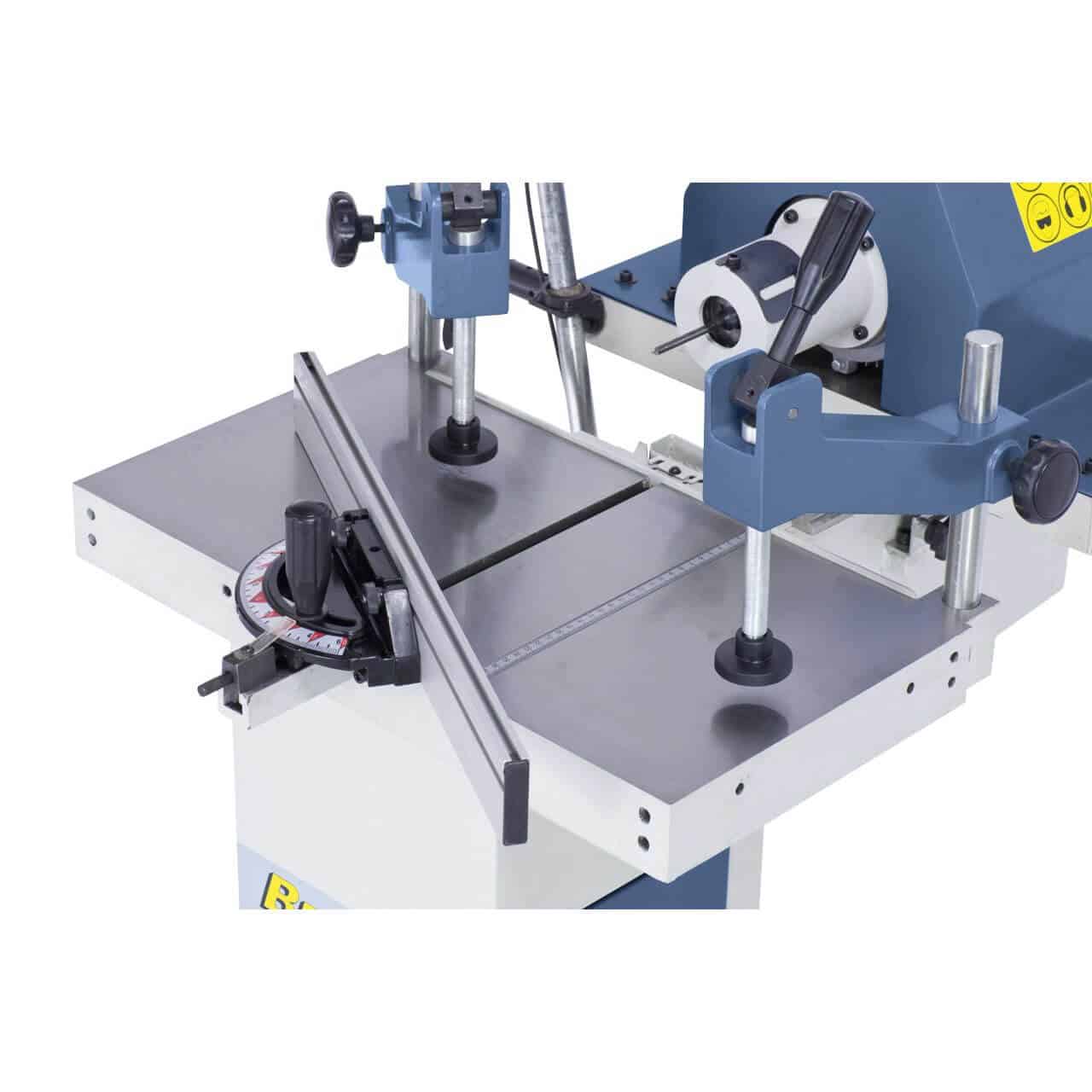

• Complete with 2 eccentric supports and angle guide for angled drilling
• Useful range of the drilling unit ideal for doors and long pieces
• Rotor group with 16 / 20 / 22 / 25 mm pitch included, for multiple drilling

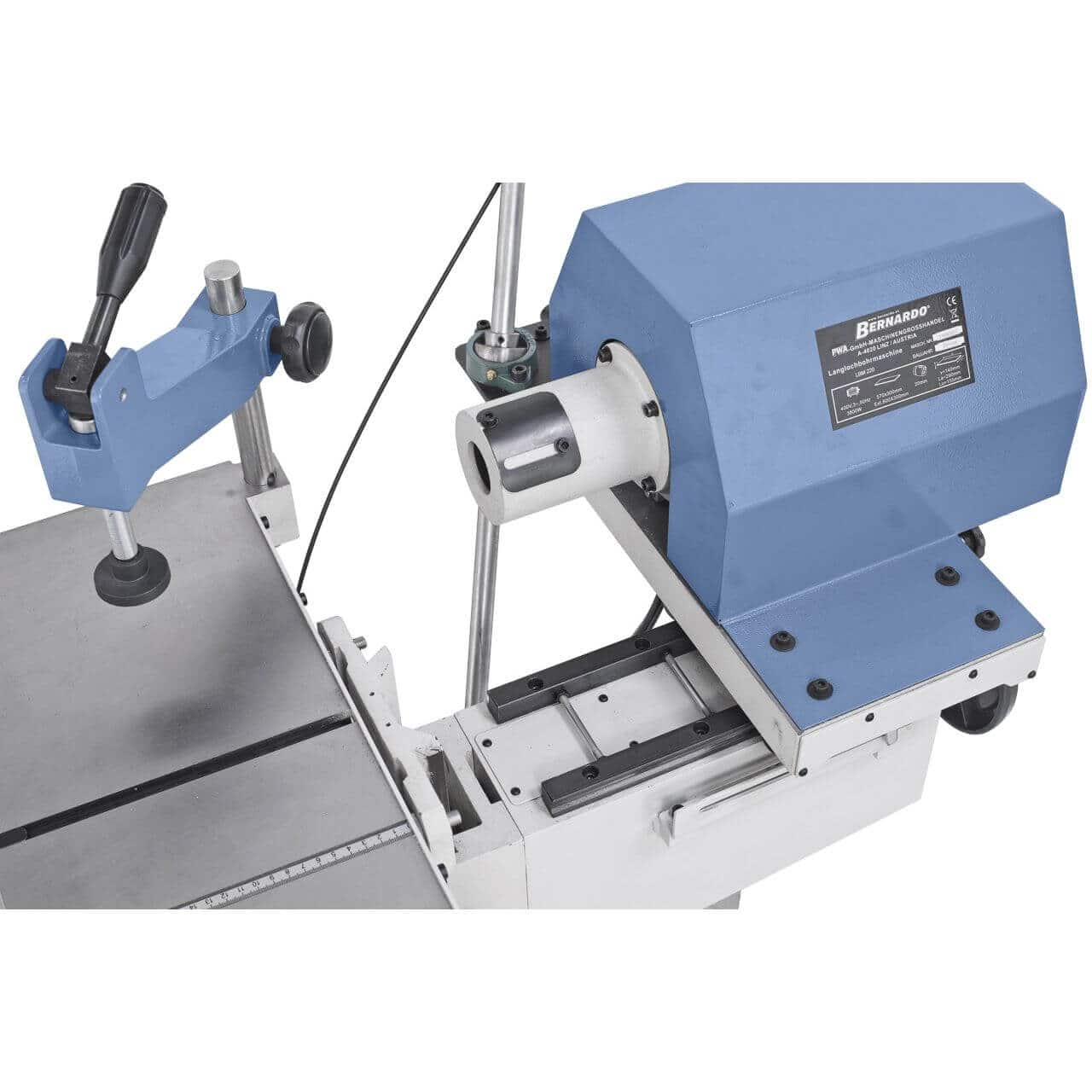

• Westcott 0–20 mm chuck with guard supplied

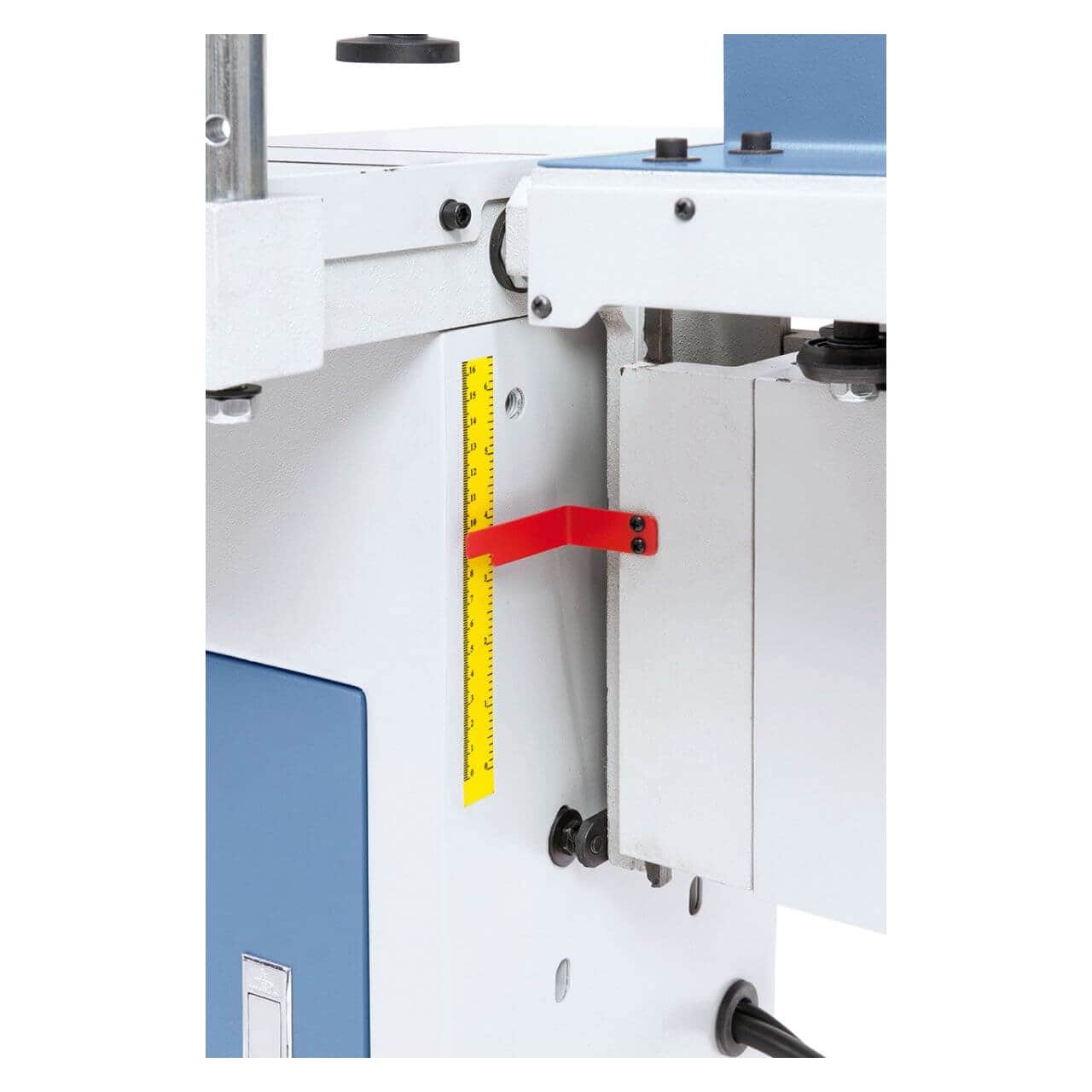

• Height adjustment via ergonomic handwheel
• 2 rotation speeds (1400 / 2800 rpm) with right/left reverse

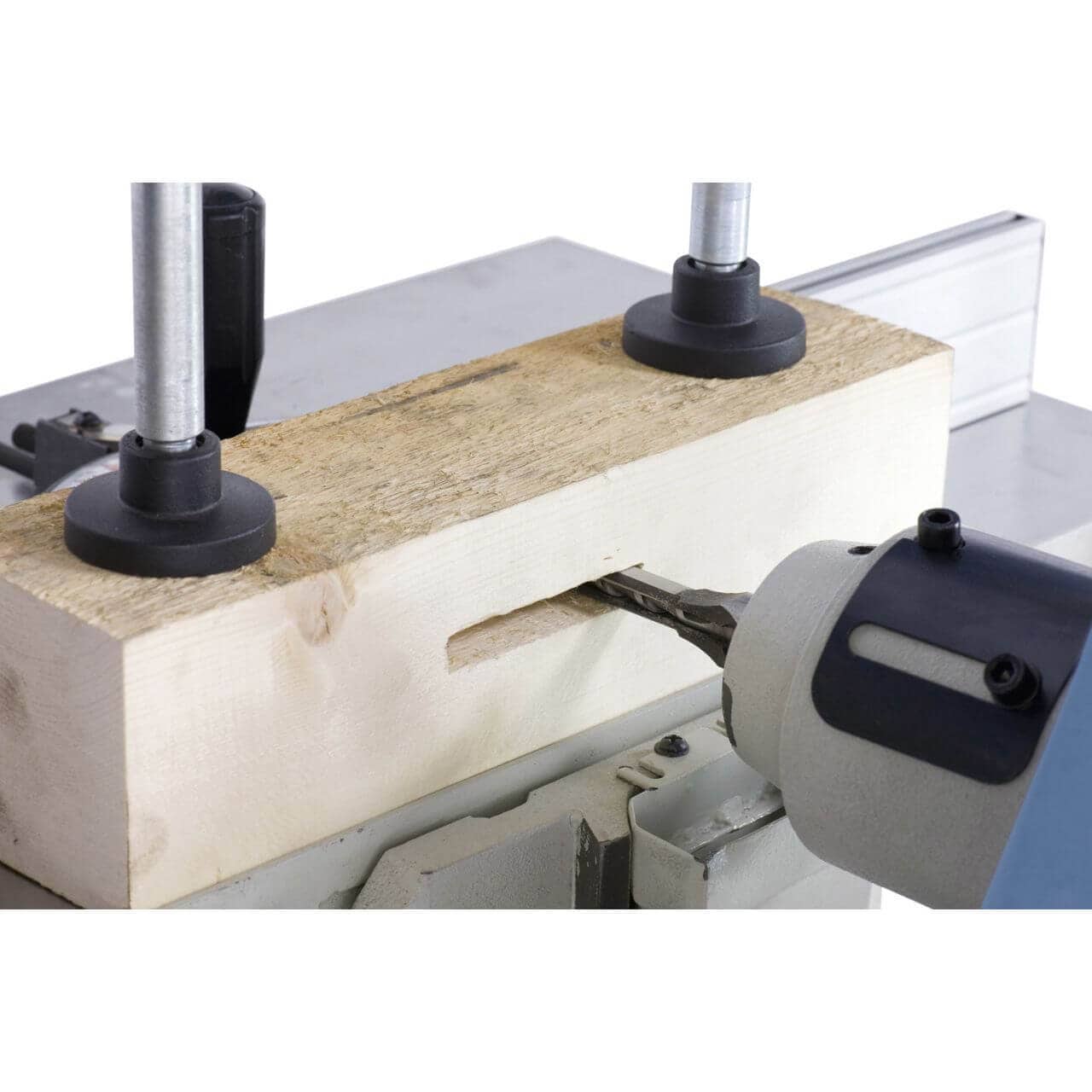

• Mortise chisel collectors included for precise rectangular holes
• Machine base with integrated tool compartment

Technical table

Function Characteristic
Table dimensions 570 x 300 mm
Table enlargement (optional) 2 x 600 x 260 mm
Table extension (optional) 300 x 600 mm
Table height 870 mm
Max drilling depth 155 mm
Drilling width 300 mm
Height adjustment 160 mm
Rotation speed 1400 / 2800 rpm
Westcott Chuck 0 – 20 mm
Engine power S1 100% 3.0 kW (4.0 HP)
S6 engine power 40% 4.2 kW (5.7 HP)
Voltage 230 V
Machine dimensions (WxDxH) 570 x 950 x 1340 mm
With extensions mounted 2500 x 1500 x 1340 mm
Weight 140 kg

Package Contents

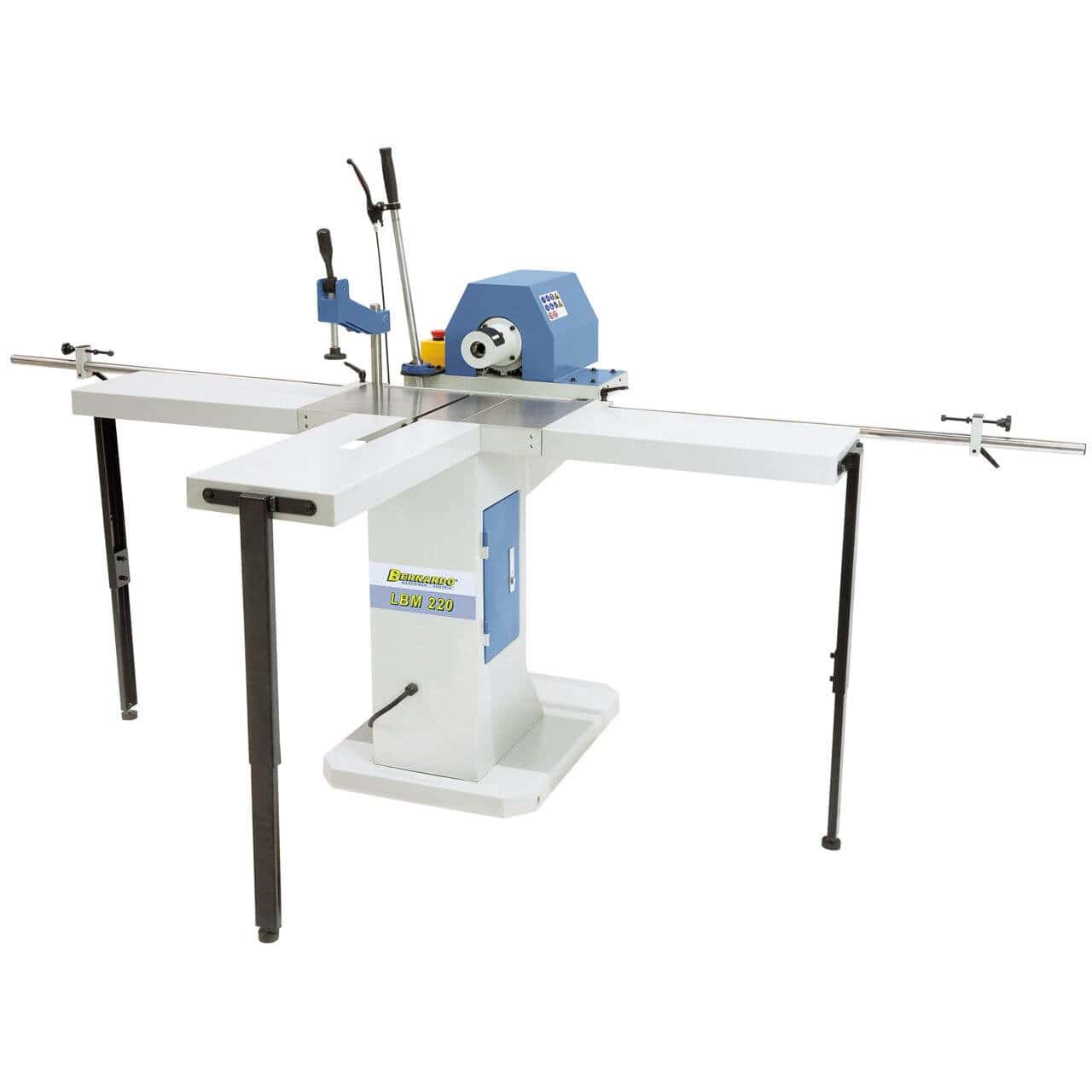

• Extension and widening tables
• 4-size rotor group with 16 / 20 / 22 / 25 mm pitch
• Westcott chuck 0 – 20 mm
• 1 x 9.50mm mortising chisel
• 2 eccentric supports
• Angle guide with stop
• Right and left rotation reversal
• 4 mortising chisel collars (19, 20, 28, 30 mm shafts)
• Machine base with tool shelf

Frequently Asked Questions

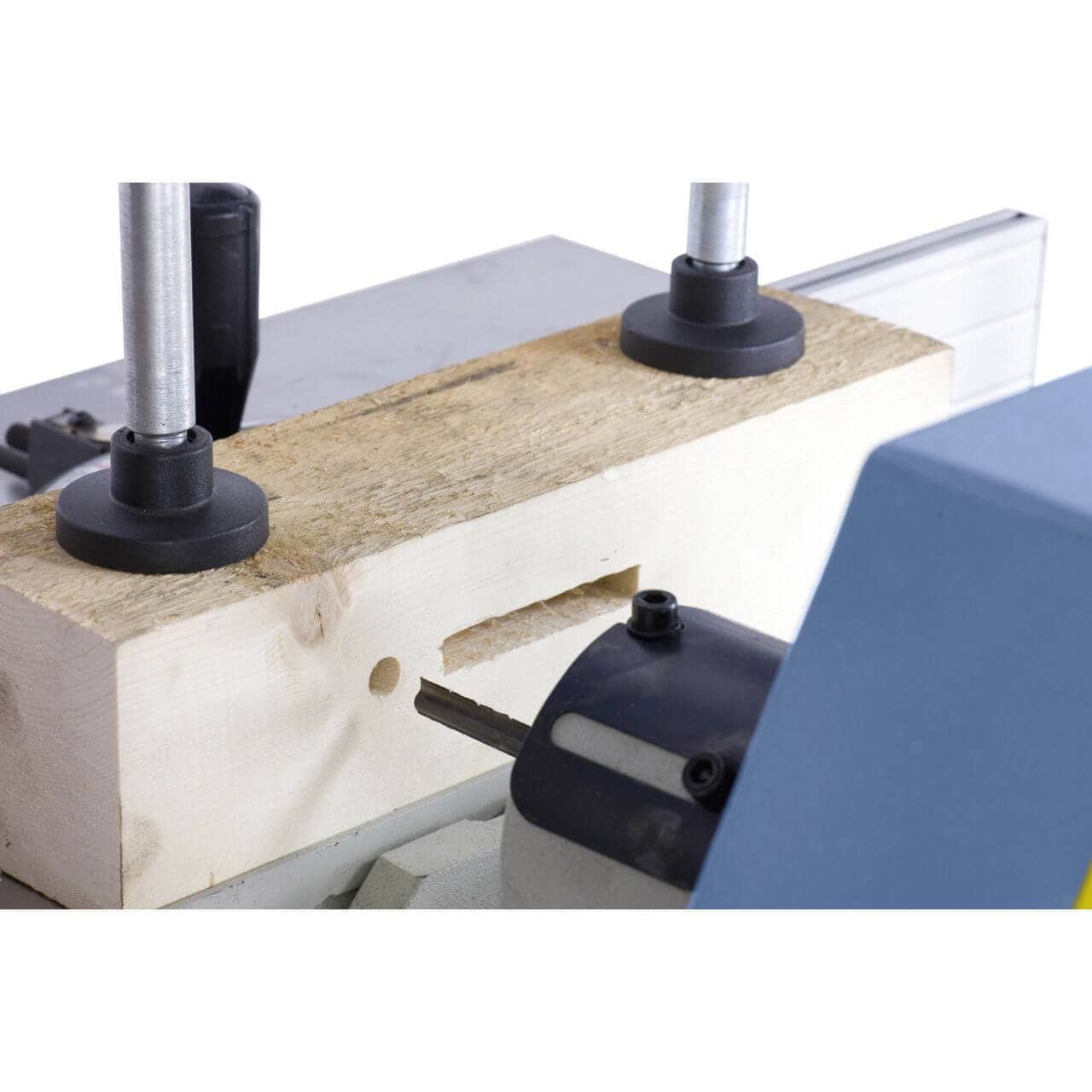

The LBM 220 is ideal for making tenon joints, rectangular holes, multiple holes in doors, frames and solid wood components.
Yes, it features a right/left reversal device for greater drilling versatility.
The maximum drilling depth is 155 mm, ideal for robust joints even on thick workpieces.
Yes, both the table extension and the table widening are supplied as standard, increasing the working area up to 2500 mm.
The machine includes 4 mortising chisel collets and 1 9.5mm chisel for making precise rectangular holes.
