T 500 PR spindle moulder - 400 V
T 500 PR spindle moulder - 400 V is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

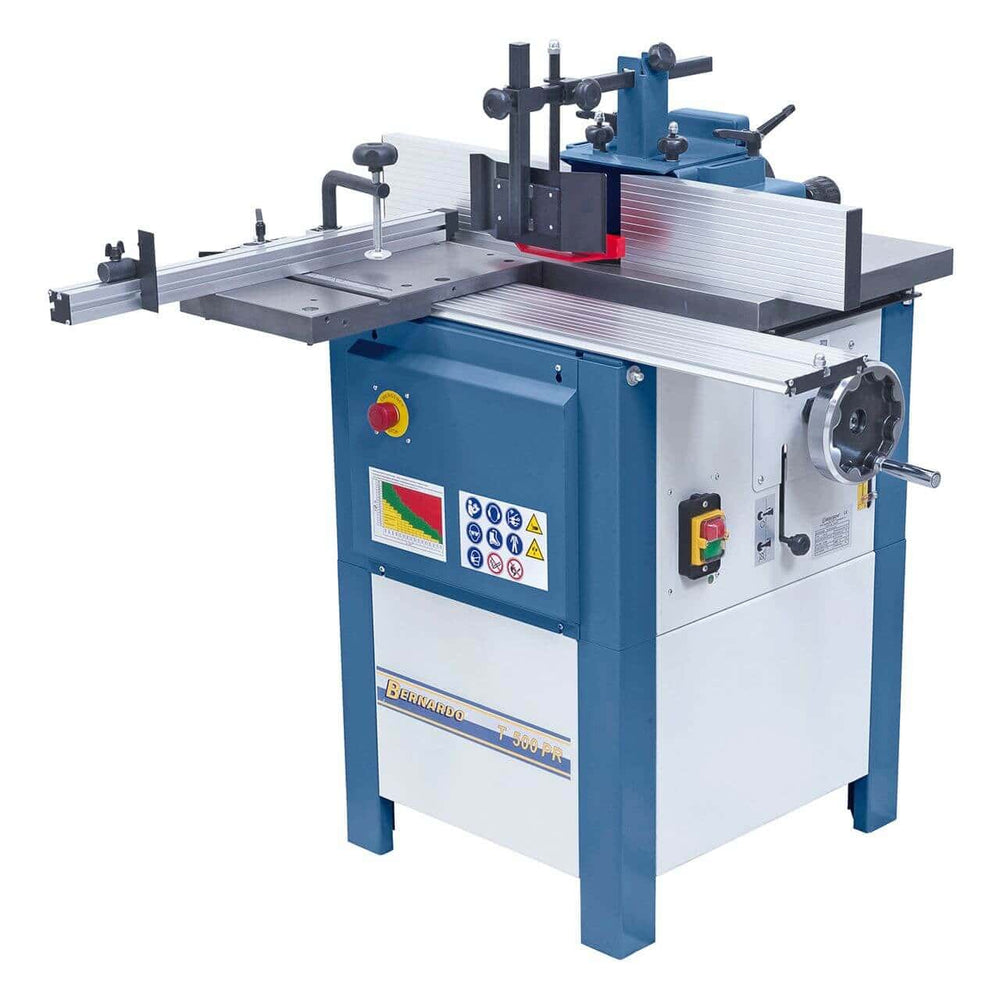

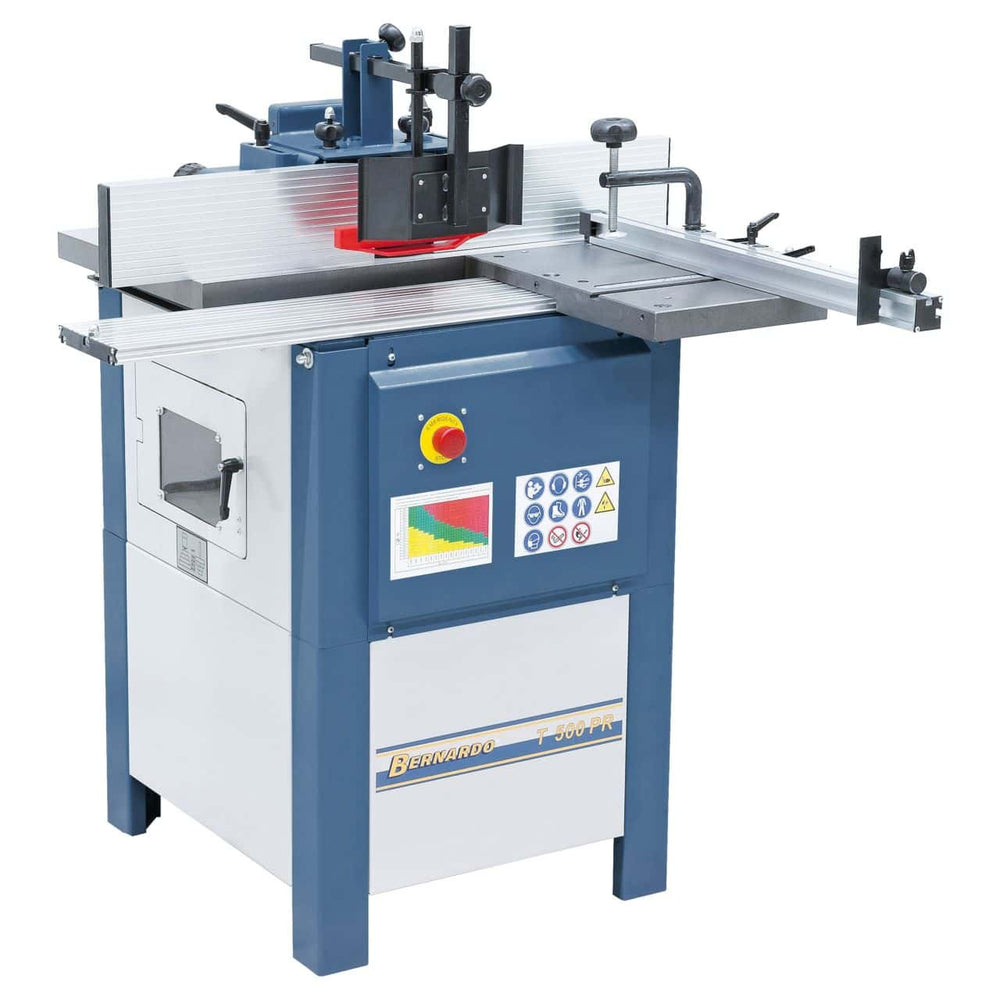

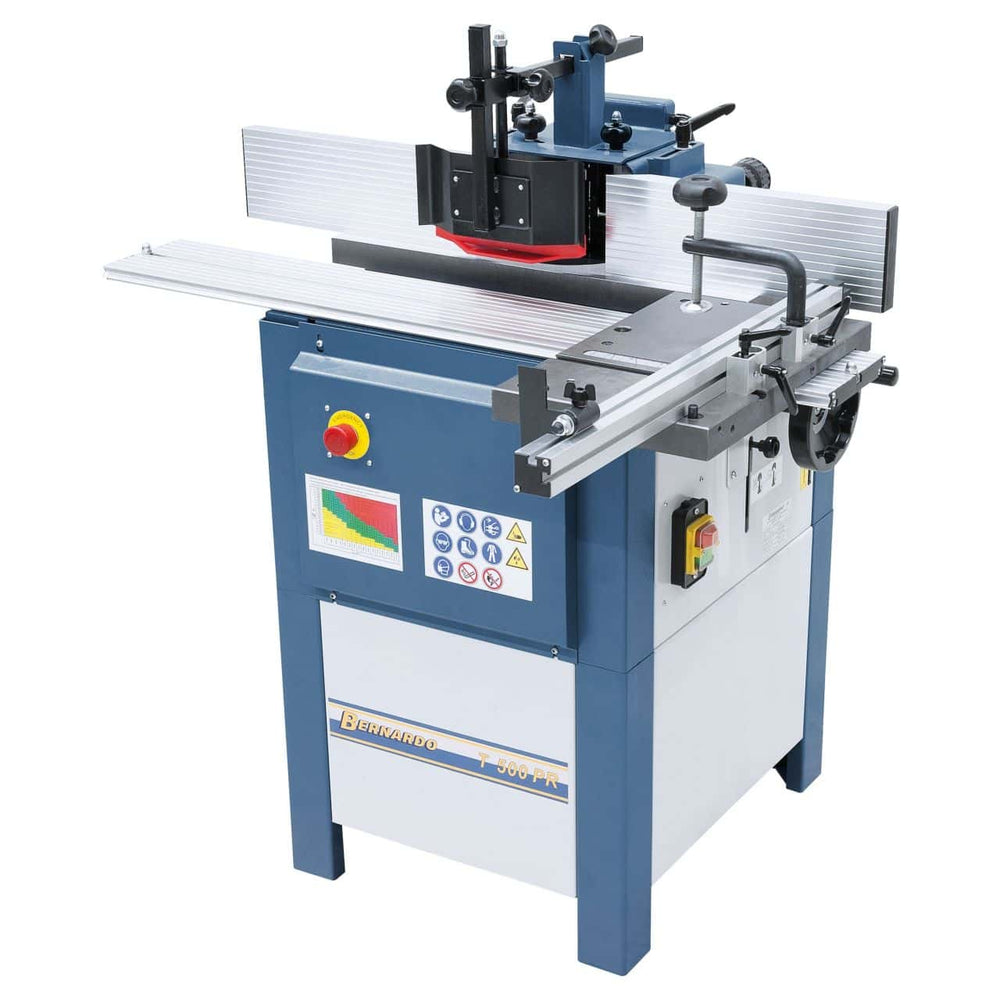

T 500 PR / 400 V Vertical Milling Machine – Compact, Precise, Powerful
The T 500 PR / 400 V vertical milling machine is designed for demanding craftsmen seeking the perfect balance between compact size, high precision, and user-friendly operation. The roller table, included as standard, significantly improves workpiece handling, while the gray cast iron body ensures stability and durability. Thanks to the easy belt-driven speed adjustment and comprehensive features, it is perfectly suited for professional woodworking even in limited spaces.
Main features
• Compact but robust structure with cast iron base

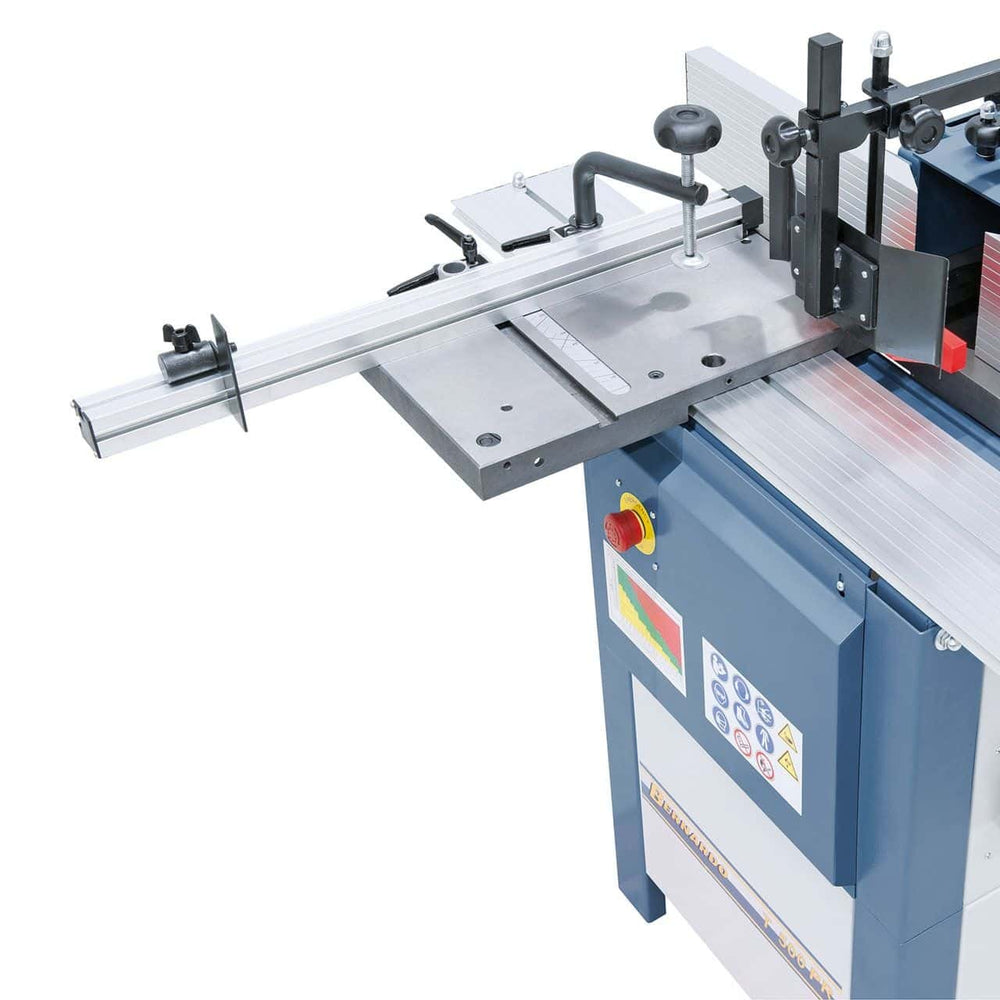

• Roller table included to facilitate the movement of the pieces

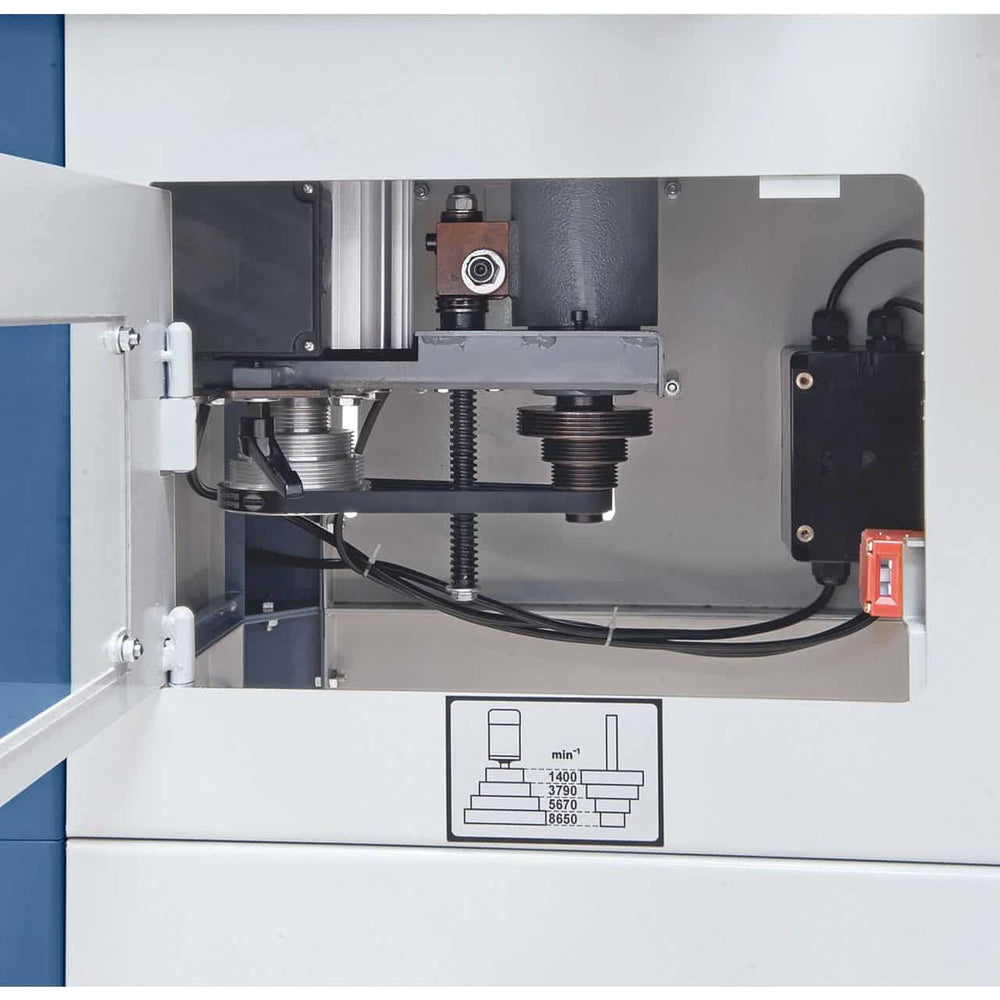

• 4-stage variable speed via belt drive
• Aluminum stop with micrometric adjustments
• 30mm spindle with 110mm stroke
• Integrated suction Ø 100 mm
• Ideal for small workshops and professional craftsmen
Technical table
| Specification | Value |
|---|---|
| Table size | 600 x 400 mm |
| Roller table | 400 x 250 mm |
| Working height | 820 mm |
| Shaft diameter | 30 mm |
| Vertical shaft travel | 110 mm |
| Usable shaft length | 105 mm |
| Max. tool diameter | 160 mm |
| Max. diameter of recessed tool | 160 mm |
| Shaft speed | 1400 / 3790 / 5670 / 8650 rpm |
| Suction outlet | 100 mm |
| Engine power (S1 100%) | 1.5 kW (2.0 HP) |
| Power consumption (S6 40%) | 2.1 kW (2.8 HP) |
| Supply voltage | 400 V |
| Machine dimensions (WxDxH) | 1040 x 1070 x 1130 mm |
| Weight | 99 kg |
Package Contents
• Roller table
• Downholder
• Parallel guide
• Protection and push device
