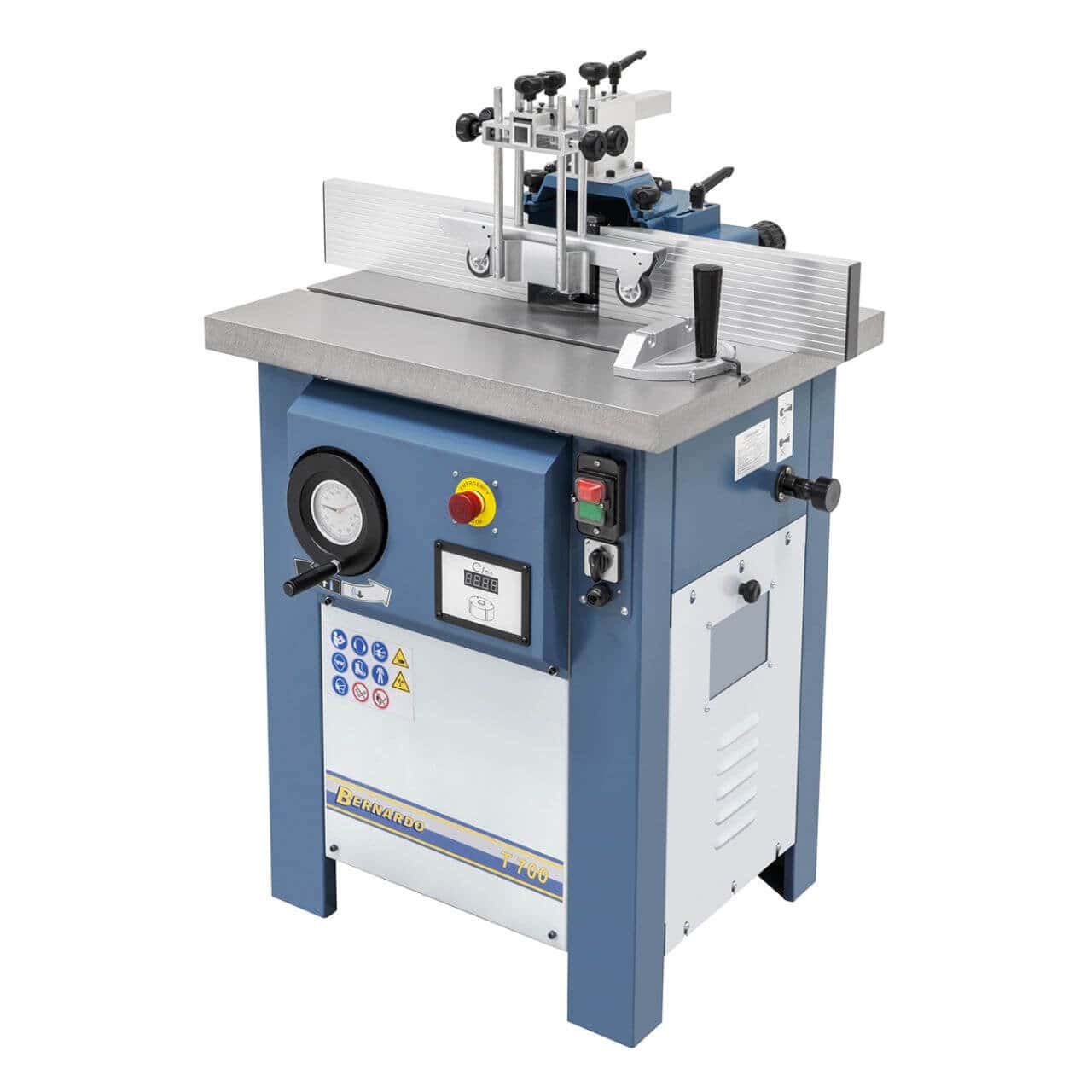

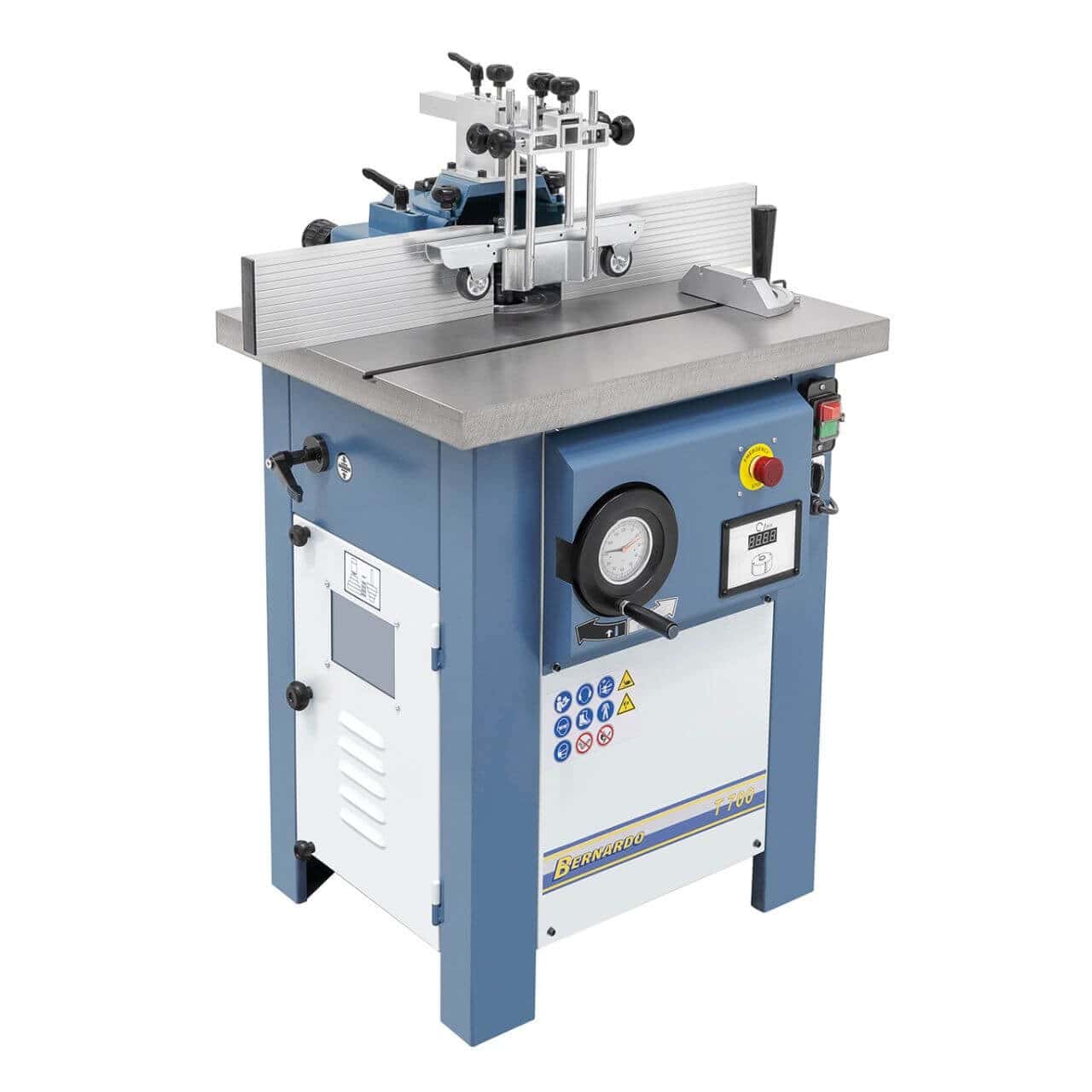

T 700 / 400 V spindle moulder milling machine
The T 700 spindle moulder is designed to ensure high safety and ease of use during professional woodworking. The solid gray cast iron and torsionally rigid steel construction ensures consistent precision and long life, even in intensive environments.
Main features
• 700 x 700 mm grey cast iron table for maximum precision
• Dynamically balanced spindle for vibration-free machining
• Height adjustment via handwheel with scale

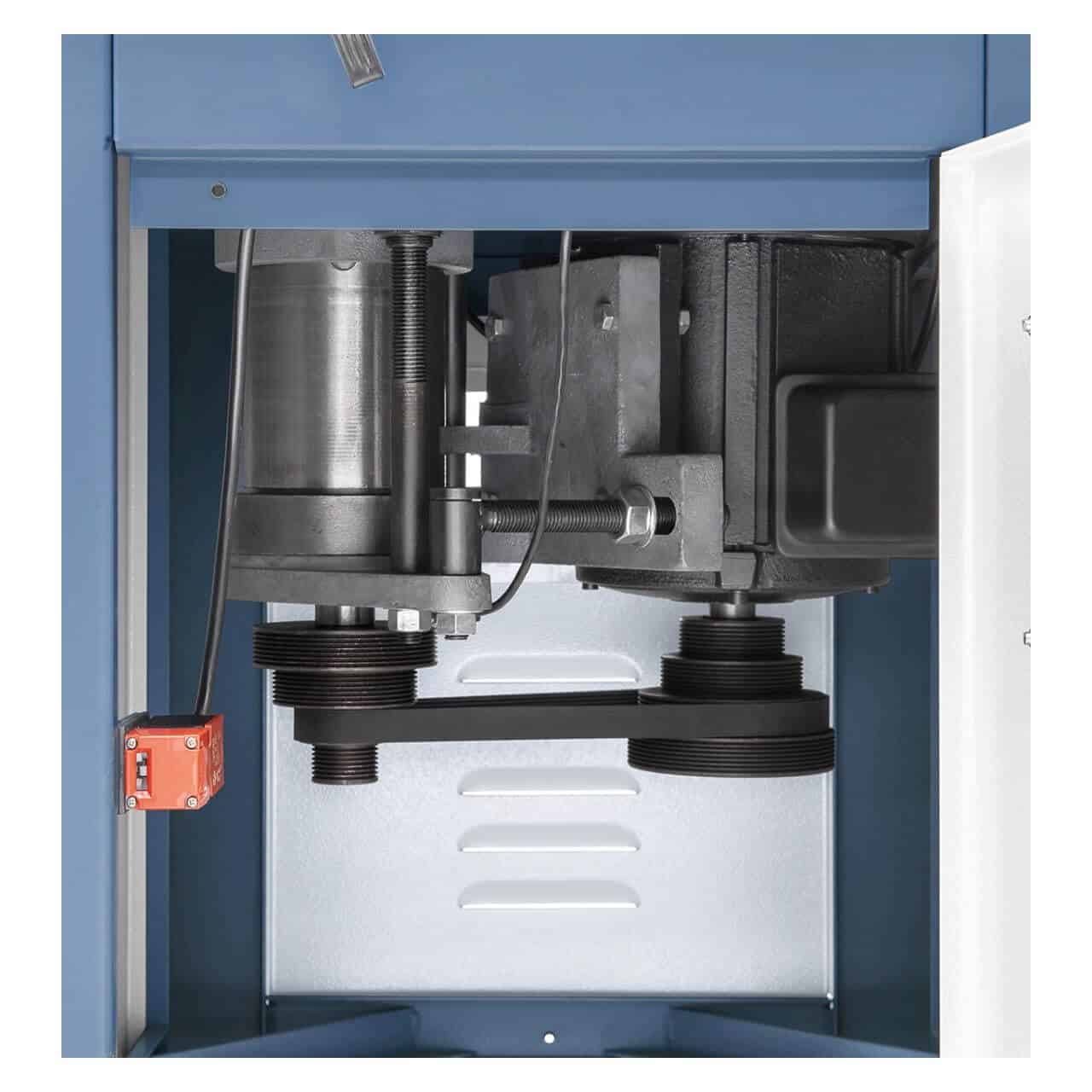

• Quick speed change via V-belt
• Digital display for immediate speed reading
• 4 selectable speeds: 1800 / 3000 / 6000 / 9000 rpm

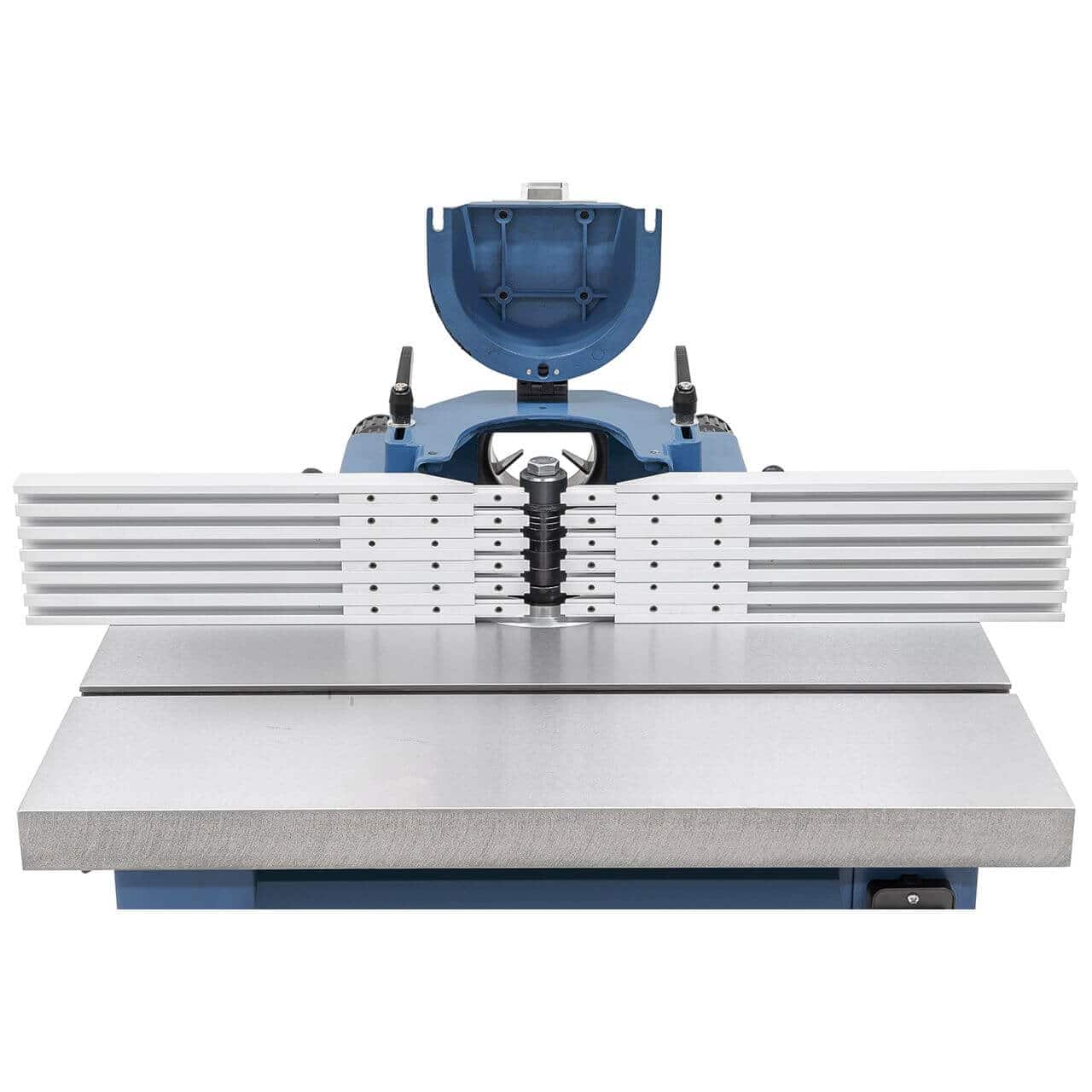

• Milling guide with finely adjustable aluminium stops

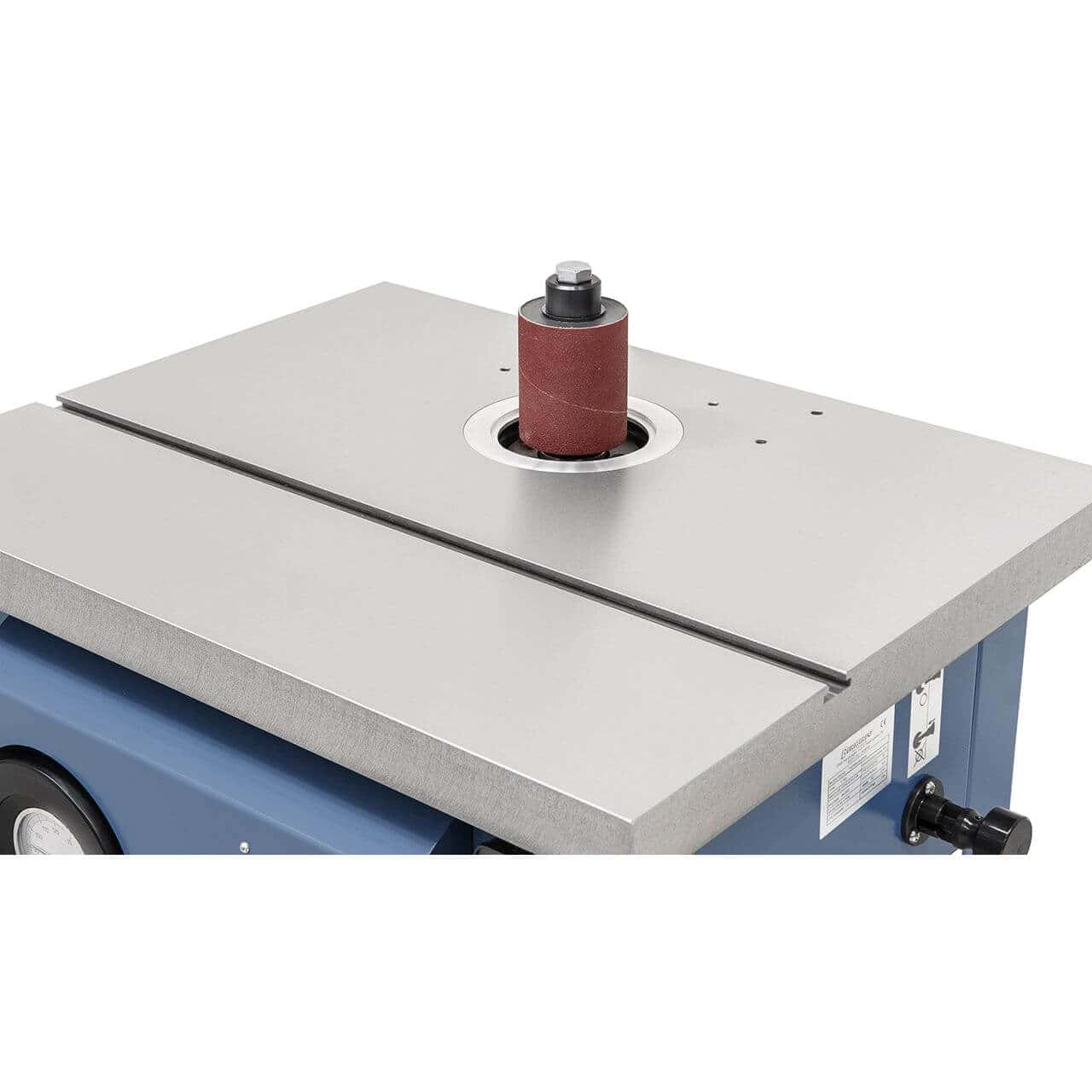

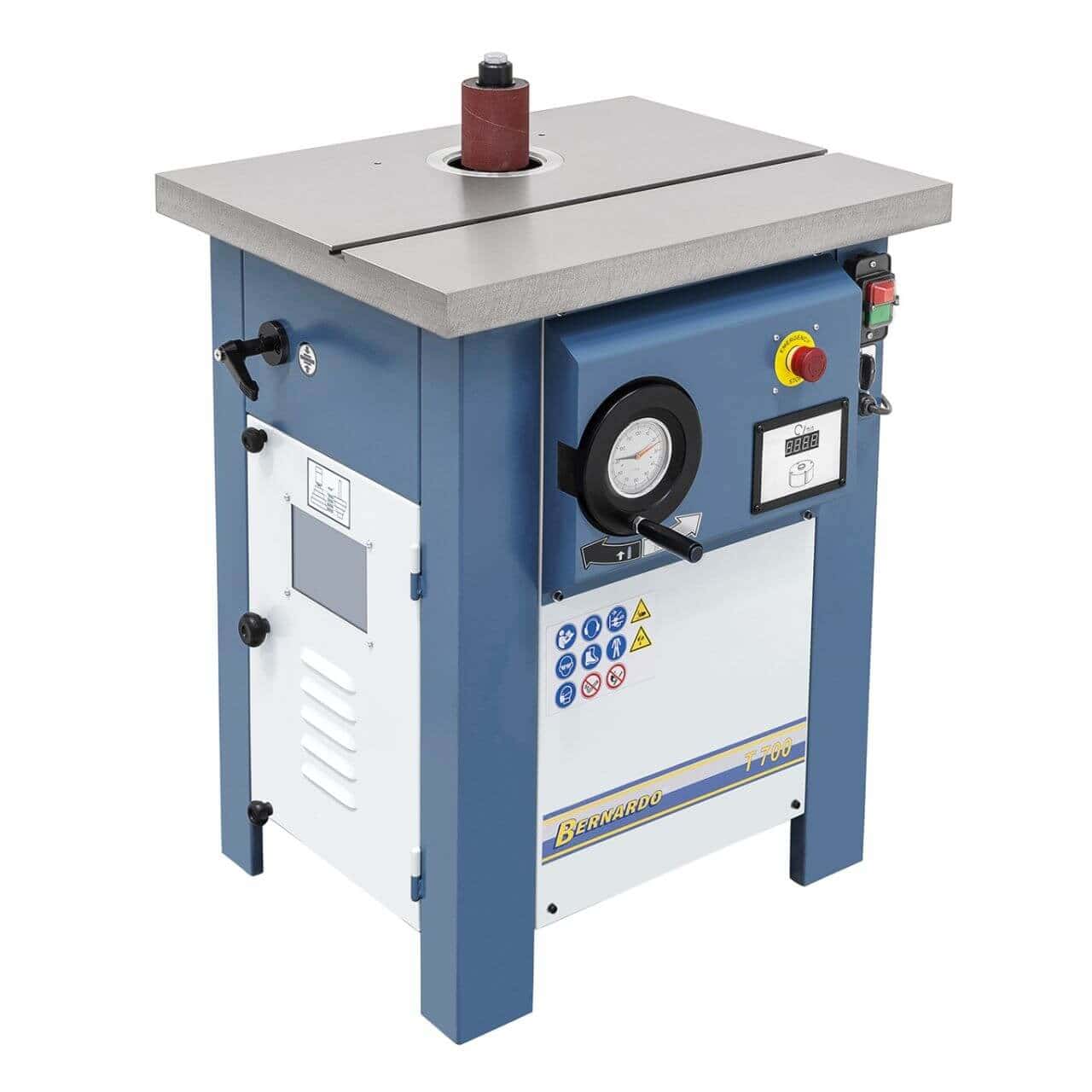

• Complete with sanding sleeve Ø 75 mm
• Ergonomic switches and front controls for maximum comfort
• High rigidity and stability steel structure
| Technical specifications | |
|---|---|
| Table size | 700 x 700 mm |
| Working height | 840 mm |
| Spindle diameter | 30 mm |
| Vertical spindle travel | 105 mm |
| Usable length of the spindle | 100 mm |
| Max. tool diameter (profiling) | 200 mm |
| Max. tool diameter under table | 95 mm |
| Spindle speed | 1800 / 3000 / 6000 / 9000 rpm |
| Suction connection | 100 mm |
| Engine power (S1 100%) | 2.2 kW (3.0 HP) |
| Power consumption (S6 40%) | 3.0 kW (4.0 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 930 x 760 x 1160 mm |
| Approximate weight | 157 kg |
Package Contents

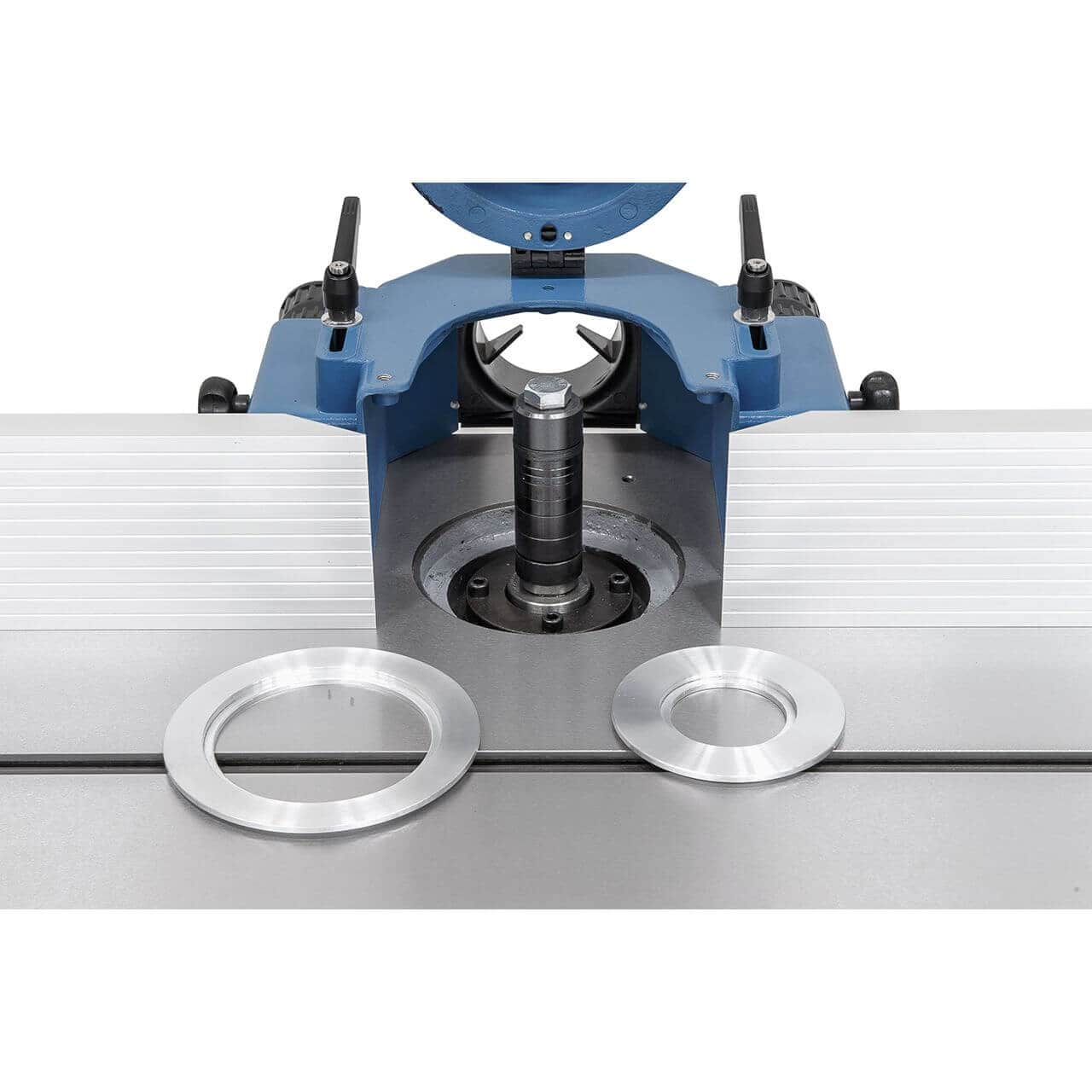

• Interchangeable spindle Ø 30 mm

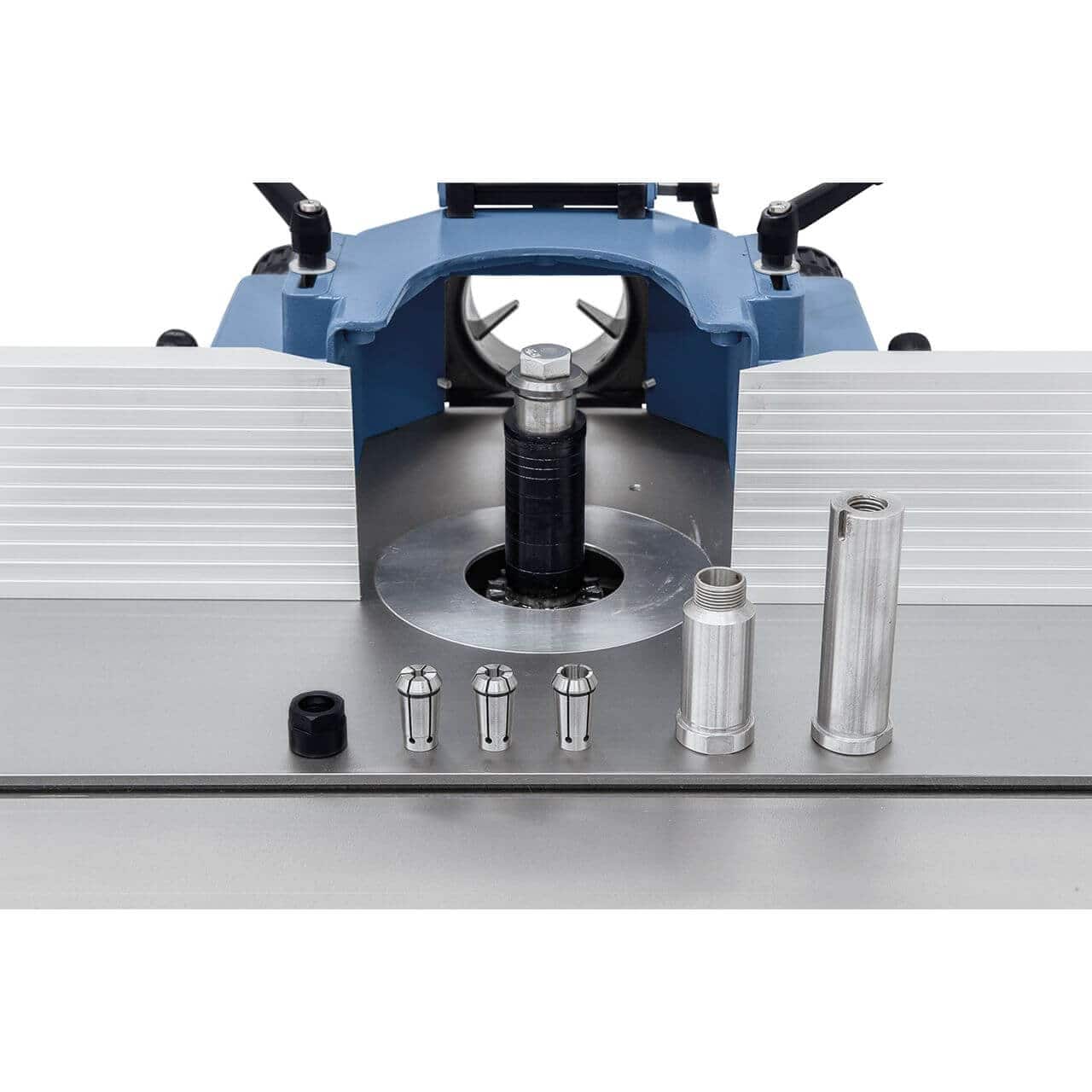

• Interchangeable mandrels for terminal cutters Ø 6, 8, 12 mm
• Pliers Ø 6, 8, 12 mm
• Sanding sleeve Ø 75 mm - grit 100

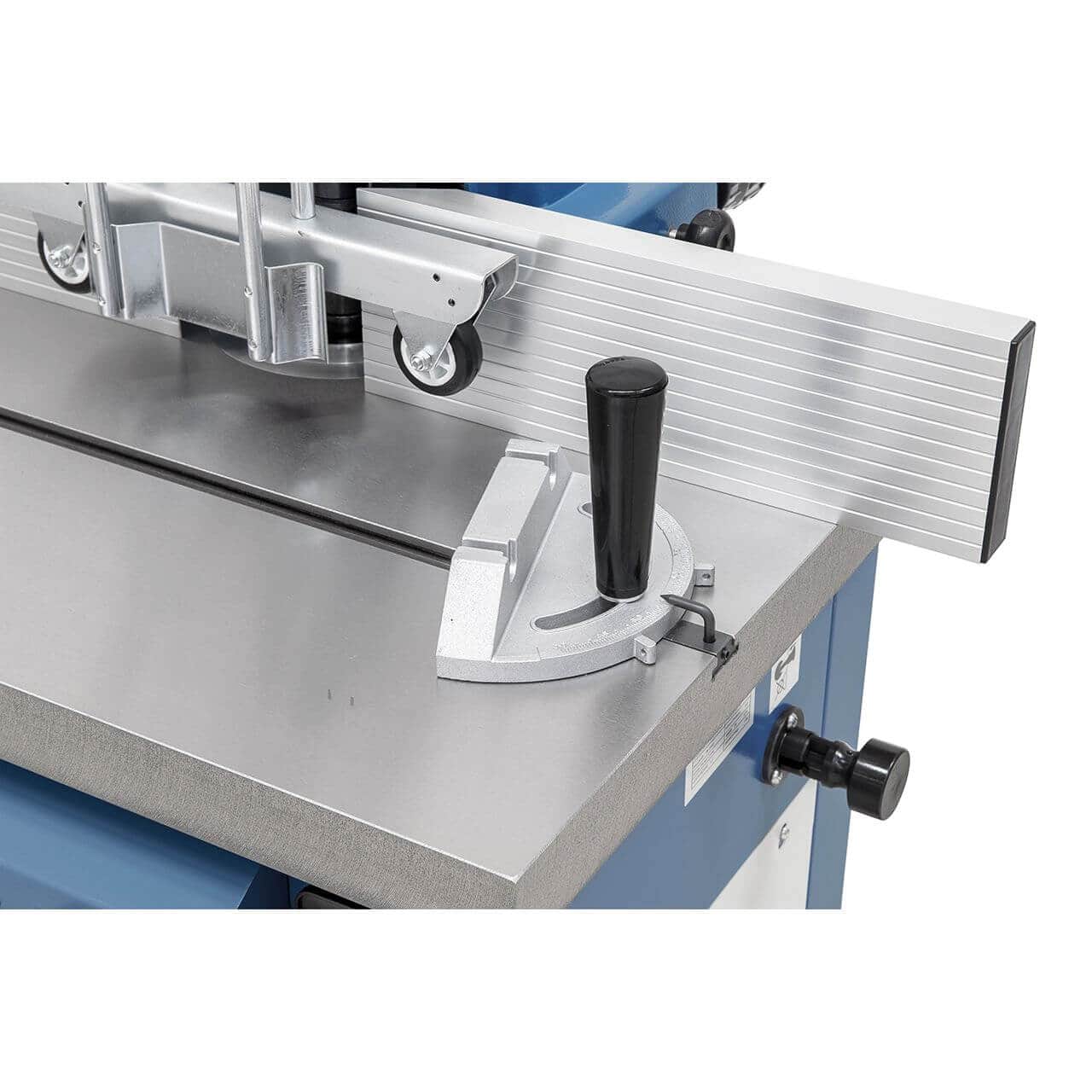

• Corner stop
• Digital speed indicator
• Rotation reversal (right/left)

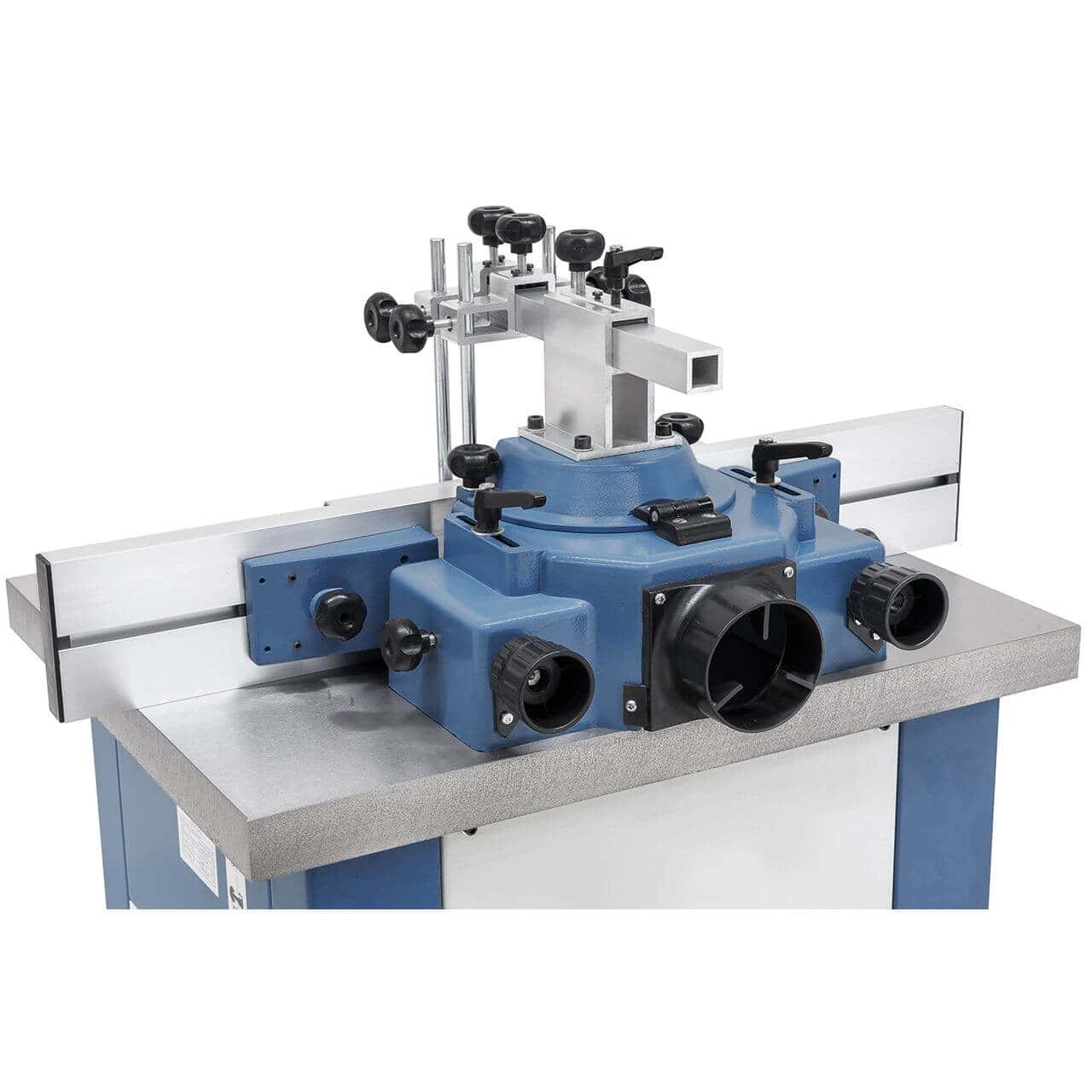

• Protection and pressure device
