Description

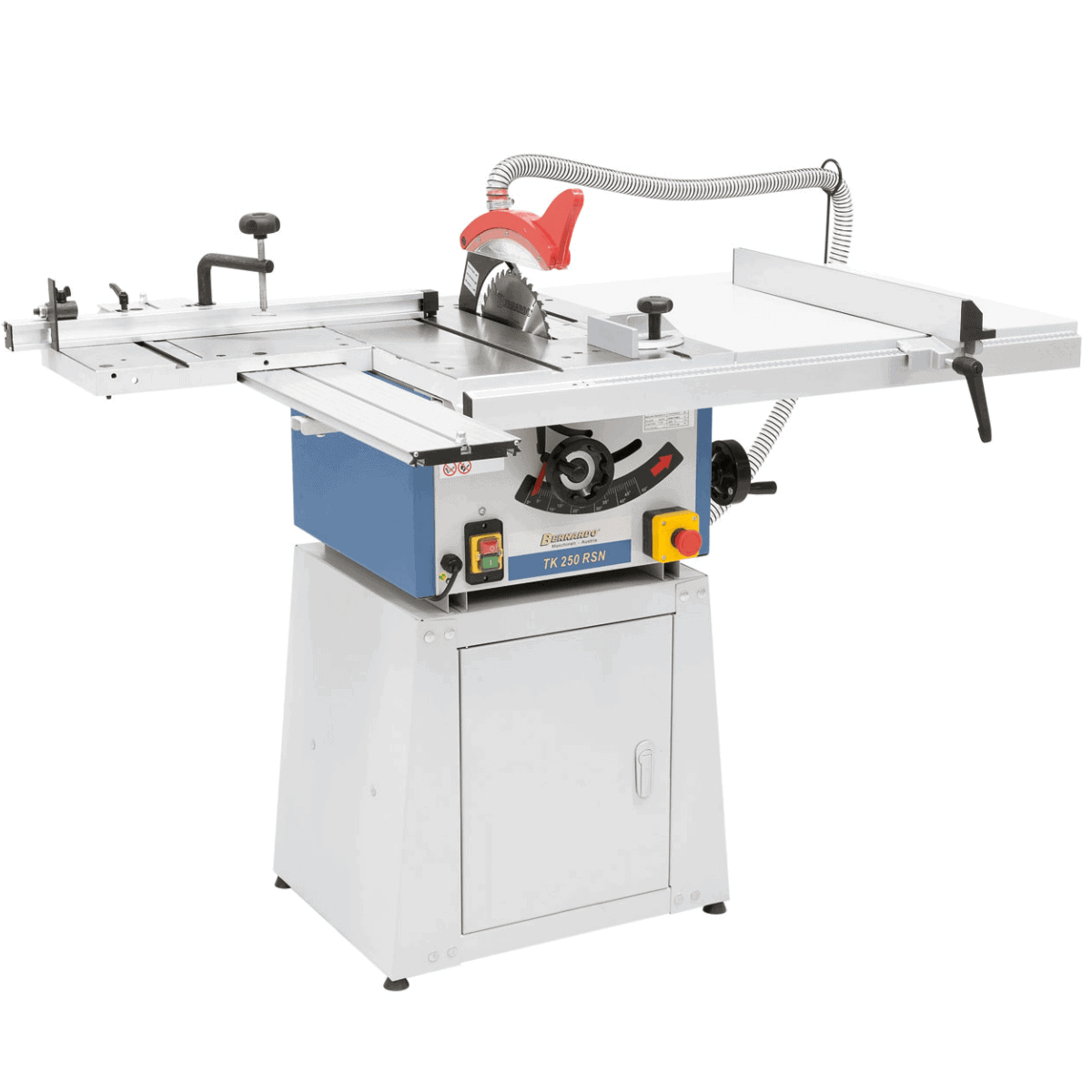

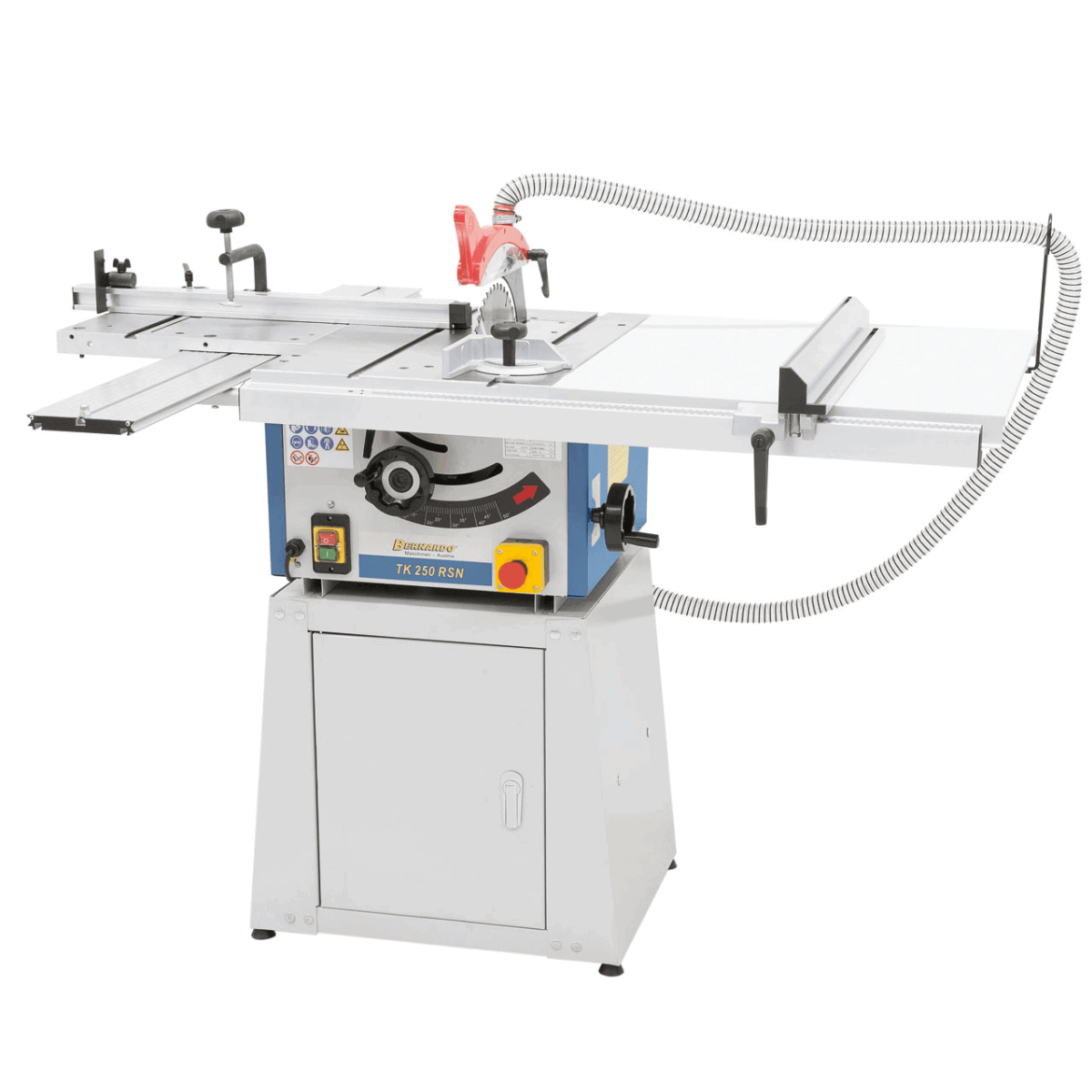

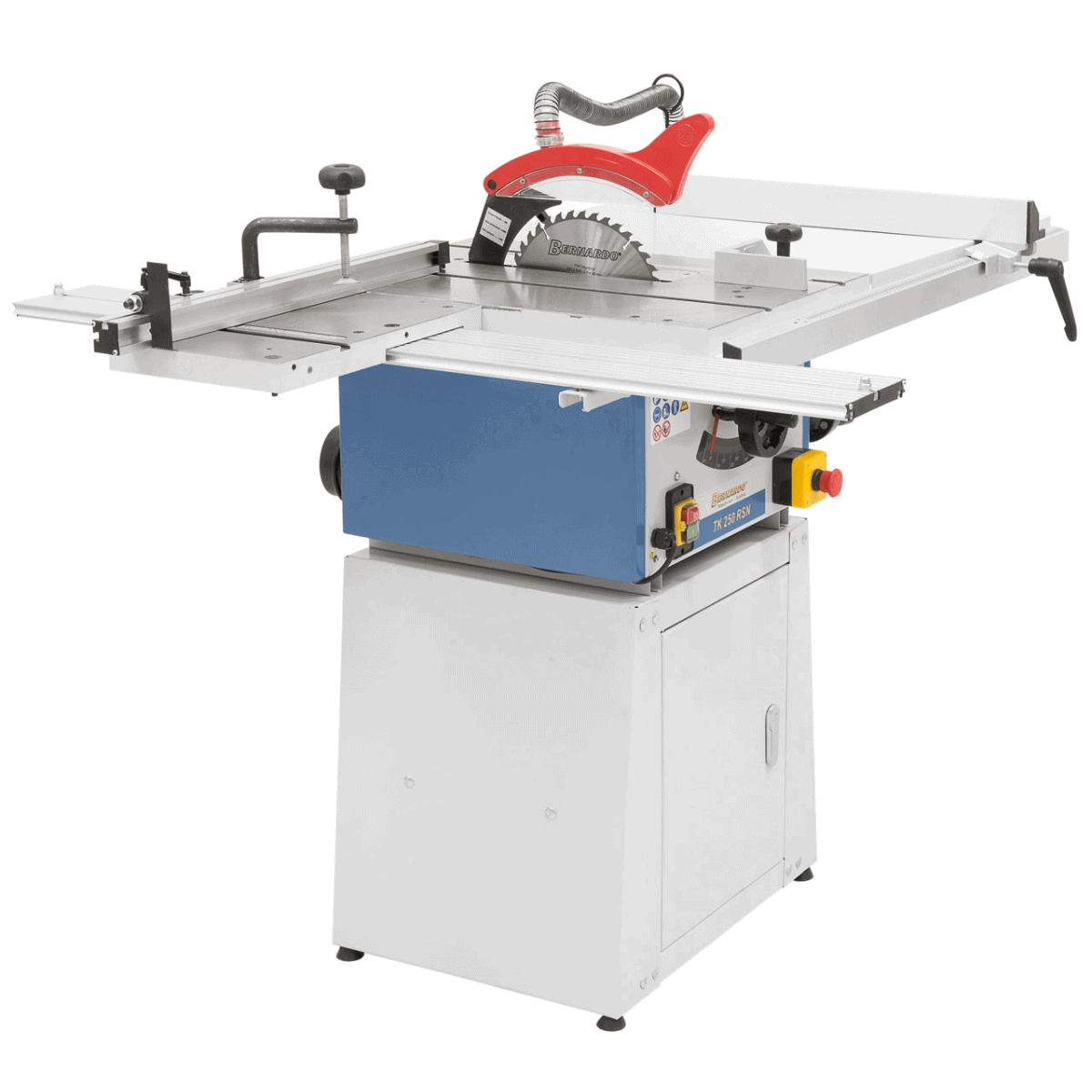

TK 250 RSN table saw with closed base
The TK 250 RSN is a table saw designed for ambitious users, with a closed base that significantly improves rigidity and stability. Thanks to its solid cast iron construction and wide cutting range, it is perfect for precise work even on large panels.
Main features

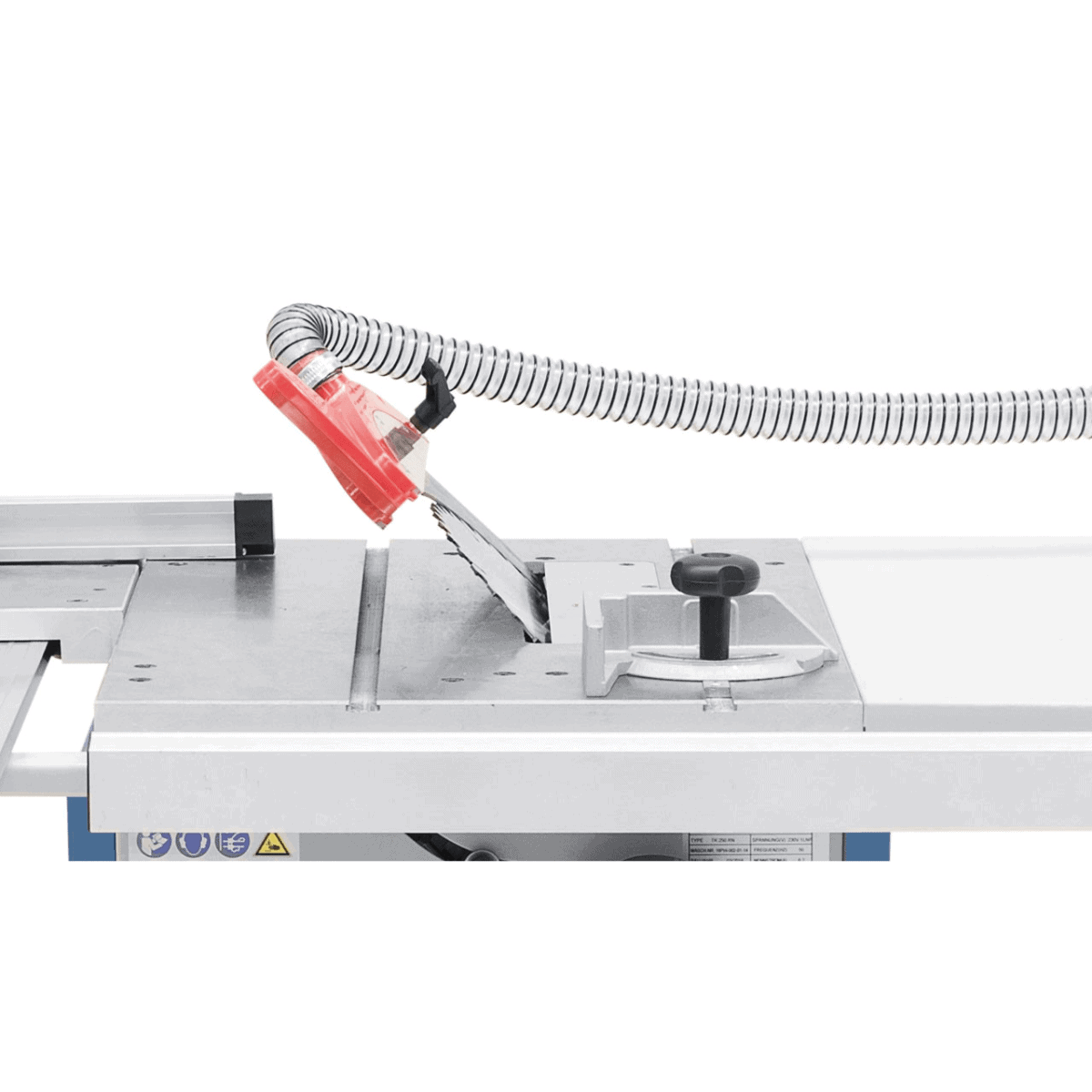

• Adjustable blade unit with inclination from 90° to 45°
• Grey cast iron table with T-slots for cuts with angle guide on both sides of the blade

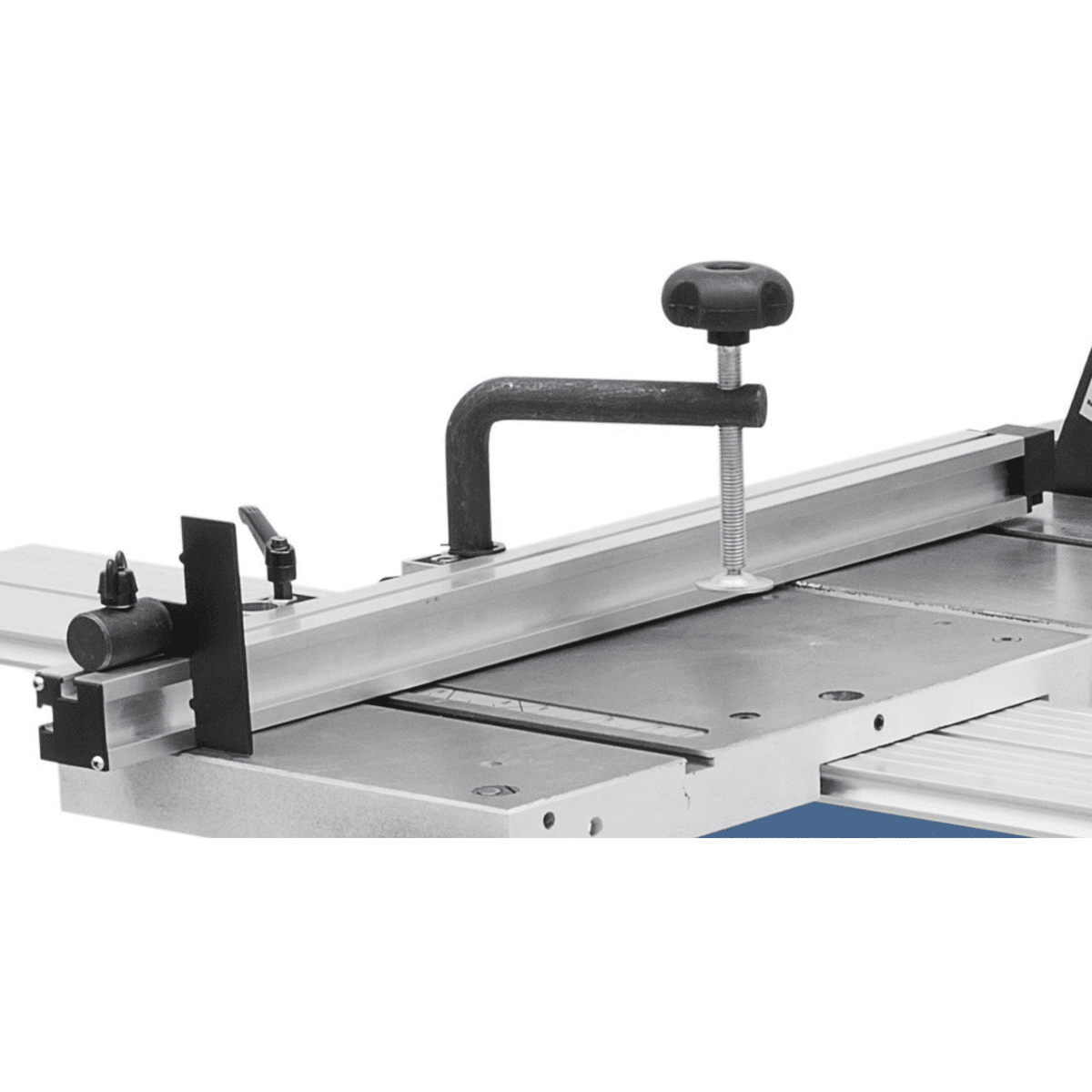

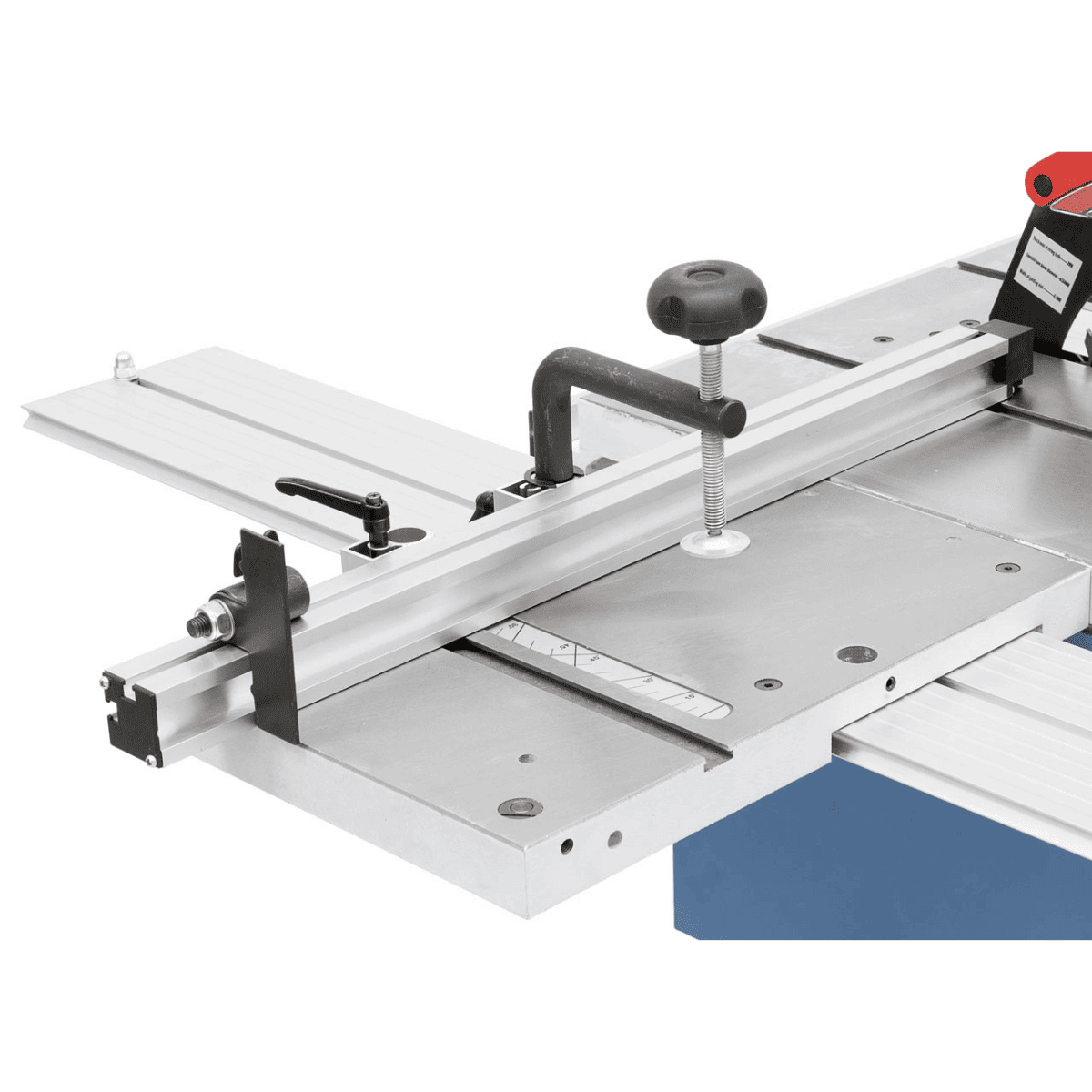

• Roller table with aluminum guide included

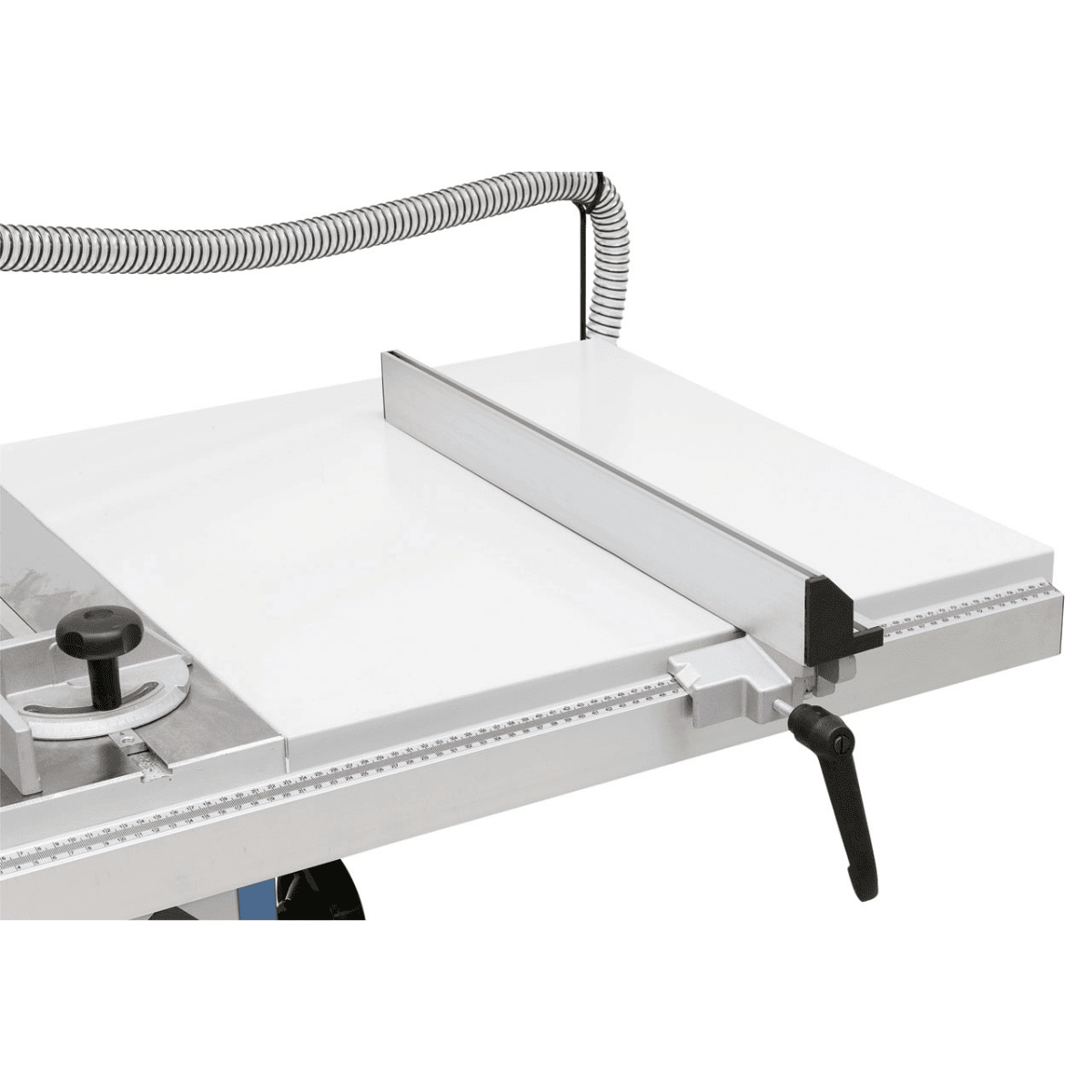

• Table extension for effective support on large format panels

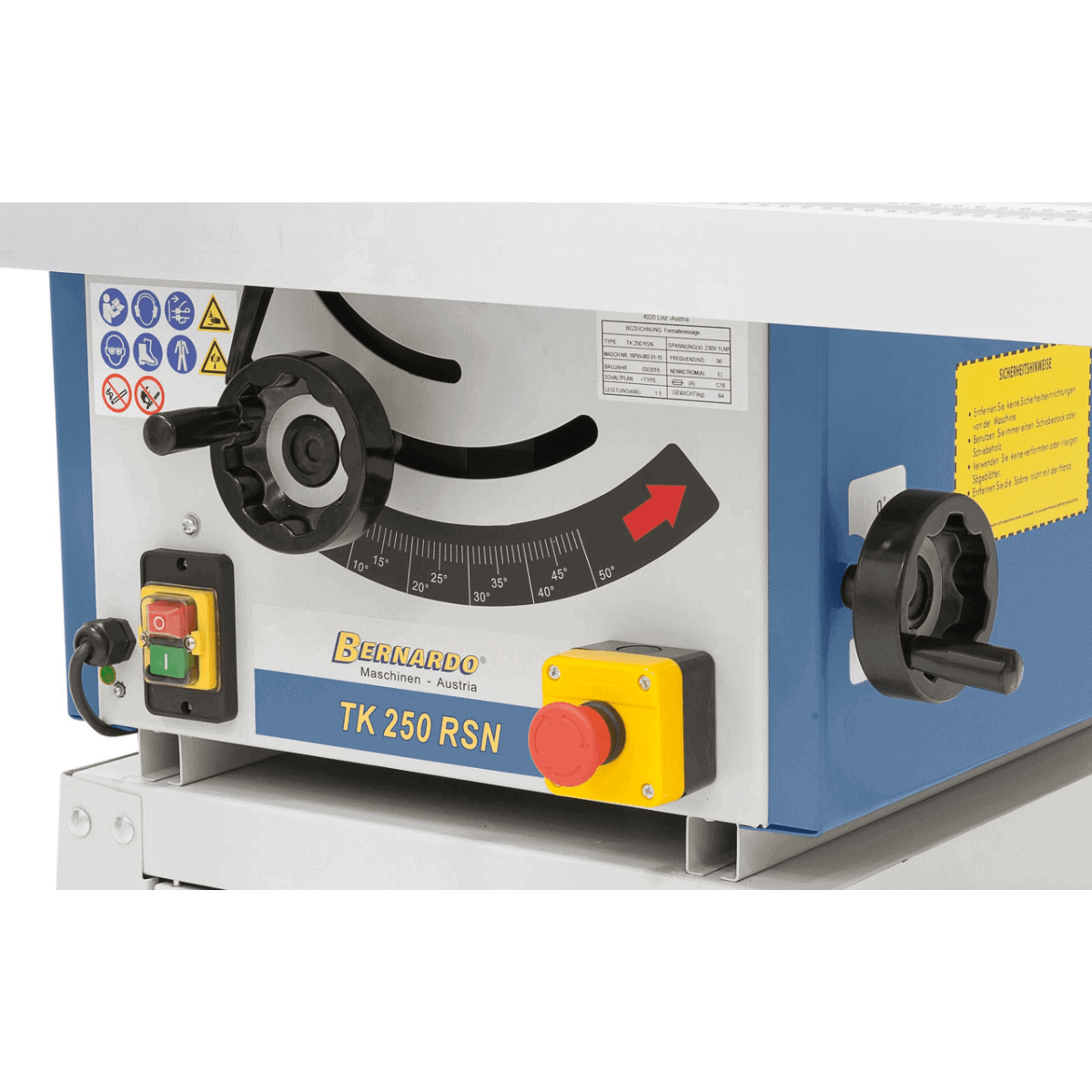

• IP 54 compliant ON/OFF switch with undervoltage release and separate emergency button
• Angle guide for mitre cuts up to 45°, included as standard
• Ergonomic handwheels for adjusting the height and inclination of the blade
• Blade tilts to the left for more precise cuts on the longitudinal guide
• Closed base for greater stability during use
Technical data
| Technical specifications | |
|---|---|
| Table size | 630 x 430 mm |
| Roller table | 400 x 250 mm |
| Roller table race | 920 mm |
| Max. blade diameter | 250 x 30 mm |
| Max. cutting height 90° / 45° | 80 / 60 mm |
| Cutting width on parallel guide | 700 mm |
| Table height | 900 mm |
| Table extension | 635 x 600 mm |
| Main blade speed | 4750 rpm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 1.5 kW (2.0 HP) |
| Engine power (S6 40%) | 2.1 kW (2.85 HP) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 1500 x 1200 x 1100 mm |
| Weight approx. | 101 kg |
Package Contents
• Carbide blade 250 x 2.8 x 30 mm / 40 teeth

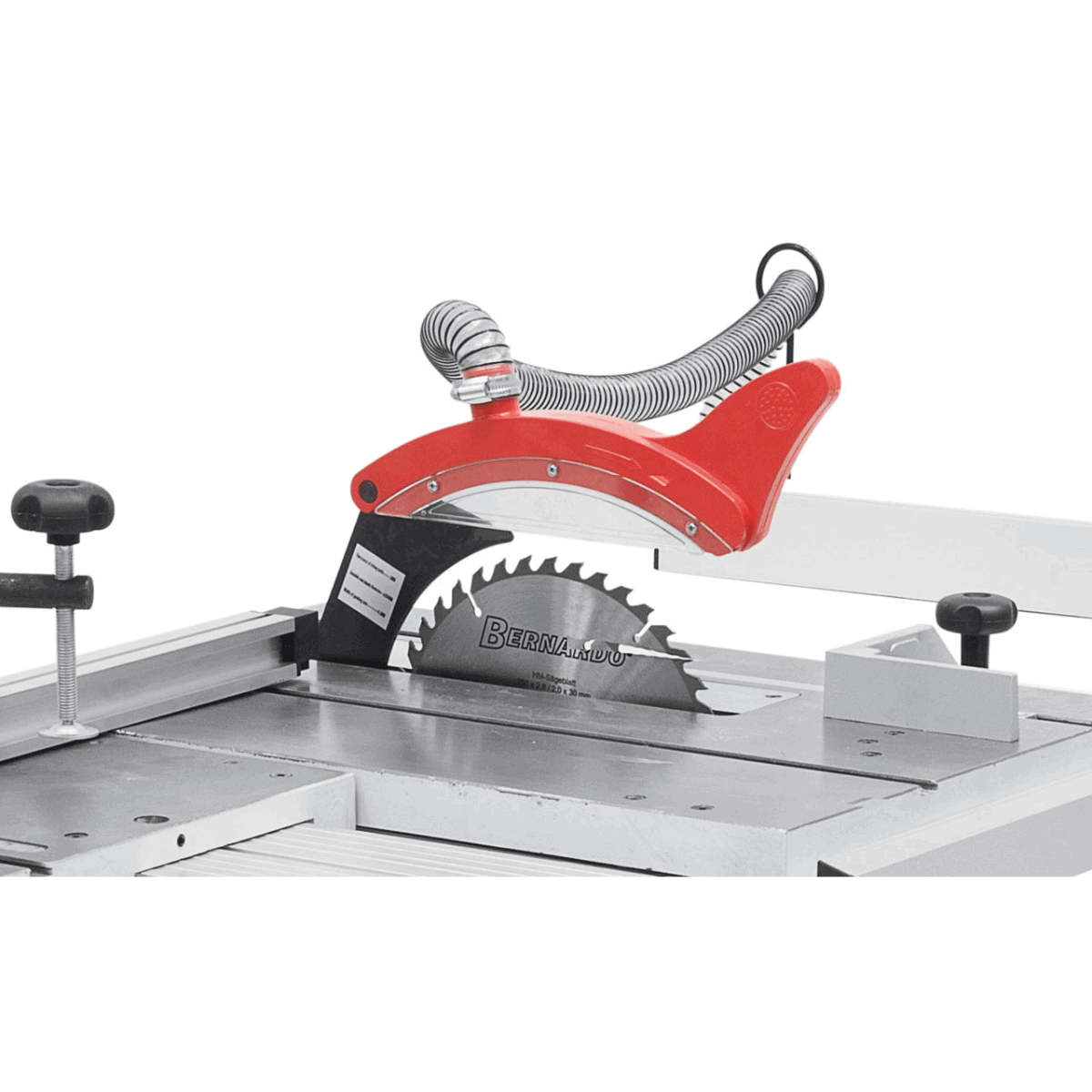

• Protective casing with suction connection
• Double-sided angle guide
• Extension of the plan
• Aluminum guide with stop
• Roller table
• Motor with brake
• Closed base
• Tool set
