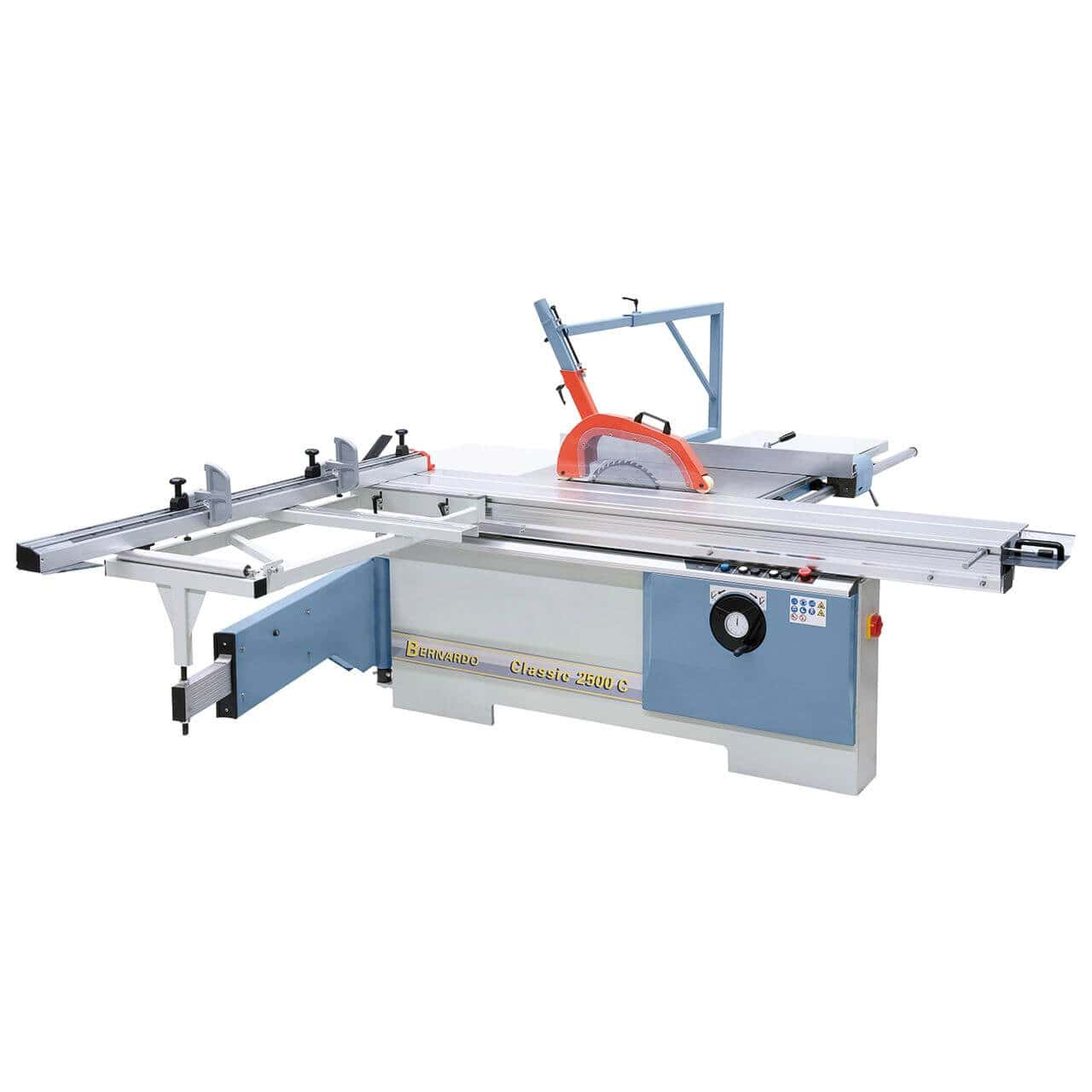

Classic 2500 C sliding table circular saw
The Classic 2500 C is the ideal solution for artisanal woodworking shops and small businesses looking for a solid, versatile, and affordable machine. Thanks to the tilting blade , 2500 mm sliding table , and scoring unit with separate motor , this saw offers high performance even on decorative panels and solid wood, with great precision and operating comfort.
Main features
• Sliding carriage in aluminium with 2500 mm hardened guides
• Table extensions and widenings for stable support of large panels
• Square table with roller for processing heavy pieces
• 4.0 kW motor with high torque for continuous cutting
• Engraving unit with independent 0.75 kW motor
• Blade tiltable up to 45°, with scale on the handwheel
• Parallel guide with 40 mm round bar and tiltable
• Highly stable steel and grey cast iron structure
• Telescopic guide extendable up to 3100 mm
• High precision polished cast iron table
Technical data
| Technical specifications | |
|---|---|
| Table size | 935 x 620 mm |
| Sliding carriage | 2500 x 370 mm |
| Cutting length | 2500 mm |
| Maximum blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 90 / 65 mm |
| Cutting width on parallel guide | 1295 mm |
| Table height | 850 mm |
| Table extension | 600 x 615 mm |
| Table enlargement | 900 x 600 mm |
| Square table with roller | 1210 x 860 mm |
| Main blade speed | 4000 / 6000 rpm |
| Engraving blade speed | 8000 rpm |
| Engraving blade | 120 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 4.0 kW (5.5 HP) |
| Engine power (S6 40%) | 5.5 kW (7.5 HP) |
| Engraving motor | 0.75 kW |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 2660 x 3460 x 1520 mm |
| Weight approx. | 650 kg |
Package Contents
• Protective casing with feed roller
• Angle guide
• End of stroke stop
• Table extension
• Extractable telescopic guide
• Longitudinal stop
• Square table with roller
• Pusher
• Engraving group with independent motor
• Tool set
