FKS 2000 Pro squaring machine - 400V
FKS 2000 Pro squaring machine - 400V is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description

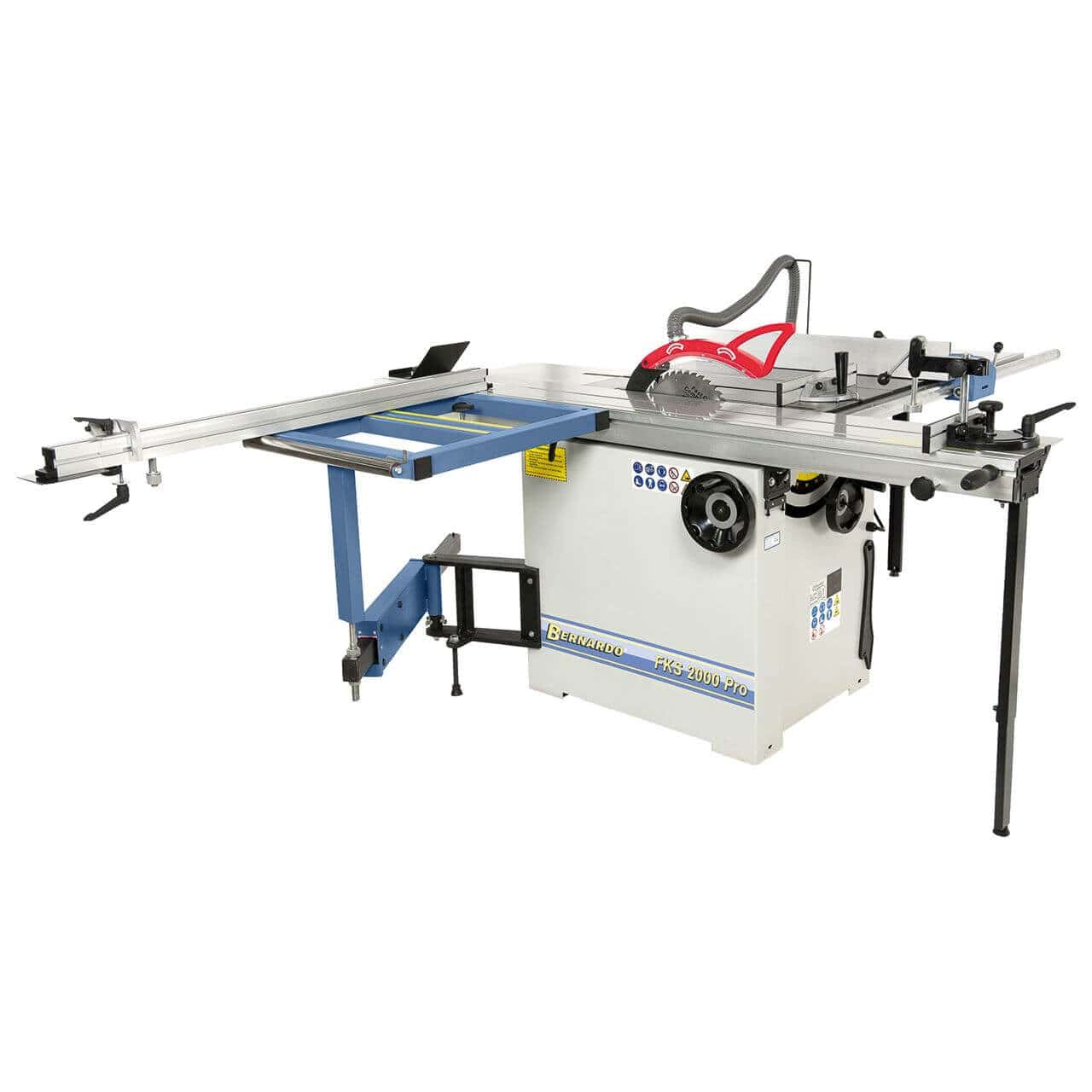

Sliding table circular saw FKS 2000 Pro / 400 V
The FKS 2000 Pro circular saw is the ideal solution for precision machining of small workpieces, while maintaining the high standards typical of higher-end machines. Thanks to its 2000 mm aluminum sliding table, it guarantees ease of use, quick adjustment, and impeccable performance with every cut.
Main features
• Extendable telescopic guide (up to 2260 mm), tiltable from 90° to 45°
• Compatible with Ø 315 mm blade even with engraver mounted
• Large work surface with extensions and widenings up to 1200 mm
• Powerful motor for consistent cuts even at full depth (100 mm)
• Aluminum parallel guide with micrometric adjustment and magnifying glass
• Square table with roller and telescopic arm for maximum stability
• Anodized sliding carriage with precise and smooth guidance
• Solid and stable cutting unit for vibration-free processing
• Adjustable corner stop and pressure plate along the entire length of the table
• Ideal as a secondary machine in professional workshops
Technical data
| Technical specifications | |
|---|---|
| Table size | 800 x 380 mm |
| Sliding carriage | 2000 x 270 mm |
| Cutting length | 2000 mm |
| Max. blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm |
| Cutting width on parallel guide | 1200 mm |
| Table height | 870 mm |
| Table extension | 500 x 310 mm |
| Table expansion | 800 x 880 mm |
| Squaring table with roller | 700 x 580 mm |
| Main blade speed | 4000 rpm |
| Engraving blade speed | 5800 rpm |
| Engraving blade | 90 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 3.8 kW (5.1 HP) |
| Engine power (S6 40%) | 5.3 kW (7.2 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 2000 x 2900 x 1180 mm |
| Weight approx. | 280 kg |
Package Contents
• HM blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring blade 90 x 3.0 x 20 mm / 12 teeth
• Protective casing with suction connection
• Connection pipe with Y-fitting
• Angle guide with eccentric locking
• Corner stop
• End stop
• Table extension
• Table enlargement
• Parallel guide
• Extractable telescopic guide
• Stop with micrometric adjustment
• Square table with roller
• Push handle
• Pusher
• Tool set
