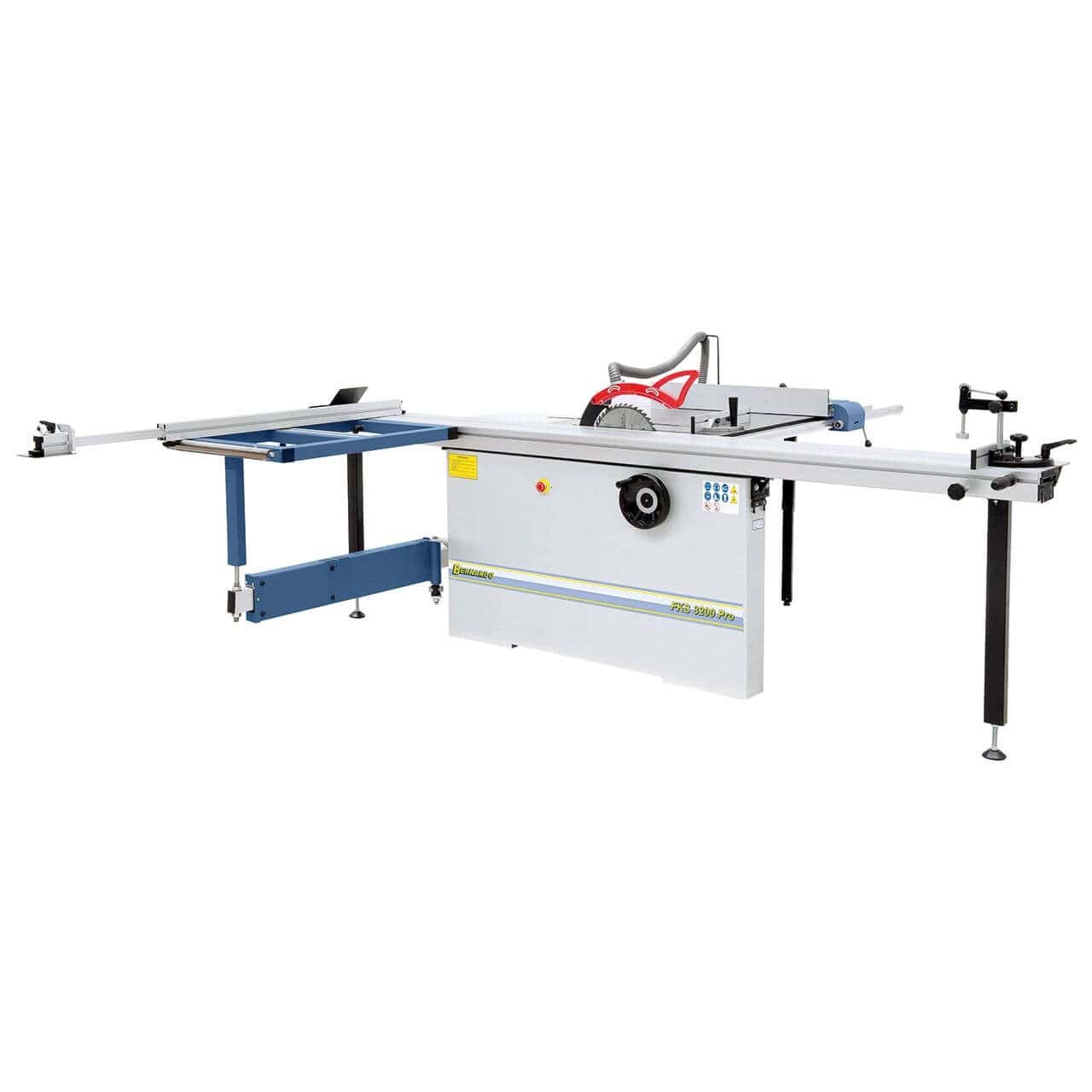

Sliding table circular saw FKS 3200 Pro / 400 V
The FKS 3200 Pro is a professional sliding circular saw, designed to offer precision cuts, maximum stability and operational flexibility . The 3200 mm sliding table in anodized aluminum ensures smoothness and reliability even with large panels. The 3.8 kW motor combined with the 315 mm blade allows for clean cuts up to 100 mm in height , even on coated materials thanks to the integrated scoring blade . Ideal for joineries and workshops that require high quality and productivity.
Main features
• Use of the 315 mm blade even with the engraver mounted
• 3200 mm anodized aluminum sliding carriage with prismatic guide
• Square table with roller and telescopic arm for high stability
• Powerful 3.8 kW motor for precise and consistent cuts
• Blade tiltable from 90° to 45° via handwheel and graduated scale
• Table extensions and widenings to handle widths up to 1200 mm
• Aluminum parallel guide with micrometric adjustment and integrated lens
• Extendable telescopic guide tilting from 90° to 45° up to 2260 mm
• Solid construction for vibration-free machining
• Machine body in steel and grey cast iron with professional finish
Technical data
| Technical specifications | |
|---|---|
| Table size | 800 x 380 mm |
| Sliding carriage | 3200 x 270 mm |
| Cutting length | 3200 mm |
| Maximum blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm |
| Cutting width on parallel guide | 1200 mm |
| Table height | 870 mm |
| Table extension | 500 x 310 mm |
| Table enlargement | 800 x 880 mm |
| Square table with roller | 880 x 580 mm |
| Main blade speed | 4000 rpm |
| Engraving blade speed | 5800 rpm |
| Engraving blade | 90 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 3.8 kW (5.1 HP) |
| Engine power (S6 40%) | 5.3 kW (7.2 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 3200 x 2900 x 1180 mm |
| Weight approx. | 330 kg |
Package Contents
• HM blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring blade 90 x 3.0 x 20 mm / 12 teeth
• Protective casing with suction connection
• Connection pipe with Y-fitting
• Corner stop with eccentric support
• Corner stop
• End of stroke stop
• Table extension
• Table enlargement
• Parallel guide
• Extractable telescopic guide
• Fine adjustment of the beat
• Square table
• Push handle
• Pusher
• Tool set
Technical Specifications
• Check that the blade is mounted correctly
• Make sure the protection is in place
• Remove objects from the table
• Active suction connection Ø 100 mm
• Smooth sliding carriage
• Emergency switch working
Start the machine without load to test the blade rotation.
Every week: check screws and tightening, grease guides
Every month: belt tension, blade tilt lubrication
Always work with the machine turned off and unplugged.
