Circular saw with sliding table TK 315 P - 1800 / 230 V
The TK 315 P - 1800 is a sliding table circular saw designed for precise and intensive work on wood and coated materials. Equipped with a tilting blade, scoring unit, and 1800 mm anodized sliding table, it offers excellent performance in artisanal and semi-professional environments with a single-phase 230 V power supply.
Main features
• Blade Ø 315 mm can also be used with the engraver mounted
• 1800 mm anodized aluminum sliding carriage with tempered guides
• Powerful 3.0 kW motor for consistent performance even at full cutting height
• Square table with telescopic arm and roller for stable processing of heavy panels
• Aluminum parallel guide with micrometric adjustment and integrated magnifying glass
• Telescopic stop extendable up to 2260 mm, can be mounted front or back, tiltable from 90° to 45°
• Table extensions and widenings for working panels up to 1240 mm wide

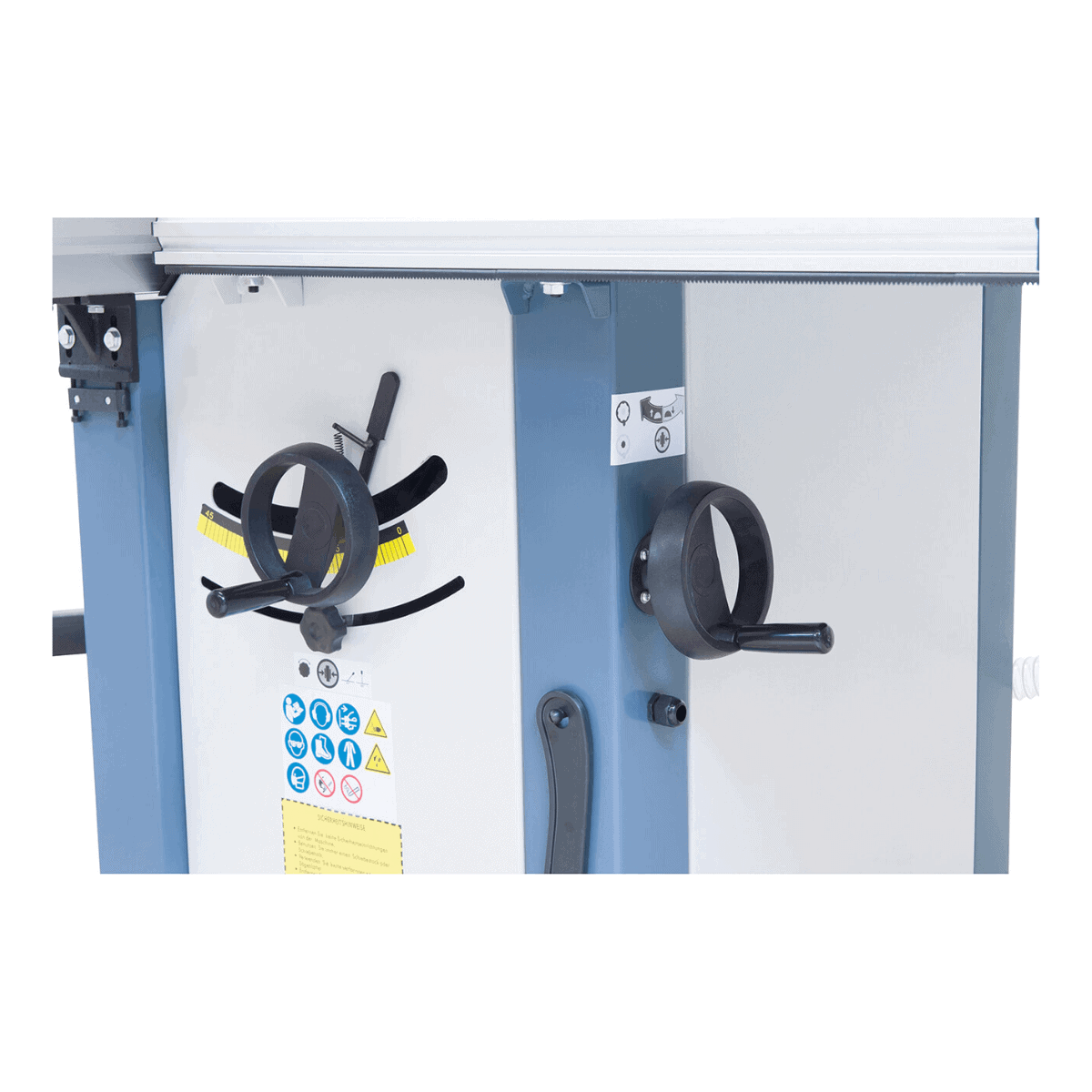

• Solid, vibration-free blade unit, cast iron and anti-torsion steel machine body
• Independent engraver for clean cuts on veneered panels
Technical data
| Technical specifications | |
|---|---|
| Table size | 825 x 800 mm |
| Sliding carriage | 1800 x 270 mm |
| Cutting length | 1800 mm |
| Maximum blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm |
| Cutting width on parallel guide | 1240 mm |
| Table height | 870 mm |
| Table extension | 500 x 310 mm |
| Table enlargement | 800 x 440 mm |
| Square table with roller | 700 x 580 mm |
| Blade speed | 4000 rpm |
| Engraving blade speed | 5800 rpm |
| Engraving blade | 90 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 3.0 kW (4.0 HP) |
| Engine power (S6 40%) | 4.2 kW (5.7 HP) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 1800 x 2870 x 1140 mm |
| Weight approx. | 248 kg |
Package Contents
• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring blade 90 x 3.0 x 20 mm / 12 teeth
• Blade guard with suction connection
• Connection pipe with Y-fitting
• Angle guide with eccentric stop
• Mitre
• End of stroke stop
• Table extension
• Table enlargement
• Extractable telescopic stop
• Fine adjustment of the beat
• Square table with roller
• Pusher
• Tools
