Description

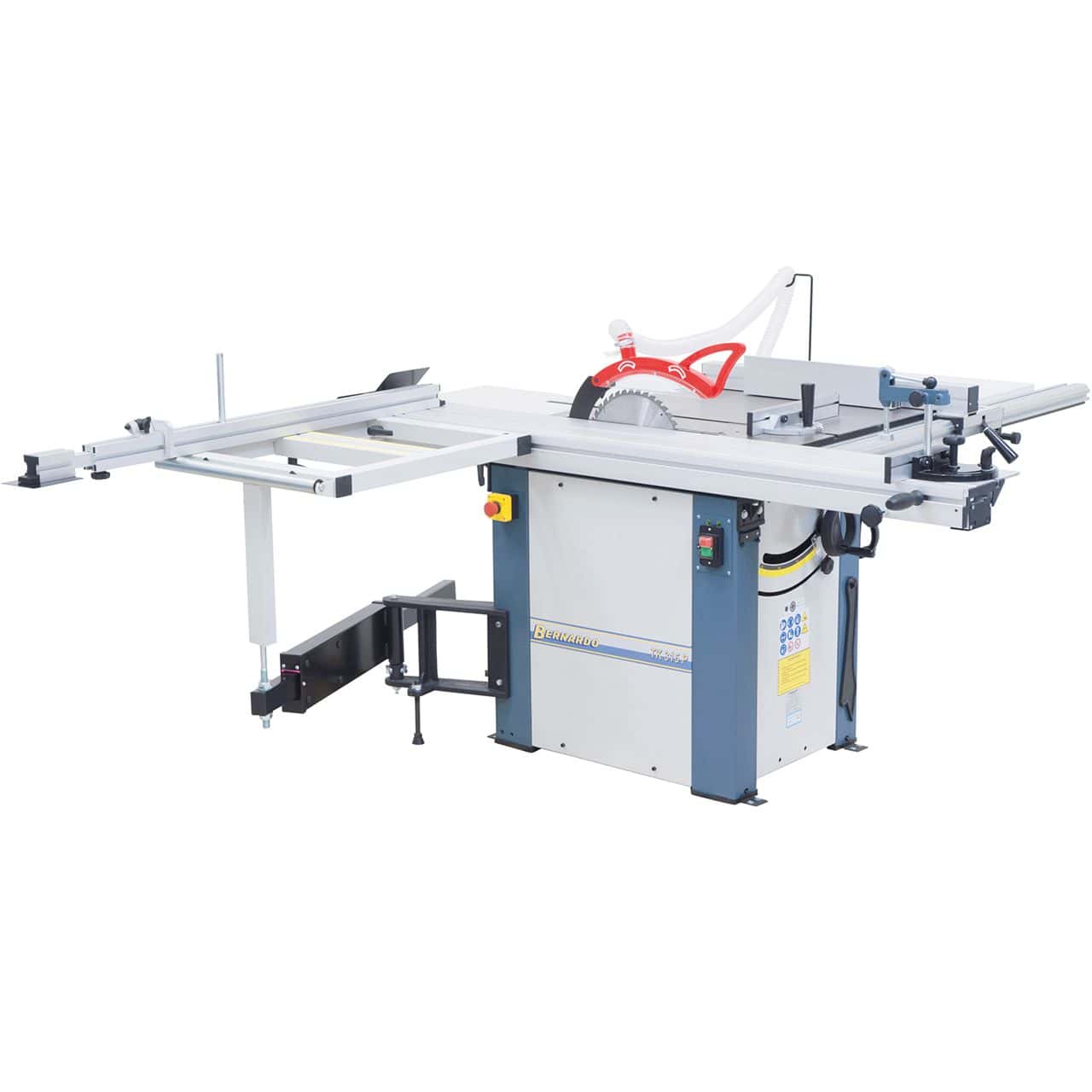

Circular saw with sliding table TK 315 P - 2000 / 230 V
The TK 315 P circular saw with a 2000 mm sliding table is a professional solution for precise cutting of even coated panels, thanks to its integrated scoring blade. Its comprehensive configuration, powerful 3.0 kW motor, and large work surfaces make this machine ideal for craftsmen, carpenters, and small workshops seeking versatility and performance.
Main features
• 315 mm blade can also be used with the engraver mounted
• 2000 mm anodized aluminum sliding carriage
• Squaring table with roller and telescopic arm for maximum stability
• 3.0 kW motor for constant cutting speed even under full load
• Telescopic guide extendable up to 2260 mm, can be mounted at the front or rear
• Aluminum parallel guide with micrometric adjustment and magnifying glass
• Large work surface with table extensions included for cuts up to 1240 mm
• Blade inclination from 90° to 45° via handwheel
• High speed engraver for clean cuts on coated materials
• Cast iron and steel structure for vibration-free work
Technical data
| Technical specifications | |
|---|---|
| Table size | 825 x 800 mm |
| Sliding carriage | 2000 x 270 mm |
| Cutting length | 2000 mm |
| Max. blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm |
| Cutting width on parallel guide | 1240 mm |
| Table height | 870 mm |
| Table extension | 500 x 310 mm |
| Table expansion | 800 x 440 mm |
| Squaring table with roller | 700 x 580 mm |
| Blade speed | 4000 rpm |
| Engraver speed | 5800 rpm |
| Engraving blade | 90 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 3.0 kW (4.0 HP) |
| Engine power (S6 40%) | 4.2 kW (5.7 HP) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 2000 x 2870 x 1140 mm |
| Weight approx. | 258 kg |
Package Contents
• HM blade 315 x 3.0 x 30 mm / 40 teeth
• Scoring blade 90 x 3.0 x 20 mm / 12 teeth
• Protective casing with suction connection
• Connection pipe with Y-fitting
• Angle guide with eccentric lock
• Angle guide
• End of stroke stop
• Table extension
• Table expansion
• Extractable telescopic guide
• Stop with micrometric adjustment
• Squaring table with roller
• Pusher
• Tool set
