Bernardo | SKU:
05-1451XL

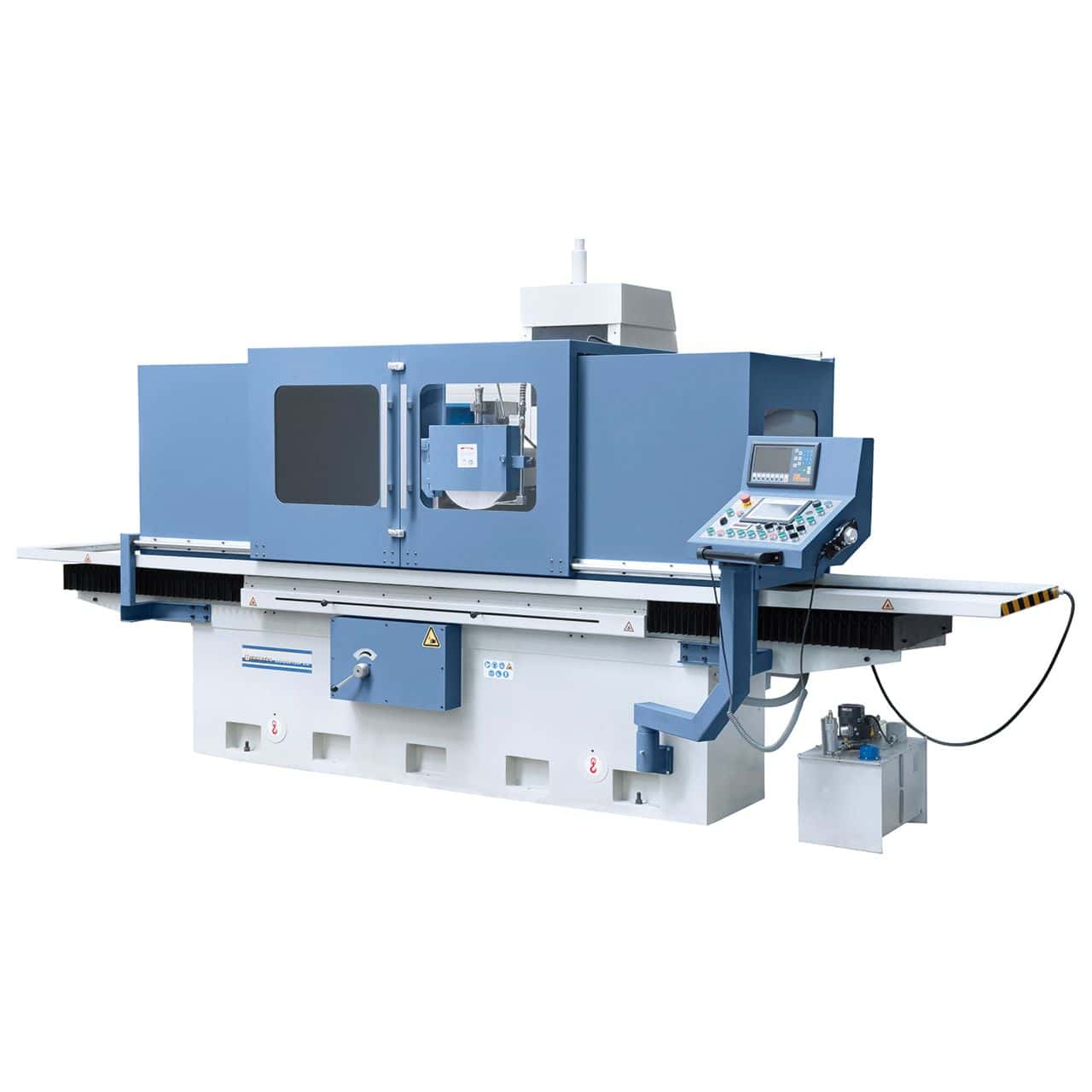

BSG 60120 PLC Flat Grinder
BSG 60120 PLC Flat Grinder is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
BSG 60120 PLC Flat Grinder
Unit price
/
Unavailable
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Hardened and longitudinally and transversely ground bench guide belts; counter guides with Turcite B coating for high wear resistance and low friction
- The longitudinal or transverse movement takes place via a flat V-shaped guide
- Computer-controlled rapid approach to the workpiece height, adjustable reconciliation stroke and spark suppression; automatic lifting to the starting position after the end of the program
- Special preloaded bearings without axial and radial play in the grinding spindle
- The annealed and tension-free machine base body ensures high precision
- High stability thanks to strong ribs and large walls
- Adjustable longitudinal and transverse table movement by limit switches
- The sophisticated hydraulic system guarantees smooth turning of the table even with high loads of the same
- PLC control unit for programming simple grinding cycles via touchscreen included
Standard accessories
- ES-12 H 2-axis position display with LCD display
- Siemens SMART IE V3 touch control panel
- Electronic knob
- Grinding wheel boring
- Disc flange
- LED work light
- Magnetic clamping plate
- Balancing support
- Balance shaft
- Protective covers
- Parallel grinding device
- Degaussing device
- Refrigeration system
- Diamond extractor
- Machine feet
- Central lubrication
- Hydraulic oil cooling
- Control device
technical specifications
| Table clamping surface | 600 x 1200 mm |
| Number of T-slots / width | 3 / 18 mm |
| Electronic magnetic clamping plate | 600 x 1200 mm |
| Maximum travel, longitudinal | 1520 mm |
| Maximum travel, transverse | 660 mm |
| Distance spindle center / table max. | 600 mm |
| Max. piece weight * | 970 kg |
| Grinding wheel boring | 350 x 50 x 127 mm |
| Table speed, hydraulic | 5 - 25 mm/min |
| Transverse adjustment | |
| Automatic, transversal approach | 0.5 - 30 mm/stroke |
| Rapid, transverse run | 50 - 600 m/min |
| Vertical approach | |
| Automatic vertical approach | 0.005 / 0.01 / 0.015 / |
| 0.02 / 0.03 / 0.04 mm | |
| Rapid, vertical run | 0 - 300 mm/min |
| Grinding spindle motor | 7.5 kW |
| Spindle speed | 1440 rpm |
| Hydraulic pump motor | 5.5 kW |
| Overall connection value | 18 kW |
| Length | 4800 mm |
| Depth | 2750 mm |
| Height | 2420 mm |
| Weight approx. | 6500 kg |
| * with magnetic clamping plate |
Technical Specifications
Questa smerigliatrice garantisce rigidità elevata, precisione costante, tavola idraulica fluida e cicli di lavoro automatizzati tramite PLC Siemens.
La macchina è equipaggiata con una piastra magnetica da 600 x 1200 mm che consente di bloccare pezzi fino a 970 kg.
Il PLC Siemens consente di programmare avanzamento rapido, sgrossatura, finitura e ritorno automatico alla posizione iniziale.
La corsa longitudinale è di 1520 mm, quella trasversale 660 mm e la distanza mola-tavola arriva a 600 mm, con carichi fino a 970 kg.
La smerigliatrice viene spedita su pallet protetto, completa di accessori: DRO, piastra magnetica, mola, sistema di raffreddamento, utensili e smagnetizzatore.
