Description

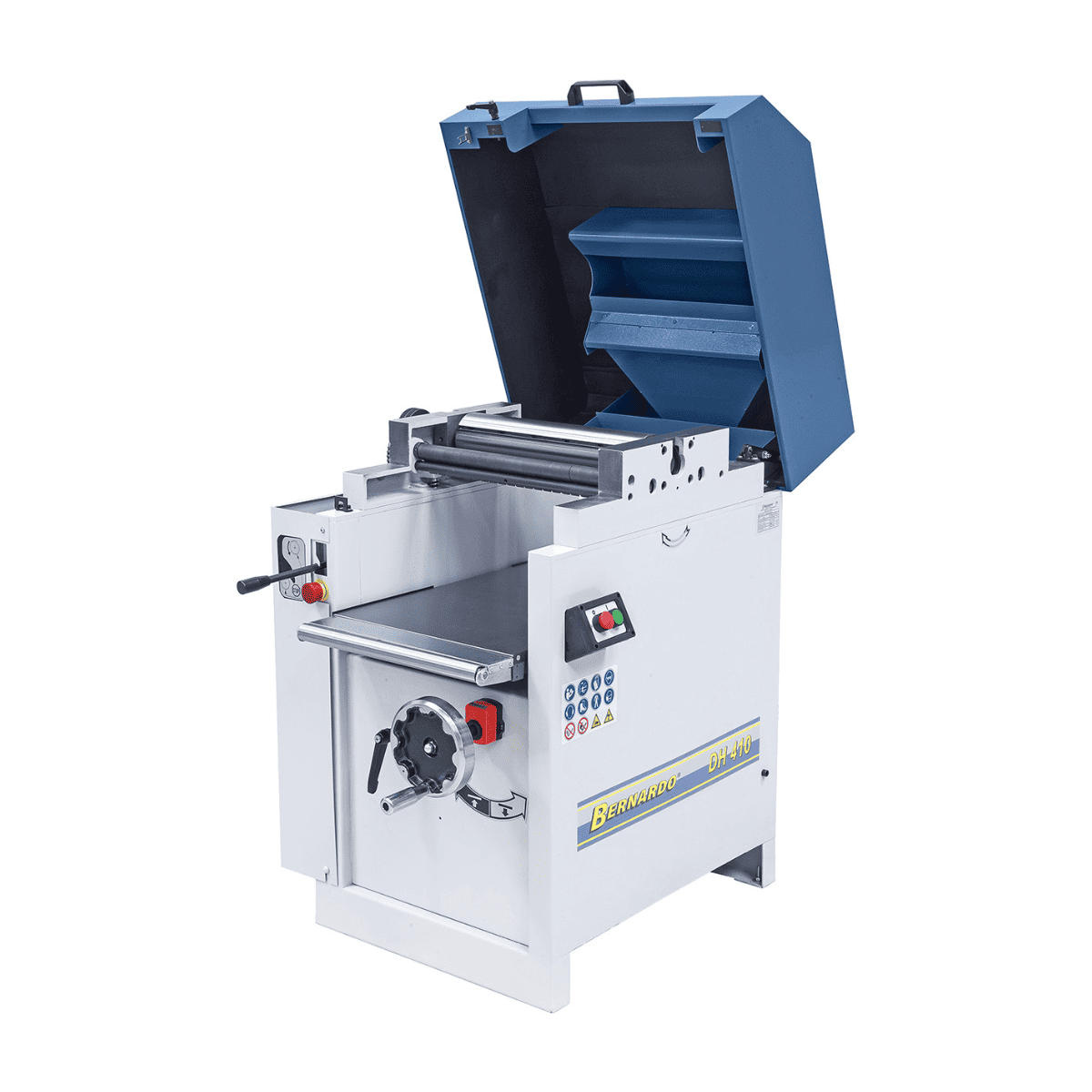

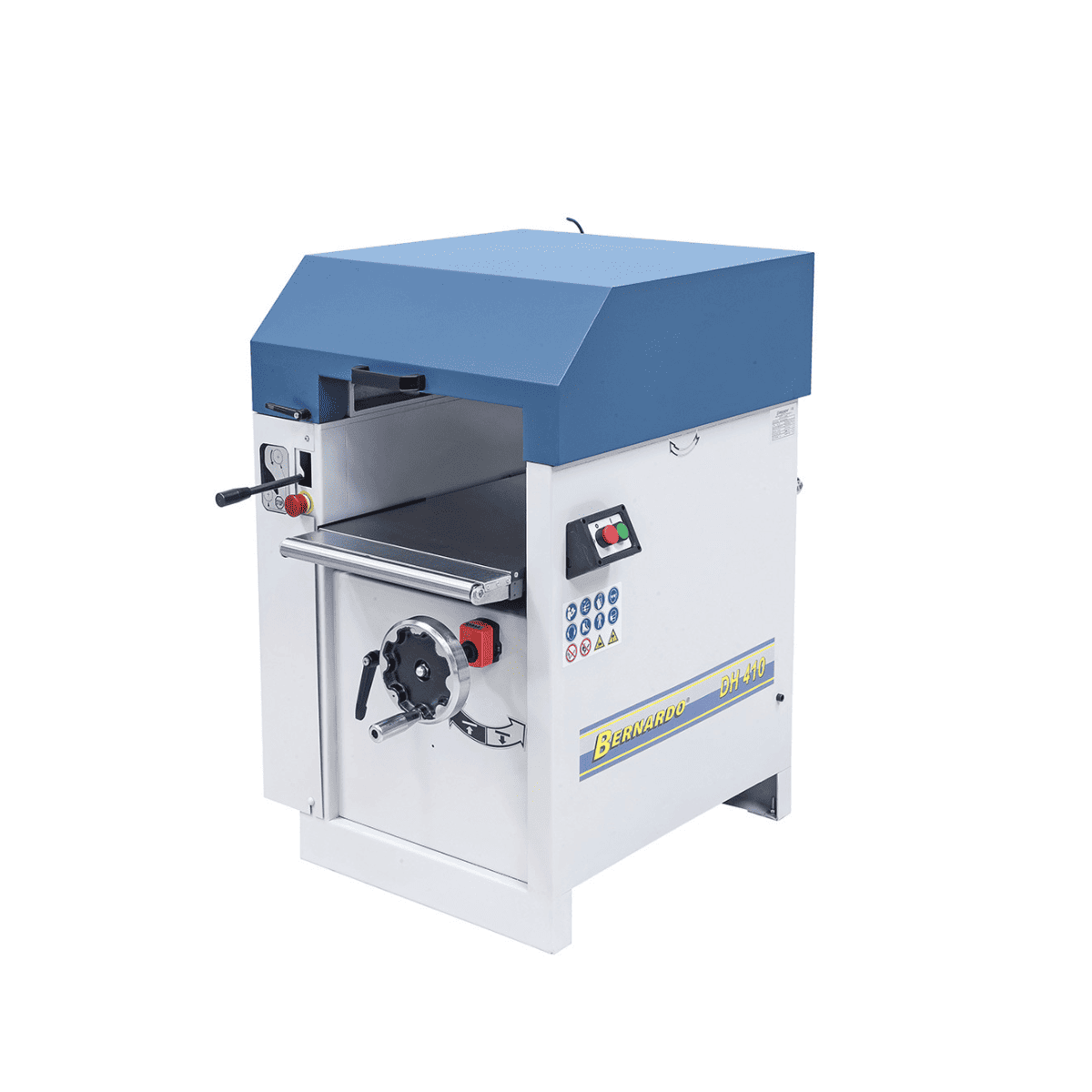

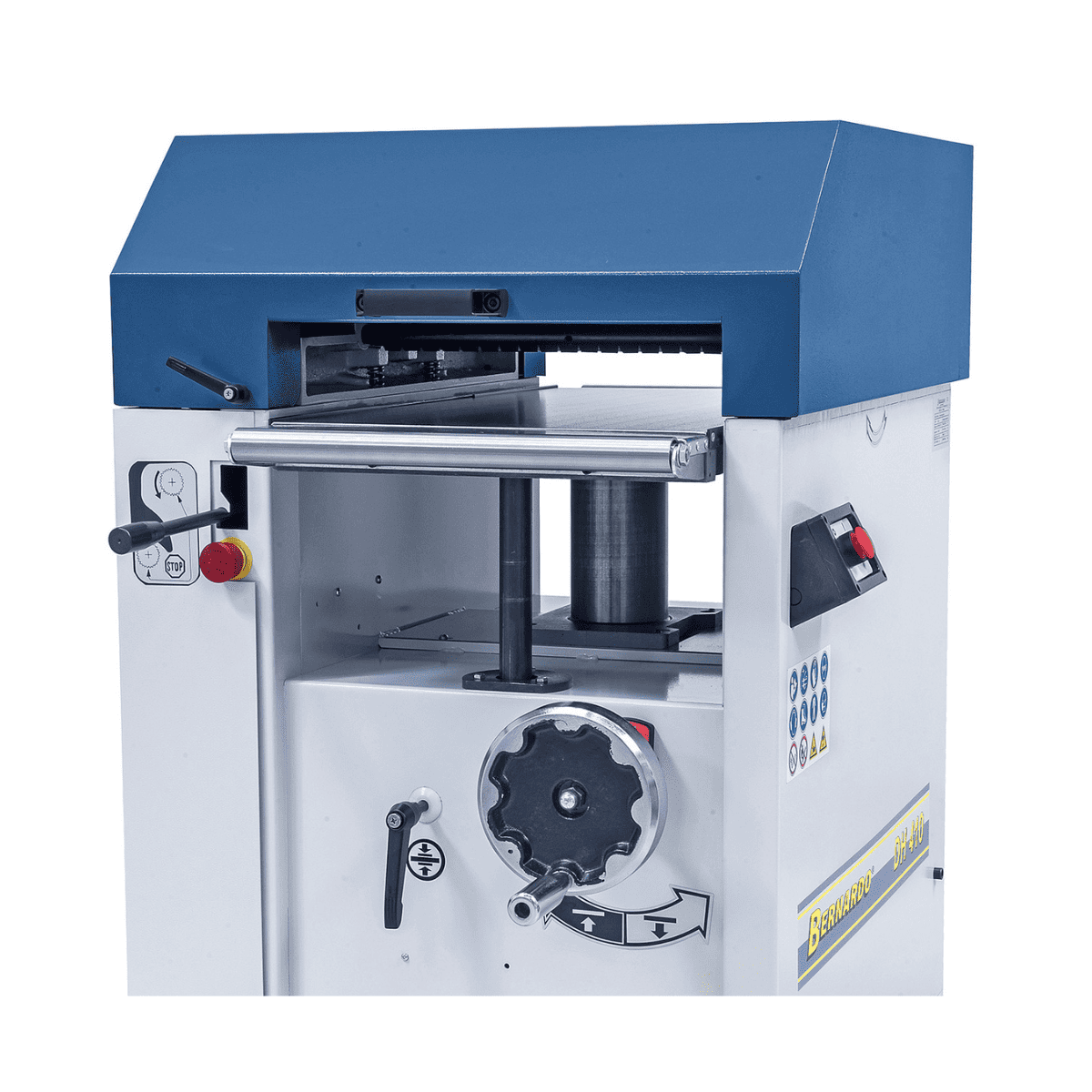

Thicknesser DH 410 / 400 V
The DH 410 thicknesser is a compact and robust machine, designed to ensure maximum precision, safety, and ease of use. Thanks to its digital display for table adjustment and solid cast iron construction, it represents an excellent solution for demanding carpenters and professional workshops.
Main features

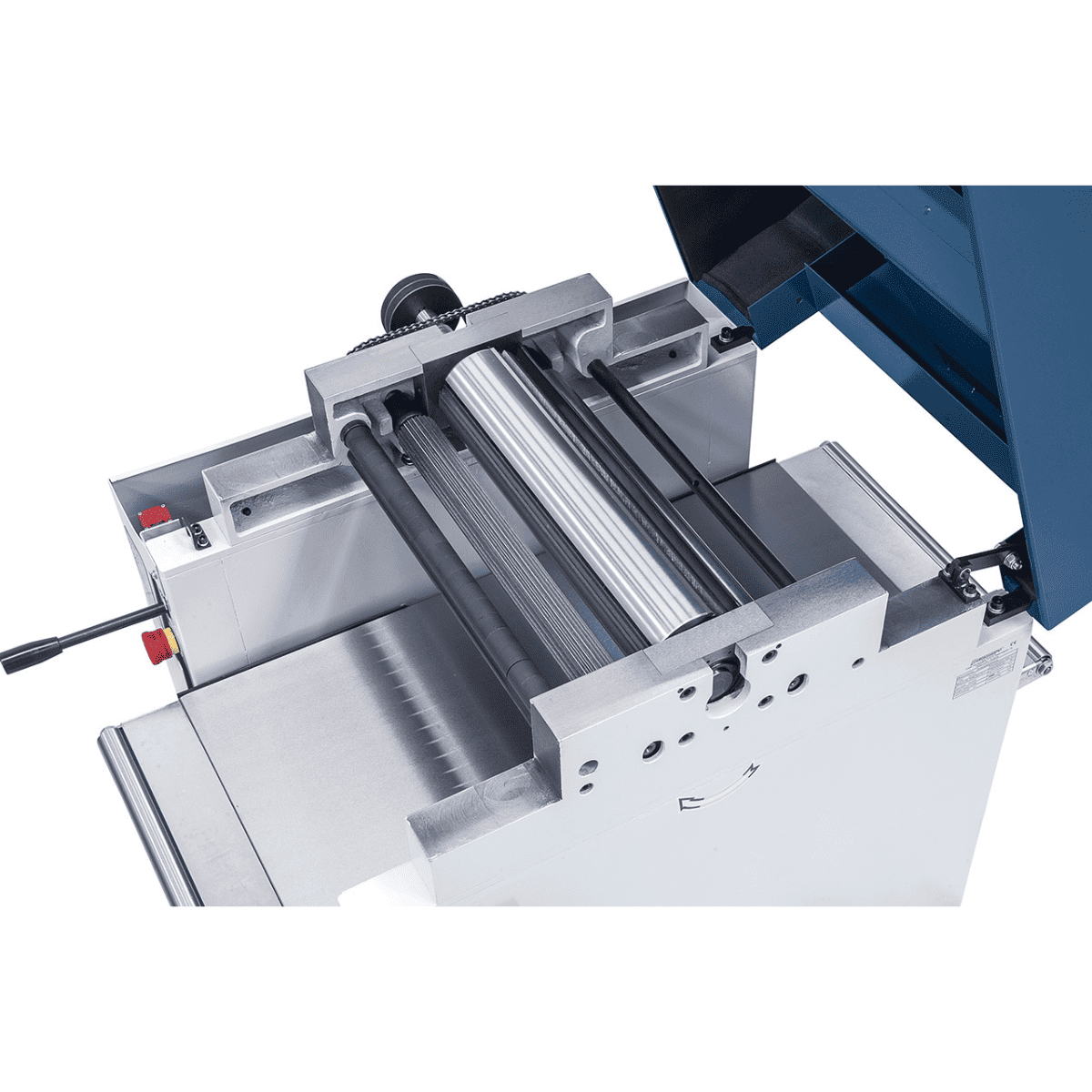

• Precision-fitted, smooth-running 4-knife HSS cutterhead
• Thickness table with central column and lateral supports for high precision machining

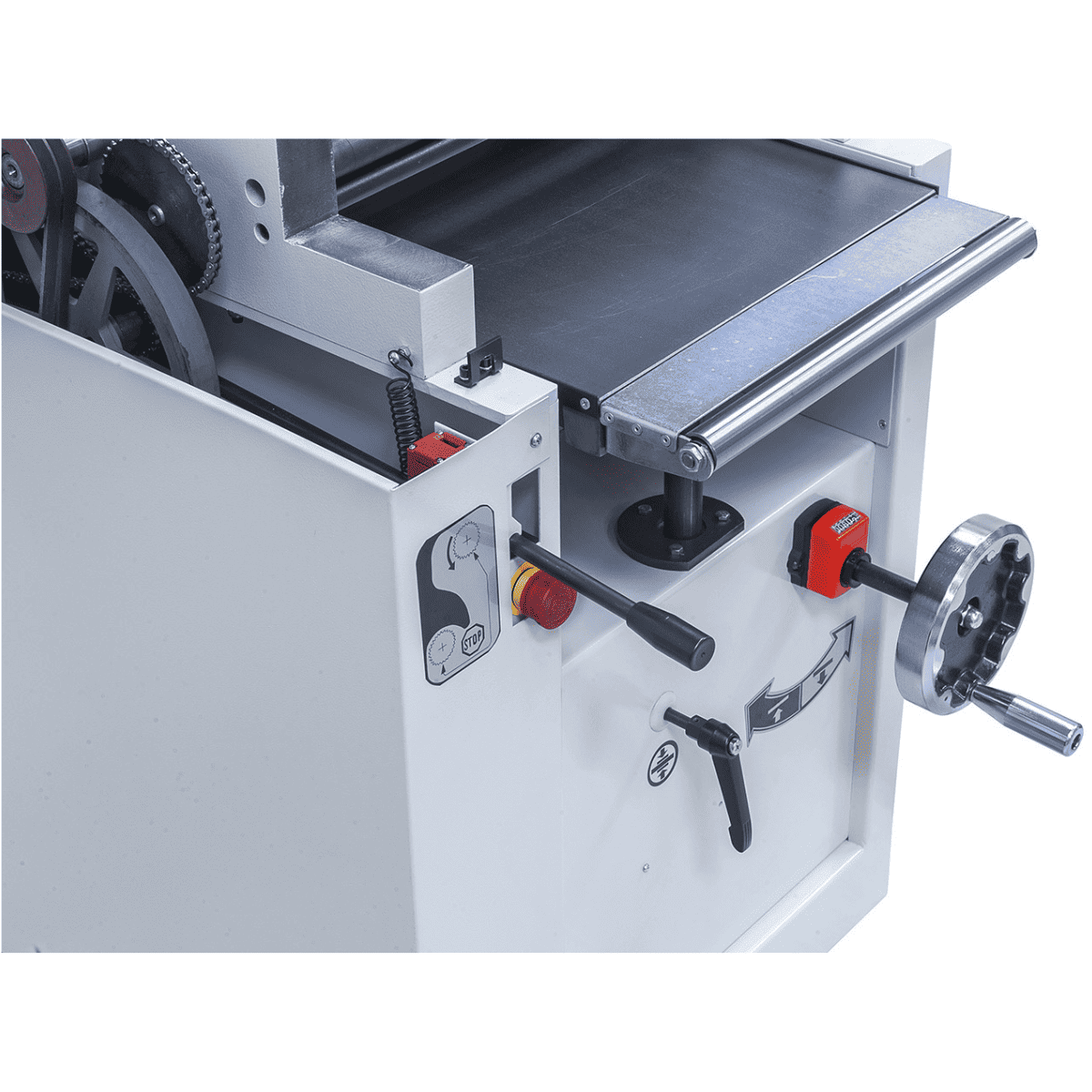

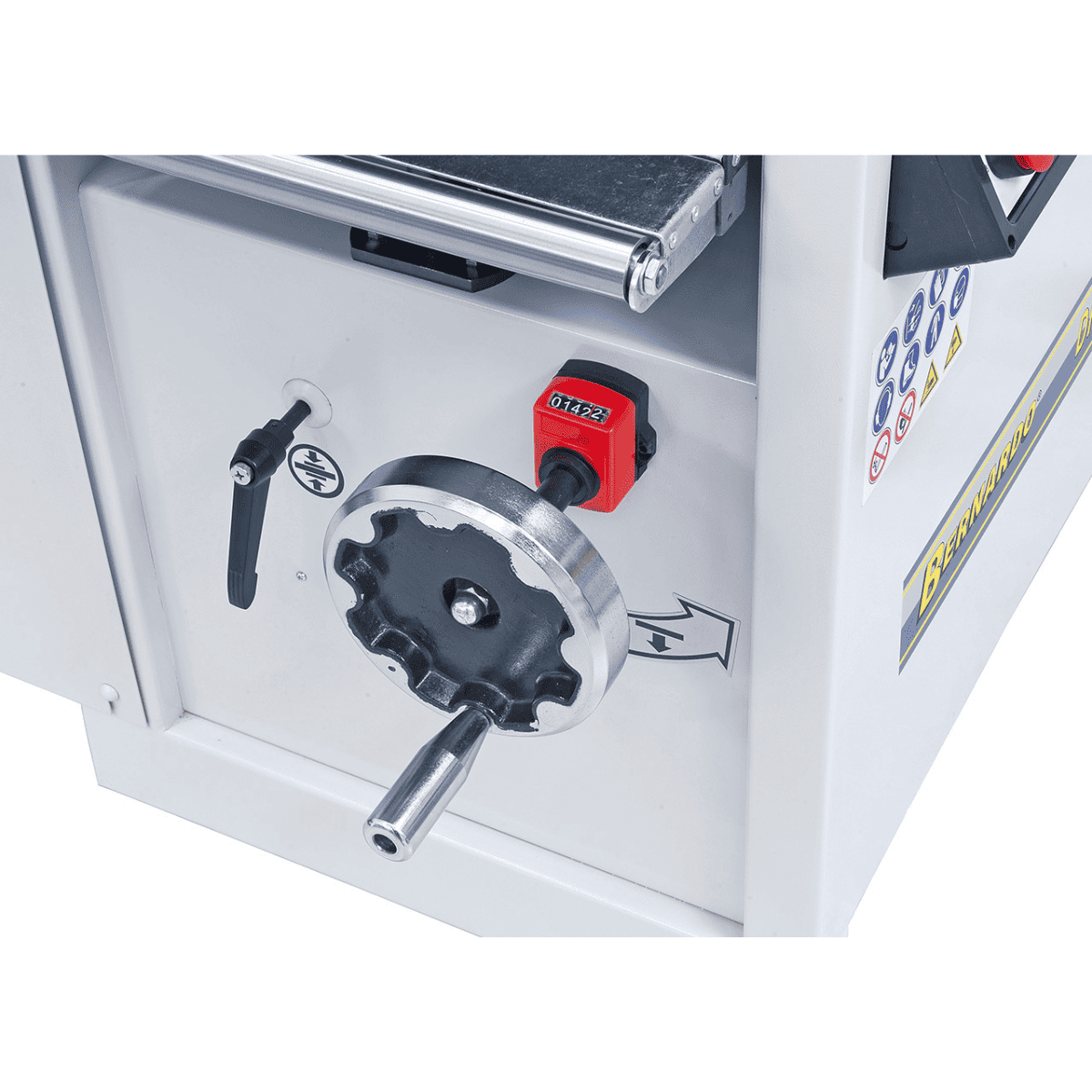

• Digital adjustment to the nearest tenth of a millimetre via handwheel
• Soundproofing cover on the cutterhead to reduce noise
• Ground table for pieces up to 230 mm high
• Table extension with integrated rollers to support long pieces

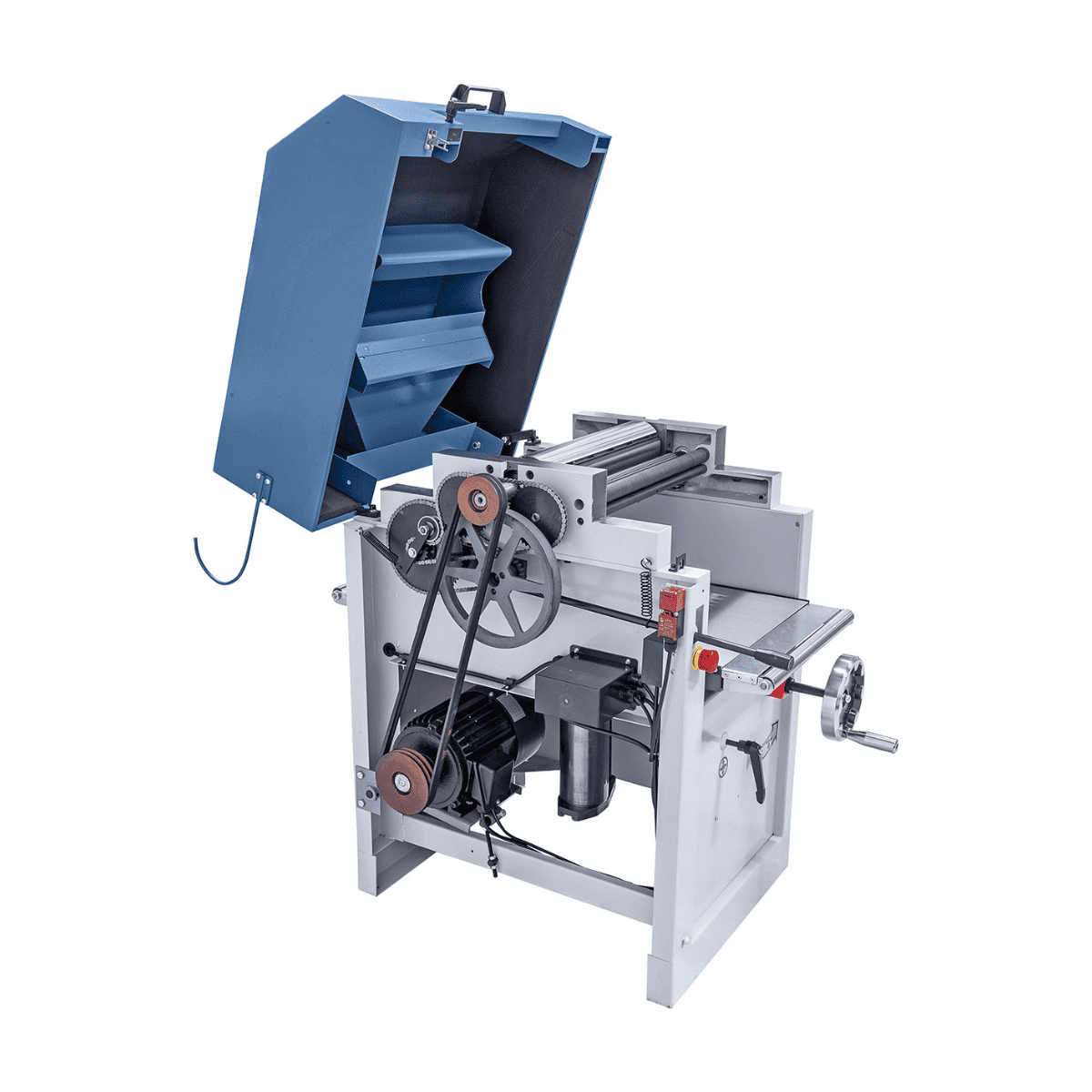

• Chain drive for smooth and safe pushing
• Anti-kickback devices to prevent the ejection of pieces
• Safety guaranteed by main switch, emergency switch and lock against accidental starts
Technical data
| Working capacity | |
|---|---|
| Working width | 410 mm |
| Min./max. working height | 5 – 230 mm |
| Table size | 930 x 410 mm* |
| Maximum pass depth | 5 mm |
| Minimum piece length | 150 mm |
| Planer shaft | |
|---|---|
| Cutterhead diameter | 95 mm |
| Number of knives | 4 pieces |
| Shaft rotation speed | 4050 rpm |
| Advancement and aspiration | |
|---|---|
| Feed rate | 6 m/min (continuously adjustable) |
| Suction nozzle | Ø 100 mm |
| Motor | |
|---|---|
| Engine power S1 100% | 3.0 kW (4.0 HP) |
| Power consumption S6 40% | 4.2 kW (5.7 HP) |
| Voltage | 400 V |
| Dimensions and weight | |
|---|---|
| Machine dimensions (L x W x H) | 1110 x 710 x 1020 mm |
| Weight | approx. 239 kg |
* with table extension
Package Contents
• High quality HSS knives
• Knife adjustment jig
• Digital display for table adjustment
• Table extension with integrated rollers
