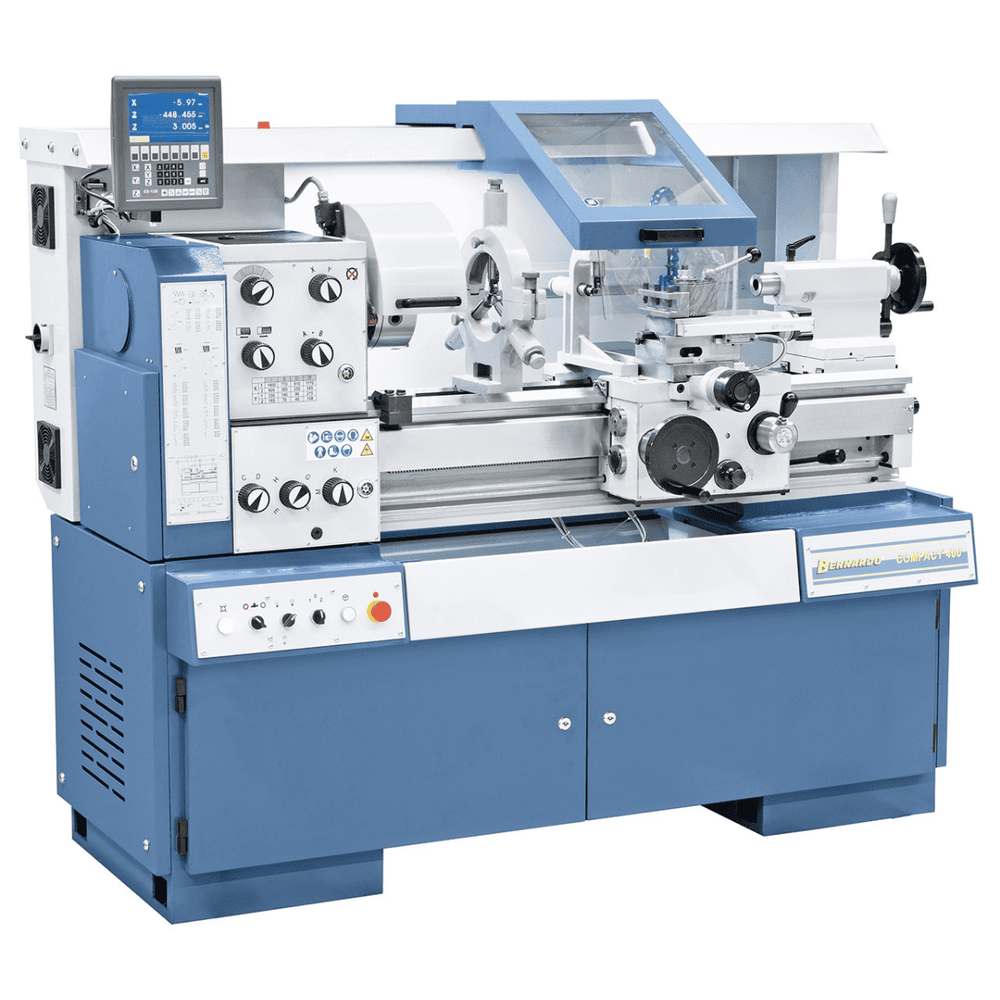

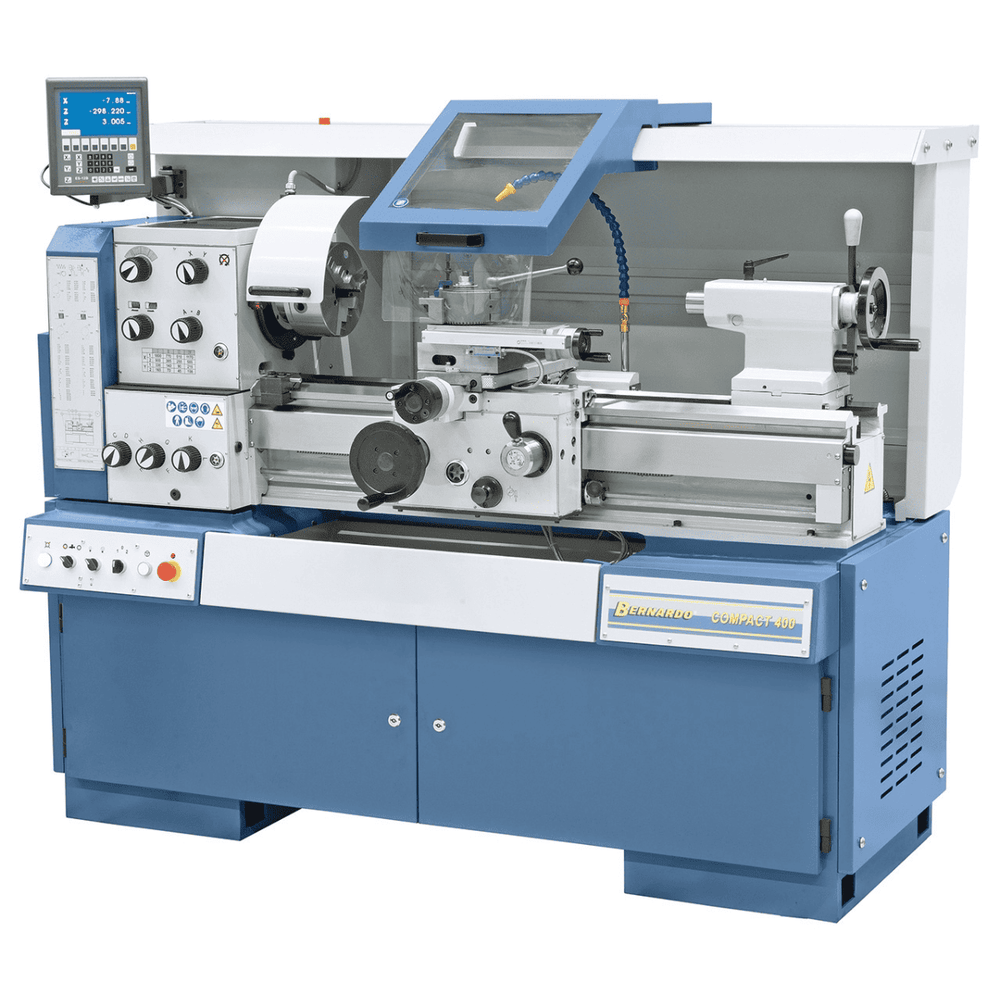

Compact 400 universal lathe with 3-axis digital readout ES-12 V
The Compact 400 lathe is a universal machine designed for professional, educational, and technical use. Engineered to the latest standards, it guarantees high performance, versatility, and a robust, stable structure for precise machining even on large shafts. Thanks to its comprehensive features and ease of use, it is ideal for schools, technical institutes, workshops, and production laboratories.
Main features
• 52mm spindle bore for machining large diameter shafts
• Robust prismatic base with ribs for reduced vibration

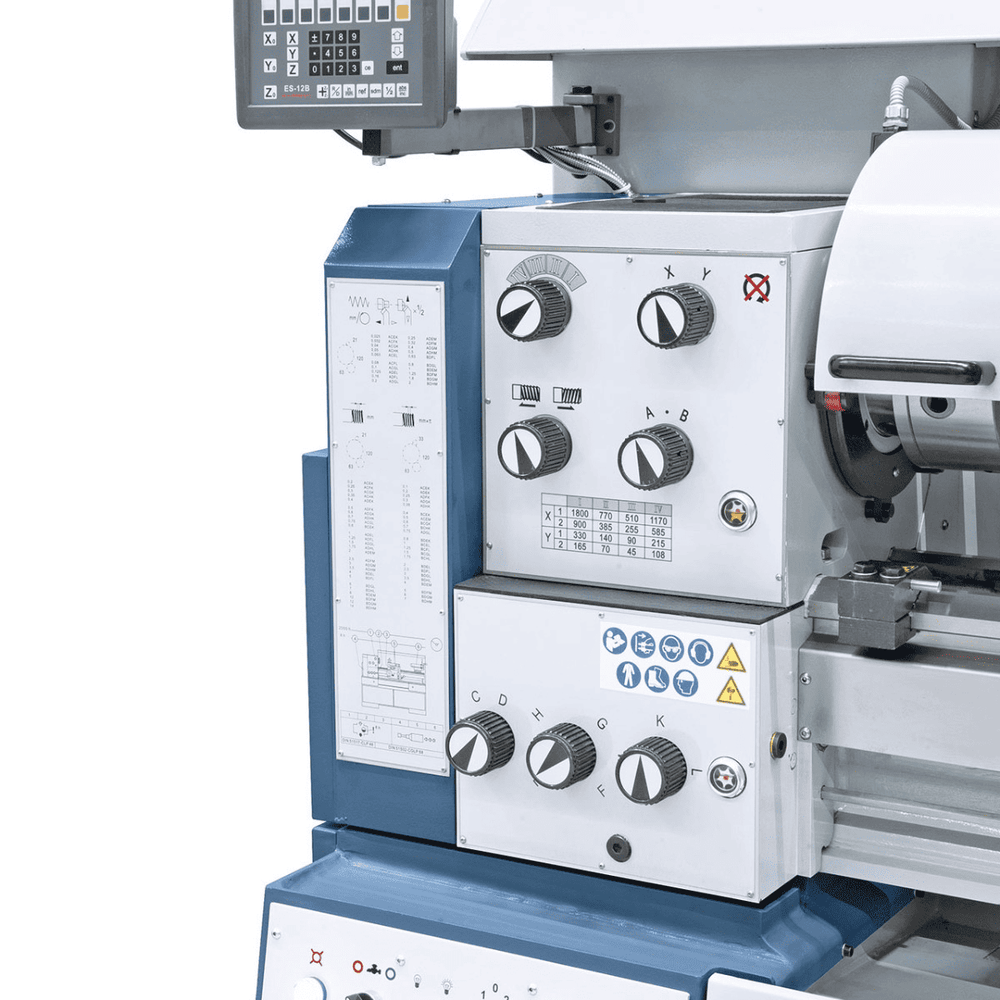

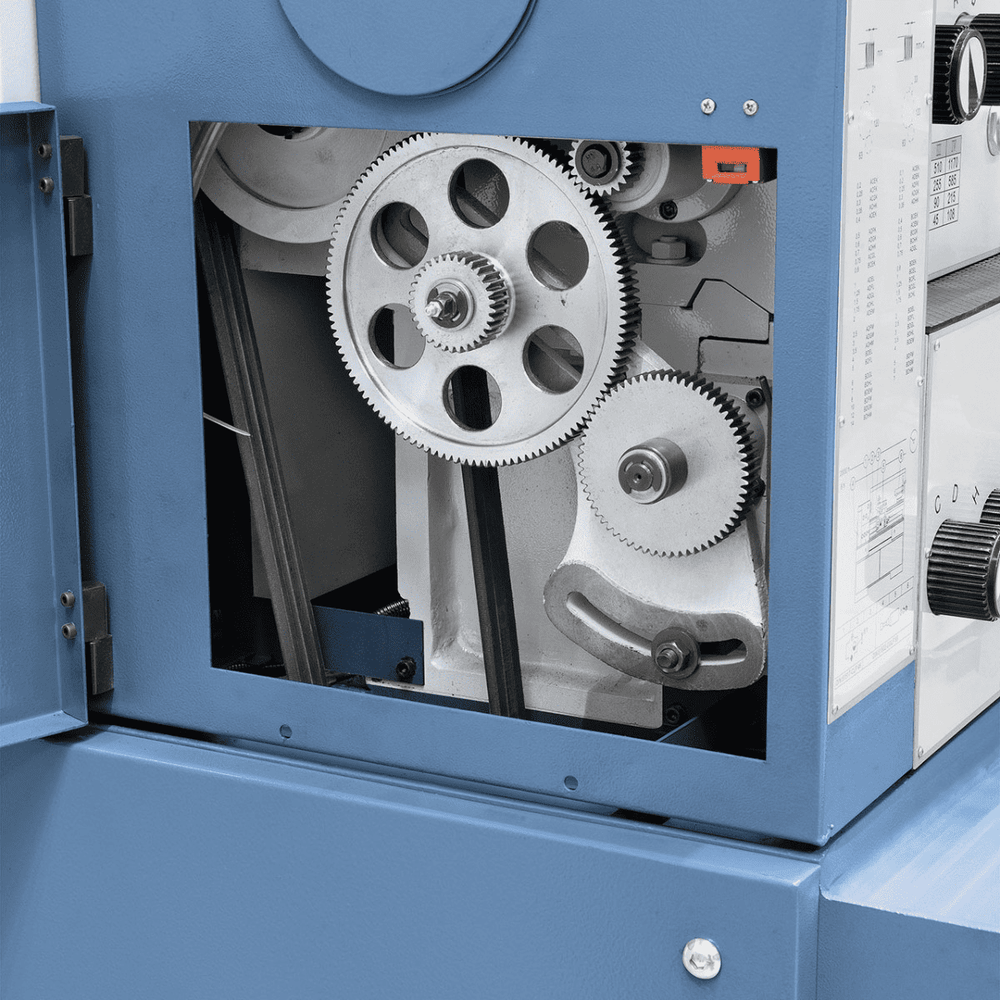

• Centralized change for feeds and threads
• Main spindle with precision angular bearings
• One-piece cast pallet structure, stable and resistant
• Smooth adjustments for speed and feed
• Ideal for schools, workshops, maintenance and production
• ES-12 V 3-axis digital display included in the scope of delivery
• CE protections, refrigeration system and integrated LED lighting
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 850 mm |
| Tip height | 200 mm |
| Maximum turning diameter on bench | 400 mm |
| Max turning diameter on slide | 245 mm |
| Bench width | 260 mm |
| Spindle hole | 52 mm |
| Spindle attachment | DIN 55029, D1-5 |
| Spindle speed range | (16) 45 – 1800 rpm |
| Longitudinal advances | (20) 0.025 – 2.0 mm/rev |
| Transversal advances | (20) 0.012 – 1.0 mm/rev |
| Metric threads | (26) 0.2 – 14 mm |
| Inch threads | (42) 1 – 80 TPI |
| Tailstock quill diameter | 50 mm |
| Tailstock quill stroke | 120 mm |
| Steerer tube attachment | MK 3 |
| Engine power S1 / S6 | 3.0 / 4.5 kW |
| Machine dimensions (L x W x H) | 1900 x 1000 x 1610 mm |
| Weight | 1255 kg |
Package Contents

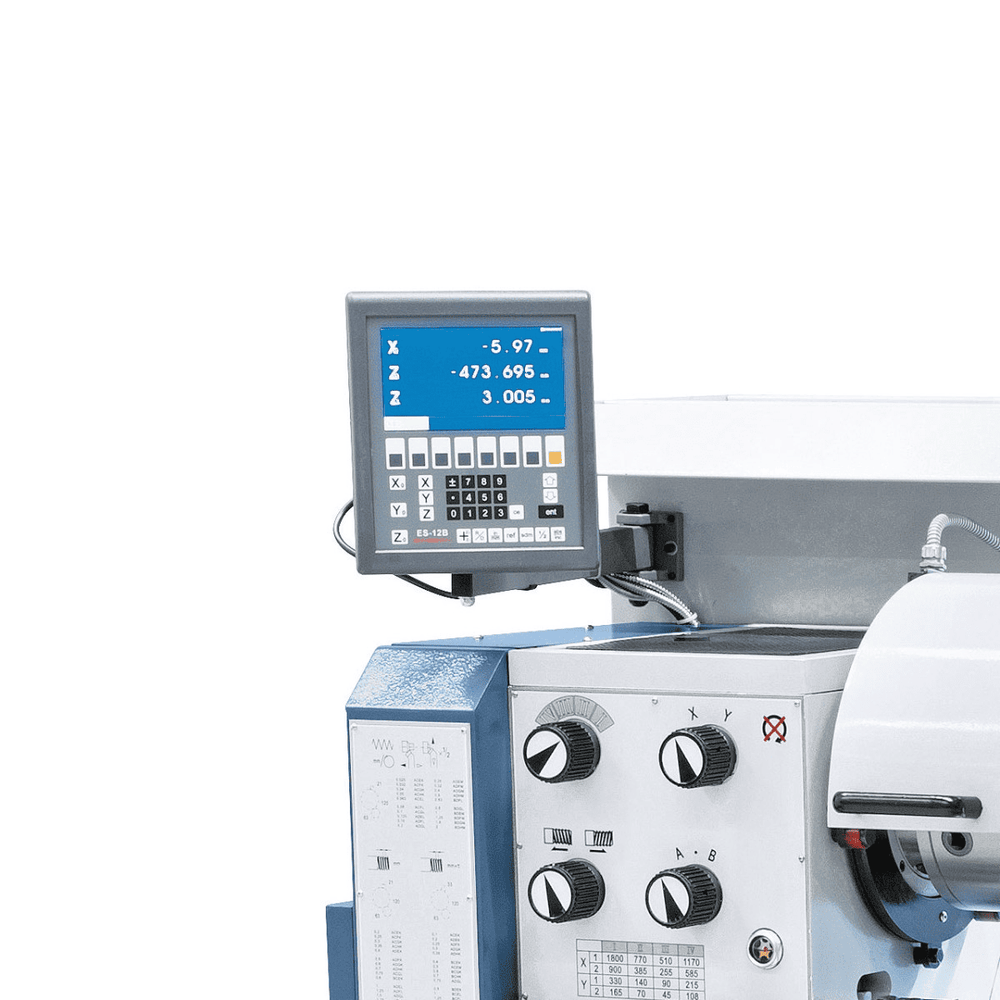

• ES-12 V 3-axis digital display with LCD display

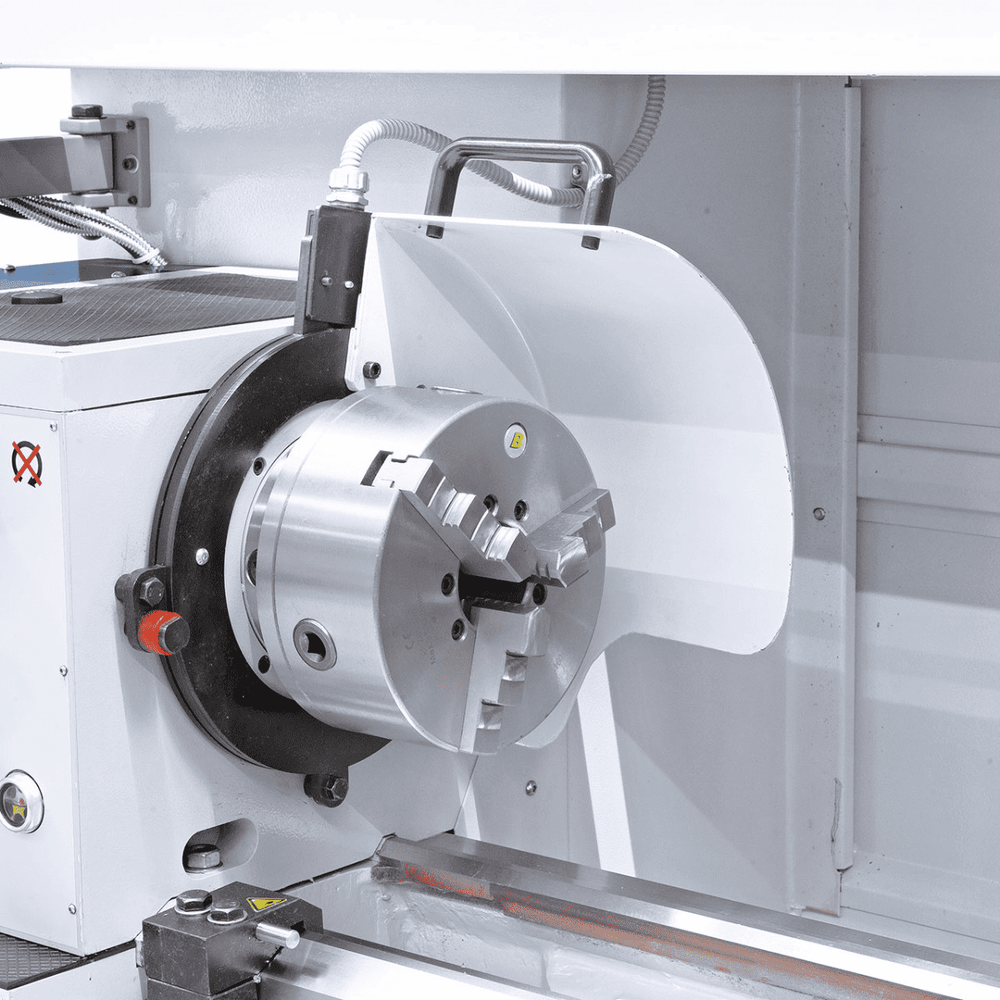

• 3-jaw chuck PS3-200 mm / D5

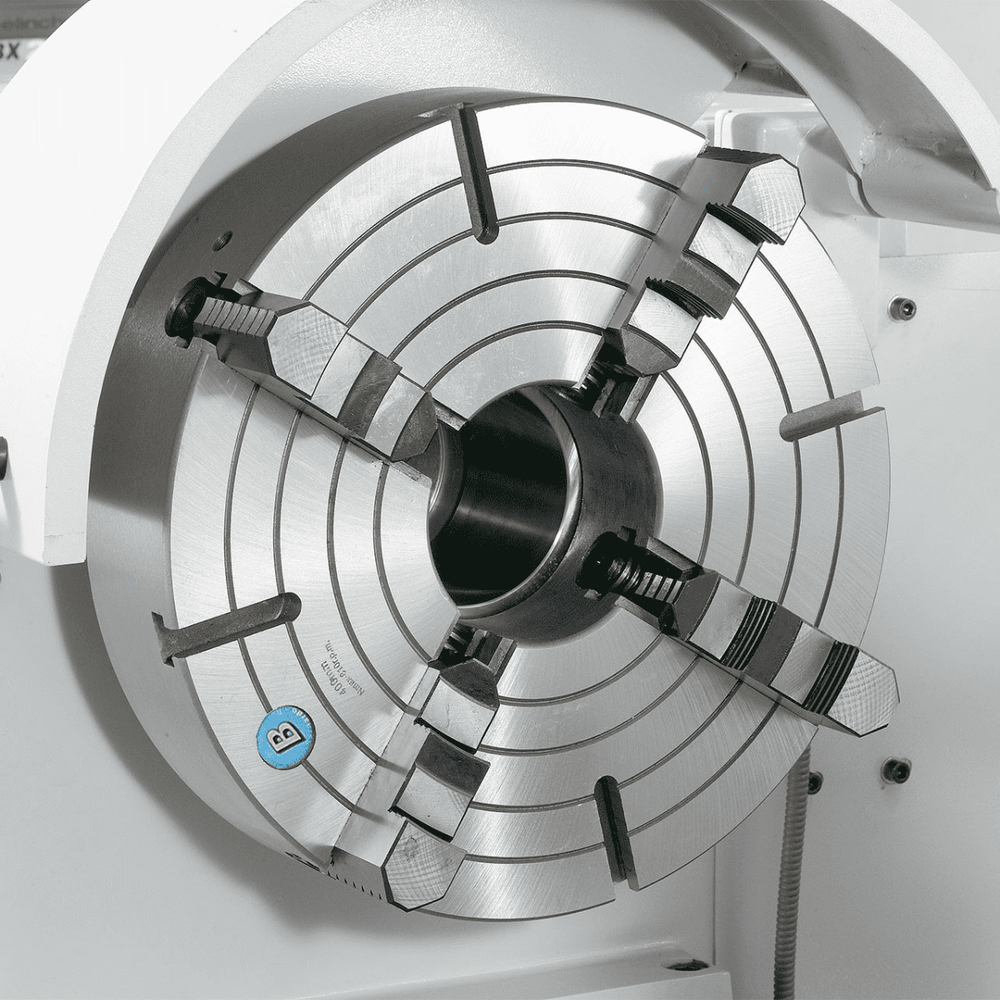

• Clamping plate 320 mm

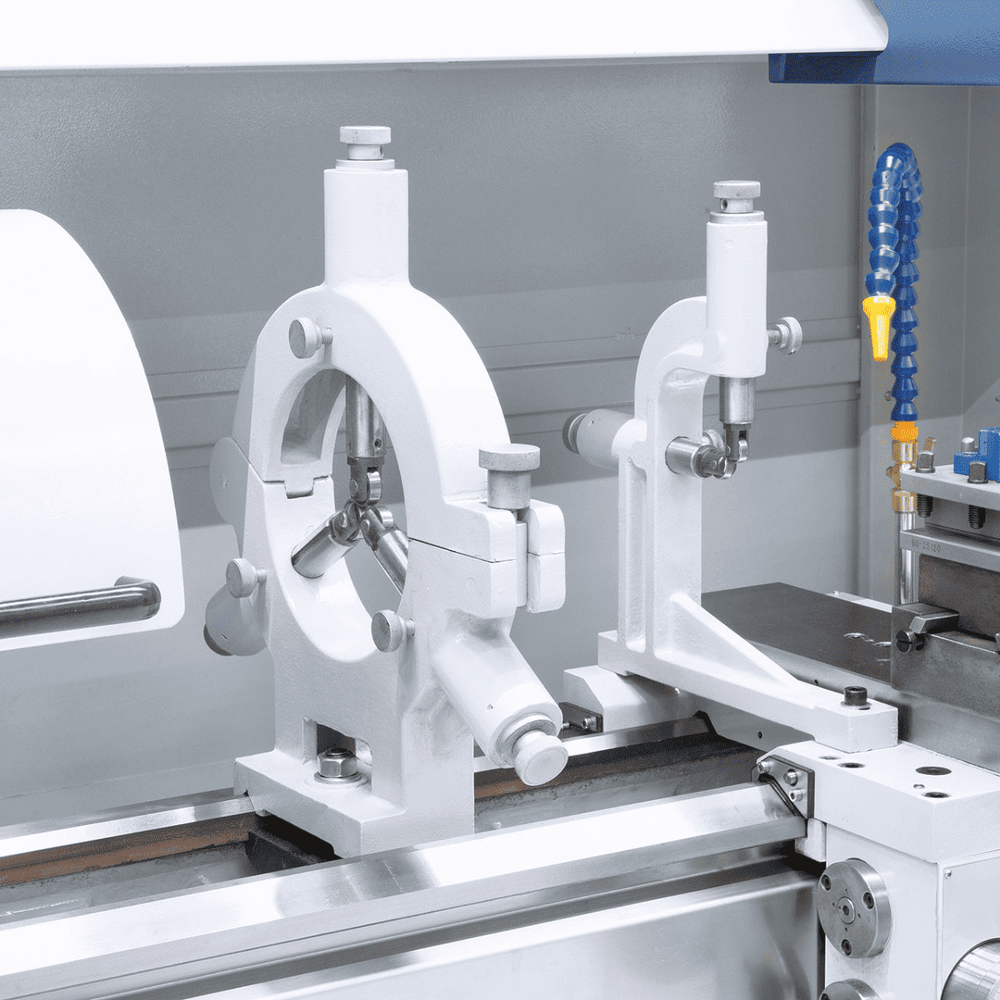

• Fixed bezel (Ø max 130 mm)
• Movable bezel (Ø max 100 mm)
• Refrigeration system

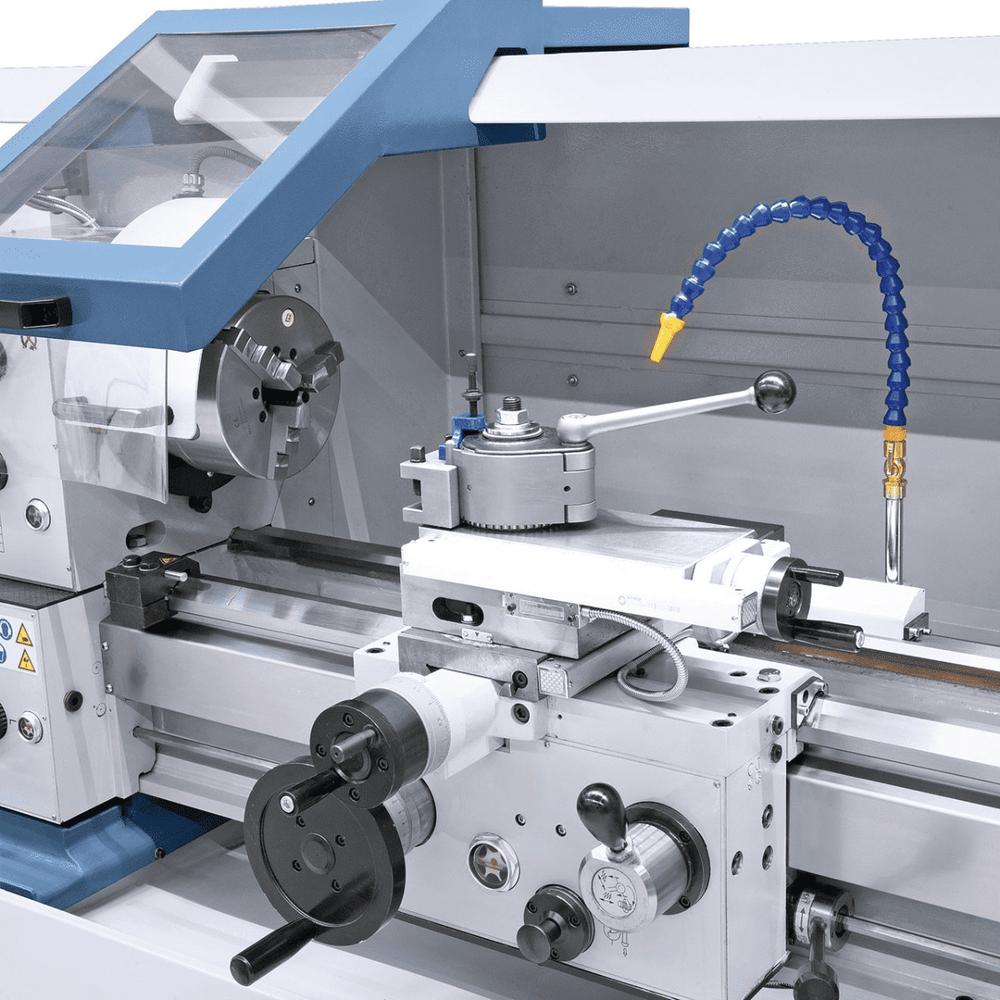

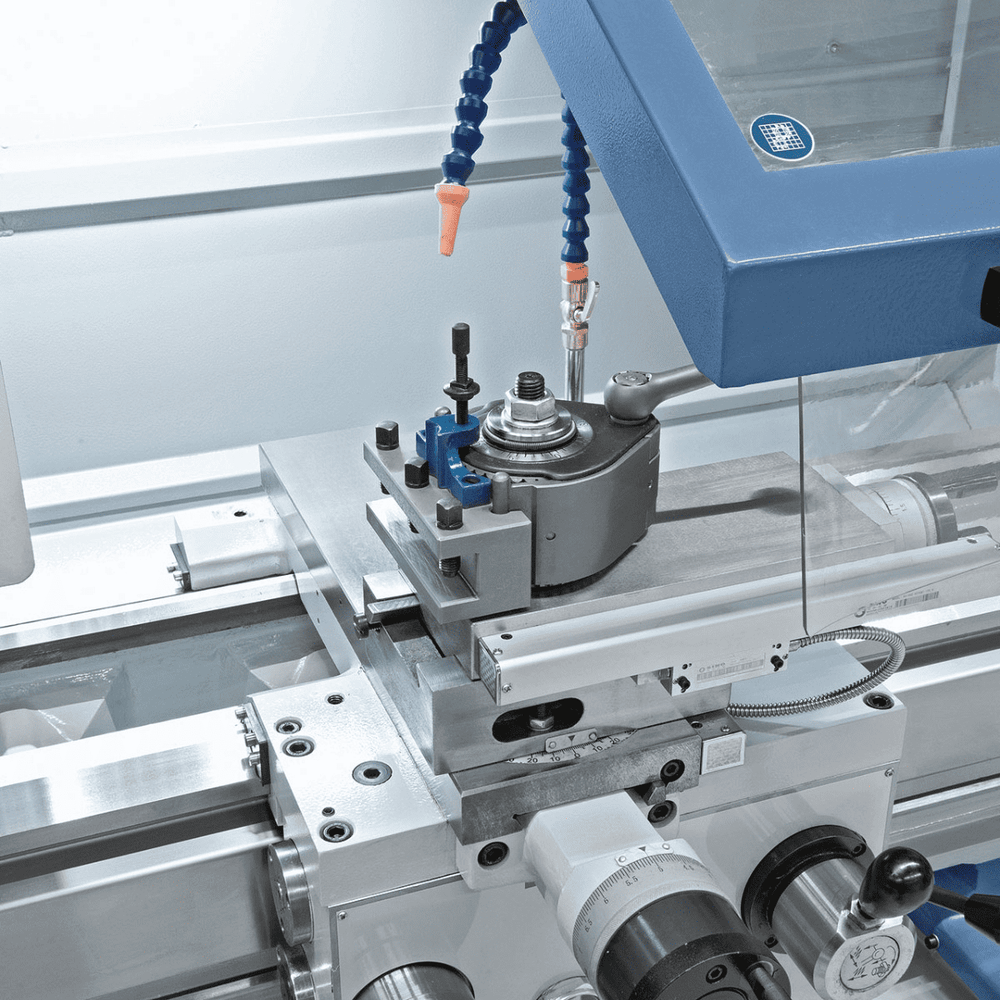

• Quick-change tool holder with 4 inserts
• Quick-change tool holder guard

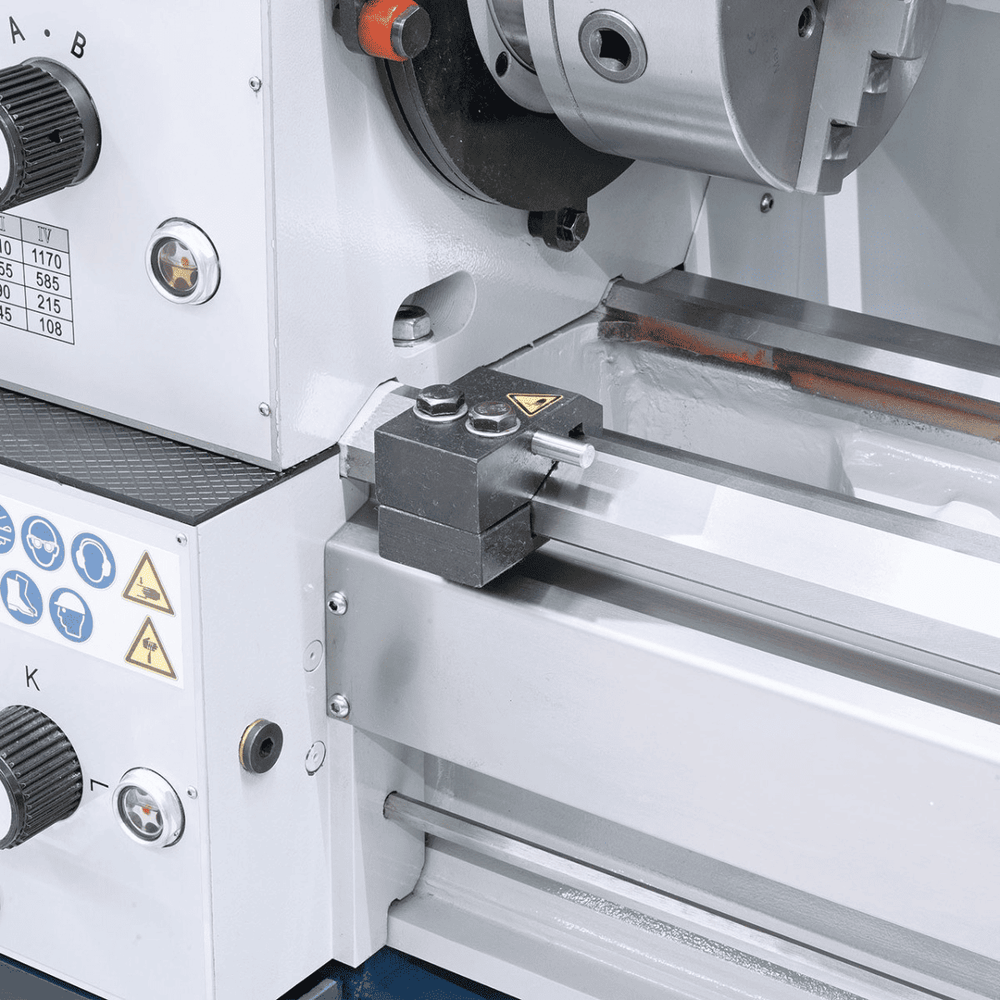

• Micrometric longitudinal stop
• Slip joint
• Motor with CE magnetic brake
• Initial fill with Shell Tellus 46

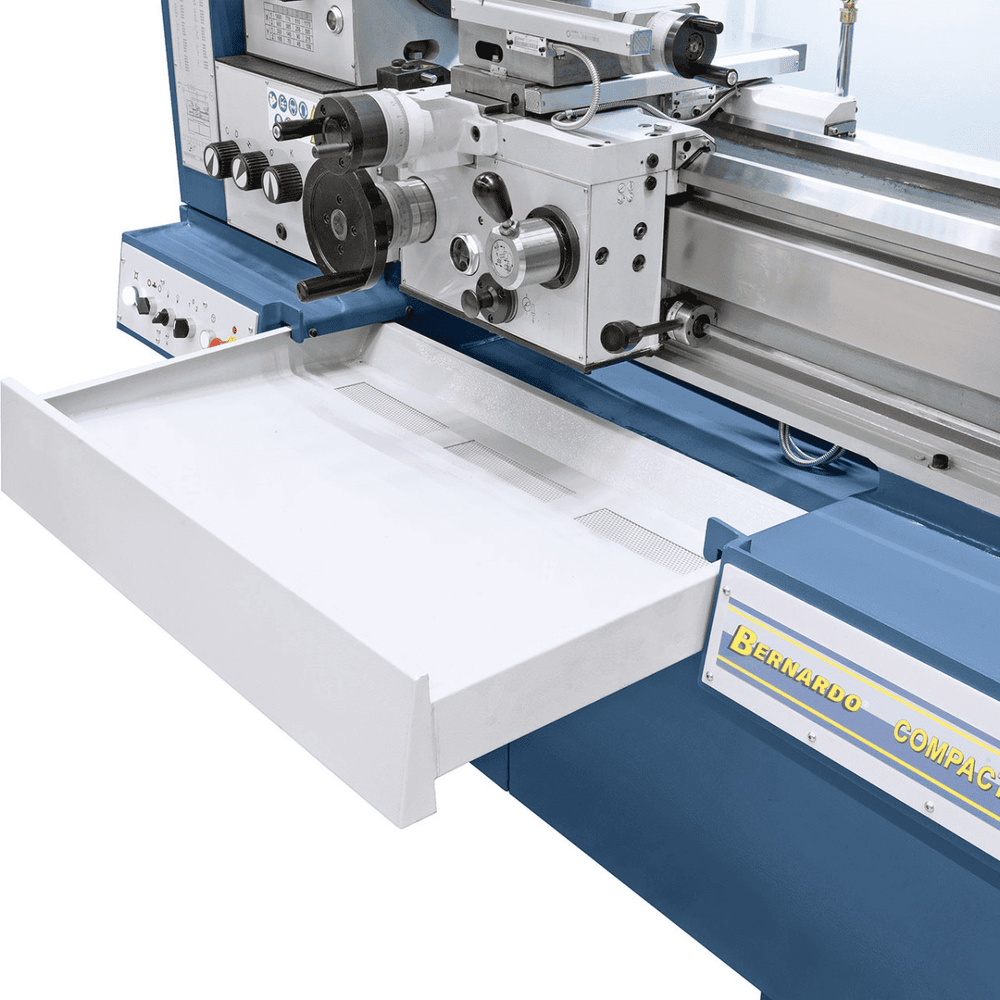

• Removable chip collection tray
• LED car light
• Replacement wheels
• Reducing compass
• 2 central tips
• Rear wall for chips
• Assembly tool
