Description

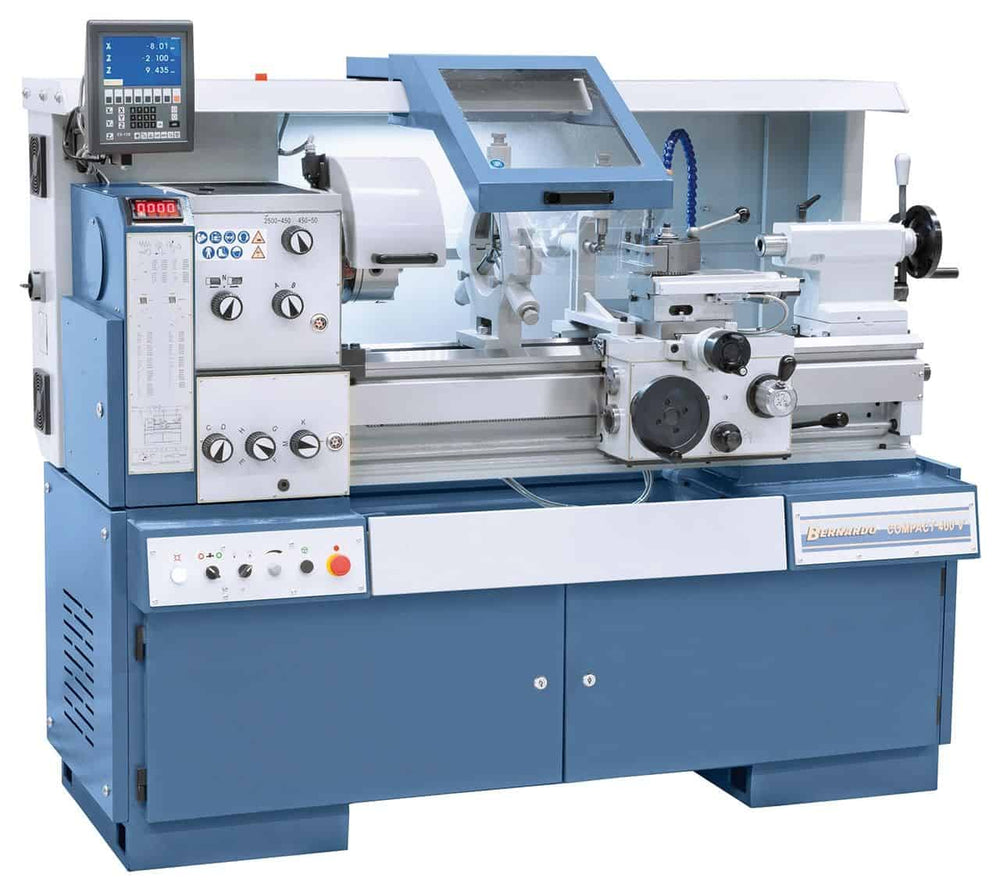

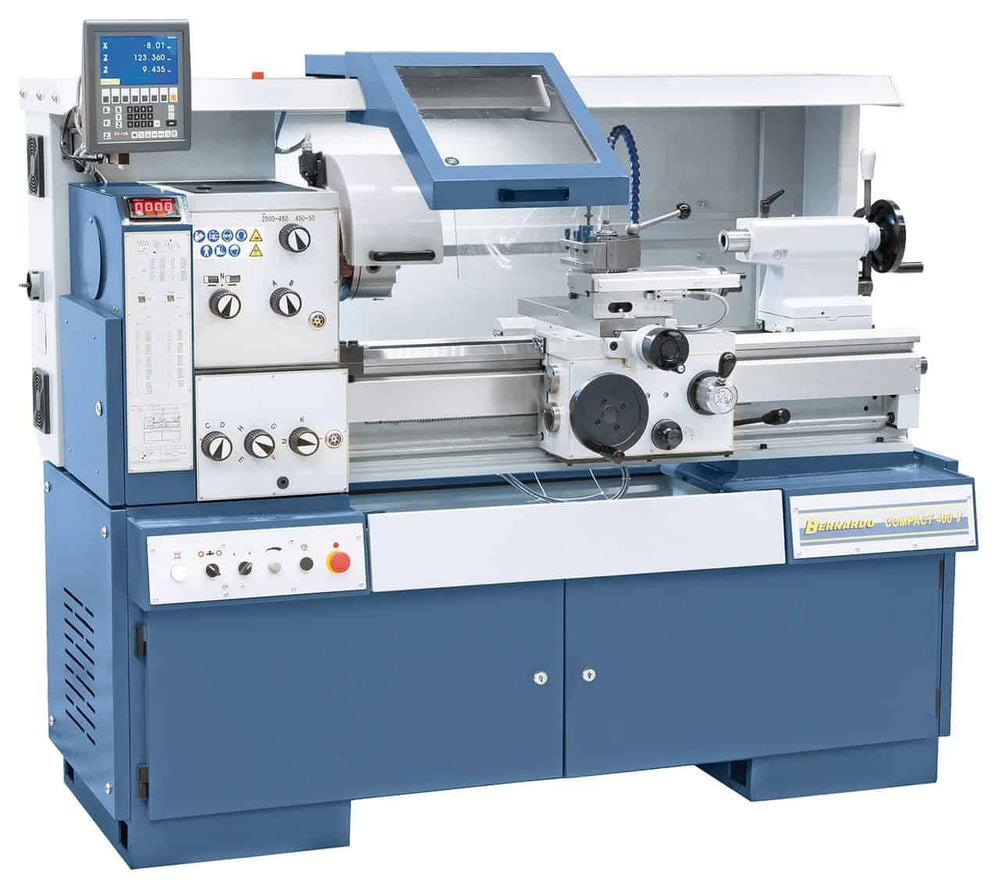

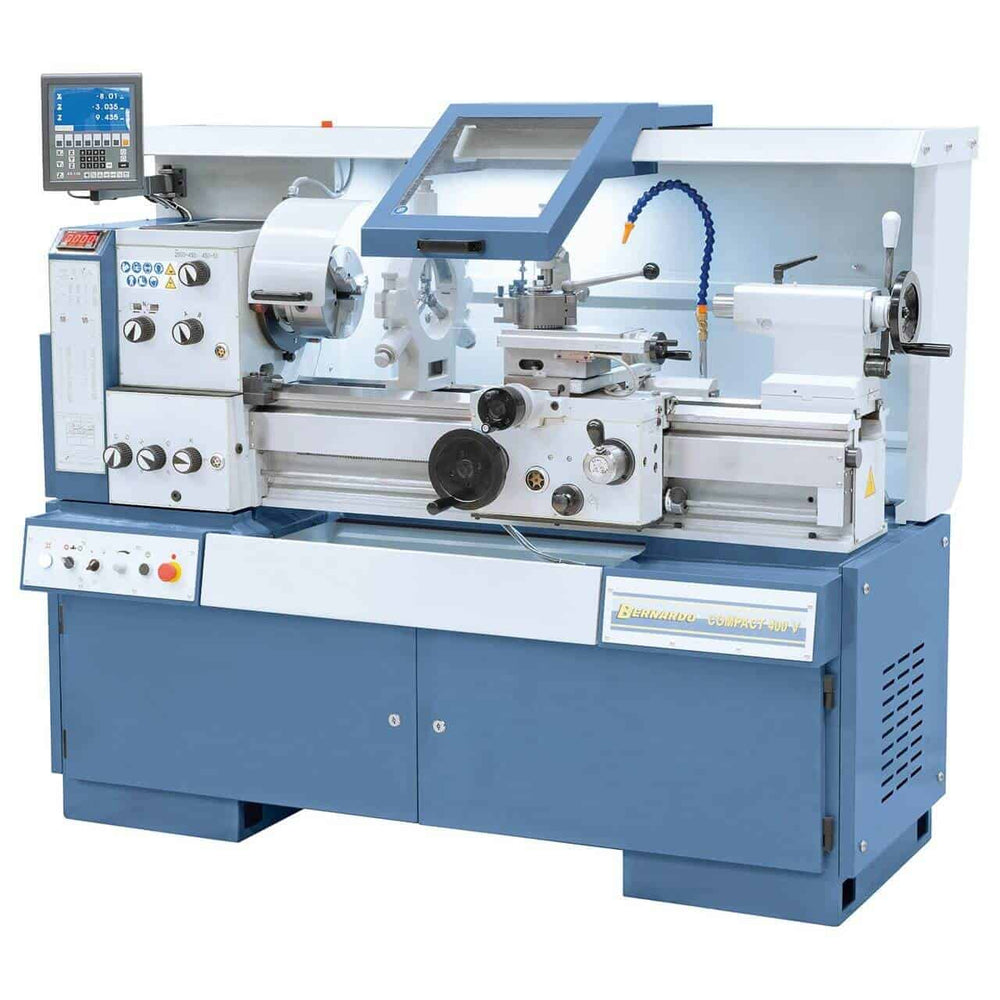

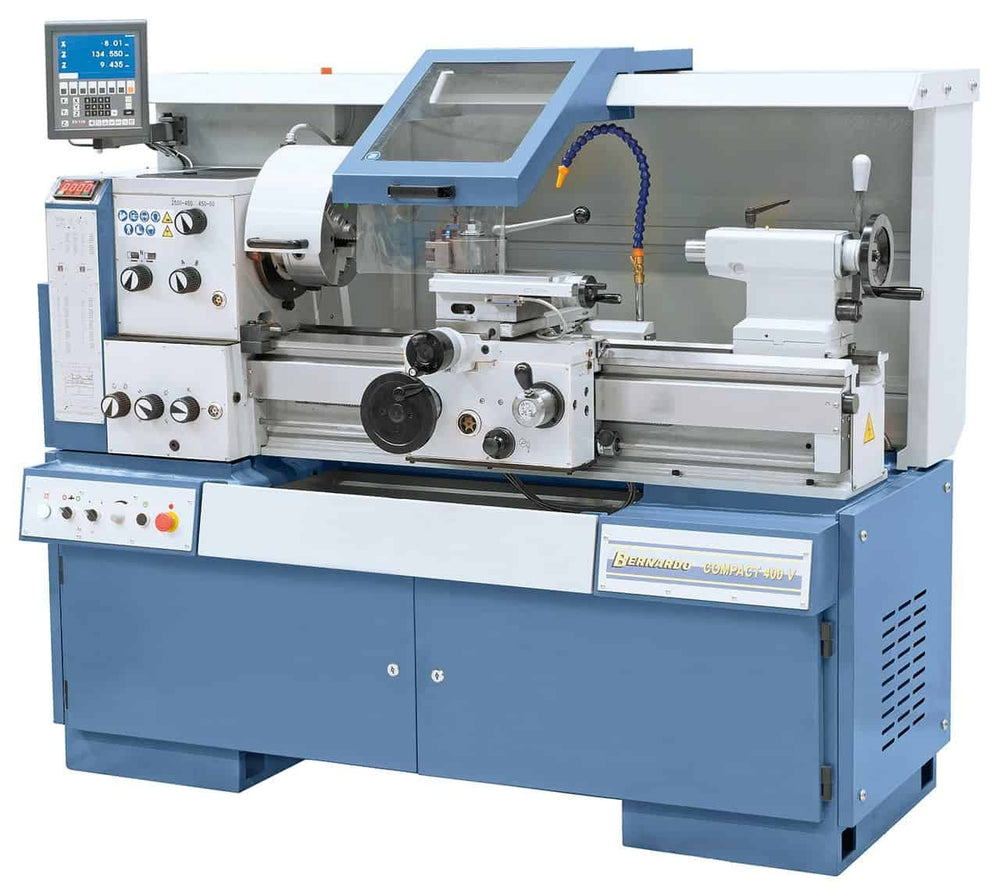

Compact 400 V universal lathe with inverter and 3-axis digital display
The Compact 400 V lathe is designed for the efficient production of single parts and small batches with high precision. Its compact design, ribbed prismatic cast iron bed, and infinitely variable speed control make it ideal for maintenance workshops, plant construction, production departments, and custom machining. The 52 mm spindle bore ensures versatility even for machining large-diameter shafts.
Main features
• Integrated Delta inverter for high torque at low speeds and consistency under load

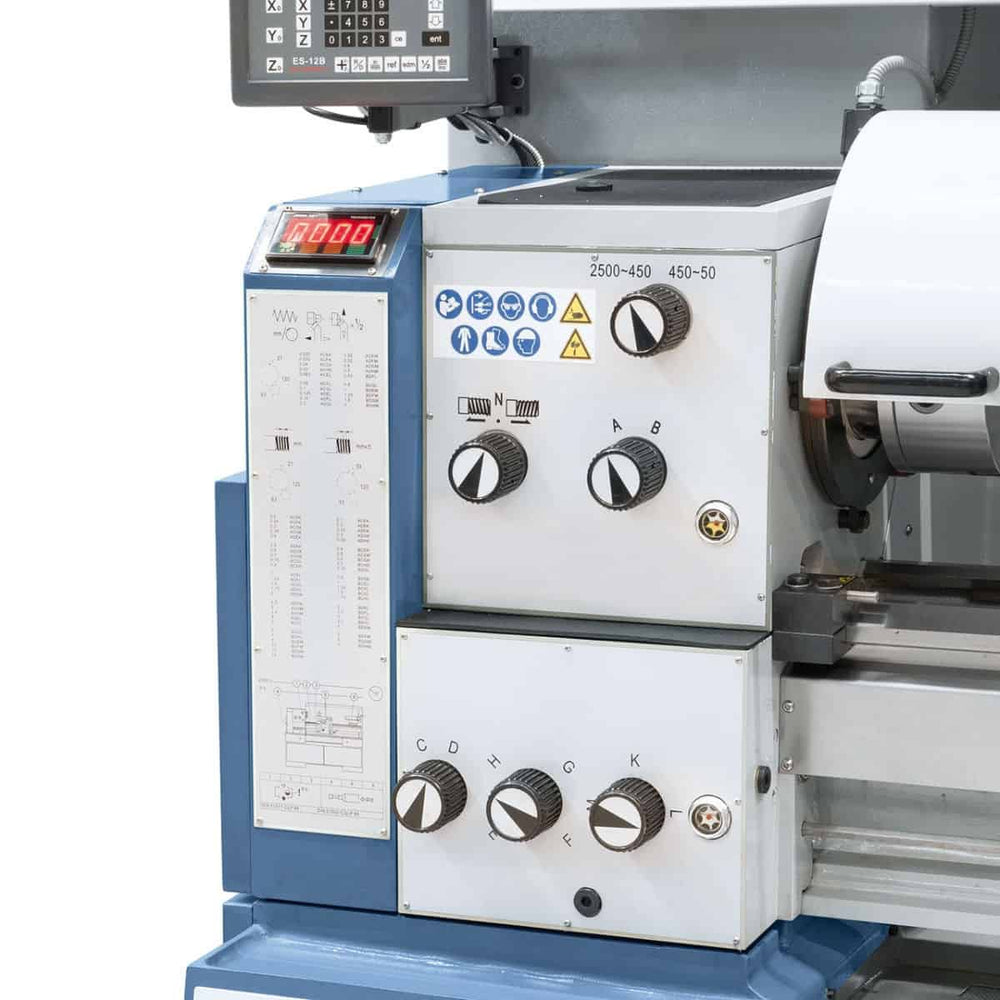

• Continuous speed regulation with digital readout
• Solid prismatic bench with reinforcements to reduce vibrations
• Monoblock structure for maximum stability and precision
• 52 mm spindle bore for working on large diameter workpieces
• Wide range of metric and inch threads
• Front-extractable spänewanne to save space
• Motor with magnetic brake compliant with CE regulations
• Integrated cooling system and complete standard features
• Ideal for working on steel, non-ferrous metals and plastic materials
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 850 mm |
| Tip height | 200 mm |
| Turning diameter on the bench | 400 mm |
| Turning diameter on slide | 245 mm |
| Bench width | 260 mm |
| Spindle hole | 52 mm |
| Spindle attachment | DIN 55029, D1-5 |
| Speed range (2 stages) | 50–450 / 450–2500 rpm |
| Longitudinal advances | (20) 0.025 – 2 mm/rev |
| Transversal advances | (20) 0.012 – 1 mm/rev |
| Metric threads | (26) 0.2 – 14 mm |
| Inch threads | (42) 1 – 80 TPI |
| Tailstock quill diameter | 50 mm |
| Dinghy race | 120 mm |
| Dinghy attachment | MK 3 |
| Engine power | 5.5 kW (7.5 HP) |
| Machine dimensions (L x W x H) | 1900 x 1000 x 1610 mm |
| Weight | 1240 kg |
Package Contents

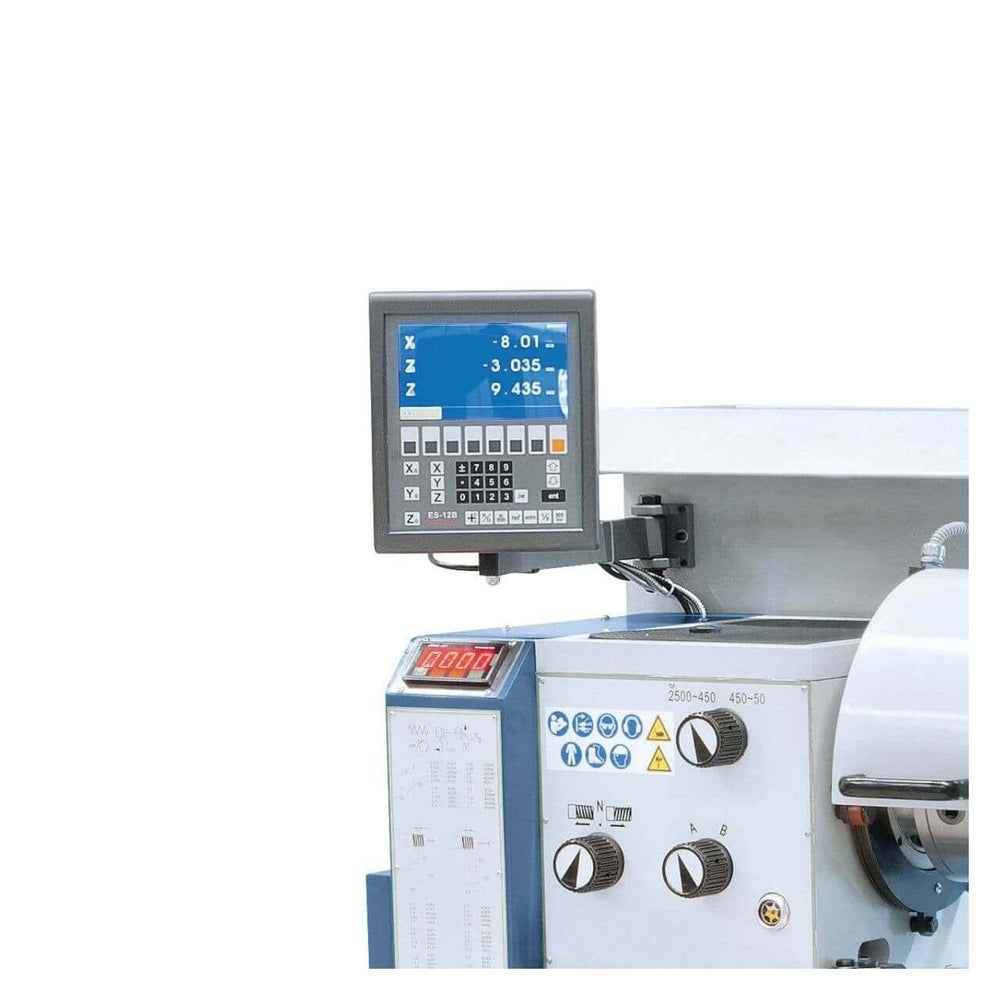

• ES-12 V 3-axis digital display with LCD display

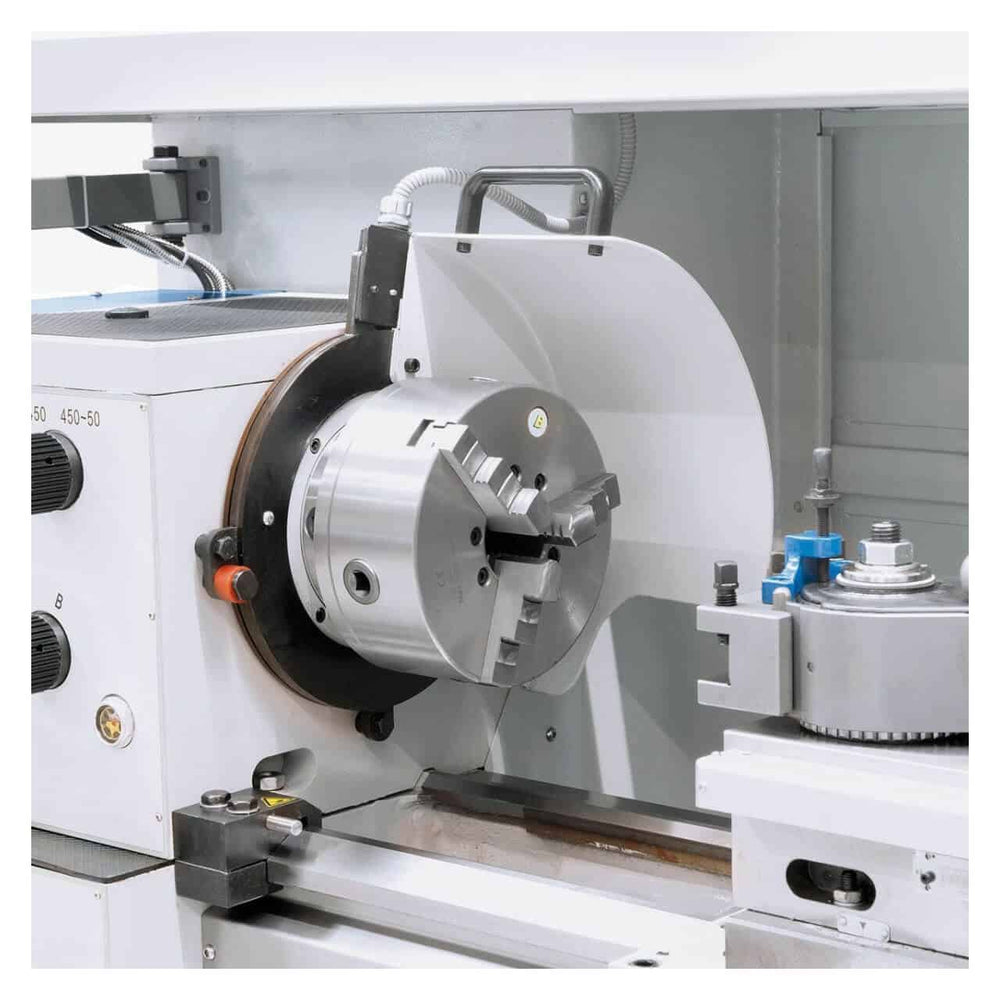

• 3-jaw chuck PO3-200 mm / D5

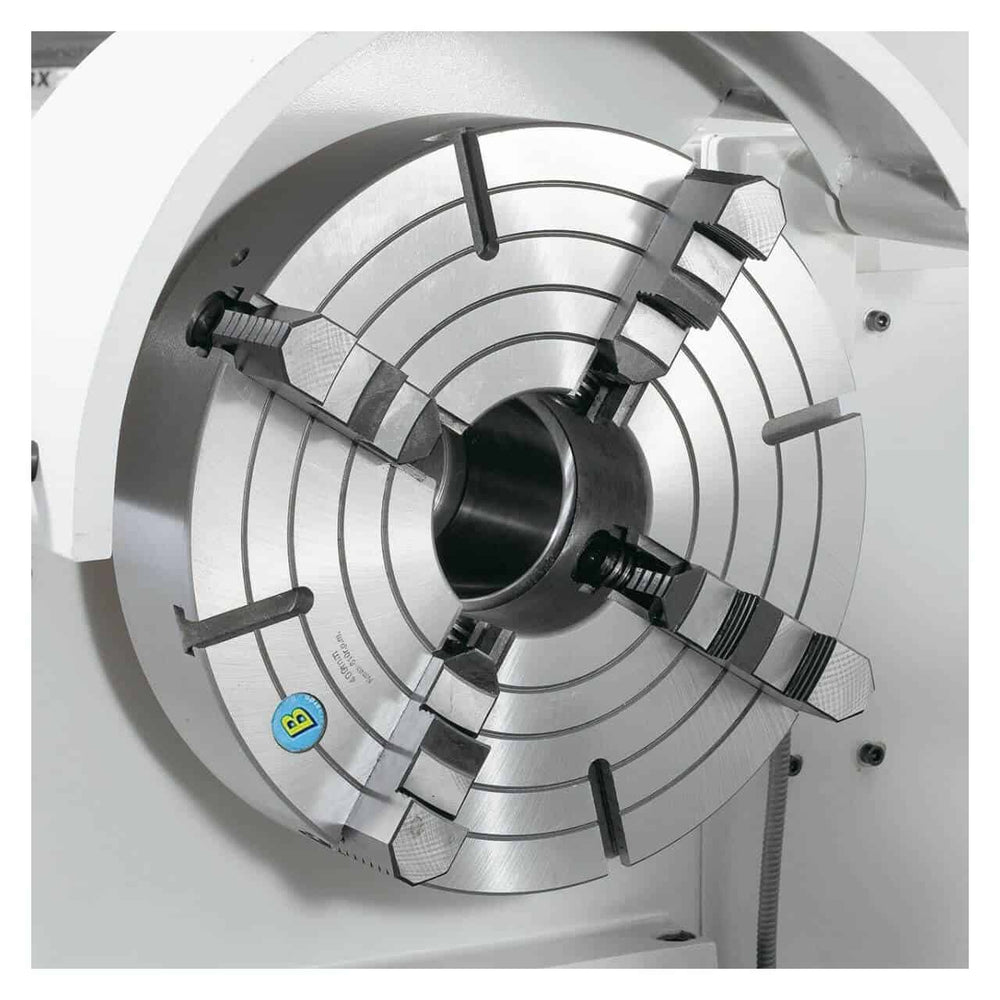

• Clamping plate 320 mm

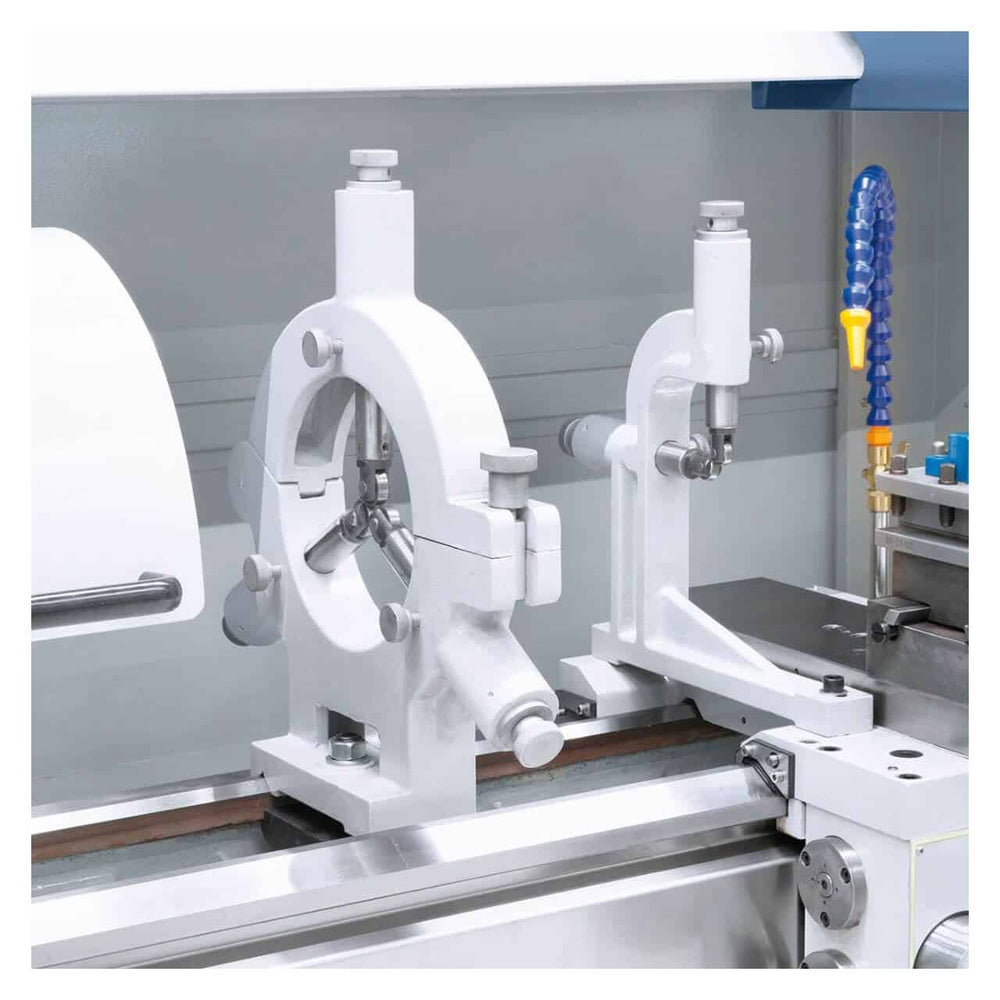

• Fixed bezel (Ø max 130 mm)
• Movable bezel (Ø max 100 mm)
• Cooling system

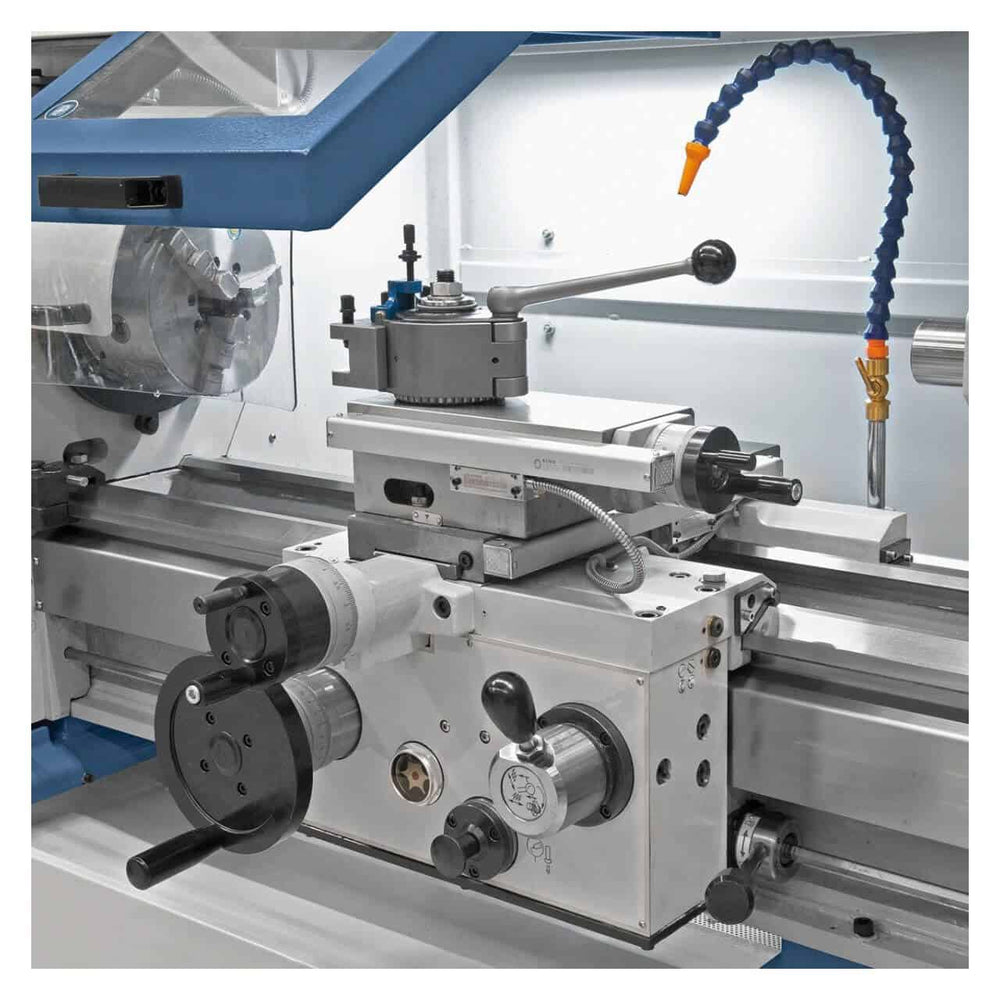

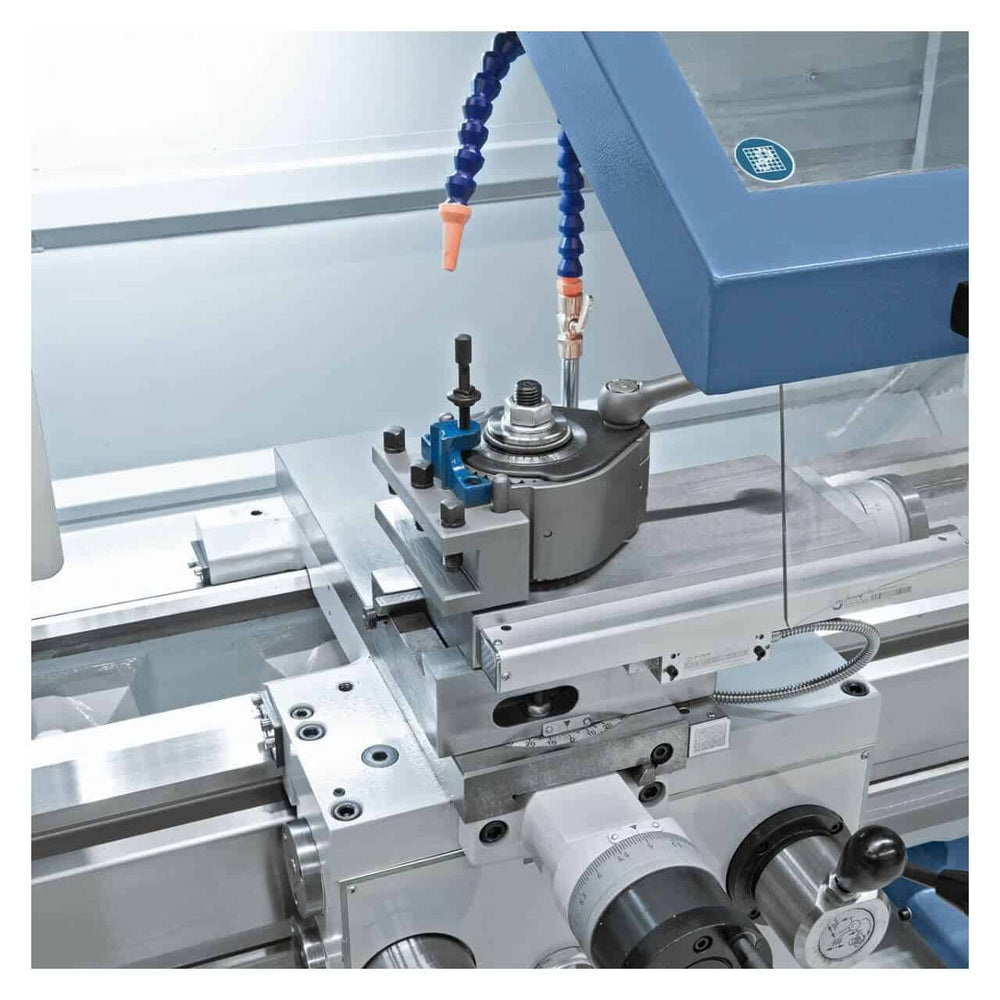

• Quick-change tool holder with 4 inserts
• Quick change tool holder protection
• Longitudinal micrometric stop
• Safety clutch
• Motor with CE compliant magnetic brake
• Initial fill with Shell Tellus 46
• Frequency inverter
• Digital speed indication
• Chip tray removable from the front
• LED lighting

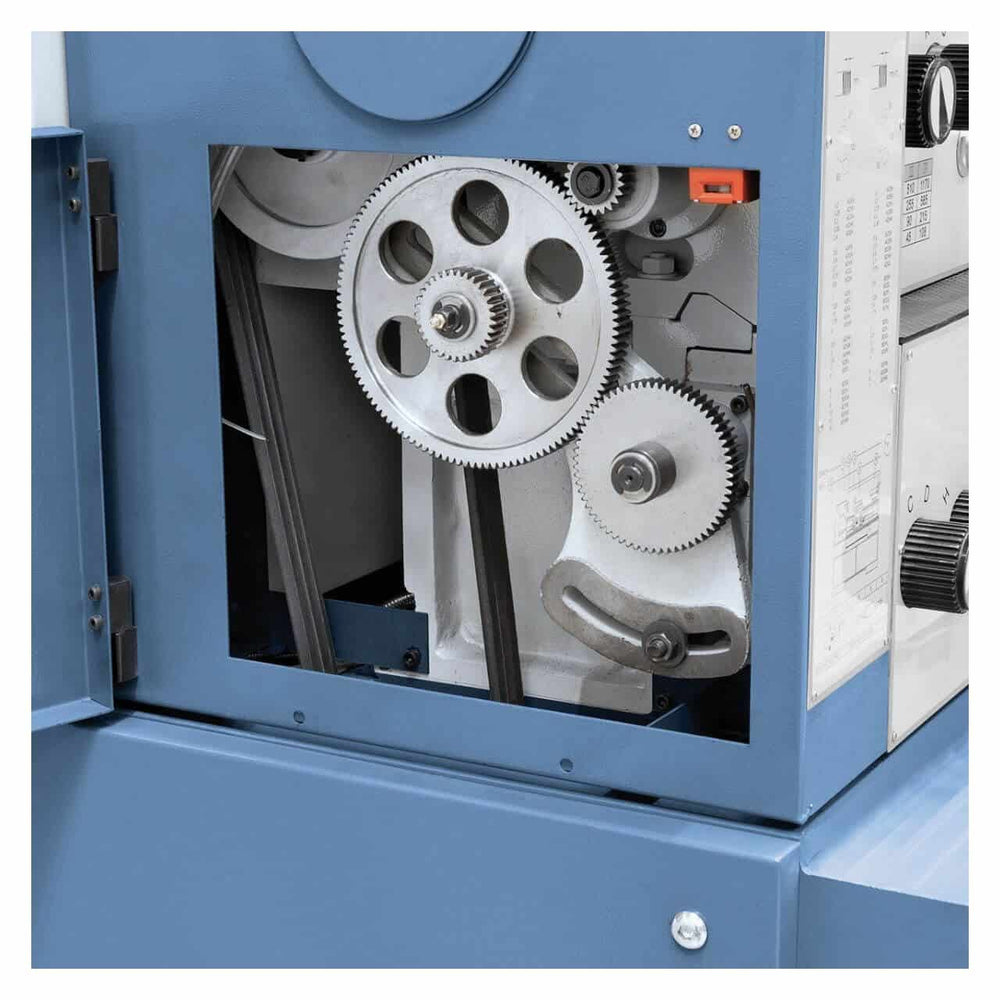

• Replacement gears
• Reduction compass
• 2 central tips
• Rear panel for collecting chips
• Service tools
