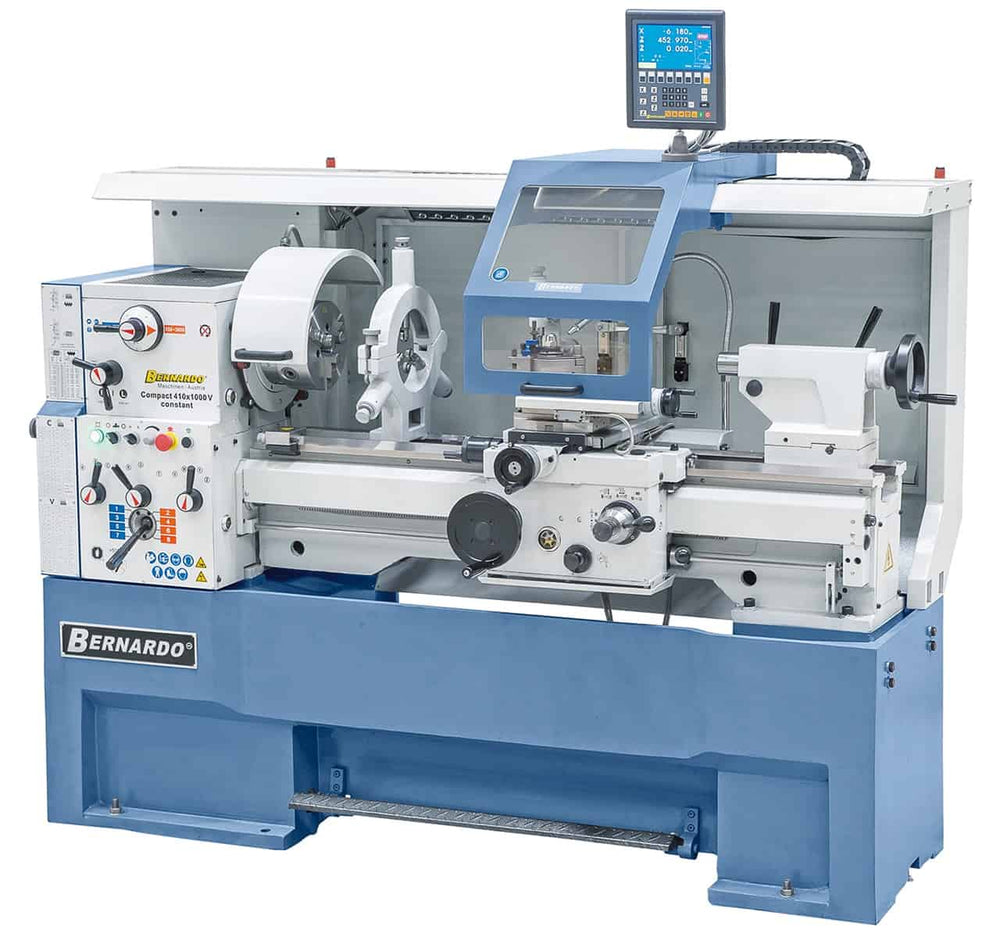

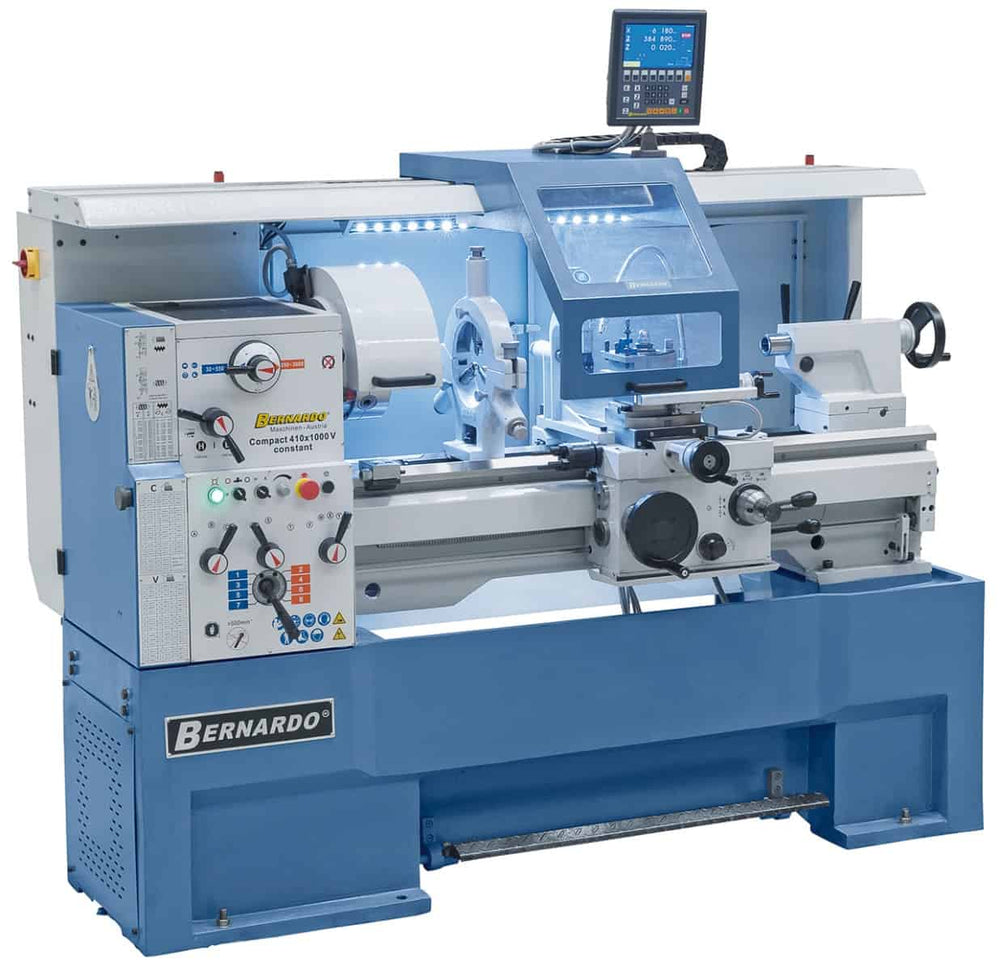

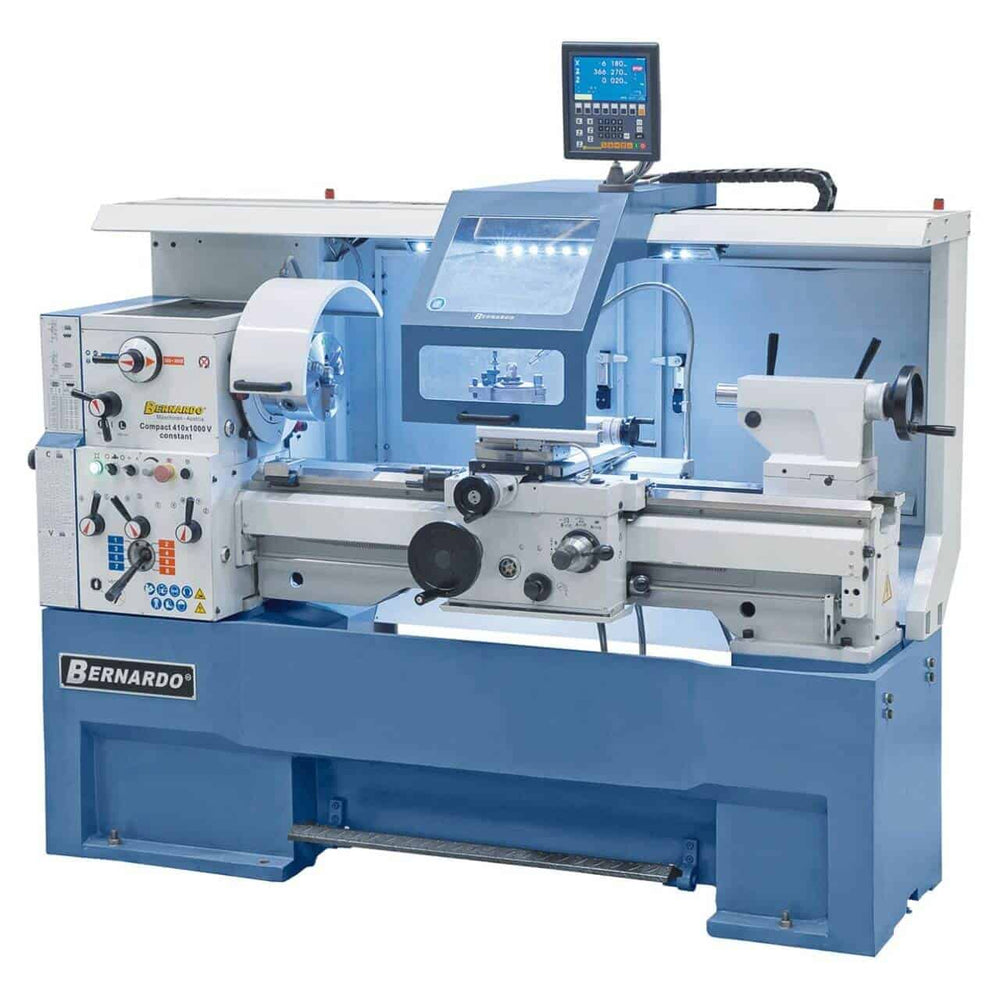

Compact 410 x 1000 V-constant precision lathe with constant cutting speed
The Compact 410 V-constant precision lathe is designed for the cost-effective production of single parts and small series with maximum precision. Ideal for mechanical and plant construction, as well as for custom production, this model guarantees high surface quality even with variable diameters thanks to its constant cutting speed function. The monoblock design, ribbed prismatic bed, and 52 mm spindle bore ensure rigidity, stability, and operational flexibility.
Main features
• Constant cutting speed during planing for optimum surface quality
• Solid prismatic bed with ribs to minimize vibrations
• High rigidity monoblock structure, ideal for precise machining
• 52mm bore spindle for large shaft diameters
• Versatile in production, prototyping and mechanical construction

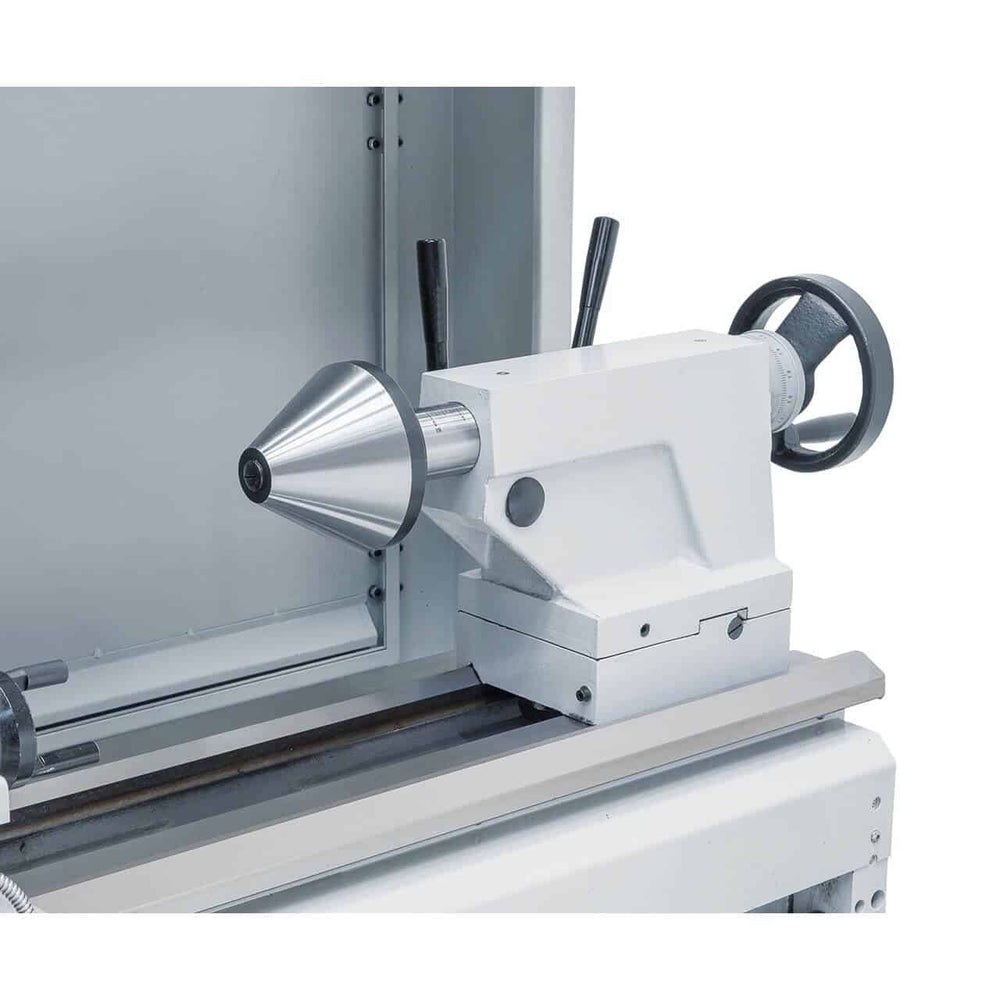

• Reitstock with micrometric adjustment for conical workings
• Compact layout with front-extractable chip tray

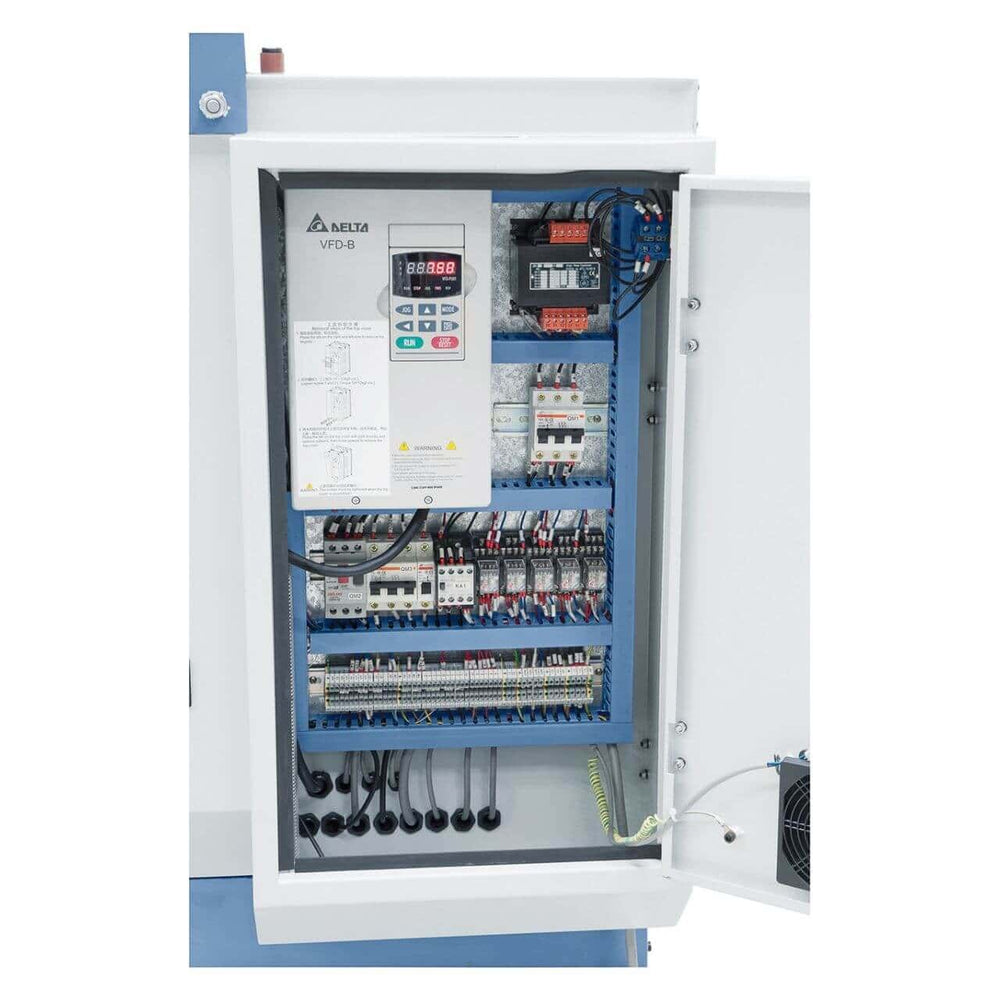

• Frequency inverter included for constant torque under load
• Integrated digital display with speed indication
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1000 mm |
| Tip height | 210 mm |
| Turning diameter on the bench | 420 mm |
| Turning diameter on slide | 250 mm |
| Bench width | 250 mm |
| Spindle hole | 52 mm |
| Spindle attachment | DIN 55029, D1-6 |
| Speed range | 30–550 / 550–3000 rpm |
| Longitudinal advances | (20) 0.026 – 0.9 mm/rev |
| Transversal advances | (20) 0.013 – 0.45 mm/rev |
| Metric threads | (42) 0.2 – 14 mm |
| Inch threads | (45) 2 – 72 TPI |
| Tailstock quill diameter | 50 mm |
| Dinghy race | 125 mm |
| Dinghy attachment | MK 4 |
| Engine power | 5.5 kW (7.5 HP) |
| Machine dimensions (L x W x H) | 1950 x 1000 x 1820 mm |
| Weight | 1270 kg |
Package Contents

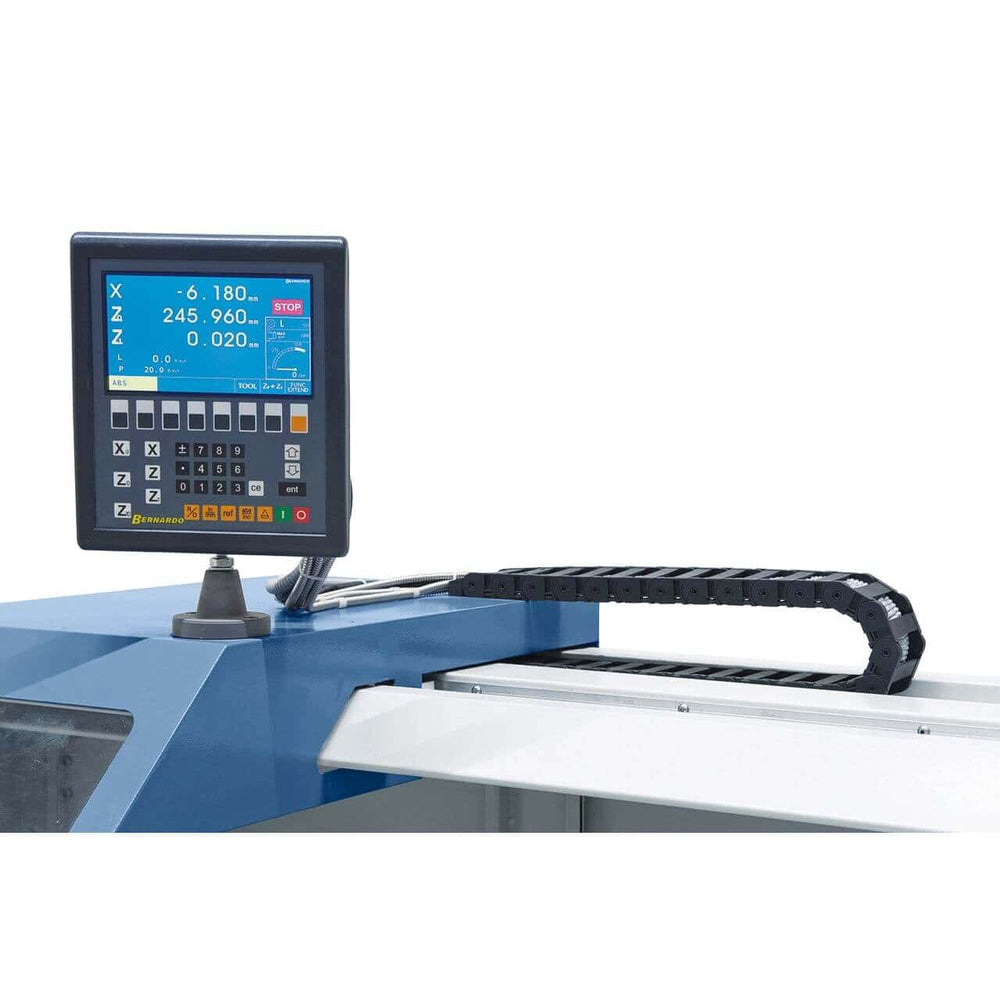

• ES-12 S 3-axis digital display with speed indication

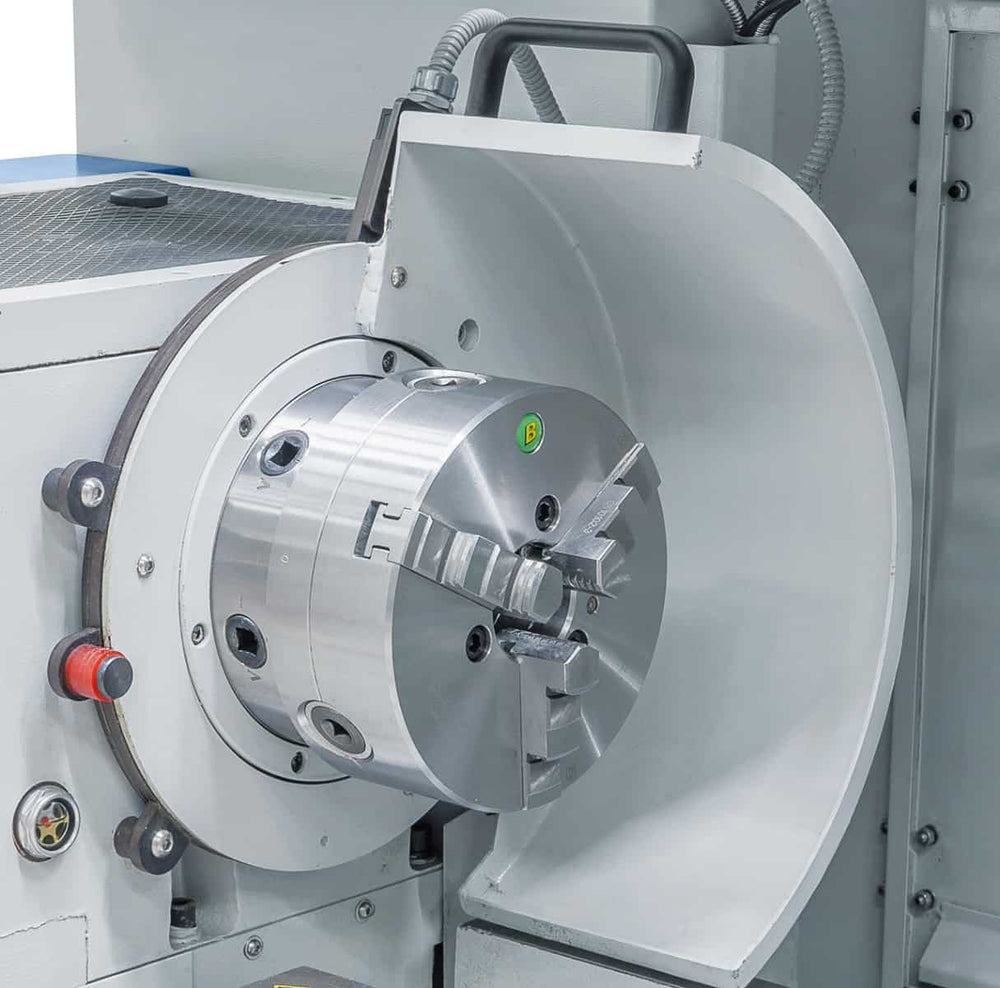

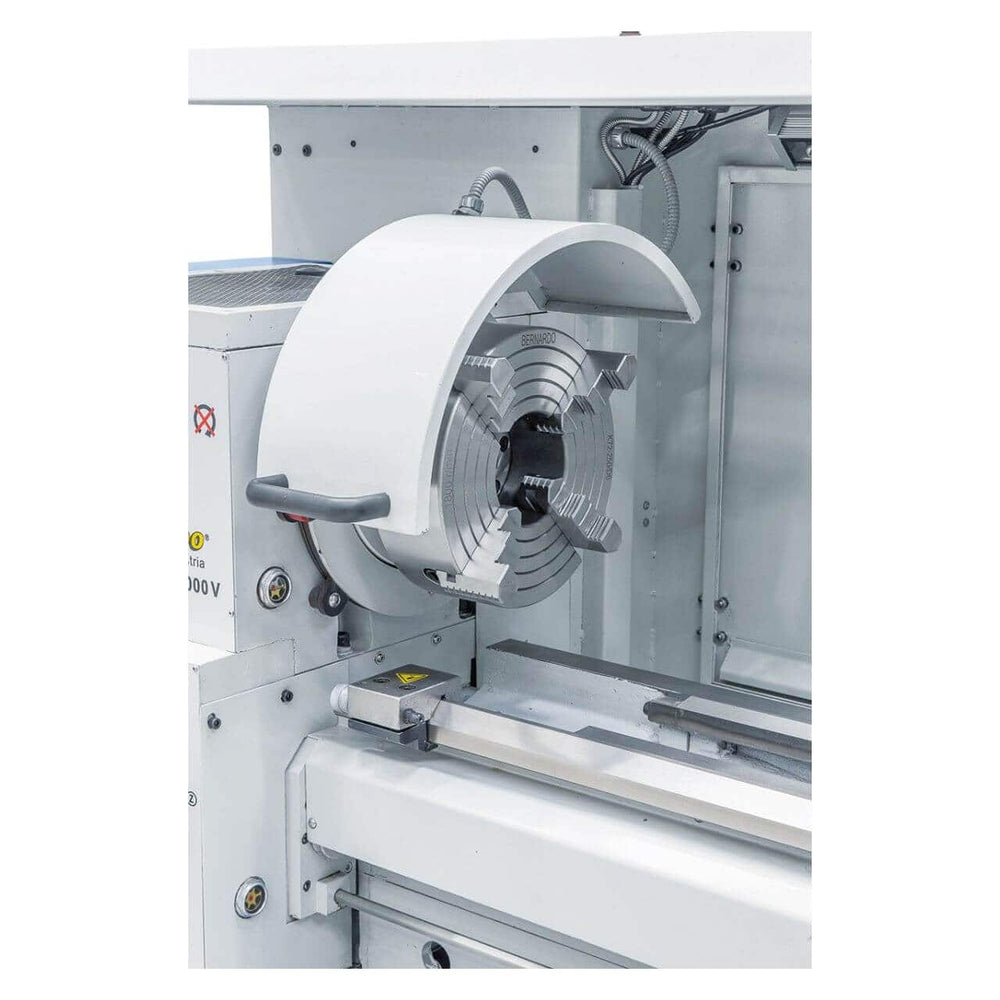

• 3-jaw chuck PO3-200 mm / D6
• Clamping plate 350 mm

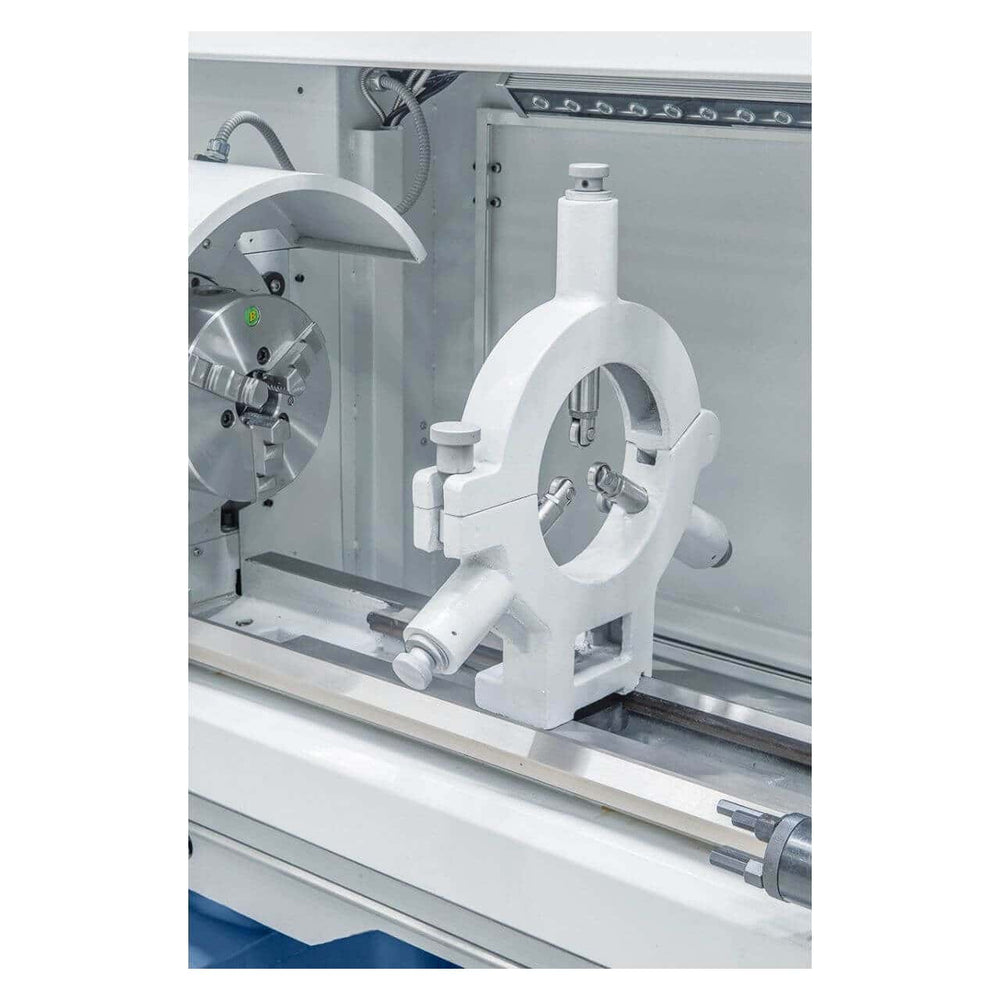

• Fixed bezel (Ø max 130 mm)

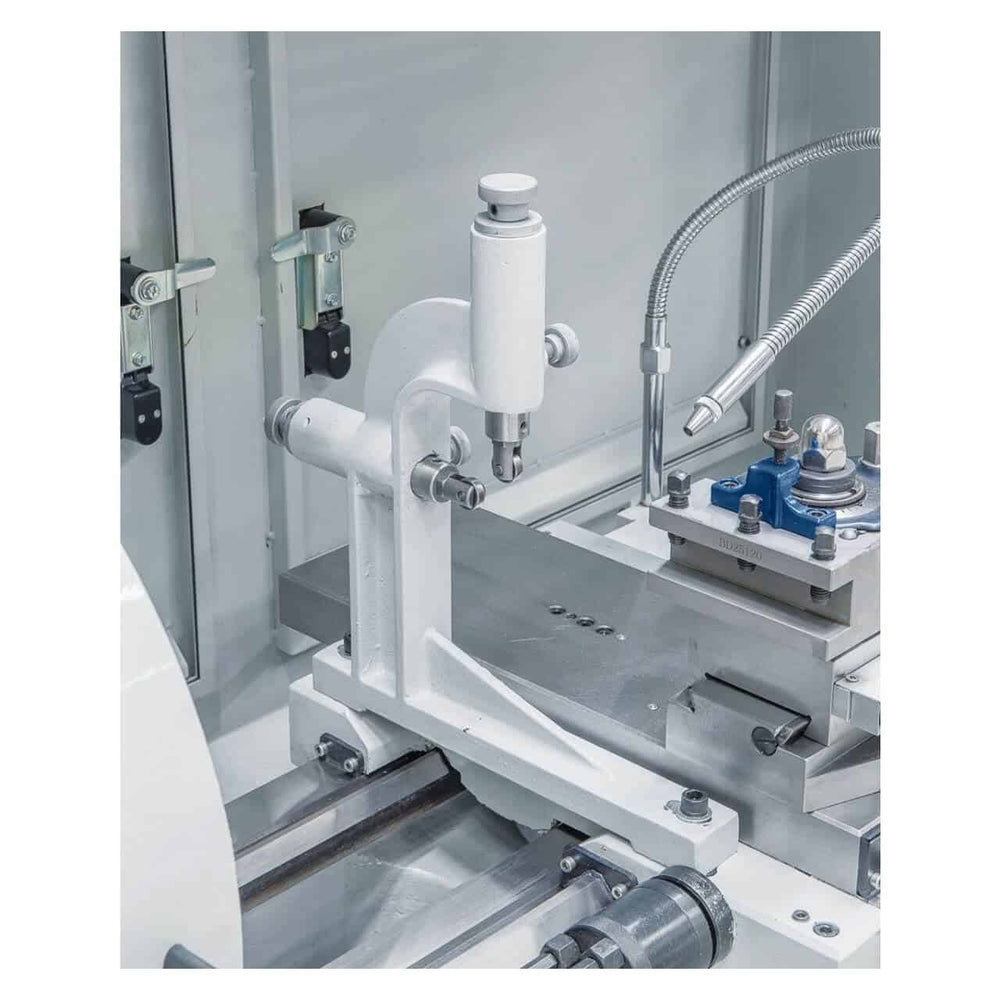

• Movable bezel (Ø max 70 mm)
• Cooling system

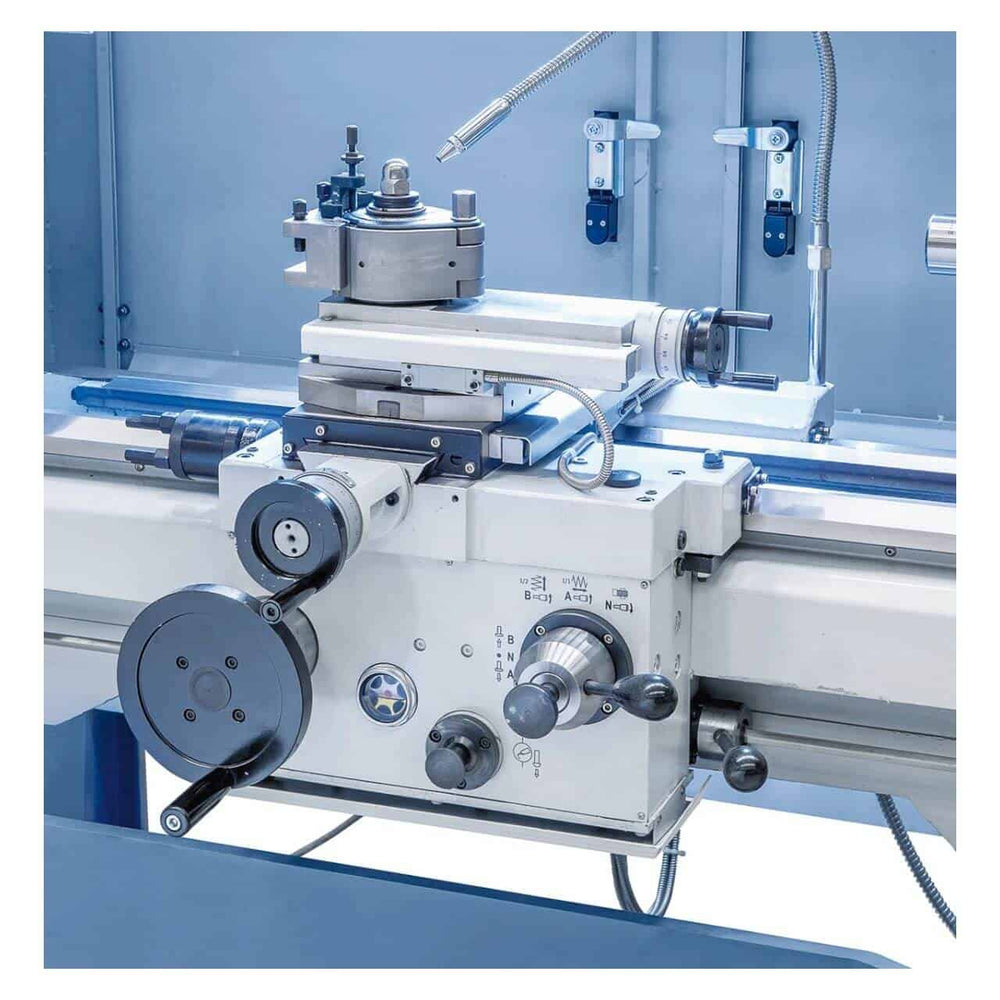

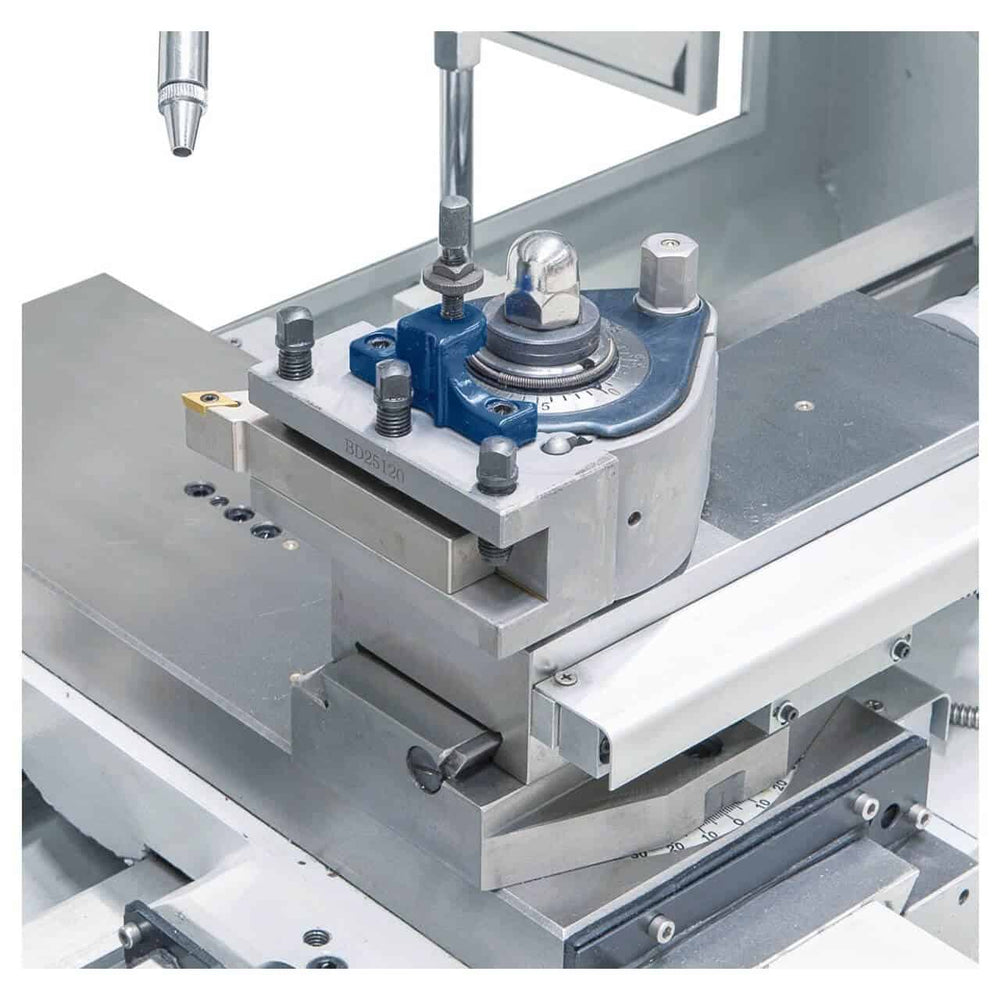

• Quick-change tool holder with 4 inserts
• Quick change tool holder protection

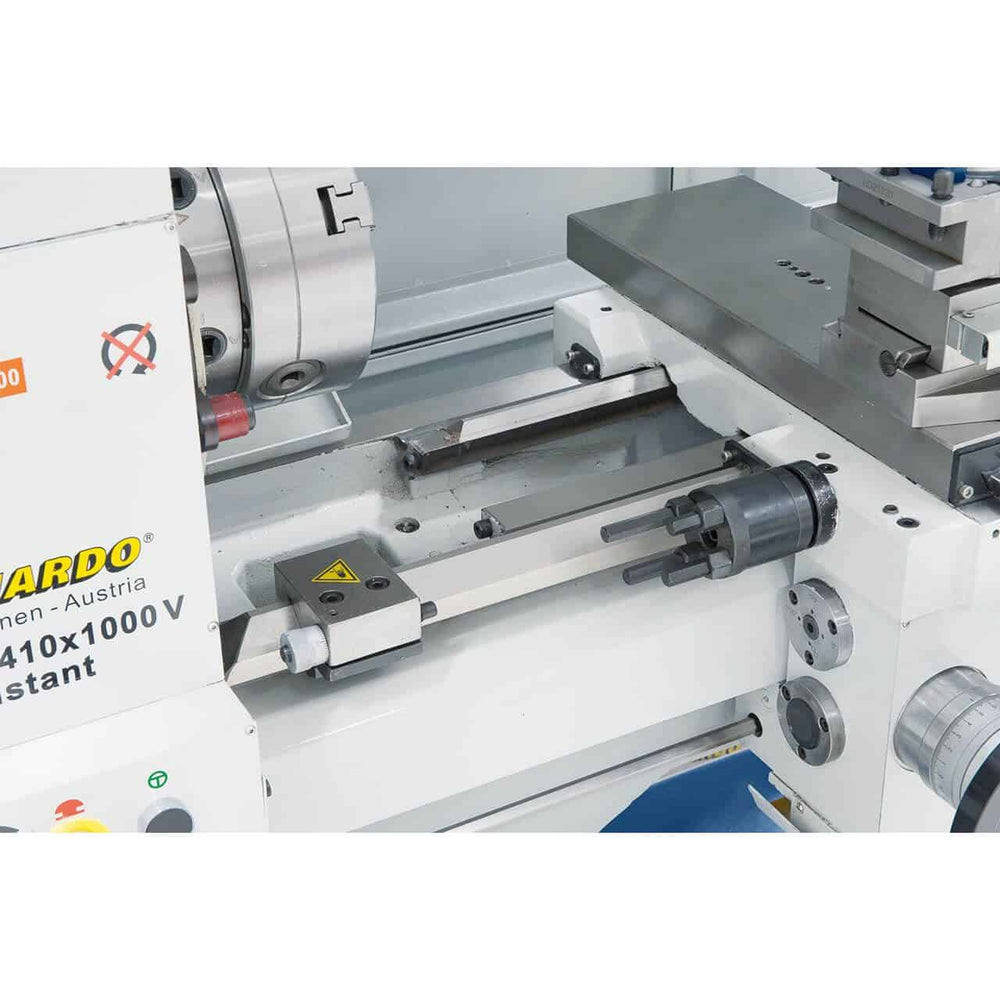

• Longitudinal micrometric stop
• Thread clock
• Safety clutch
• CE foot brake
• Initial fill with Shell Tellus 46
• Frequency inverter
• LED lighting

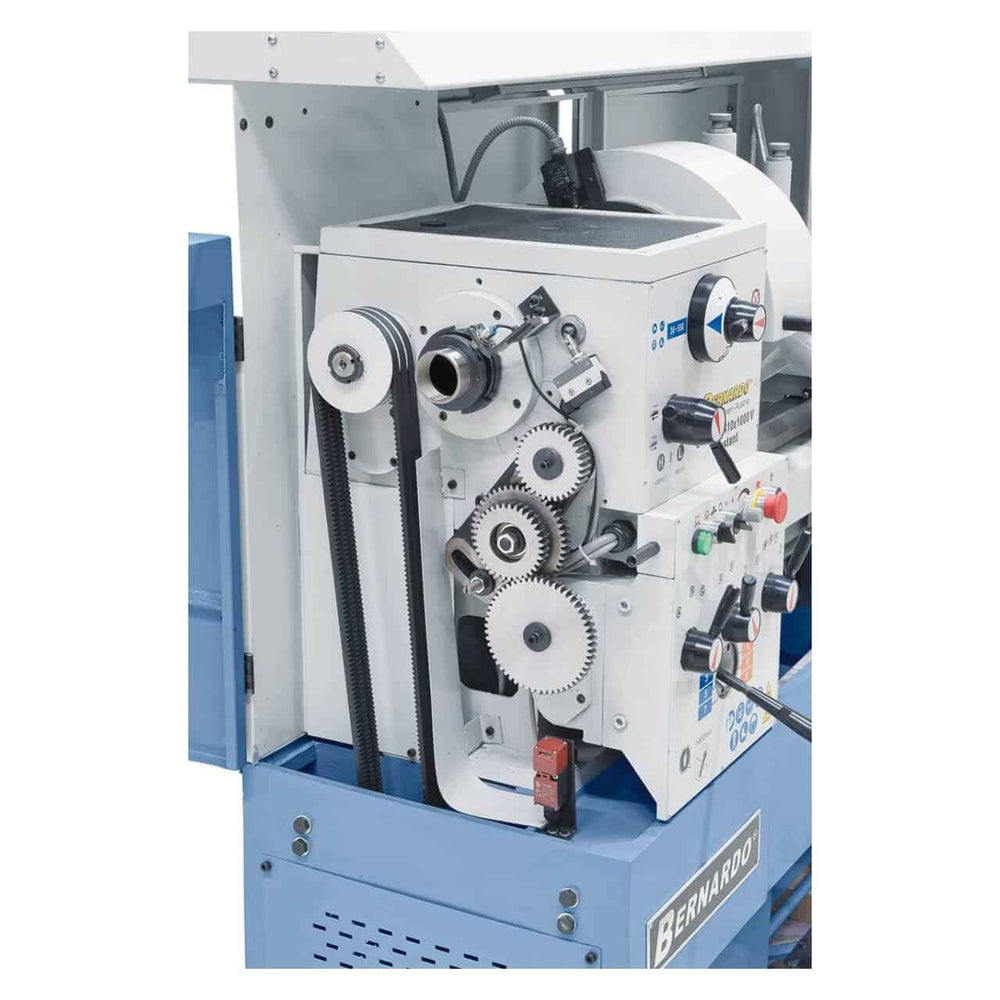

• Replacement gears
• Reduction compass
• 2 central tips
• Rear panel for collecting chips
• Service tools
