Bernardo  |  SKU: 03-1264XL

Master 180 Universal Lathe with Digital Display, Including 3-Axis Digital Display

€7.734,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

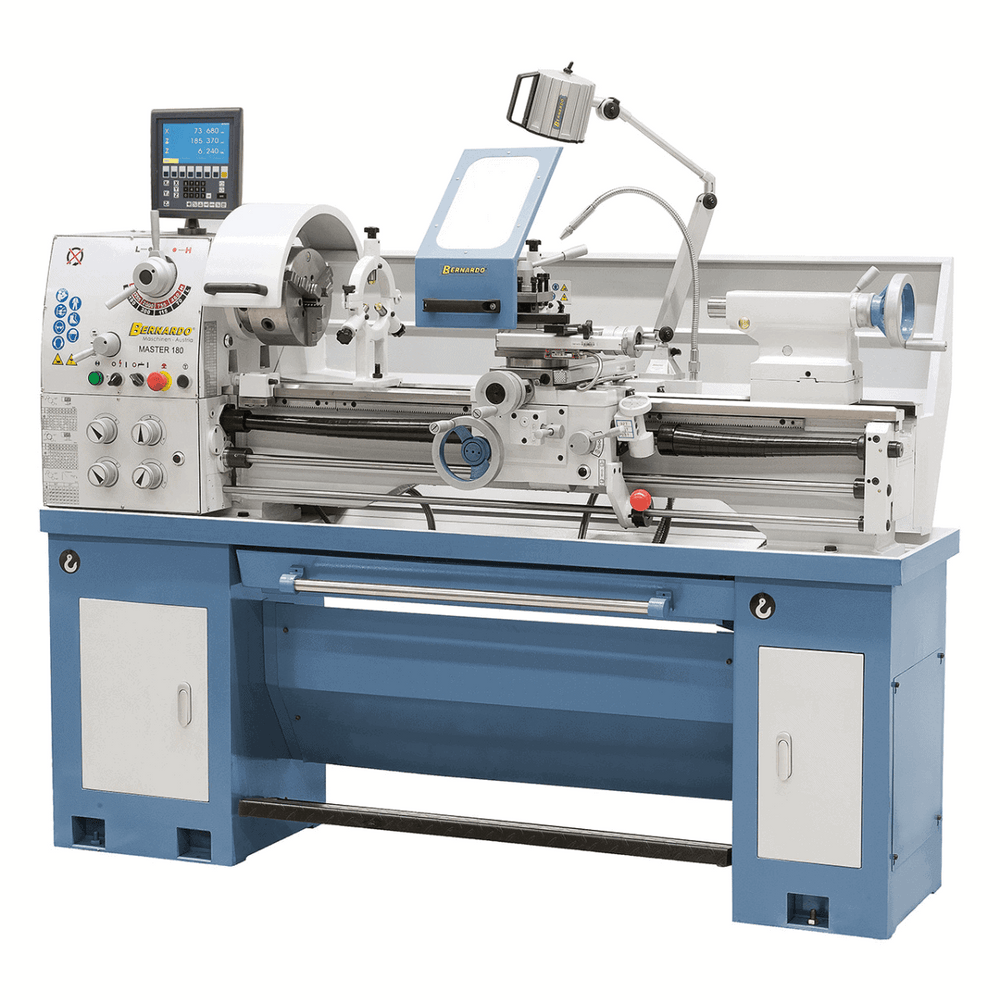

Master 180 universal lathe with 3-axis digital display ES-12 V

The Master 180 lathe is a compact and reliable solution, designed to ensure precision and ease of use in any educational or production setting. Thanks to its sturdy cast iron structure and 51 mm spindle bore, it is ideal for machining large-diameter shafts, metals, and plastics. Its comprehensive features and integrated digital display make this model perfect for schools, workshops, and maintenance departments.

Main features
• 51mm spindle bore for machining large shafts
• Ideal for technical institutes, workshops and training laboratories
• Removable bridge for turning large diameter pieces
• Smooth and precise adjustment of speed and feed
• Adjustable tailstock for conical turning
• Prismatic base in tempered and ground grey cast iron
• Main spindle with guaranteed concentricity ≤ 0.015 mm
• Electromechanical foot brake for reduced downtime
• ES-12 V 3-axis digital display included as standard

Technical table

Characteristic Value
Distance between tips 1000 mm
Tip height 180 mm
Maximum turning diameter on bench 360 mm
Max turning diameter on slide 220 mm
Turning diameter with bridge removed 480 mm
Bench width 185 mm
Spindle hole 51 mm
Spindle attachment DIN 55029, D1 - 5
Spindle speed range (8) 70 – 2000 rpm
Longitudinal advances (32) 0.052 – 1.392 mm/rev
Transversal advances (32) 0.014 – 0.380 mm/rev
Metric threads (26) 0.4 – 7.0 mm
Inch threads (34) 4 – 56 TPI
Tailstock quill diameter 42 mm
Tailstock quill stroke 110 mm
Steerer tube attachment MK 4
Engine power (S1 100%) 1.5 kW (400 V)
Engine power (S6 40%) 2.2 kW (400 V)
Machine dimensions (L x W x H) 1920 x 750 x 1600 mm
Weight 540 kg

Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw chuck DK11-200 mm / D5
• Clamping plate 320 mm
• Platform 200 mm / D5 according to DIN 55029
• Fixed bezel (Ø max 70 mm)
• Movable bezel (Ø max 50 mm)
• Refrigeration system
• Initial fill with Shell Tellus 46
• Removable chip collection tray
• 4-position tool holder
• Tool holder protection
• Safety clutch
• Micrometric longitudinal stop
• Thread gauge
• LED work light
• Reducing compass
• Interchangeable gears
• 2 counterpoints
• Motor with CE compliant magnetic brake
• Brake pedal compliant with CE standards
• Base
• Control panel

Frequently Asked Questions

Master 180 Lathe FAQ
Yes, the Master 180 is designed specifically for school and training environments thanks to its compact structure, CE protections and ease of use.
Yes, the lathe comes with the ES-12 V 3-axis digital display as standard.
Yes, the lathe requires 400V 3-phase power supply to ensure the performance of the 1.5kW (S1) / 2.2kW (S6) motor.
Yes, thanks to the removable bridge it is possible to work pieces with a maximum diameter of up to 480 mm in the central area.
