Bernardo  |  SKU: 03-1272XL

Master 360 Pro Universal Lathe with Digital Display

€9.442,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

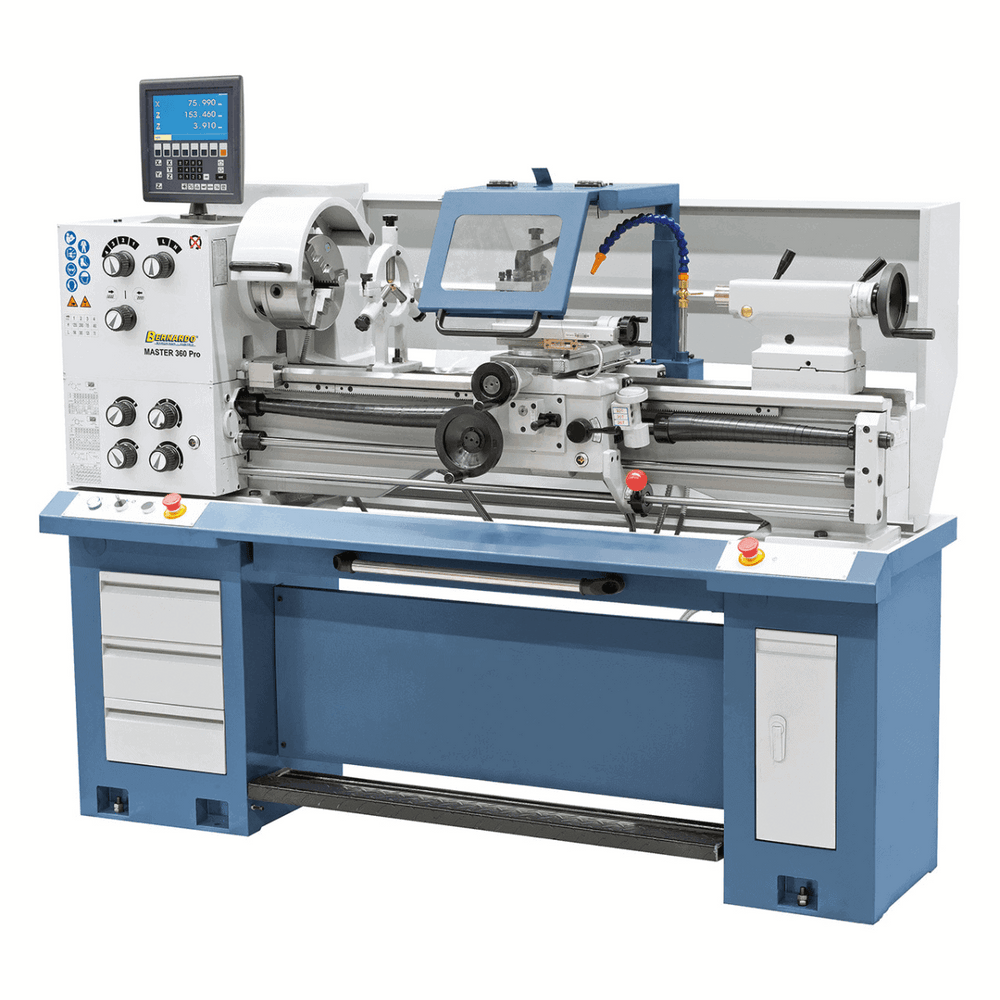

Master 360 Pro Universal Lathe with 3-Axis Digital Display ES-12 V

The Master 360 Pro universal lathe is a compact and robust machine, designed for maximum precision in metal and plastic machining. With its 360 mm turning diameter and 52 mm spindle bore, it's an ideal solution for technical institutes, maintenance shops, and toolmaking facilities.

Main features
• Turning diameter up to 360 mm with 52 mm spindle bore
• Solid ribbed prismatic base for maximum stability and vibration absorption
• Adjustable tailstock ±5 mm for conical machining
• Ideal for working on steel, plastic and non-ferrous metals
• Main spindle hardened and precision ground (concentricity ≤ 0.015 mm)
• Front-extractable chip tray for space-saving installations
• Three-phase motor with CE compliant magnetic brake
• ES-12 V 3-axis digital display included as standard

Technical table

Characteristic Value
Distance between tips 1000 mm
Tip height 180 mm
Maximum turning diameter on bench 360 mm
Max turning diameter on slide 220 mm
Bench width 185 mm
Spindle hole 52 mm
Spindle attachment DIN 55029, D1 - 5
Spindle speed range (8) 70 – 2000 rpm
Longitudinal advances (32) 0.052 – 1.392 mm/rev
Transversal advances (32) 0.014 – 0.380 mm/rev
Metric threads (26) 0.4 – 7.0 mm
Inch threads (34) 4 – 56 TPI
Tailstock quill diameter 42 mm
Tailstock quill stroke 100 mm
Steerer tube attachment MK 3
Engine power (S1 100%) 1.5 kW (400 V)
Engine power (S6 40%) 2.2 kW (400 V)
Machine dimensions (L x W x H) 1825 x 750 x 1600 mm
Weight 575 kg

Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw chuck DK11-200 mm / D5
• Clamping plate 280 mm
• Platform 200 mm / D5 according to DIN 55029
• Fixed bezel (Ø max 70 mm)
• Movable bezel (Ø max 60 mm)
• Refrigeration system
• Initial fill with Shell Tellus 46
• Removable chip collection tray
• 4-position tool holder
• Tool holder protection
• Safety clutch
• Micrometric longitudinal stop
• Thread gauge
• LED work light
• Reducing compass
• Interchangeable gears
• 2 counterpoints
• Motor with CE compliant magnetic brake
• Brake pedal compliant with CE standards
• Base with drawers
• Control panel

Frequently Asked Questions

Yes, thanks to its compact design and front-extractable chip tray, the Master 360 Pro lathe is perfectly suited to environments with limited space.
Absolutely. In addition to steel and non-ferrous metals, the Master 360 Pro can also process technical plastics.
Yes, the motor requires 400V 3-phase power, like most professional lathes in this category.
Yes, the tailstock can be moved laterally by ±5 mm for taper turning.
