Bernardo  |  SKU: 03-1183B

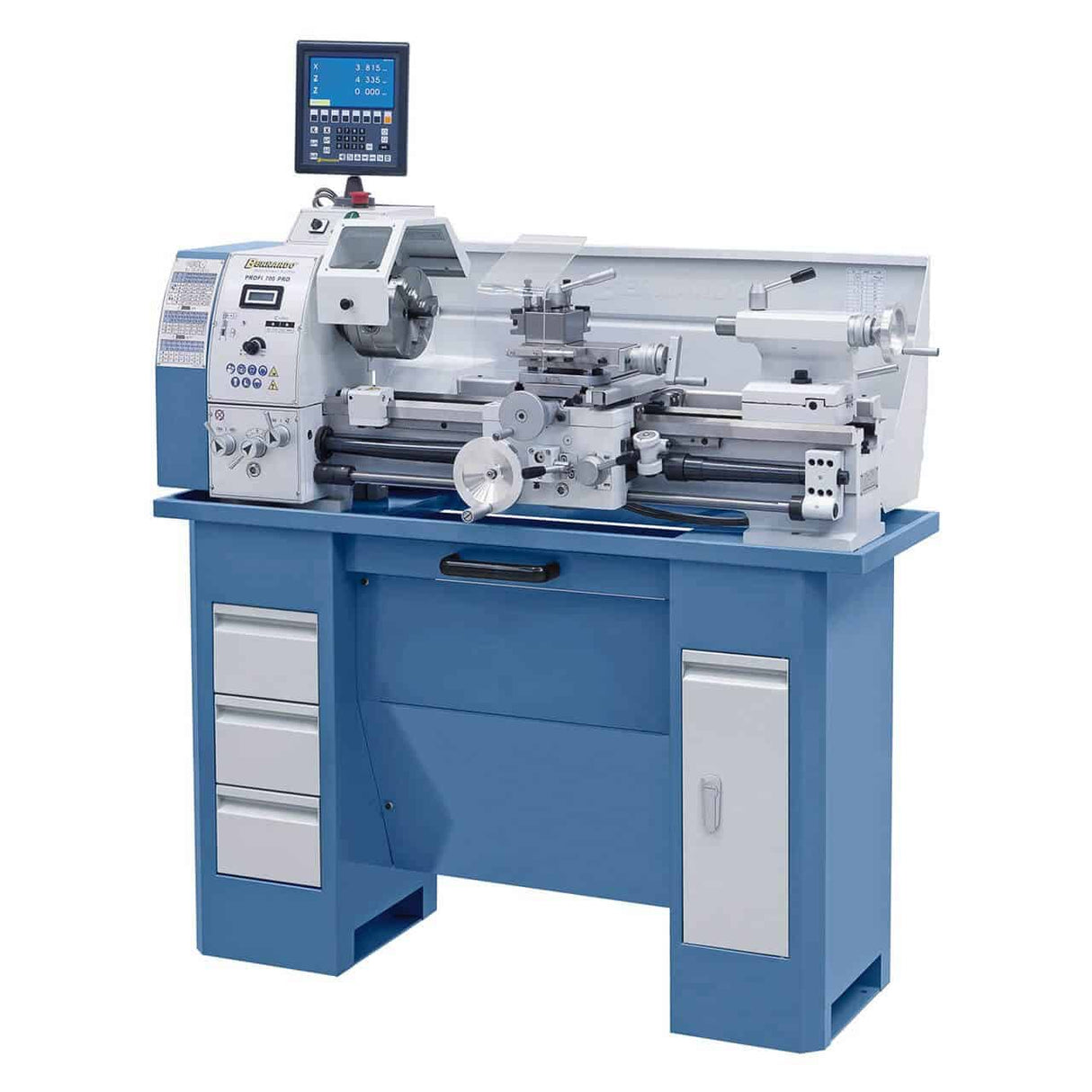

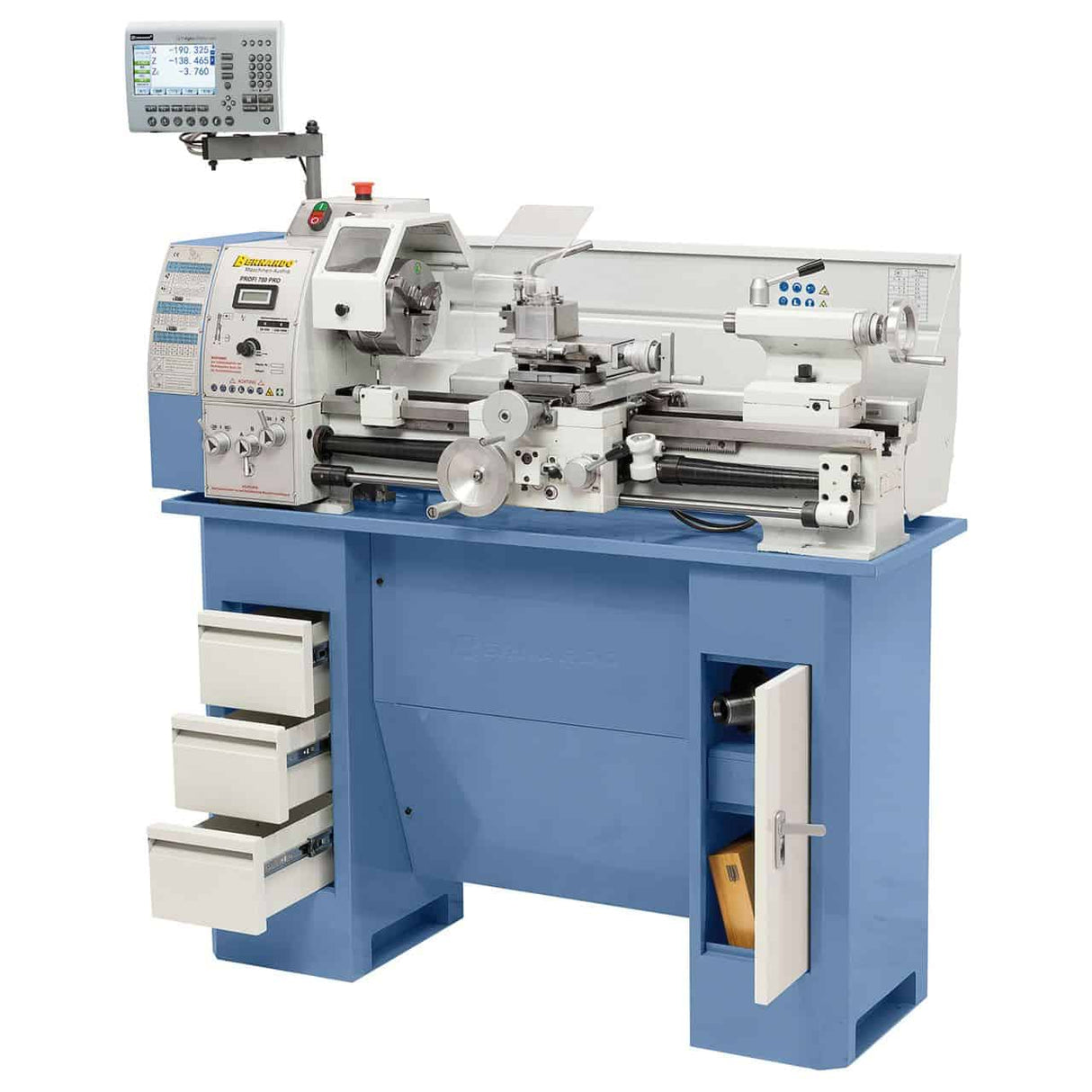

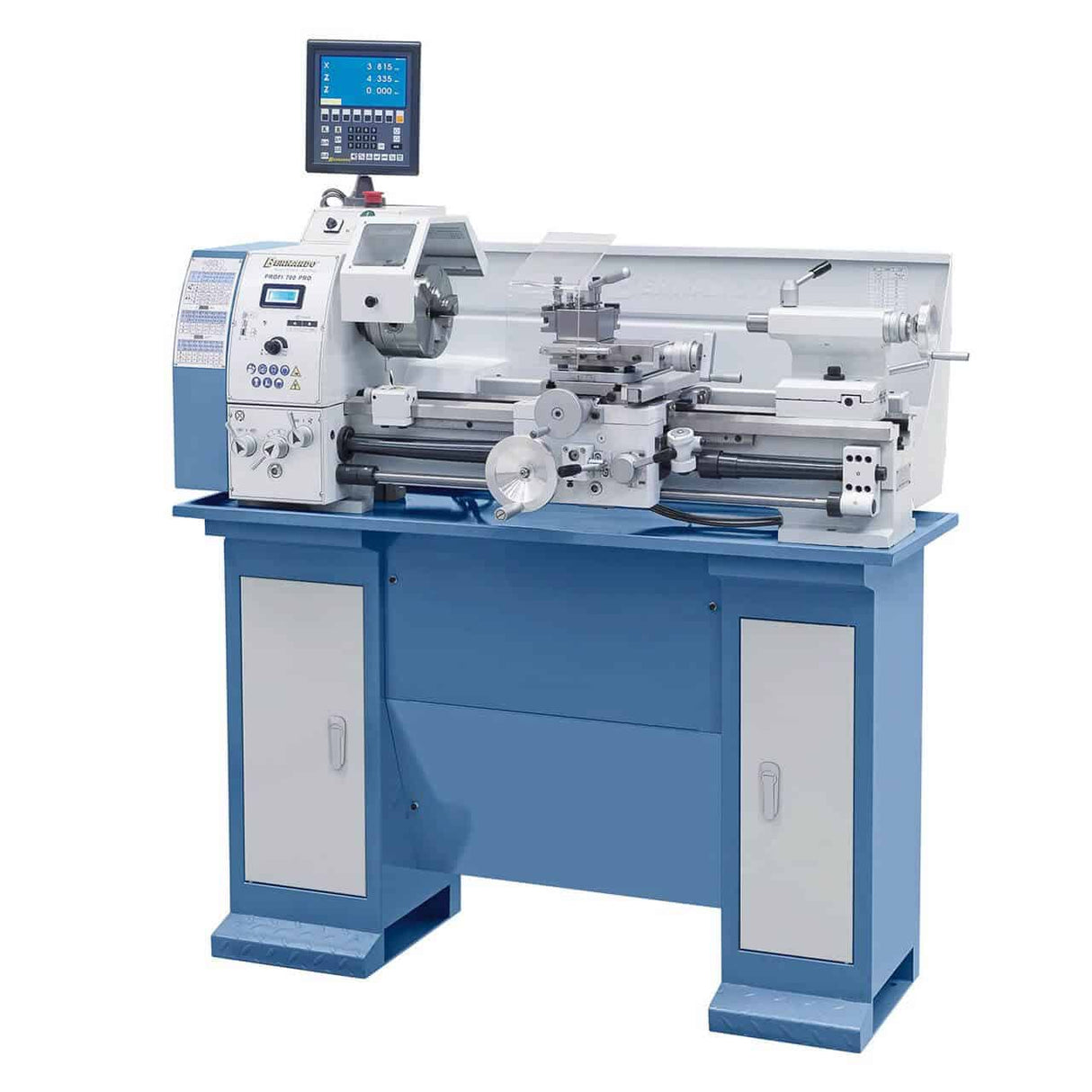

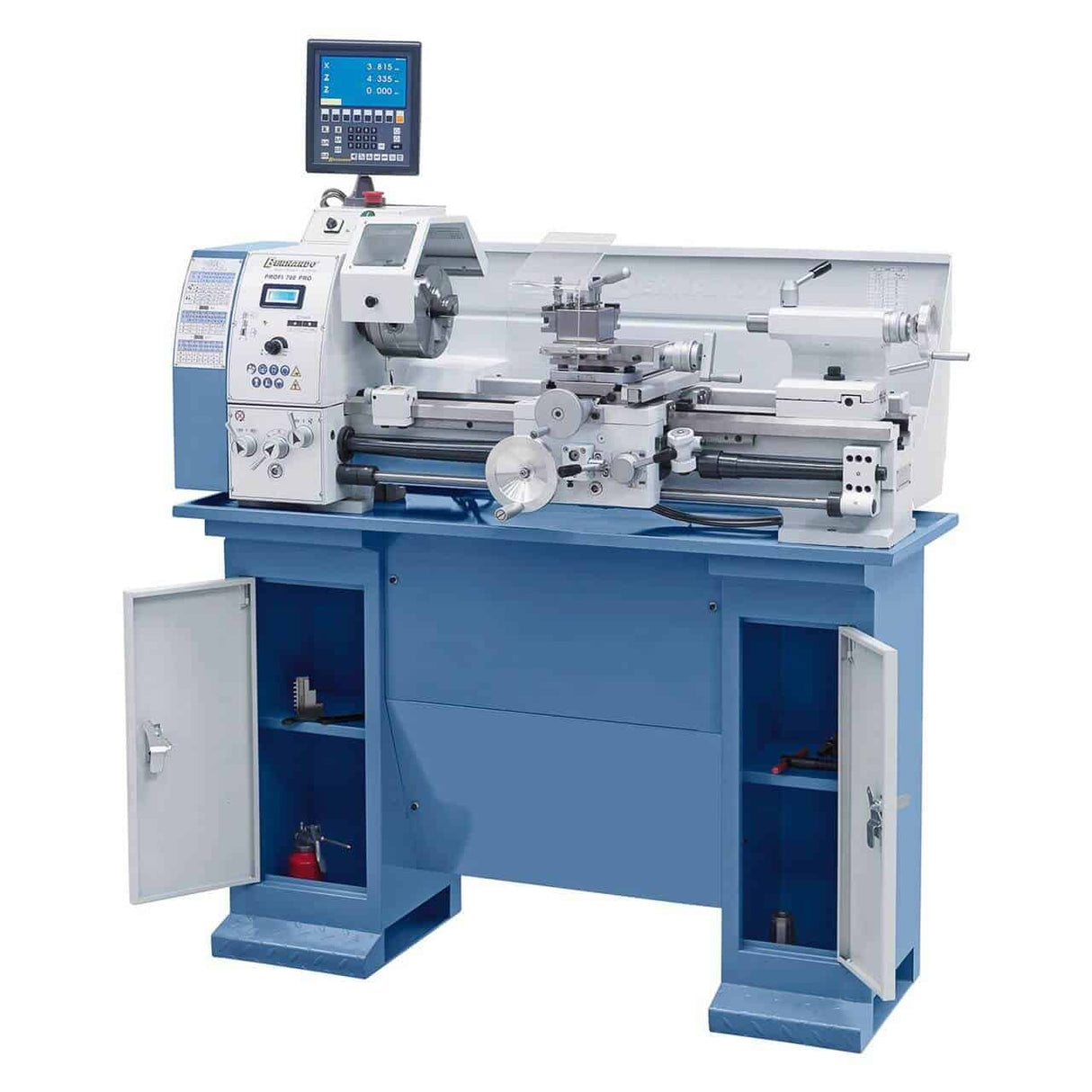

Profi 700 Pro Lathe - 400 V incl. 2-axis digital display

€5.233,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

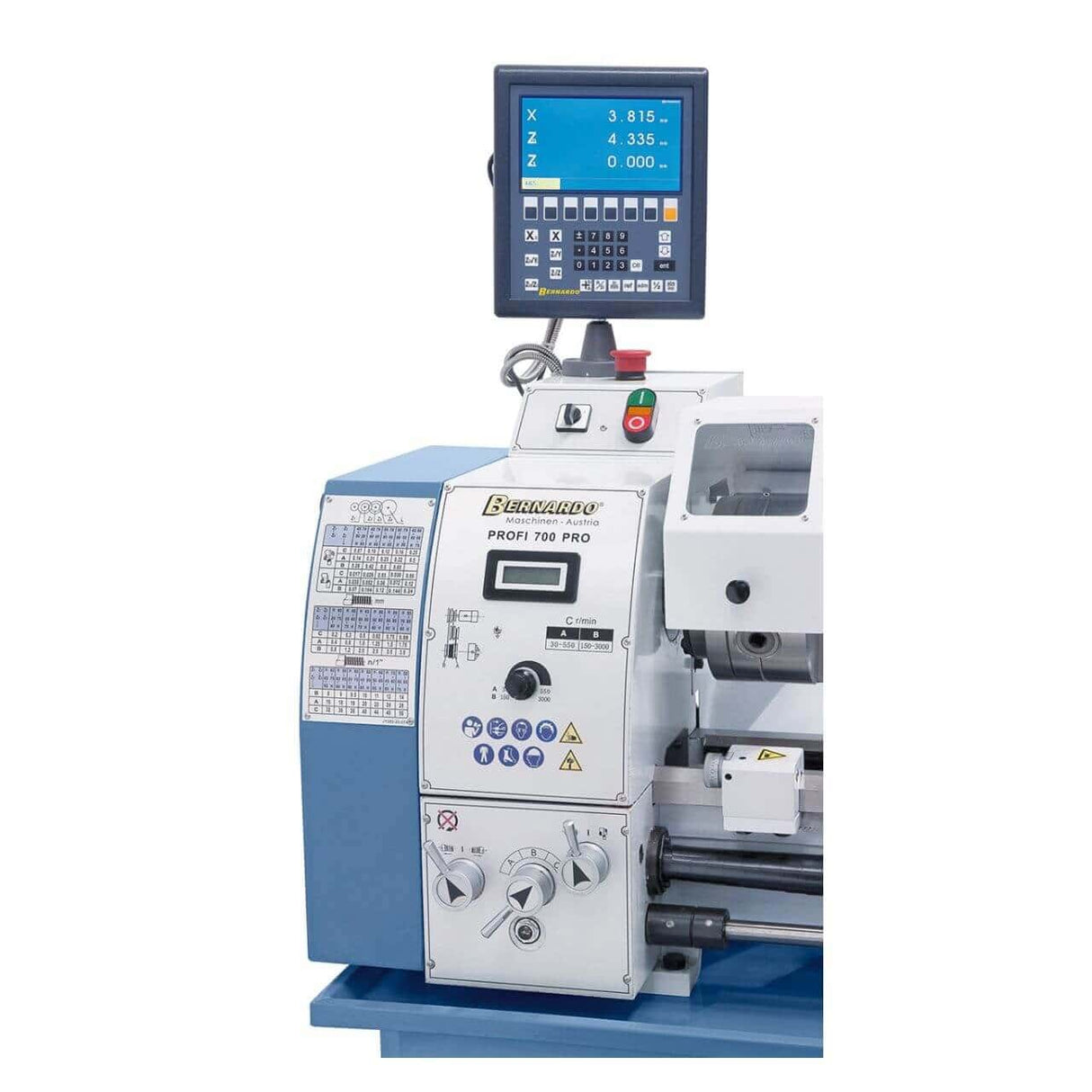

The Profi 700 PRO lathe, with its wide speed range of up to 3000 rpm and numerous features (e.g., three-phase motor with frequency converter, P5-quality main spindle bearing, micrometric longitudinal stop for serial production, slip clutch, etc.), is the ideal model for the demanding user. To reduce production times, this model is equipped with a 2-axis position display.

Property

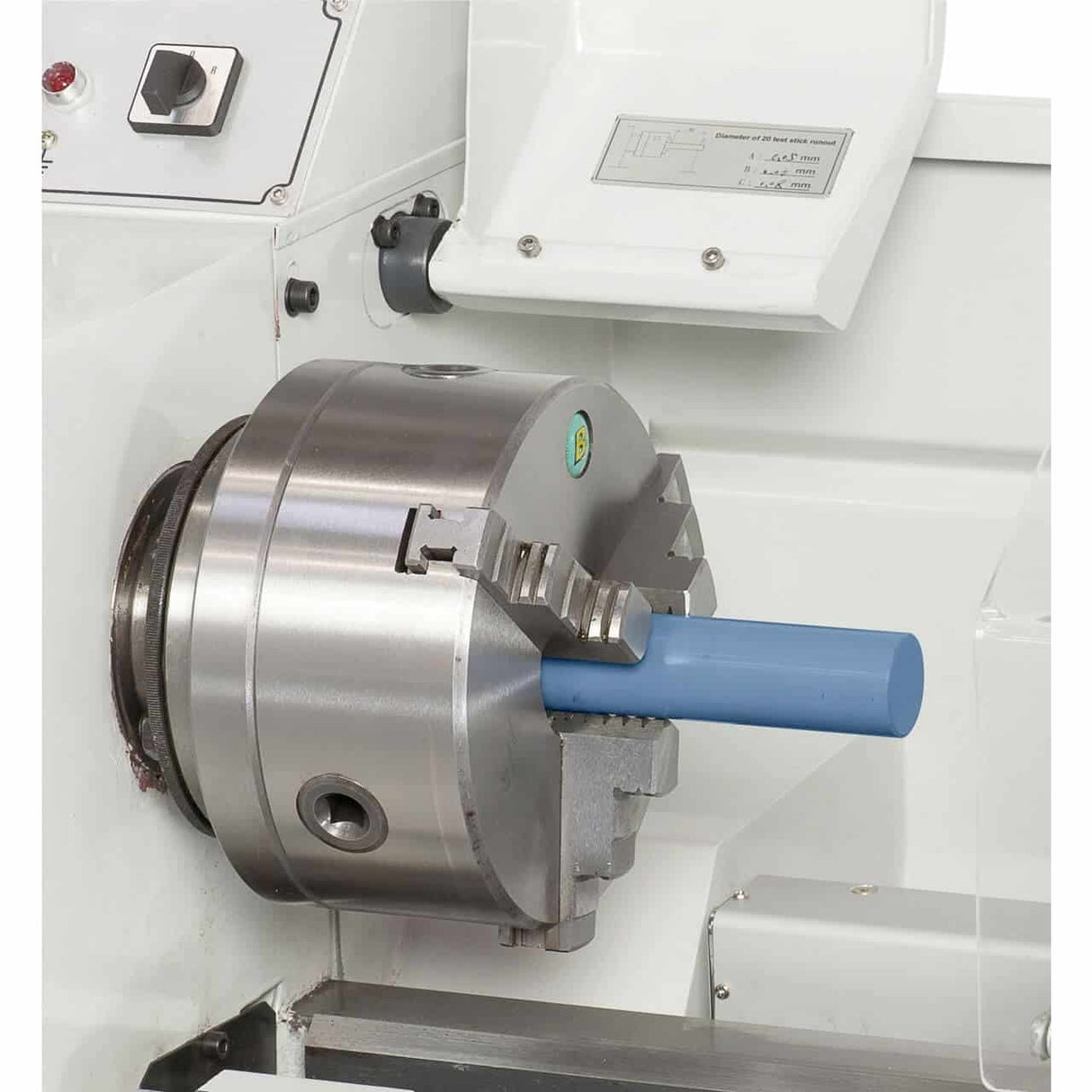

  • Precision three-jaw chuck with steel guide for speeds up to 3000 rpm as standard

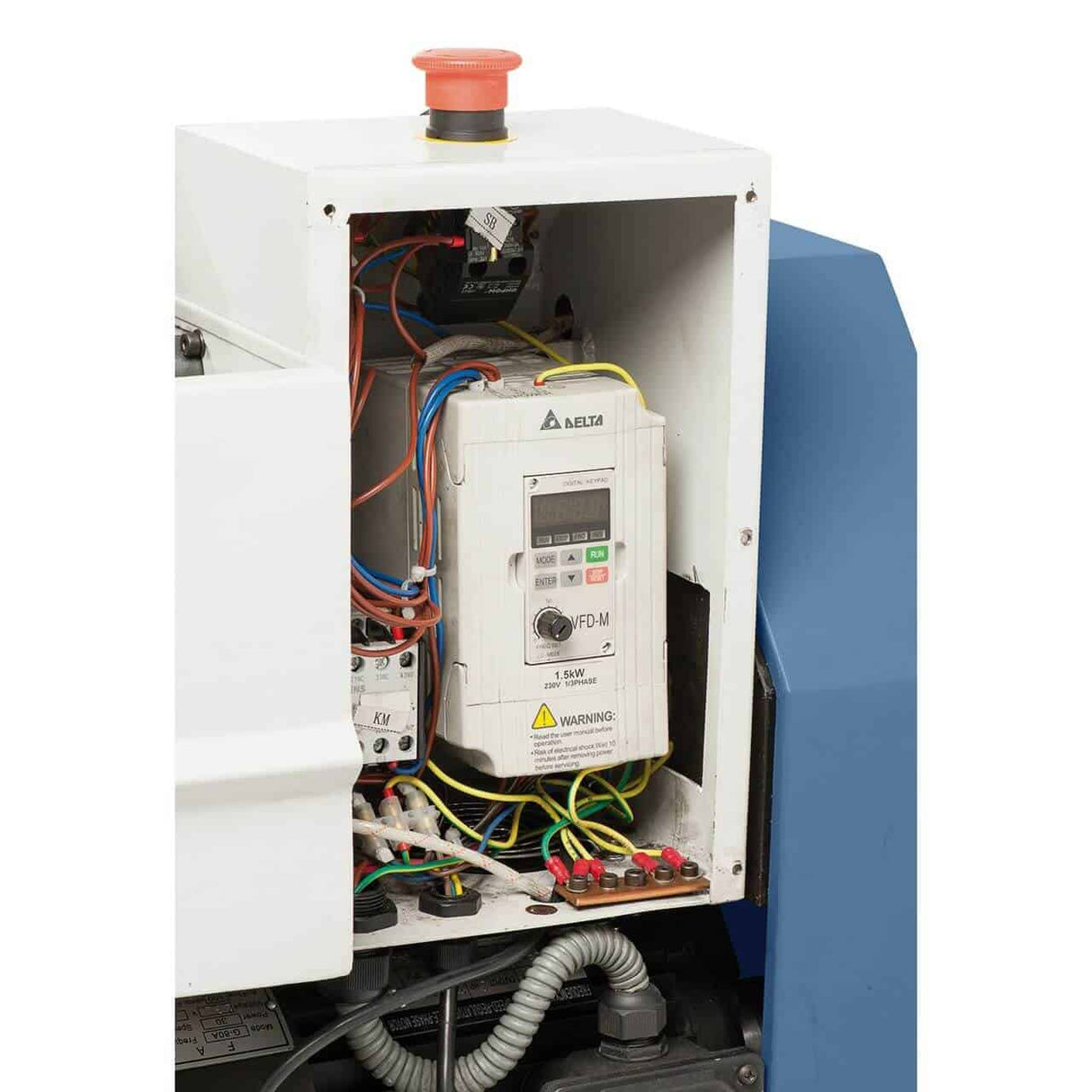

  • Equipped with Delta frequency converter for high torque at low speeds and at approximately constant speeds under load
  • Main spindle positioning with subsequently adjustable tapered roller bearings of P5 quality
  • Tailstock chuck and handwheel with adjustable graduation (0.02 mm)
  • Extended application range thanks to the subsequently adjustable milling jaw (optional)
  • High concentricity of the hardened spindle nose ≤ 0.009 mm
  • Robust bed with hardened and inductively ground guide

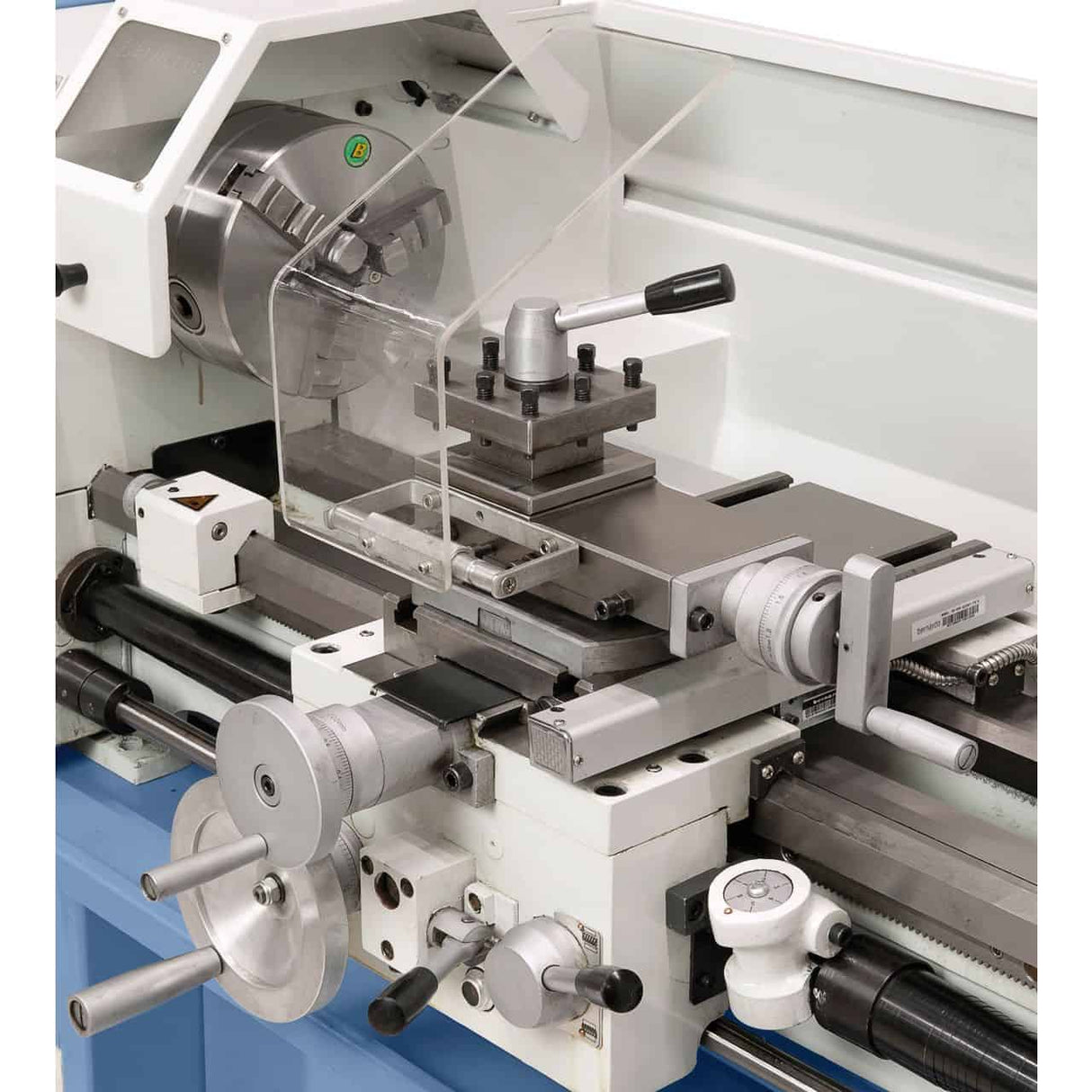

  • Upper slide sliding in the direction of the x-axis

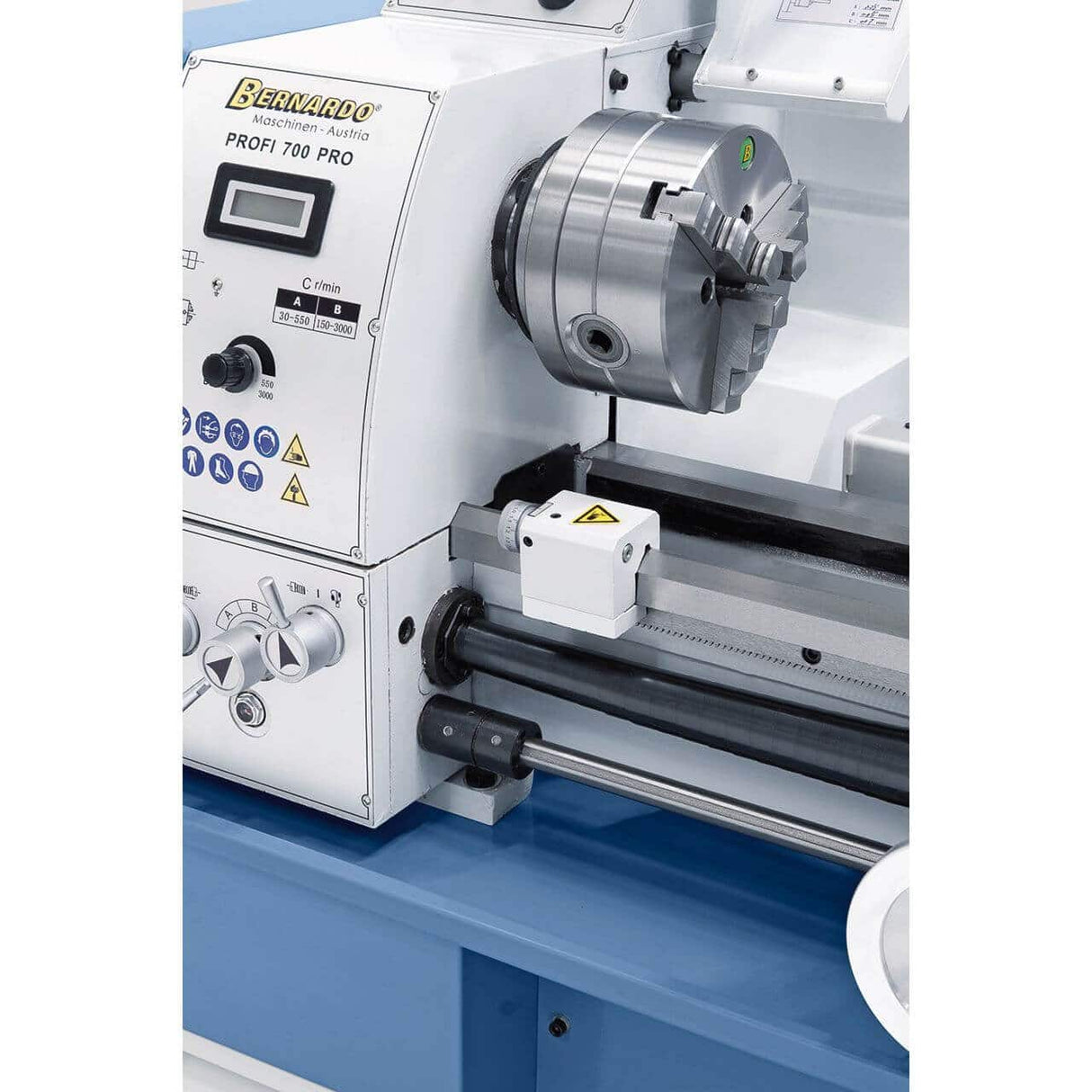

  • Equipped with continuous speed regulation; the set speed is read on a digital display

Standard accessories

  • PO3-160 mm 3-jaw chuck with steel guide
  • Spindle flange 160 mm
  • Fixed centering tips

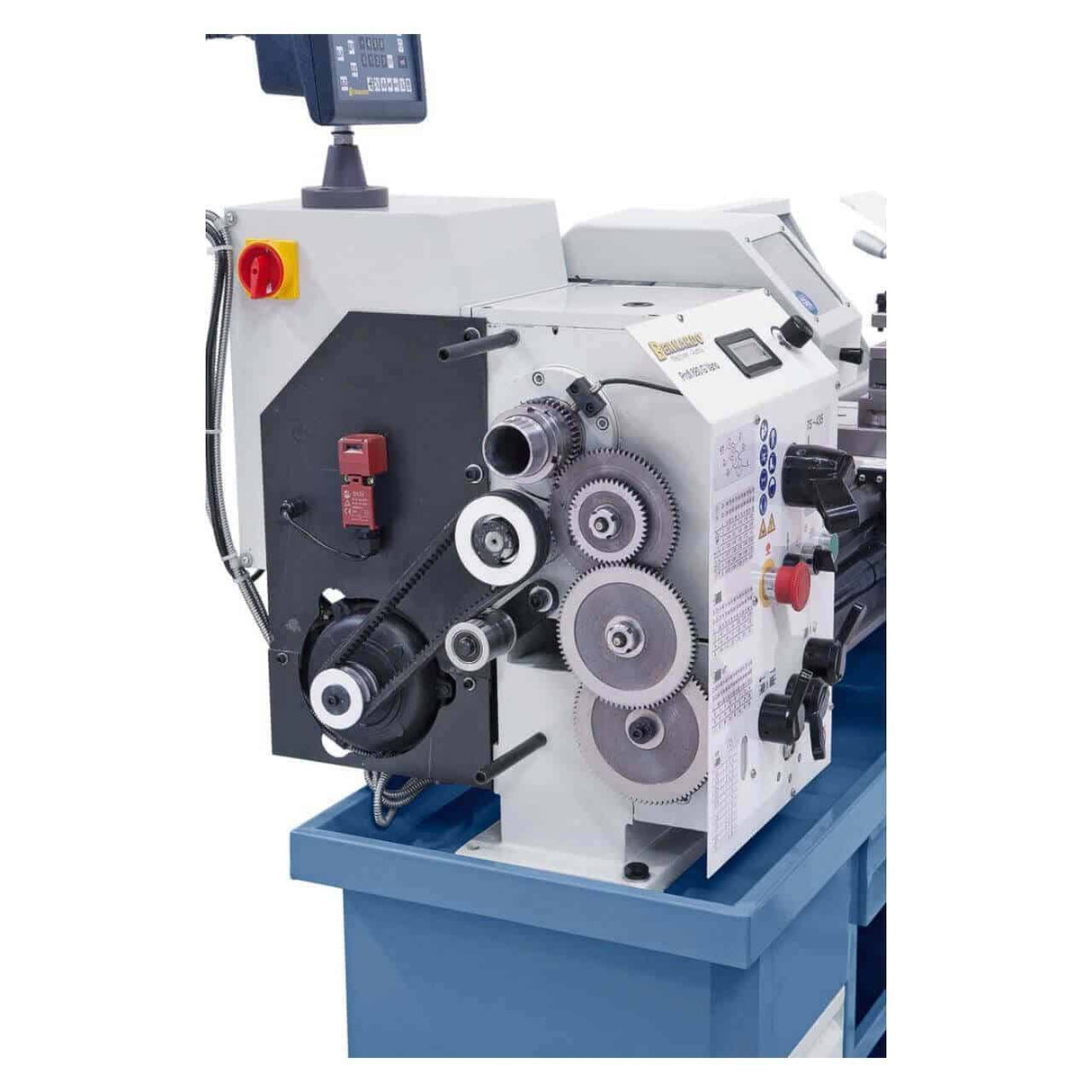

  • Replacement wheels

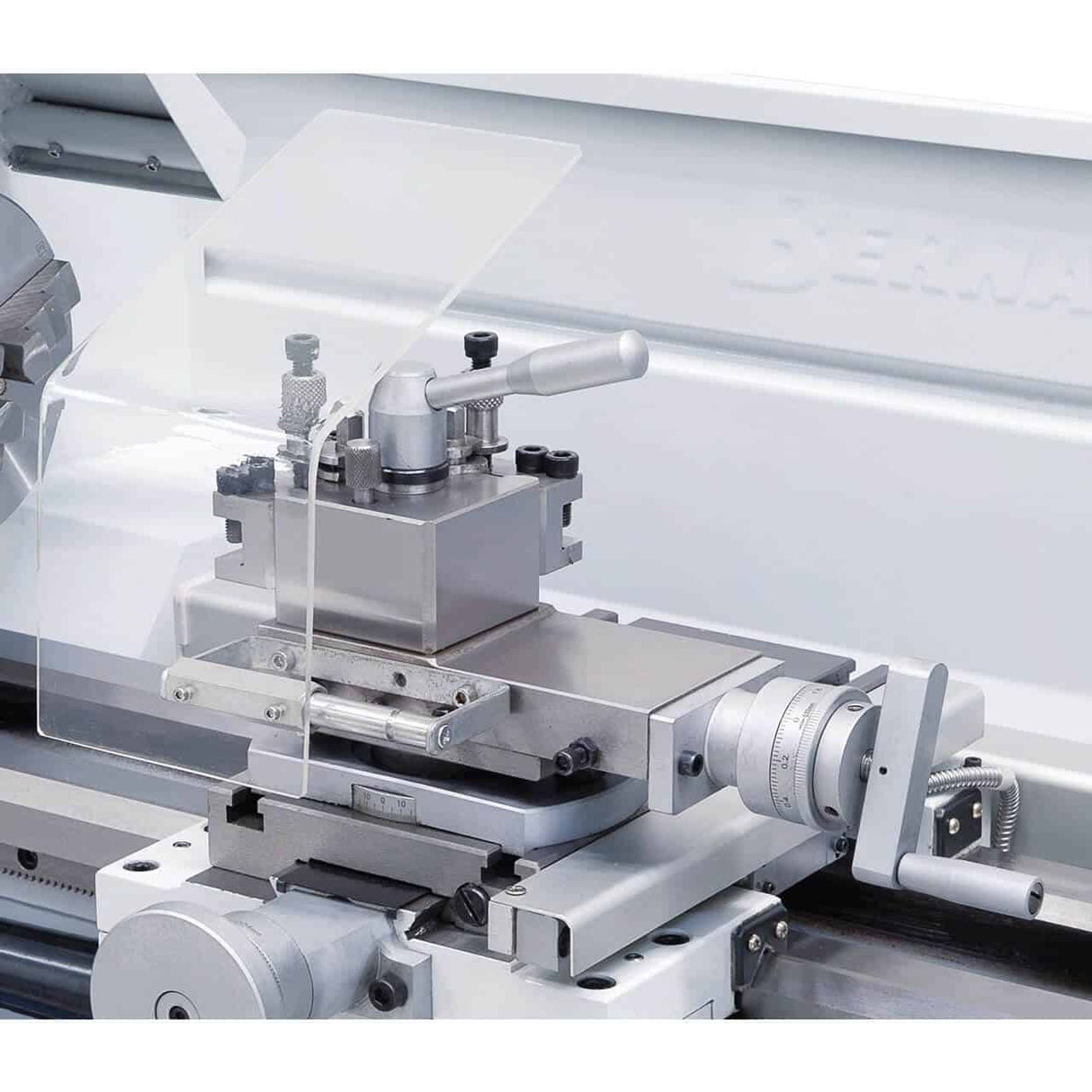

  • BERNARDO quick-change tool holder, size 20-2 with 2 inserts
  • Slip joint
  • Longitudinal stop of the micrometer

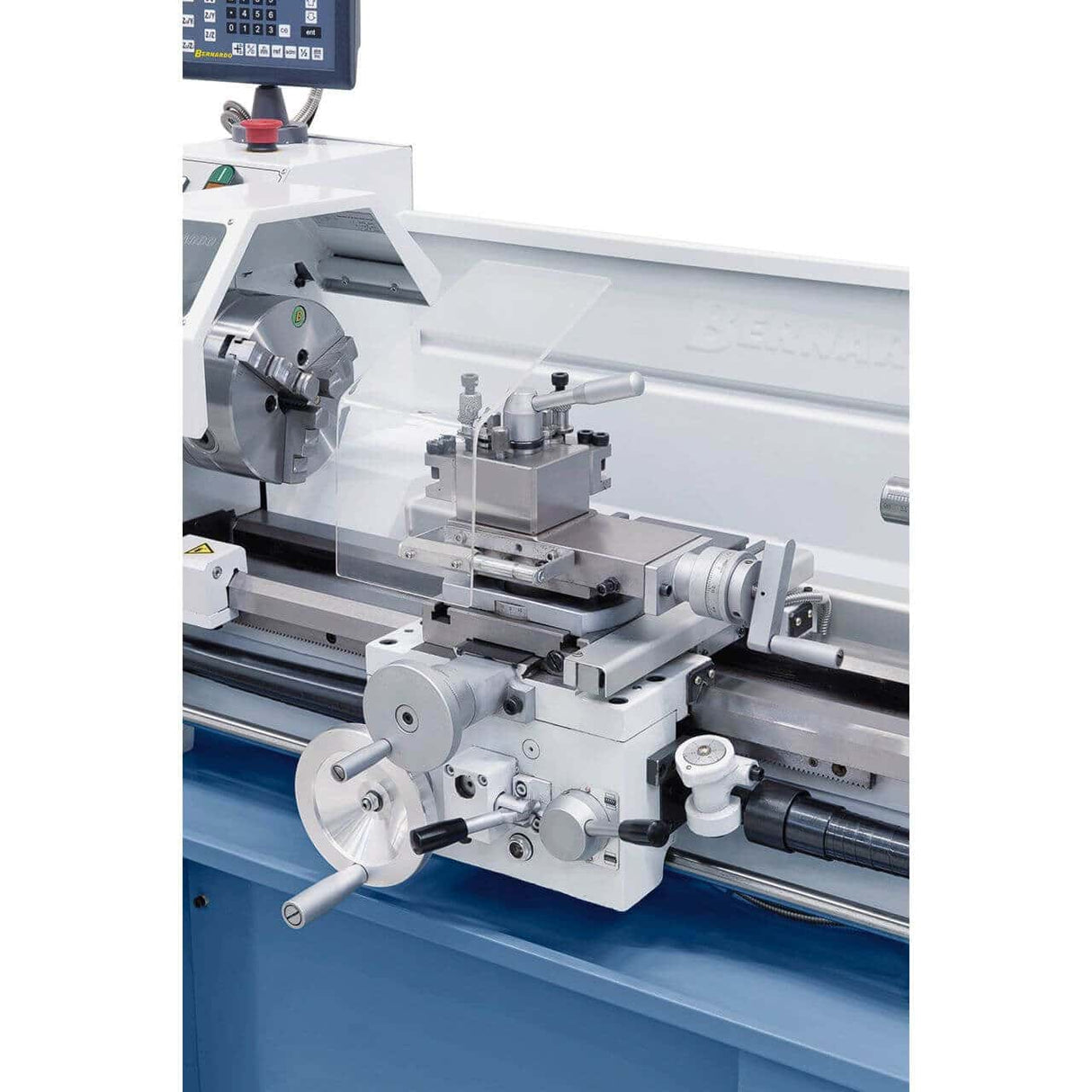

  • Flat slides with upper support
  • Frequency converter
  • Digital speedometer
  • Thread gauge
  • Spindle protection
  • Chip back wall
  • Guide spindle cover
  • Control device

technical specifications

Distance between tips

700 mm

Height of the tips

150 mm

Vaulting on the table

300 mm

Bed width

180 mm

Spindle hole

38 mm

Support in the spindle hole

MK 5

Continuous speed range

30 - 450 / 150 - 3000 rpm

Longitudinal advancement area

(14) 0.07 - 0.65 mm/rev

Floor progress area

(11) 0.03 - 0.12 mm/rev

Metric threads

(18) 0.2 - 3.5 mm

Inch threads

(21) 8 - 56 TPI

Spindle stroke

85 mm

Spindle support

MK 3

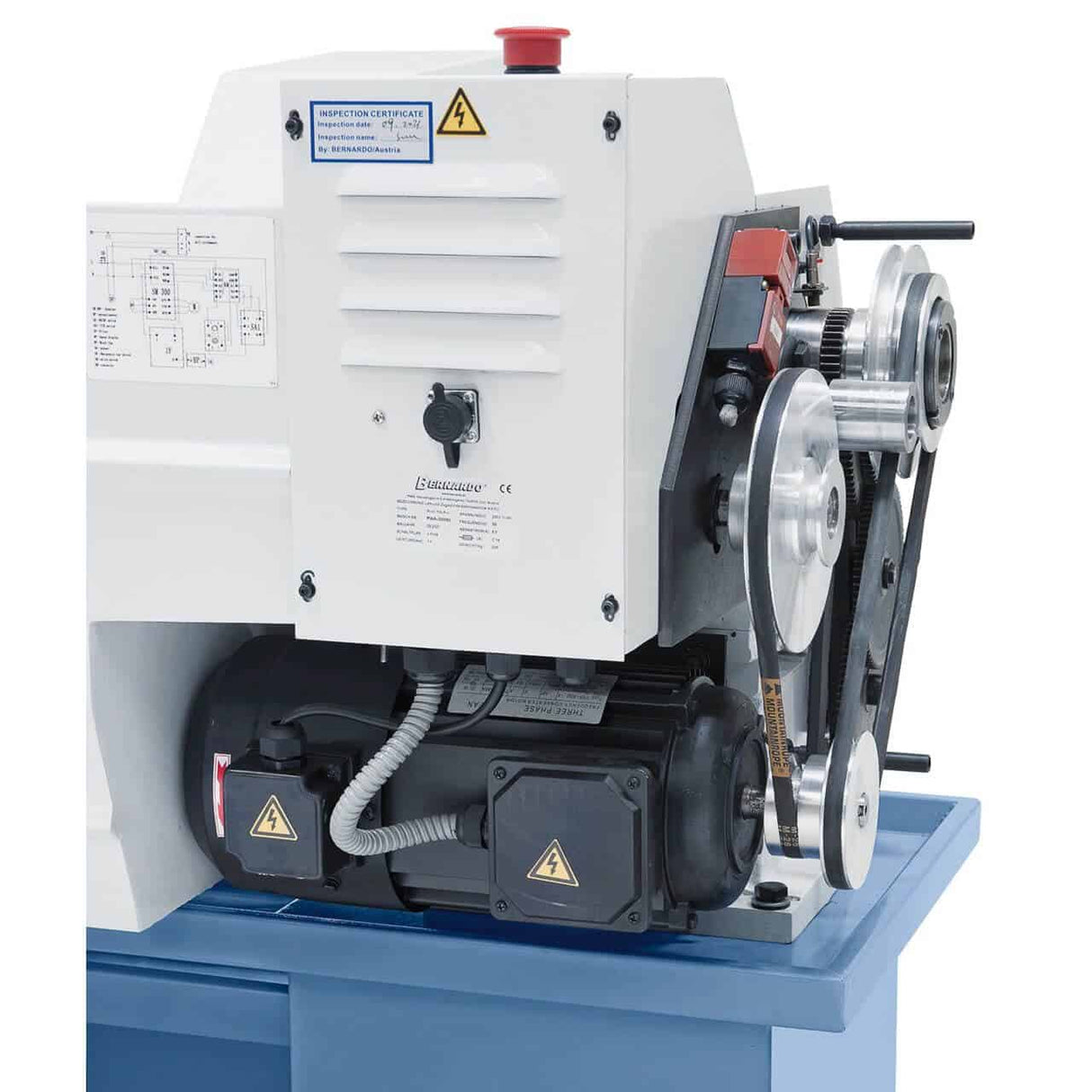

Motor input power S 1 100%

1.5 kW / 400 V

S 6 40% engine output power

2.2 kW / 400 V

Machine dimensions (L x W x H)*

1380 x 640 x 500 m

Weight approx.

235 kg

* without base
