Description

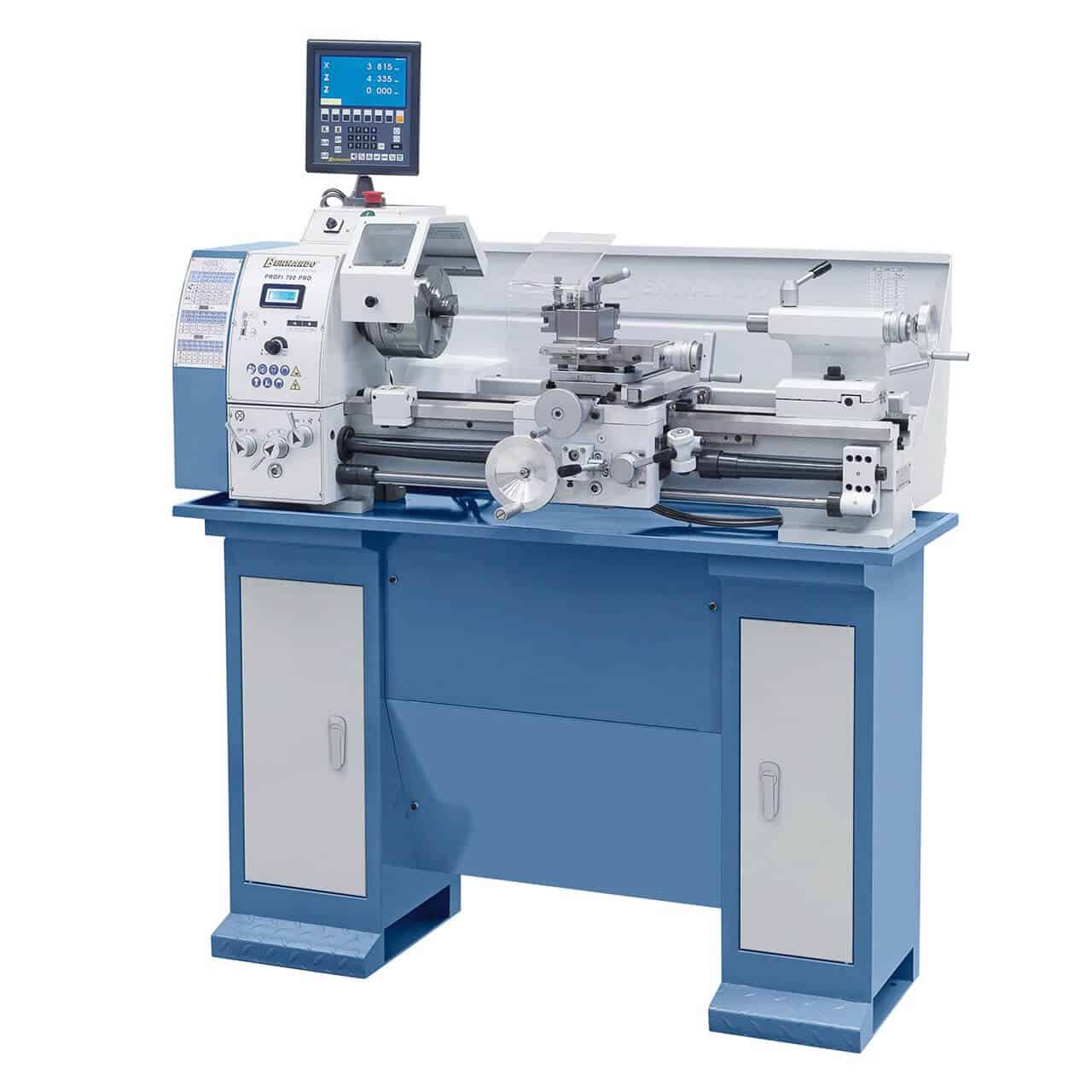

The Profi 700 PRO lathe, with its wide speed range of up to 3000 rpm and numerous features (e.g., three-phase motor with frequency converter, P5-quality main spindle bearing, micrometric longitudinal stop for serial production, slip clutch, etc.), is the ideal model for the demanding user. To reduce production times, this model is equipped with a 2-axis position display.
Property
- Precision three-jaw chuck with steel guide for speeds up to 3000 rpm as standard
- Equipped with Delta frequency converter for high torque at low speeds and at approximately constant speeds under load
- Main spindle positioning with subsequently adjustable tapered roller bearings of P5 quality
- Tailstock chuck and handwheel with adjustable graduation (0.02 mm)
- Extended application range thanks to the subsequently adjustable milling jaw (optional)
- High concentricity of the hardened spindle nose ≤ 0.009 mm
- Robust bed with hardened and inductively ground guide
- Upper slide sliding in the direction of the x-axis
- Equipped with continuous speed regulation; the set speed is read on a digital display
Standard accessories
- PO3-160 mm 3-jaw chuck with steel guide
- Spindle flange 160 mm
- Fixed centering tips
- Replacement wheels
- BERNARDO quick-change tool holder, size 20-2 with 2 inserts
- Slip joint
- Longitudinal stop of the micrometer
- Flat slides with upper support
- Frequency converter
- Digital speedometer
- Thread gauge
- Spindle protection
- Chip back wall
- Guide spindle cover
- Control device
technical specifications
Distance between tips |
700 mm |
Height of the tips |
150 mm |
Vaulting on the table |
300 mm |
Bed width |
180 mm |
Spindle hole |
38 mm |
Support in the spindle hole |
MK 5 |
Continuous speed range |
30 - 450 / 150 - 3000 rpm |
Longitudinal advancement area |
(14) 0.07 - 0.65 mm/rev |
Floor progress area |
(11) 0.03 - 0.12 mm/rev |
Metric threads |
(18) 0.2 - 3.5 mm |
Inch threads |
(21) 8 - 56 TPI |
Spindle stroke |
85 mm |
Spindle support |
MK 3 |
Motor input power S 1 100% |
1.5 kW / 230 V |
S 6 40% engine output power |
2.2 kW / 230 V |
Machine dimensions (L x W x H)* |
1380 x 640 x 500 m |
Weight approx. |
235 kg |
* without base
