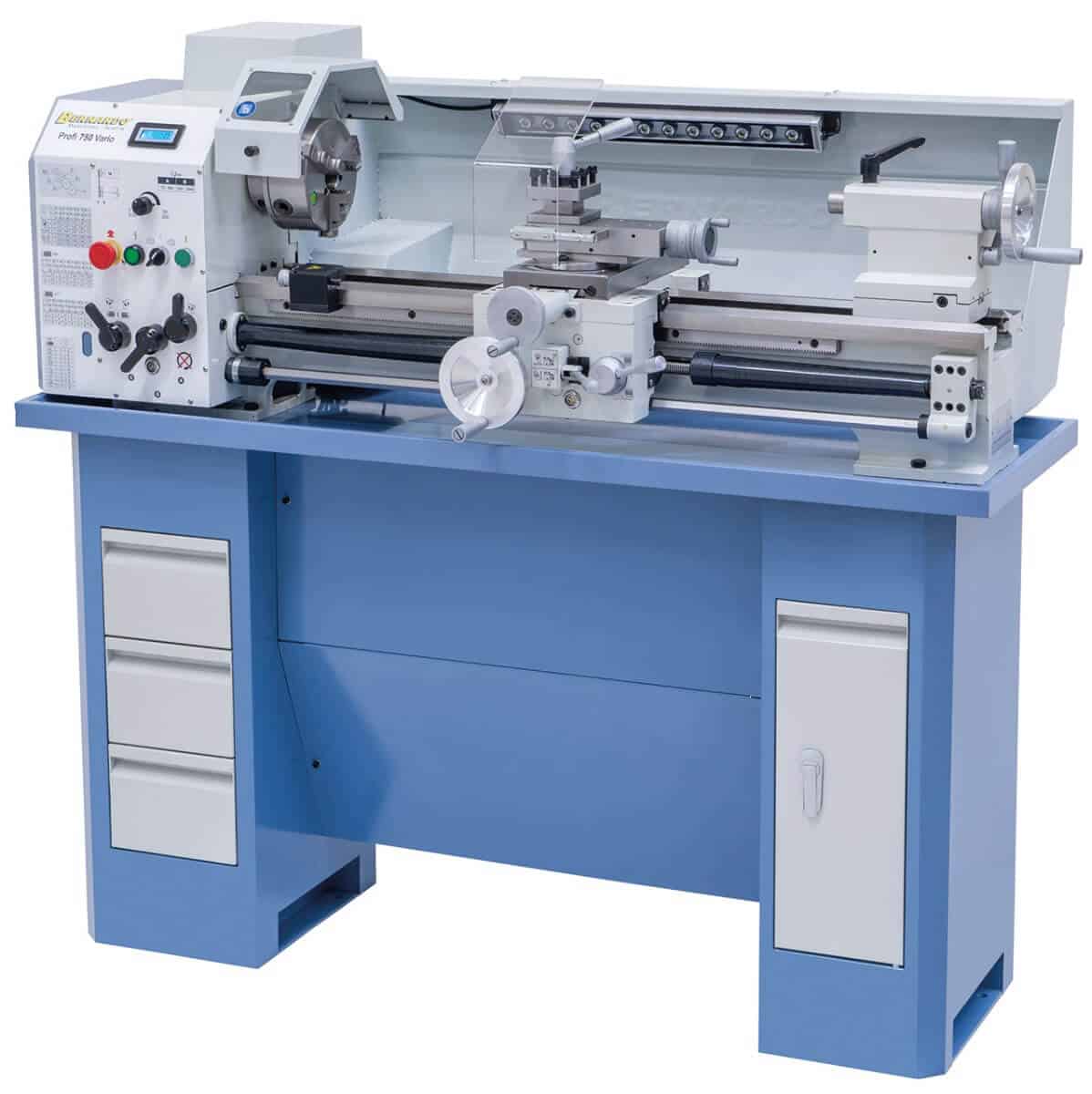

Precision lathe Profi 750 Vario / 400 V – Continuous power with maximum precision
The Profi 750 Vario lathe is designed to meet the needs of the most demanding users, thanks to its comprehensive features and three-phase motor with frequency converter. It offers high performance for professional turning applications, with a robust construction, ground prism guides, and high rotational precision. It is also available with a 2-axis digital readout to reduce machining times.
Main features
• Three-phase motor with inverter for high torque and continuous speed control
• 38mm spindle bore for large shafts
• Continuous speed regulation with integrated digital display
• Prismatic bed with tempered and ground guides
• High rotation accuracy of the spindle nose (≤ 0.015 mm)
• Spindle supports with adjustable P5 tapered bearings
• Ideal for steel, non-ferrous metals and plastics
• (safety joint) and longitudinal micrometric stop included
• LED machine, guards and spare wheels included as standard
• Simple, smooth and precise control of the advances
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 750 mm |
| Tip height | 140 mm |
| Turning diameter on the bench | 280 mm |
| Spindle hole | 38 mm |
| Spindle attachment | DIN 55029, D1-4 |
| Speed range | 75 – 500 / 300 – 2000 rpm |
| Longitudinal advances | (15) 0.07 – 1.0 mm/rev |
| Planned advancements | (15) 0.017 – 0.25 mm/rev |
| Metric threads | (18) 0.2 – 3.5 mm |
| Inch threads | (21) 8 – 56 TPI |
| Tailstock quill stroke | 90 mm |
| Tailstock attachment | MK 3 |
| Engine power S1 100% | 1.5 kW / 400 V |
| S6 engine power 40% | 2.2 kW / 400 V |
| Machine dimensions (L x W x H)* | 1400 x 730 x 520 mm |
| Weight | 220 kg |
* without base
Package Contents
• 3-jaw self-centering chuck DK11-160 mm / D4
• Fixed centering tips
• Spare wheel set
• Quadruple tool holder
• Safety joint
• Longitudinal micrometric stop
• Cross slide with upper support
• Frequency converter
• Digital speed indicator
• LED work light
• Spindle protection
• Rear wall for collecting chips
• Spindle cover
• Keys and tools for use
