Bernardo  |  SKU: 03-1252B

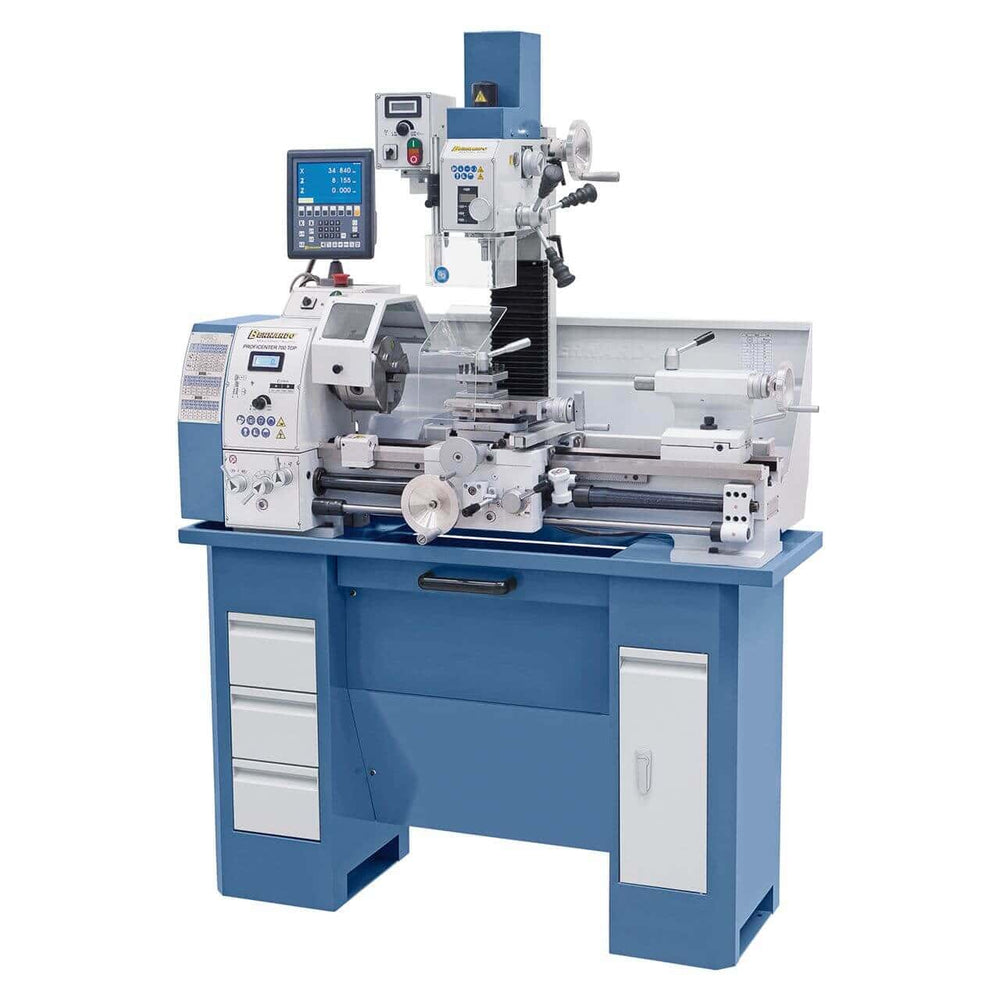

Proficenter 700 Top lathe incl. 2-axis digital display

€5.880,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

The new Proficenter 700 Top model is equipped with a frequency converter. Its significant advantages include high torque with a low speed range and approximately constant torque under load. Thanks to its many features (e.g., three-phase motor with frequency converter, P5-quality main spindle bearing, micrometric longitudinal stop for serial work, slip clutch, etc.), this model is ideal for the demanding user.

Property

  • Ideal for machining steel, non-ferrous materials and plastics
  • Equipped with a continuous electronic speed regulator
  • High concentricity of the hardened spindle nose ≤ 0.009 mm
  • Main spindle positioning with subsequently adjustable tapered roller bearings of P5 quality
  • Equipped with a shaft spindle for automatic longitudinal and transverse feed
  • Robust bed with hardened and inductively ground guide
  • Milling jaw with digital display for speed and hole stroke
  • Milling head tiltable on both sides for angle drilling, chamfer milling, etc.
  • Spindle adjustment via handle, precision feed via handwheel
  • Three-phase motor with frequency converter for greater power and high torque

Standard accessories

  • i200 2-Axis Position Indicator with LCD Display
  • 3-jaw chuck DK11-160 mm
  • Spindle flange 160 mm
  • Drill chuck with rack 1 - 13 mm / B 16
  • Arbor spindle MK 2 / B 16
  • Fixed centering tips
  • Replacement wheels
  • Quadruple tool holder
  • Slip joint
  • Longitudinal stop of the micrometer
  • Flat slides with upper support
  • Frequency converter
  • M 10 clamping chuck
  • Digital spindle display
  • Digital speedometer
  • Spindle protection
  • Guide spindle cover
  • Chip back wall
  • Control device

technical specifications

Lathe

Distance between tips

700 mm

Height of the tips

150 mm

Vaulting on the table

300 mm

Spindle hole

38 mm

Support in the spindle hole

MK 5

Continuous speed range

70 - 380 / 380 - 2000 rpm

Longitudinal advancement area

(14) 0.07 - 0.65 mm/rev

Floor progress area

(11) 0.03 - 0.12 mm/rev

Metric threads

(18) 0.2 - 3.5 mm

Inch threads

(21) 8 - 56 TPI

Spindle stroke

85 mm

Spindle support

MK 3

T-slot size with flat slides

12 mm

Motor input power S 1 100%

1.1 kW / 230 V

S 6 40% engine output power

1.5 kW / 230 V

Milling jaw

Max. drilling power

20 mm

Max. face milling cutter.

63 mm

Milling cutter with max. shank.

20 mm

Length of the arms

170 mm

Continuous spindle speed

50 - 2250 rpm

Spindle attachment

MK 2

Rotating milling head

from -90° to +90°

Milling head height setting

260 mm

Motor input power S 1 100%

0.60 kW / 230 V

S 6 40% engine output power

0.90 kW / 230 V

Machine dimensions (L x W x H)*

1380 x 640 x 1020 mm

Total weight

298 kg approx.

* without base
