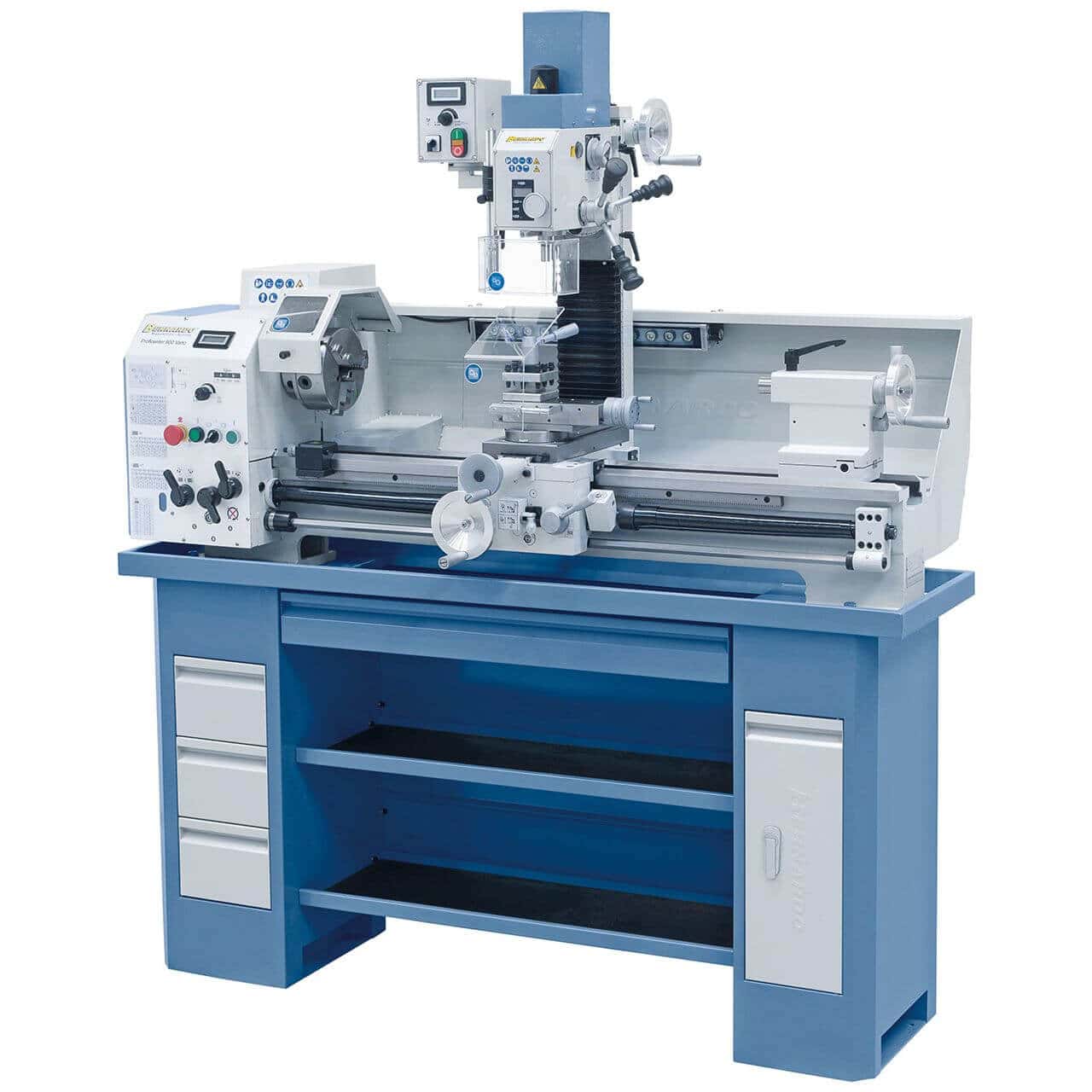

Proficenter 900 Vario lathe - 400 V

The Proficenter 900 Vario machining center is the ideal machine for the discerning user thanks to its extensive basic features (e.g., milling attachment, three-phase motor with frequency converter, P5-quality main spindle bearing, longitudinal micrometer stop, anti-slip clutch, LED machine light, etc.). To reduce production times, this model is also available with a 2-axis digital display. Property

• Three-phase motor with frequency converter for increased power output and high torque
• Standard with 38mm spindle bore for machining large shaft diameters
• Versatile application options: precision mechanics, training and apprenticeship seminars, ...
• With the infinitely variable speed control as standard, the set speed is read on a digital display
• Power regulation is simple, smooth and precisely switchable
• Ideal for machining steel, non-ferrous materials and plastics
• Prism bed with large contact area, induction hardened and ground
• Precise spindle bearing with two adjustable precision tapered roller bearings
• Milling accessory with digital display for pen stroke and speed
• Milling head swivels on both sides for angle drilling, chamfer milling, etc.

Standard accessories

• 3-jaw chuck DK11-160 mm / D4
• Drill chuck with rack 1 - 13 mm / B 16
• Arbor spindle MK 2 / B 16
• Fixed centering tips
• Replacement wheels
• Quadruple steel support
• Slip joint
• Longitudinal stop of the micrometer
• Cross slide with upper support
• frequency converter
• M 10 clamping chuck
• Digital spindle display
• Digital speed indicator
• Thread gauge
• LED car light
• Spindle protection
• Guide spindle cover
• Back wall of the chip
• Control device

Technical specifications

• Lathe
• Distance from center 900 mm
• Central height 160 mm
• Swing diameter on bed 320 mm
• Spindle hole 38 mm
• Inclusion in spindle bore DIN 55029, D1-4
• Speed range, infinitely 75 - 500/300 - 2000 U/min
• Longitudinal feed range (15) 0.07 - 1.0 mm / rev
• Feed rate area (15) 0.017 - 0.25 mm / rev
• Metric threads (18) 0.2 - 3.5 mm
• Thread inch (21) 8 - 56 Gg / 1 “
• Quill pen path 100 mm
• MK 3 Pen Adapter
• T-slot size in cross slide 12 mm
• S1 motor output power 100% 1.5KW / 400V
• S6 motor input power 40% 2.2 kW / 400 V
• Milling attachment
• Max. drilling capacity 20 mm
• Face milling cutter max. 63 mm
• Max. cutter 20 mm
• Projection 170 mm
• Spindle speed, infinitely 50 - 2250 rpm
• MK 2 spindle attachment
• Milling head swivels from -90° to +90°
• Milling head height adjustment 260 mm
• Machine dimensions (W x D x H) * 1650 x 650 x 1120 mm
• Total weight approximately 303 kg
• * without base
