Description

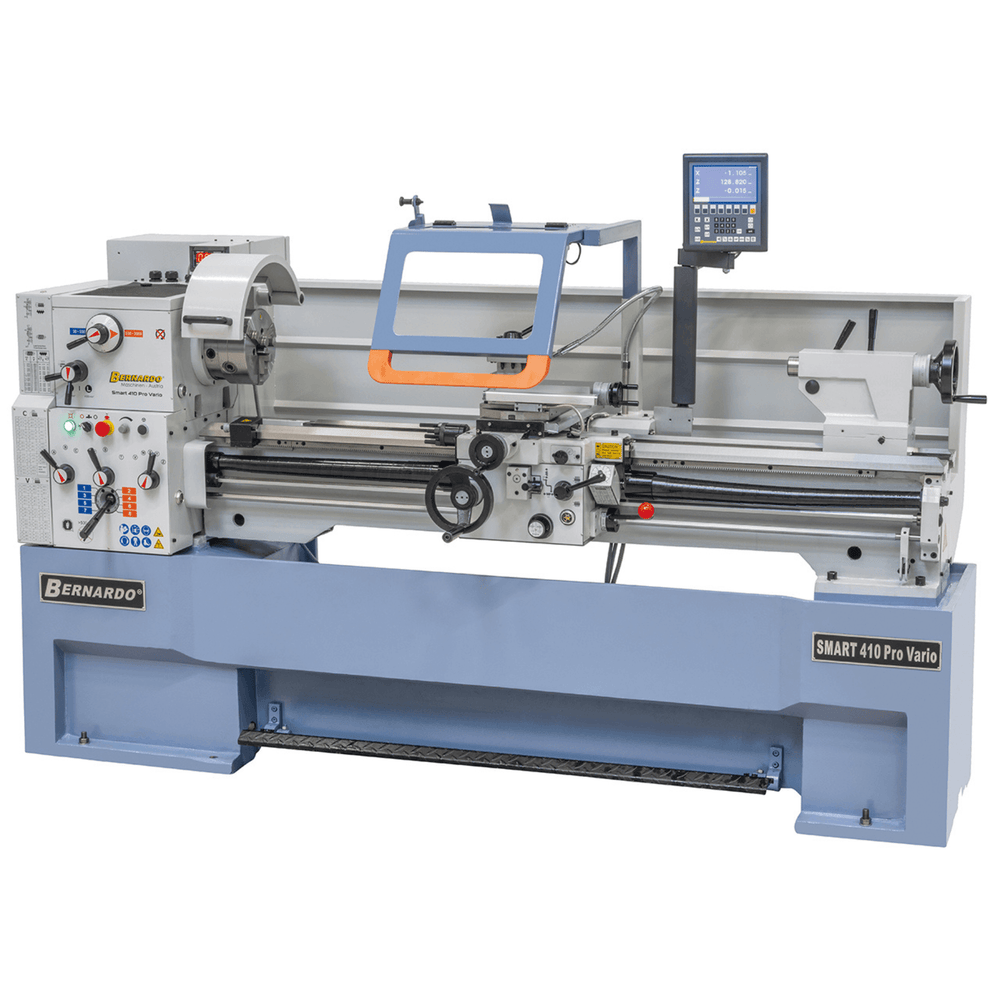

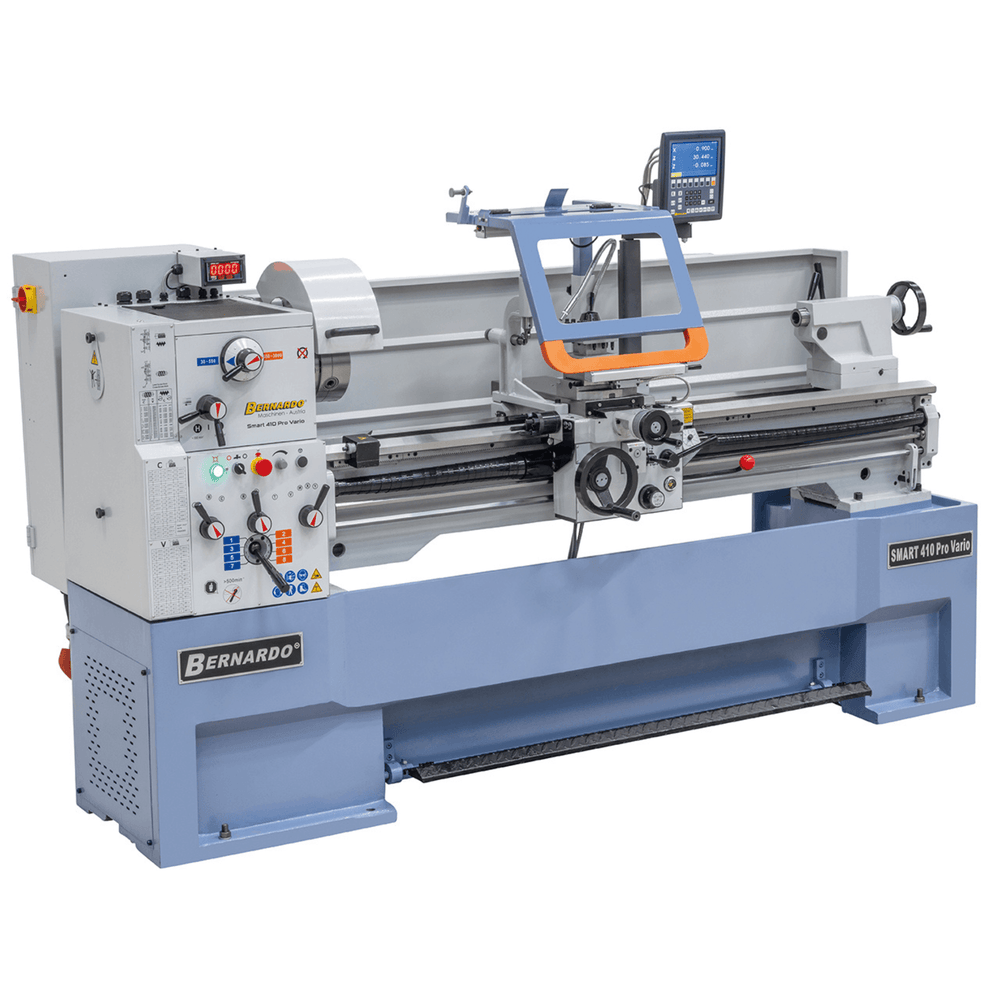

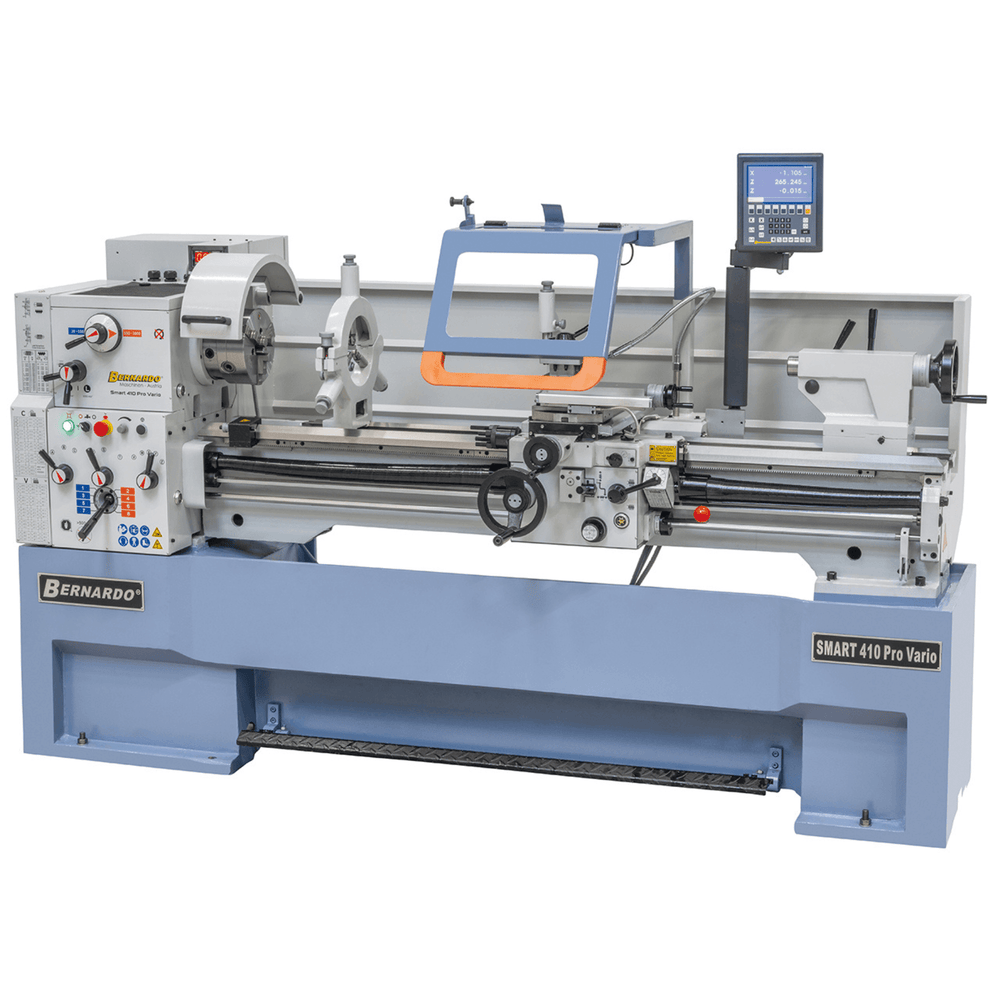

Smart 410 x 1500 Pro Vario universal lathe with Delta inverter and 3-axis display
The Smart 410 x 1500 Pro Vario lathe is designed for light to medium-duty machining of single or batch workpieces. Equipped with a Delta inverter and speeds up to 3000 rpm, this lathe offers precise speed control and excellent performance under load. The comprehensive standard equipment allows for immediate use in the workshop for versatile applications in the mechanical engineering sector.
Main features
• Delta inverter for high torque and constant speed under load

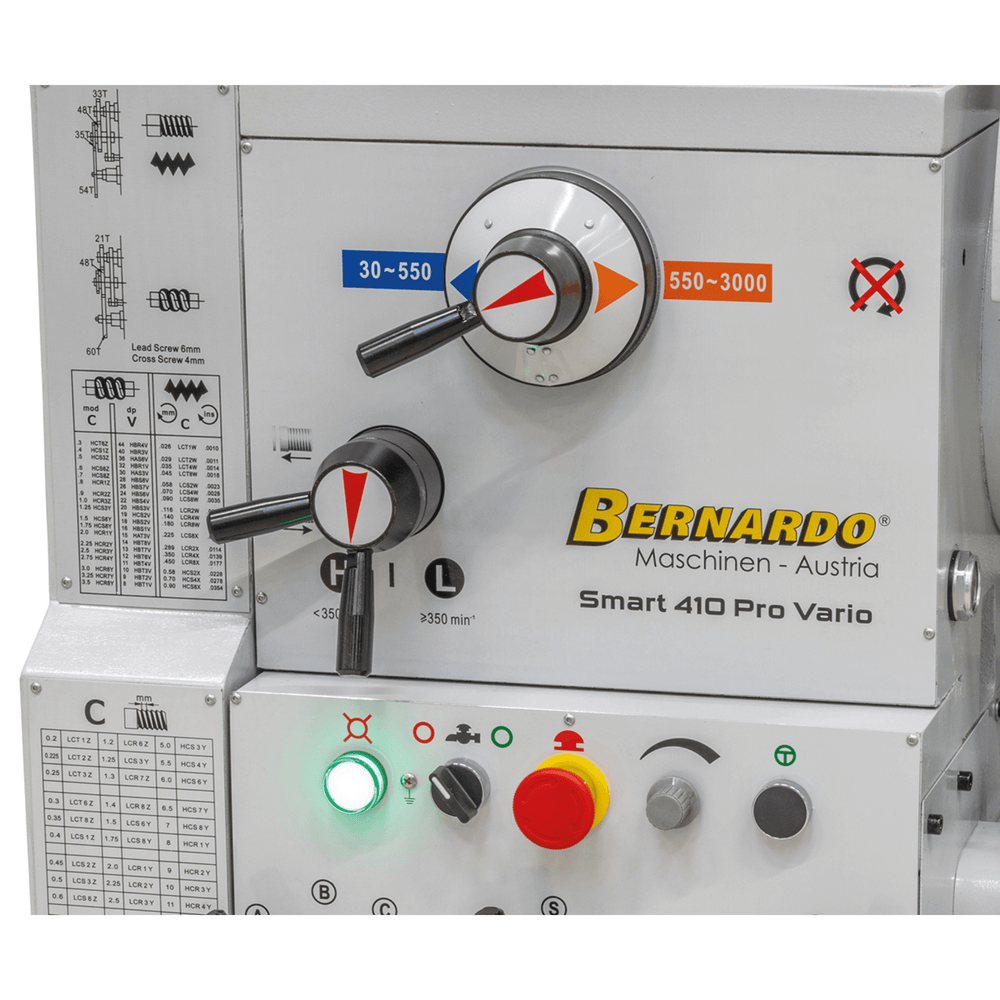

• Continuous speed regulation with digital display
• Prismatic cast iron bed, tempered and ground
• Spindle with precision angular bearings

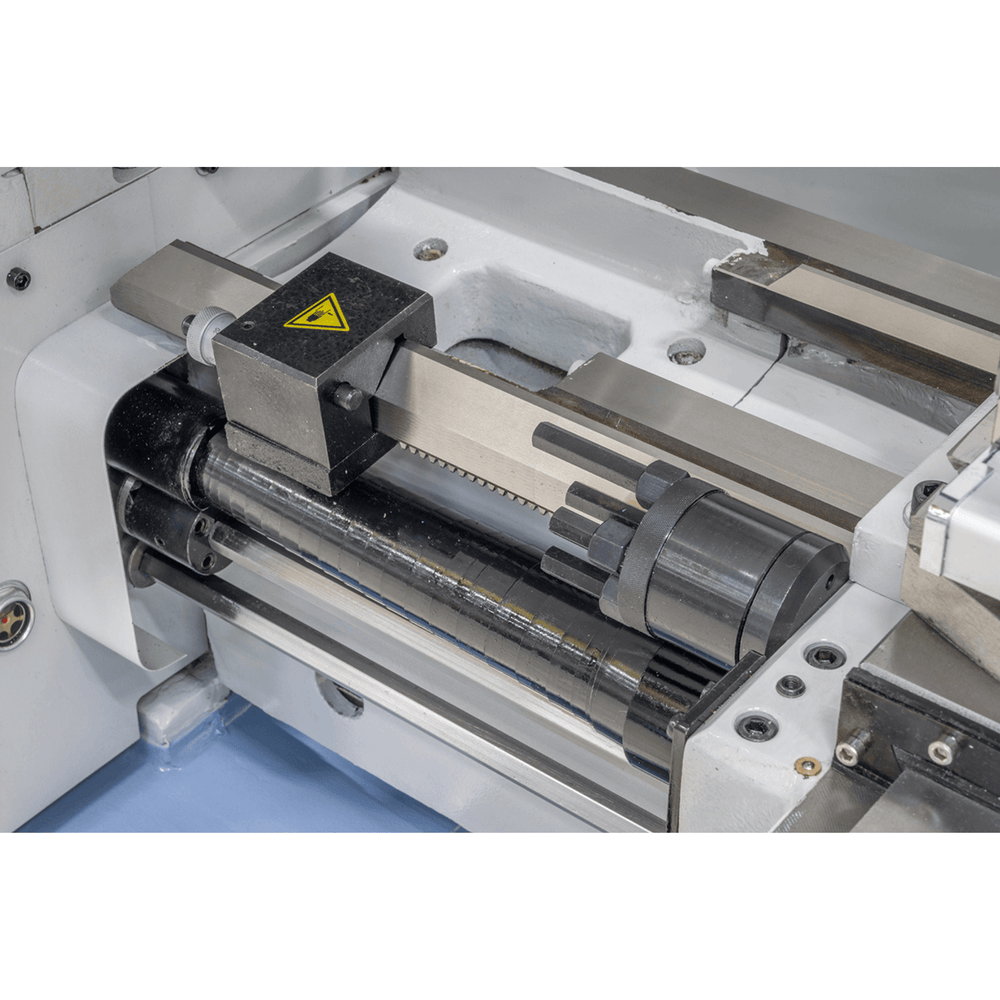

• Feeds and threads with main shaft and feed shaft
• Removable arm for large diameters

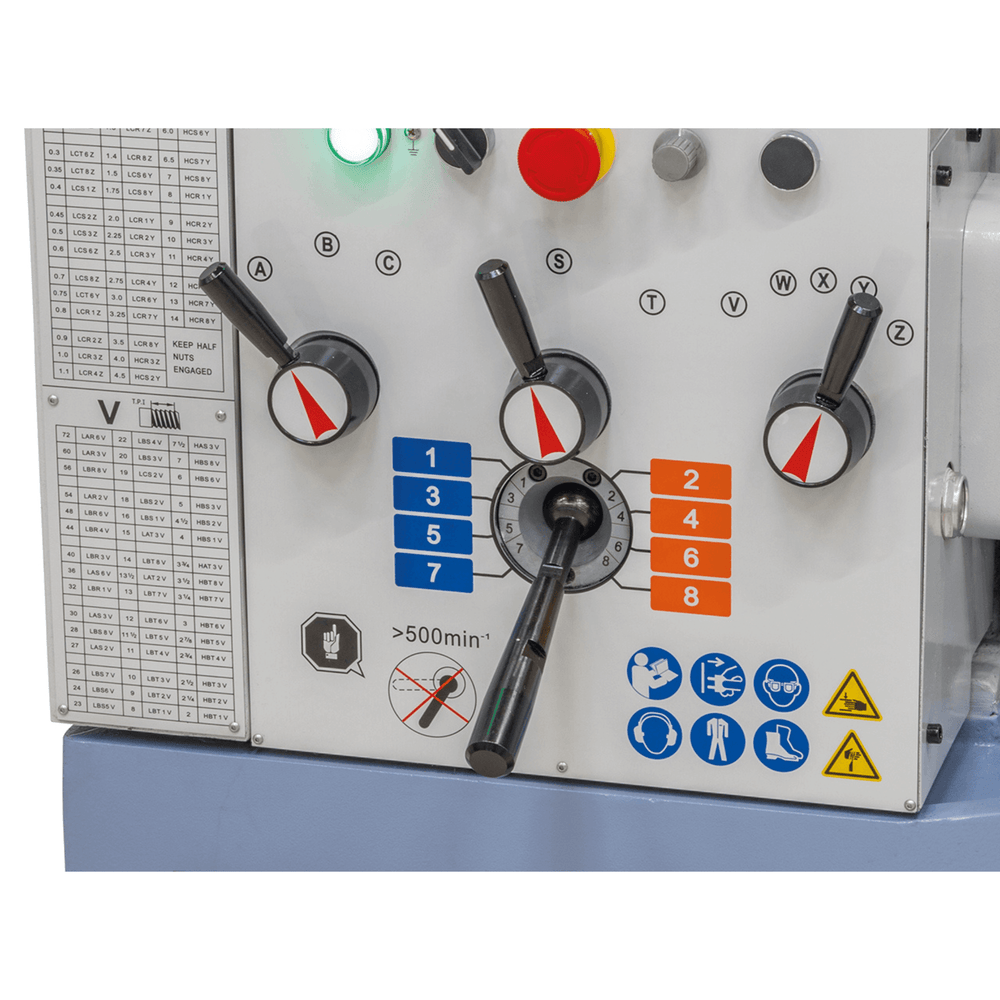

• Simple and precise change of speeds and feeds
• Sliding reitstock with micrometer and fine adjustment
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1500 mm |
| Tip height | 210 mm |
| Turning diameter on the bench | 420 mm |
| Turning diameter on bend | 580 mm |
| Turning diameter on cross slide | 255 mm |
| Bench width | 250 mm |
| Spindle hole | 52 mm |
| Spindle attachment | DIN 55029, D1-6 |

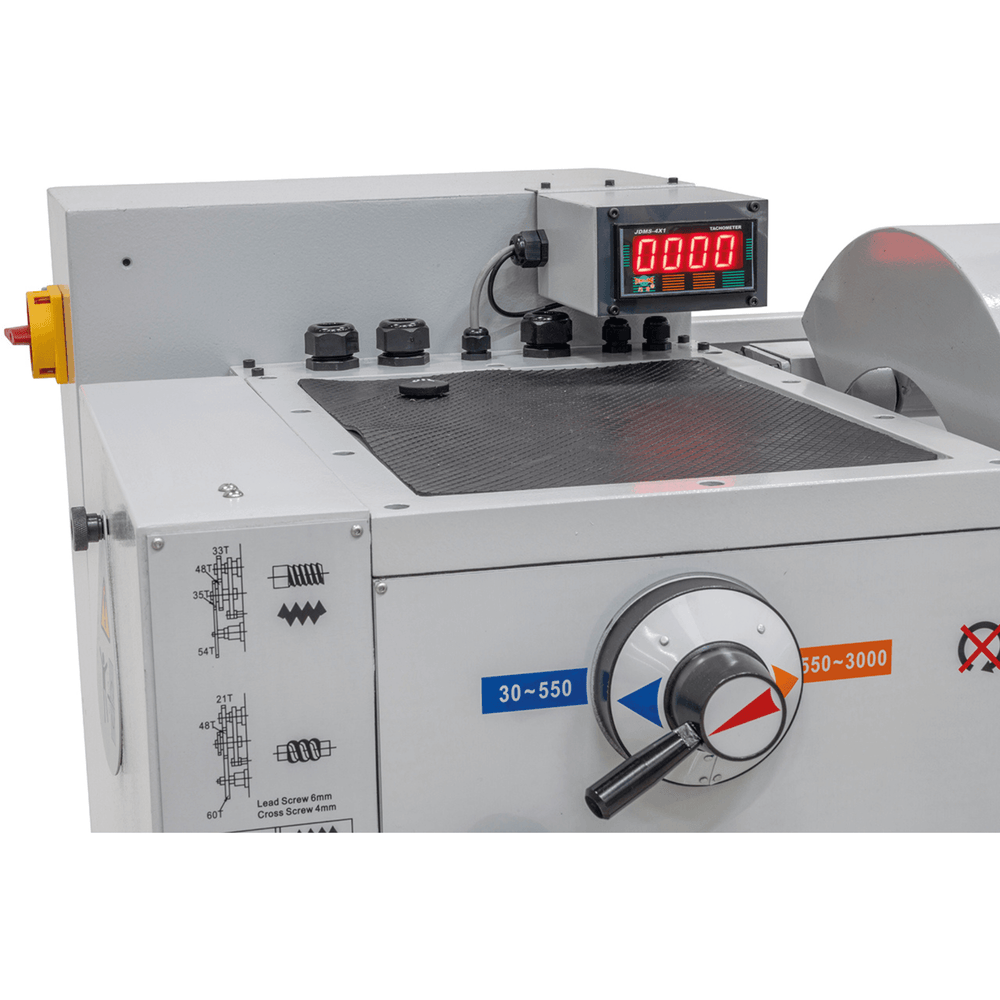

| Speed range (2 stages) | 30–550 / 550–3000 rpm |
| Longitudinal advances | (17) 0.05 – 1.7 mm/rev |
| Transversal advances | (17) 0.025 – 0.85 mm/rev |
| Metric threads | (42) 0.2 – 14 mm |
| Inch threads | (45) 2 – 72 TPI |
| Tailstock quill diameter | 50 mm |
| Dinghy race | 140 mm |
| Dinghy attachment | MK 4 |
| Engine power | 5.5 kW (7.5 HP) |
| Machine dimensions (L x W x H) | 2590 x 1050 x 1600 mm |
| Weight | 1325 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD

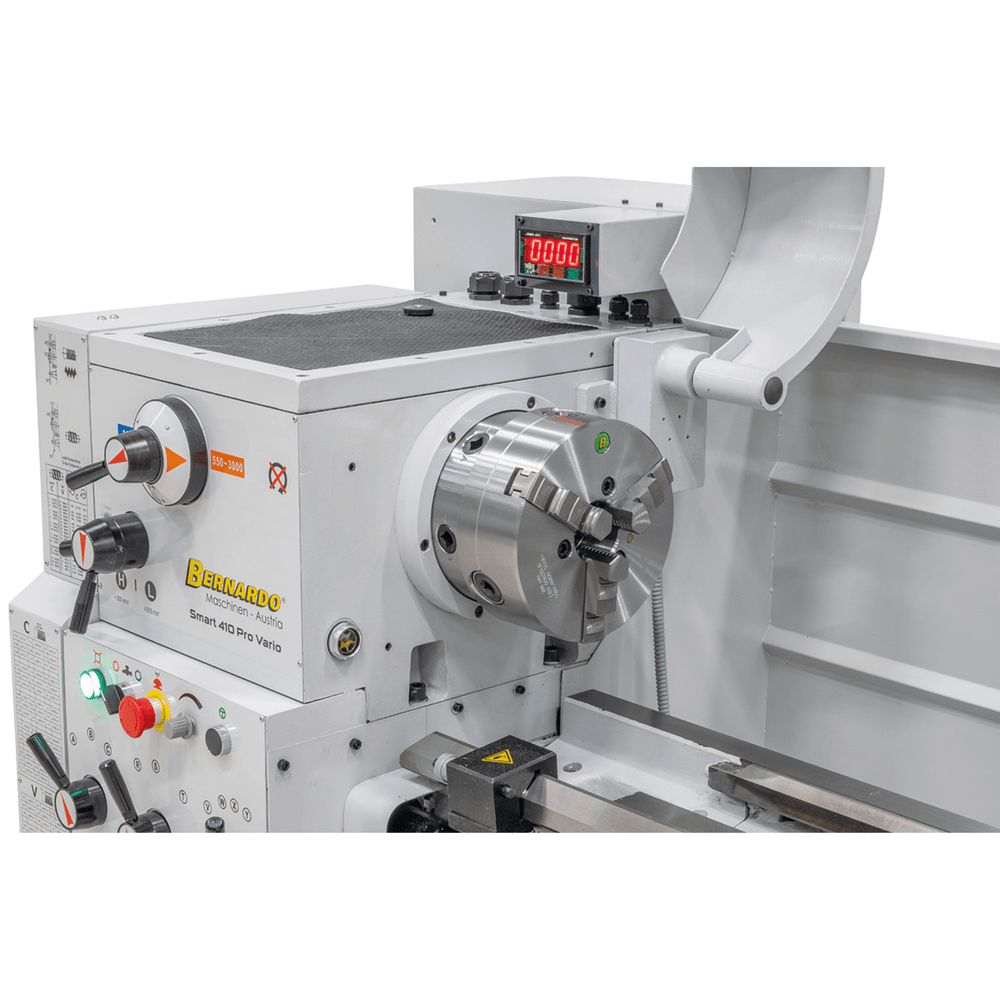

• 3-jaw chuck PO3-200 mm / D6
• Clamping plate Ø 350 mm

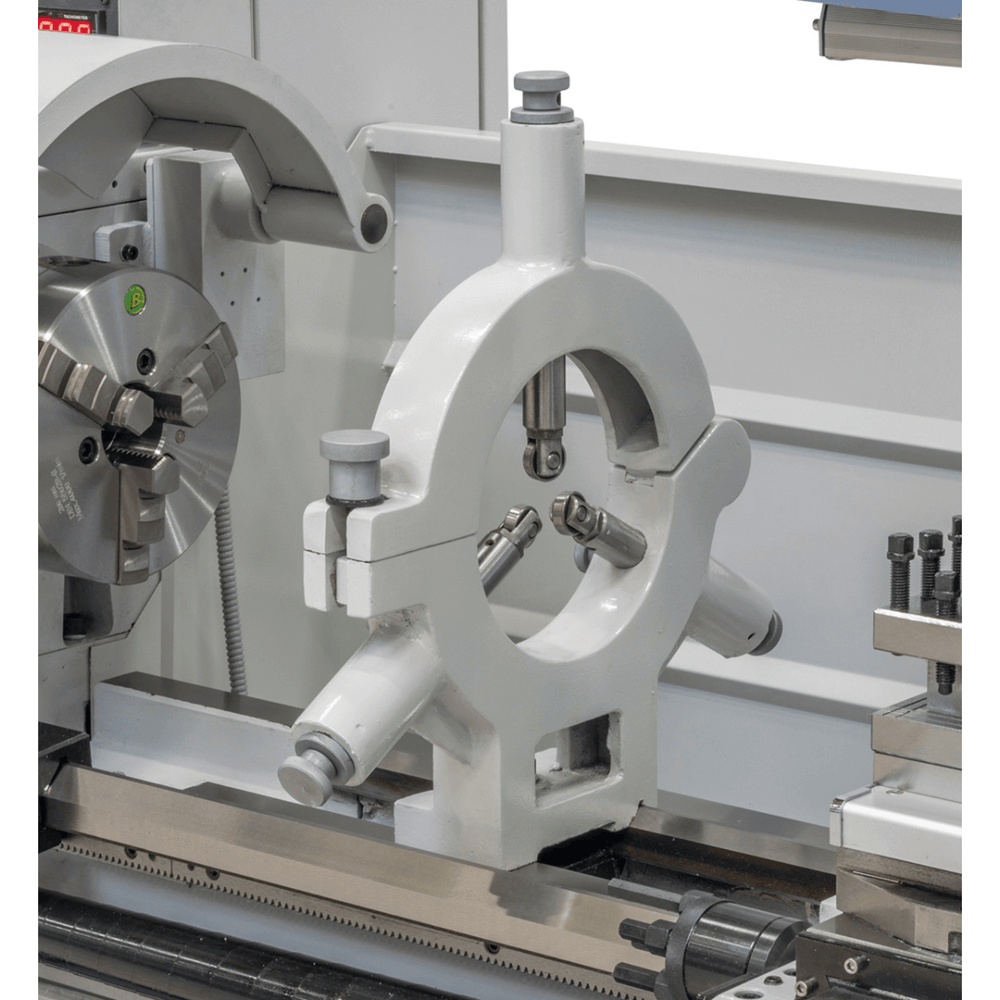

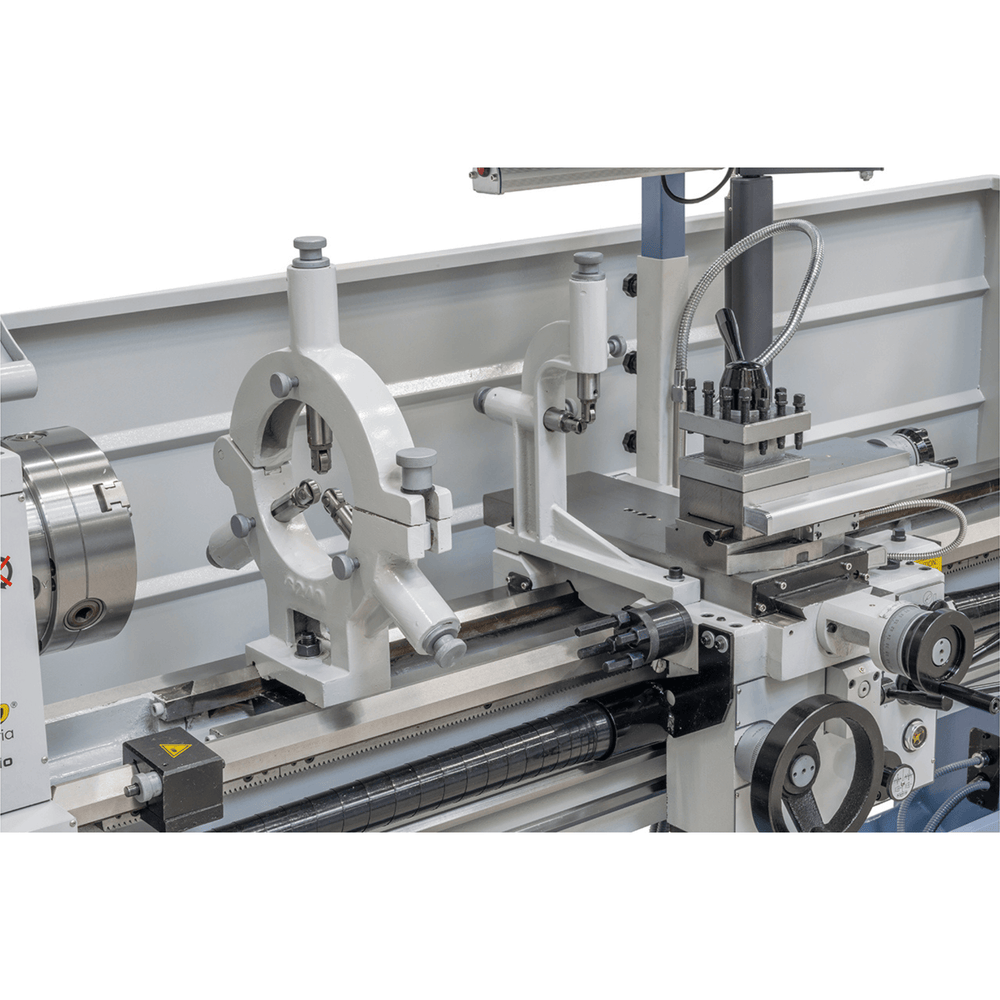

• Fixed bezel (Ø max 135 mm)
• Rotating bezel (Ø max 65 mm)
• CE compliant brake pedal

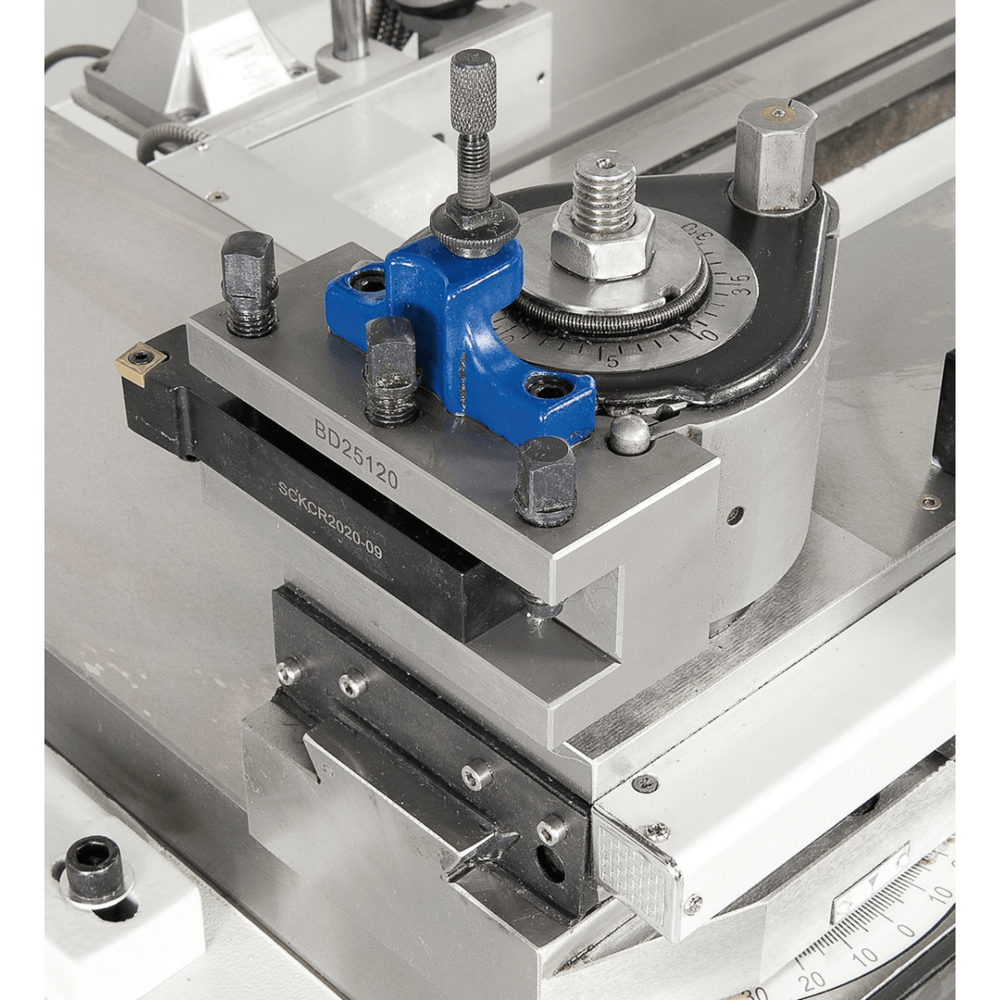

• 4-position tool holder

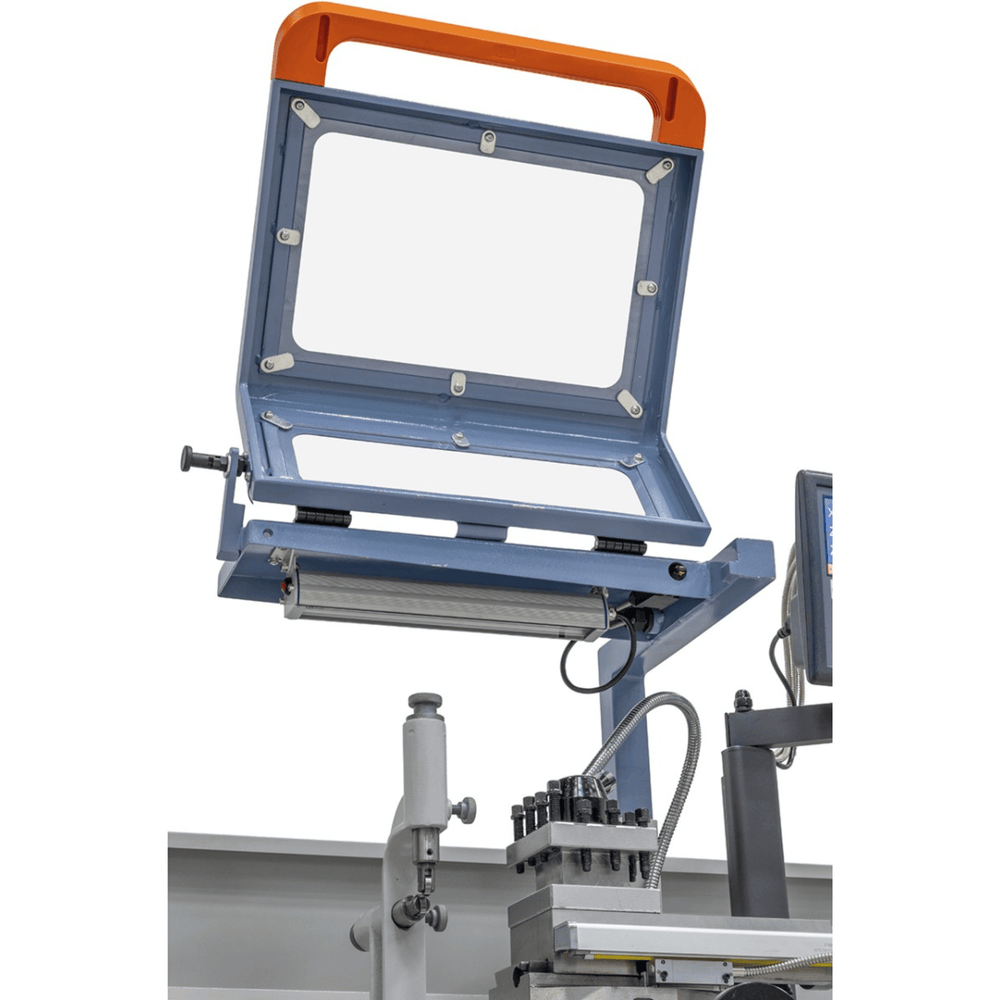

• Tool holder protection
• Longitudinal micrometer
• Turret stop with fine adjustment
• Delta Inverters
• Initial fill with Shell Tellus 46
• Cooling system
• Safety clutch
• Thread clock
• LED lighting

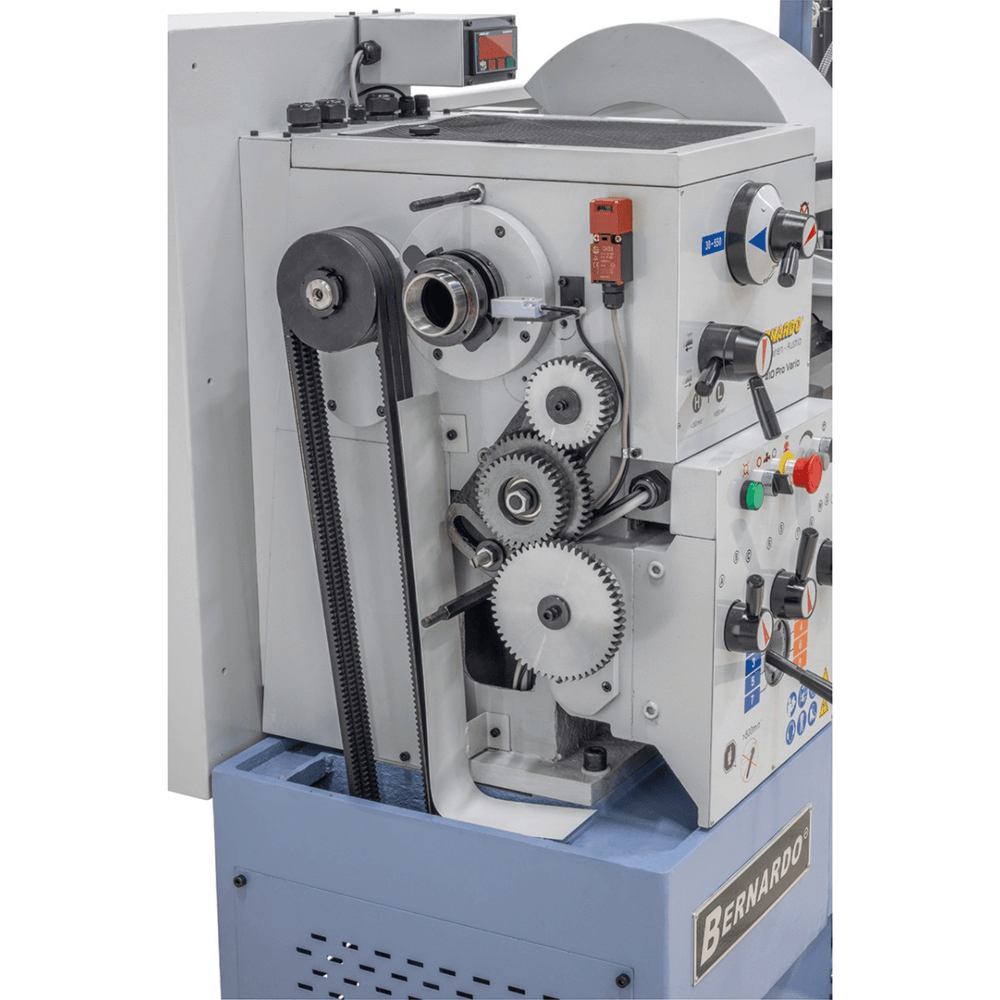

• Replacement gears
• Reduction compass
• 2 central tips
• Rear wall to collect shavings
• Service tools
