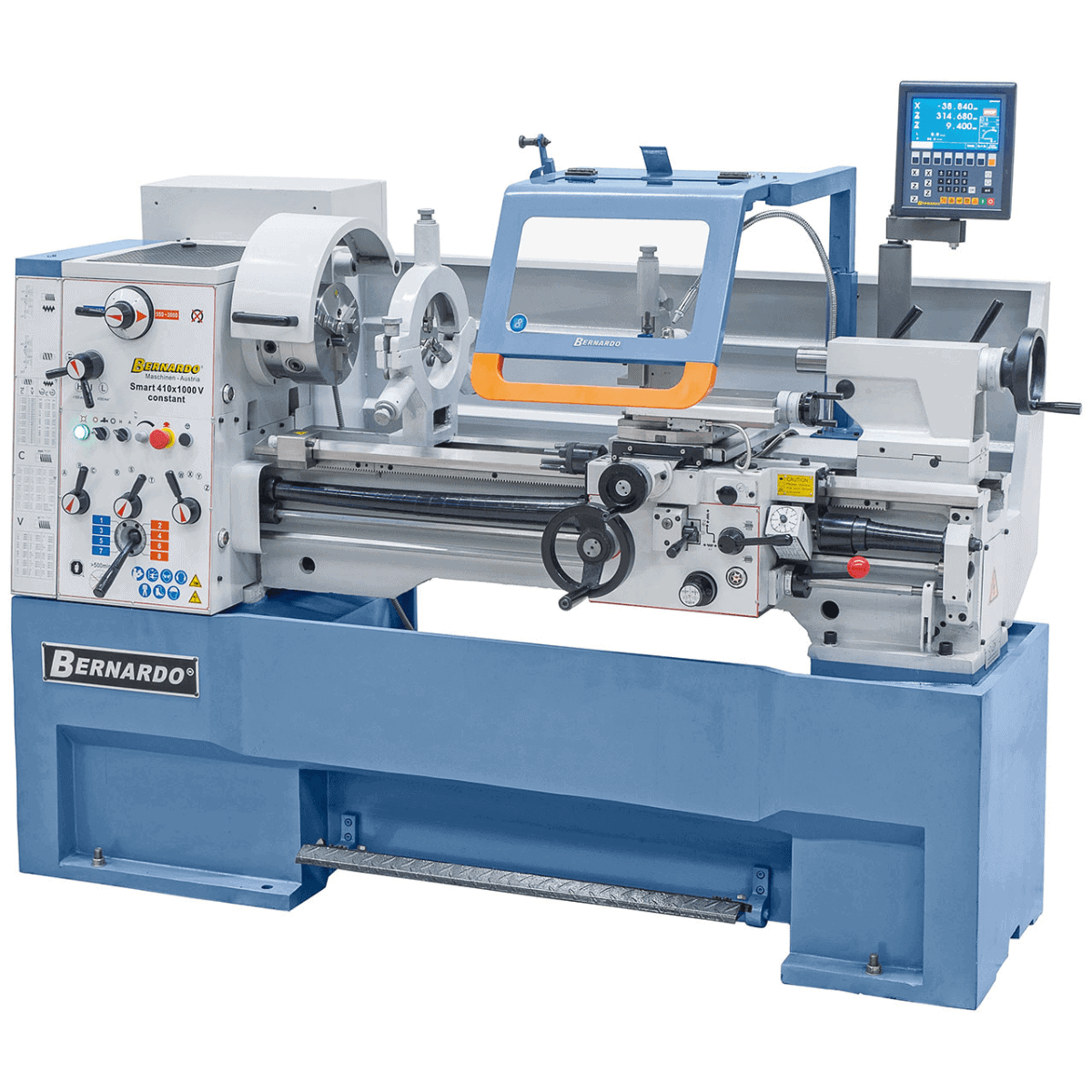

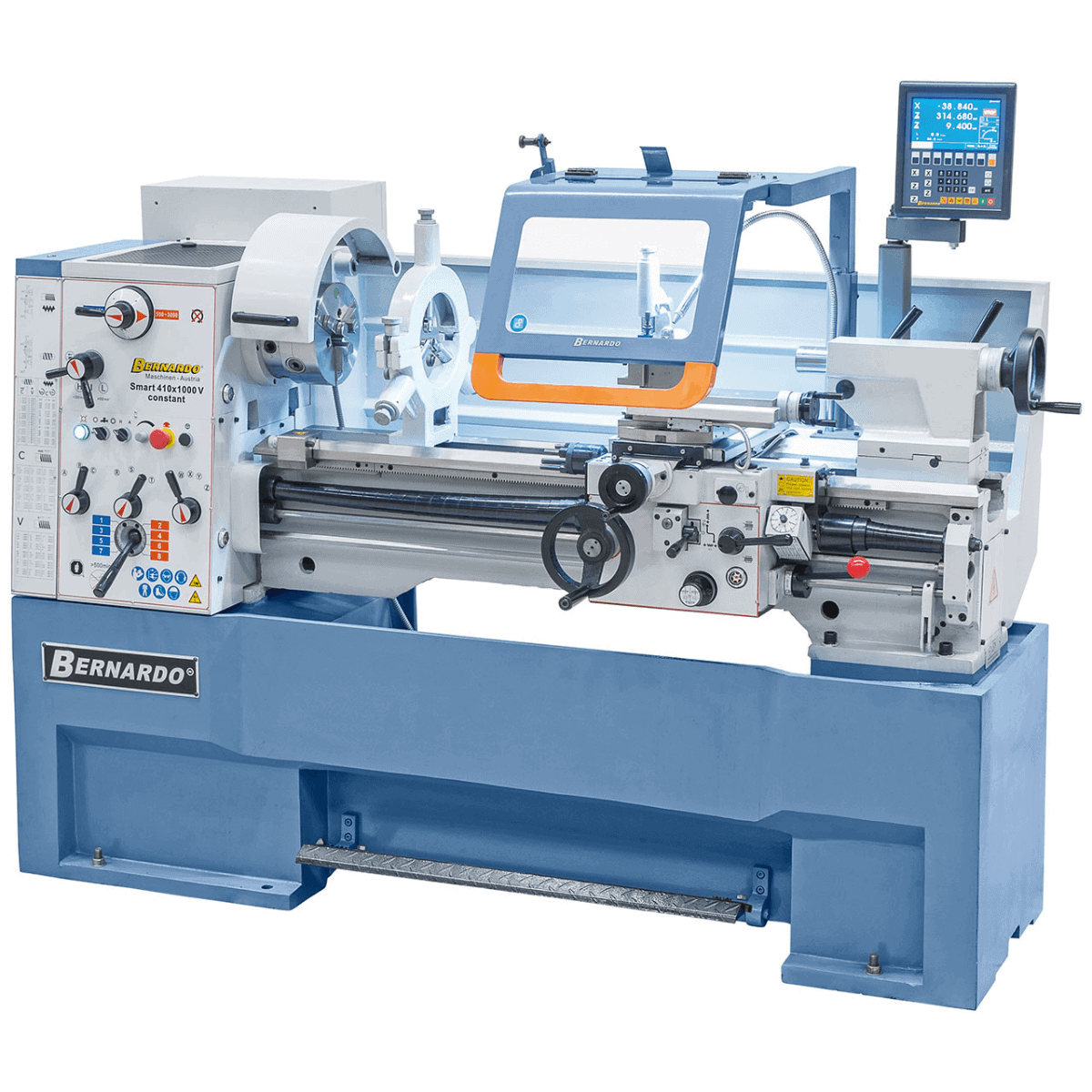

Smart 410 x 1500 V-constant universal lathe with constant cutting speed
The Smart 410 x 1500 V-constant lathe is ideal for technical schools, repair shops, and training laboratories. Designed with a stable structure and an intuitive interface, it includes all the essential features as standard. The "constant cutting speed" function allows you to maintain an optimal surface finish even when the workpiece diameter varies.
Main features
• Automatic speed regulation for constant cutting during plandreh
• Excellent turning surface even on pieces with variable diameters
• Prismatic bed in grey cast iron, hardened and precisely ground
• Precise transmission with hardened and ground shafts and gears

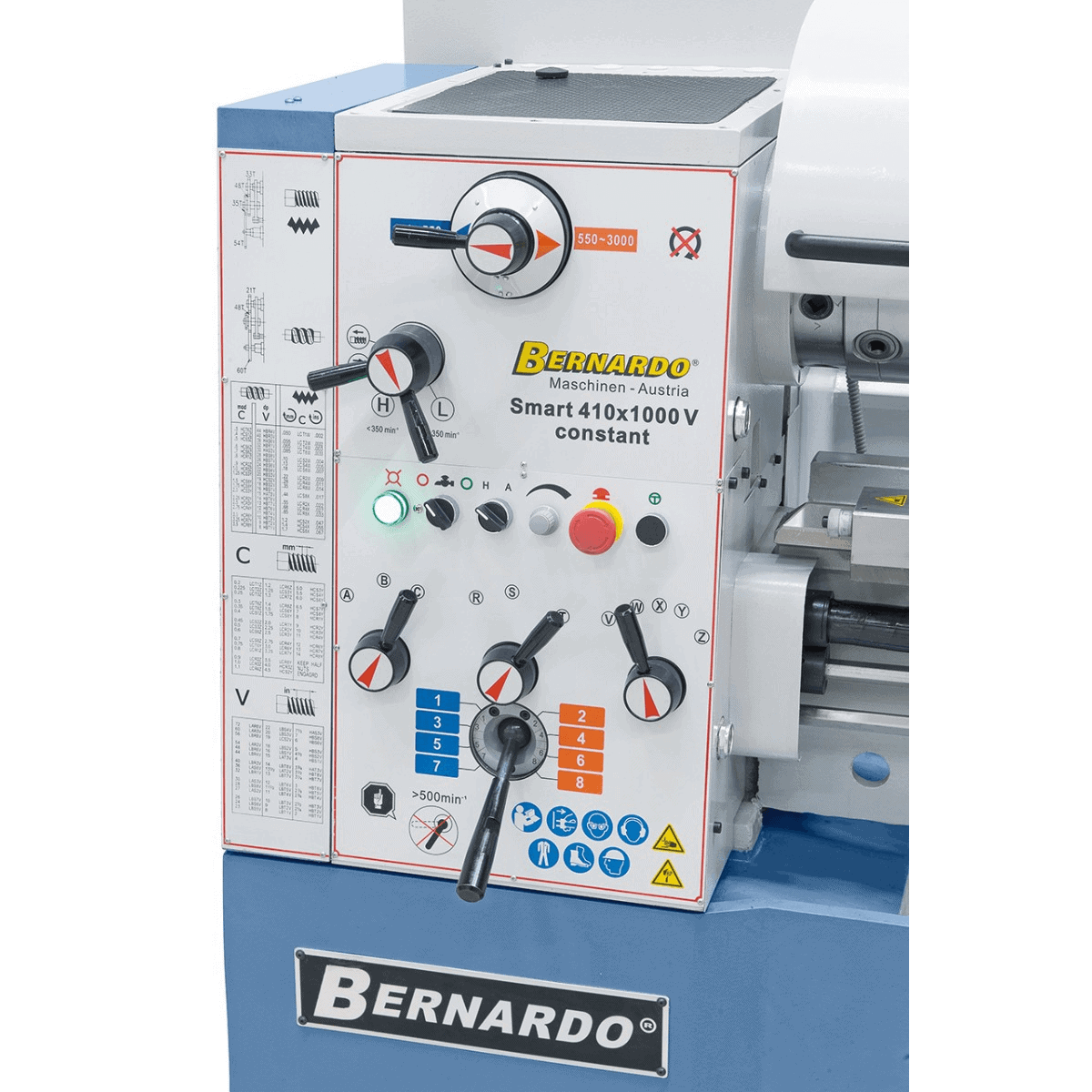

• 3-axis digital display included with speed indication
• Spindle supported by high precision angular contact bearings

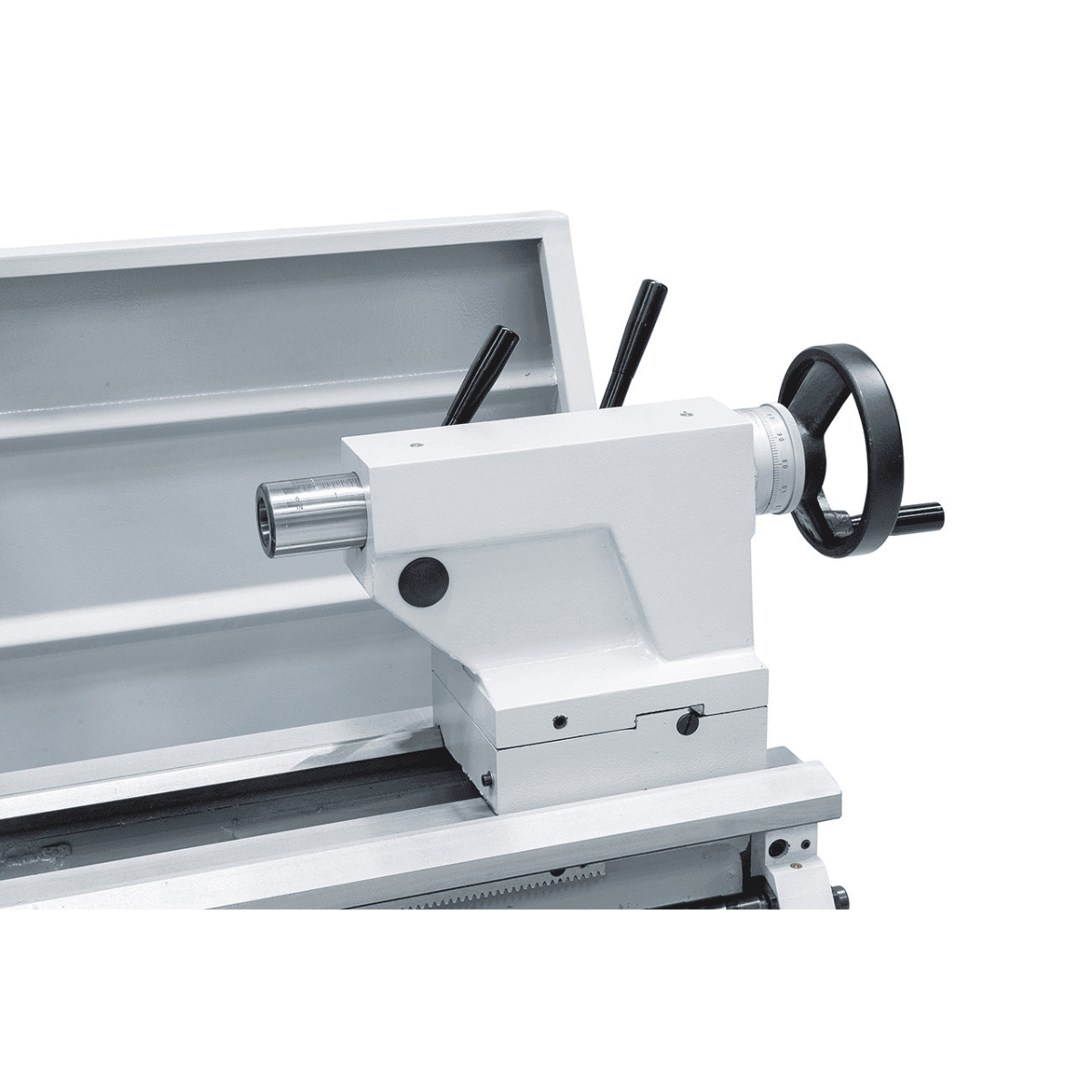

• Reitstock with micrometric scale and movement for conical machining
• Removable arm for working on large diameter pieces
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1500 mm |
| Tip height | 210 mm |
| Turning diameter on the bench | 420 mm |
| Turning diameter on bend | 580 mm |
| Turning diameter on cross slide | 250 mm |
| Bench width | 250 mm |
| Spindle hole | 52 mm |
| Spindle attachment | DIN 55029, D1-6 |
| Speed range (2 stages) | 30–550 / 550–3000 rpm |
| Longitudinal advances | (17) 0.05 – 1.7 mm/rev |
| Transversal advances | (17) 0.025 – 0.85 mm/rev |
| Metric threads | (42) 0.2 – 14 mm |
| Inch threads | (45) 2 – 72 TPI |
| Tailstock quill diameter | 50 mm |
| Dinghy race | 125 mm |
| Dinghy attachment | MK 4 |
| Engine power | 5.5 kW (7.5 HP) |
| Machine dimensions (L x W x H) | 2450 x 1000 x 1580 mm |
| Weight | 1400 kg |
Package Contents

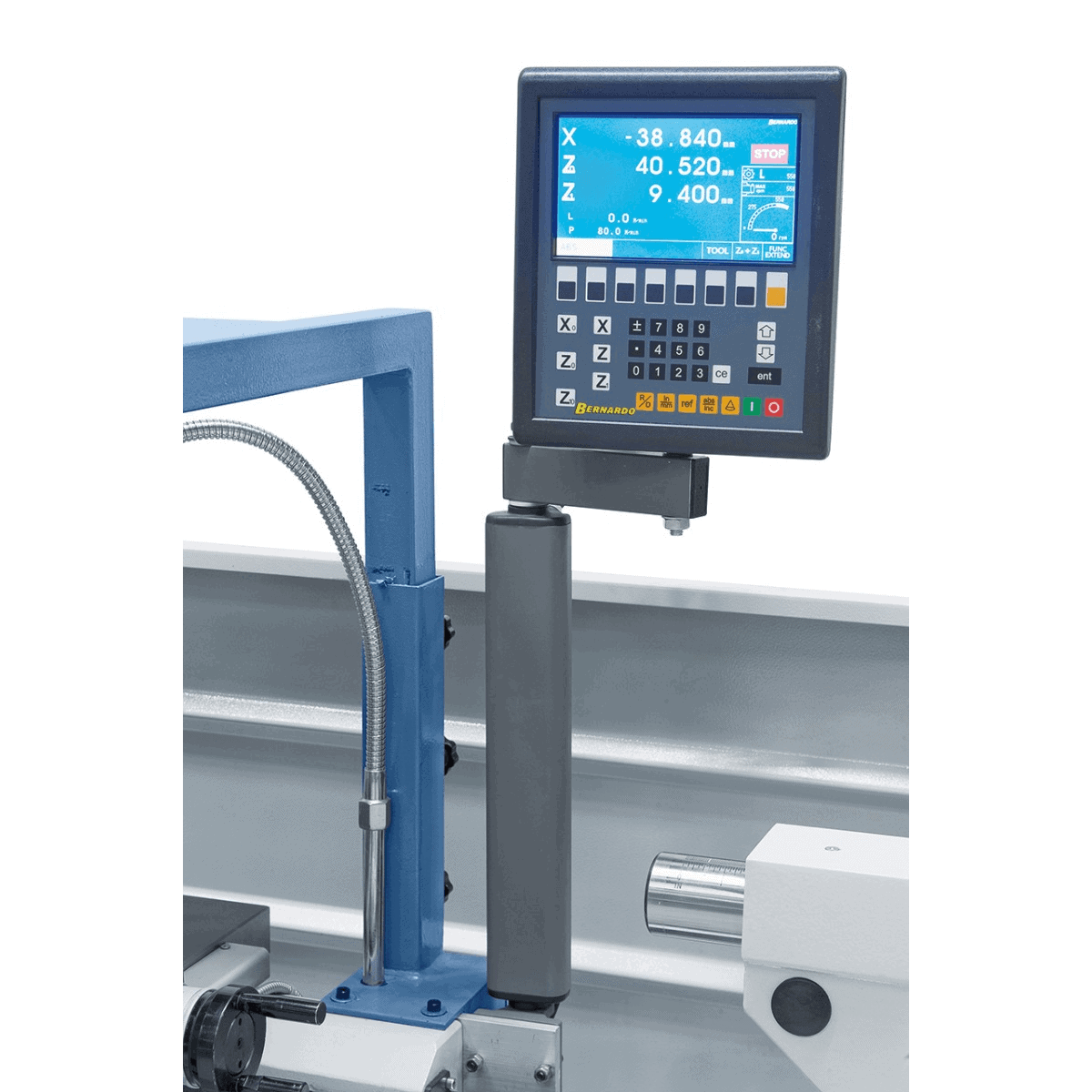

• ES-12 S 3-axis digital display with LCD and speed indication

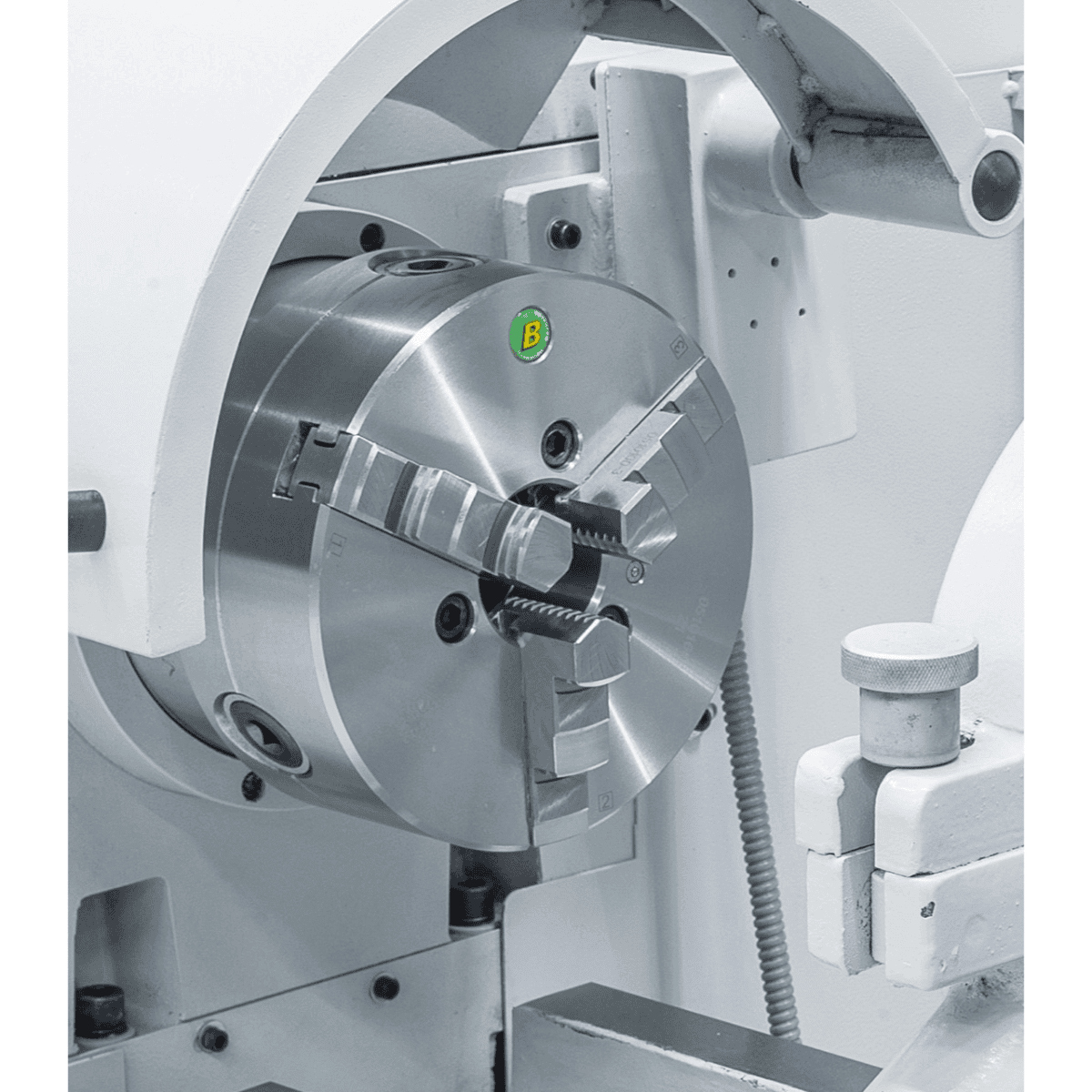

• 3-jaw chuck PO3-200 mm / D6
• Clamping plate Ø 350 mm

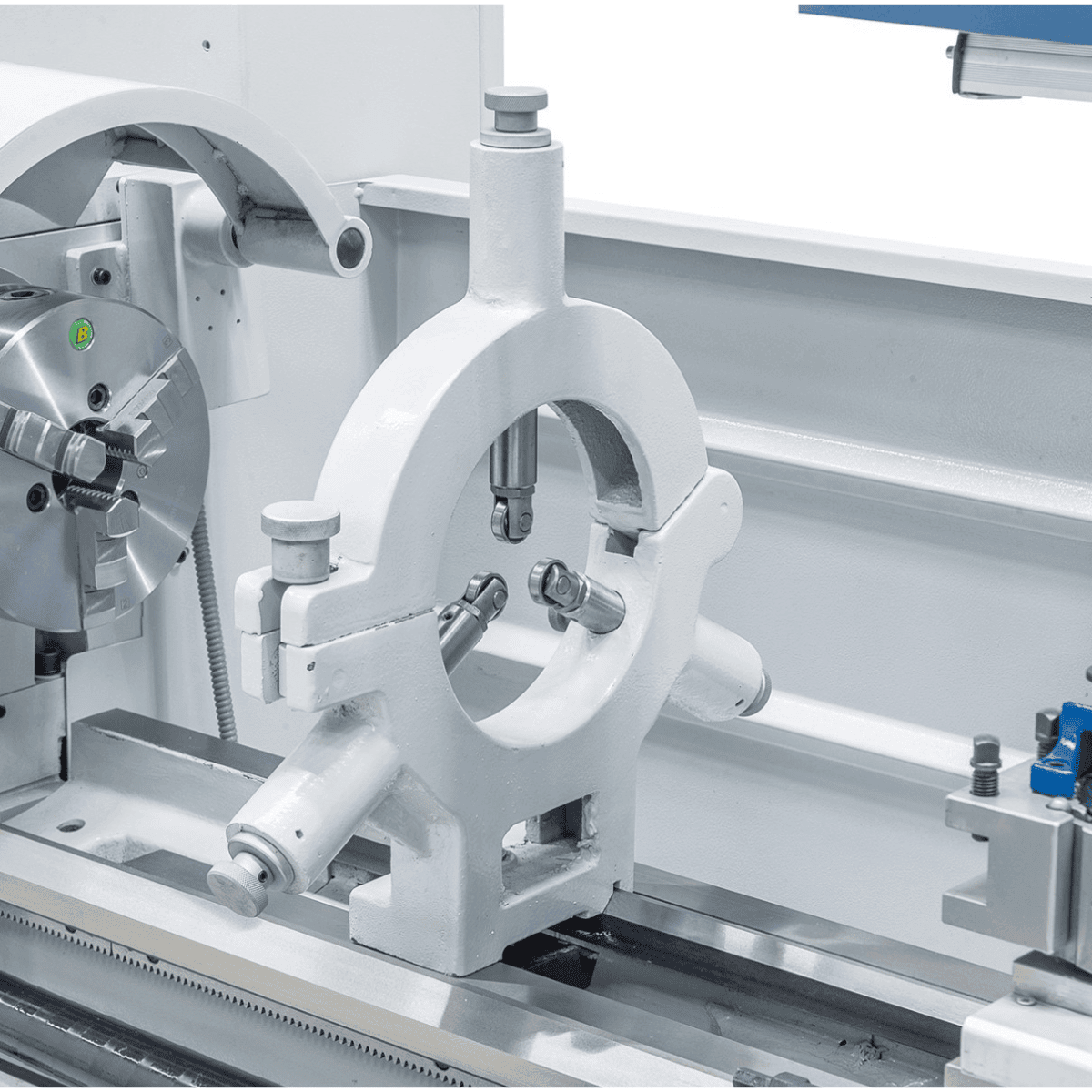

• Fixed bezel (Ø max 130 mm)

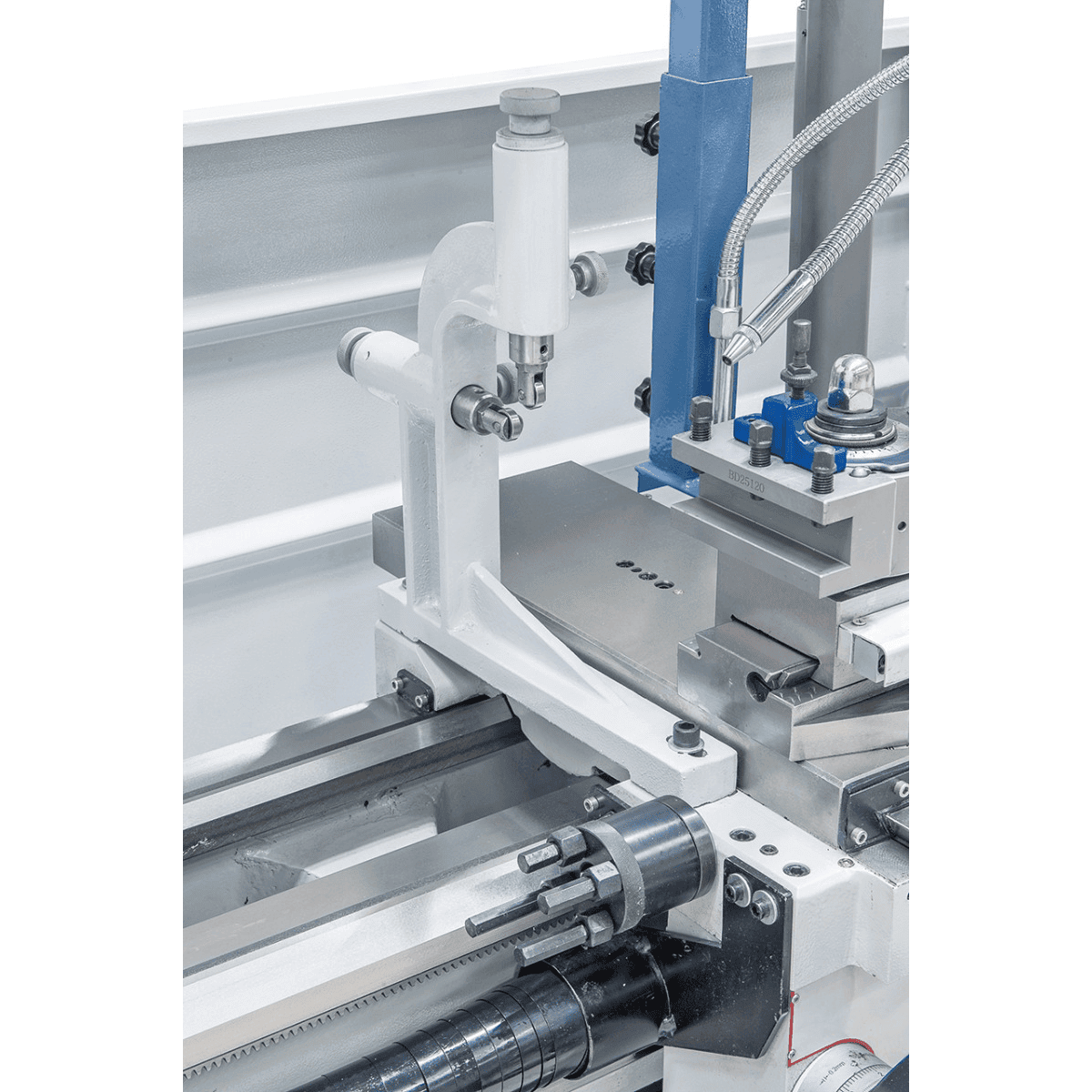

• Rotating bezel (Ø max 70 mm)
• CE compliant brake pedal

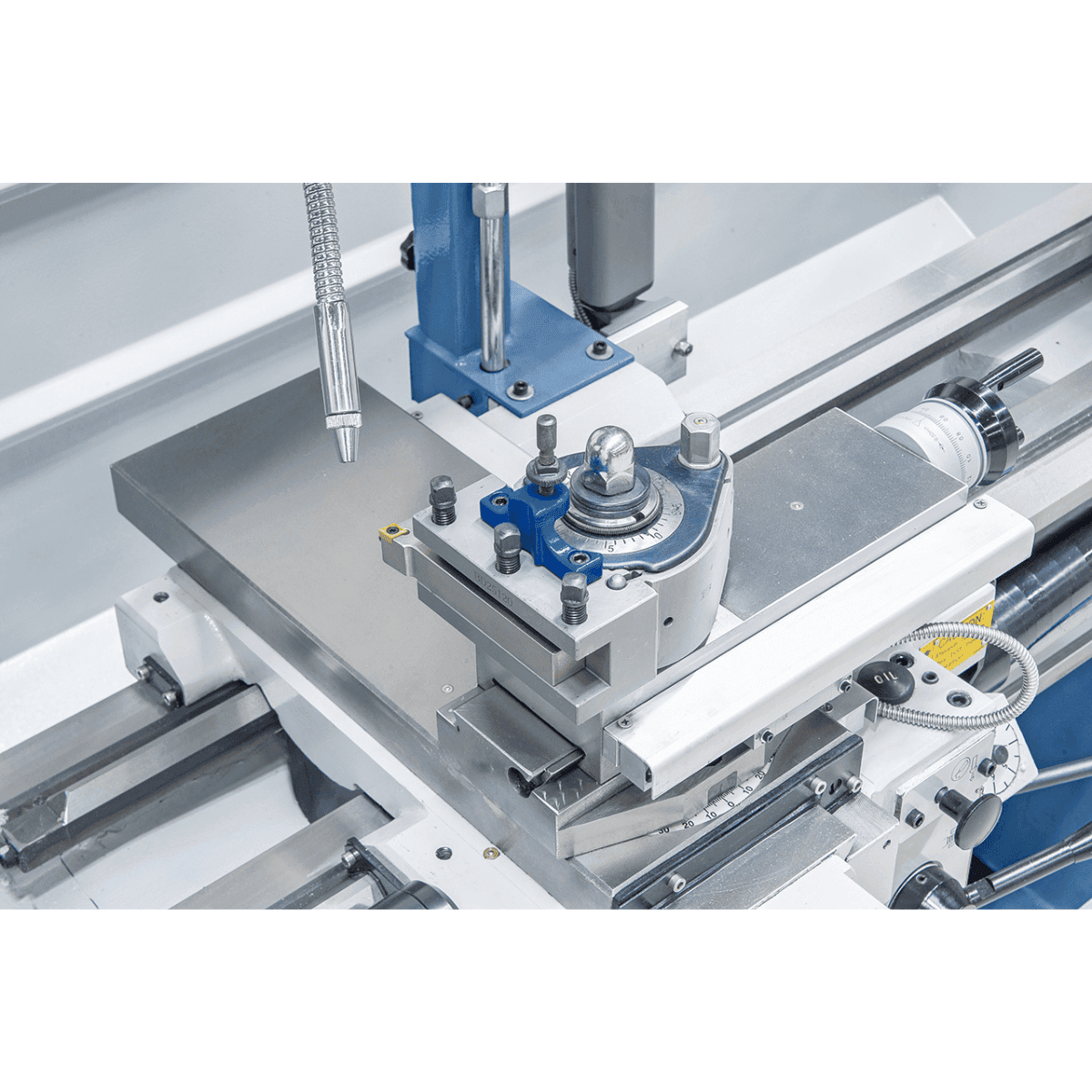

• Quick-change tool holder with 4 inserts

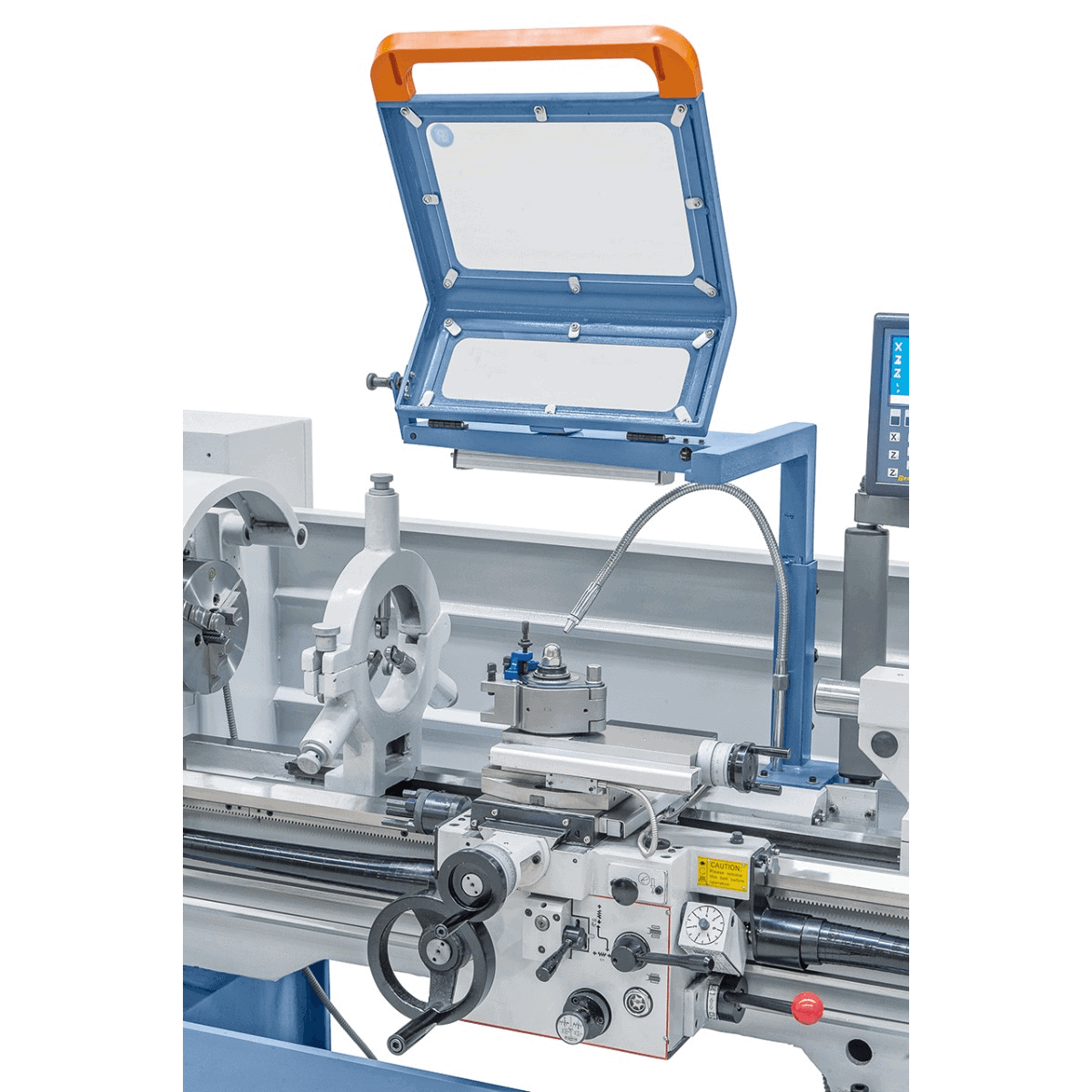

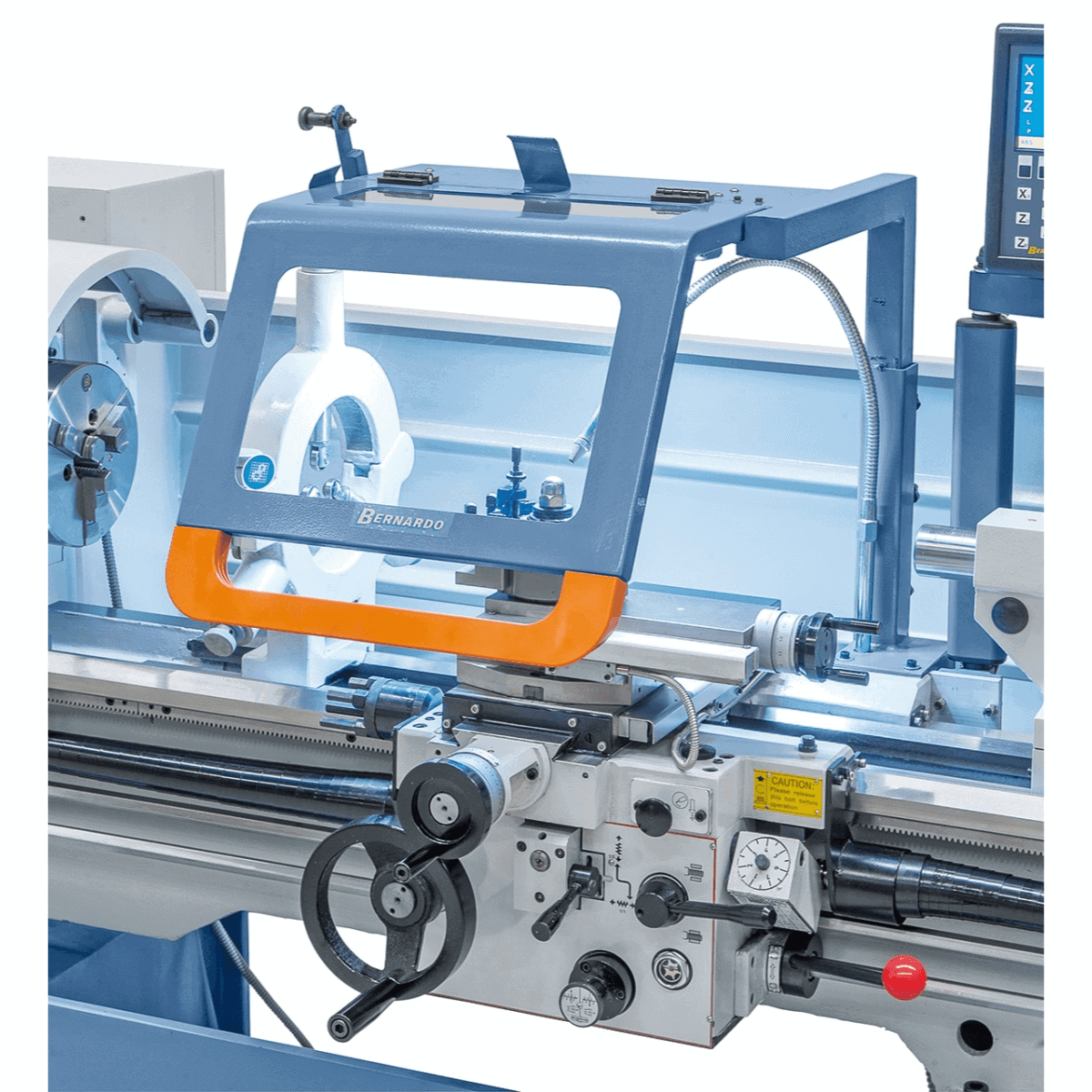

• Tool holder protection
• Longitudinal micrometer

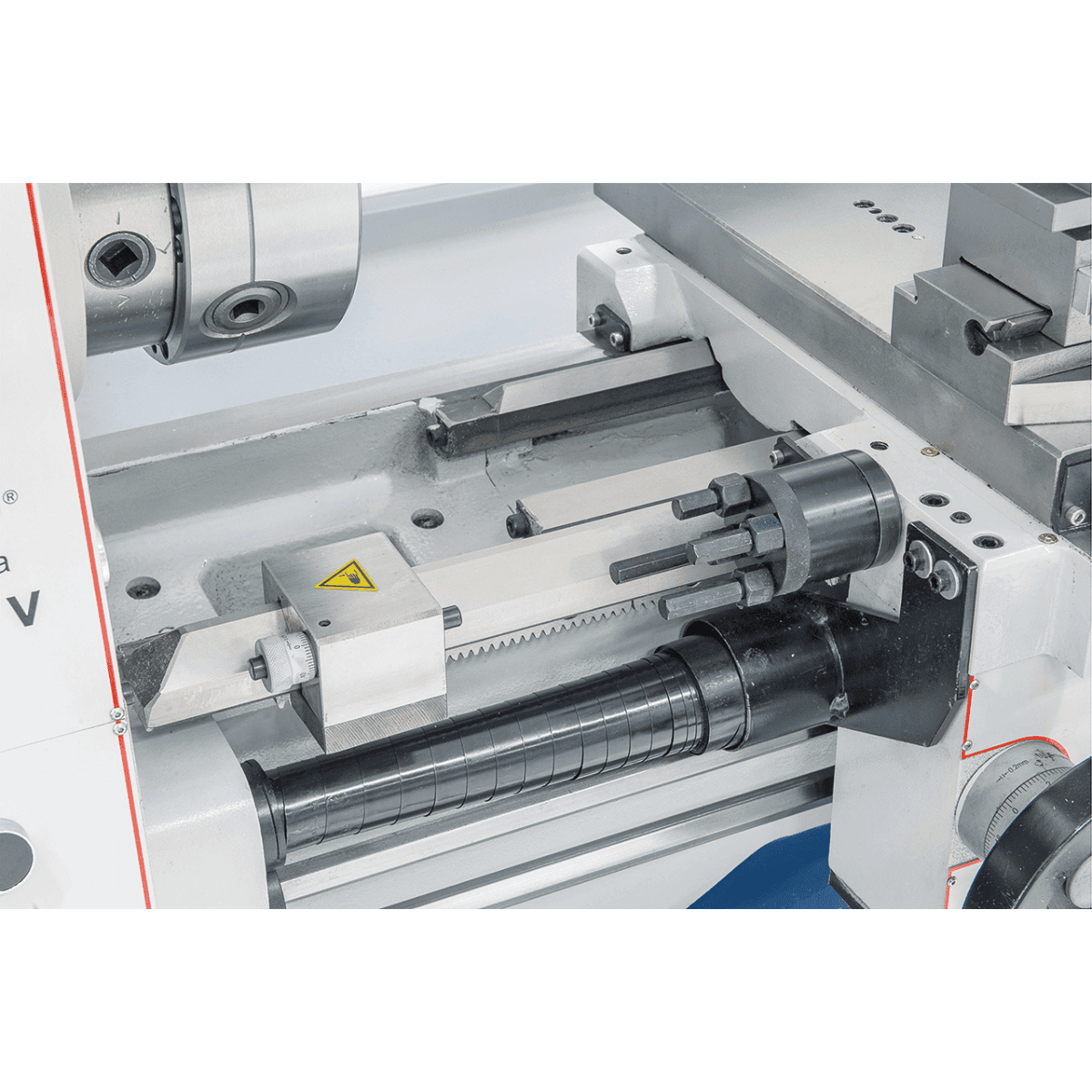

• Turret stop with fine adjustment

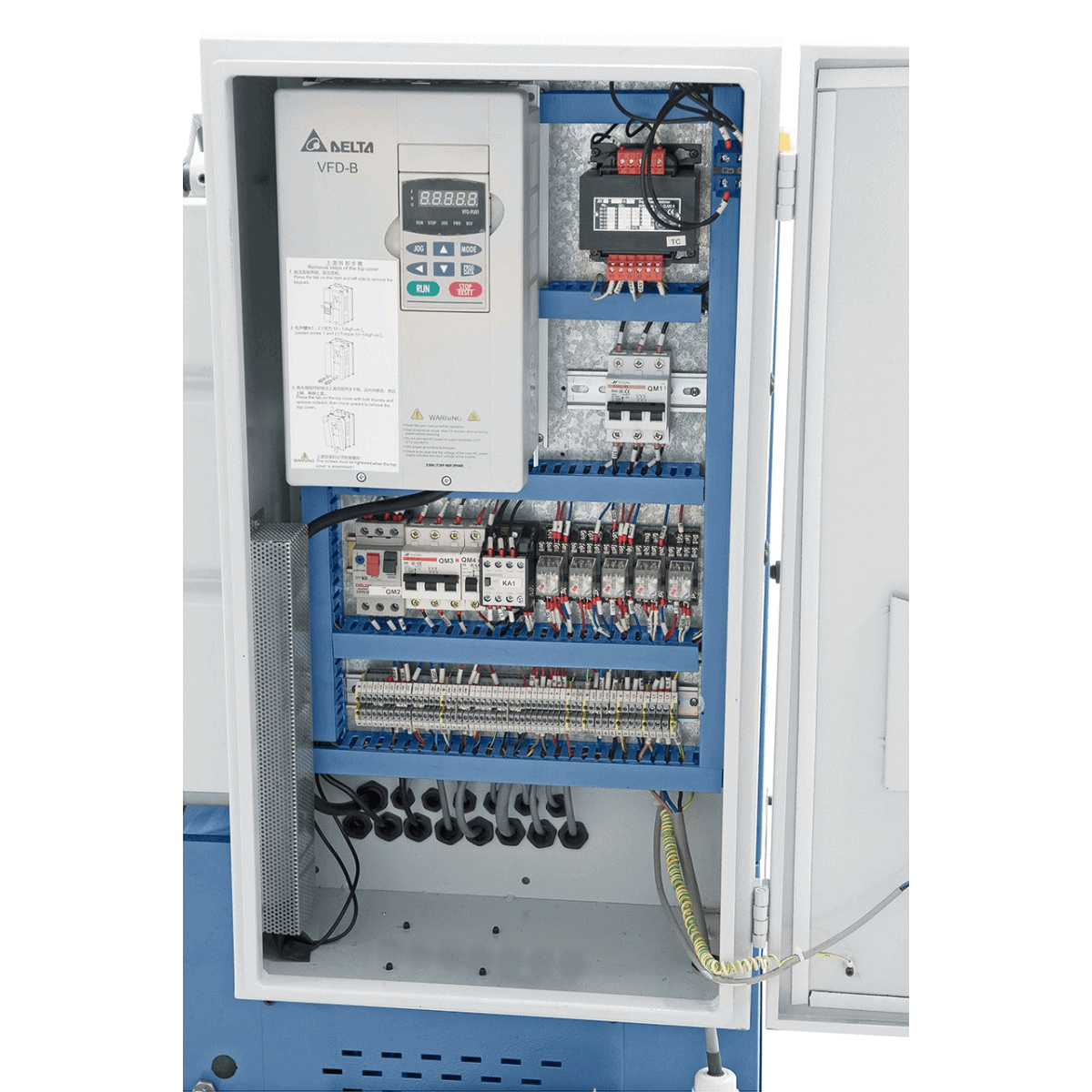

• Inverter
• Initial fill with Shell Tellus 46
• Cooling system
• Safety clutch
• Thread clock

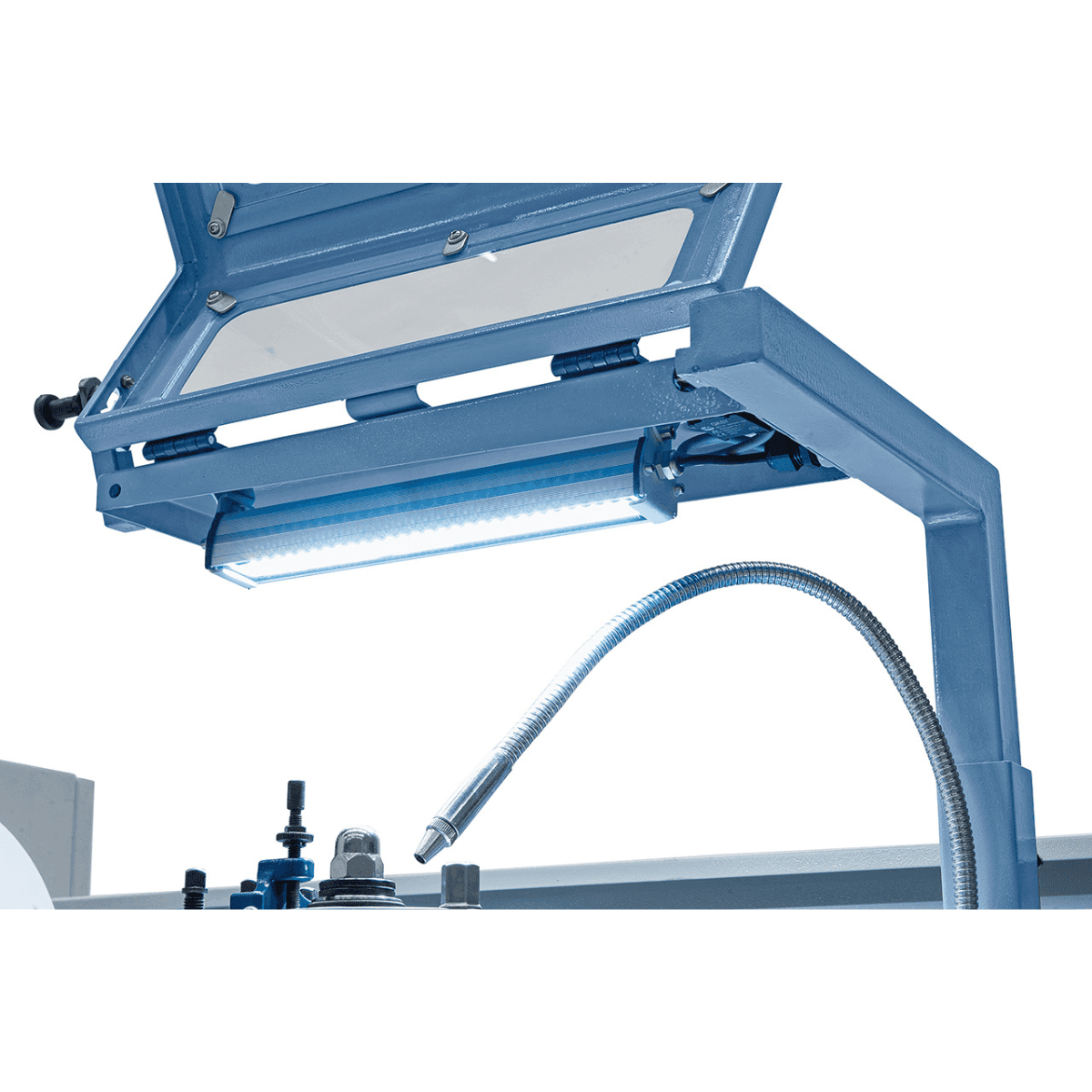

• LED lighting

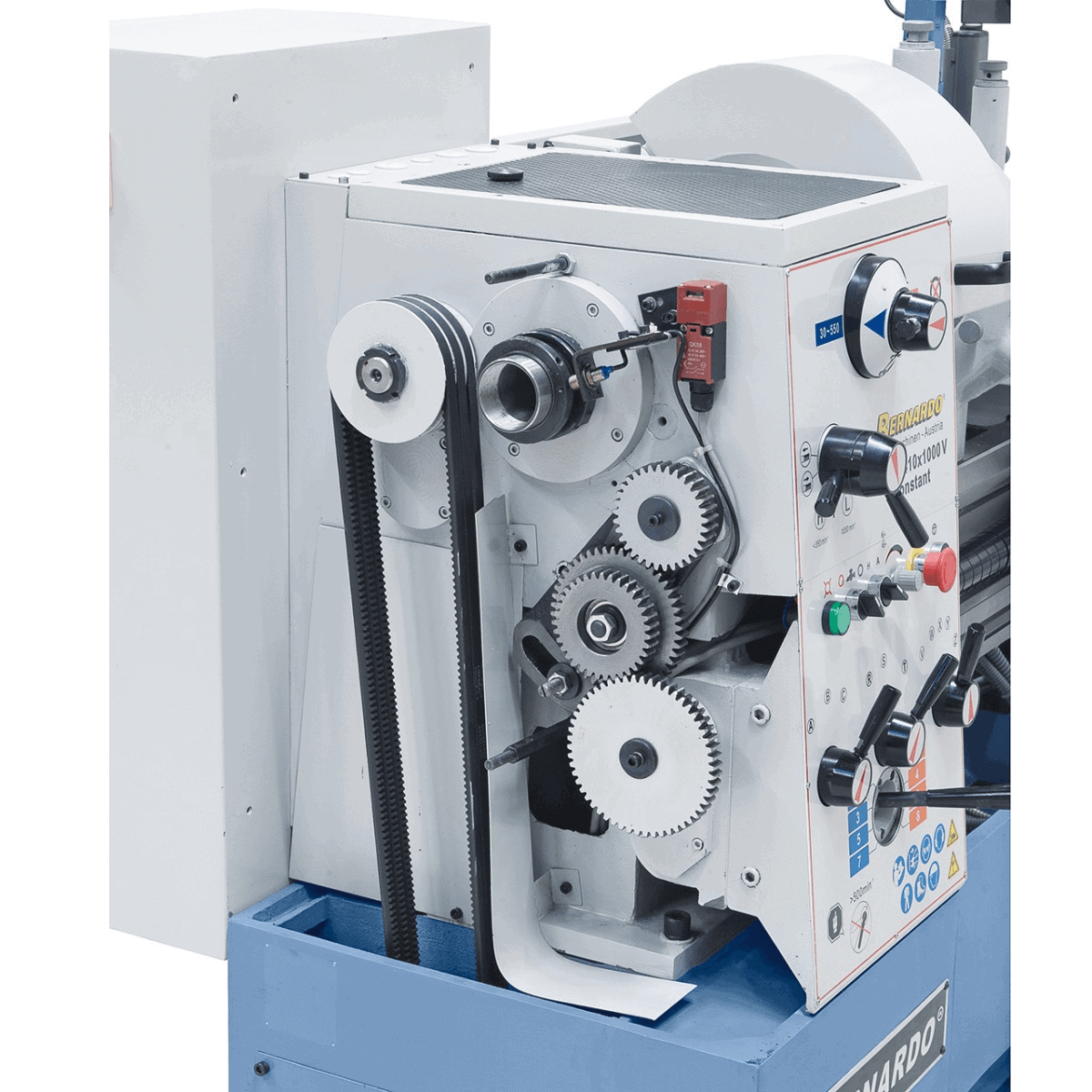

• Replacement gears
• Reduction compass
• 2 central tips
• Rear wall to collect chips
• Service tools
