Bernardo  |  SKU: 03-1255

Standard 150 Basic Lathe

€4.051,60 €4.501,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

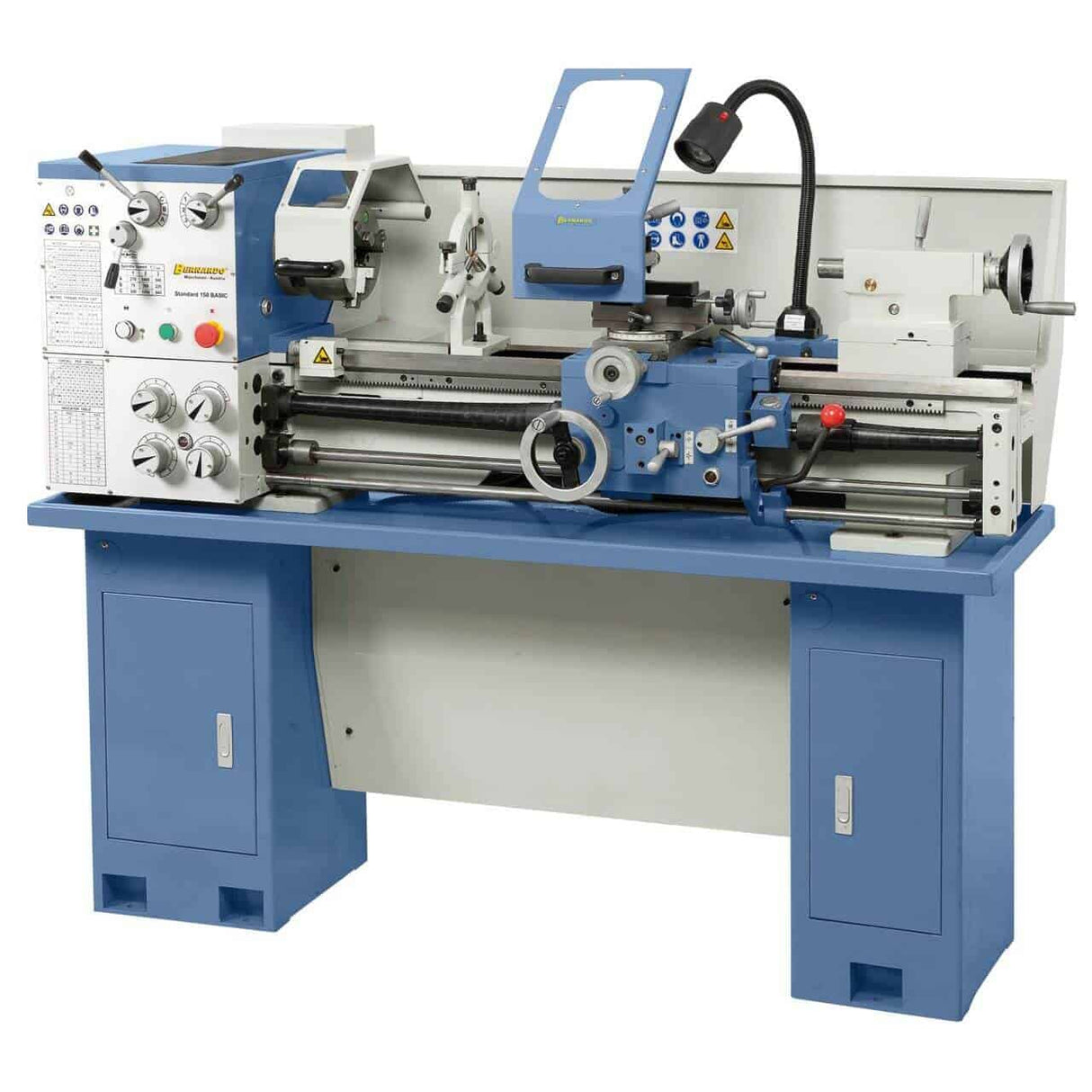

The Standard 150 Basic lathe with guide spindles or arbor spindles, thanks to its excellent price-performance ratio and its wide range of accessories, is the ideal machine for the most ambitious hobby craftsmen.

Property

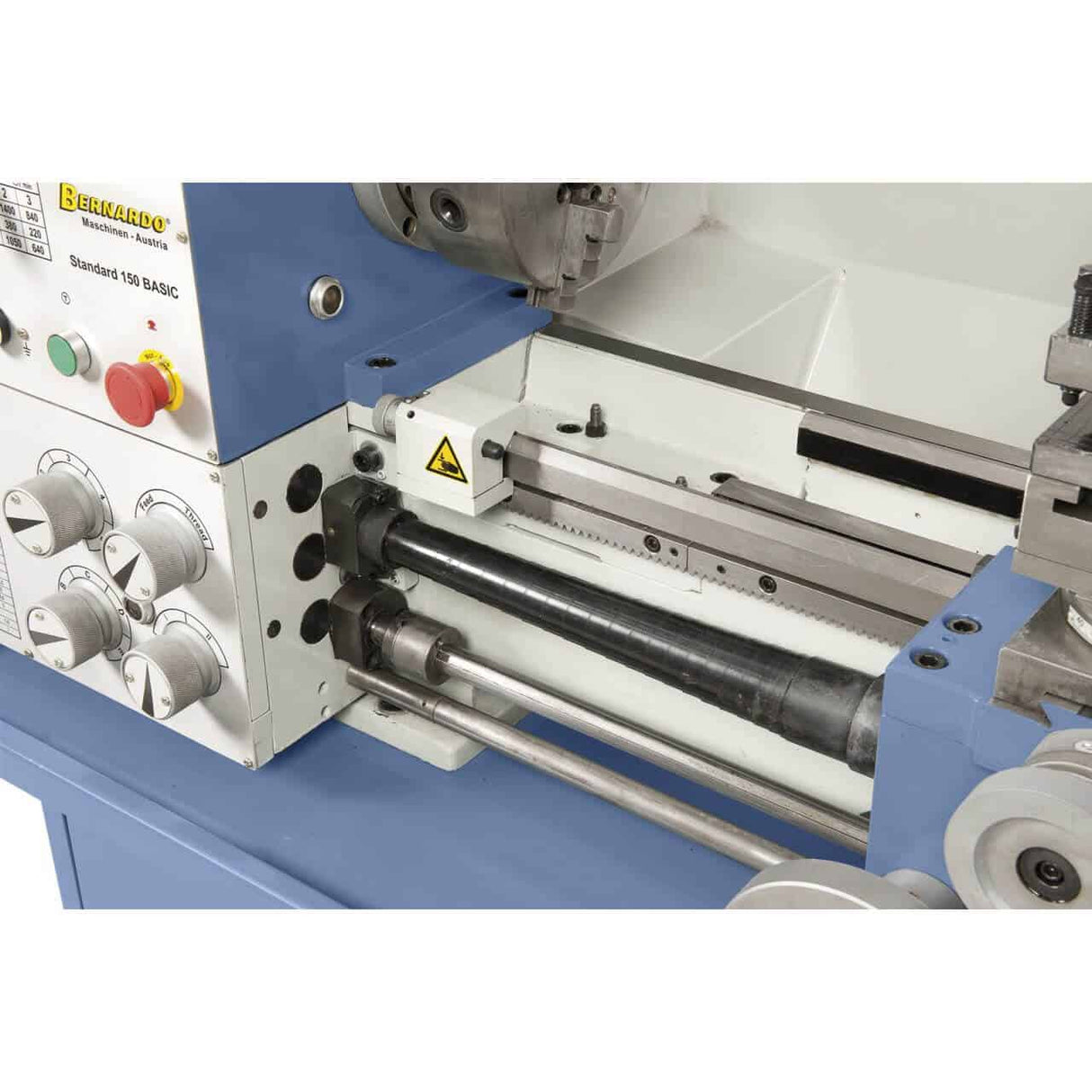

  • Very convenient machine, equipped with a guide spindle and a shaft spindle for threading and automatic feed
  • Removable bridge for machining large diameter workpieces
  • To minimize vibrations it is also equipped with a massive prism base with ribs

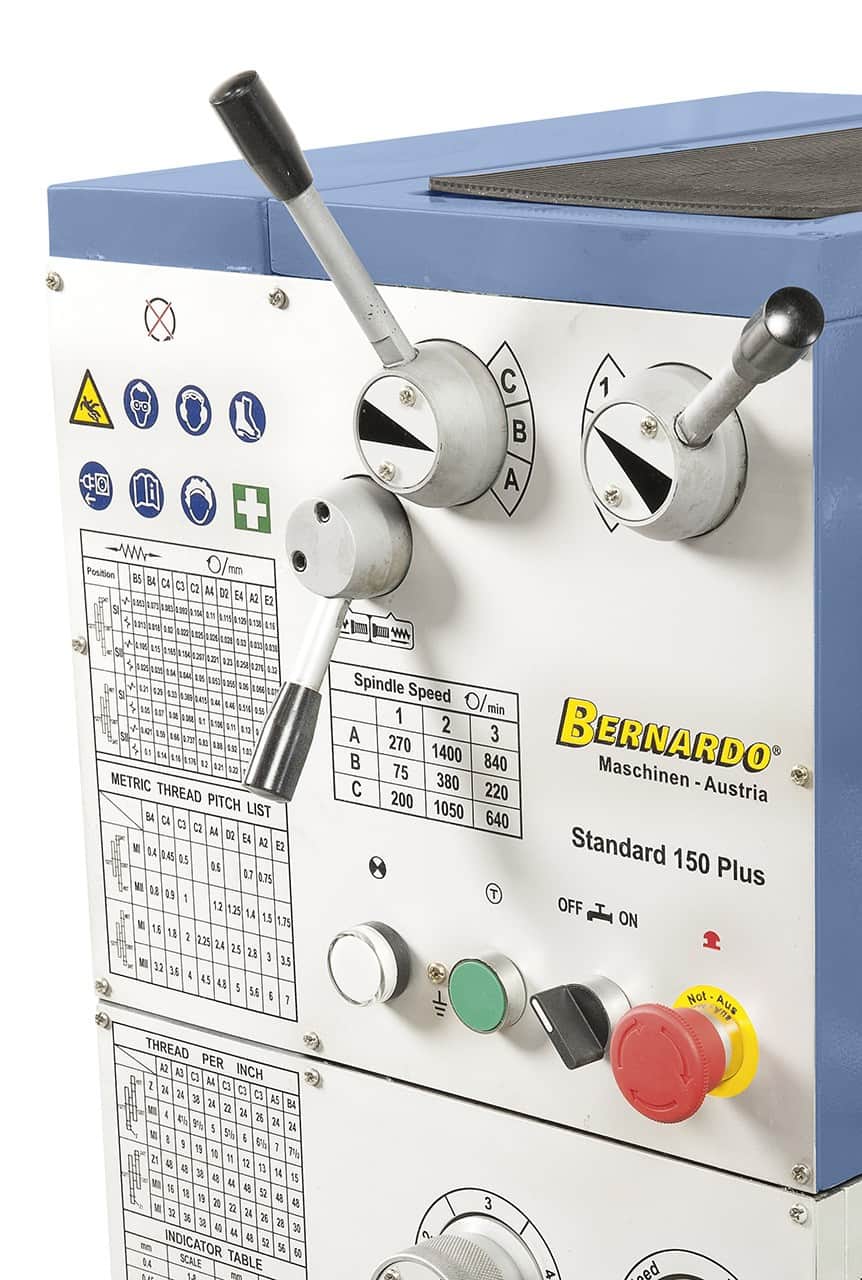

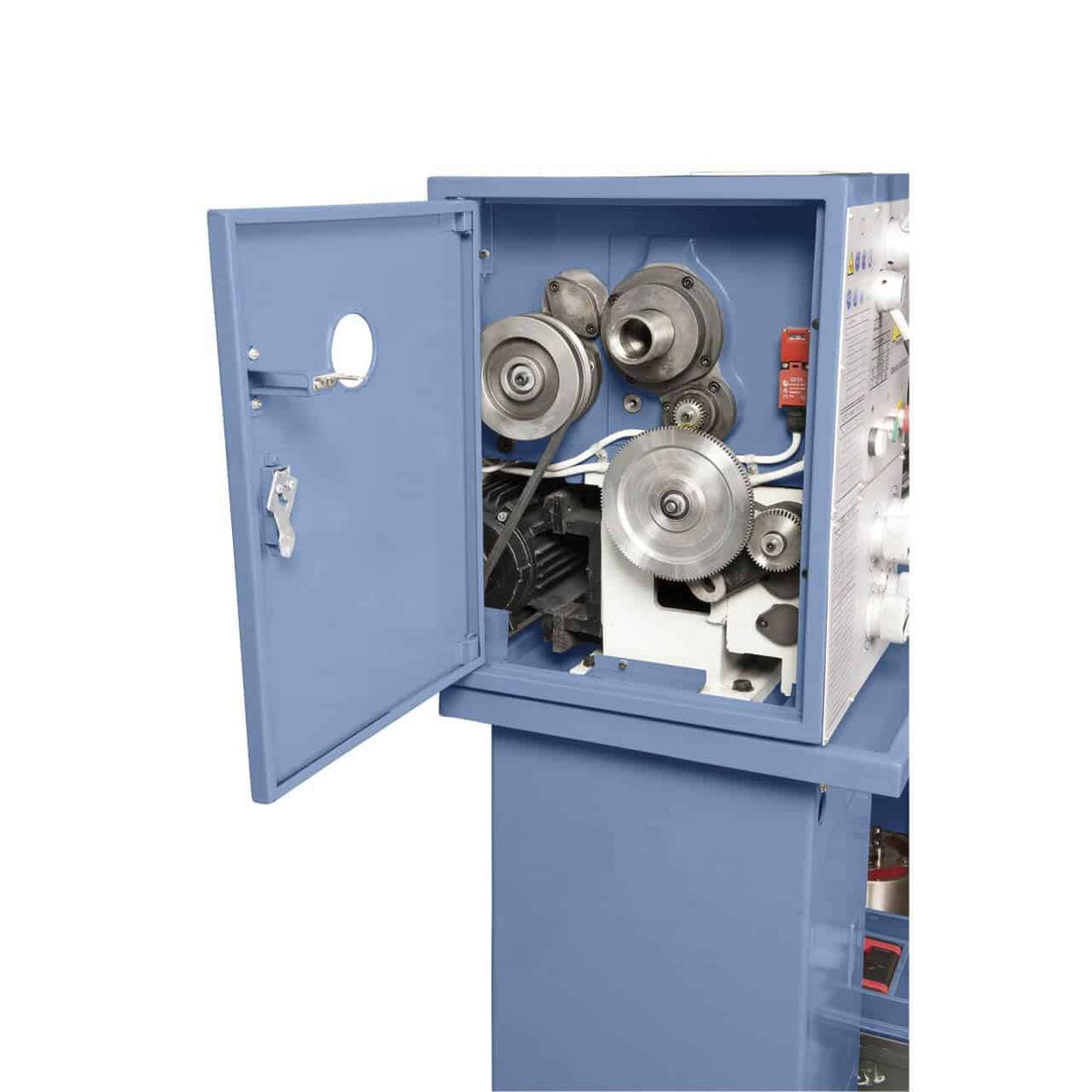

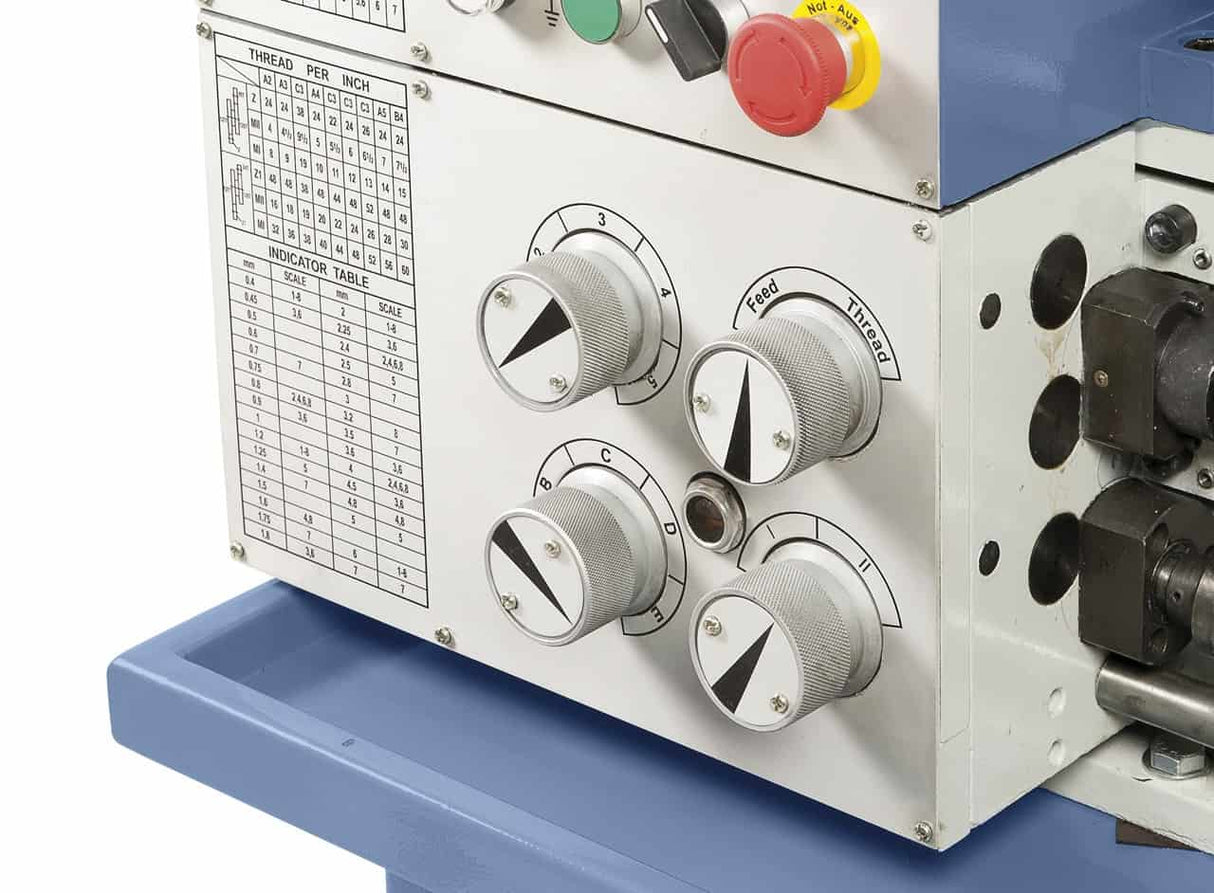

  • The speed and feed adjustment is simple in structure, smooth and can be activated precisely.
  • Robust grooved prism base with hardened and inductively ground guides
  • The tailstock can be moved ± 10 mm for taper turning

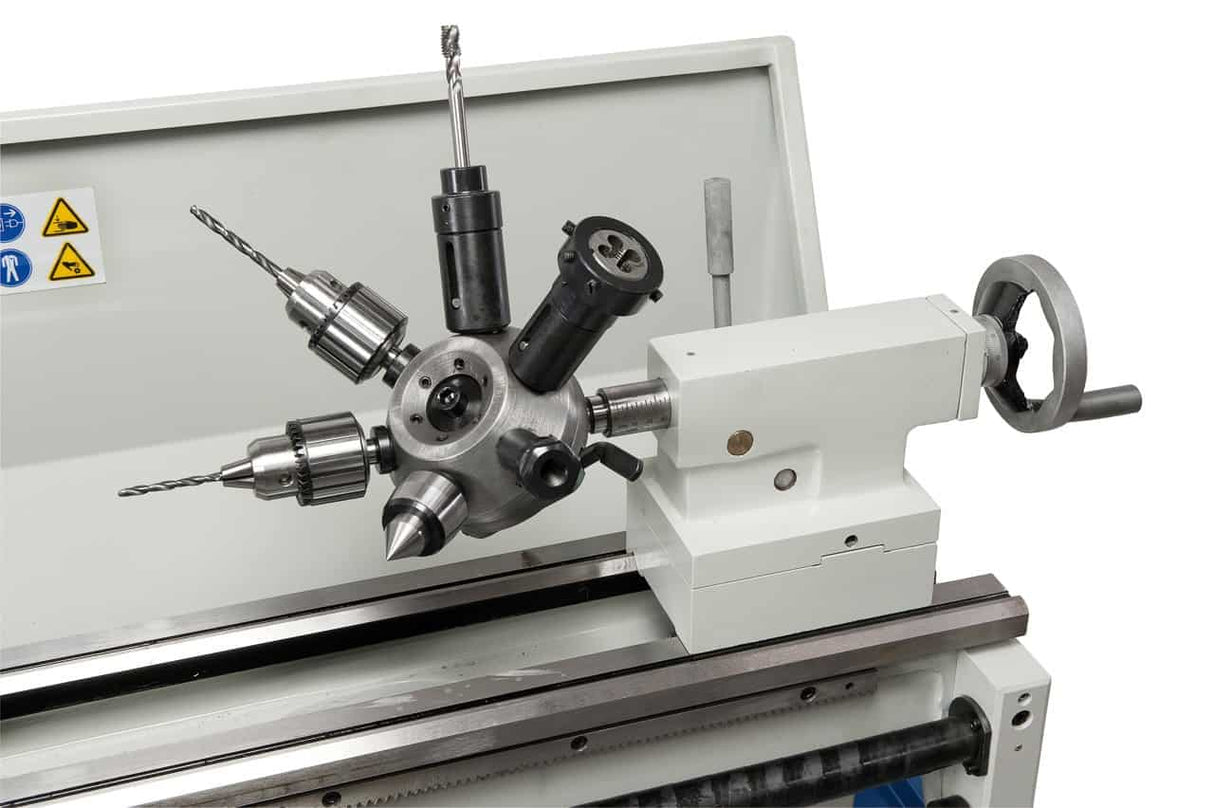

  • Tailstock with lever lock, handwheel with adjustable precision scaling (0.04 mm)
  • Tailstock, spindle head and all guides are also adjustable subsequently

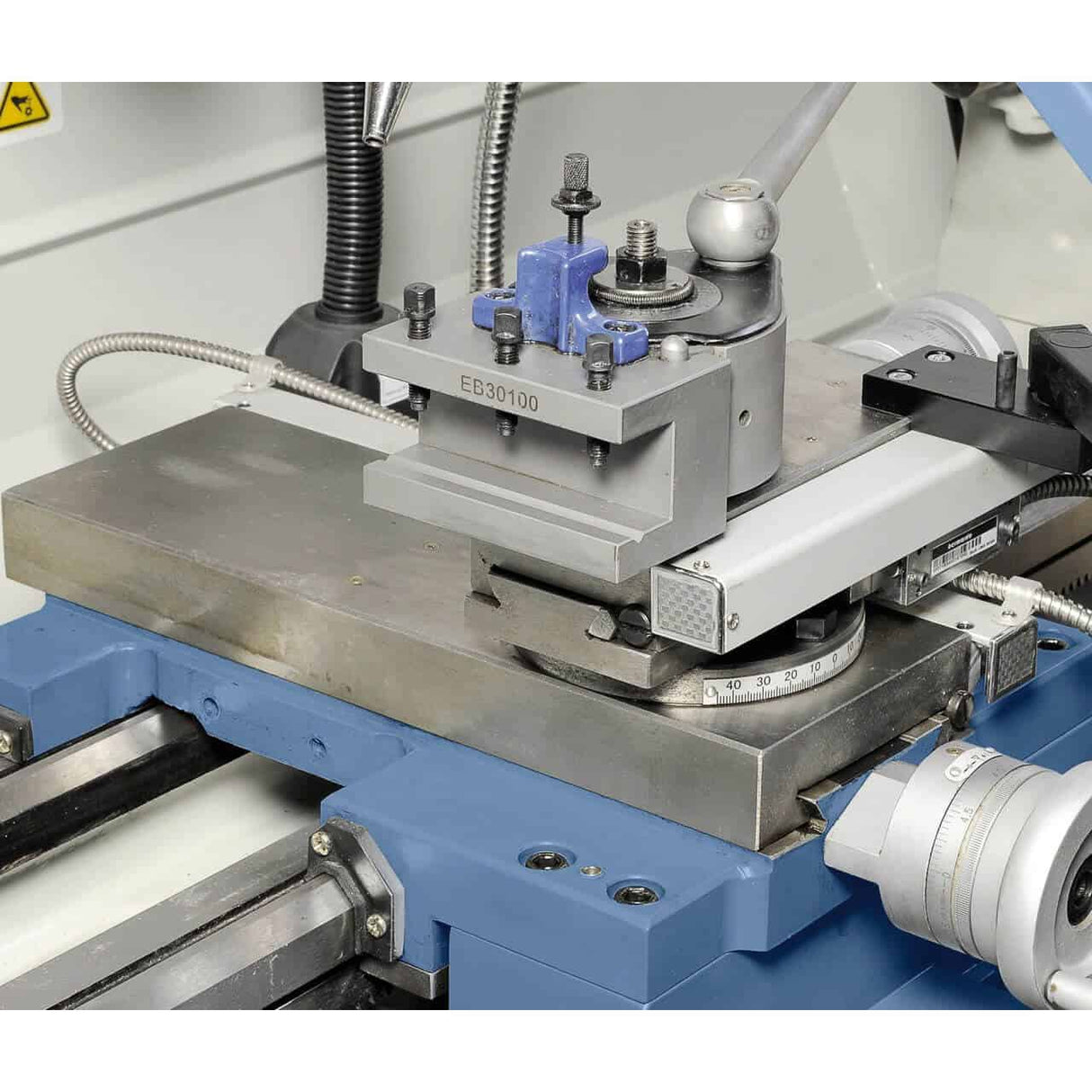

  • Upper slide with graduation (0.02 mm), tiltable ± 45°

Standard accessories

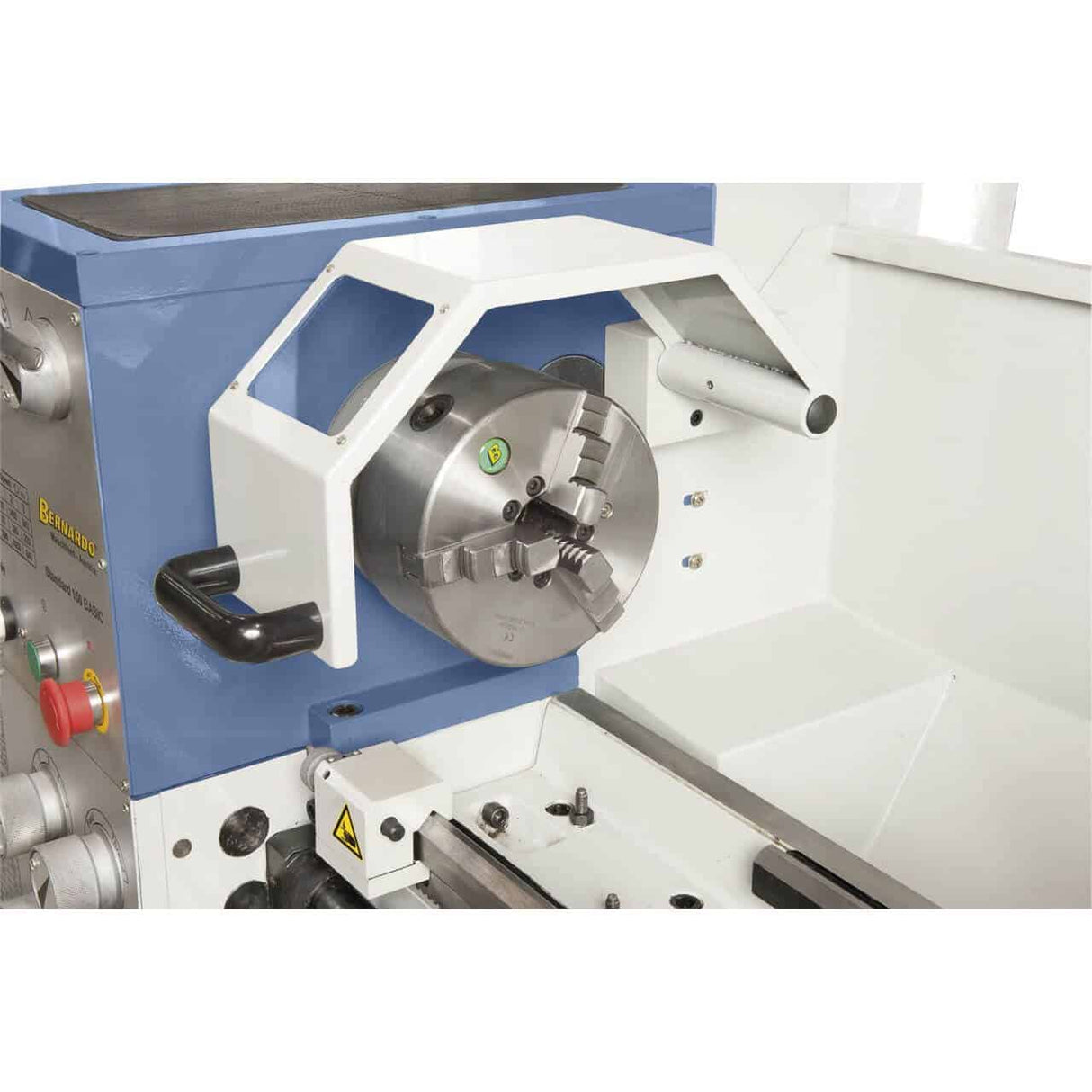

  • 3-jaw chuck DK11-160 mm / D4
  • Platform 200 mm / D4, according to DIN 55029
  • Fixed bezel - max. diameter 60 mm
  • Rotating bezel - max. diameter 60 mm
  • Clamping plate 250 mm
  • Quadruple tool holder
  • Quadruple tool holder protection device
  • Slip joint
  • Longitudinal stop of the micrometer
  • Chip collection tank
  • Bulkhead
  • 2 central tips
  • Thread gauge
  • Reduction compass

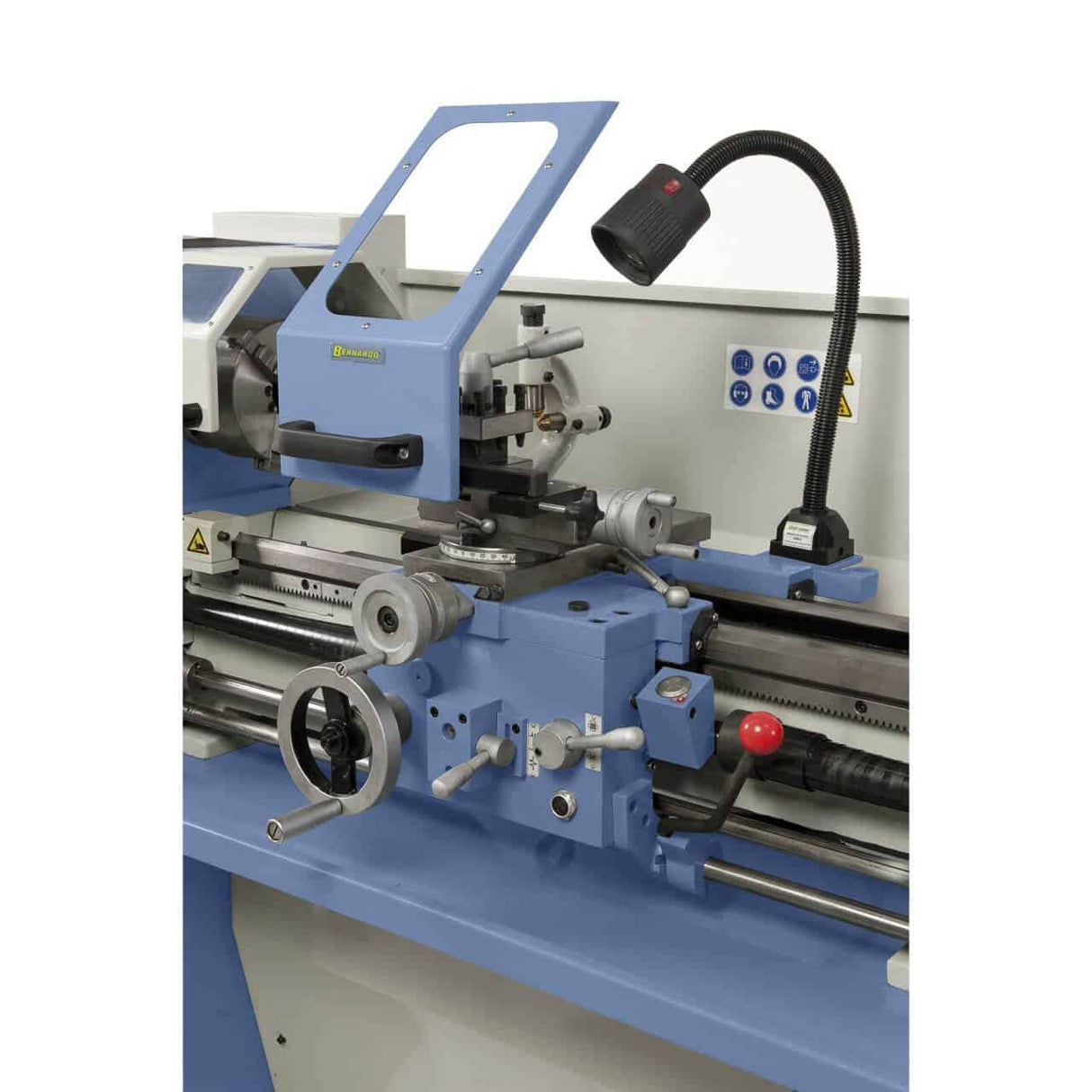

  • LED car light
  • Replacement wheels
  • Motor with magnetic brake according to CE standard
  • Base
  • Control device

technical specifications

Distance between tips
1000 mm
Height of the tips
165 mm
Vaulting on the table
330 mm
Vault on the elbow bend
430 mm
Vaulting on flat sleds
180 mm
Bed width 180 mm
Spindle hole
40 mm
Spindle attachment
DIN 55029, D1-4
Speed range
(9) 75 - 1400 rpm
Longitudinal advancement area
(40) 0.053 - 1.29 mm/rev
Floor progress area
(40) 0.013 - 0.31 mm/rev
Metric threads
(32) 0.4 - 7 mm
Inch threads
(36) 4 - 60 TPI
Spindle stroke
110 mm
Spindle support
MK 3
Motor input power S 1 100%
1.5 kW (400 V)
S 6 40% engine output power 2.2 kW (400 V)
Machine dimensions (L x W x H) 1600 x 700 x 1280 mm
Weight approx.
455 kg
* Length of pull-out bed: 220 mm

Frequently Asked Questions

È ideale per studenti, hobbisti e officine leggere che cercano un tornio compatto e preciso per lavorazioni di piccoli pezzi metallici.
Grazie ai cuscinetti conici regolabili, garantisce una concentricità <0,015 mm, ideale per lavorazioni di alta precisione.
È dotato di un motore DC da 500 W (S1) che assicura potenza costante e affidabile per le principali lavorazioni didattiche e hobbistiche.
Sì, dispone di protezione mandrino e microinterruttore di sicurezza, garantendo un utilizzo sicuro anche per principianti e studenti.
