Bernardo  |  SKU: 03-1257

Standard 150 V-Plus Lathe with Guide Spindle or Shaft Spindle

€6.039,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

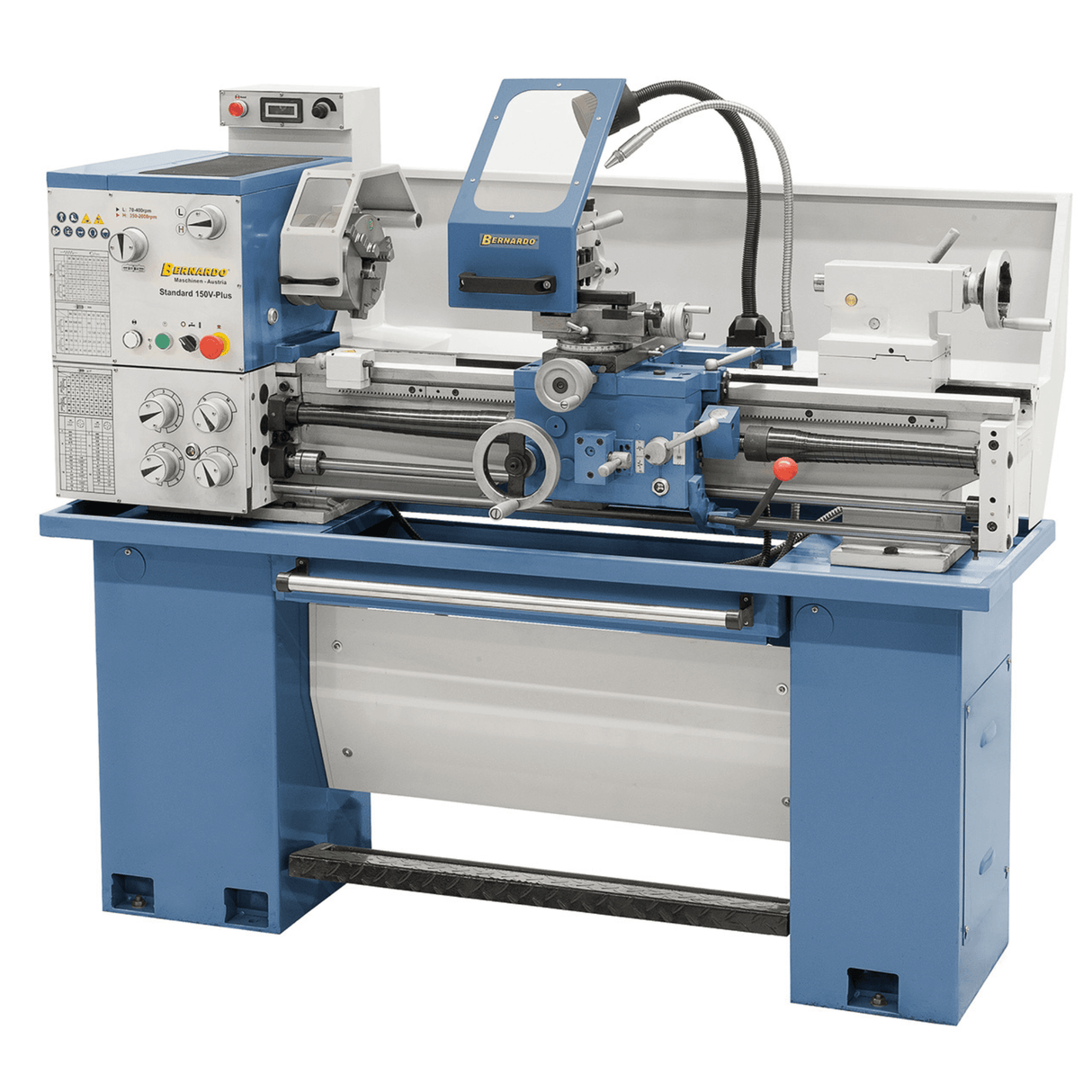

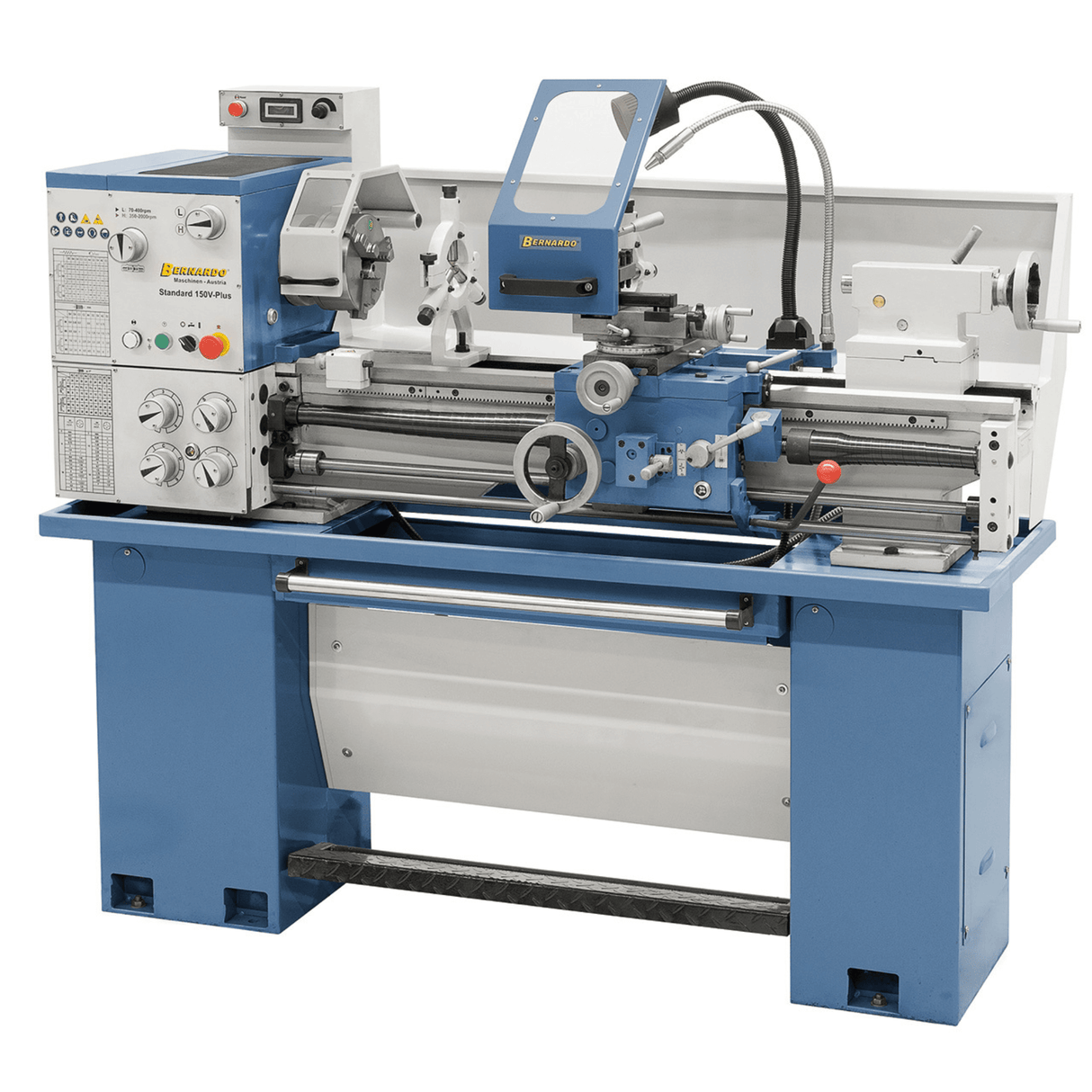

Standard 150 V-Plus Precision Lathe – Compact, precise and complete for the modern workshop

The Standard 150 V-Plus lathe is the perfect choice for ambitious beginners and workshops looking for a versatile, robust, and highly equipped machine. Equipped with a frequency converter and continuously variable speed control, it allows for precise machining even on large-diameter workpieces thanks to its removable bridge and oversized 40 mm spindle bore.

Main features
• Continuous speed regulation via frequency converter

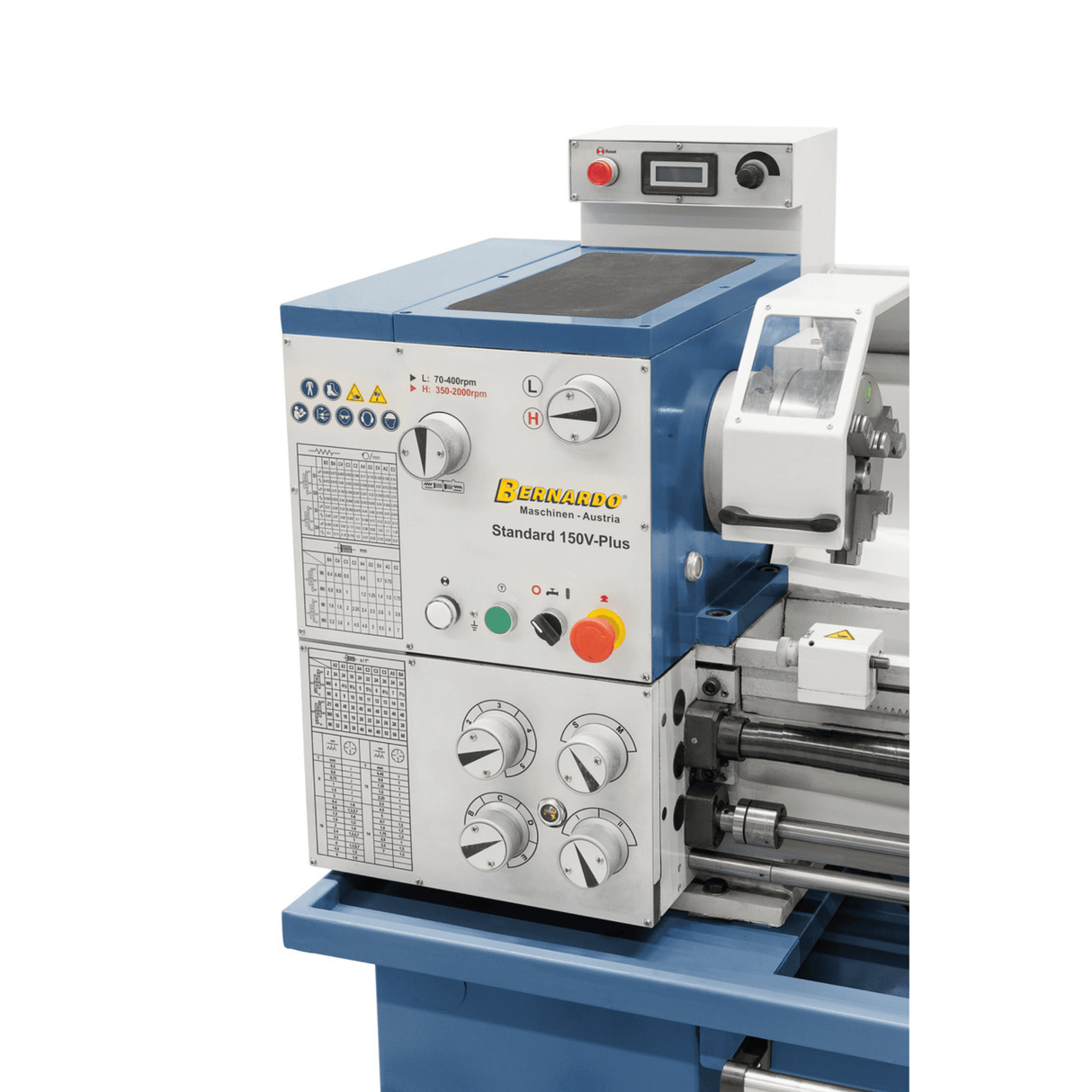

• Digital display for instant readout of rpm
• 40mm spindle bore for large shafts
• Extractable bridge for working on pieces up to Ø 430 mm

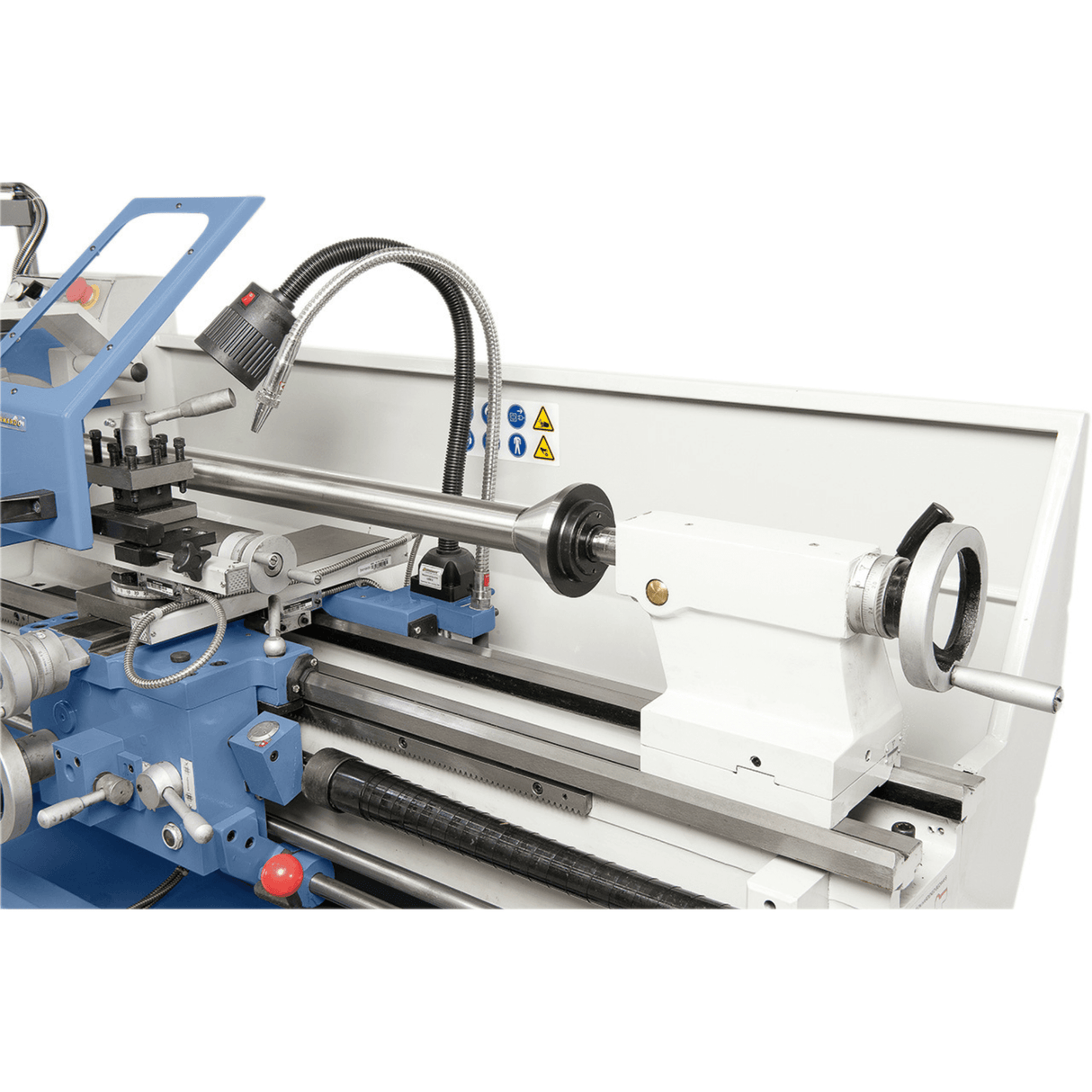

• Tiltable tailstock for conical turning
• Upper slide adjustable ±45° with 0.02 mm graduation
• Hardened and ground guides on a ribbed prism bed
• Simple and precise structure for selection of feeds and speeds
• Chip tray removable from the front for space-saving installation
• Supplied with a wide range of accessories included

Technical table

Characteristic Value
Distance between tips 1000 mm
Height of the tips 165 mm
Vault on the bench 330 mm
Vaulting with bridge removed 430 mm
Vaulting on flat sleds 180 mm
Bed width 180 mm
Spindle hole 40 mm
Spindle attachment DIN 55029, D1-4
Continuous speed 70 – 400 / 350 – 2000 rpm
Longitudinal advances (40) 0.053 – 1.29 mm/rev
Plan advancements (40) 0.013 – 0.31 mm/rev
Metric threads (32) 0.4 – 7 mm
Inch threads (36) 4 – 60 TPI
Tailstock quill stroke 110 mm
Tailstock attachment MK 3

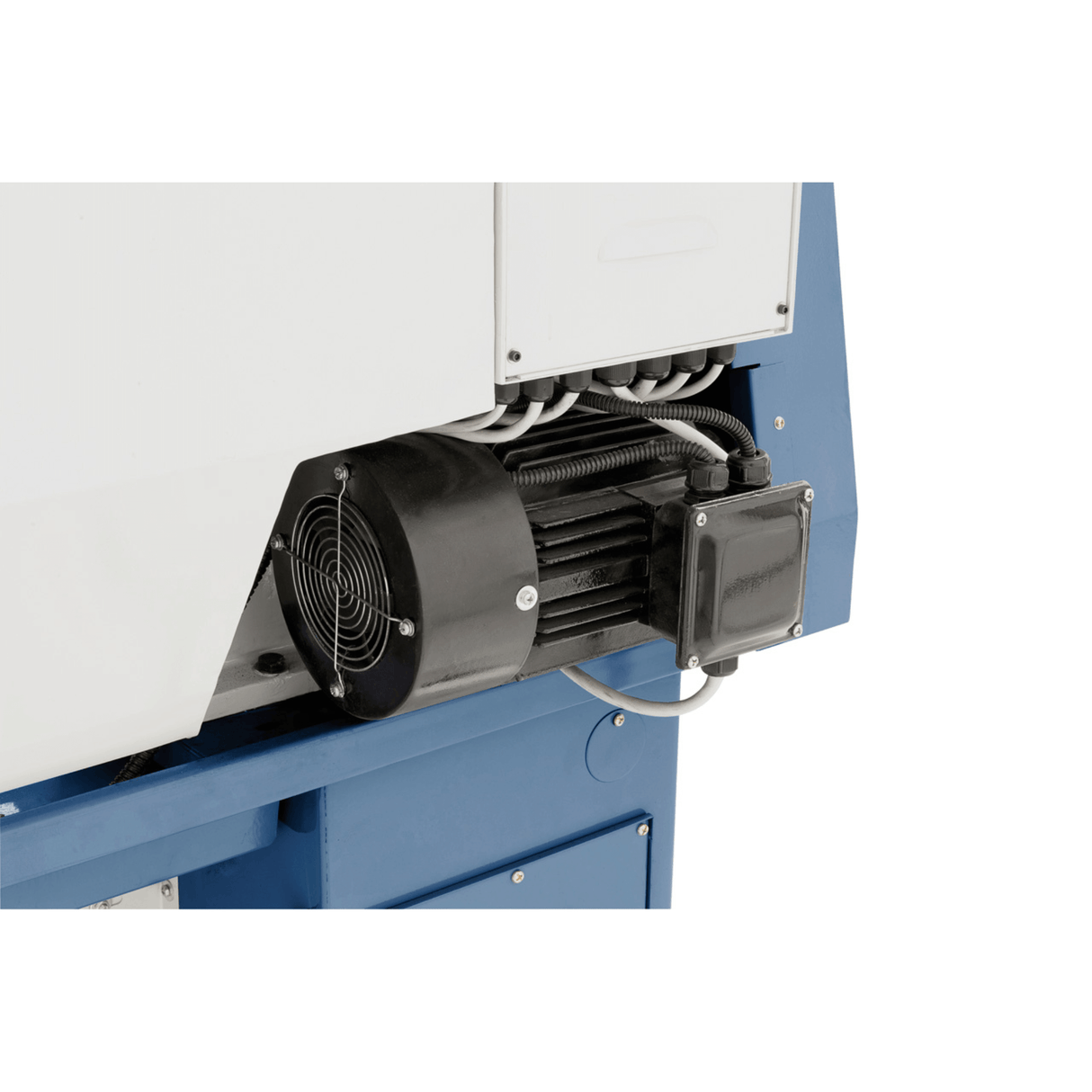

Engine power S1 100% 1.5 kW (400 V)
S6 engine power 40% 2.2 kW (400 V)
Machine dimensions (L x W x H) 1600 x 700 x 1280 mm
Weight approx. 478 kg

* Removable bridge: 220 mm

Package Contents

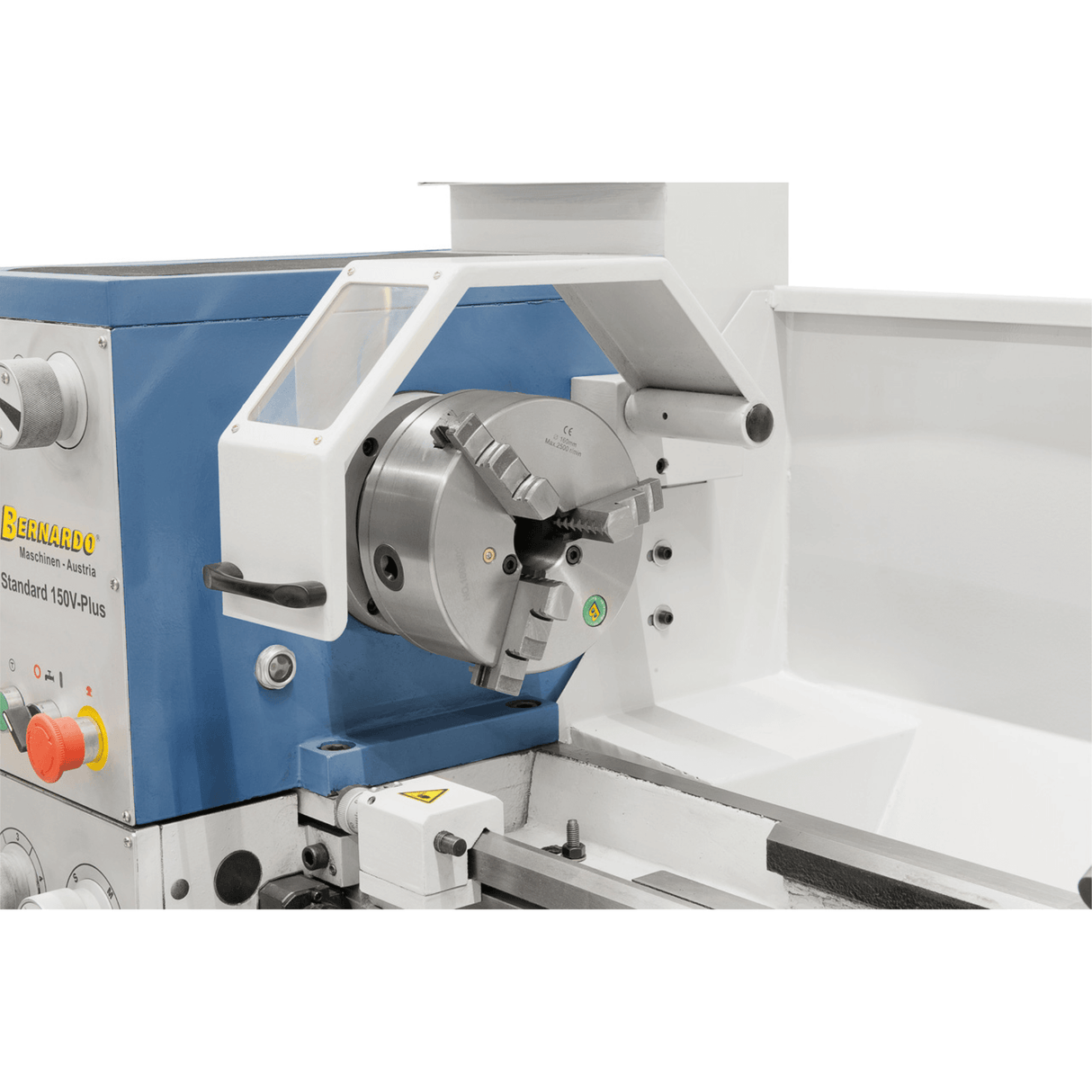

• 3-jaw chuck DK11-160 mm / D4
• 200 mm / D4 platform (DIN 55029)

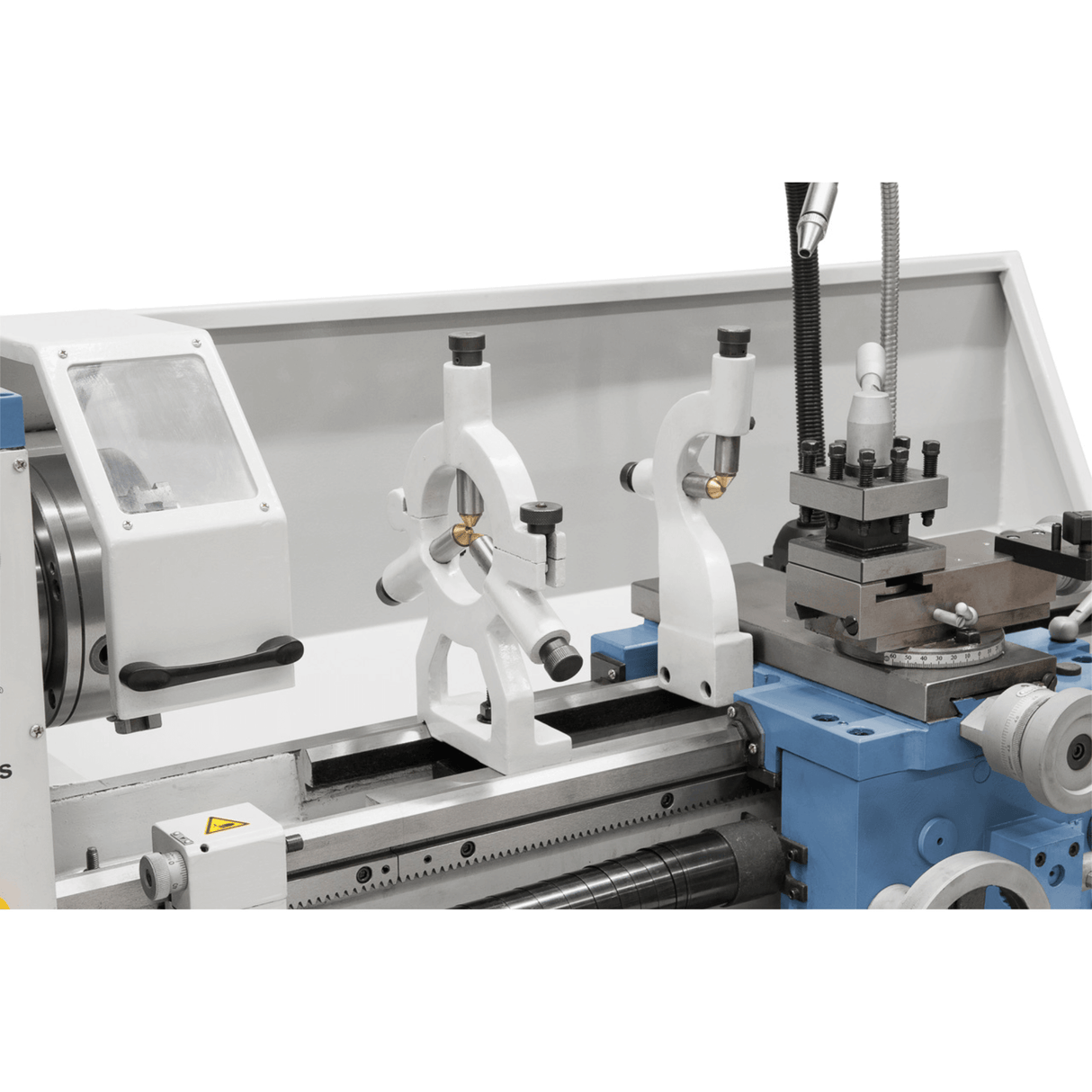

• Fixed bezel (Ø max. 60 mm)
• Rotating bezel (Ø max. 60 mm)
• Clamping plate 250 mm

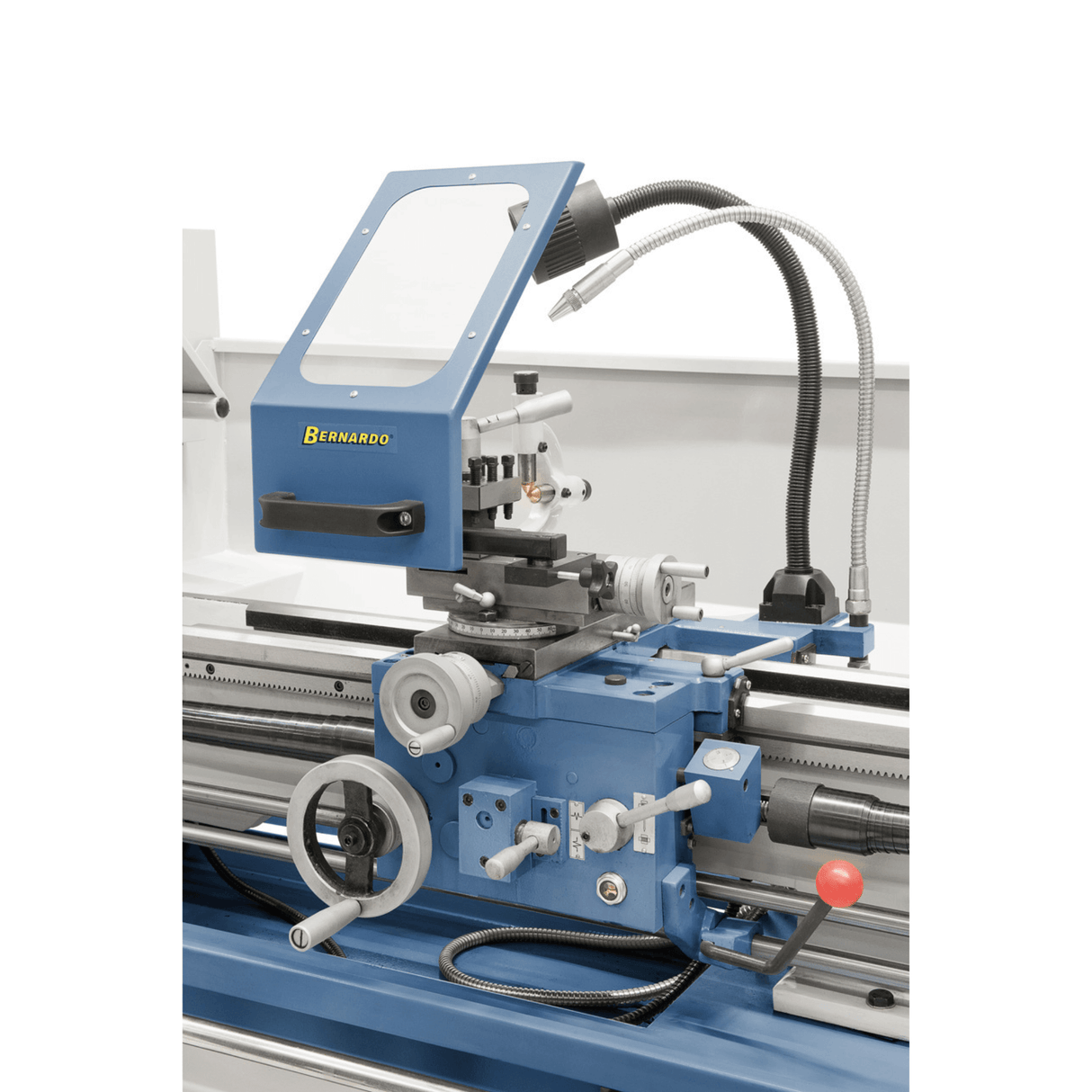

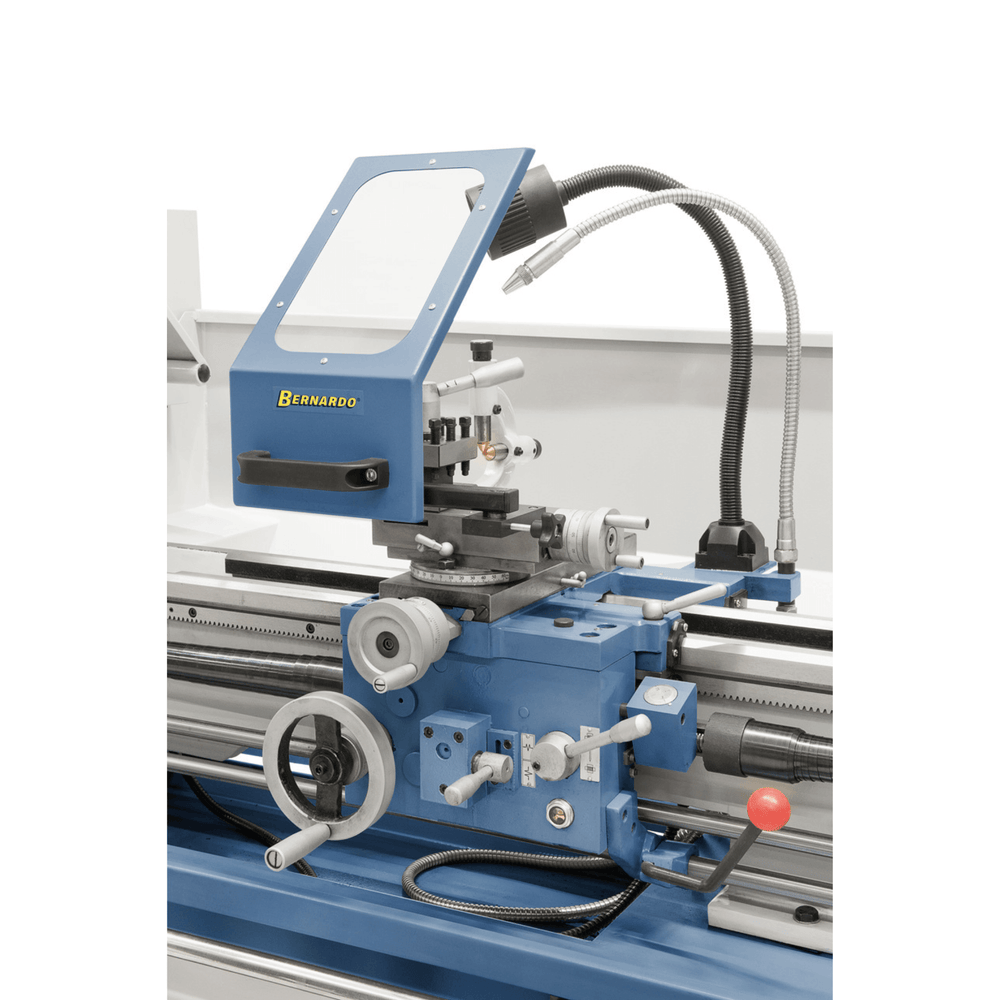

• Quadruple tool holder
• Quadruple tool holder protection
• Slip joint
• Micrometric longitudinal stop
• Removable chip collection tray
• Splash guard
• Two central strikers
• Thread gauge
• Reduction compass
• LED machine light
• Digital speed indicator
• Replacement wheels
• Refrigeration system

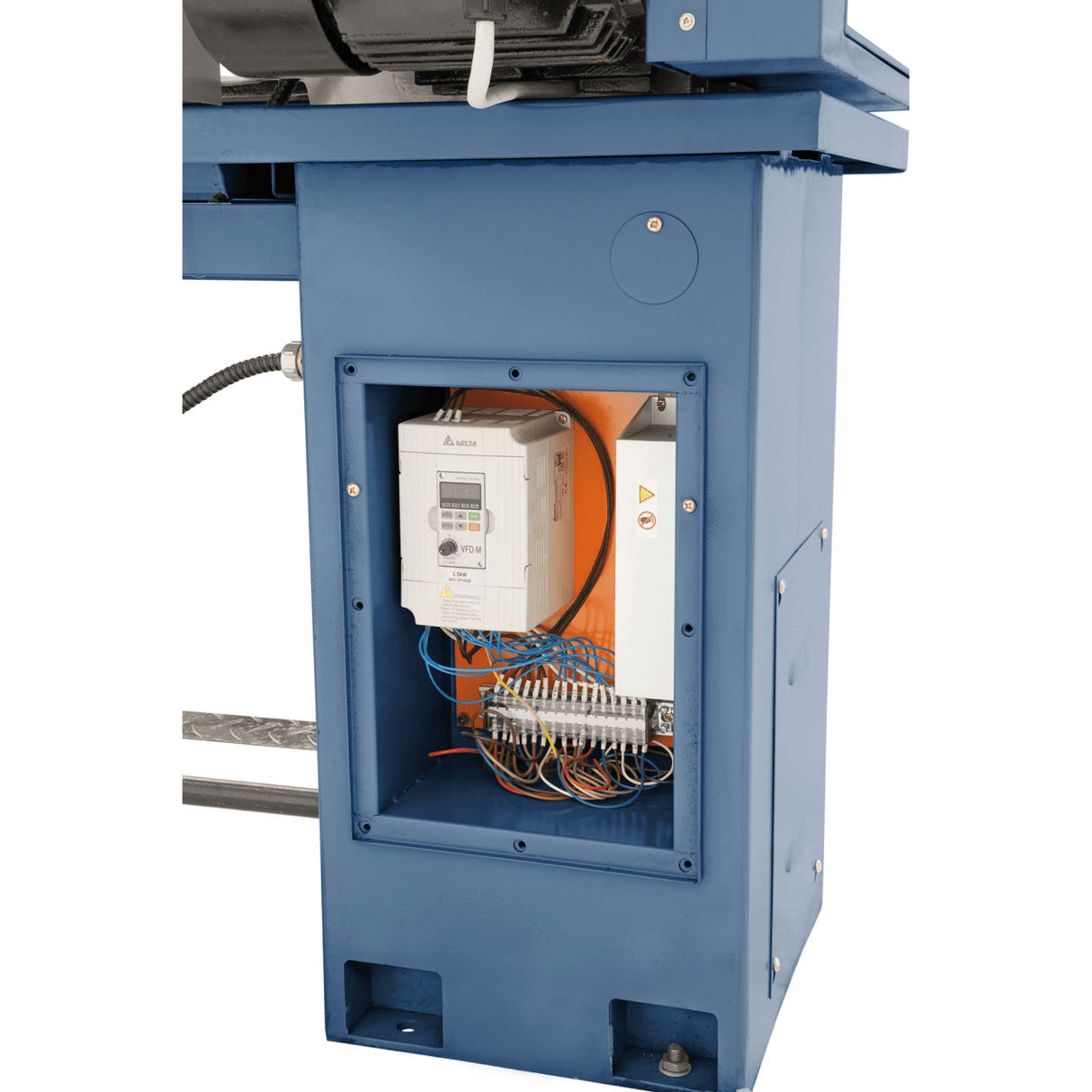

• Frequency converter
• Pedal with brake function (CE standards)
• Base
• Control device


Frequently Asked Questions

Continuous adjustment allows for precise control of the speed to suit the type of material and processing, improving quality and safety.
Yes, thanks to the extractable bridge it is possible to work pieces up to 430 mm in diameter.
Yes, it includes steady rests, chucks, plates, guards, LED light, chip tray, coolant and much more.
No, the front-extractable chip tray allows for space-saving installation even in more compact spaces.
It is ideal for mechanical workshops, craftsmen, apprentices and small productions that require precision and versatility.
