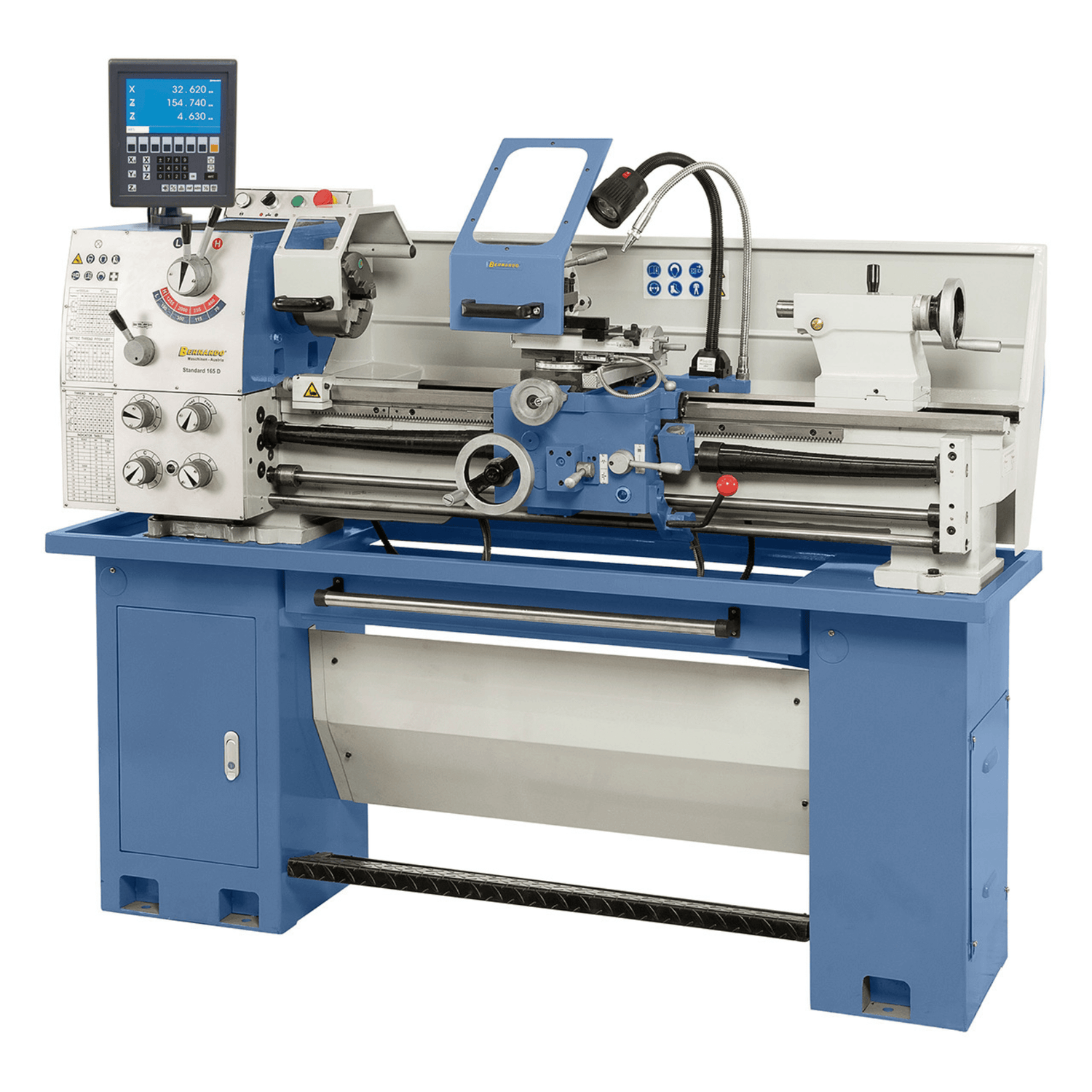

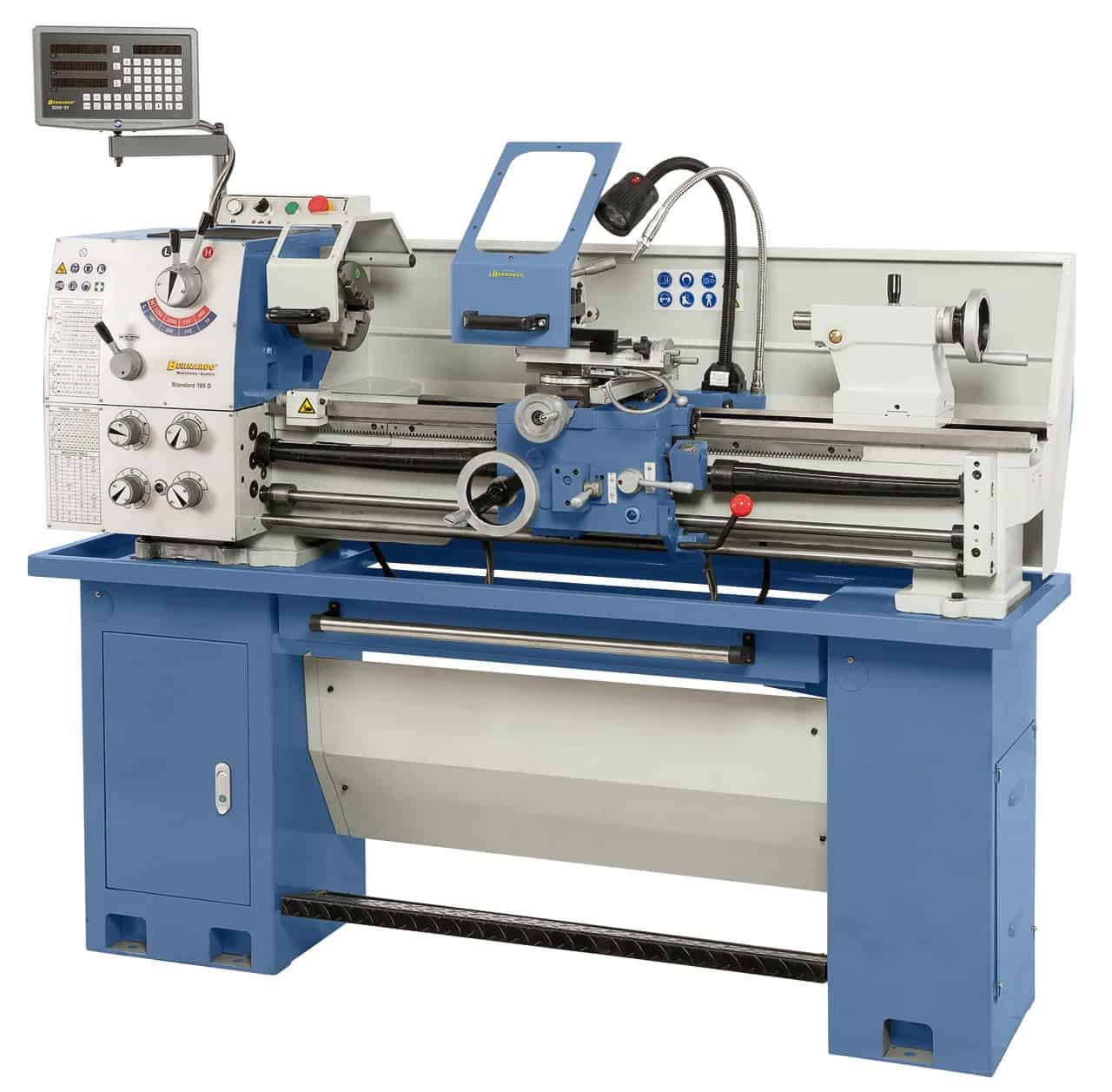

Standard 165 D Precision Lathe with 3-Axis Digital Display – Stability, Precision and Fully Equipped
The Standard 165 D lathe is the ideal choice for professionals and workshops requiring a precise and comprehensive machine right from the basic configuration. Thanks to its sturdy construction, extendable bridge, 3-axis digital position indicator, and professional features, this lathe is suitable for complex machining of metals and technical materials.
Main features

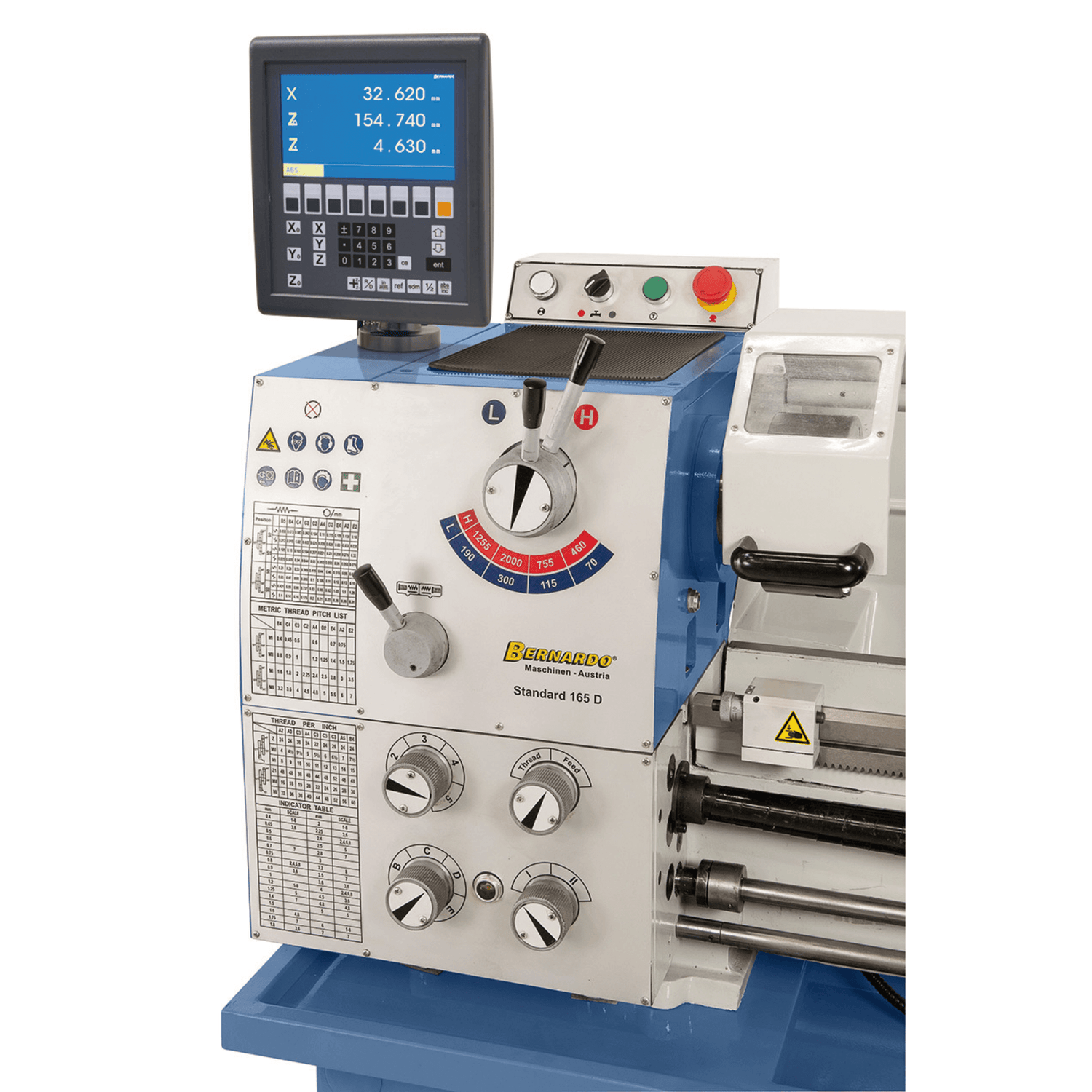

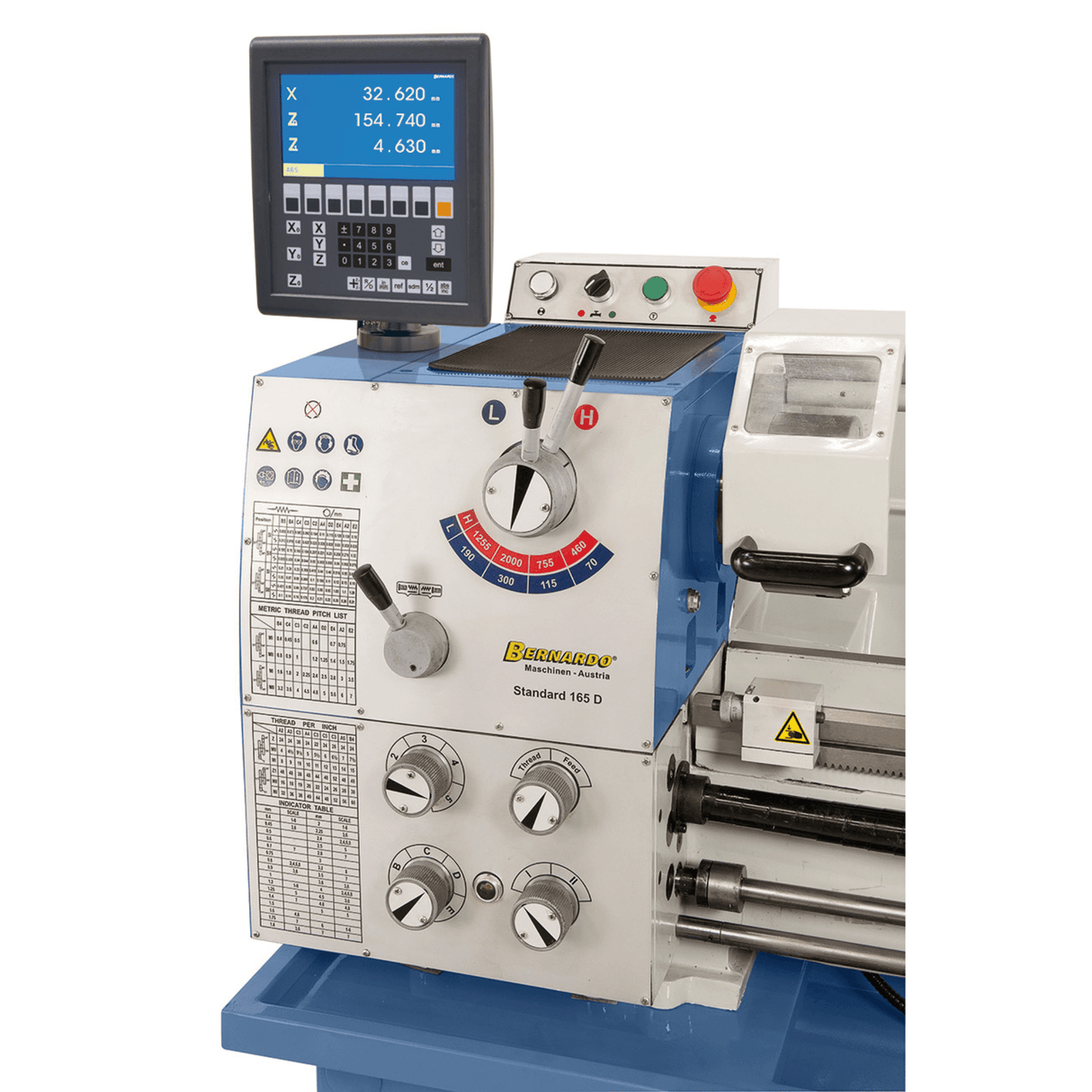

• ES-12V 3-axis position indicator with LCD display
• Guide and shaft spindle for automatic threading and feed
• Removable bridge for working on large diameter pieces
• Ribbed prism base, tempered and ground
• Main spindle hardened and lubricated in oil bath

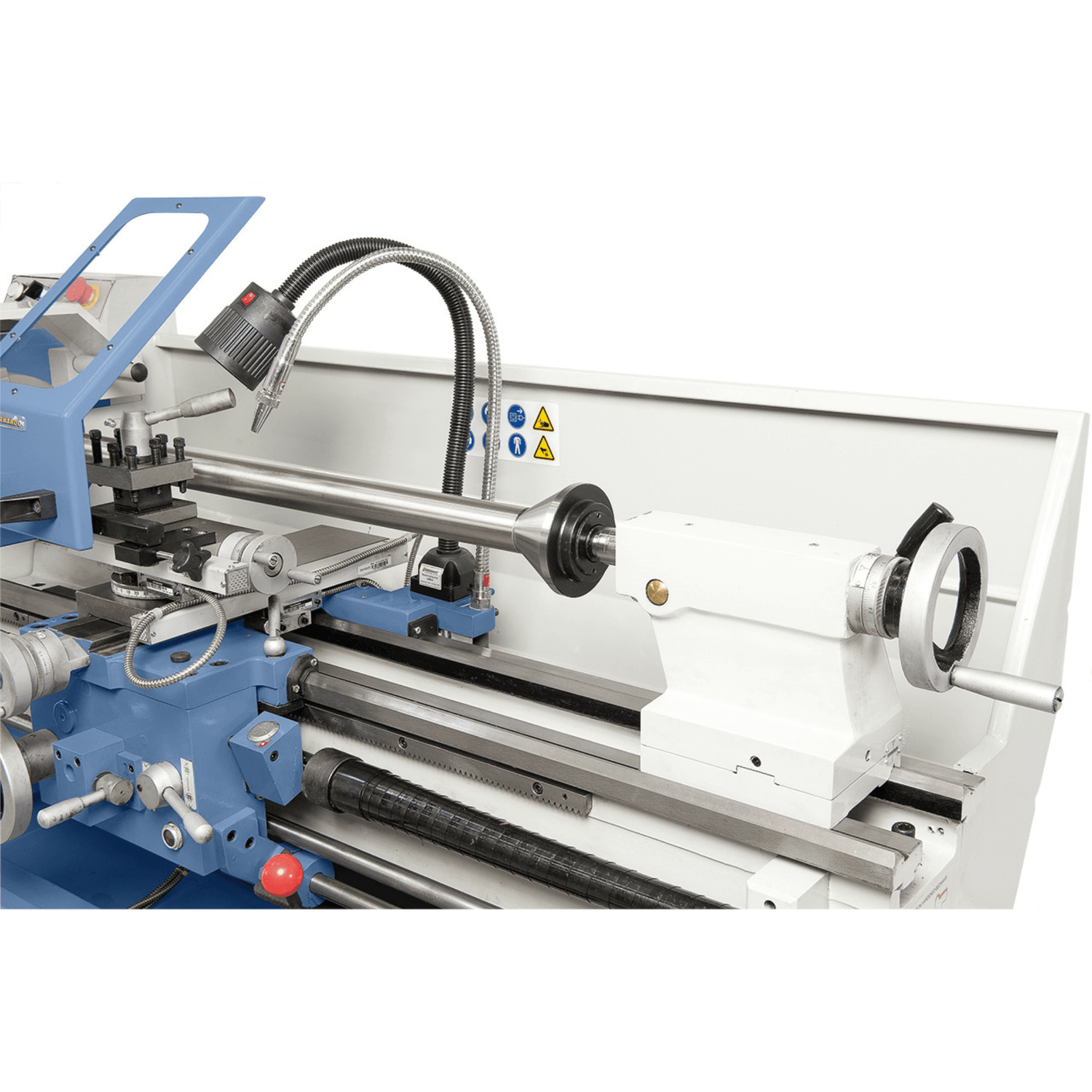

• Tiltable tailstock for conical turning
• Simple and precise feed adjustment

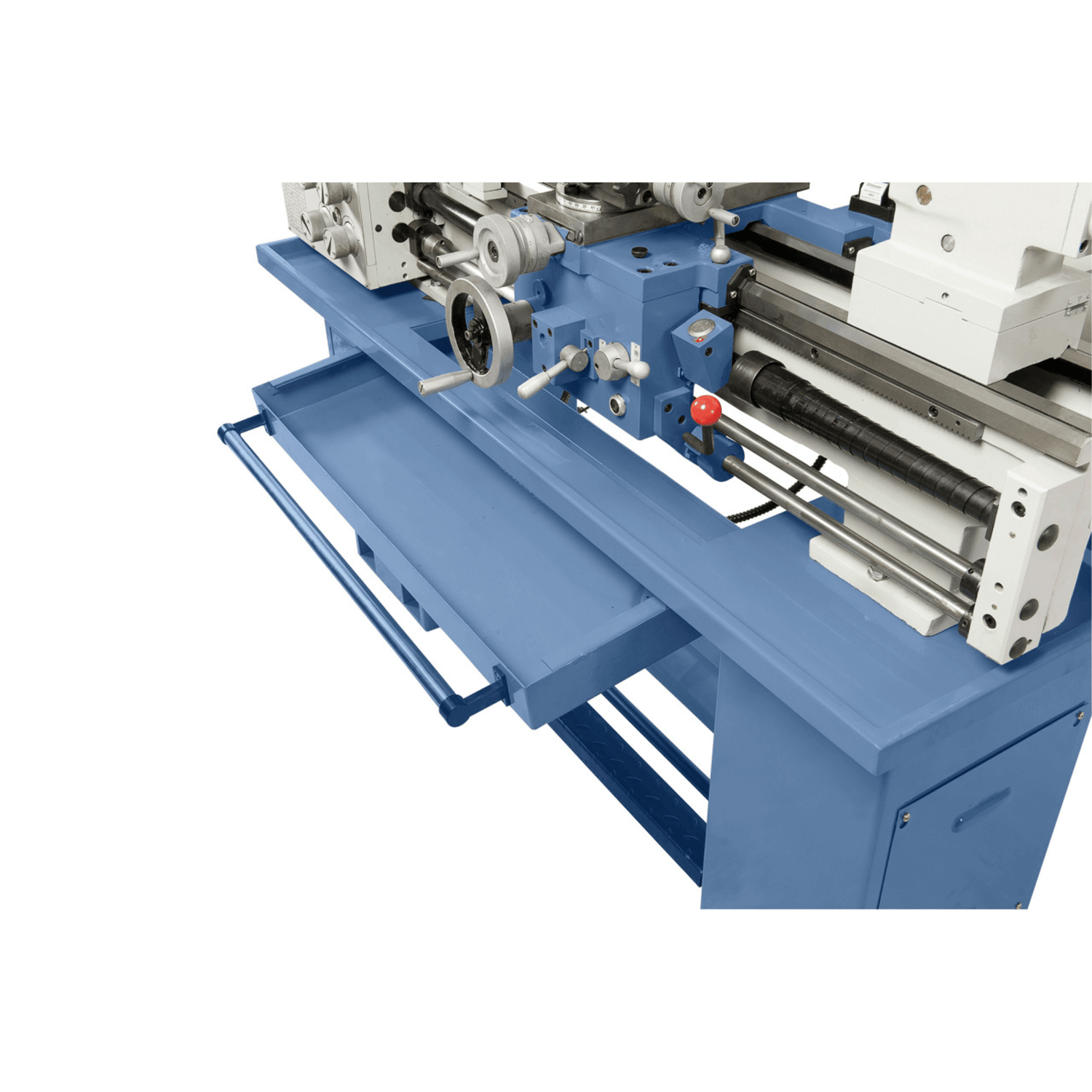

• Chip tray removable from the front for space-saving installation
• Motor with magnetic brake and CE compliant pedal
• Suitable for professional work, technical training or mass production
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1000 mm |
| Height of the tips | 175 mm |
| Vault on the bench | 350 mm |
| Vaulting with bridge removed | 450 mm |
| Vaulting on flat sleds | 190 mm |
| Bed width | 180 mm |
| Spindle hole | 40 mm |
| Spindle attachment | DIN 55029, D1-4 |
| Speed (8 positions) | 70 – 2000 rpm |
| Longitudinal advances (40) | 0.053 – 1.29 mm/rev |
| Plan advancements (40) | 0.013 – 0.31 mm/rev |
| Metric threads (32) | 0.4 – 7 mm |
| Inch Threads (36) | 4 – 60 TPI |
| Tailstock quill stroke | 110 mm |
| Tailstock support | MK 3 |
| Engine power S1 100% | 1.5 kW / 400 V |
| S6 engine power 40% | 2.2 kW / 400 V |
| Machine dimensions (L x W x H) | 1730 x 700 x 1340 mm |
| Weight | 514 kg approx. |
* 220mm pull-out bridge
Package Contents
• ES-12 V 3-axis digital display

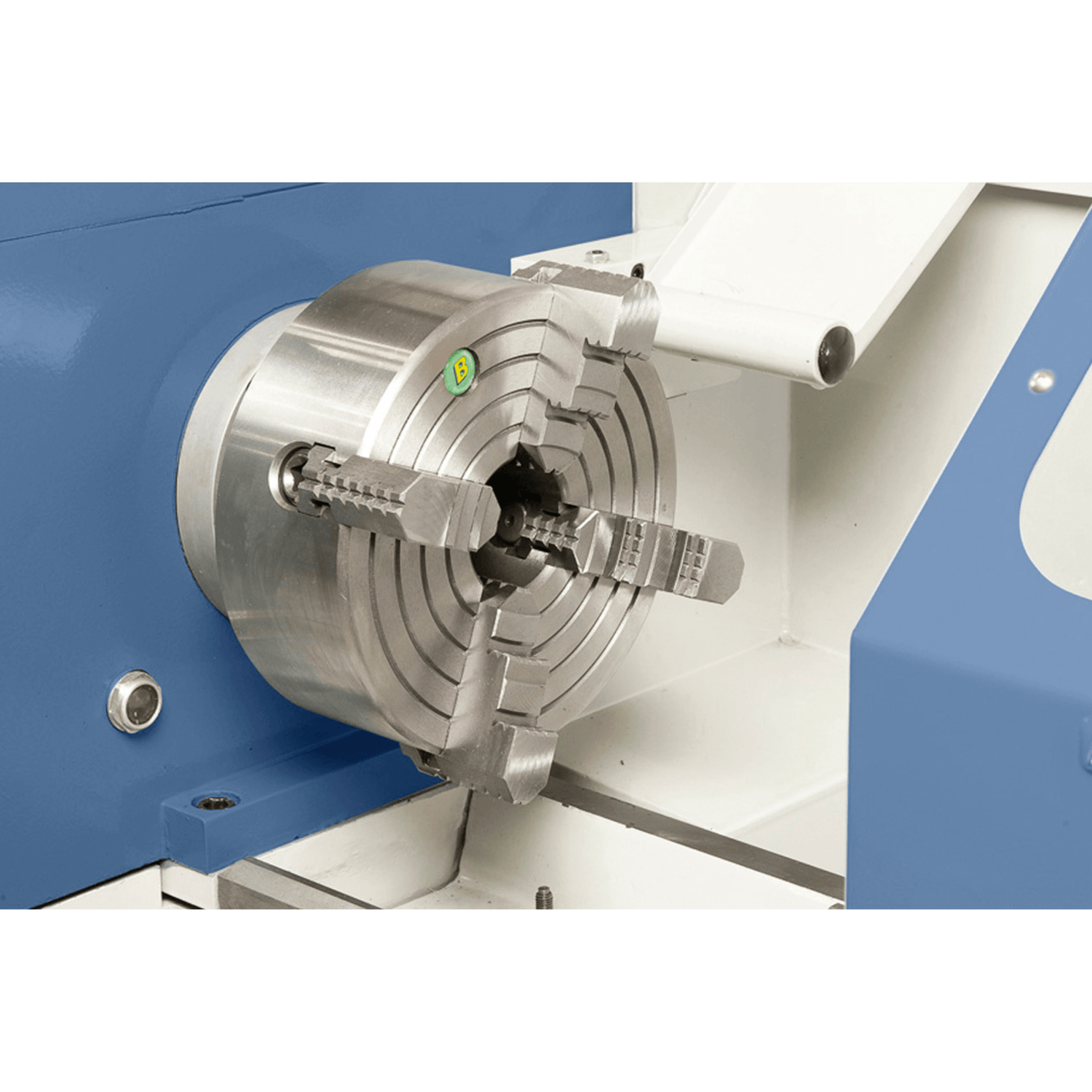

• 3-jaw chuck DK11-160 mm / D4
• 200 mm / D4 platform (DIN 55029)

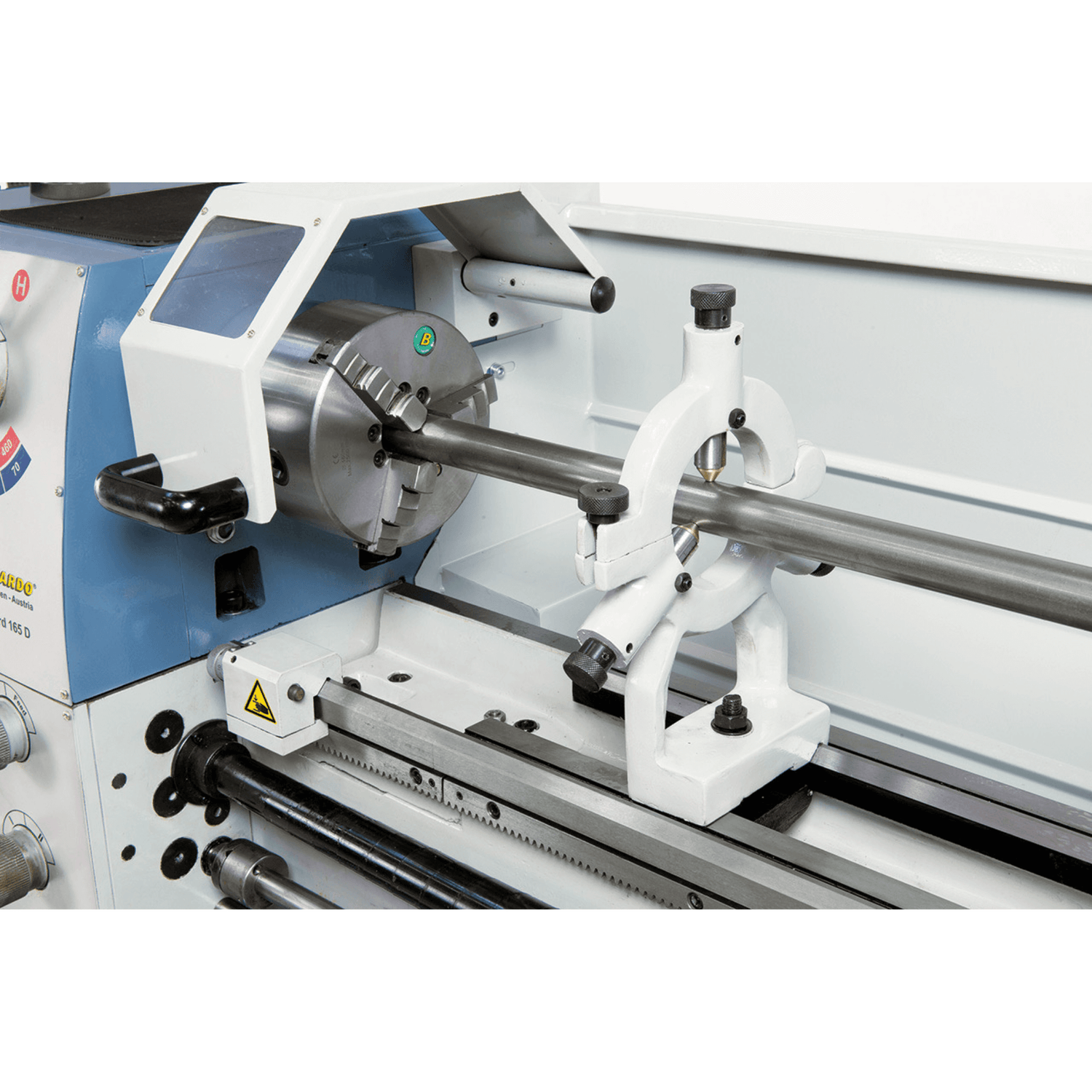

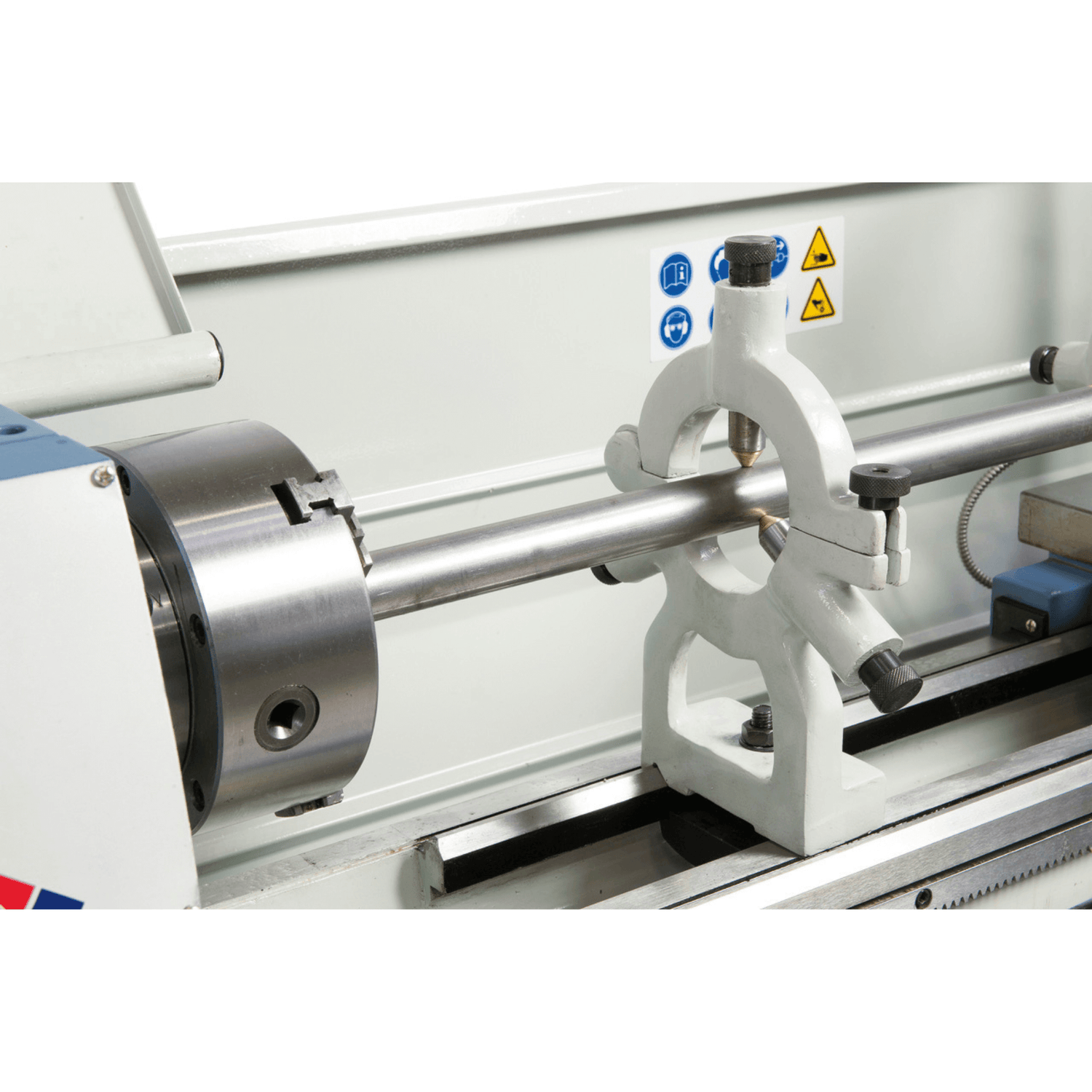

• Fixed bezel (max. passage 60 mm)
• Rotating bezel (max. passage 60 mm)
• Clamping plate 250 mm
• Quadruple tool holder
• Tool holder protection
• Slip joint
• Longitudinal micrometric stop
• Refrigeration system
• Removable chip collection tray
• Motor with CE magnetic brake
• Brake pedal compliant with CE standards
• Protective bulkhead
• Thread gauge
• LED car light
• Reduction compass

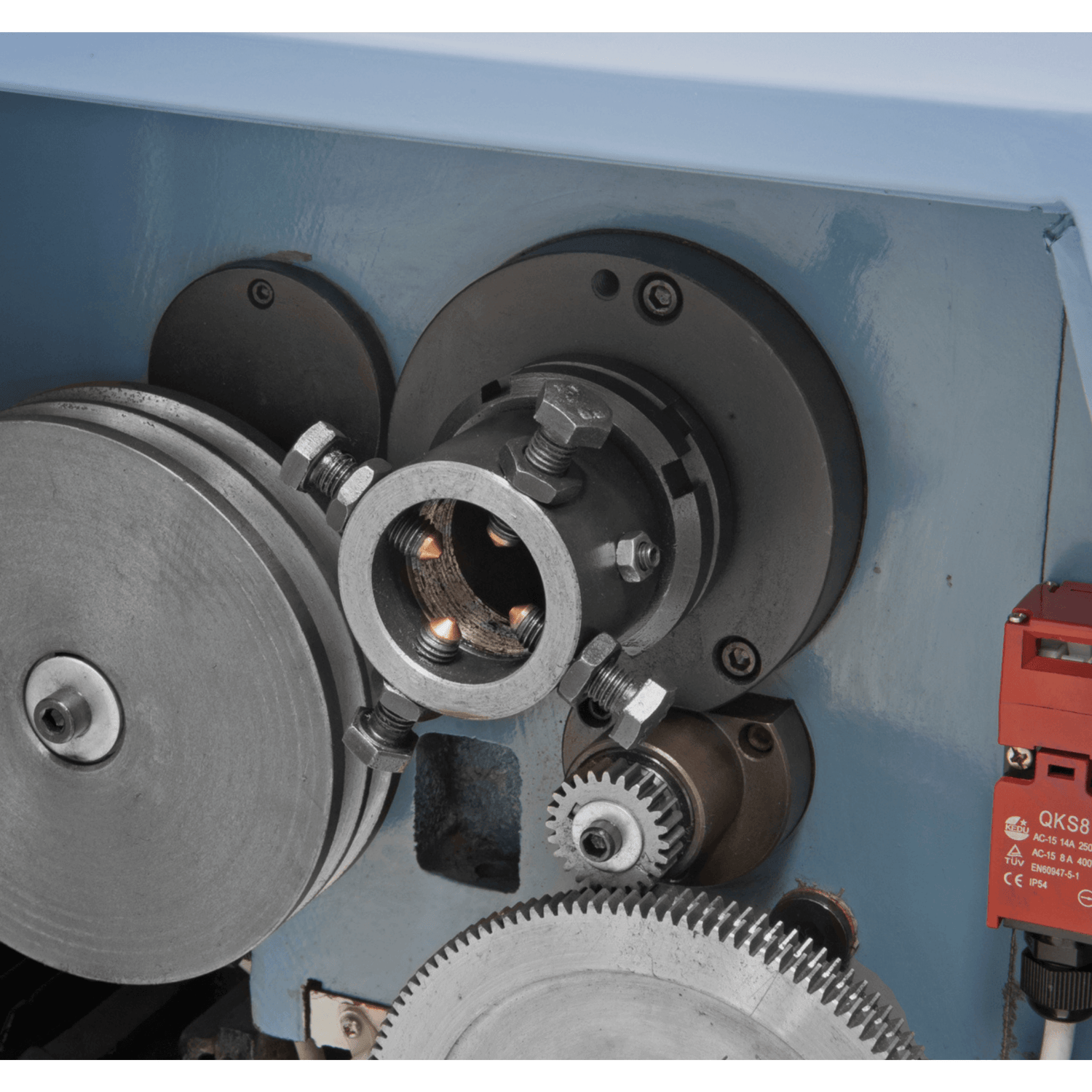

• Replacement wheels
• Two central strikers
• Base included
• Control device
