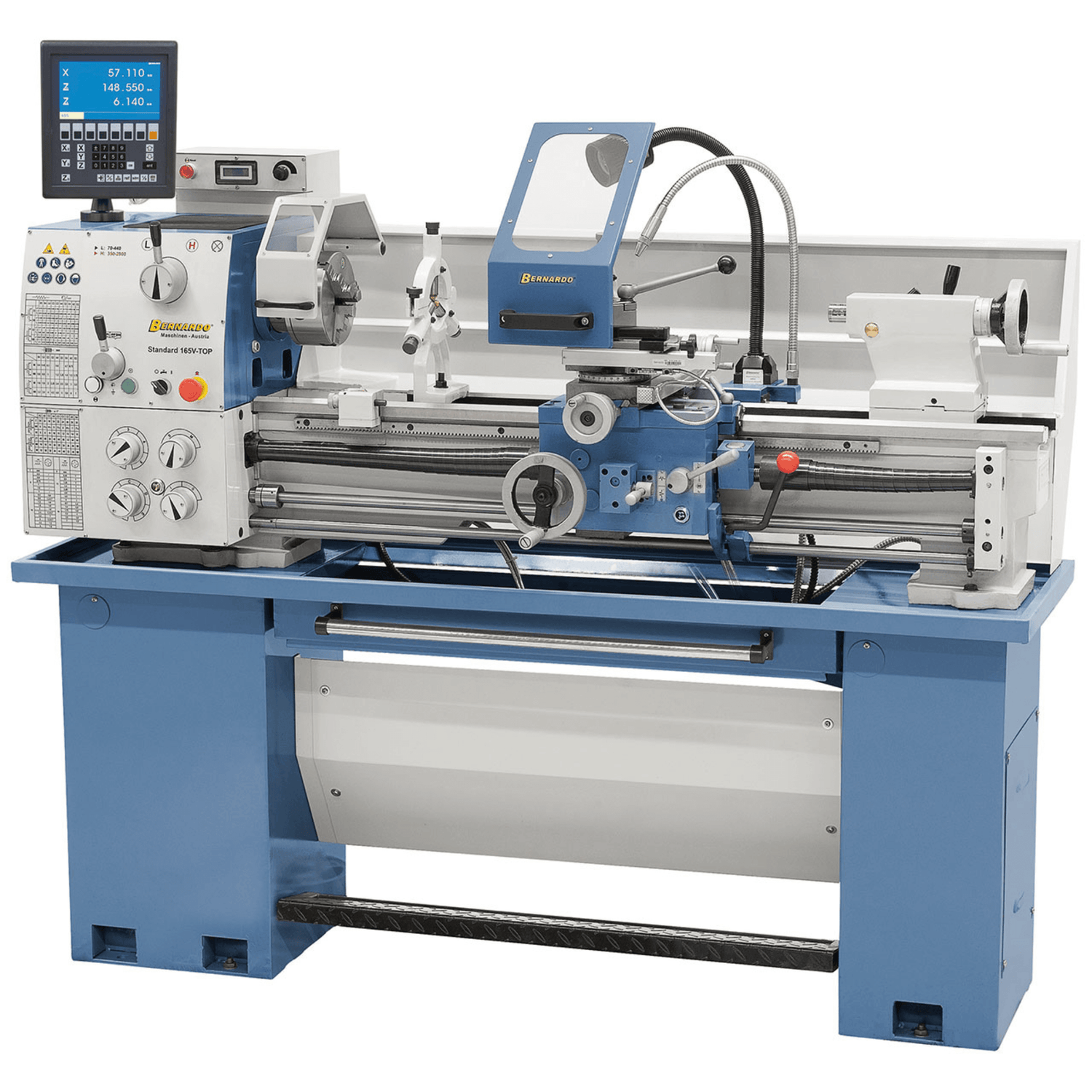

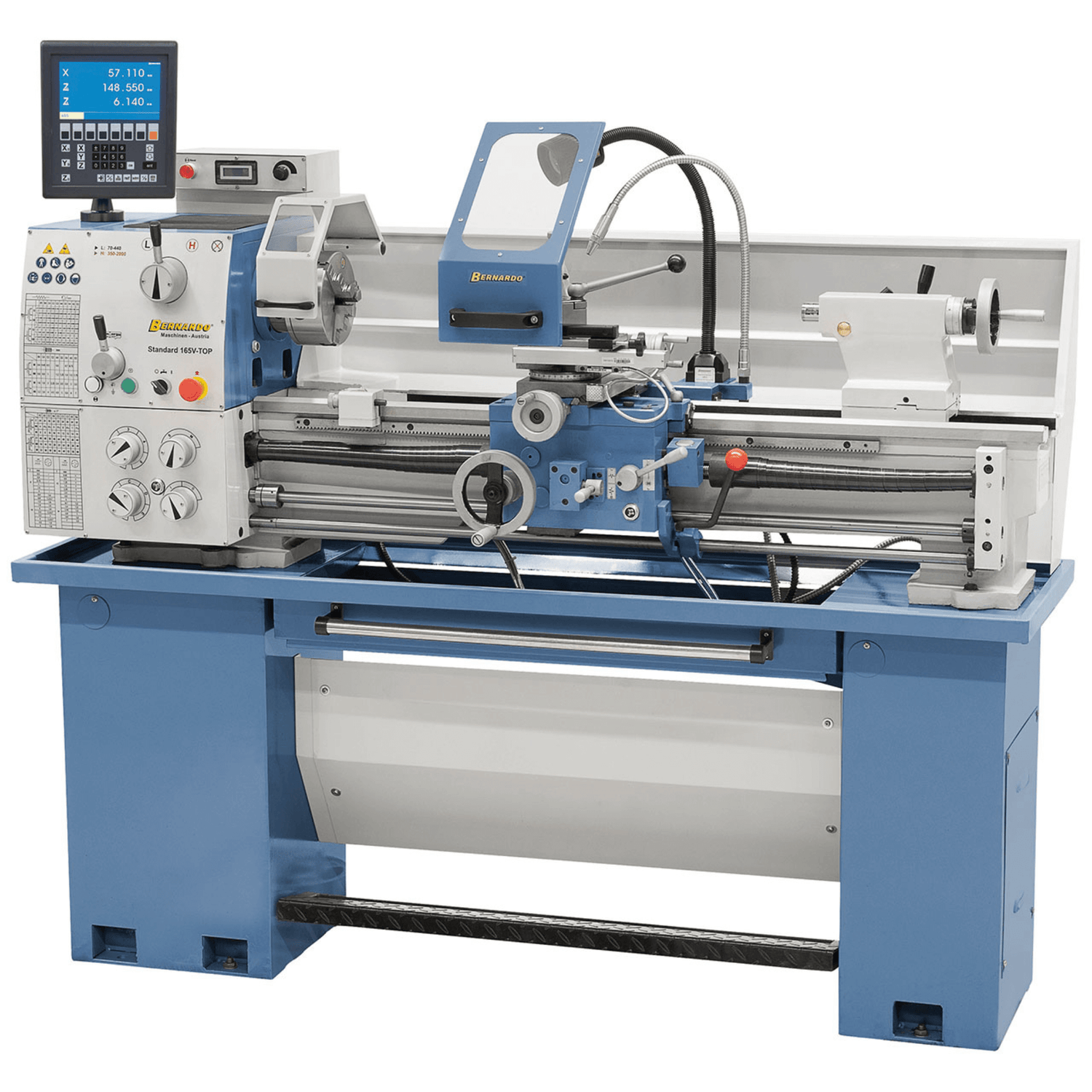

Standard 165 V-Top lathe incl. 3-axis digital display
€7.625,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Standard 165 V-Top lathe incl. 3-axis digital display is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
The Standard 165 VD and 165 V-Top models are modern, state-of-the-art machines. Thanks to their ease of use, these models are particularly suitable for use in educational institutions, schools, and general training settings. Furthermore, these models are equipped as standard with a variable speed controller for optimal cutting speed adjustment.
Property

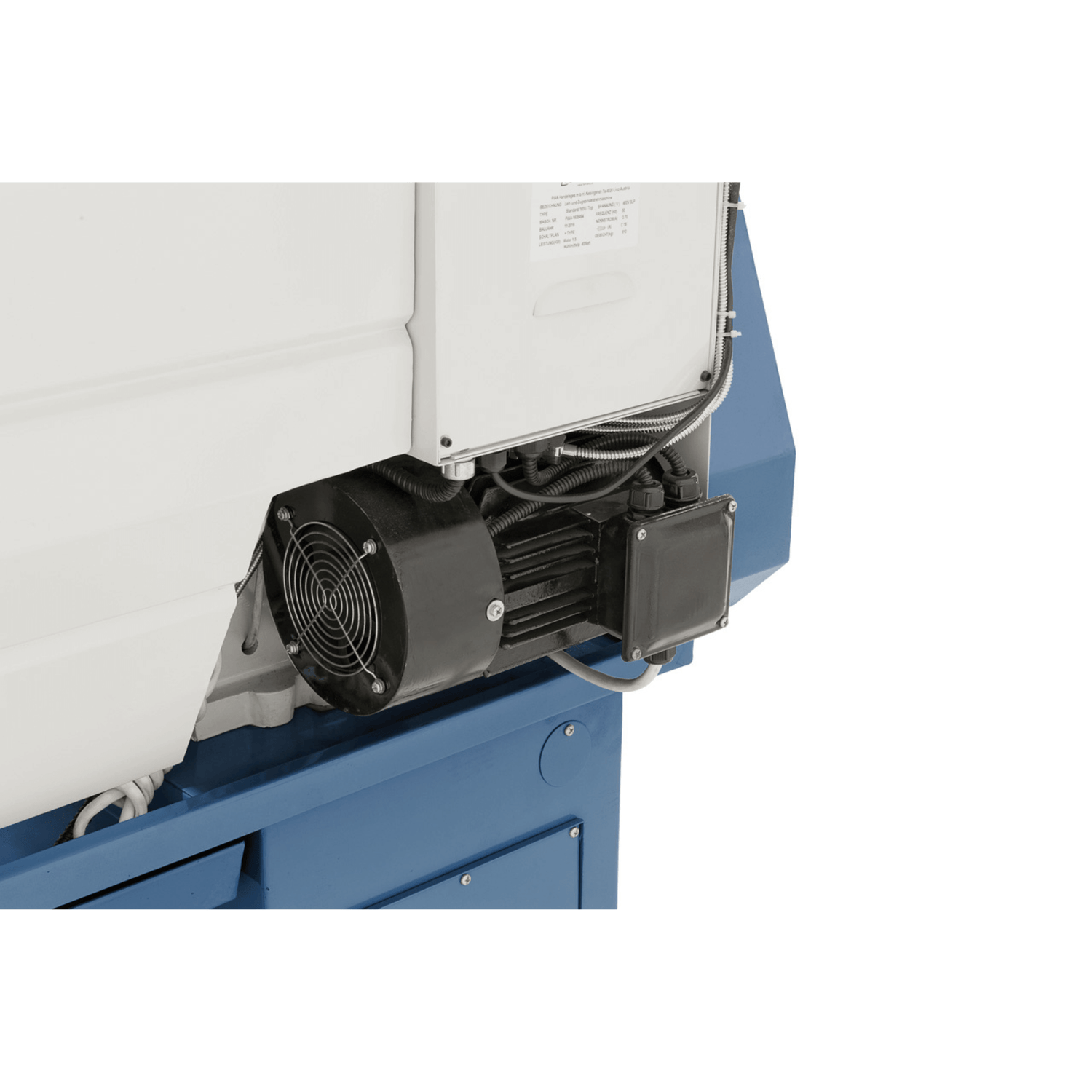

- Equipped with Delta frequency converter for high torque at low speeds and at approximately constant speeds under load

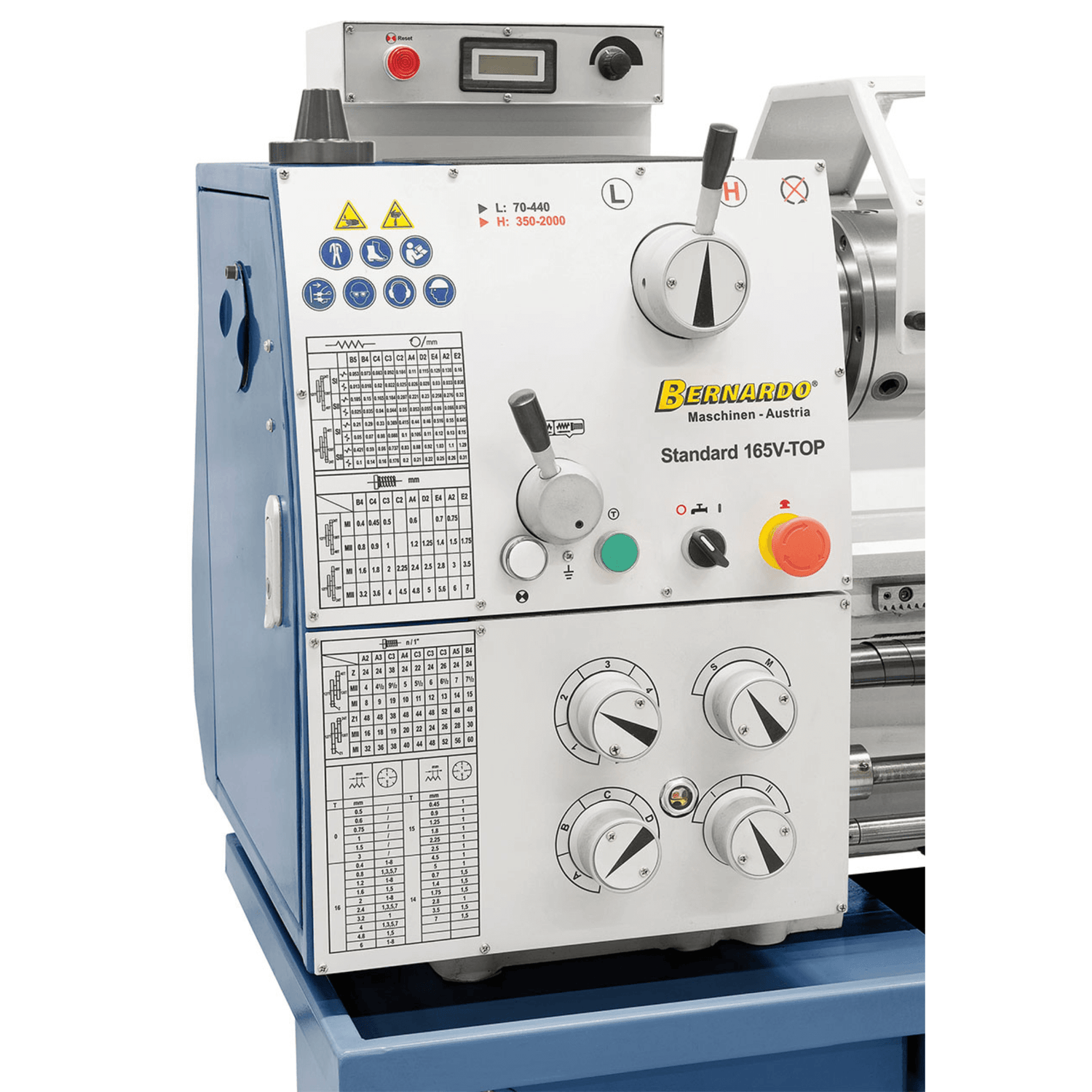

- Continuous speed regulation; the set speed is read on a digital display
- Ideal for technical institutes, repair shops and training institutes
- Modern spindle main bearing with angular bearing for precision execution

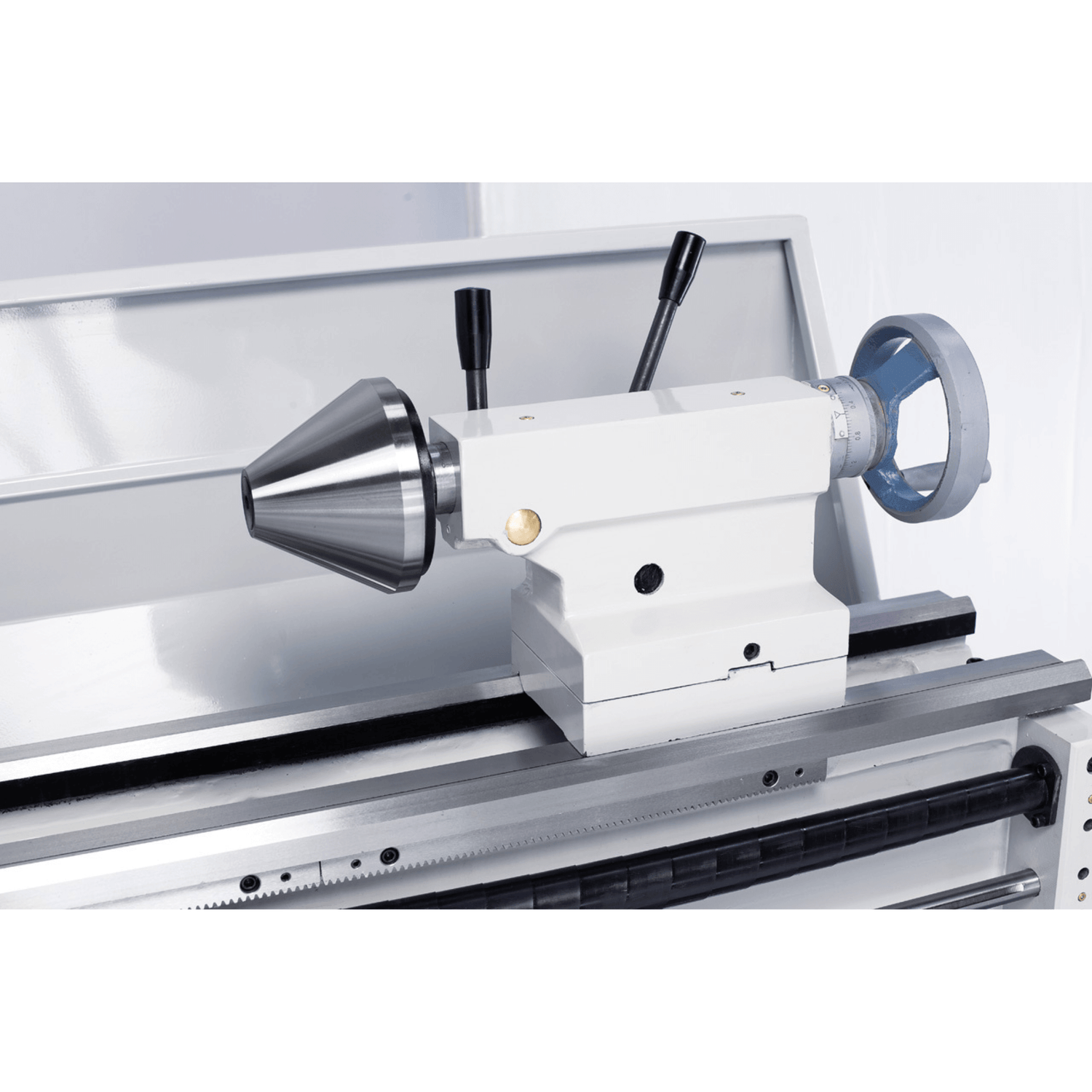

- Lever lock for tailstock, adjustable for taper turning
- Hardened and ground gears and shafts
- Ideal for machining steel, non-ferrous materials and plastics

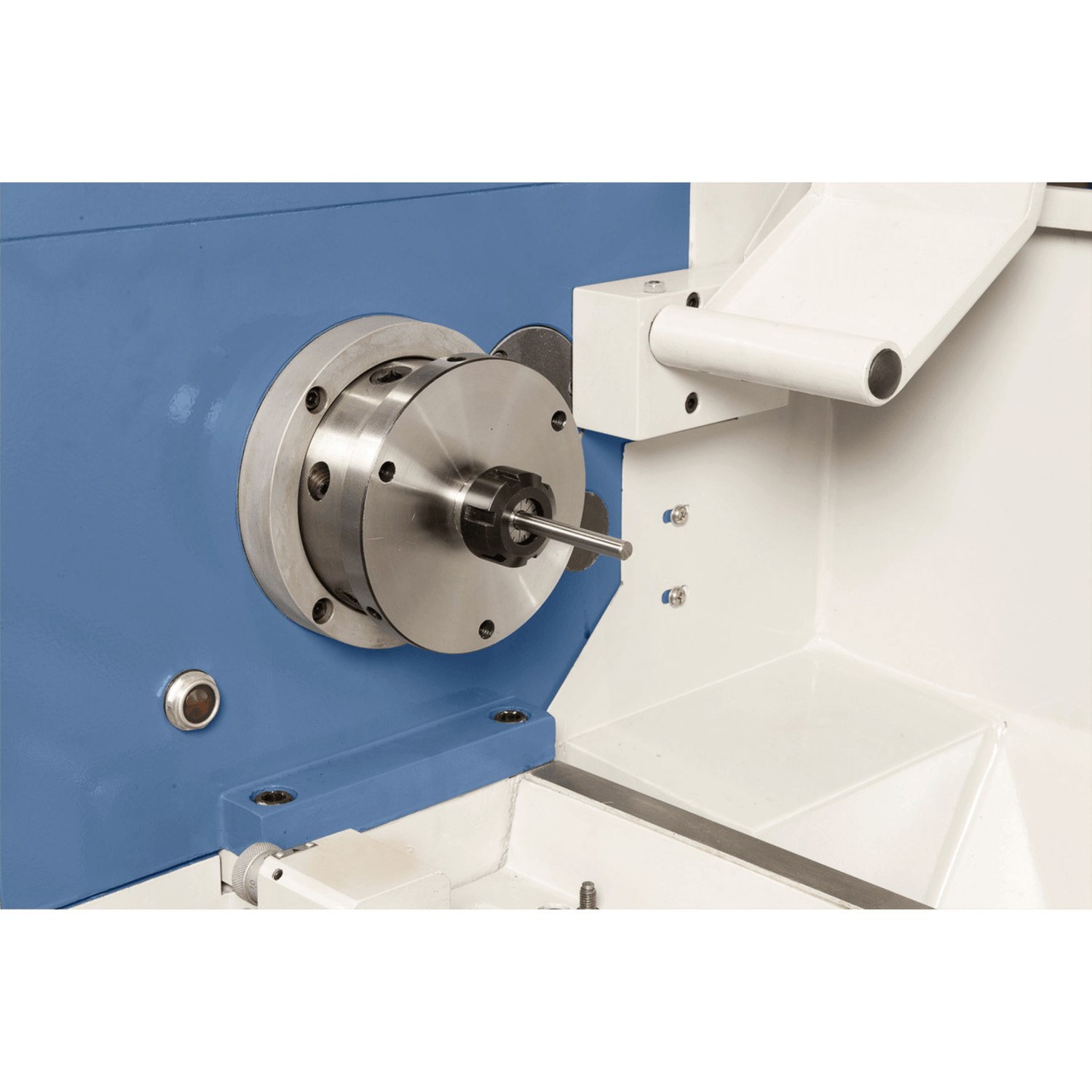

- Removable bridge for machining large diameter workpieces
- To minimize vibrations it is also equipped with a massive prismatic base with ribs

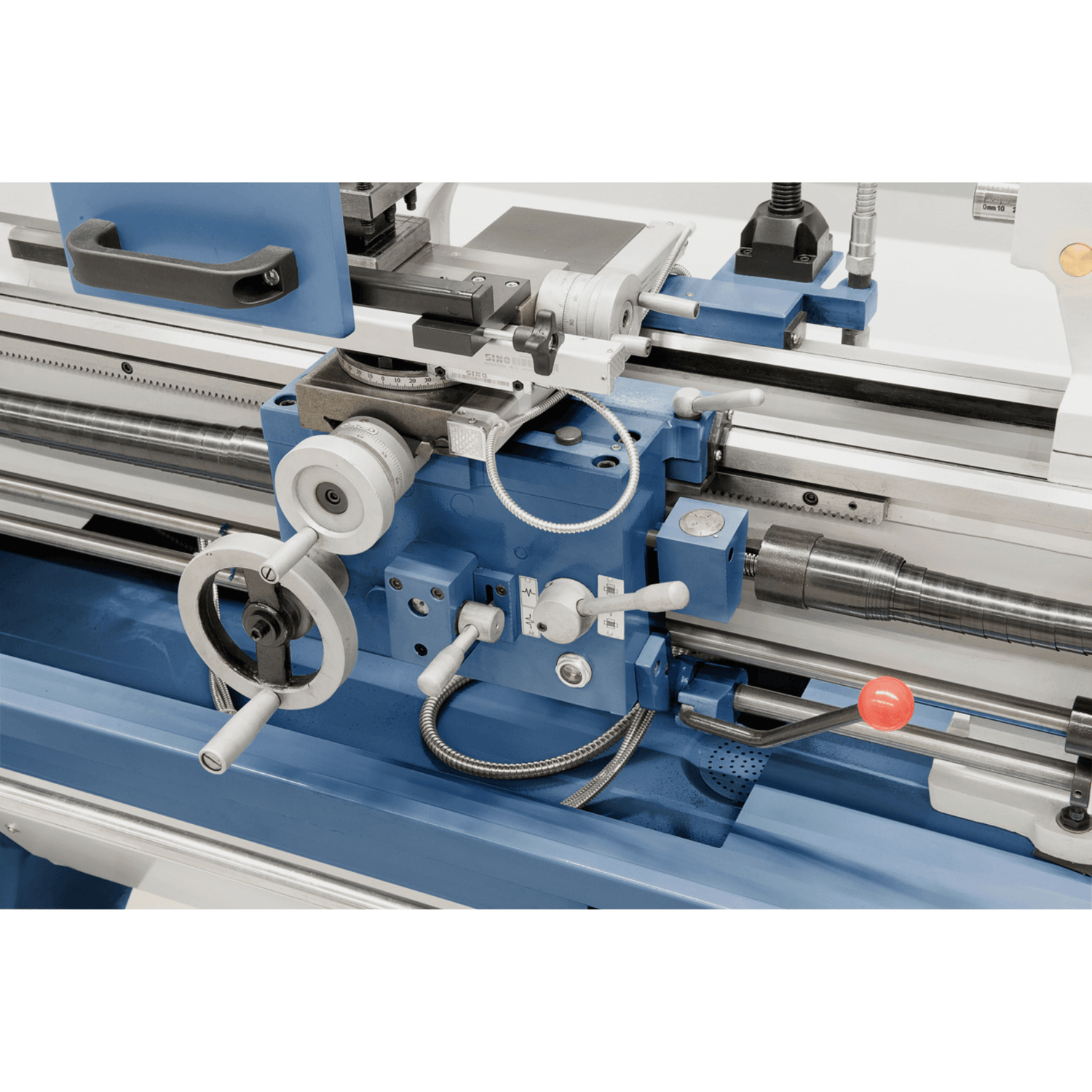

- The speed and feed adjustment is simple in structure, smooth and can be activated precisely.
Standard accessories

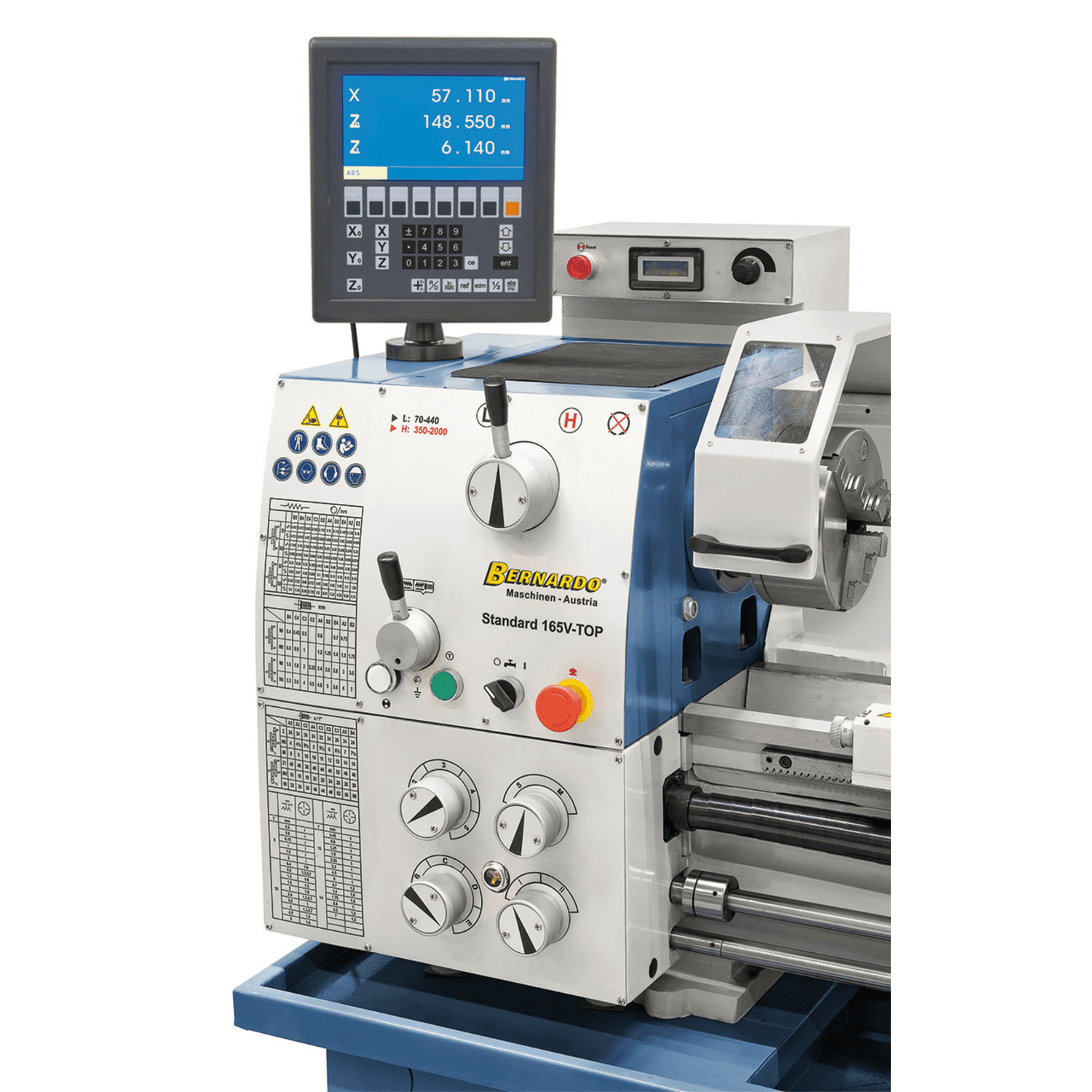

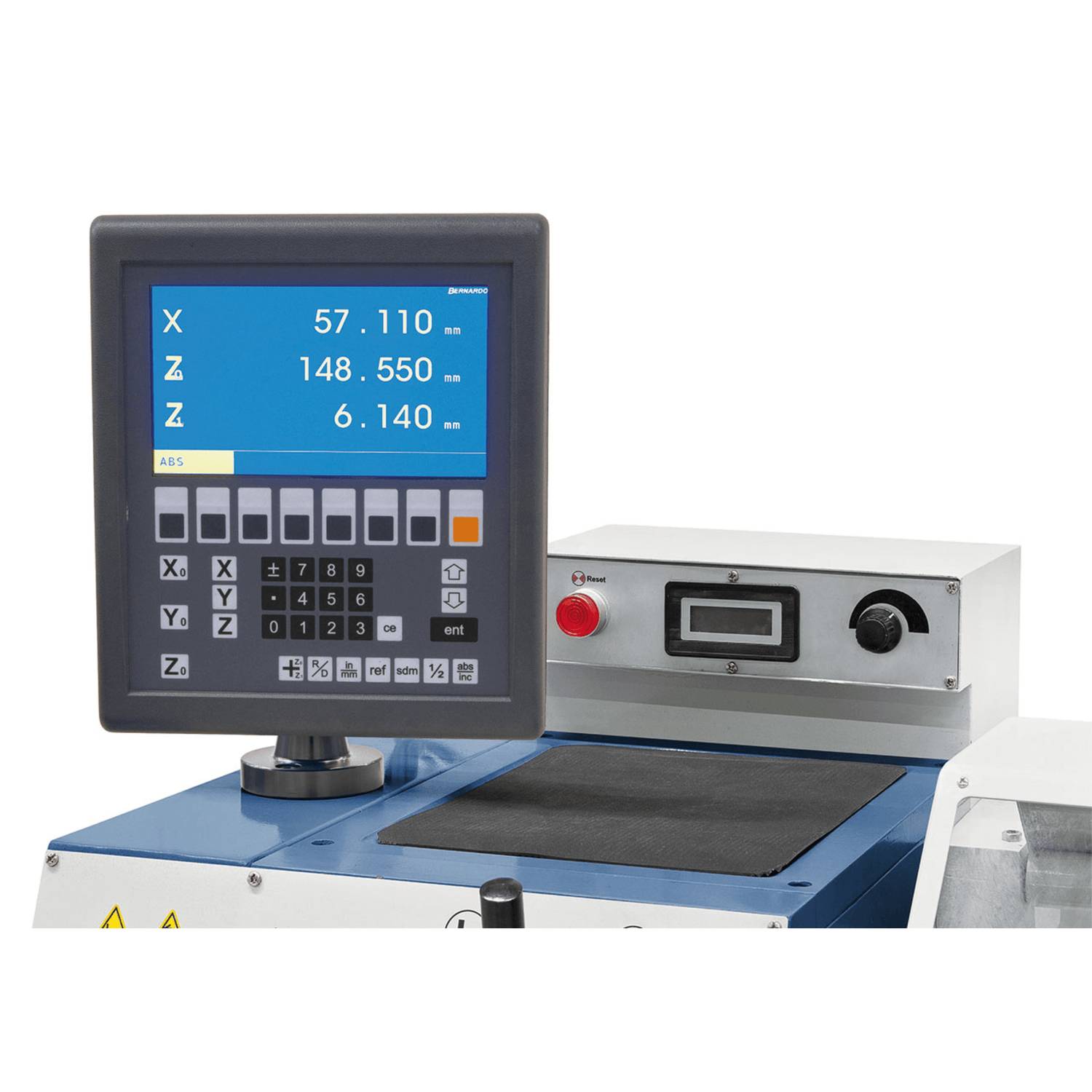

- i200 3-Axis Position Indicator with LCD Display
- 3-jaw chuck DK11-160 mm / D4

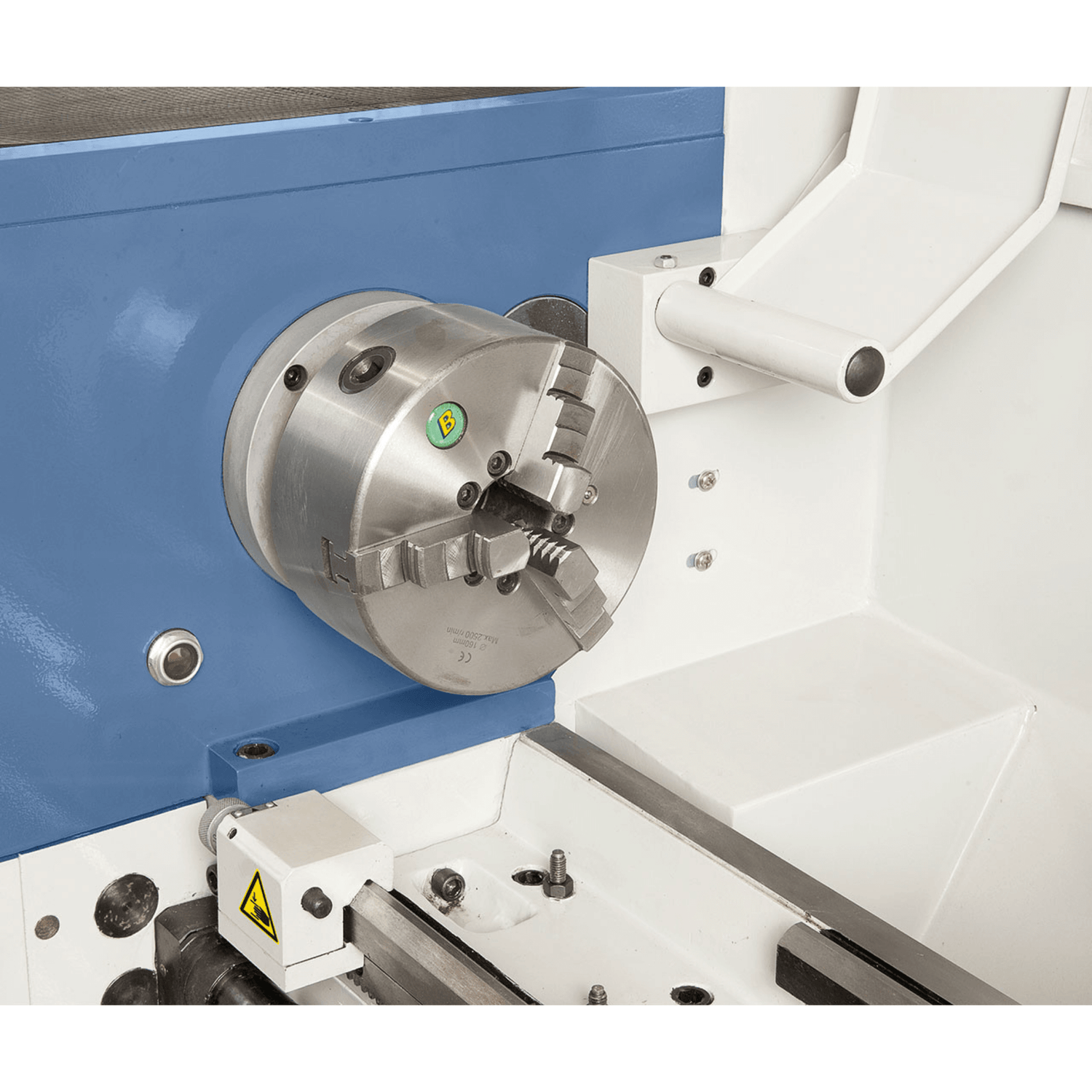

- Platform 200 mm / D4, according to DIN 55029

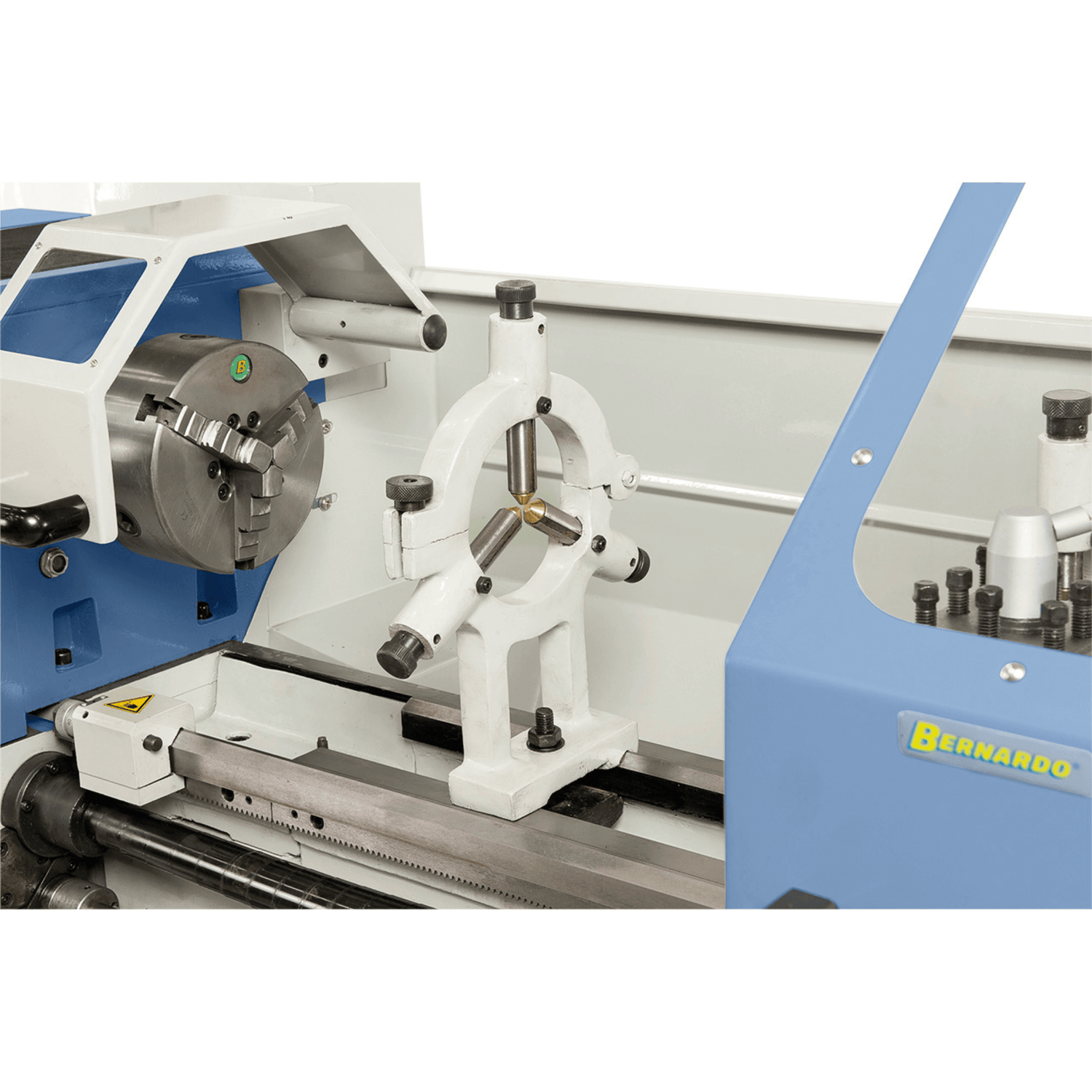

- Fixed bezel – max. diameter 60 mm
- Rotating bezel – max. diameter 60 mm
- Clamping plate 250 mm

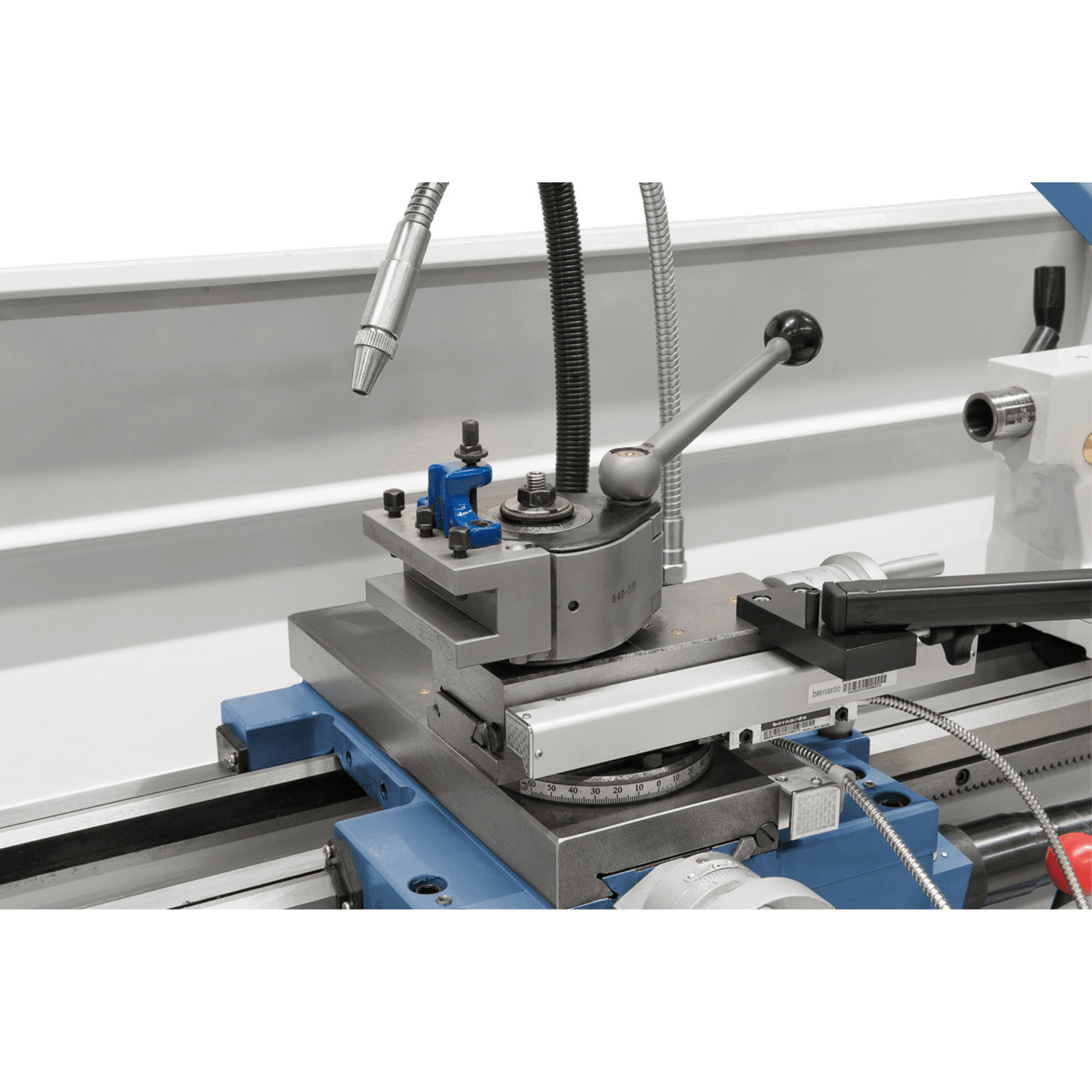

- Quick-change tool holder Multifix system with 4 inserts
- Shaft fastening device
- Tool holder protection device
- Slip joint
- Longitudinal stop of the micrometer
- Refrigeration system

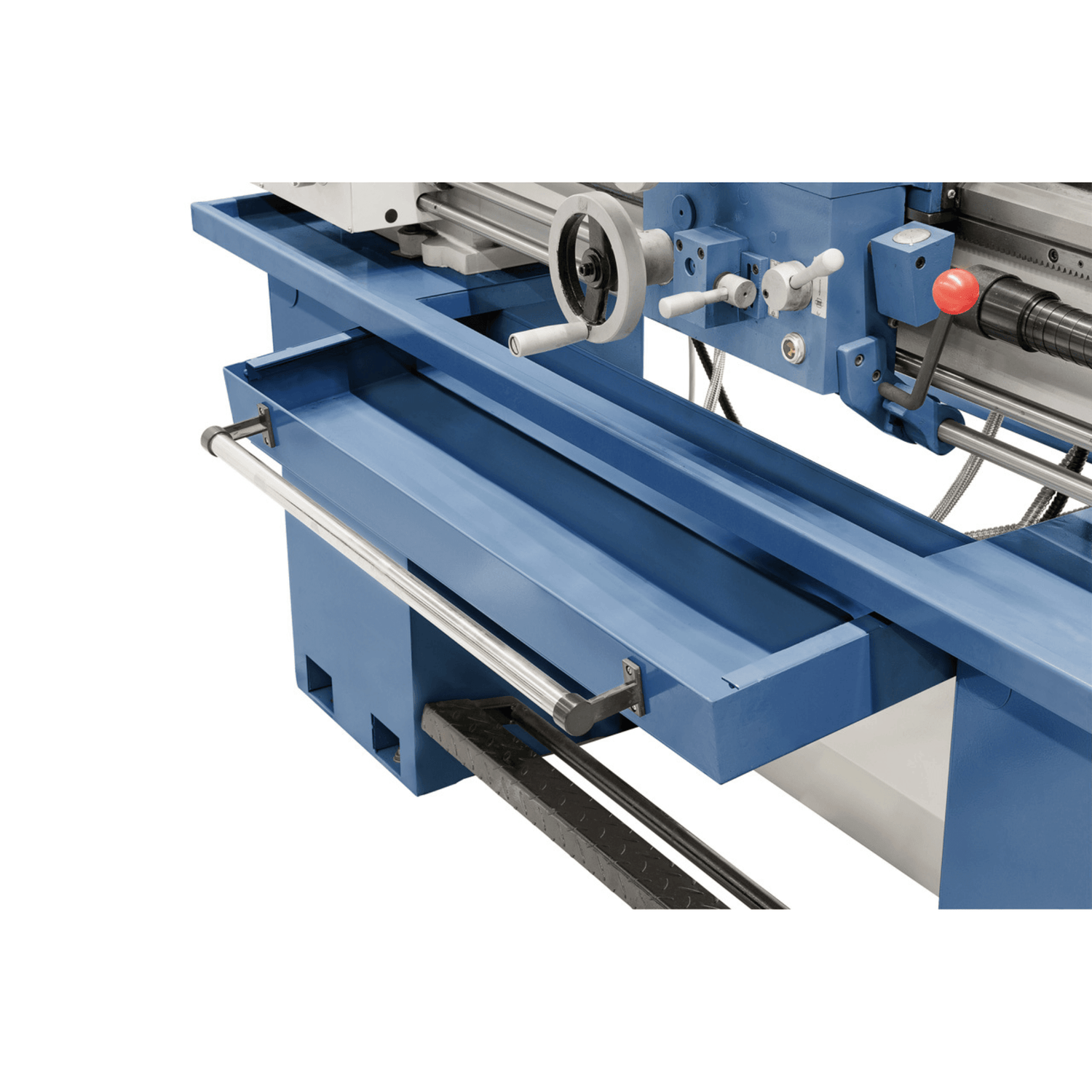

- Removable chip collection tray
- Frequency converter
- Pedal with brake function according to CE standards
- Bulkhead
- Thread gauge

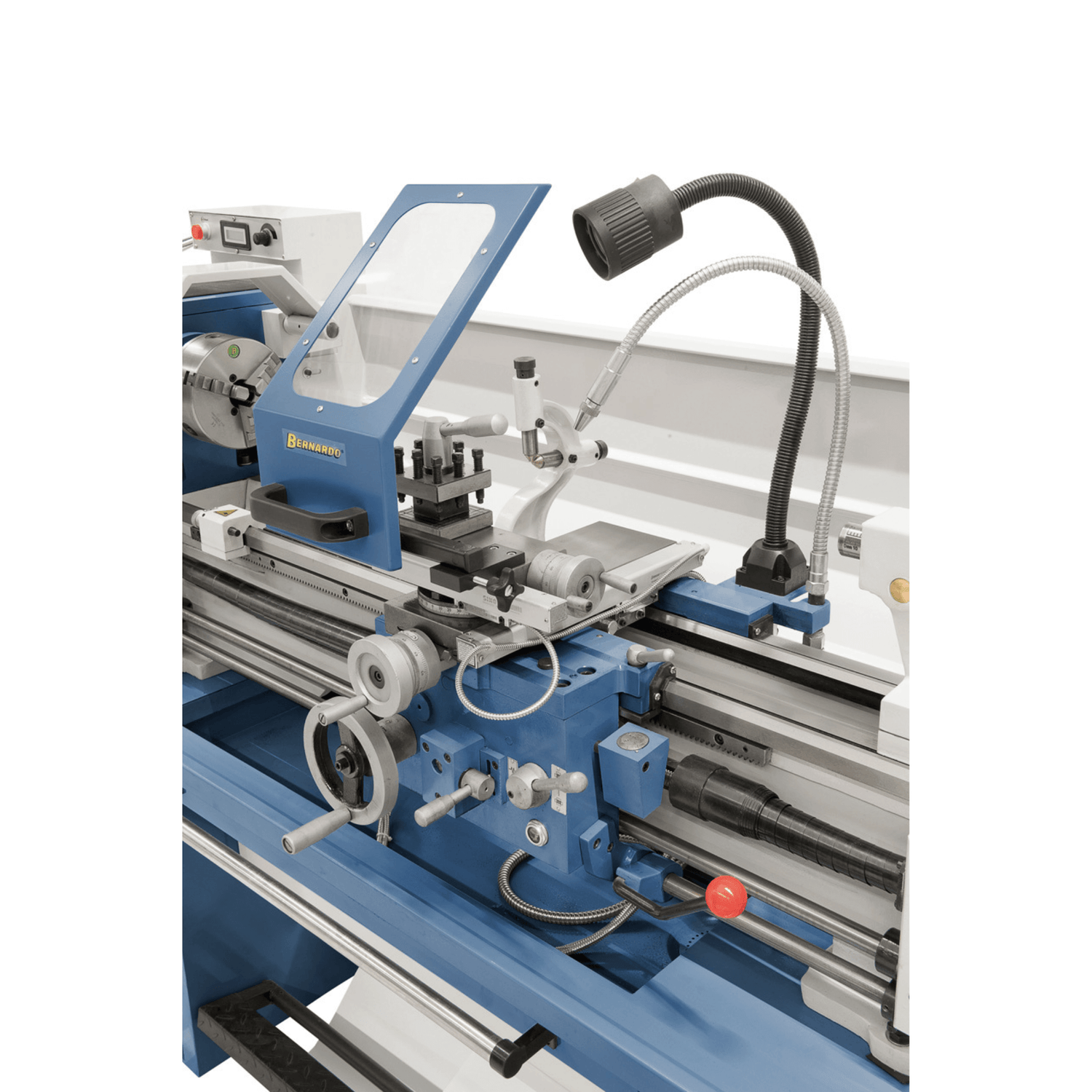

- LED car light
- Digital speedometer
- Reduction compass

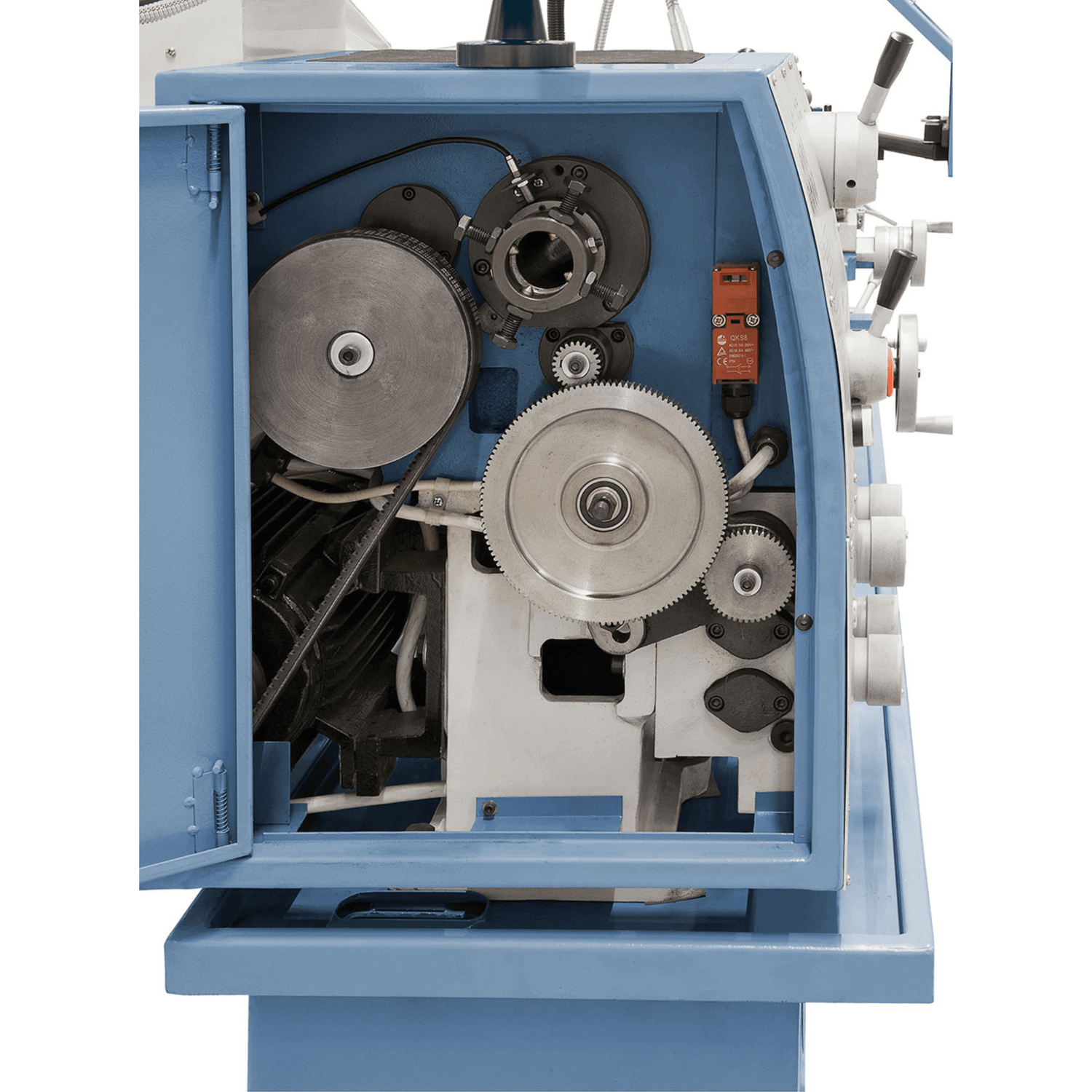

- Replacement wheels
- 2 central tips
- Base
- Control device
technical specifications
|
Distance between tips |
1000 mm |
|
Height of the tips |
175 mm |
|
Vaulting on the table |
350 mm |
|
Vault on elbow bend* |
450 mm |
|
Vaulting on flat sleds |
190 mm |
|
Bed width |
180 mm |
|
Spindle hole |
40 mm |
|
Spindle attachment |
DIN 55029, D1-4 |
|
Continuous speed range |
70 - 400 / 350 - 2000 rpm |
|
Longitudinal advancement area |
(40) 0.053 - 1.29 mm/rev |
|
Floor progress area |
(40) 0.013 - 0.31 mm/rev |
|
Metric threads |
(32) 0.4 - 7 mm |
|
Inch threads |
(36) 4 - 60 TPI |
|
Spindle stroke |
110 mm |
|
Spindle support |
MK 3 |
|
Motor input power S 1 100% |
1.5 kW (400 V) |
|
S 6 40% engine output power |
2.2 kW (400 V) |
|
Machine dimensions (L x W x H) |
1730 x 700 x 1340 mm |
|
Weight approx. |
530 kg |
* Length of the pull-out shelf: 220 mm
Technical Specifications
Posiziona il tornio (peso ~530 kg) sullo stand fornito, mettilo in bolla e ancora se necessario.
Collega l’alimentazione 400 V, monta mandrini e ripari, quindi esegui il livellamento fine con comparatore
su barra di riscontro finché la conicità è nulla su 200–300 mm. Ingombro: 1730 × 700 × 1340 mm.
Distanza punte 1000 mm, altezza punte 175 mm (Ø banco 350 mm),
Ø su carro trasversale 190 mm. Incavo con letto amovibile 220 mm per Ø fino a
450 mm. Foro mandrino Ø 40 mm, attacco D1-4, bancale 180 mm.
Variatore elettronico (inverter) su due gamme: 70–400 rpm e 350–2000 rpm.
Seleziona la gamma e regola i giri con il potenziometro; la velocità è visibile su display digitale.
Imposta i giri in base a materiale, utensile e Ø pezzo per finitura ottimale.
Visualizzazione su X/Z + terzo asse selezionabile, azzeramenti rapidi, lettura assoluta/incrementale,
conversione mm↔︎pollici e funzioni utili per ripetibilità e controllo dimensionale veloce.
Metriche: 32 passi 0,4–7 mm. In pollici: 36 passi 4–60 TPI.
Avanzamenti longitudinali 0,053–1,29 mm/giro (40) e trasversali 0,013–0,31 mm/giro (40).
Inclusi ingranaggi di cambio e thread dial.
Mandrino autocentrante Ø 160 mm (BC3), mandrino indipendente Ø 200 mm (D4), piastra frontale
Ø 250 mm, **torretta Multifix** con 4 portautensili/inserti, lunette fissa e mobile (Ø 60 mm), refrigerante,
luce LED, vasca trucioli, paraspruzzi e molti altri accessori.
Motore 1,5 kW in S1 e 2,2 kW in S6 40%, alimentazione trifase 400 V.
Verifica protezioni (magnetotermico/differenziale), messa a terra e il corretto funzionamento del pedale con freno CE e dei microinterruttori.
Sì. Rimuovendo il letto amovibile 220 mm si lavora fino a Ø 450 mm sull’incavo.
Usa serraggi adeguati, giri compatibili e, se necessario, le lunette per supportare il pezzo.
