Description

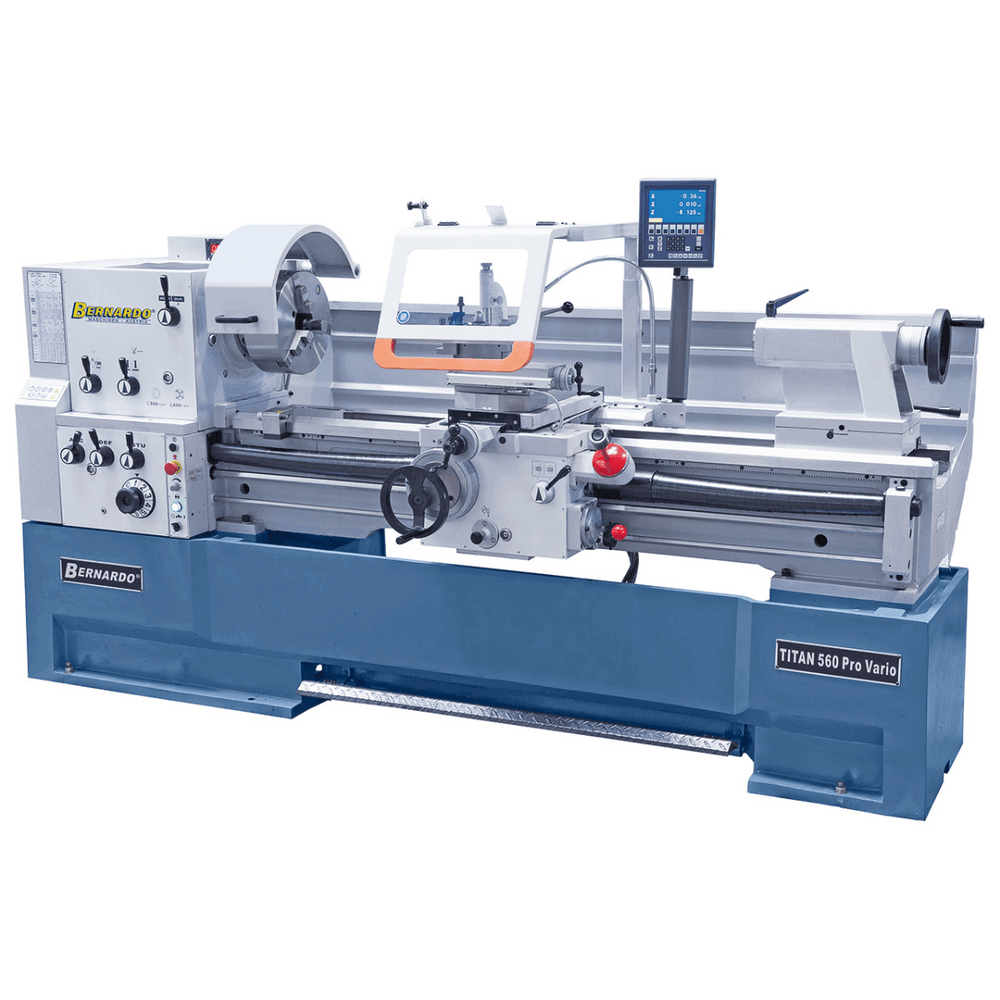

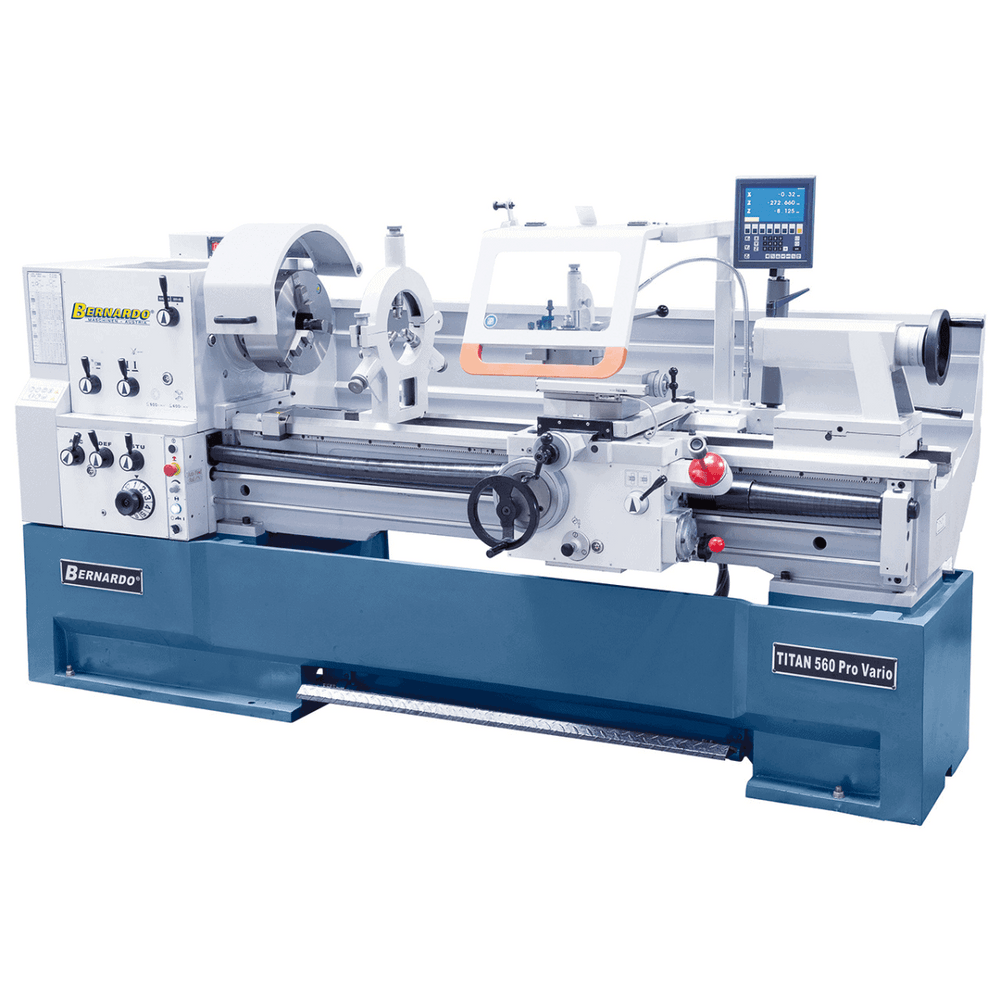

Titan 560 x 1500 Pro Vario Production Lathe with Delta Inverter and 3-Axis Digital Display
The Titan 560 x 1500 Pro Vario lathe is a modern and robust machine, designed for single-piece turning or continuous production. Thanks to the Delta inverter and rigid, single-piece cast structure, it offers high precision and consistent speed under load. Complete with accessories, it is ready for use immediately for versatile machining operations in the mechanical and manufacturing sectors.
Main features
• Delta inverter with high torque at low speeds
• Continuous speed regulation with digital readout
• Anti-vibration single-block cast iron bed
• Removable arm for working on large diameters
• Rapid longitudinal and transverse advances
• Lunettes included to support long pieces

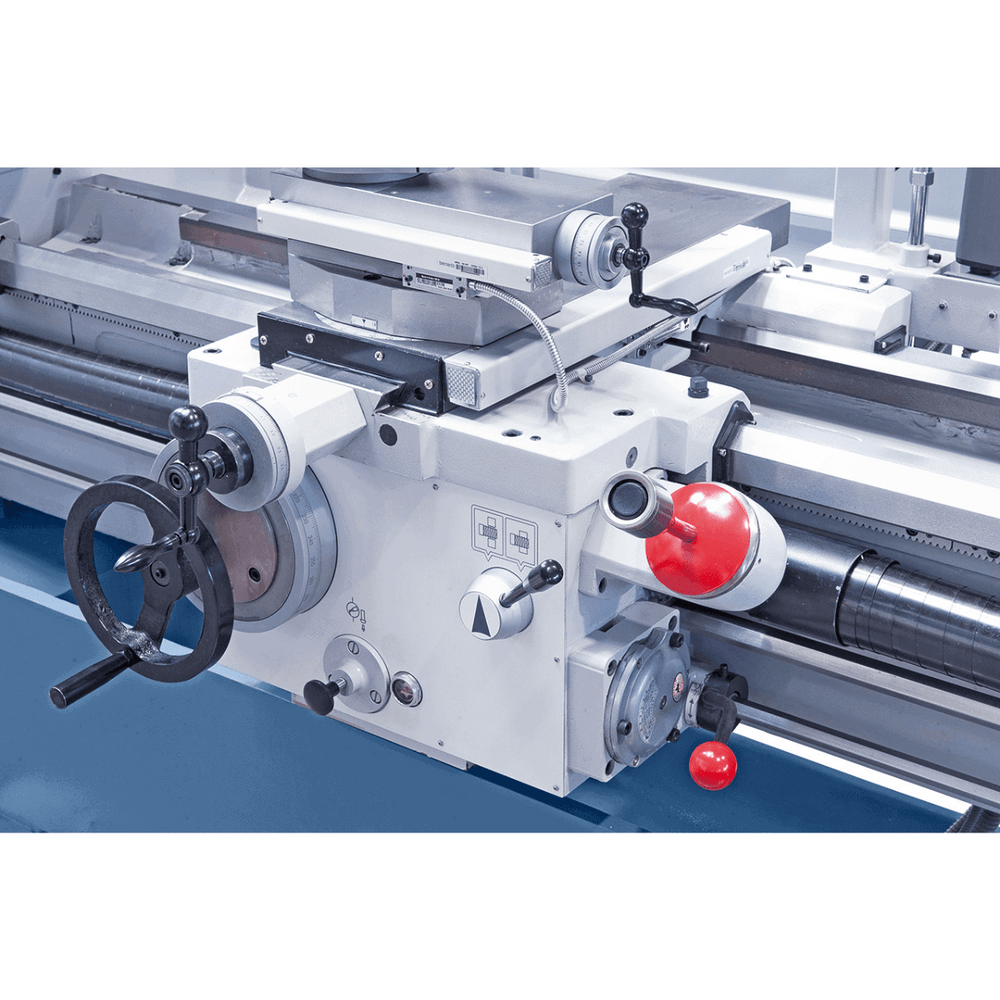

• Centralized lubrication of the trolley
• Complete equipment for professional use
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1500 mm |
| Tip height | 280 mm |
| Turning diameter on the bench | 560 mm |
| Turning diameter on bend | 785 mm |
| Turning diameter on slides | 350 mm |
| Bench width | 350 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | 25–220 / 220–1500 rpm |
| Longitudinal advances | (42) 0.055 – 3.061 mm/rev |
| Transversal advances | (42) 0.025 – 1.384 mm/rev |
| Metric threads | (41) 0.1 – 14 mm |
| Inch threads | (60) 2 – 112 TPI |

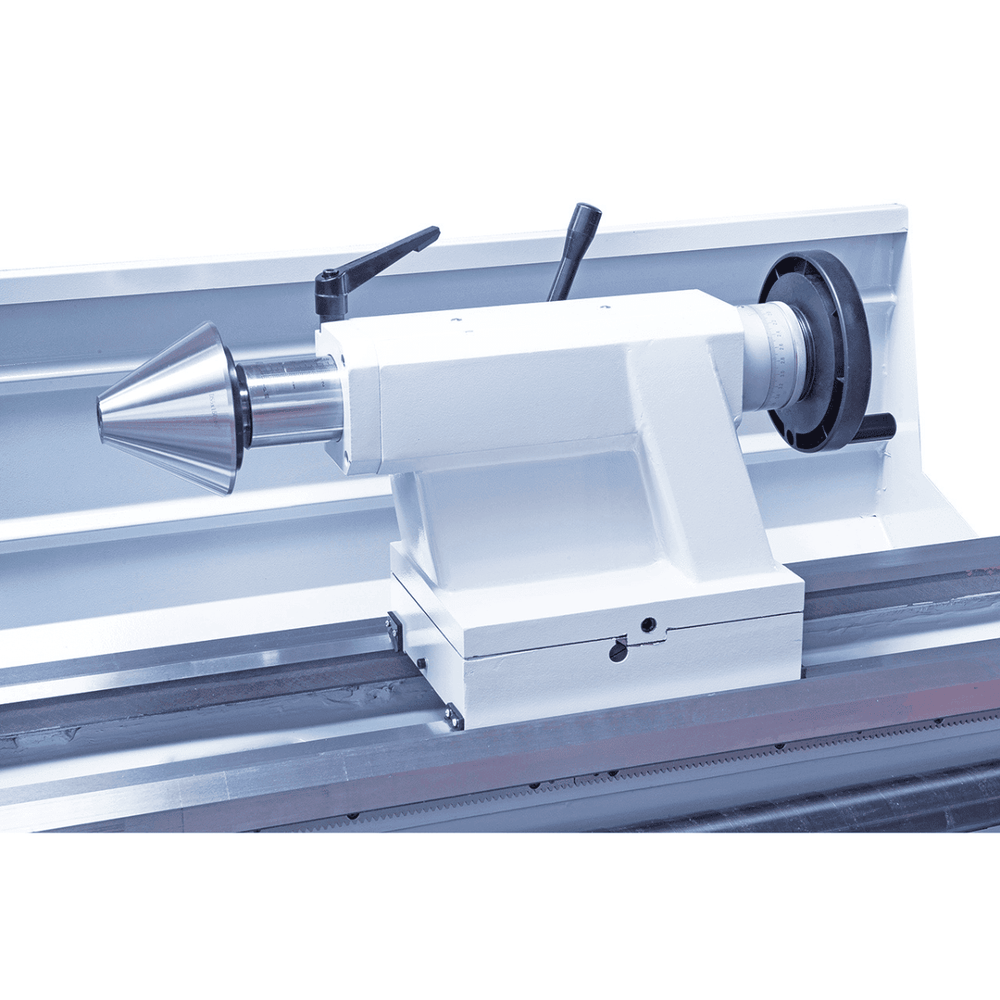

| Tailstock quill diameter | 75 mm |
| Dinghy race | 185 mm |
| Dinghy attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 2840 x 1150 x 1610 mm |
| Weight | 2420 kg |
Package Contents

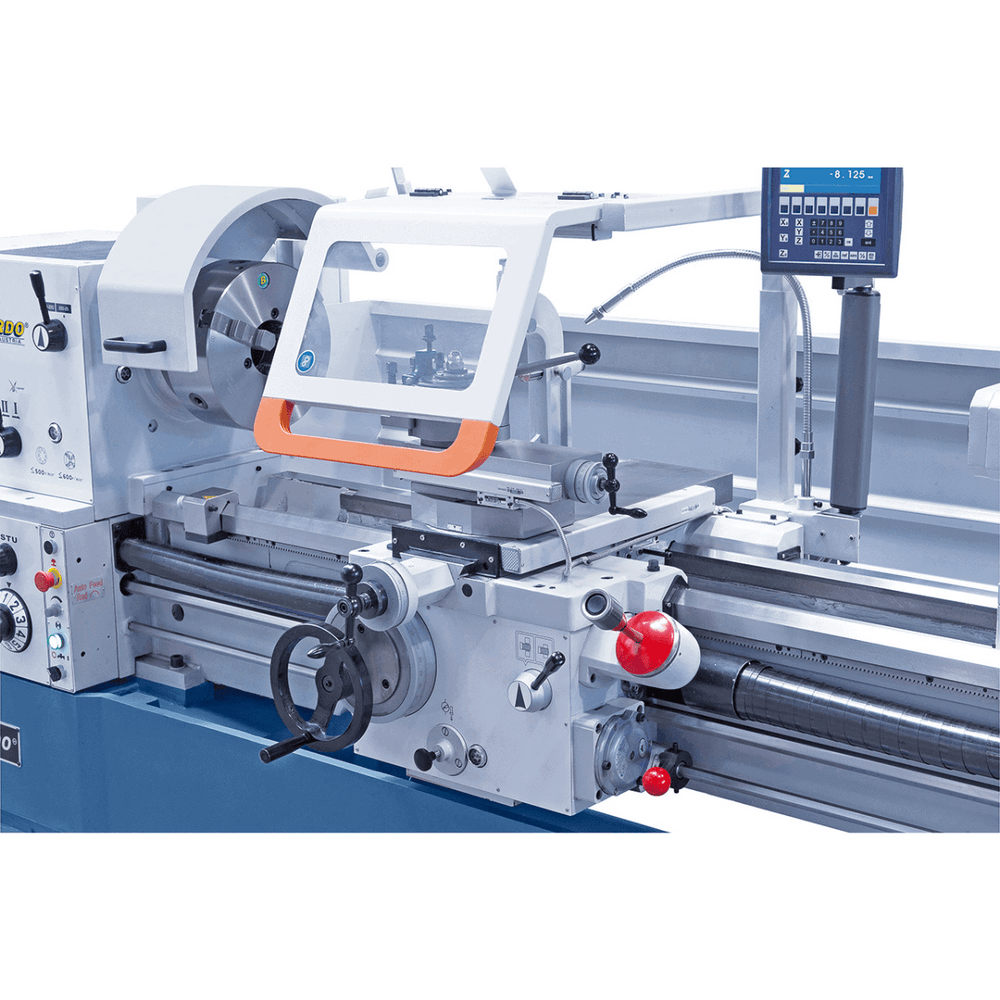

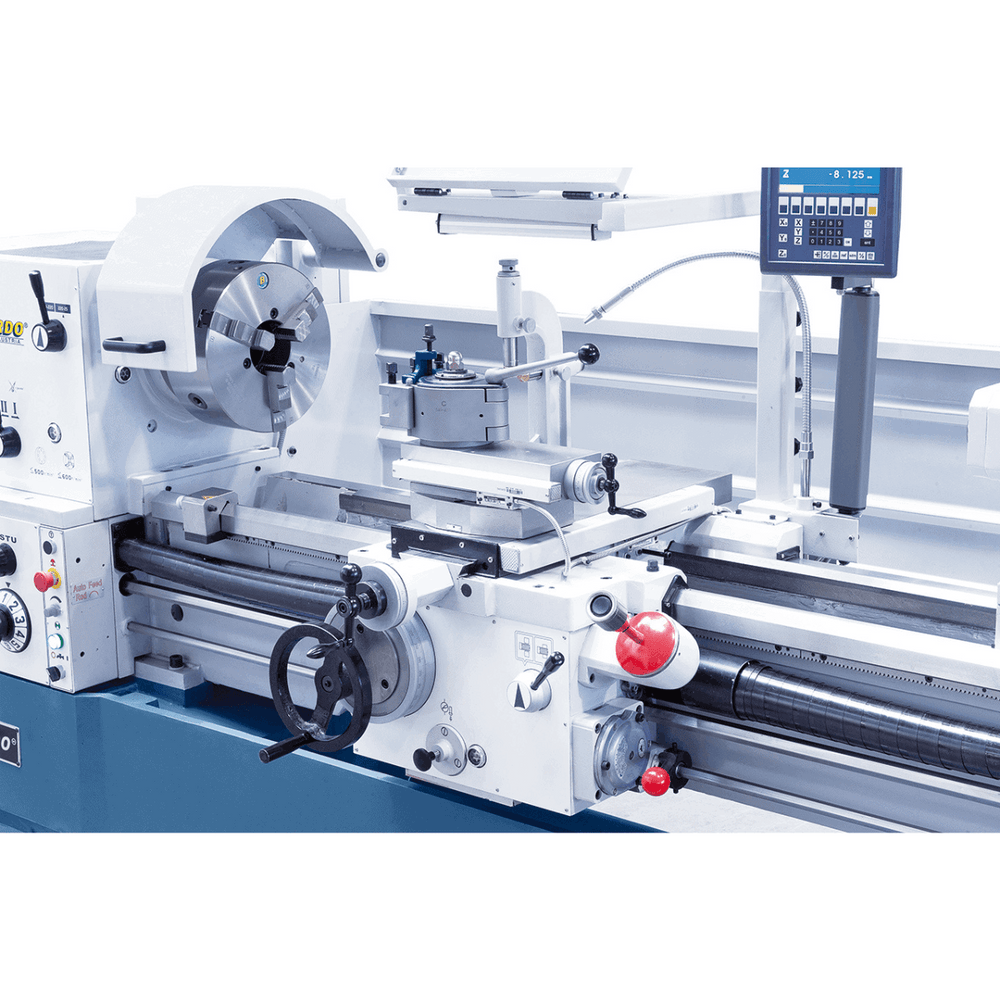

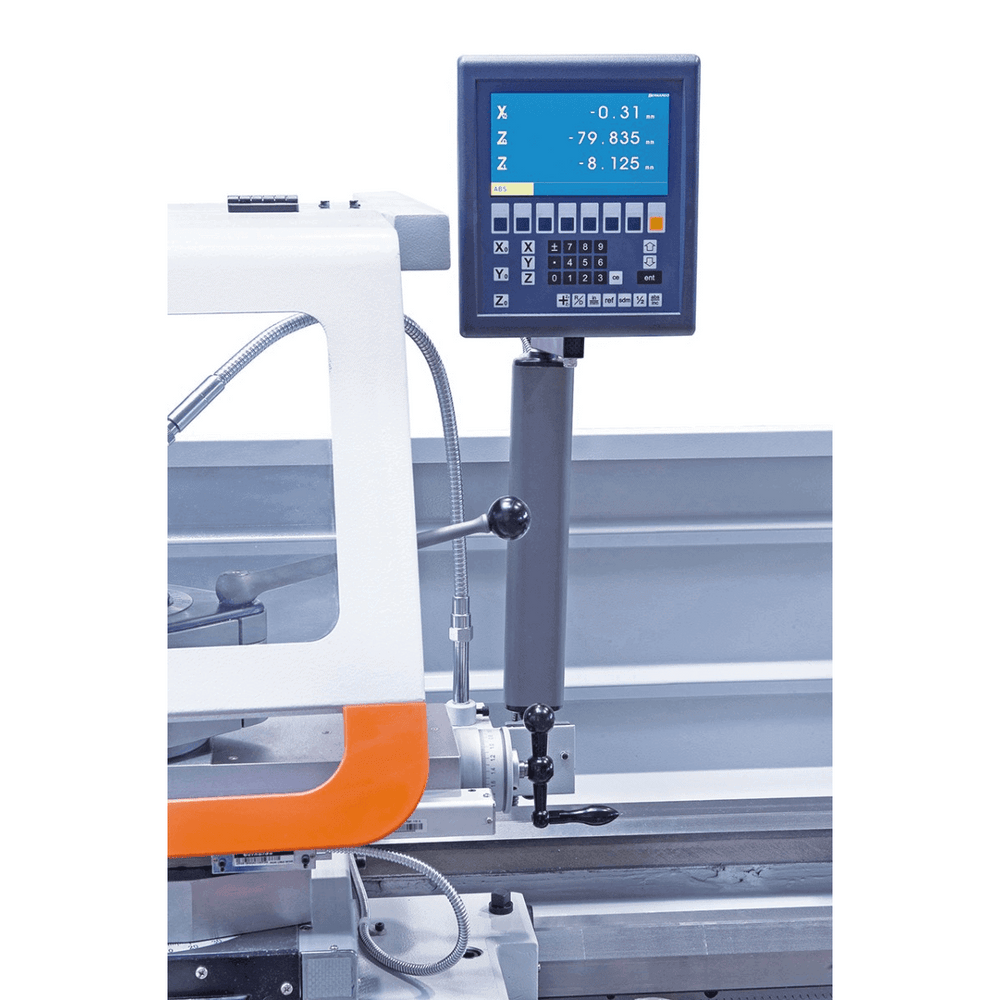

• ES-12 V 3-axis digital display with LCD

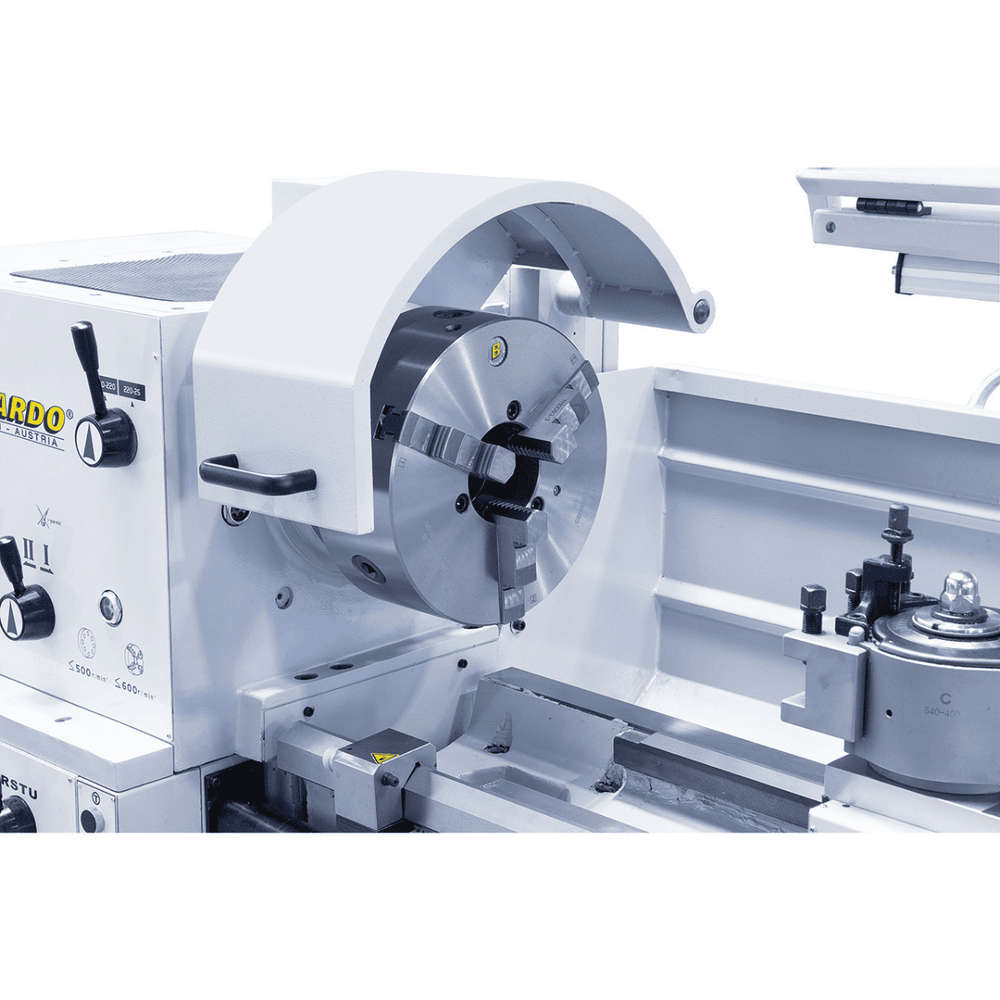

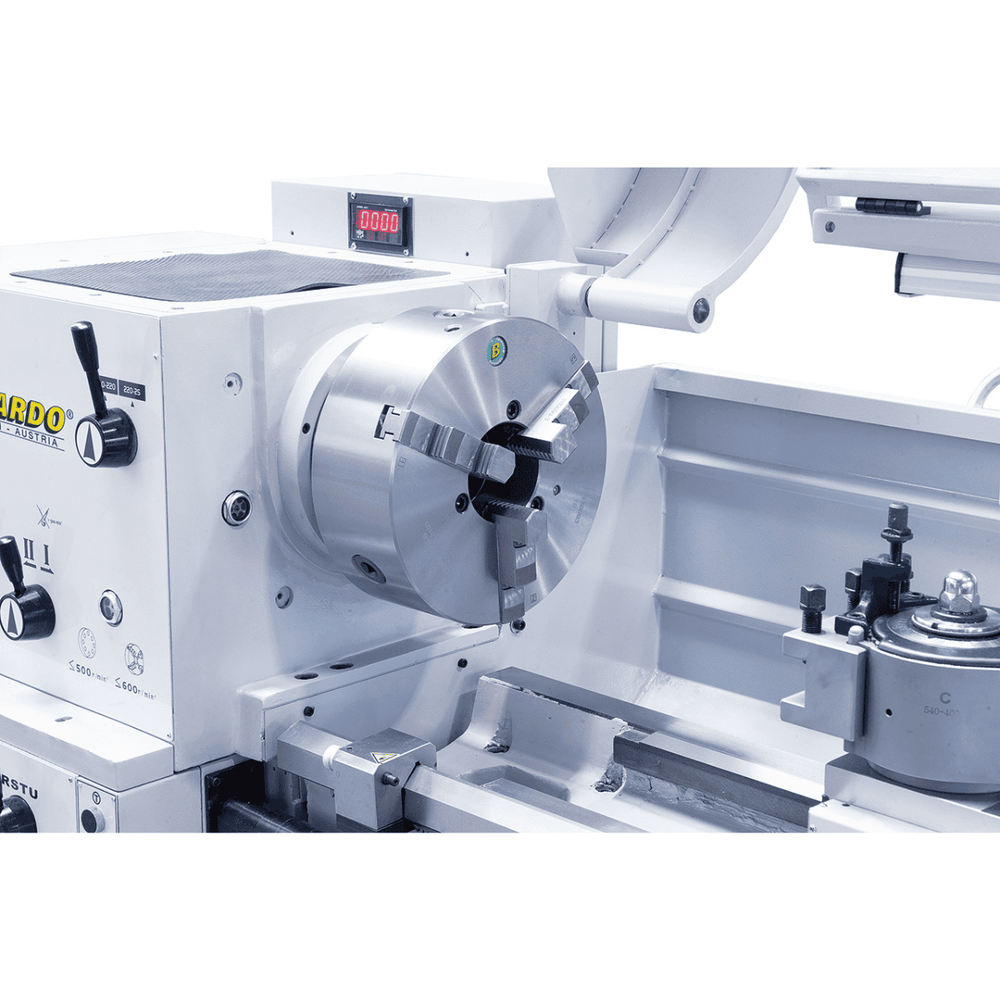

• 3-jaw self-centering chuck PS3-315 mm / D8

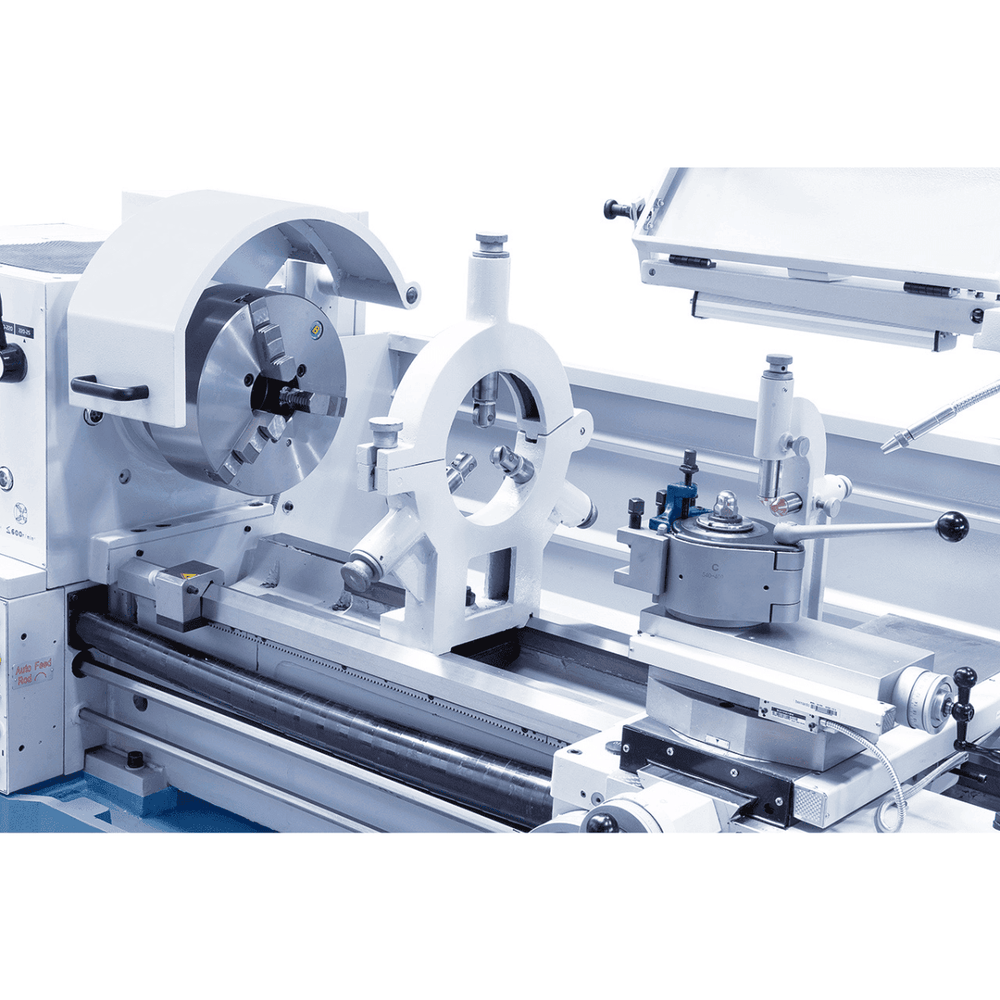

• Fixed bezel (Ø max 180 mm)
• Rotating bezel (Ø max 120 mm)

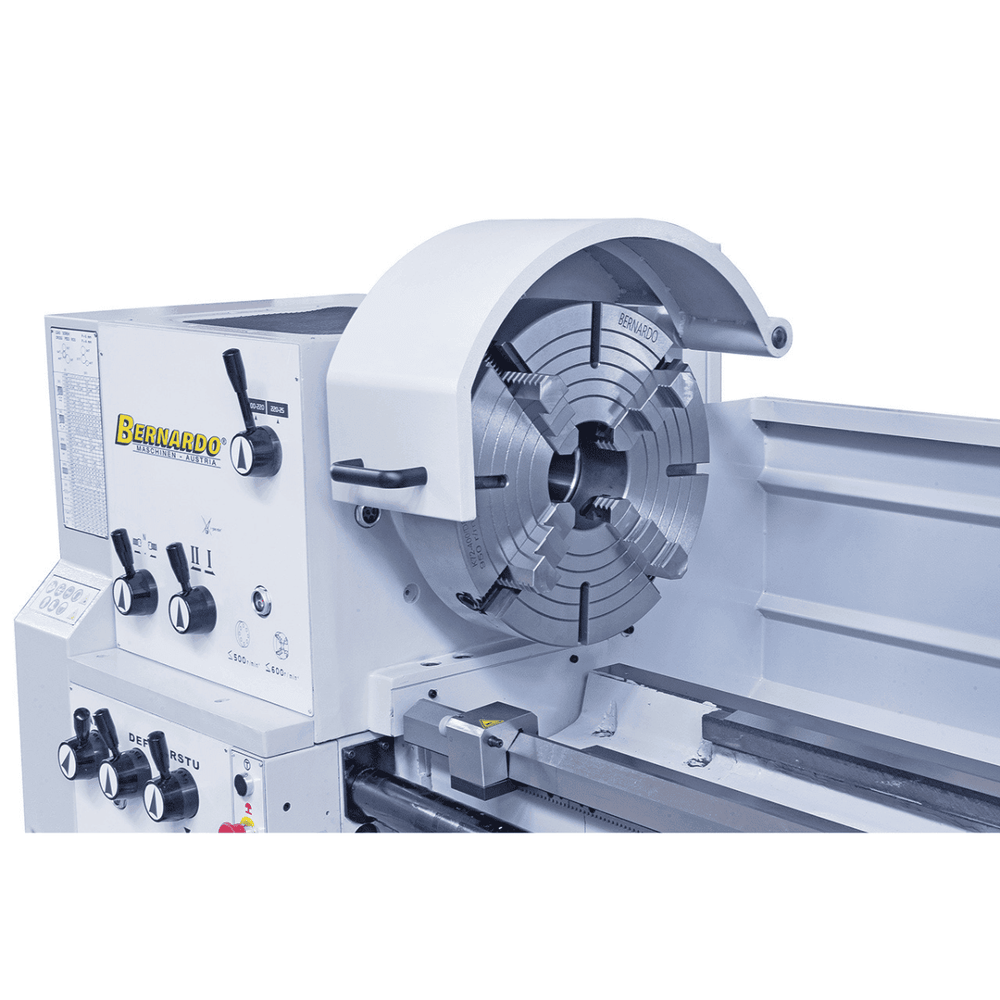

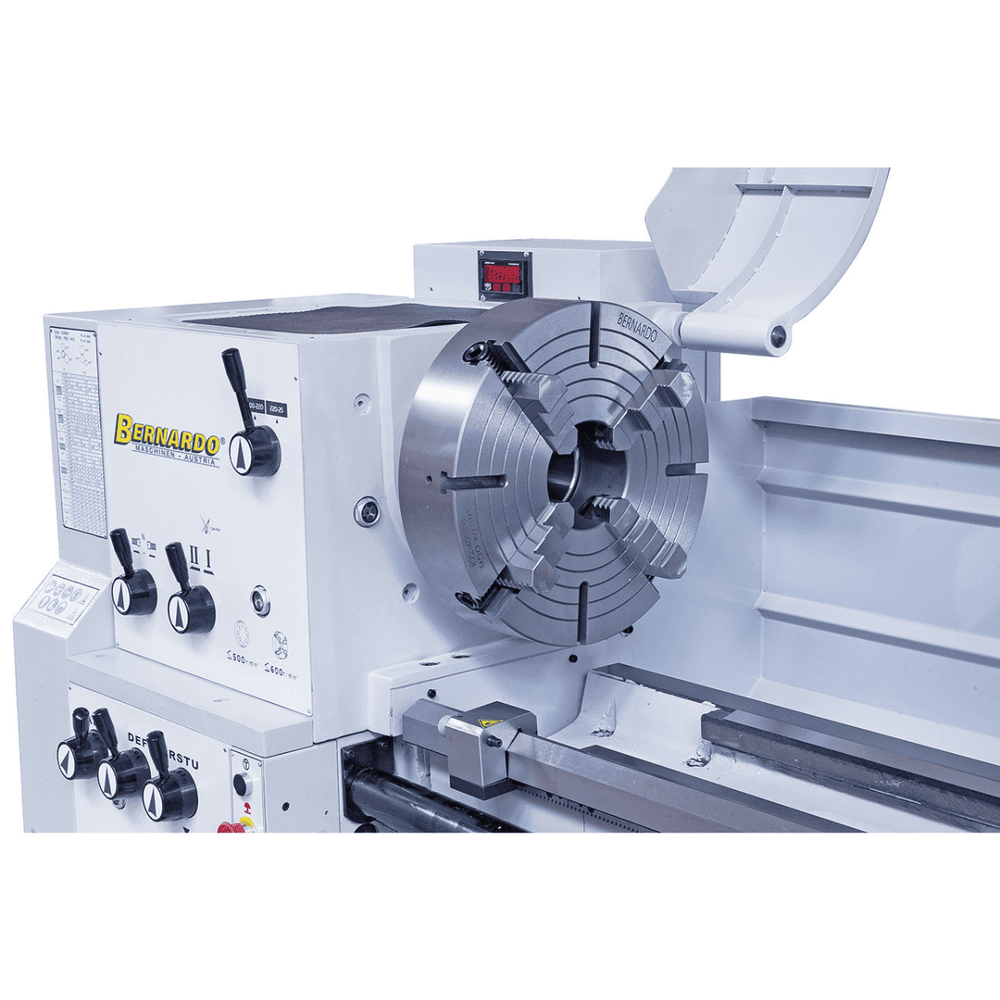

• Clamping plate Ø 450 mm
• Delta frequency inverter
• Digital spindle speed display
• 2 central tips
• Safety clutch

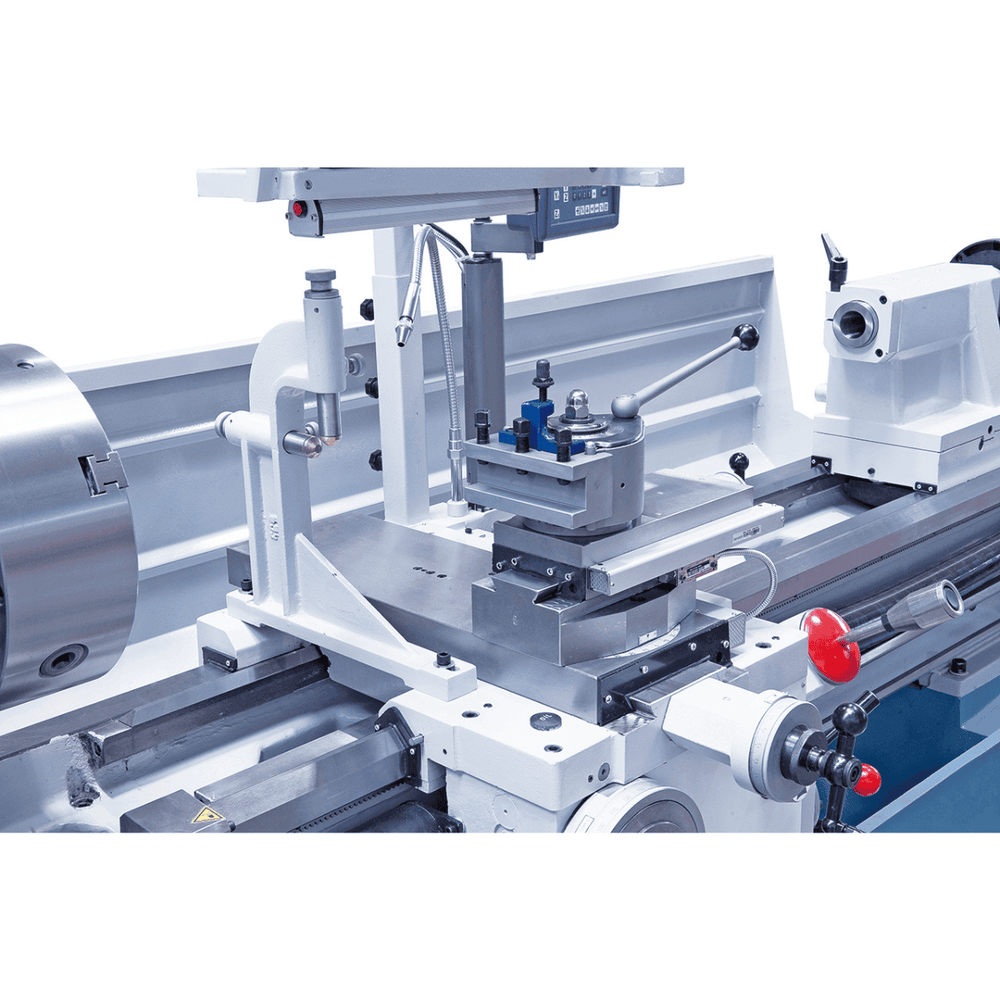

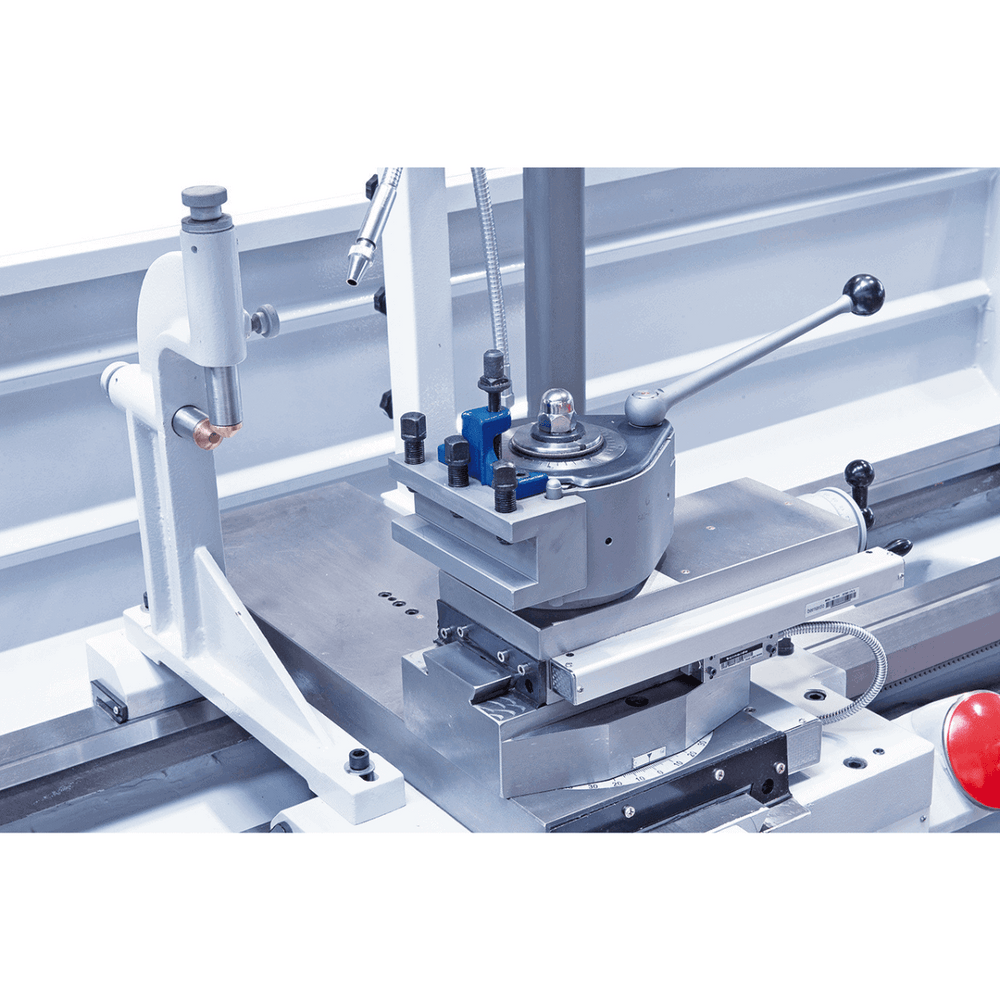

• Quick change with 4 tool holders
• Fast forwards
• Cooling system
• Shell Tellus 46 Initial Fill
• LED lighting

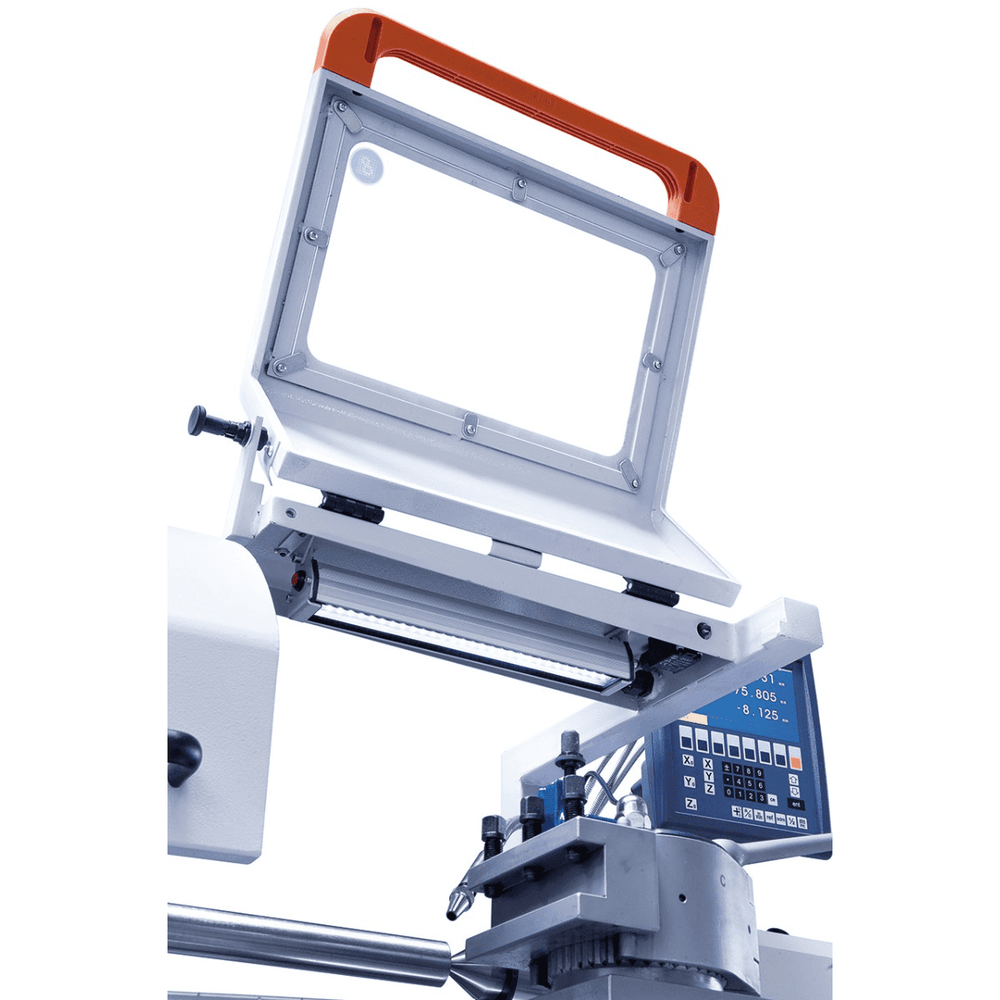

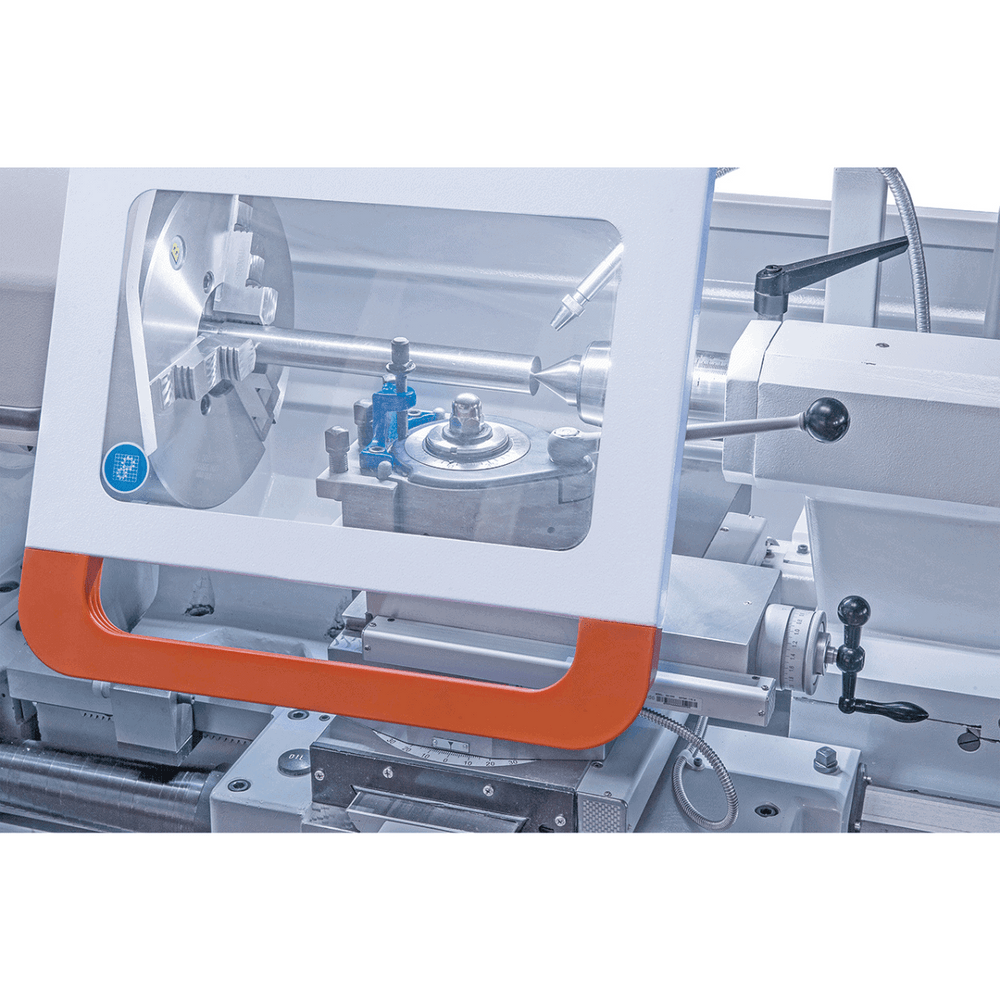

• Tool holder protection

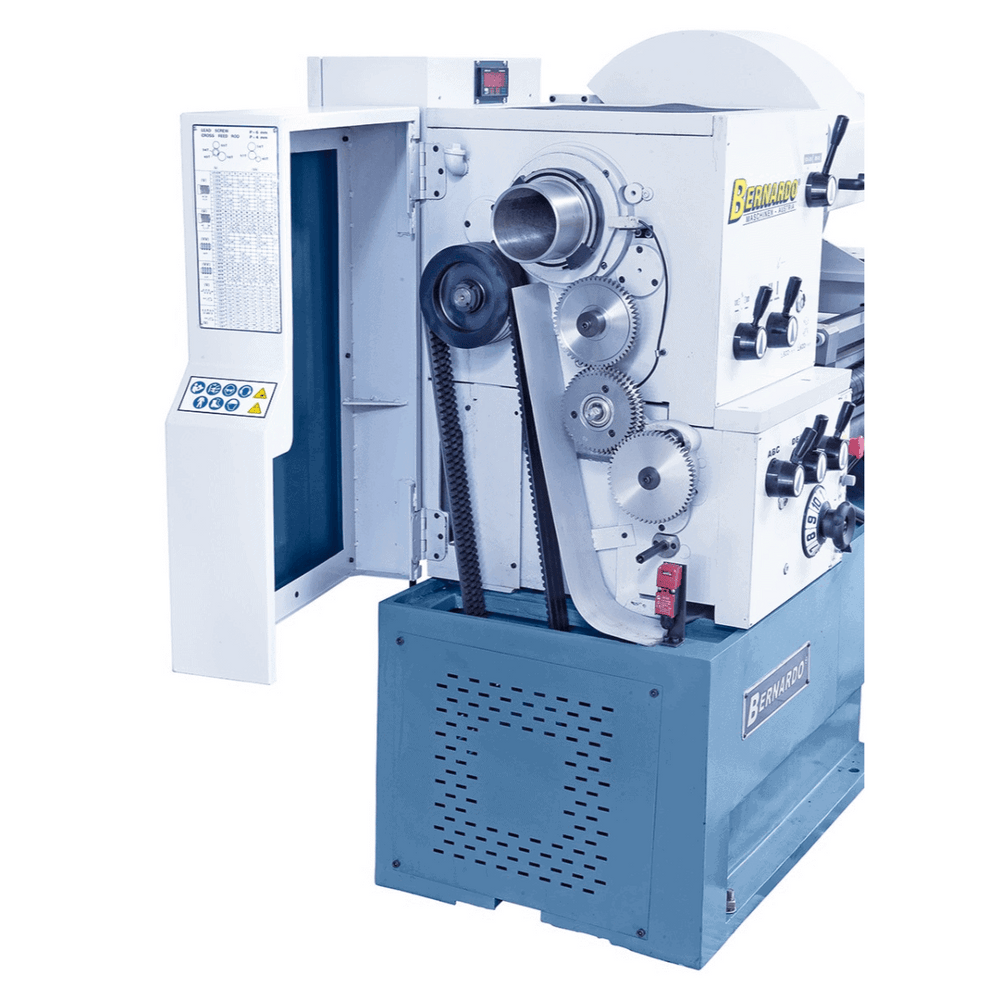

• Gear wheels
• Reduction compass
• Chip collection wall
• CE brake pedal
• Service tools
