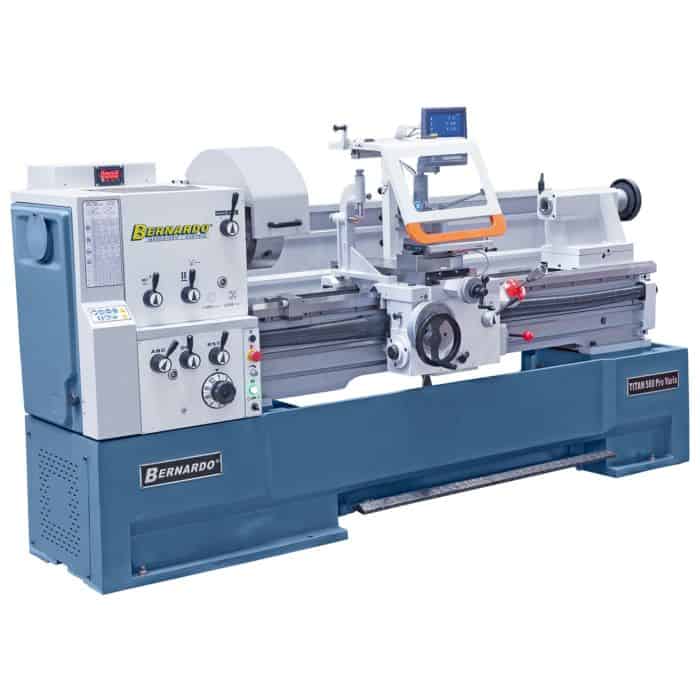

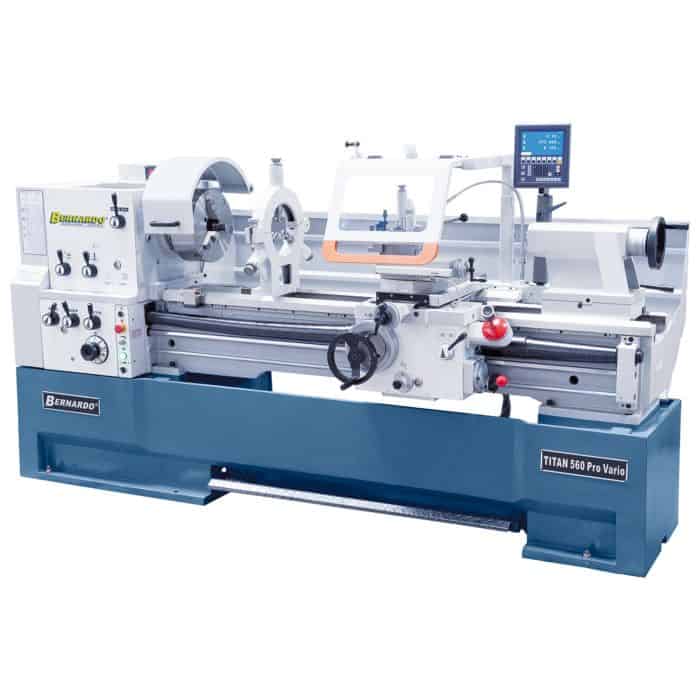

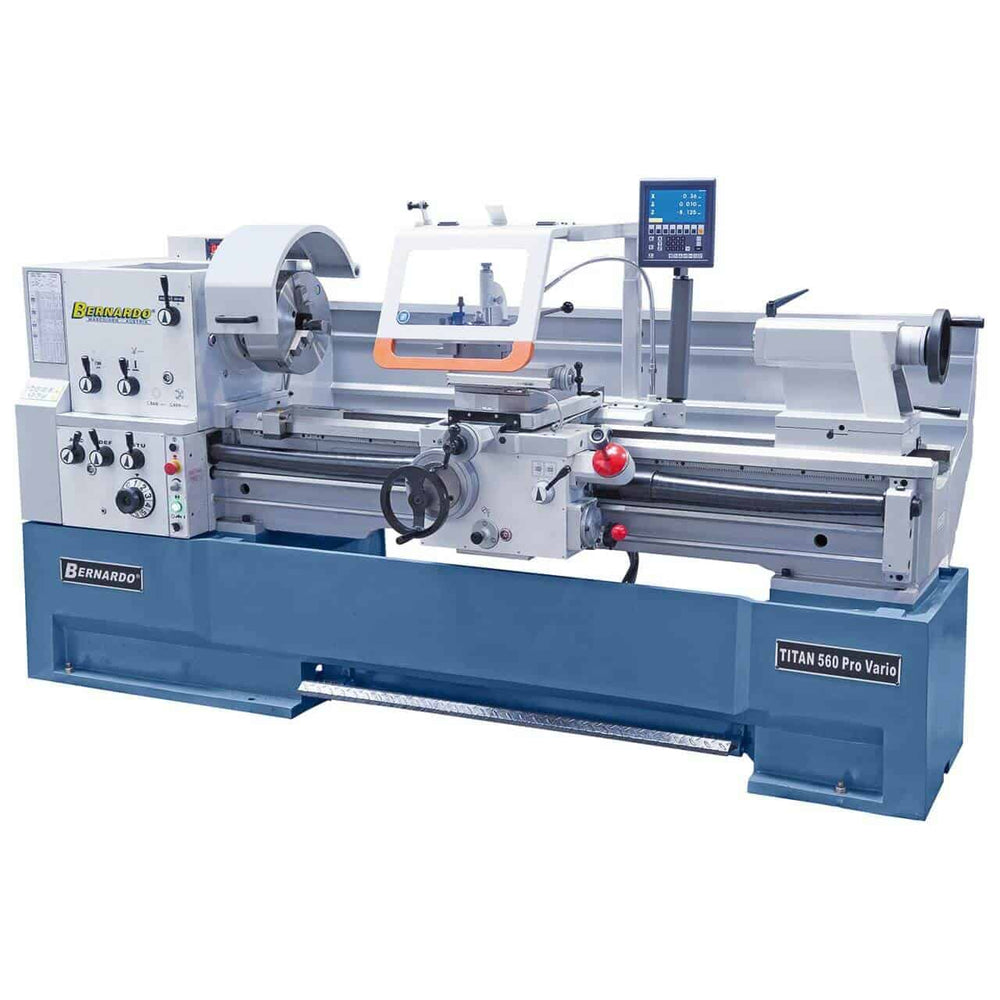

Titan 560 x 3000 Pro Vario production lathe with inverter and digital display
The Titan 560 x 3000 Pro Vario is a professional lathe designed to meet the highest demands in industrial production. Thanks to its solid construction, variable speed, and comprehensive standard features, this machine is a versatile and precise solution for medium- and large-scale production. The rapid feed function and the ability to machine large workpieces thanks to the removable bed section make the Titan 560 an excellent choice for mechanical engineering, job-order production, and shaft machining.
Main features
• Rigid, single-block cast iron structure for maximum stability and precision
• Complete range of accessories included for immediate use in the workshop
• Constant thrust and high torque thanks to the Delta inverter motor
• Digital display of speed and position on 3 axes

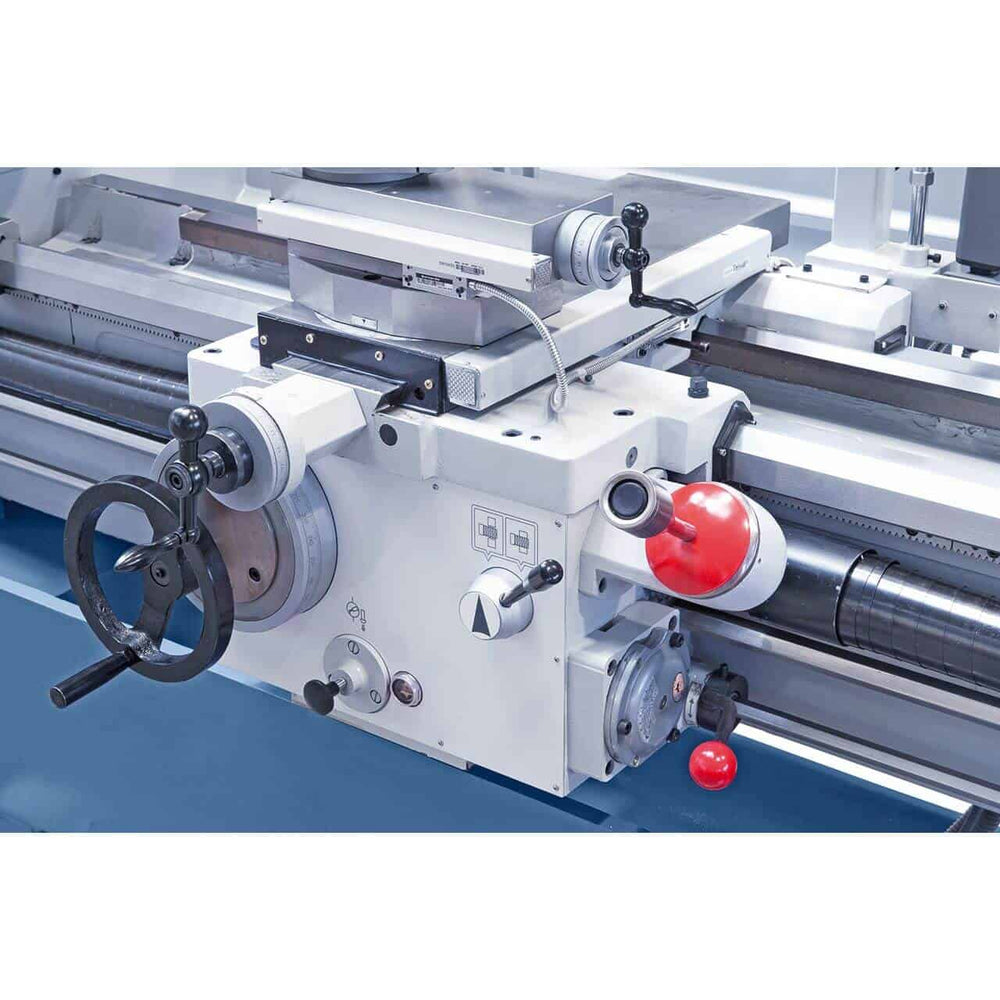

• Rapid longitudinal and frontal advances to reduce downtime
• Removable bed arm for turning large diameters (up to 785 mm)

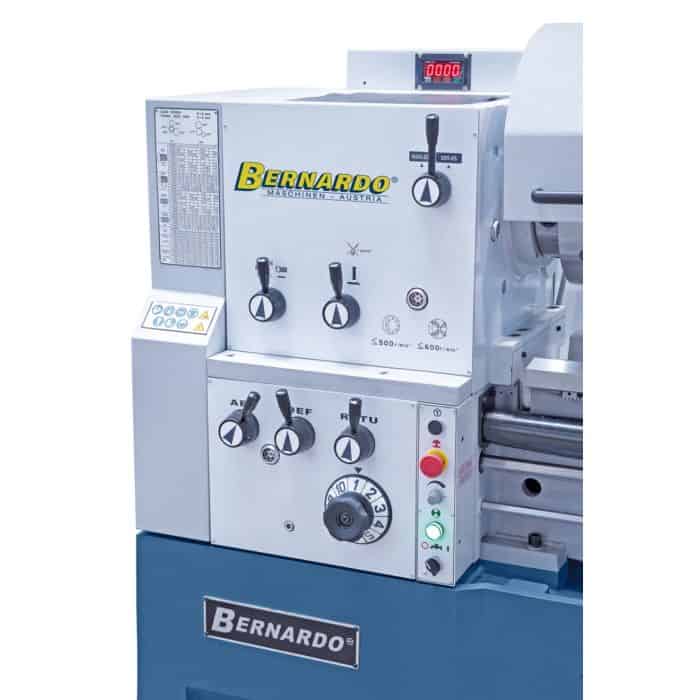

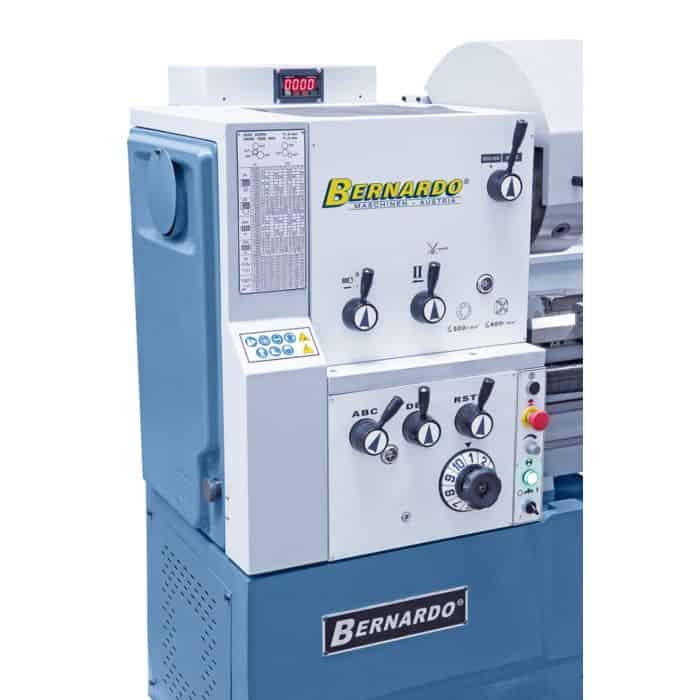

• Spindle head with high precision angular ball bearings
• Reitstock movable for conical turning
• Centralized lubrication system of the longitudinal carriage
• Turning suitable for ferrous materials, alloy steels, bronze and technical plastics
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 3000 mm |
| Tip height | 280 mm |
| Maximum turning diameter on the bench | 560 mm |
| Maximum turning diameter on recess | 785 mm |
| Maximum turning diameter on carriage | 350 mm |
| Bench width | 350 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1 - 8 |
| Spindle speed range | 25 – 1500 rpm (2 ranges) |
| Longitudinal advances | (42) 0.055 – 3.061 mm/rev |
| Transversal advances | (42) 0.025 – 1.384 mm/rev |
| Metric threads | (41) 0.1 – 14 mm |
| Inch threads | (60) 2 – 112 TPI |

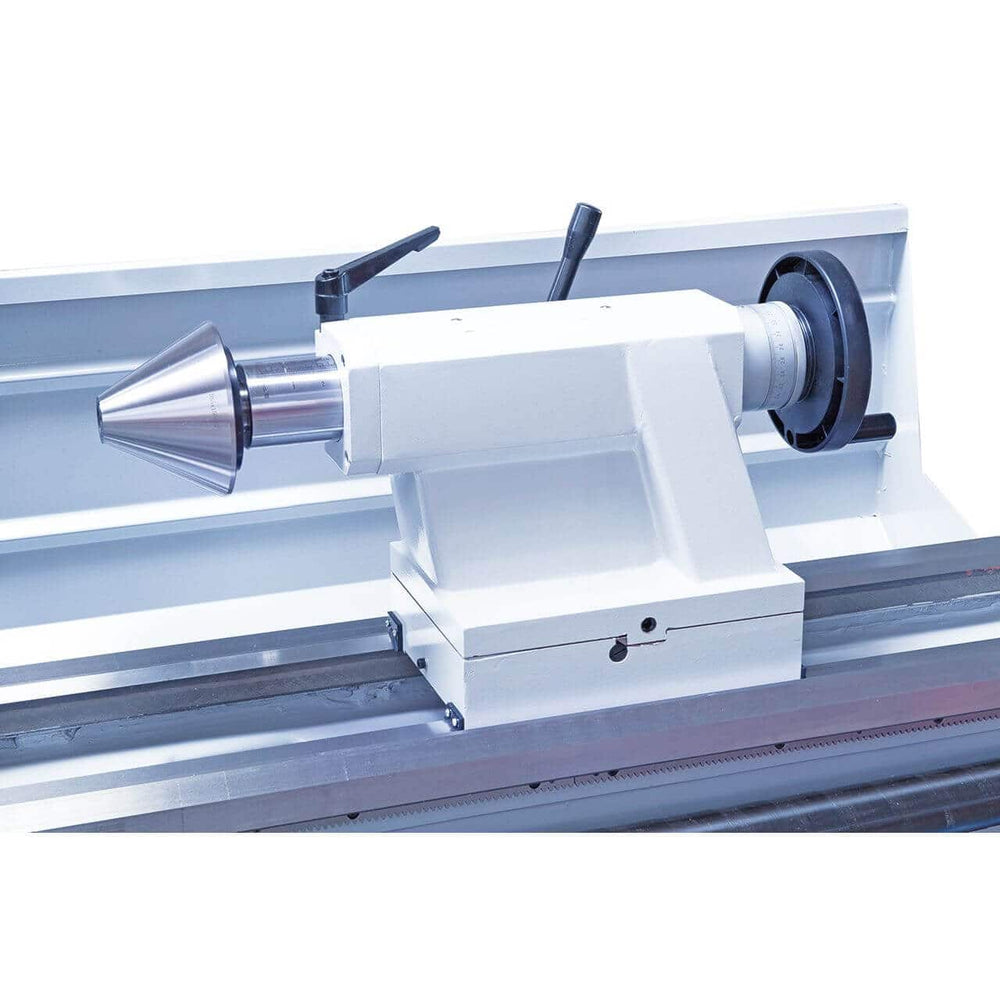

| Tailstock quill diameter | 75 mm |
| Tailstock stroke | 185 mm |
| Tailstock quill attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 4340 x 1150 x 1610 mm |
| Weight | approx. 3000 kg |
Package Contents

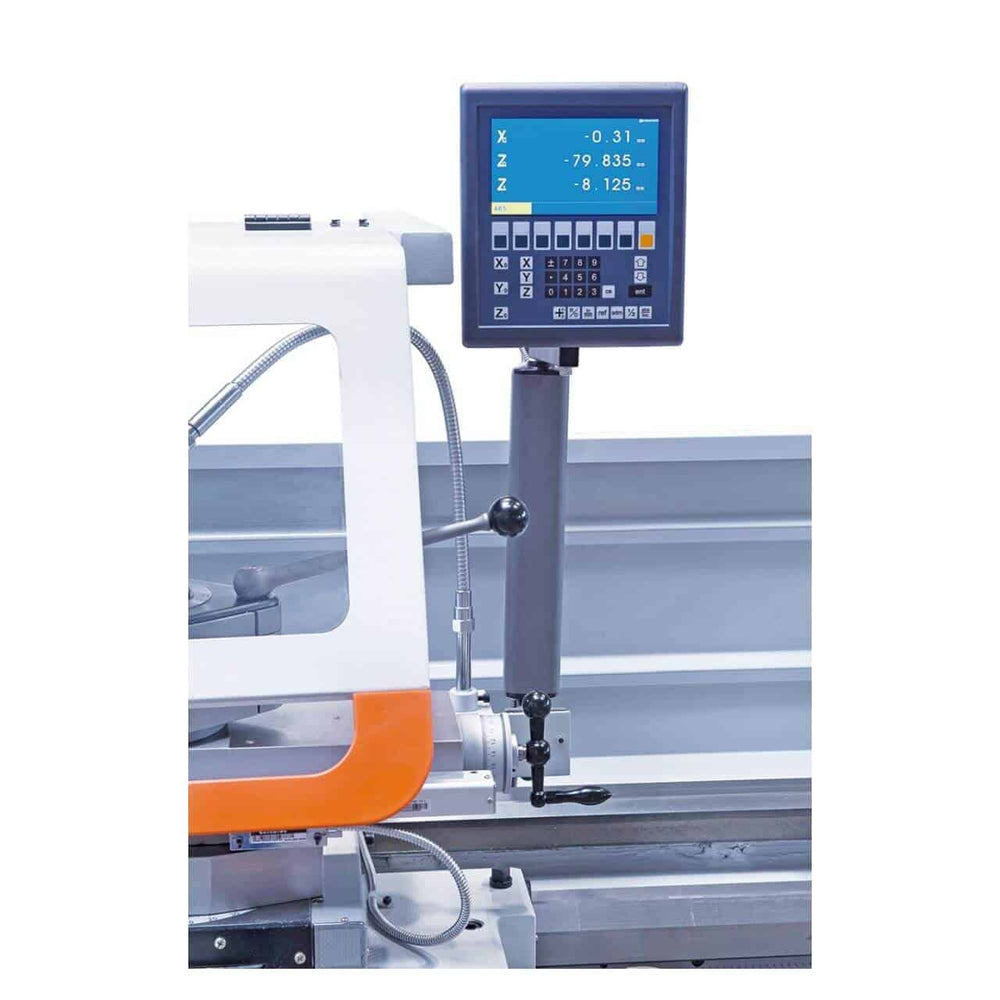

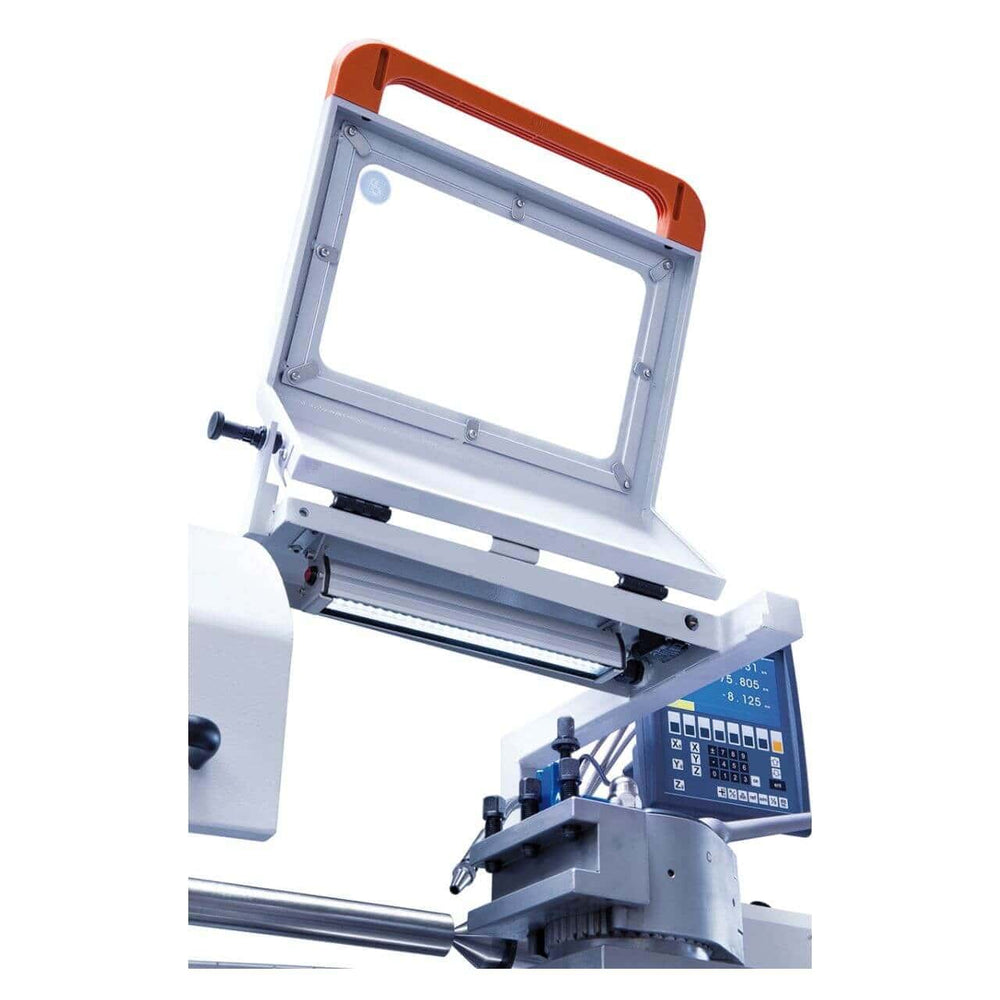

• ES-12 V 3-axis digital display with LCD display

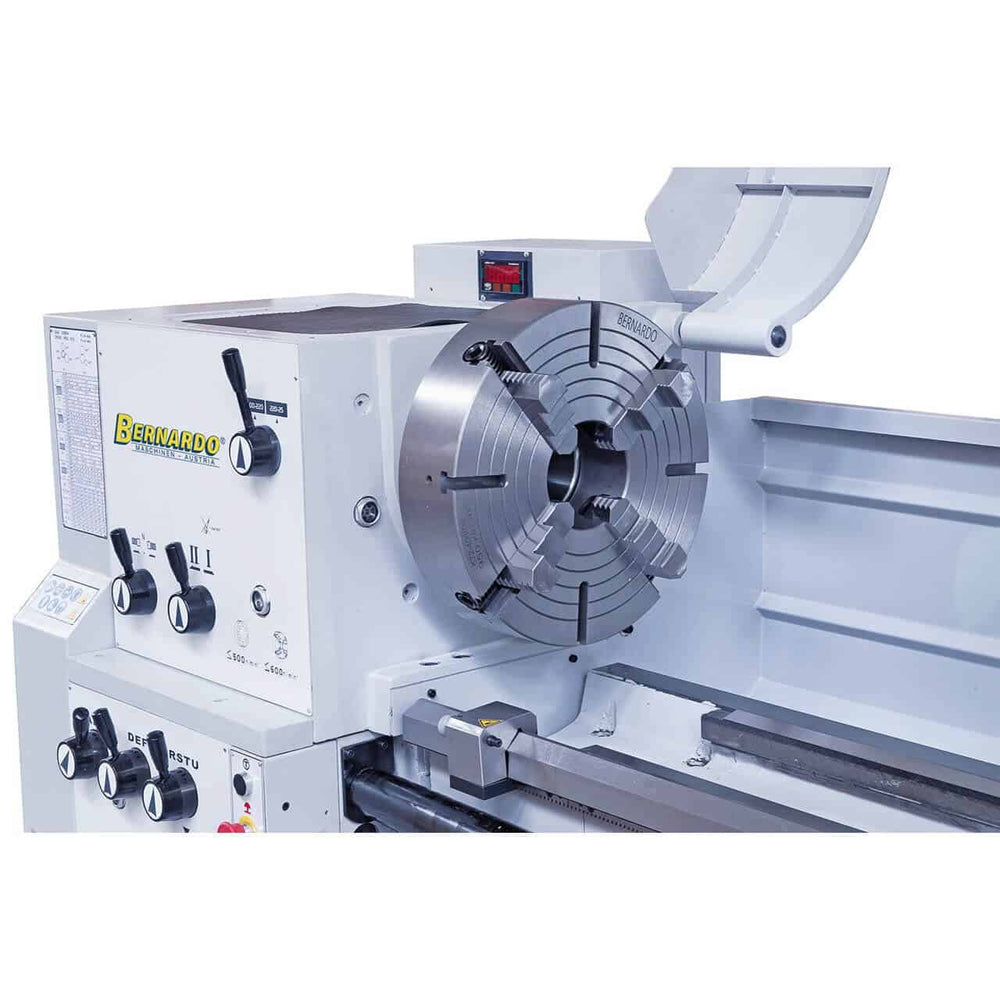

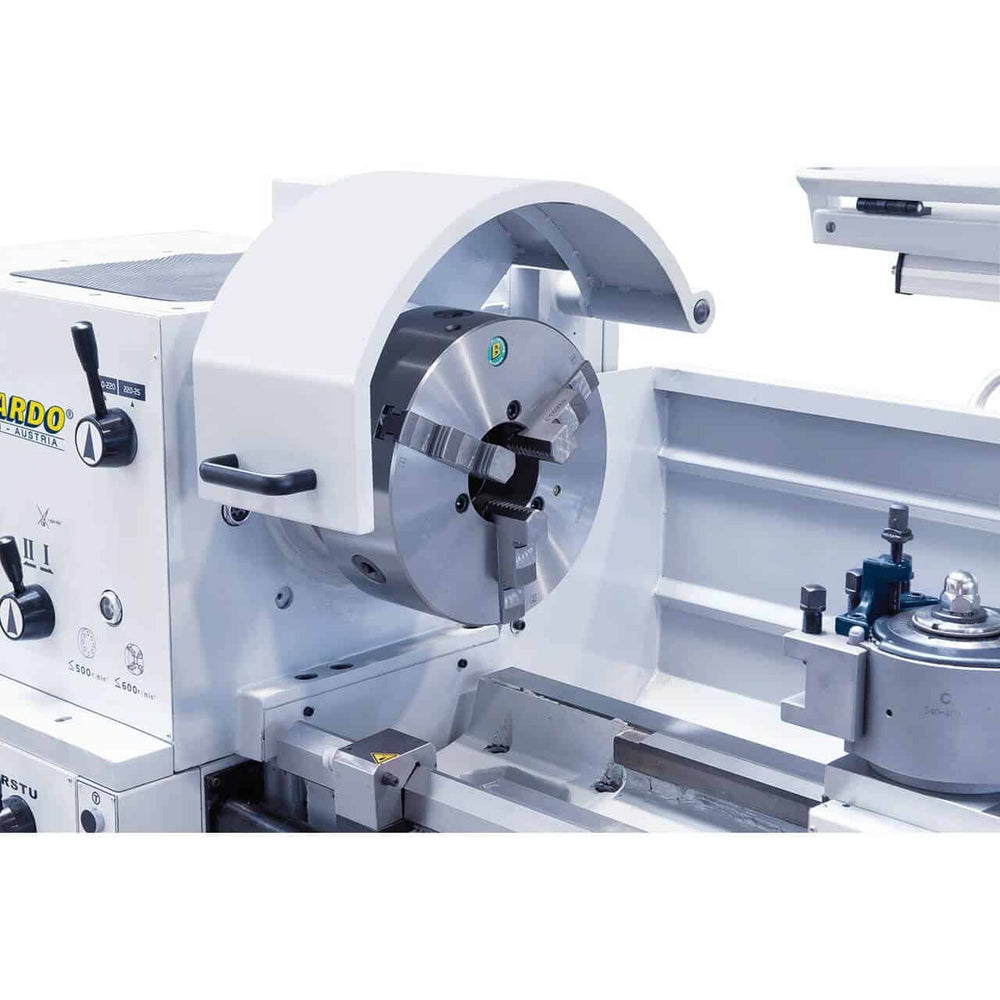

• 3-jaw self-centering chuck PS3-315 mm / D8
• Clamping plate 450 mm

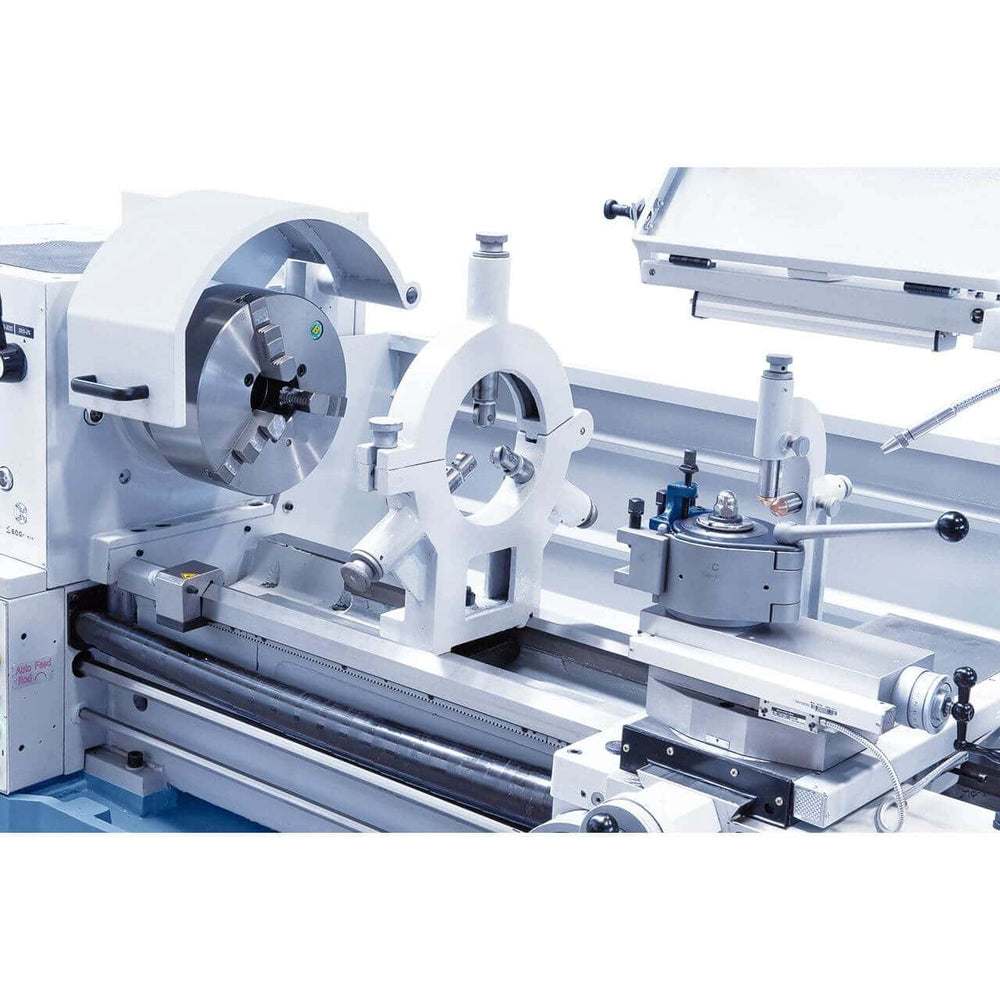

• Fixed bezel (max. Ø 180 mm)
• Mobile lunette (max. Ø 120 mm)
• Delta inverter for continuous speed regulation
• Rapid longitudinal and frontal advance

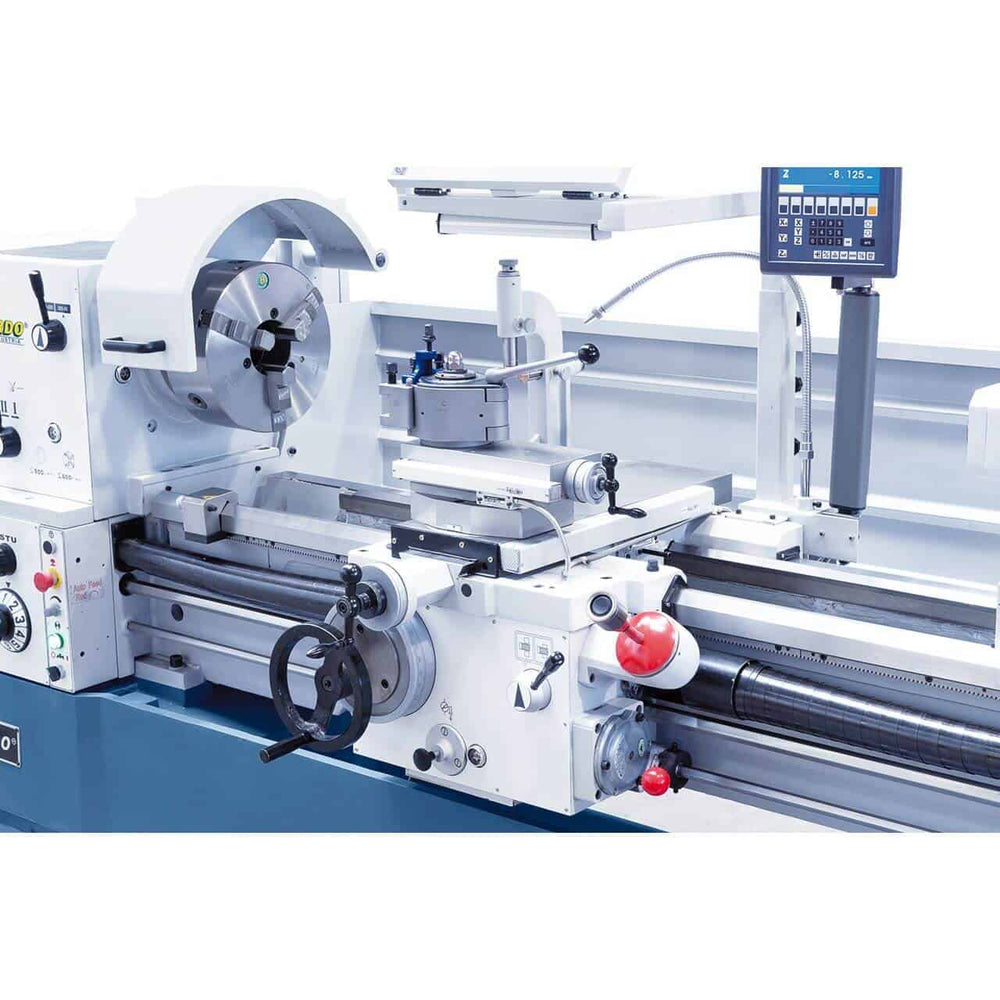

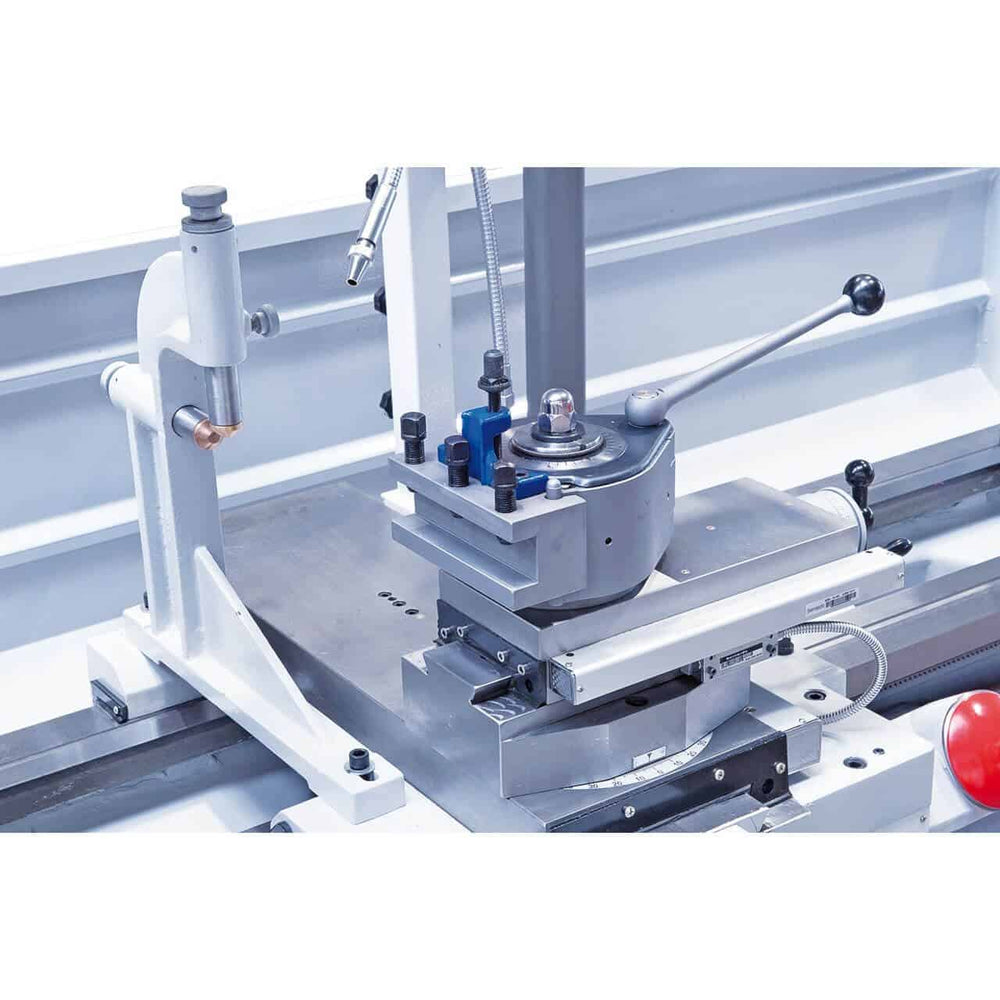

• Quick-change tool holder with 4 tool holders

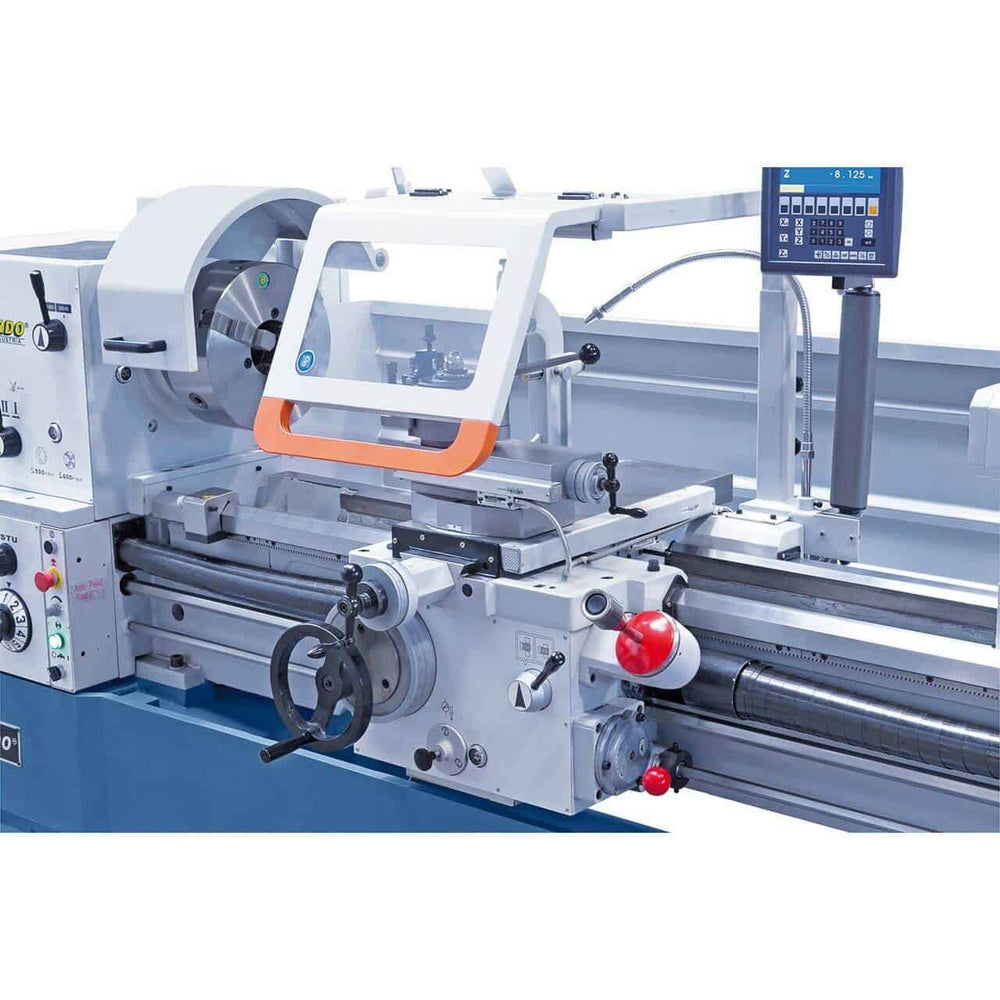

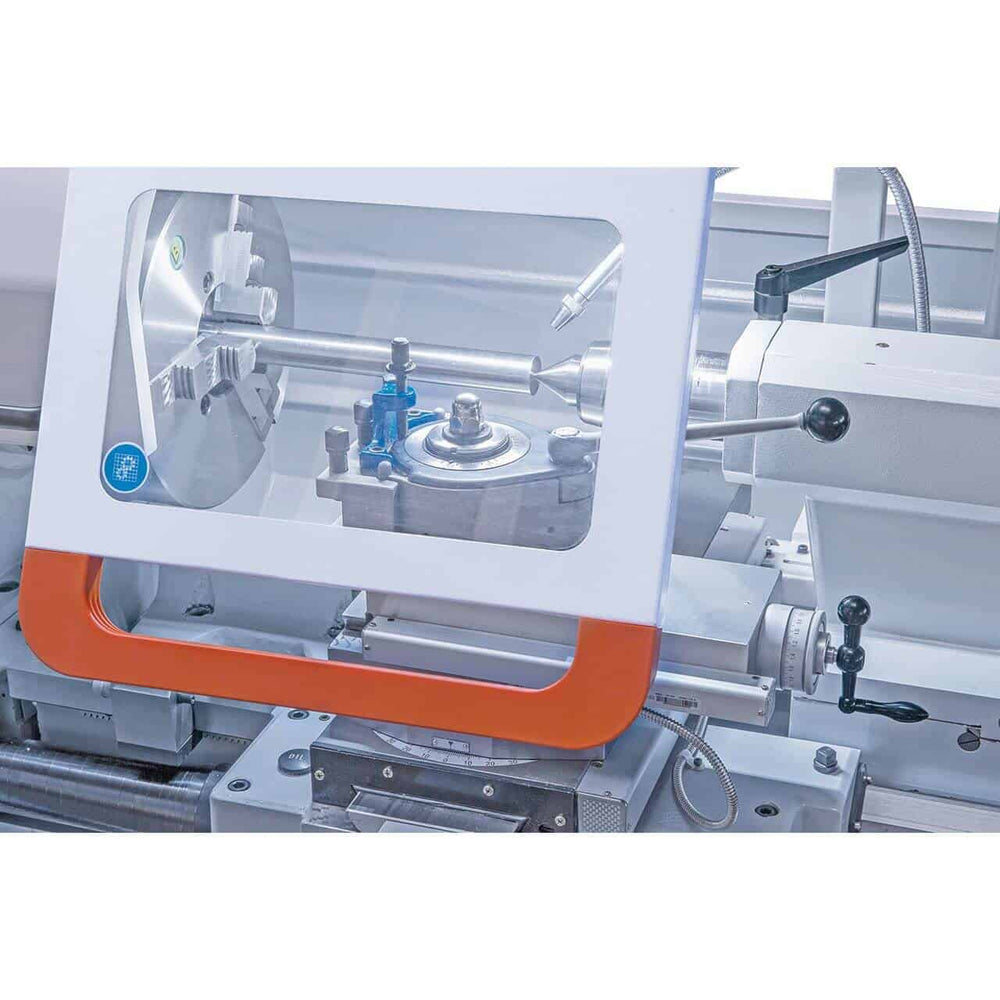

• Protective screen for tool holders
• Rutschkupplung (safety clutch)
• Thread clock
• LED machine
• Centralized lubrication device
• Refrigeration with pump and tank
• 2 conical tailstocks
• Conical reduction

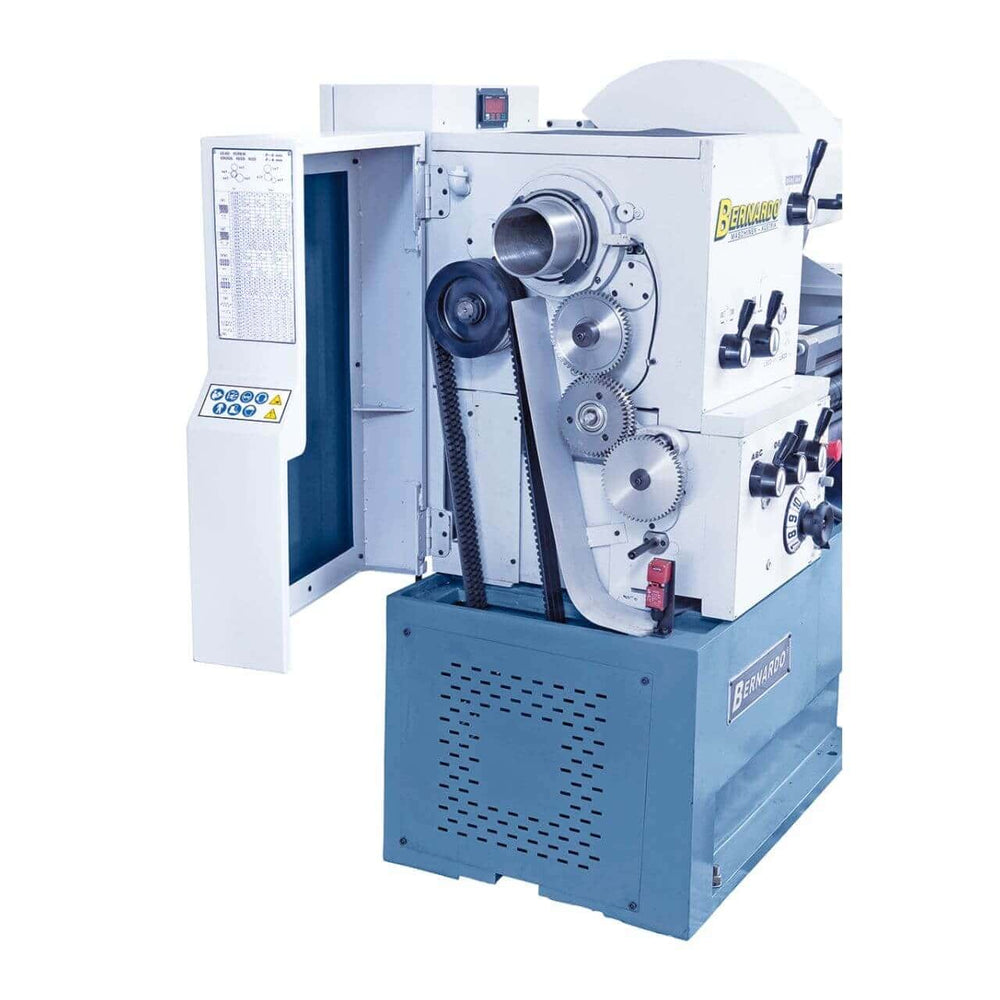

• Gear change
• Foot control with brake in compliance with CE regulations
• Rear splinter guard panel
• Assembly tools
• First fill with Shell Tellus 46
