Description
Titan 660 x 3000 Vario production lathe with inverter and 3-axis digital display
The Titan 660 x 3000 Vario is a high-performance industrial lathe, ideal for medium to large-scale machining operations. Designed for series production and the creation of one-off pieces, it stands out for its robustness, precision, and versatility. The motor with integrated inverter ensures continuous speed regulation, maintaining high torque even at low rpm. The solid construction minimizes vibration and guarantees consistent machining quality even under load.
Main features
• Ribbed bed for increased rigidity and vibration damping
• Continuous speed regulation via inverter and multi-plate clutch
• Spindle with 105 mm bore for working on large diameter pieces
• Micrometrically adjustable reitstock for conical turnings

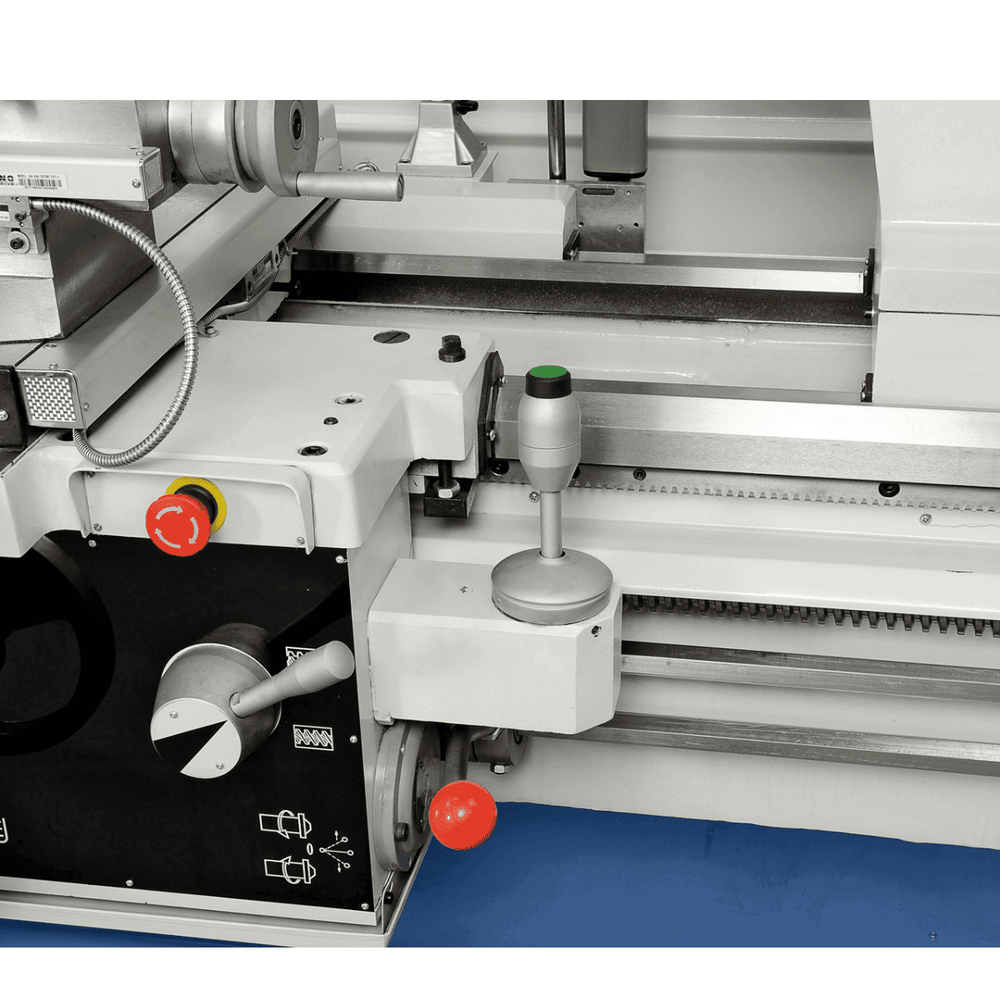

• Longitudinal and transverse rapid feeds included

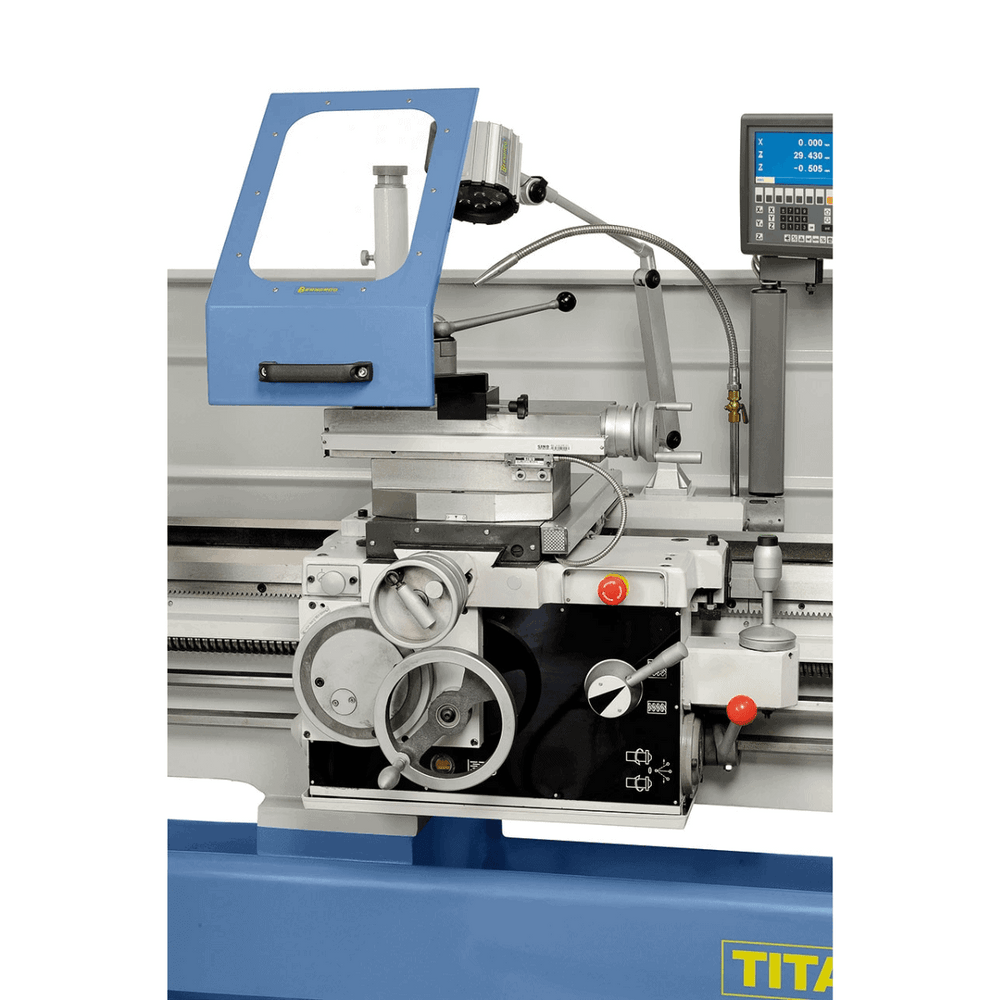

• ES-12V 3-axis digital display with large LCD screen
• Solid cast iron structure to ensure stability and precision
• Complete equipment for professional and industrial use
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 3000 mm |
| Tip height | 330 mm |
| Turning diameter on the bench | 660 mm |
| Turning diameter on bend | 900 mm |
| Turning diameter on slides | 460 mm |
| Bench width | 400 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | 16–70 / 50–215 / 100–475 / 350–1500 rpm |
| Longitudinal advances | (25) 0.044 – 1.48 mm/rev |
| Transversal advances | (25) 0.022 – 0.74 mm/rev |
| Metric threads | (54) 0.45 – 120 mm |
| Inch threads | (54) 7/16 – 80 TPI |
| Tailstock quill diameter | 90 mm |
| Dinghy race | 235 mm |
| Dinghy attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 4630 x 1200 x 1520 mm |
| Weight | 3300 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD display
• Integrated frequency inverter
• Rapid longitudinal and transverse advances
• 3-jaw self-centering chuck PS3-315 mm / D8
• Clamping plate Ø 500 mm

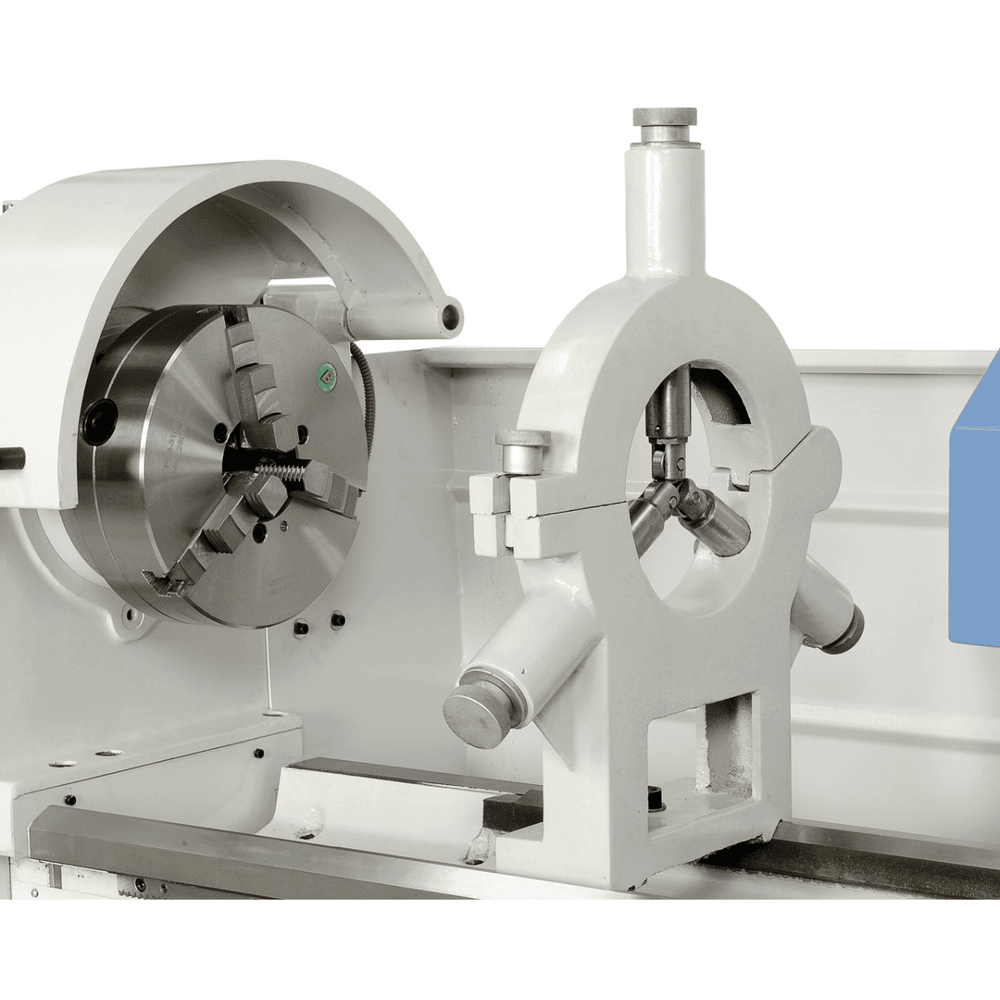

• Fixed bezel (Ø max 180 mm)
• Rotating bezel (Ø max 100 mm)
• 2 central tips
• Foot brake in accordance with CE regulations
• Initial fill with Shell Tellus 46

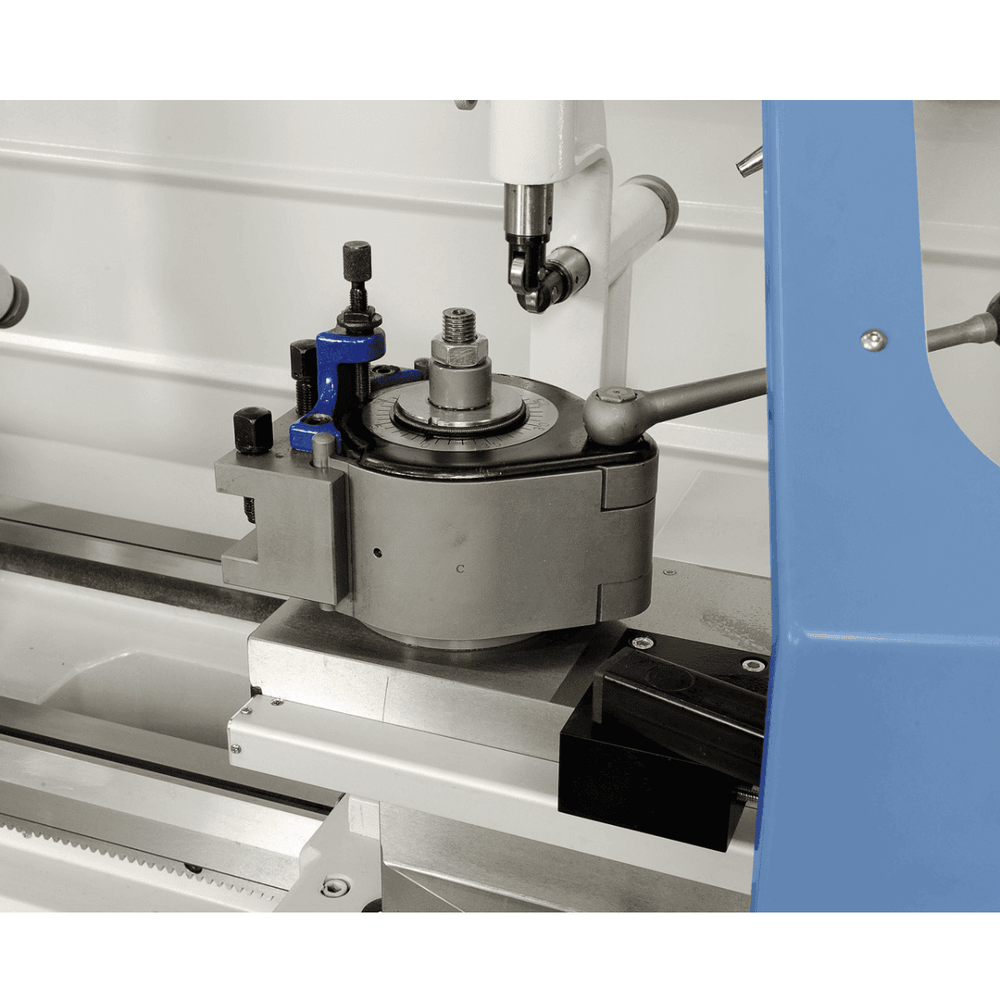

• Quick-change tool holder with 4 inserts

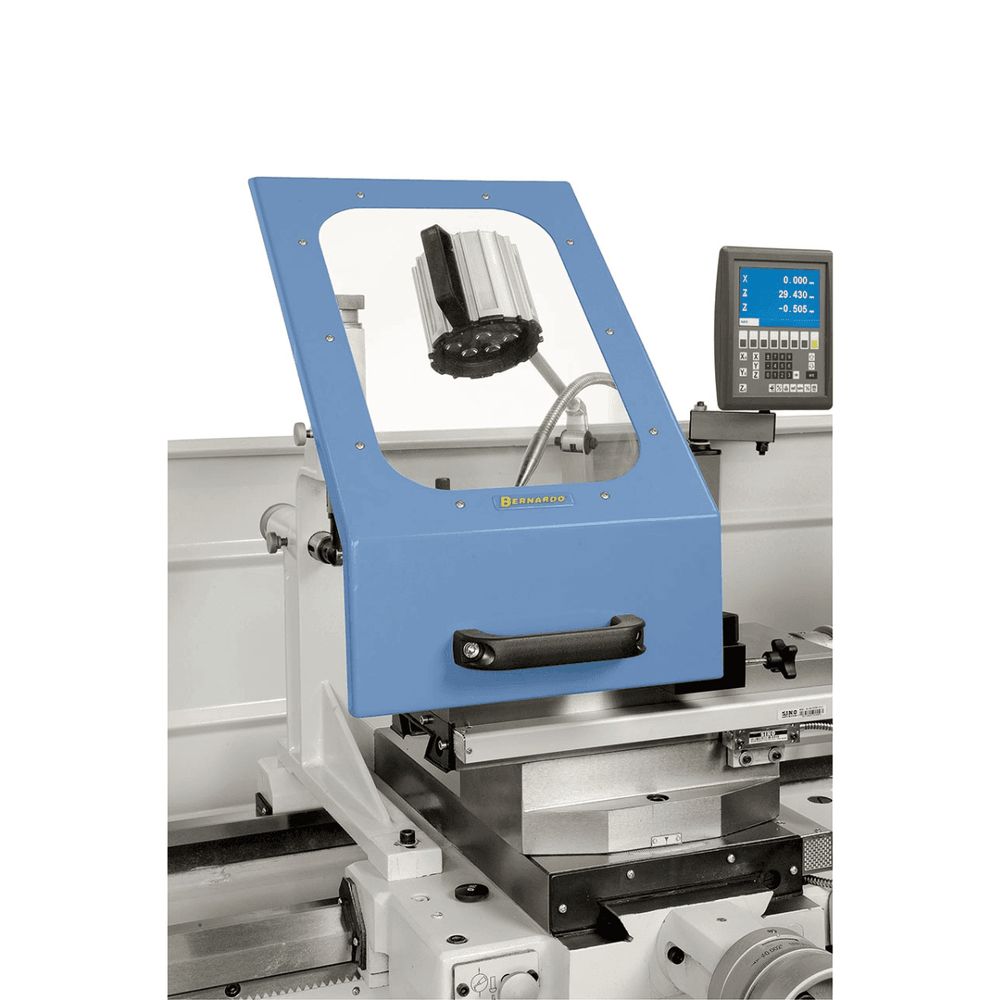

• Tool holder protection device
• Safety clutch
• Refrigeration system
• LED light for the car
• Gearbox wheel set
• Reduction compass
• Chip collection wall

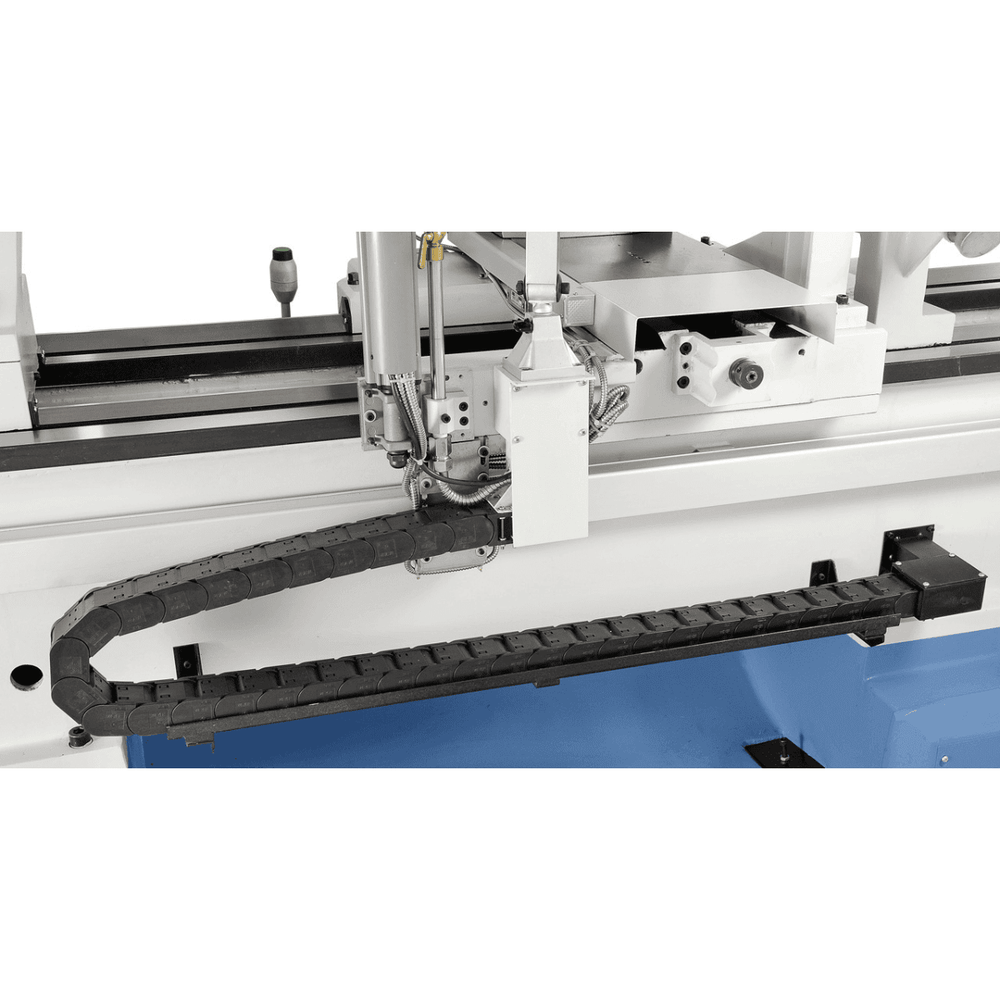

• Cable guide with cable carrier
• Wrenches and service tools
