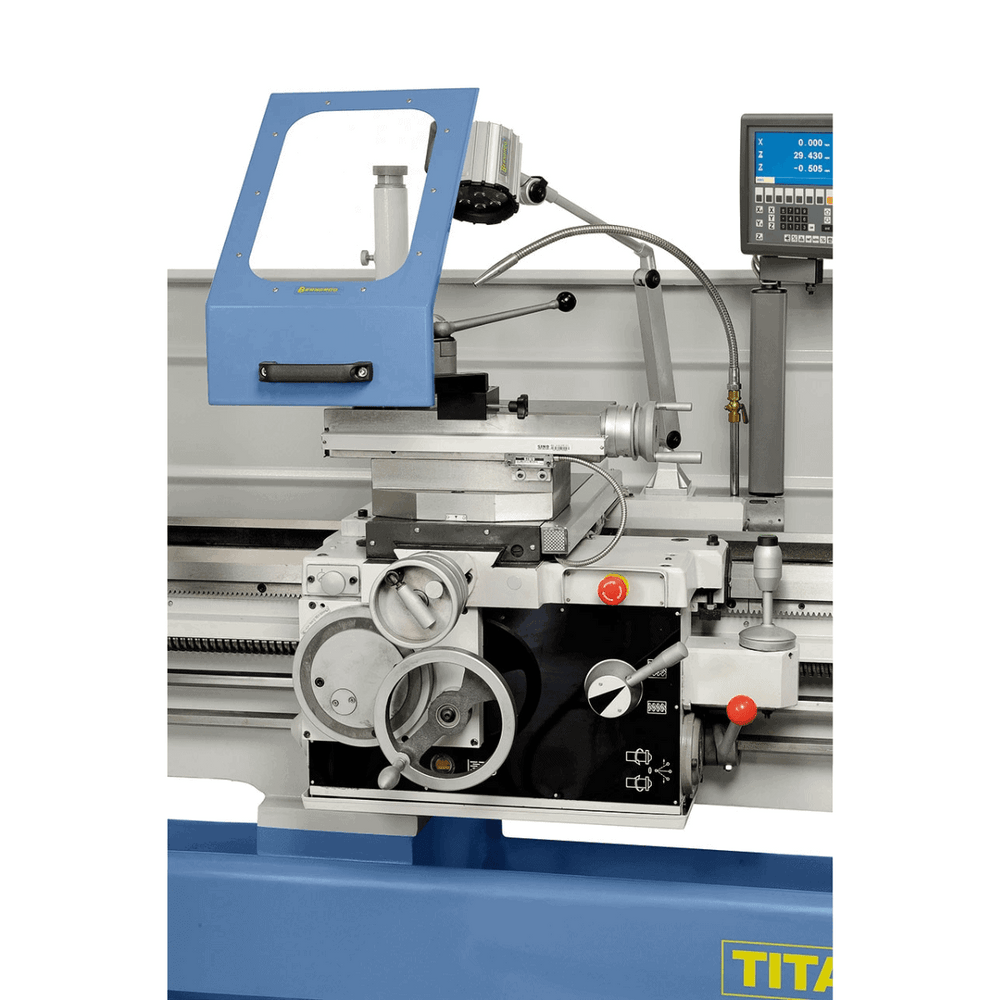

Titan 800 x 2000 Vario production lathe with 3-axis digital display and inverter
The Titan 800 x 2000 Vario lathe is a high-performance industrial machine designed for medium- and heavy-duty machining. Thanks to its integrated inverter, it guarantees high torque even at low speeds and a constant cutting speed. Its robust construction and precision components make it ideal for single and series production in mechanical engineering, plant construction, and advanced manufacturing facilities.
Main features
• Reinforced ribbed bed frame for stability and vibration absorption
• Continuous speed regulation via inverter with mechanical lamellar disc clutch
• Complete equipment: 3-axis digital display, self-centering chuck, steady rests and coolant

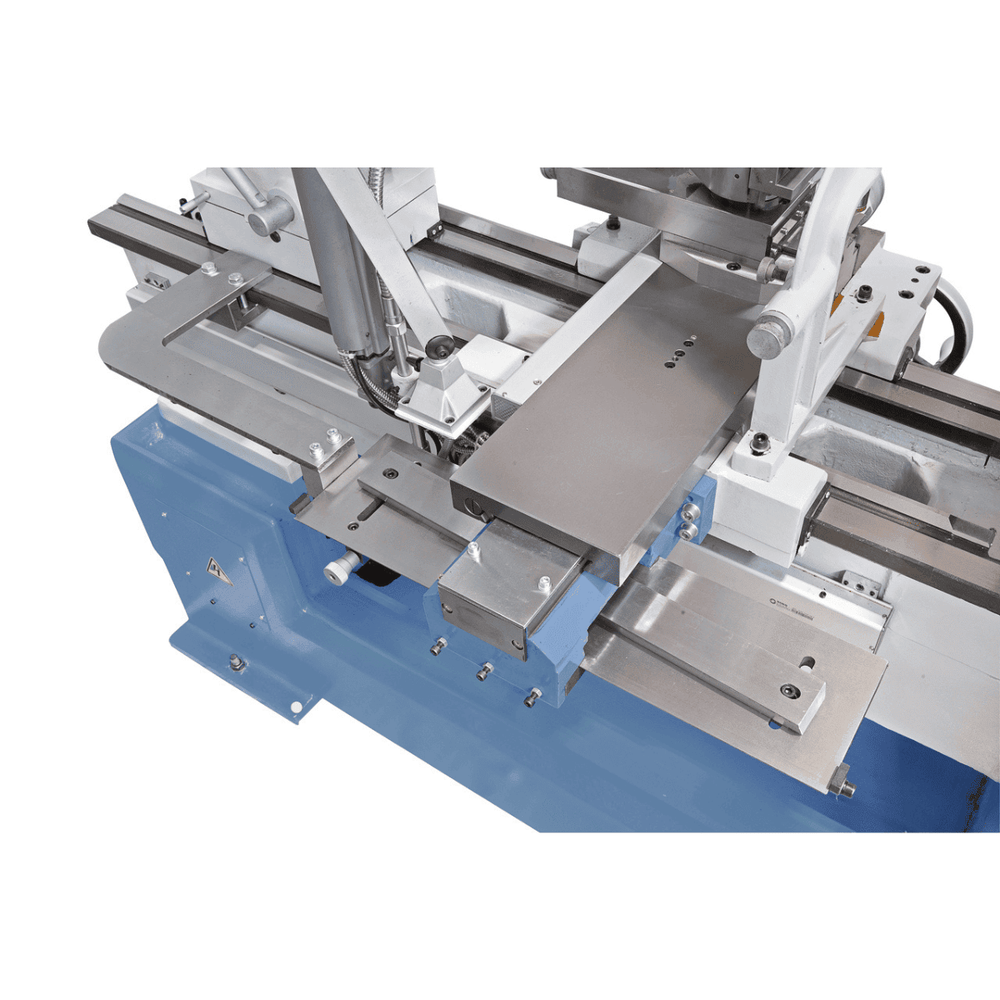

• Removable bridge for working on pieces up to Ø 1000 mm
• Large 105mm spindle bore for large diameter workpieces
• Longitudinal and transverse rapid advances included as standard
• Reitstock with micrometric adjustment, ideal for conical turning
• Electromechanical foot brake in compliance with CE regulations
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 2000 mm |
| Tip height | 400 mm |
| Turning diameter on the bench | 800 mm |
| Turning diameter on bend | 1000 mm |
| Turning diameter on slides | 540 mm |
| Bench width | 400 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | 16–70 / 50–215 / 100–475 / 350–1500 rpm |
| Longitudinal advances | (25) 0.044 – 1.48 mm/rev |
| Transversal advances | (25) 0.022 – 0.74 mm/rev |
| Metric threads | (54) 0.45 – 120 mm |
| Inch threads | (54) 7/16 – 80 TPI |
| Tailstock quill diameter | 90 mm |
| Dinghy race | 235 mm |
| Dinghy attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 3800 x 1320 x 1580 mm |
| Weight | 3455 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD display
• Integrated frequency inverter
• Rapid longitudinal and transverse advances
• 3-jaw self-centering chuck PS3-315 mm / D8
• Clamping plate Ø 500 mm

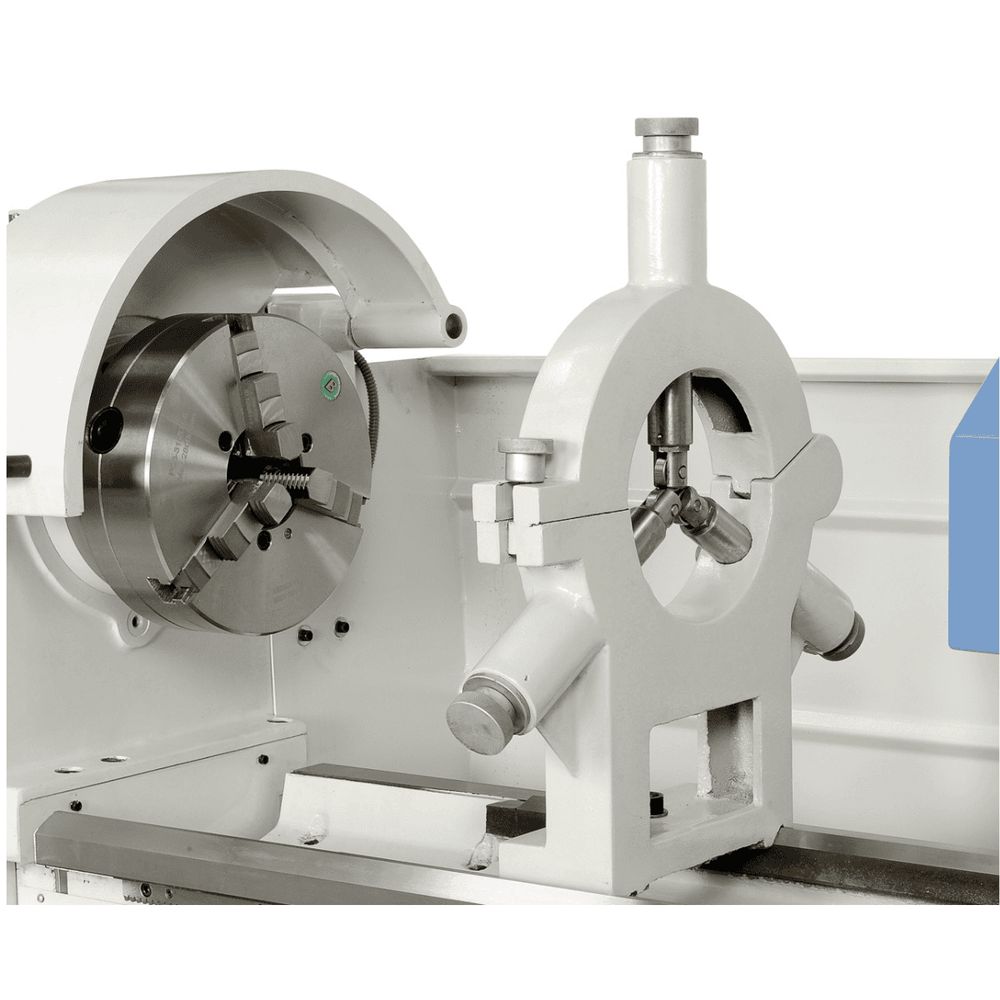

• Fixed bezel (Ø max 180 mm)
• Rotating bezel (Ø max 100 mm)
• 2 central tips
• Foot brake in accordance with CE regulations
• Initial fill with Shell Tellus 46

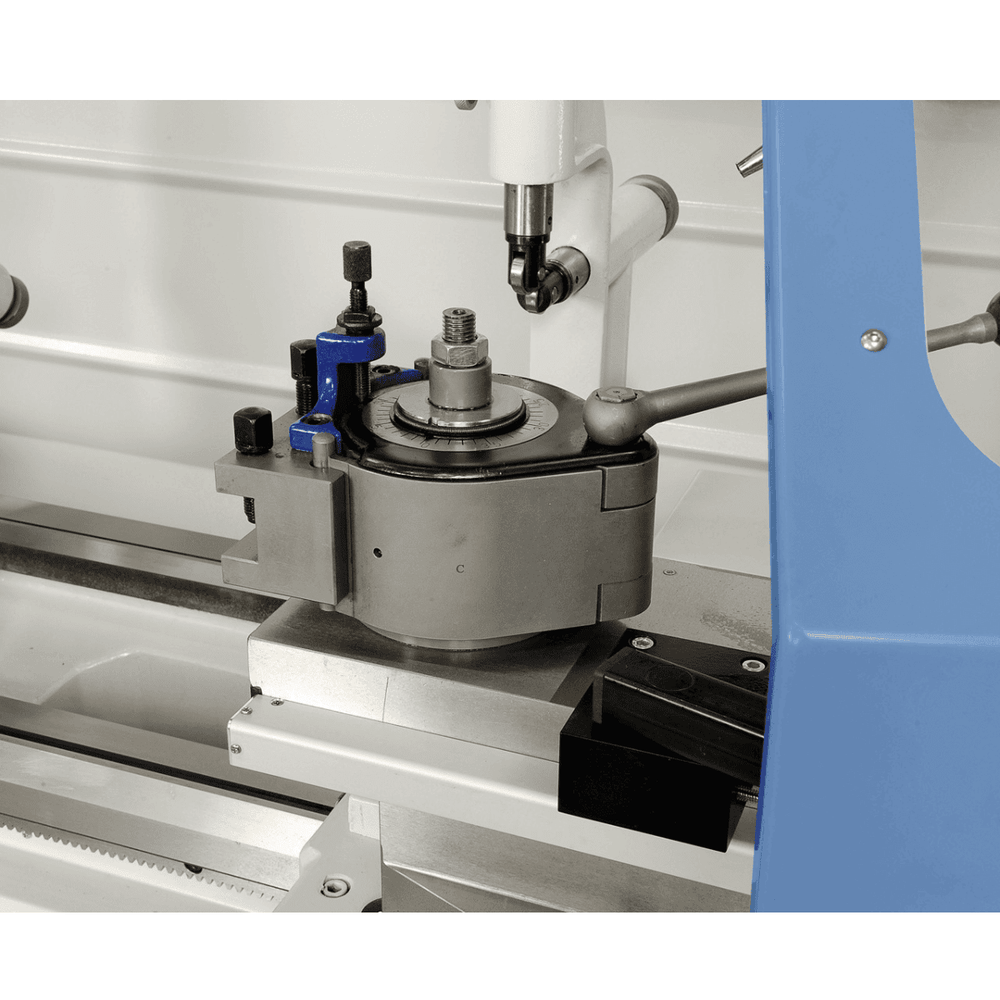

• Quick-change tool holder with 4 inserts

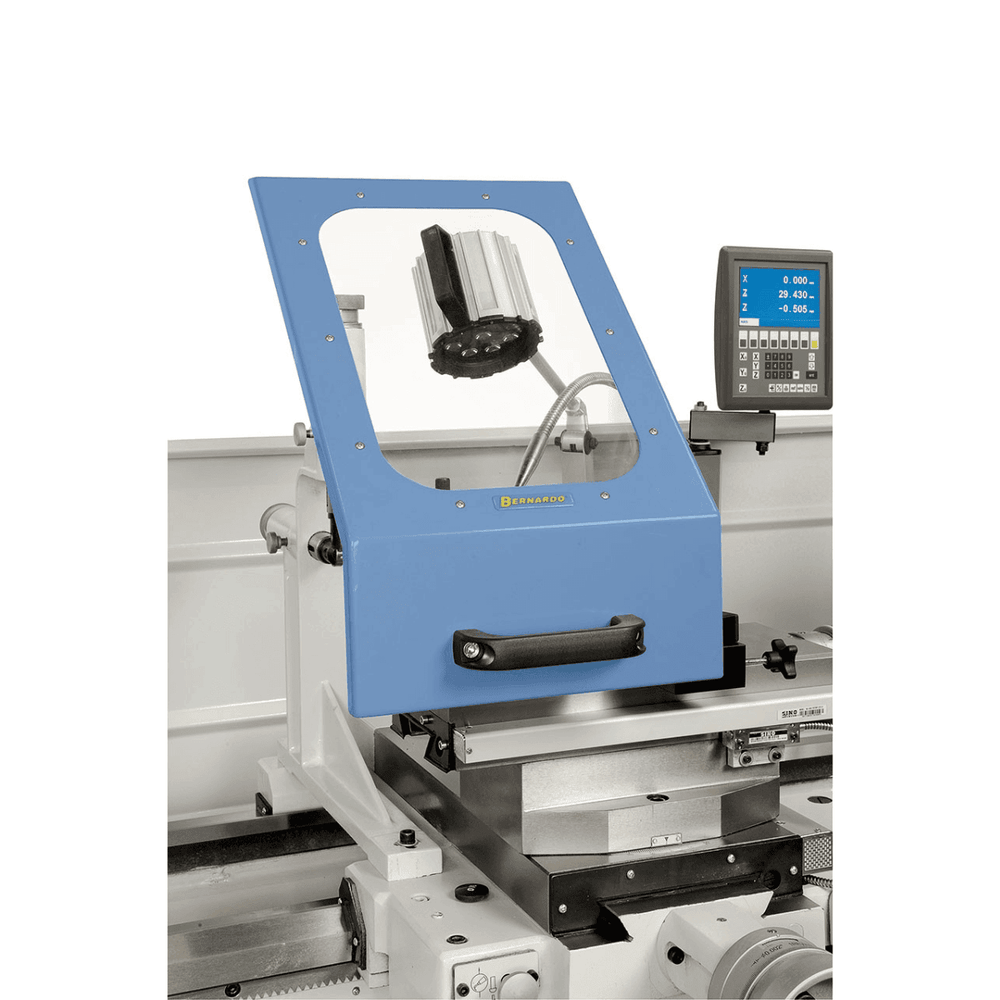

• Tool holder protection device
• Safety clutch
• Refrigeration system
• LED light for the car
• Gearbox wheel set
• Reduction compass
• Chip collection wall

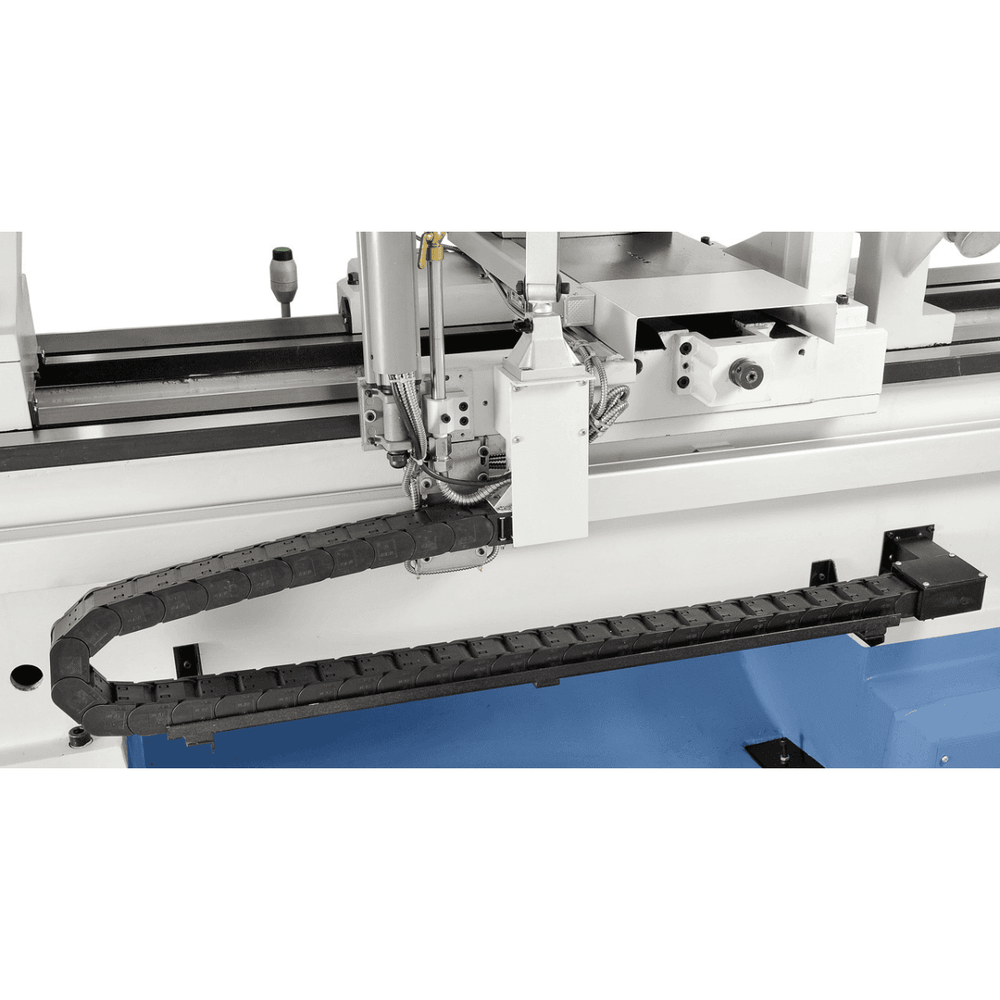

• Cable guide with cable carrier
• Wrenches and service tools
