Titan 800 x 3000 Vario production lathe with 3-axis digital display and inverter
The Titan 800 x 3000 Vario is a premium industrial lathe designed for medium- to heavy-duty machining. Its robust construction, high precision, and powerful 7.5 kW motor make it ideal for professional applications in mechanical engineering, manufacturing, and plant construction. Equipped with an inverter and a large 105 mm bore, it allows for versatile machining even on large-diameter workpieces. Continuous speed control ensures efficient machining with high torque even at low rpm.
Main features
• Massive and rigid structure with reinforcing ribs to minimize vibrations
• Electronic speed control via inverter: precise cutting with constant speed
• Fully equipped with 3-axis digital display, self-centering chuck, steady rests and refrigeration system
• Removable bridge for turning large diameters (up to 1000 mm)
• Large 105mm bore for large trees
• Longitudinal and transverse rapid feeds included

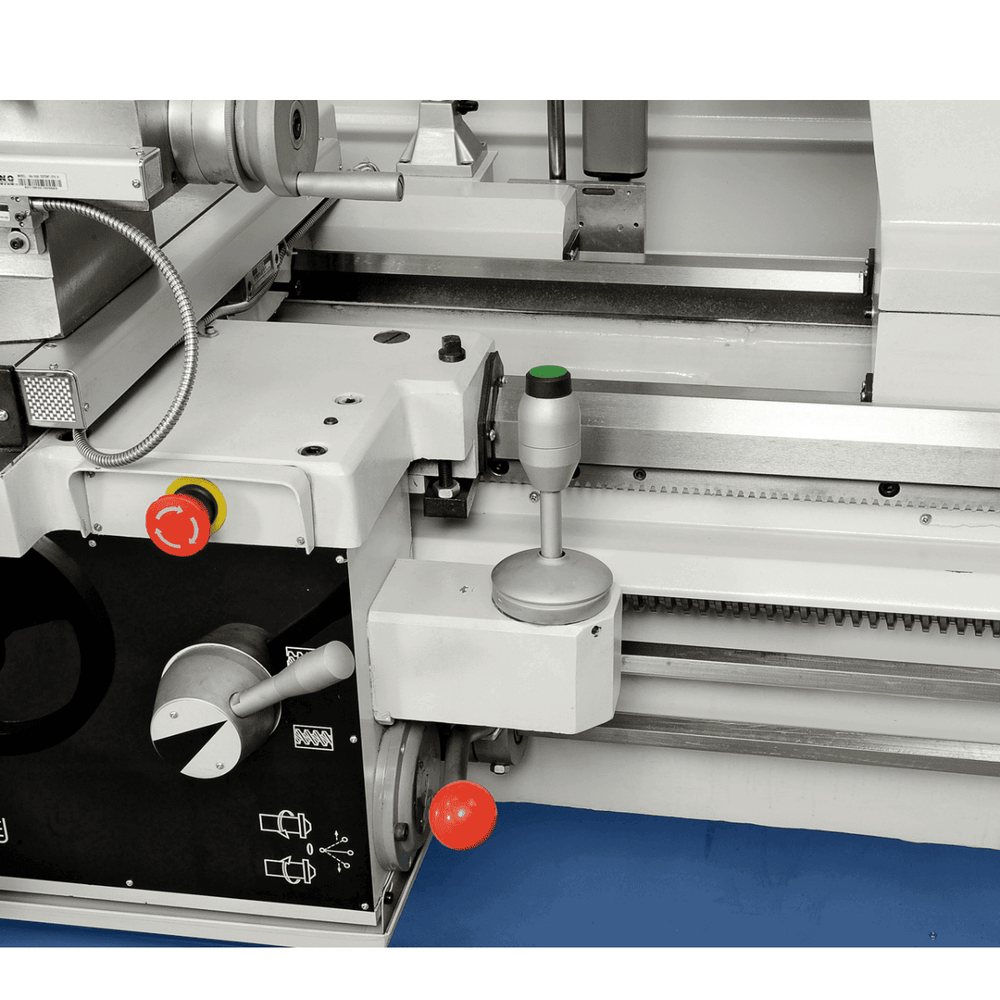

• Electromechanical foot brake for maximum safety and time saving
• Precise guides, spindle on precision angular bearings and multi-plate clutch gearbox
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 3000 mm |
| Tip height | 400 mm |
| Turning diameter on the bench | 800 mm |
| Turning diameter on the bend | 1000 mm |
| Turning diameter on slides | 540 mm |
| Bench width | 400 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1-8 |
| Speed range | 16–70 / 50–215 / 100–475 / 350–1500 rpm |
| Longitudinal advances | (25) 0.044 – 1.48 mm/rev |
| Transversal advances | (25) 0.022 – 0.74 mm/rev |
| Metric threads | (54) 0.45 – 120 mm |
| Inch threads | (54) 7/16 – 80 TPI |
| Tailstock quill diameter | 90 mm |
| Dinghy race | 235 mm |
| Dinghy attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 4800 x 1320 x 1580 mm |
| Weight | 3820 kg |
Package Contents

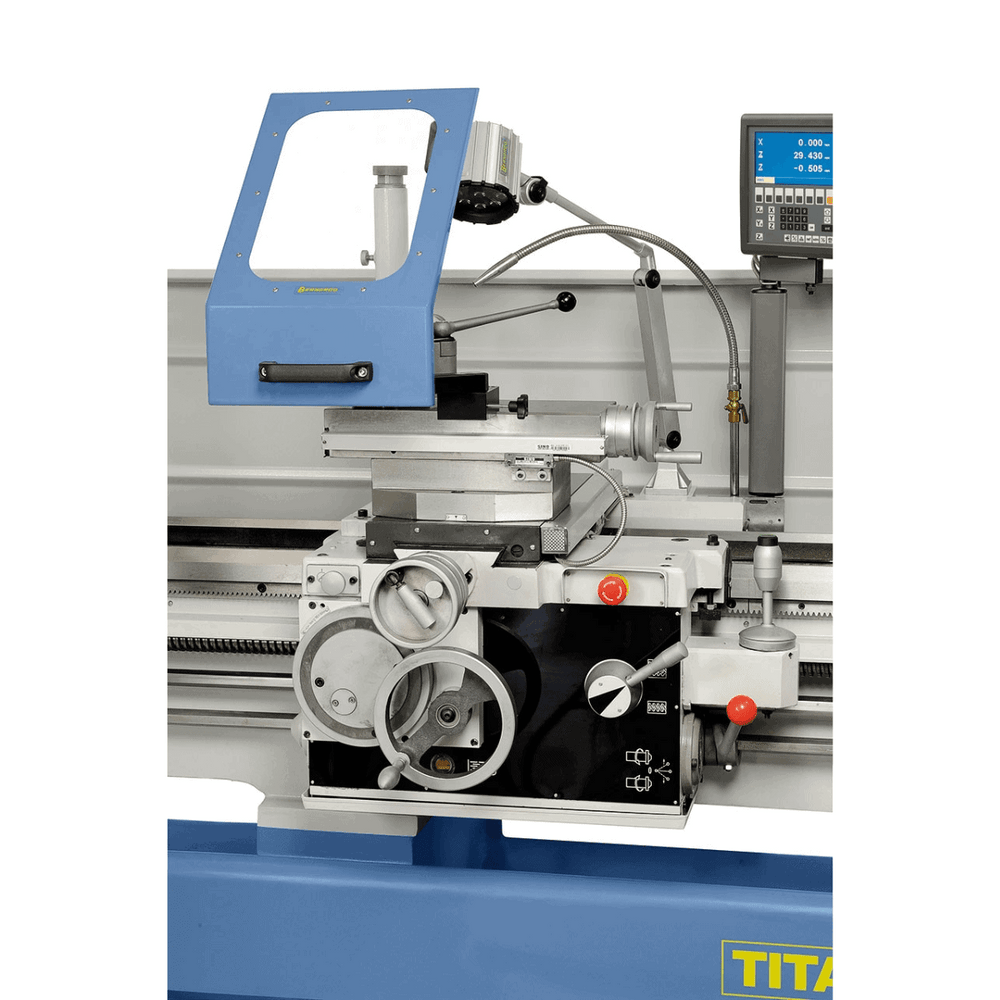

• ES-12 V 3-axis digital display with LCD
• Frequency inverter
• Rapid longitudinal and transverse advances
• 3-jaw self-centering chuck PS3-315 mm / D8
• Clamping plate Ø 500 mm
• Fixed bezel (Ø max 180 mm)
• Rotating bezel (Ø max 100 mm)
• 2 central tips
• Foot brake in accordance with CE regulations
• Initial fill with Shell Tellus 46 oil
• Quick-change tool holder with 4 inserts

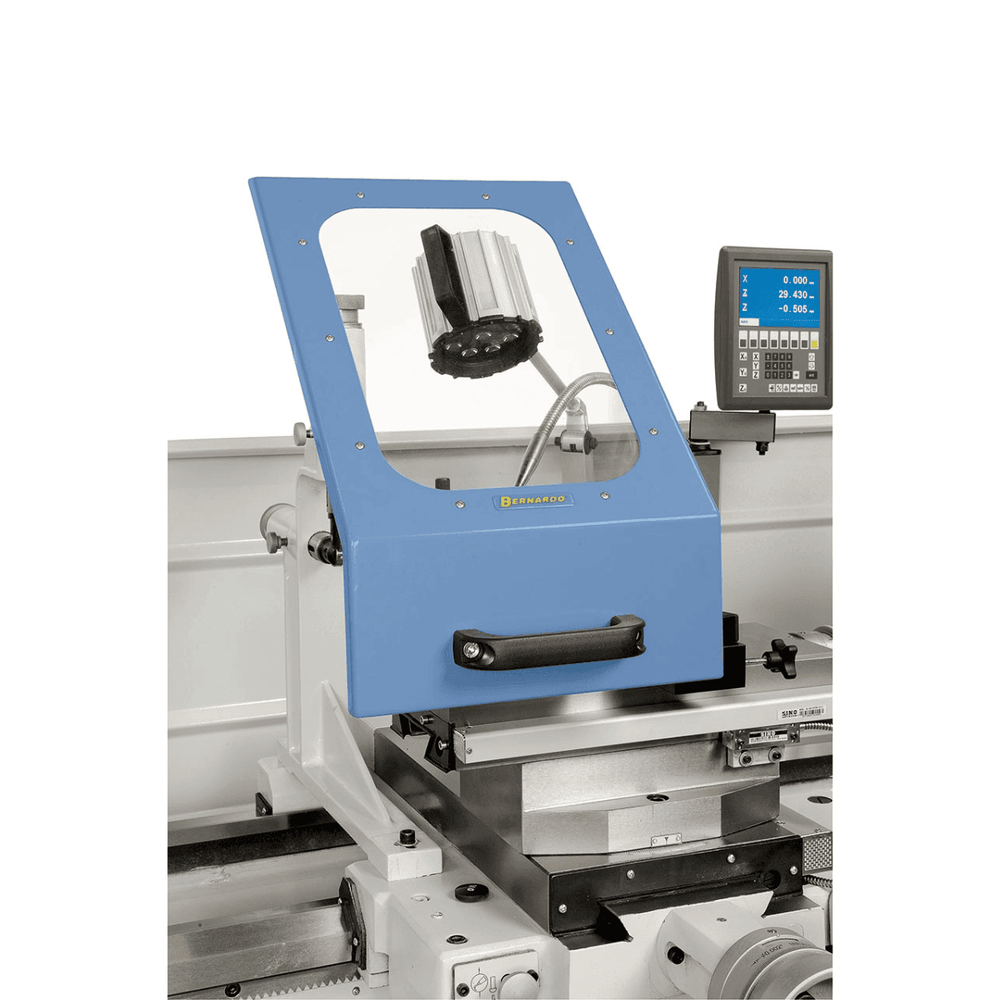

• Tool holder protection device
• Safety clutch
• Refrigeration system
• Gearbox wheel set
• Reduction compass
• Chip collection wall

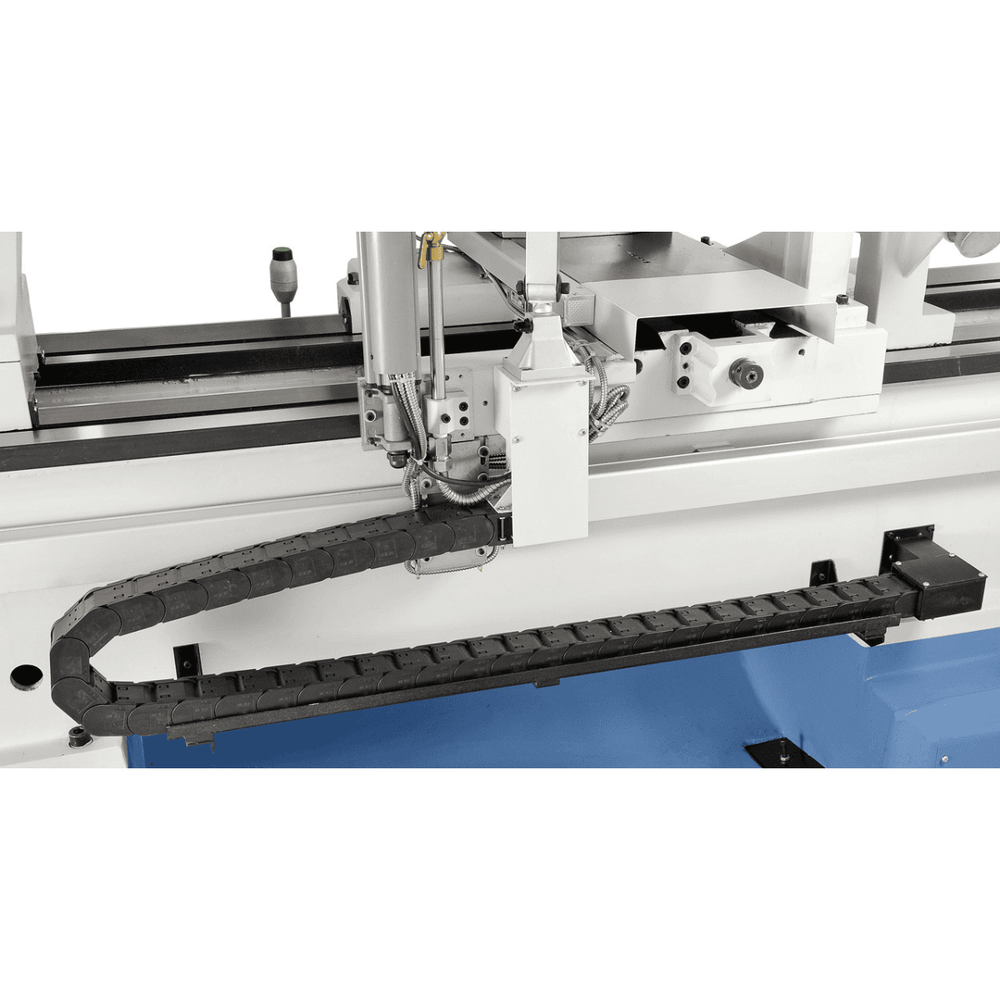

• Cable guide with cable carrier
• Wrenches and service tools
Technical Specifications
• Ø max sul bancale: 800 mm – con incavo: 1000 mm
• Ø max sul carro: 540 mm – Larghezza bancale: 400 mm
• Foro mandrino: 105 mm – attacco DIN 55029 D1-8
• Avanzamenti longitudinali: (25) 0,044–1,48 mm/giro
• Avanzamenti trasversali: (25) 0,022–0,74 mm/giro
• Filettature metriche: (54) 0,45–120 mm
• Filettature in pollici: (54) 7/16–80 TPI
• Mandrino 3 griffe PS3-315 mm / D8 e piatto frontale Ø 500 mm
• Lunetta fissa Ø 180 mm e mobile Ø 100 mm
• Torretta 40 posizioni con set portautensili + 4 inserti
• Supporto mandrino, refrigerante, luce LED, paraspruzzi
• Battuta longitudinale micrometrica, frizione di sicurezza
• Catena portacavi, cambio ingranaggi, bussola CM
• 2 contropunte, riempimento Shell Tellus 46, utensili
Usa gru/muletto adeguati ai punti di sollevamento indicati. Fissa al basamento, livella con precisione e verifica alimentazione 400V, messa a terra e dispositivi CE (freno a pedale, protezioni) prima dell’avviamento.
