Description

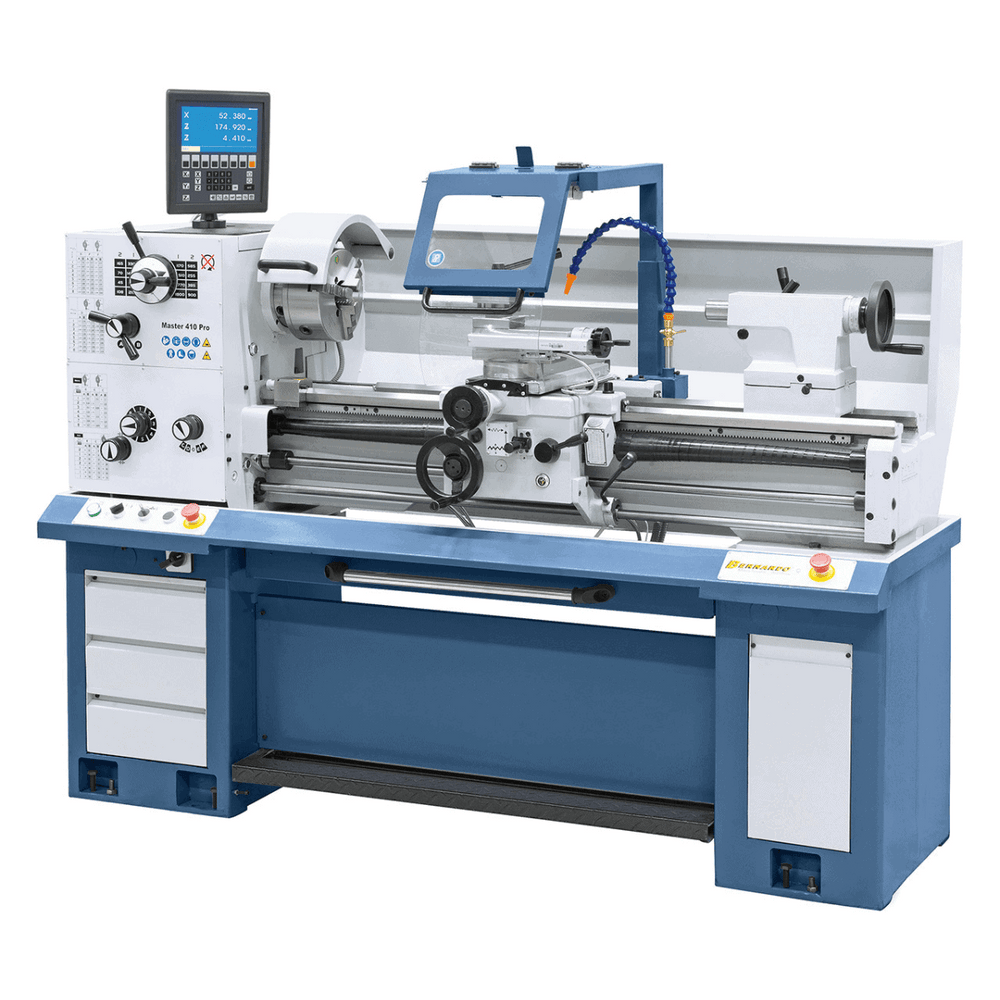

Master 410 Pro Universal Lathe with 3-Axis Digital Display ES-12 V

The Master 410 Pro universal lathe is a compact and versatile solution designed for technical schools, maintenance workshops, and training environments. Thanks to its robust construction and comprehensive features, it enables precise and safe machining of steel, non-ferrous metals, and plastics.

Main features
• 52mm spindle bore for machining large diameter shafts
• Removable central bridge for turning pieces with increased diameter
• Construction in hardened and ground grey cast iron with prism base
• ES-12 V 3-axis digital display with LCD screen included as standard
• Electromechanical foot brake for greater safety and reduced downtime
• Main spindle with guaranteed concentricity precision (≤ 0.015 mm)
• Removable front chip tray for space-saving installation
• Fully adjustable chuck, tailstock and guides

Technical table

Characteristic Value
Distance between tips 1000 mm
Tip height 205 mm
Maximum turning diameter on bench 410 mm
Max turning diameter with bridge removed 530 mm
Max turning diameter on slide 260 mm
Bench width 205 mm
Spindle hole 52 mm
Spindle attachment DIN 55029, D1 - 5
Spindle speed range (16) 45 – 1800 rpm
Longitudinal advances (48) 0.043 – 0.653 mm/rev
Transversal advances (48) 0.014 – 0.206 mm/rev
Metric threads (36) 0.4 – 7.0 mm
Inch threads (28) 4 – 56 TPI
Tailstock quill diameter 45 mm
Tailstock quill stroke 125 mm
Steerer tube attachment MK 3
Engine power 1.5 / 2.4 kW
Machine dimensions (L x W x H) 1820 x 920 x 1500 mm
Weight 760 kg
Pull-out bed length 235 mm

Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw chuck DK11-200 mm / D5
• Clamping plate 280 mm
• Fixed bezel (Ø max 70 mm)
• Movable bezel (Ø max 60 mm)
• Refrigeration system
• Chip tray removable from the front
• 4-position tool holder
• Tool holder protection
• Micrometric longitudinal stop
• Safety clutch
• Thread gauge
• Motor with magnetic brake compliant with CE standards
• Brake pedal compliant with CE standards
• Initial fill with Shell Tellus 46
• LED work lamp
• Interchangeable gears
• Reducing compass
• 2 counterpoints
• Rear bulkhead for chips
• Complete base
• Control panel

Frequently Asked Questions

Master 410 Pro Lathe FAQ
Yes, the Master 410 Pro lathe is perfect for technical institutes and schools thanks to its ease of use, CE safety and comprehensive features.
Yes, the machine can process steel, non-ferrous metals, and even plastic.
Of course, the chip tray can be removed from the front to facilitate cleaning and allow installation in small spaces.
Yes, for correct operation the machine must be powered by a three-phase network.
