Description

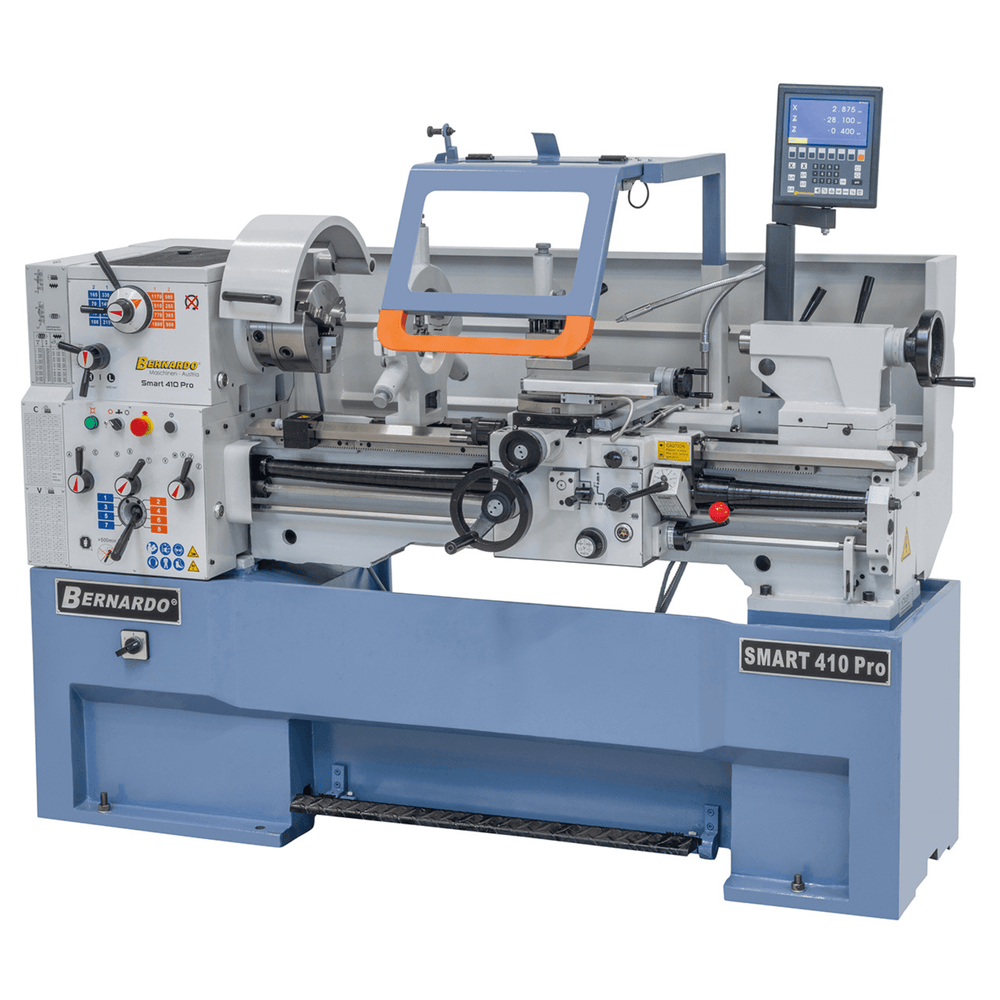

Smart 410 x 1000 Pro universal lathe with 3-axis digital readout

The Smart 410 x 1000 Pro lathe is a compact and precise solution for light to medium-duty metal turning. Thanks to its sturdy cast iron construction, hardened gears, and standard 3-axis digital display, this machine is perfect for professional workshops, technical schools, and maintenance workers.

Main features
• Prismatic bed in induction hardened and ground grey cast iron
• Removable central bridge for turning large diameter parts
• Traslatable tailstock with micrometric adjustment for conical machining
• ES-12 V 3-axis digital display with LCD screen included
• Electromechanical foot brake for greater safety and speed of operation
• Centralized lubrication system
• Hardened and ground gears and shafts also in the feed group
• High stability and precision thanks to the spindle head with precision angular bearings

Technical table

Characteristic Value
Distance between tips 1000 mm
Tip height 210 mm
Maximum turning diameter on bench 420 mm
Max turning diameter with bridge removed 580 mm
Max turning diameter on slide 255 mm
Bench width 250 mm
Spindle hole 52 mm
Spindle attachment DIN 55029, D1 - 6
Spindle speed range (16) 45 – 1800 rpm
Longitudinal advances (17) 0.05 – 1.7 mm/rev
Transversal advances (17) 0.025 – 0.85 mm/rev
Metric threads (42) 0.2 – 14 mm
Inch threads (45) 2 – 72 TPI
Tailstock quill diameter 50 mm
Tailstock quill stroke 140 mm
Steerer tube attachment MK 4
Engine power 3.0 / 4.5 kW
Machine dimensions (L x W x H) 2070 x 900 x 1600 mm
Weight 1220 kg

Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw chuck DK11-200 mm / D6
• Clamping plate 350 mm
• Fixed bezel (Ø max 135 mm)
• Movable bezel (Ø max 65 mm)
• 4-position tool holder
• Tool holder protection
• Refrigeration system
• Longitudinal micrometric stop
• Safety clutch
• Revolver stop with fine adjustment
• Thread gauge
• Motor with magnetic brake compliant with CE standards
• Brake pedal compliant with CE standards
• Initial fill with Shell Tellus 46 oil
• LED work lamp
• Interchangeable gears
• Reducing compass
• 2 counterpoints
• Rear bulkhead for chips
• Maintenance tool set

Frequently Asked Questions

FAQ Smart Lathe 410 x 1000 Pro
The 1000mm model has a reduced distance between the tips, making it more compact and suitable for workshops with limited space.
Yes, the lathe can produce 42 metric and 45 inch (TPI) threads.
It is not a CNC lathe, but thanks to the presence of the digital display and the complete equipment, it is also suitable for small production series.
Yes, the machine requires 3-phase power to function properly.
