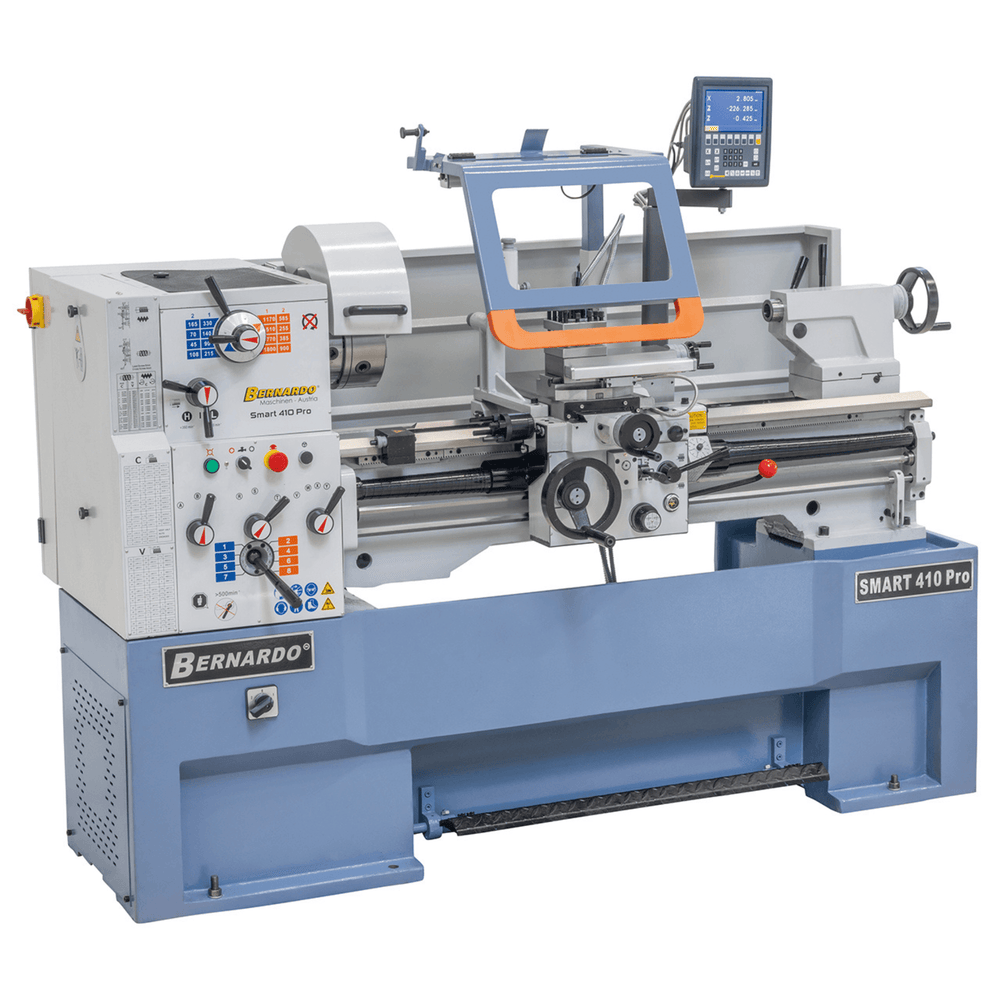

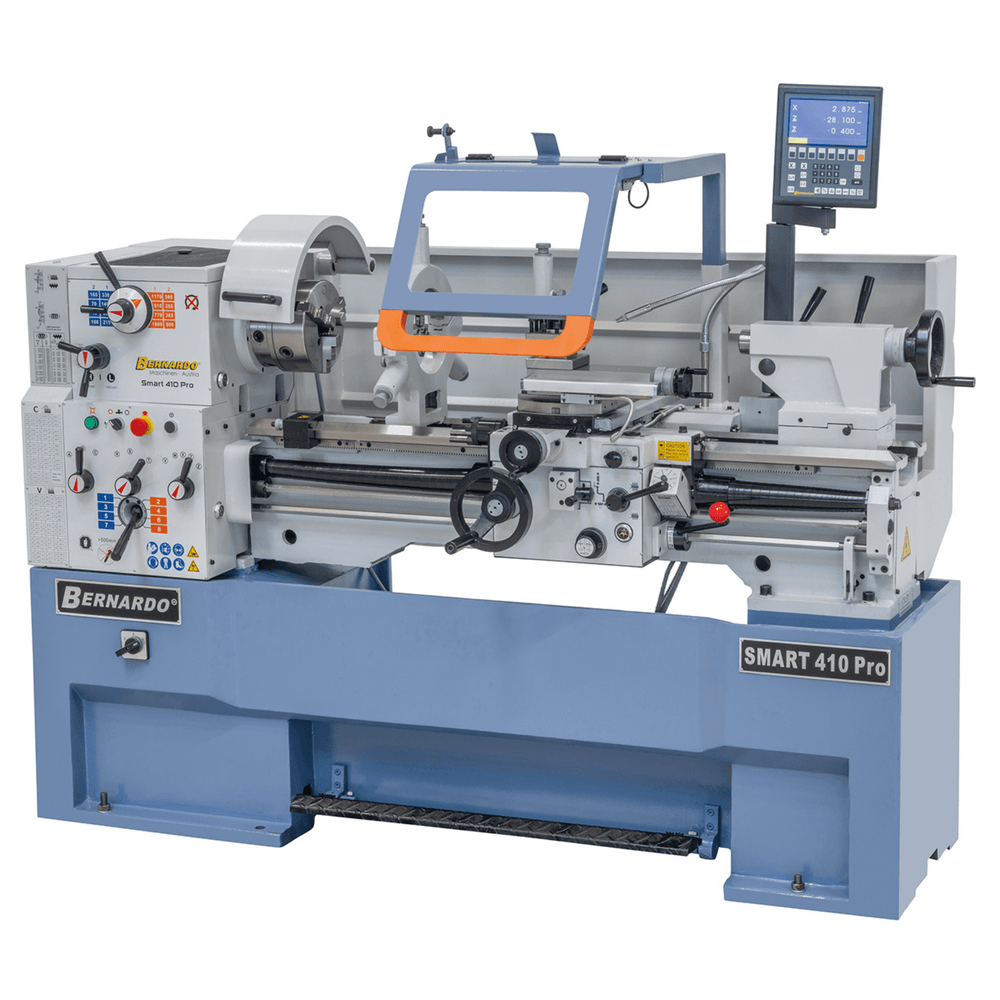

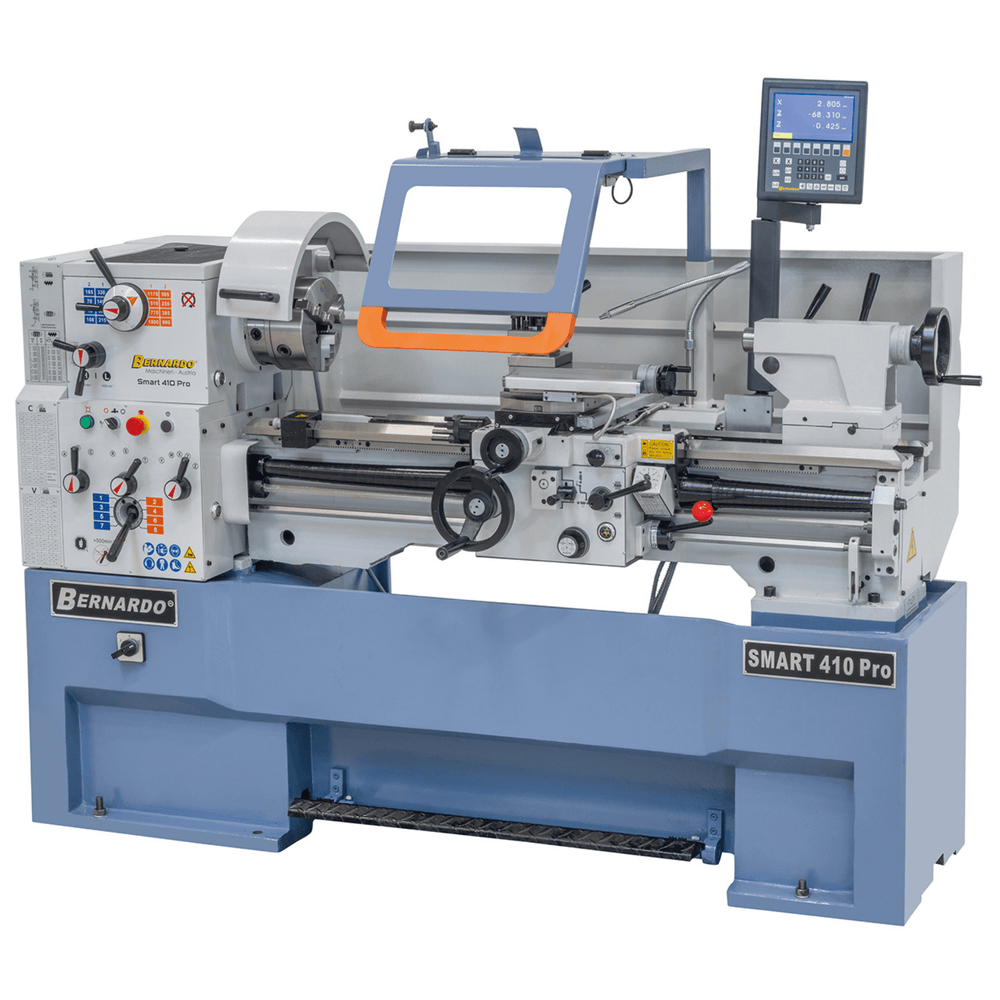

Smart 410 x 1500 Pro universal lathe with 3-axis digital readout
The Smart 410 x 1500 Pro lathe is a versatile machine designed for light to medium-heavy turning operations. With its comprehensive standard features, sturdy cast iron construction, and 3-axis digital readout, this model is ideal for machine shops, maintenance workers, and small-scale manufacturers.
Main features
• Prismatic bed in induction hardened and ground grey cast iron
• Removable central bridge for working on large diameters

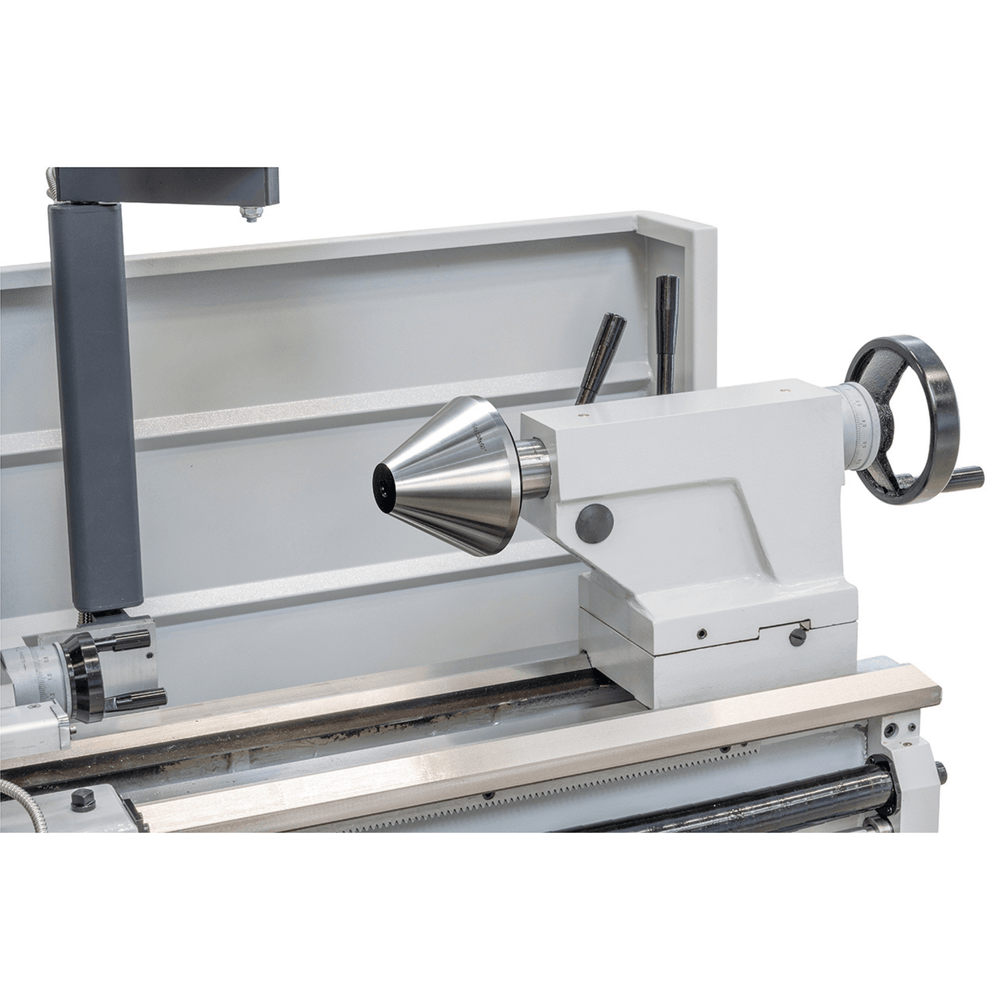

• Reitstock movable for conical turning with micrometric adjustment
• Hardened and ground gears for high precision and durability
• Integrated safety clutch system
• Electromechanical foot brake to reduce downtime
• 3-axis digital readout (DRO) included as standard

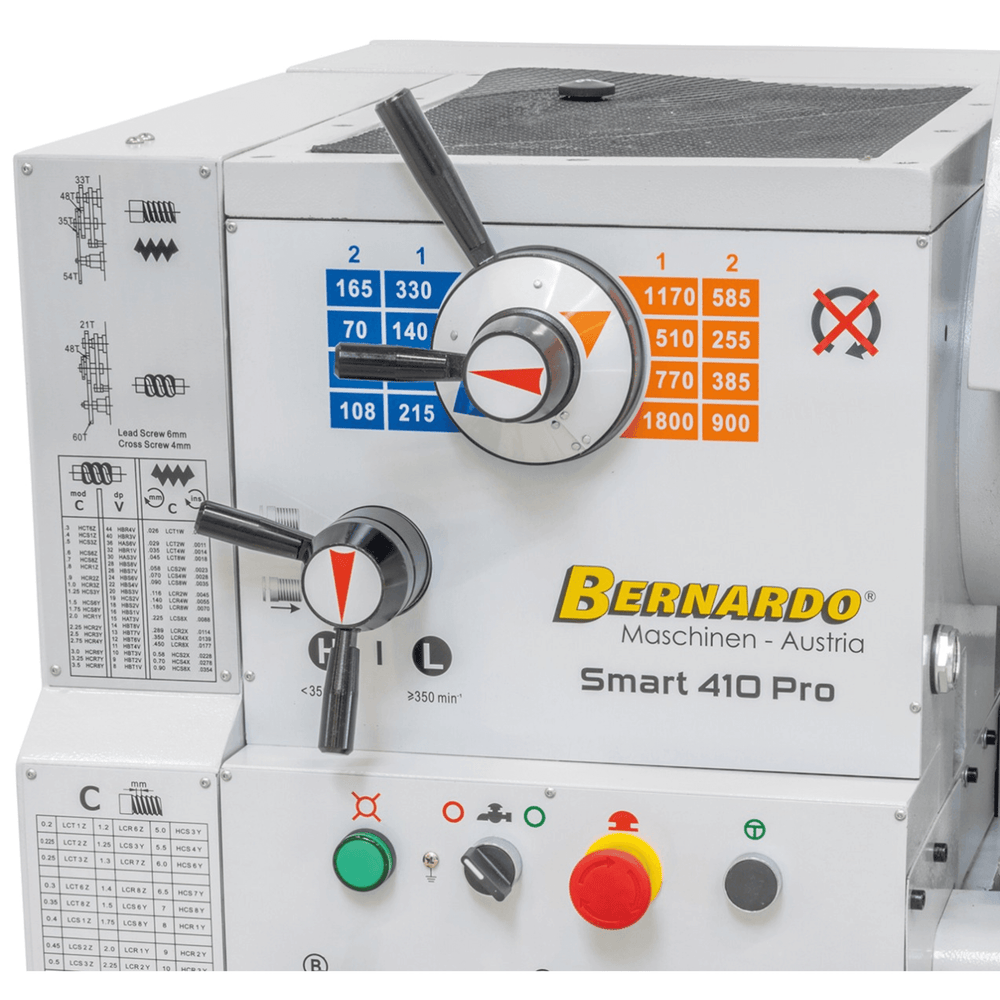

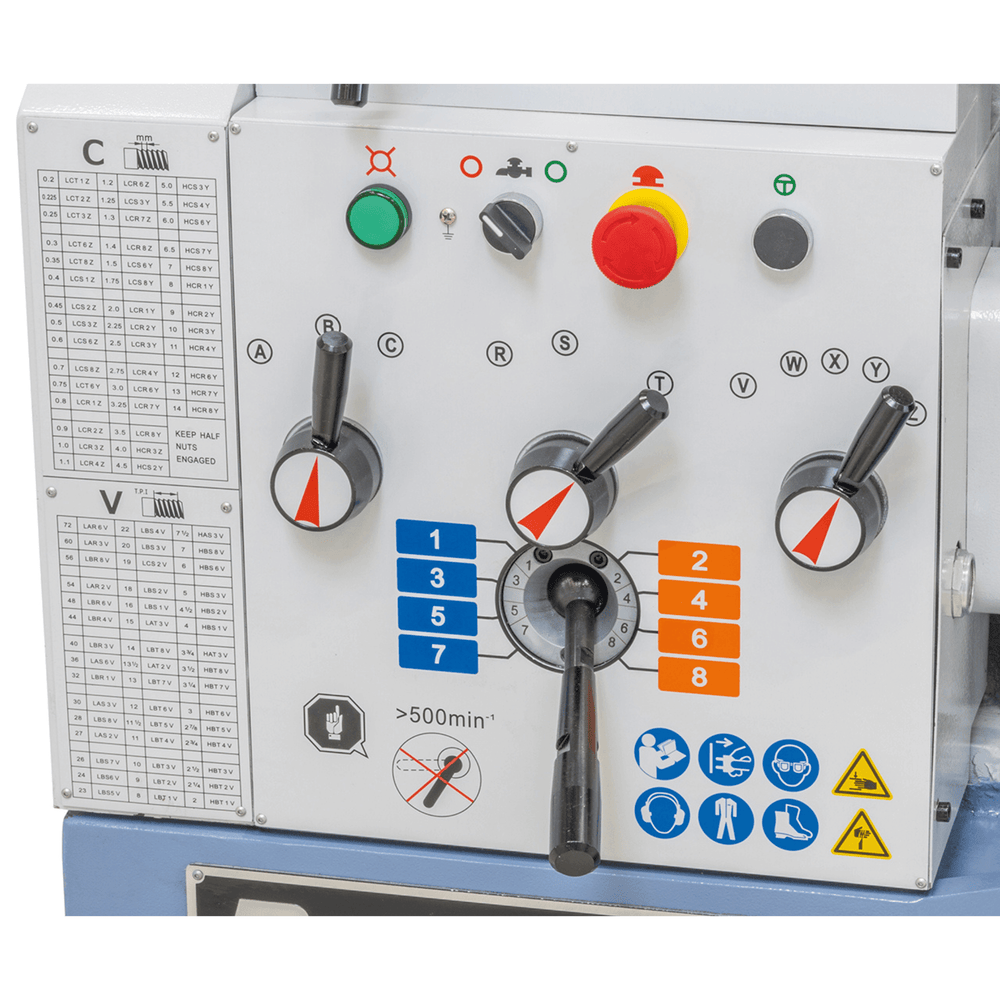

• High control precision thanks to central lever and accessible gears
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1500 mm |
| Tip height | 210 mm |
| Maximum turning diameter on bench | 420 mm |
| Max turning diameter with bridge removed | 580 mm |
| Max turning diameter on slide | 255 mm |
| Bench width | 250 mm |
| Spindle hole | 52 mm |
| Spindle attachment | DIN 55029, D1 - 6 |
| Spindle speed range | (16) 45 – 1800 rpm |
| Longitudinal advances | (17) 0.05 – 1.7 mm/rev |
| Transversal advances | (17) 0.025 – 0.85 mm/rev |
| Metric threads | (42) 0.2 – 14 mm |
| Inch threads | (45) 2 – 72 Days/1" |
| Tailstock quill diameter | 50 mm |
| Tailstock quill stroke | 140 mm |
| Steerer tube attachment | MK 4 |
| Engine power | 3.0 / 4.5 kW |
| Machine dimensions (L x W x H) | 2570 x 900 x 1600 mm |
| Weight | 1400 kg |
Package Contents

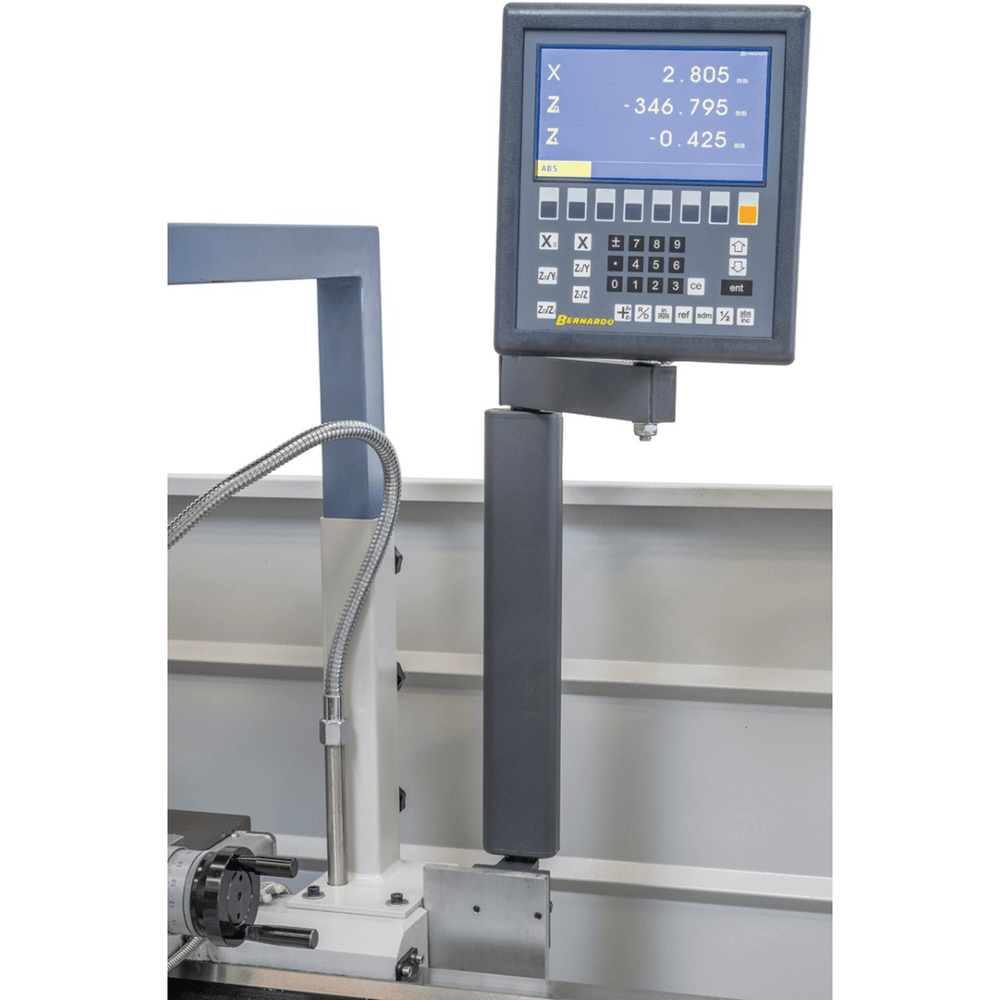

• ES-12 V 3-axis digital display with LCD display

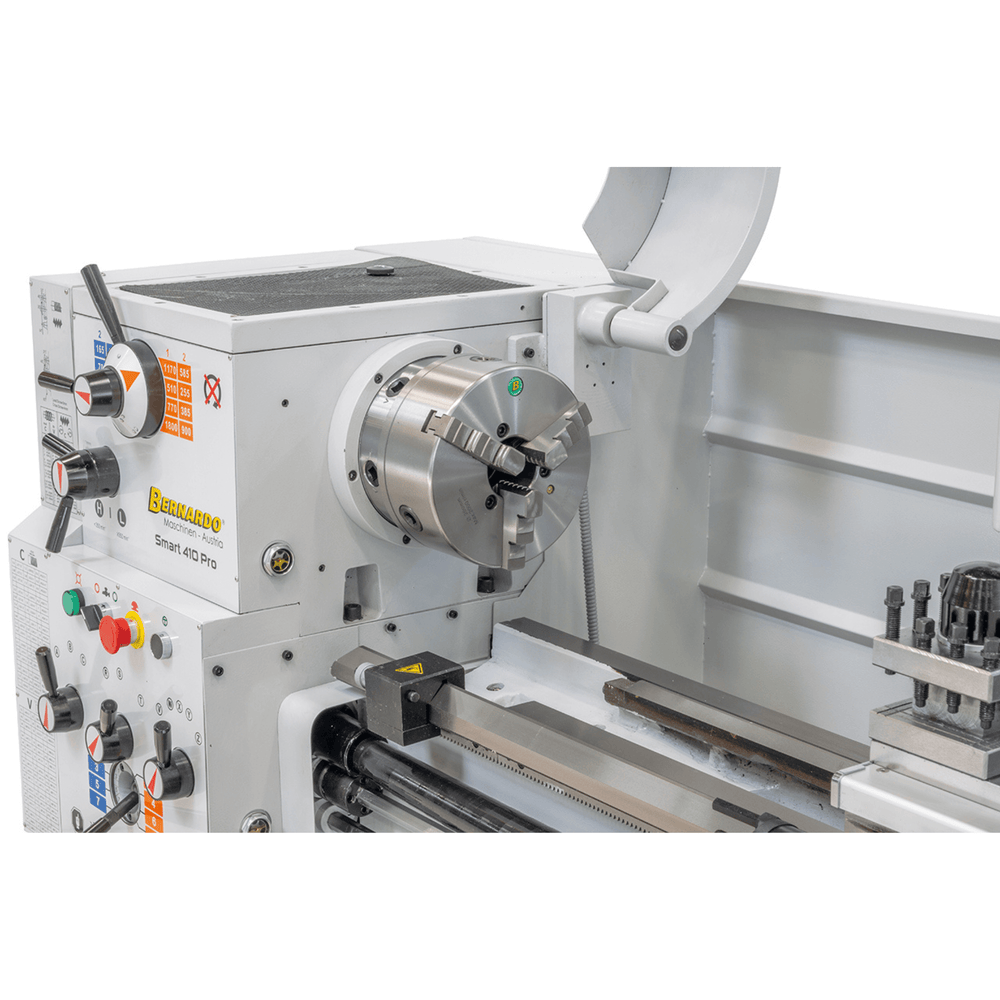

• 3-jaw self-centering chuck DK11-200 mm / D6

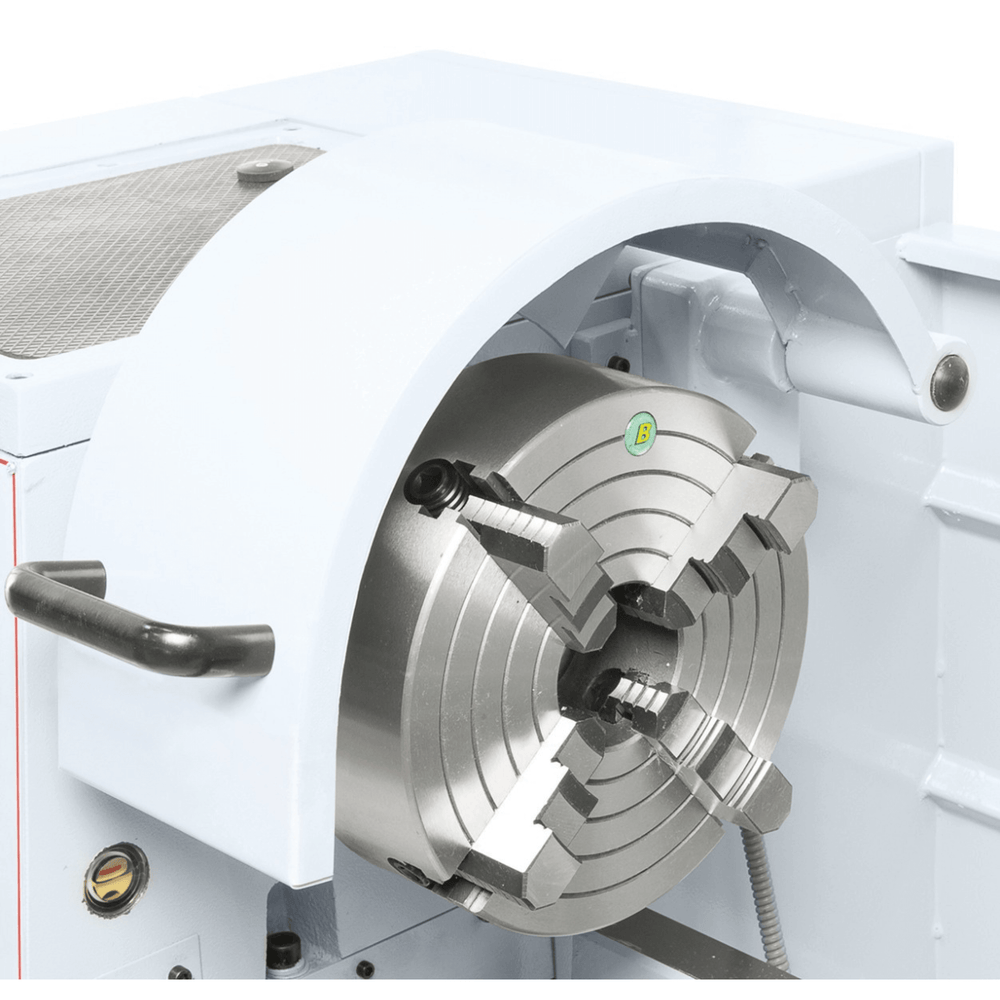

• Self-centering plate 350 mm

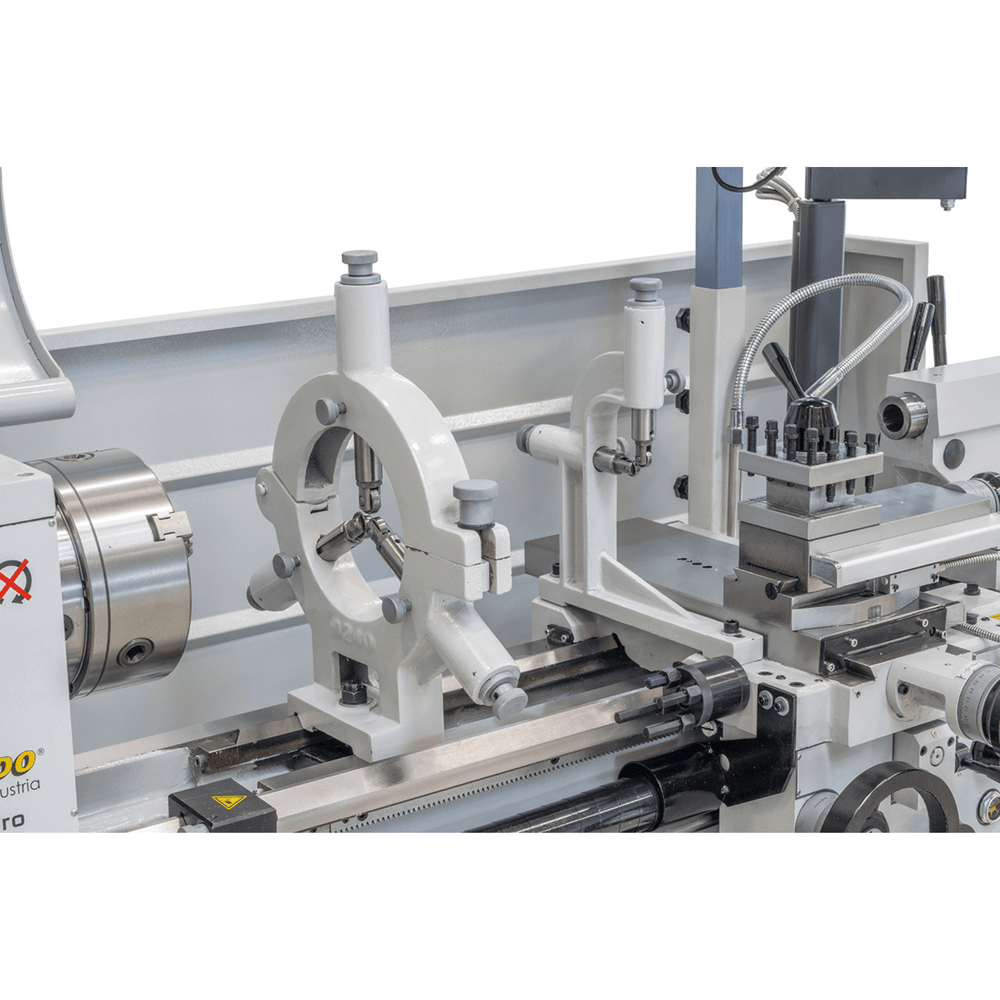

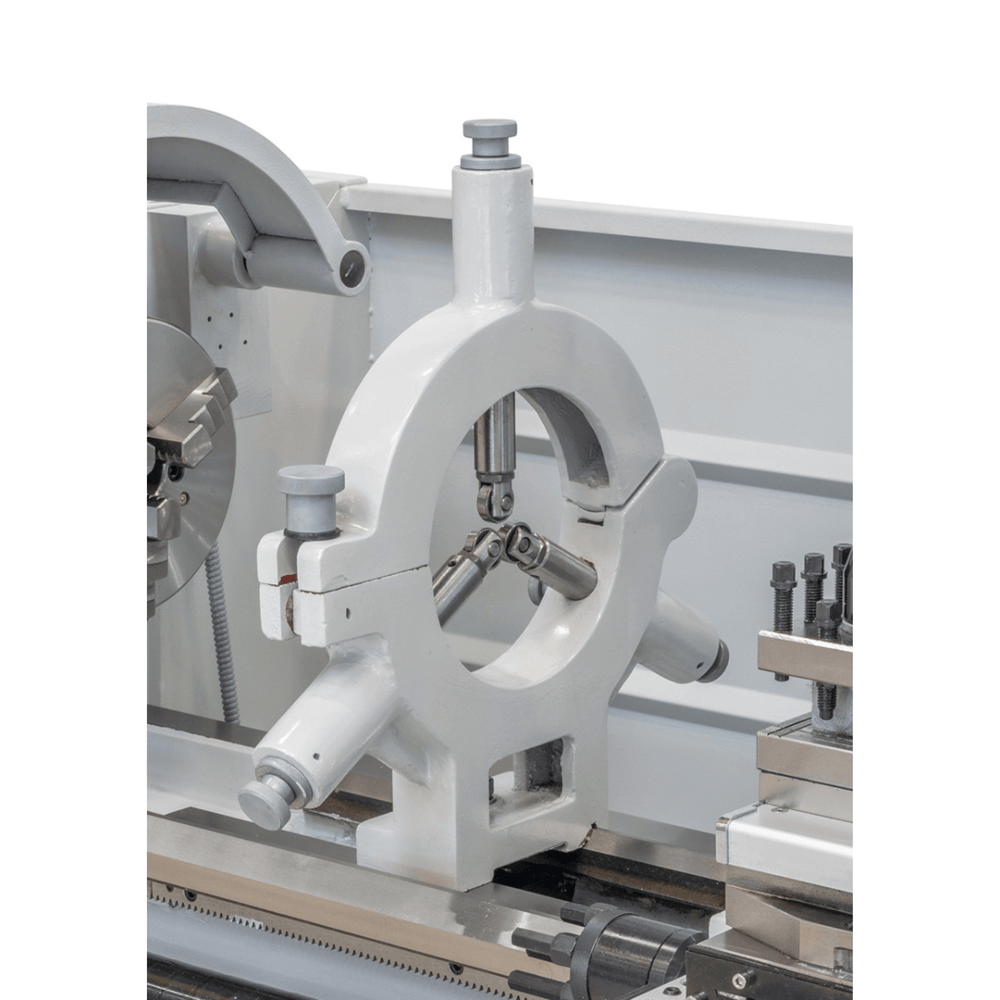

• Fixed bezel (Ø max 135 mm)
• Movable bezel (Ø max 65 mm)

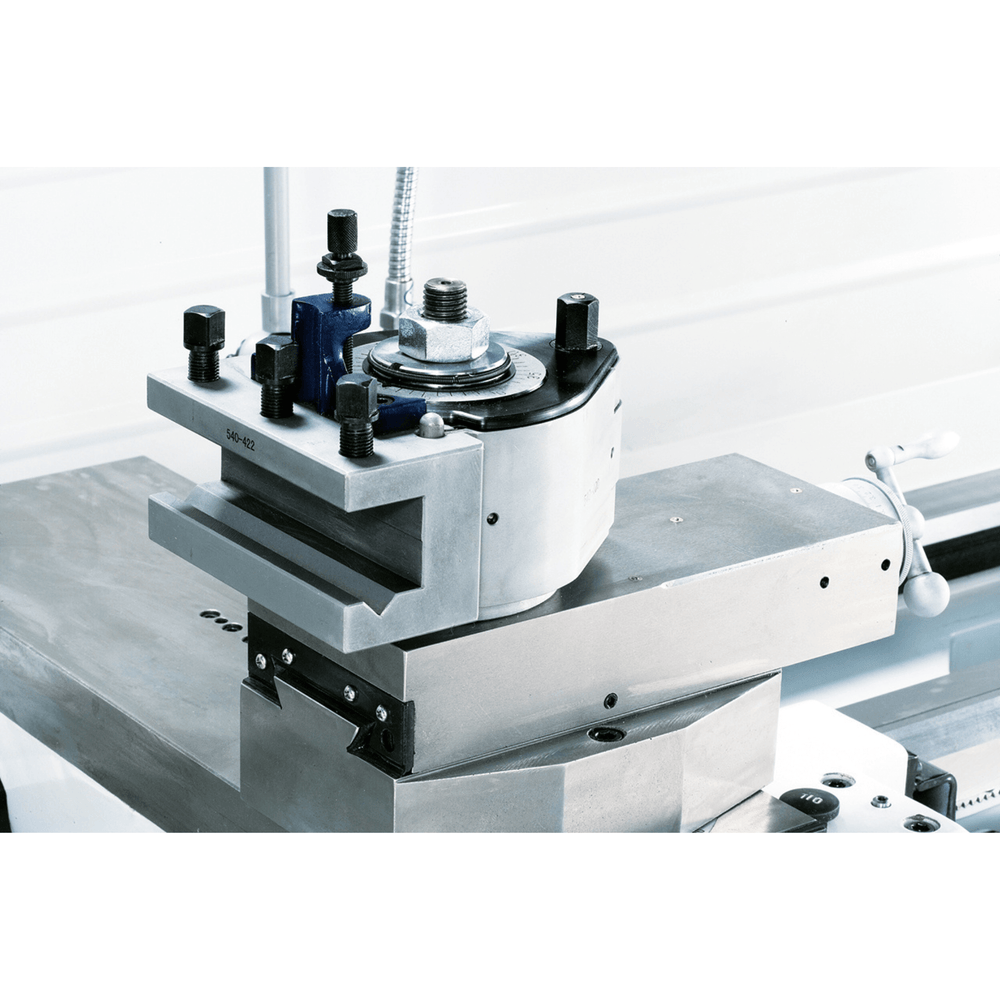

• 4-position tool holder

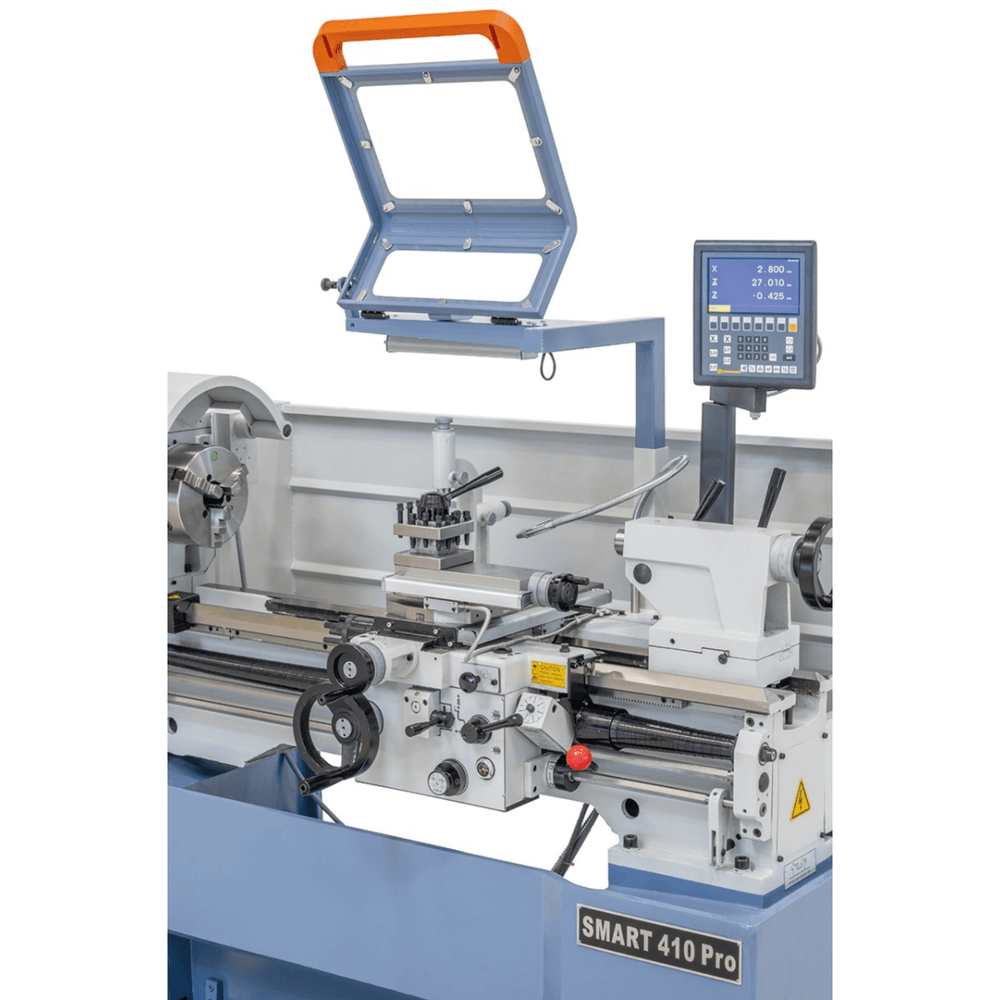

• Tool holder protection
• Refrigeration system
• Longitudinal micrometer
• Safety clutch

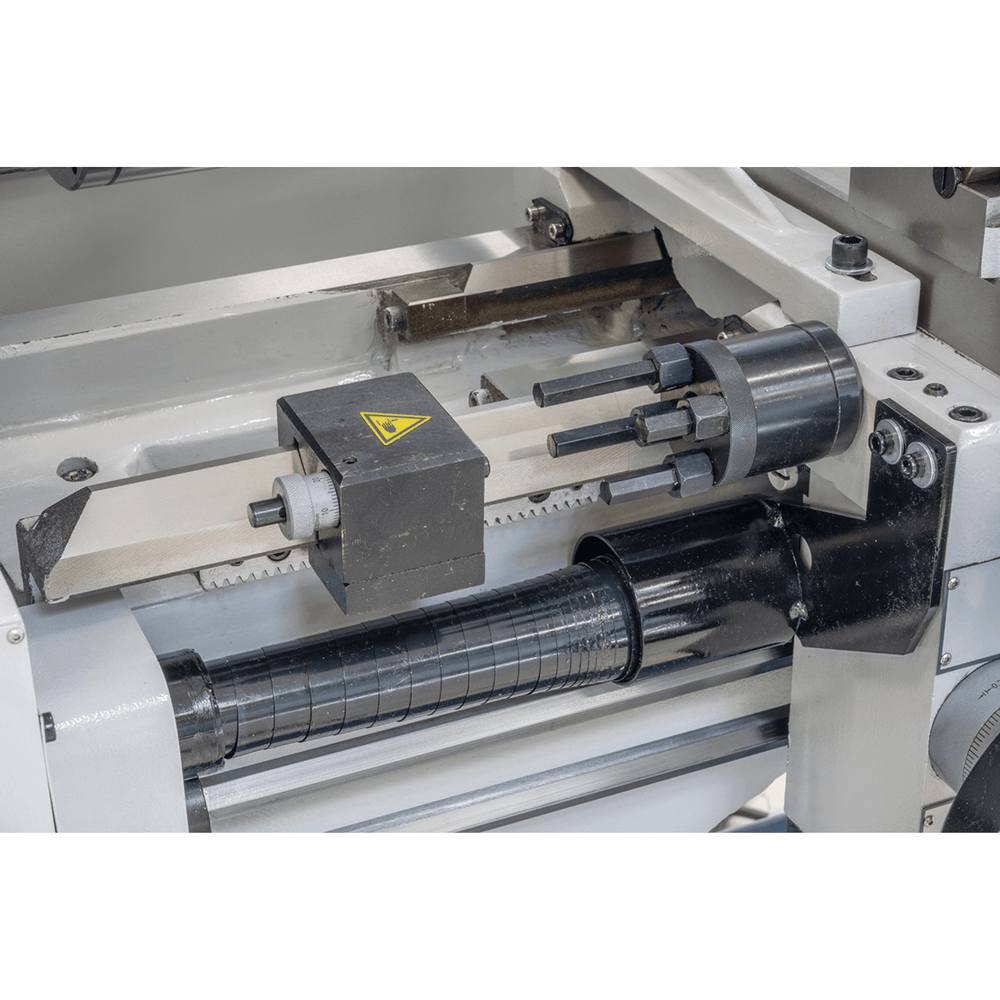

• Revolver stop with fine adjustment
• Threadmeter
• Motor with magnetic brake according to CE
• Brake pedal according to CE
• Initial fill with Shell Tellus 46 oil
• LED work lamp

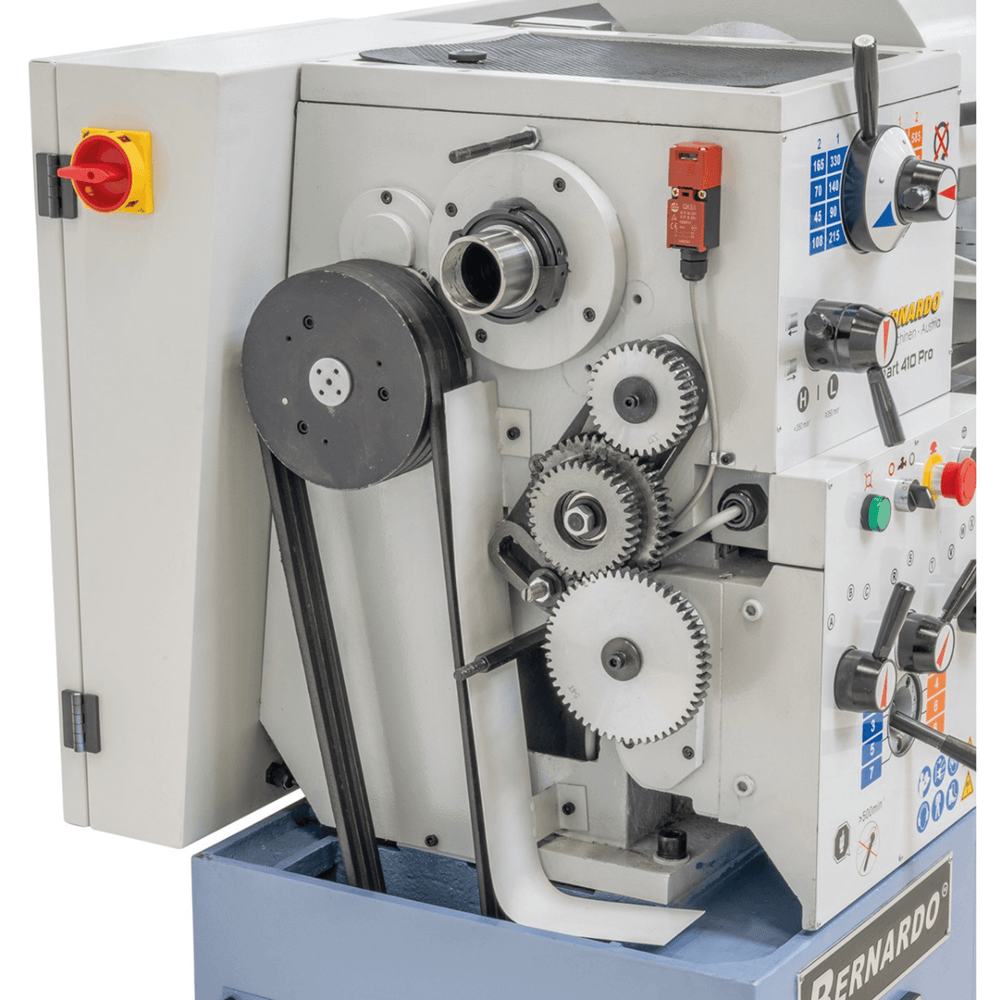

• Interchangeable gears
• Reducing compass
• 2 counterpoints
• Chip collection bulkhead
• Maintenance tool set
