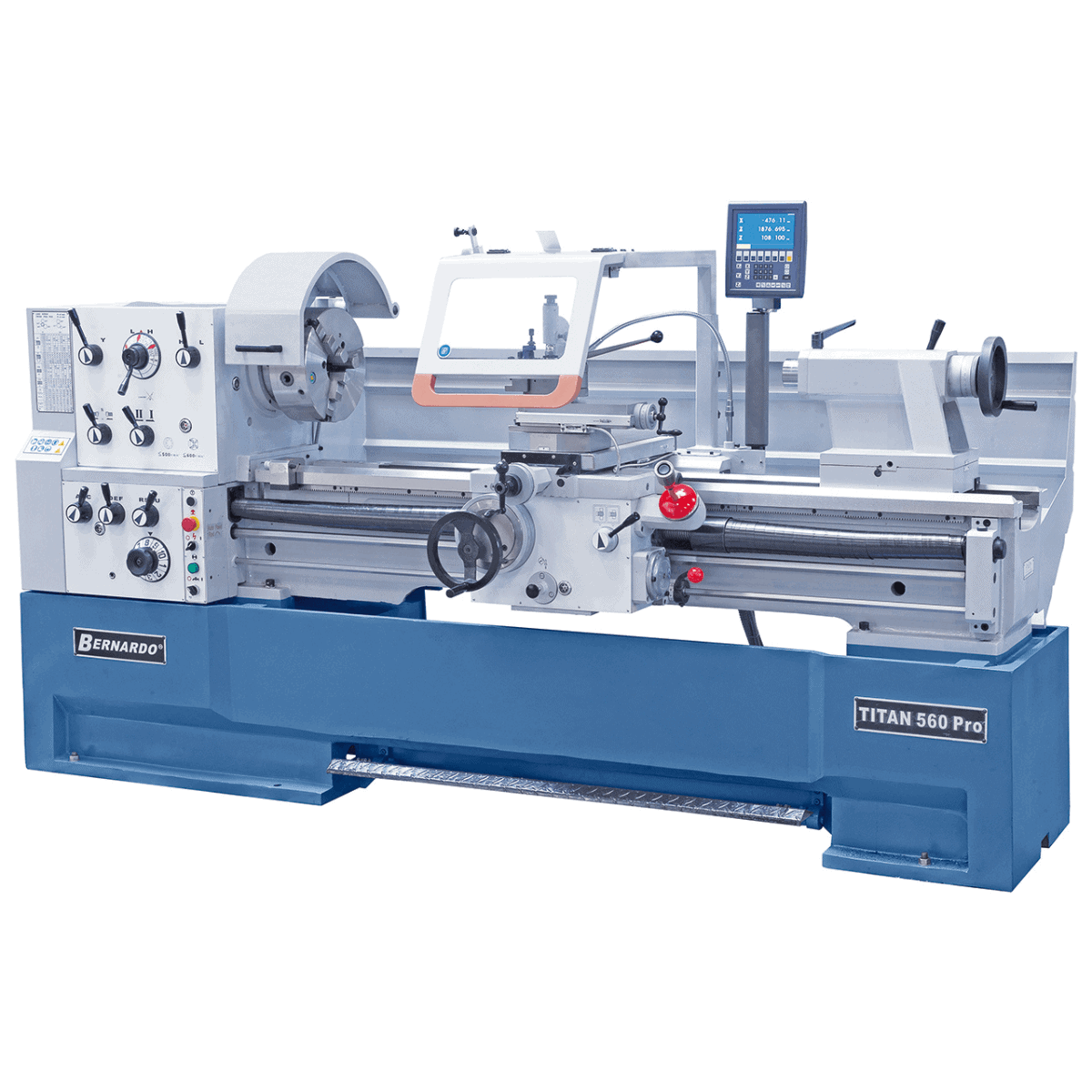

Titan 560 x 1500 Pro production lathe with 3-axis digital readout
The Titan 560 x 1500 Pro lathe is designed for the economical and precise production of single parts and prototypes. Thanks to its single-piece cast iron construction, rapid feeds, and comprehensive standard features, this machine is extremely versatile for workshops, production departments, and maintenance.
Main features
• Robust monolithic cast iron construction for maximum stability
• Removable central bridge for working on large diameter pieces
• Reitstock with fine adjustment for conical turning
• Centralized lubrication of the carriage
• Longitudinal and frontal Eilgang to speed up work
• Large spindle bore (105 mm) with D1-8 connection
• Quick tool change system with included protection
• 3-axis digital display as standard
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 1500 mm |
| Tip height | 280 mm |
| Maximum turning diameter on bench | 560 mm |
| Max turning diameter with bridge removed | 785 mm |
| Max turning diameter on slide | 350 mm |
| Bench width | 350 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1 - 8 |
| Spindle speed range | (12) 25 – 1500 rpm |
| Longitudinal advances | (42) 0.055 – 3.061 mm/rev |
| Transversal advances | (42) 0.025 – 1.384 mm/rev |
| Metric threads | (41) 0.1 – 14 mm |
| Inch threads | (60) 2 – 112 Days/1" |
| Tailstock quill diameter | 75 mm |
| Tailstock quill stroke | 185 mm |
| Steerer tube attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 2840 x 1150 x 1610 mm |
| Weight | 2370 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw self-centering chuck PS3-315 mm / D8
• Self-centering plate 450 mm
• Fixed bezel (Ø max 180 mm)
• Movable bezel (Ø max 120 mm)
• 2 counterpoints
• Initial fill with Shell Tellus 46
• Motor with CE compliant magnetic brake
• Pedal with CE compliant brake function
• Refrigeration system
• Quick change tool holder with 4 inserts
• Tool holder protection
• Safety clutch
• Rapid longitudinal and frontal advances
• LED work lamp
• Interchangeable gears
• Reducing compass
• Chip collection bulkhead
• Maintenance tool set
