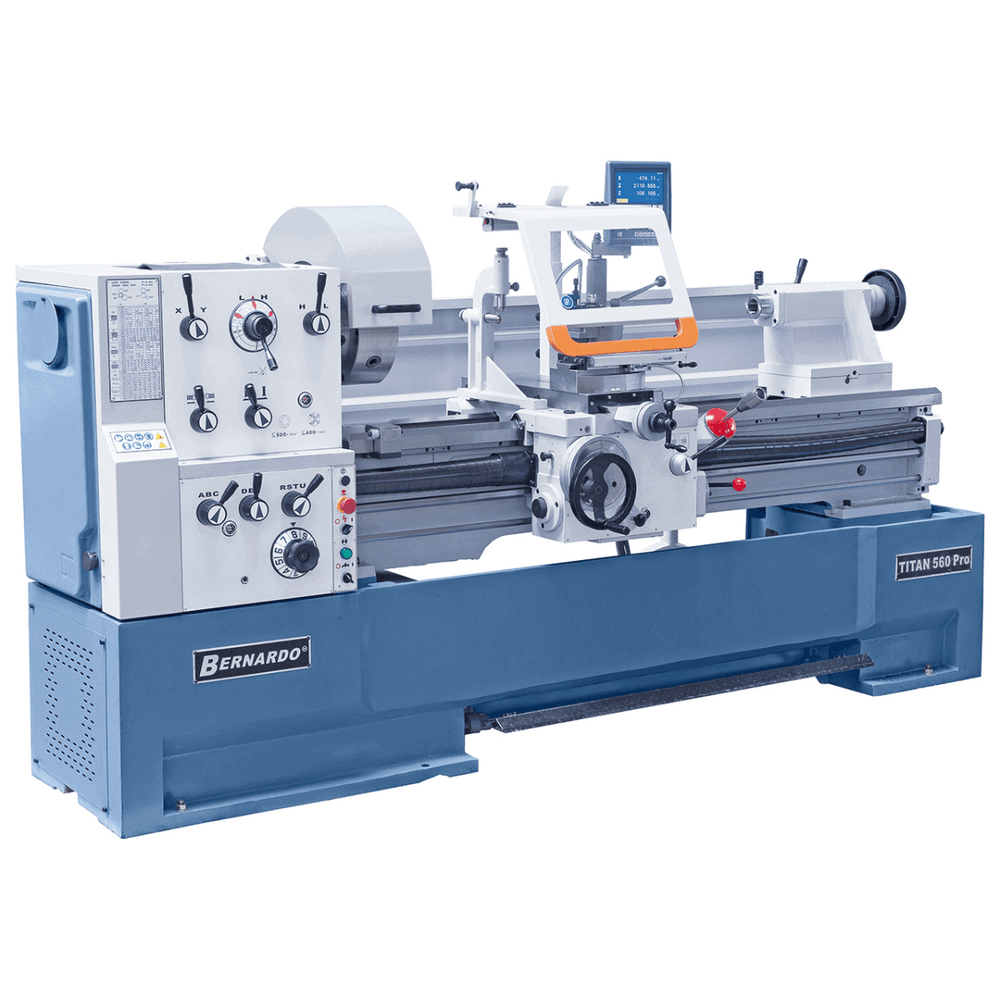

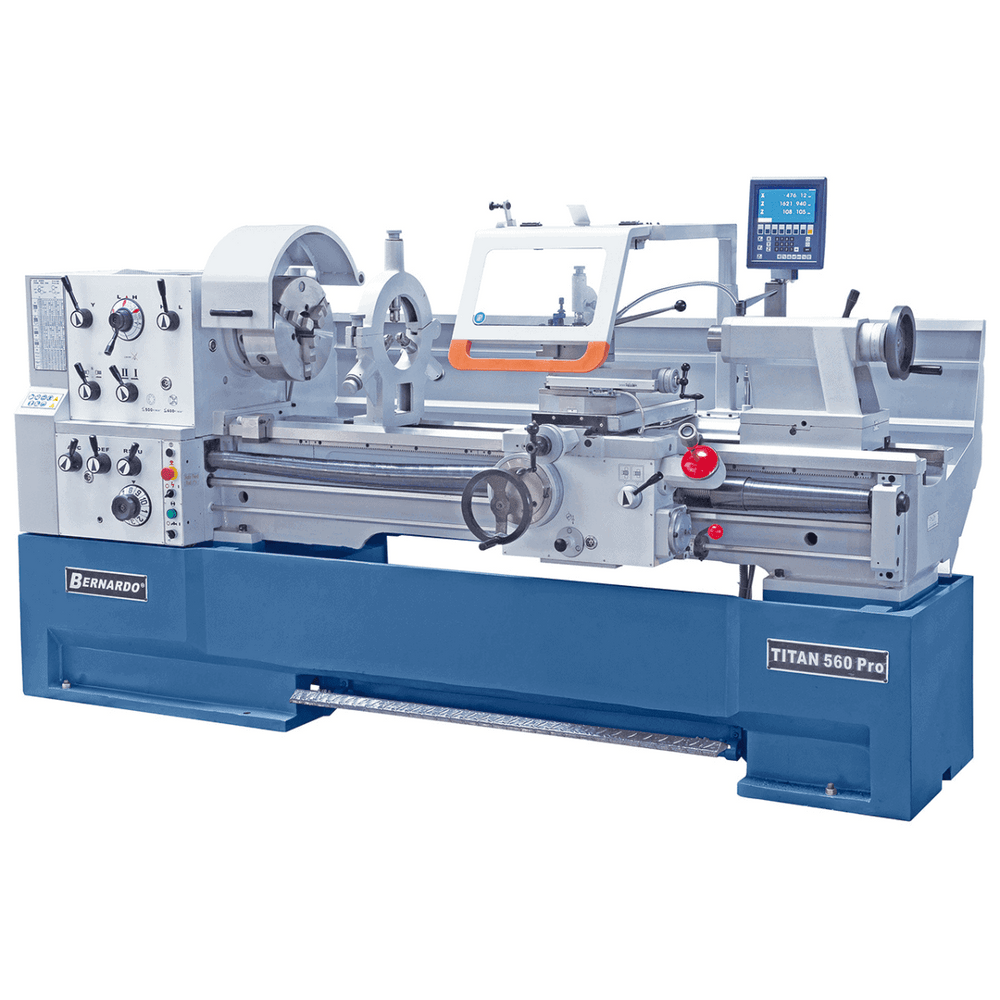

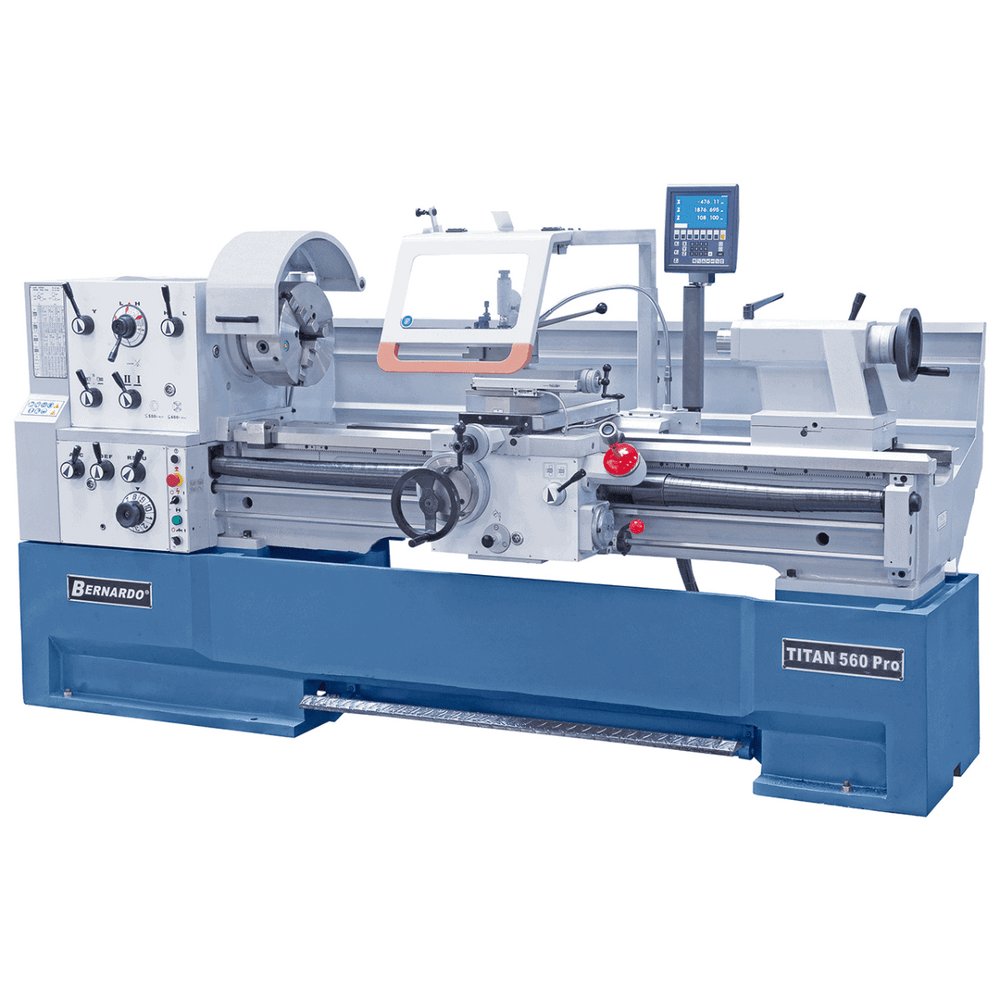

Titan 560 x 2000 Pro production lathe with 3-axis digital readout
The Titan 560 x 2000 Pro lathe is the ideal solution for those seeking a robust, versatile, and precise machine for general machining and single-piece production. Its single-piece cast iron structure ensures rigidity and vibration-free operation, while its comprehensive features make it ready for use even for complex work on large diameters.
Main features
• High rigidity, low vibration monoblock cast iron structure
• Extendable arm for processing large diameter pieces
• Adjustable reitstock for conical turning with micrometric scale
• Precision bearings and large spindle bore (105 mm)
• Longitudinal and frontal Eilgang as standard for rapid machining

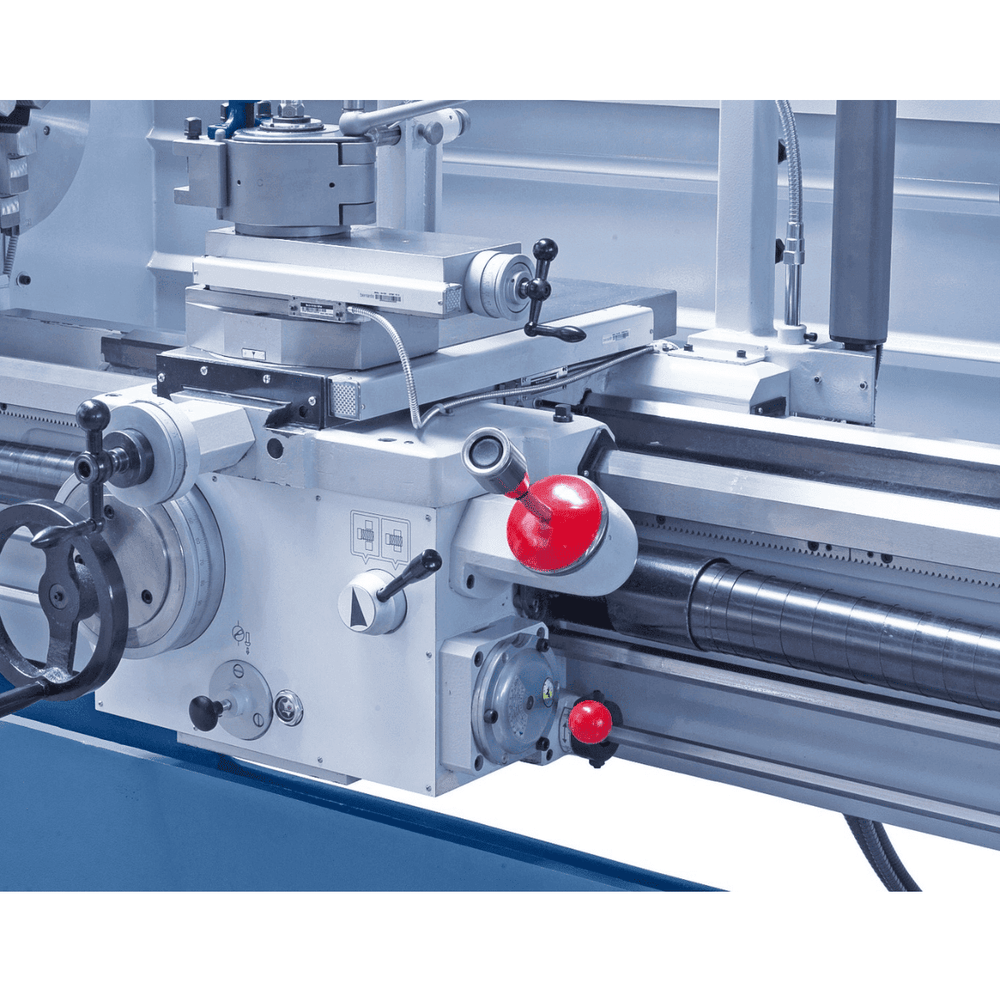

• Centralized lubrication of the trolley
• High engine power (7.5 kW) for reliable performance

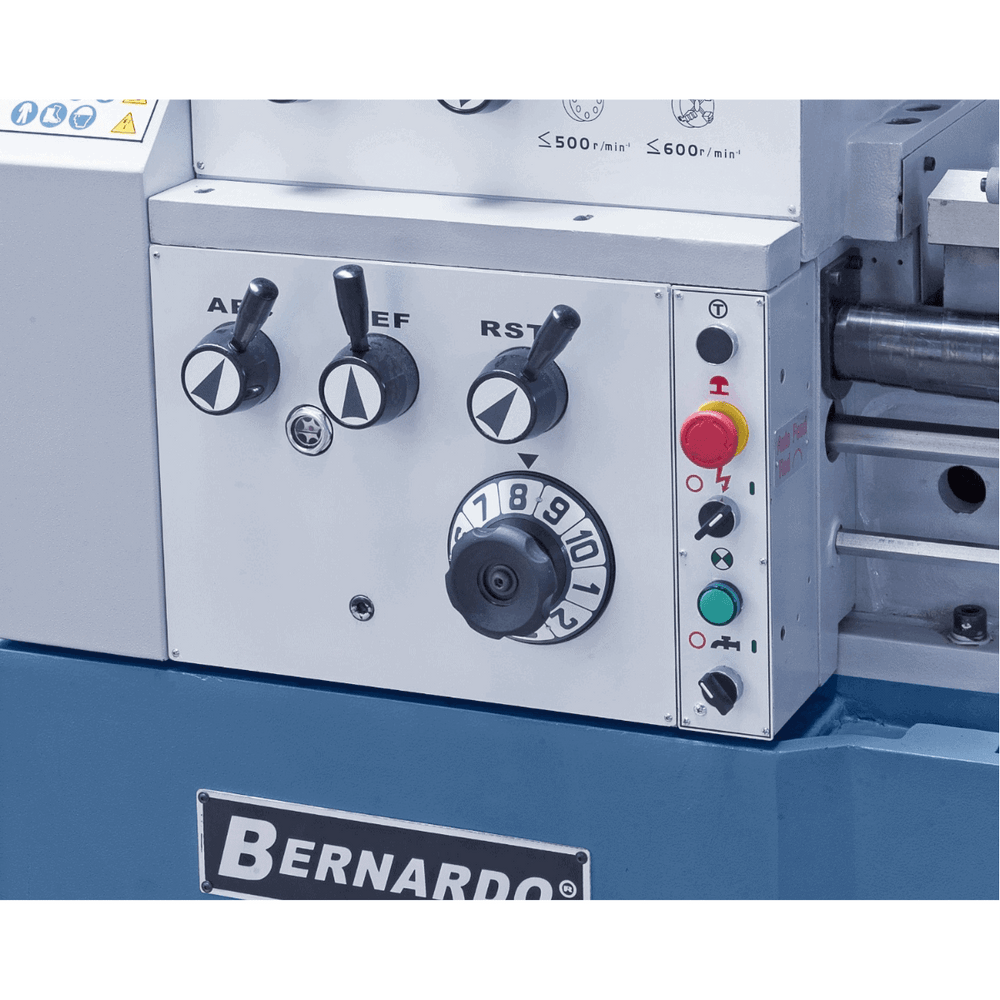

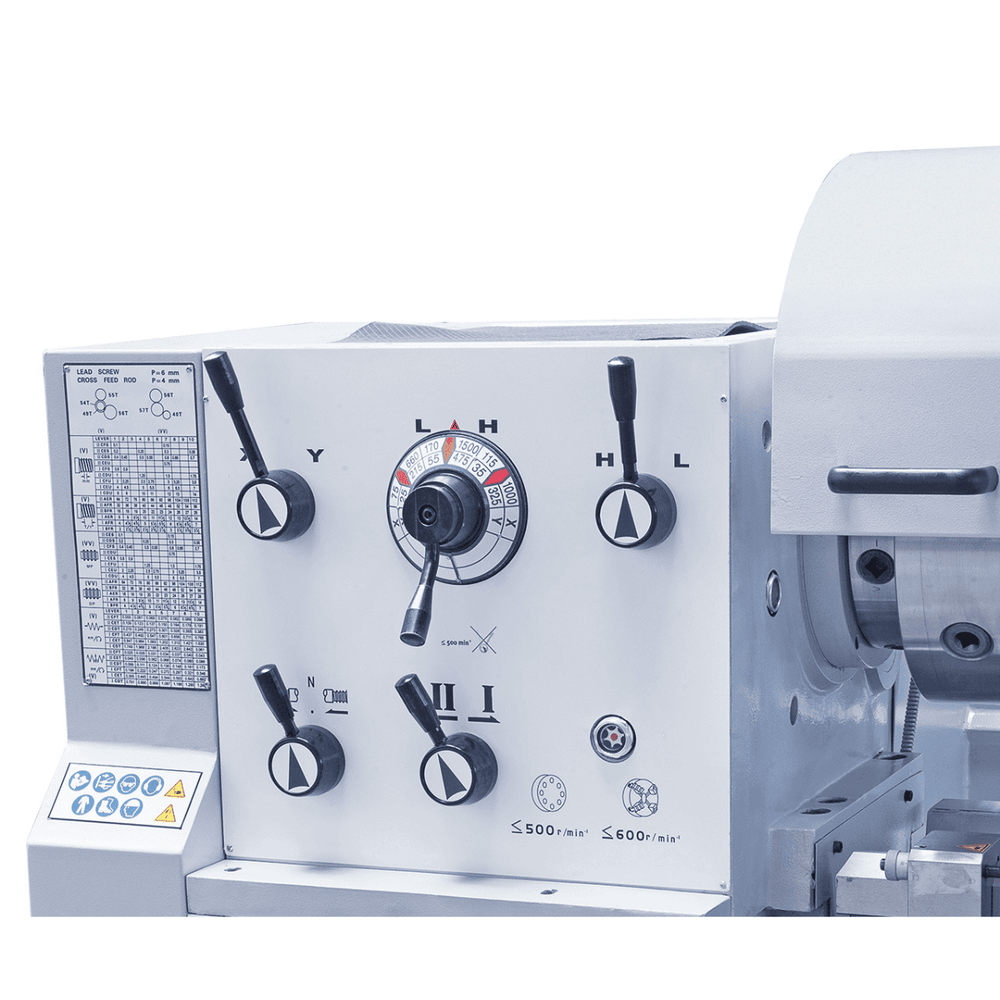

• Easy and precise setting of speed and feed
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 2000 mm |
| Tip height | 280 mm |
| Maximum turning diameter on bench | 560 mm |
| Max turning diameter with bridge removed | 785 mm |
| Max turning diameter on slide | 350 mm |
| Bench width | 350 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1 - 8 |
| Spindle speed range | (12) 25 – 1500 rpm |
| Longitudinal advances | (42) 0.055 – 3.061 mm/rev |
| Transversal advances | (42) 0.025 – 1.384 mm/rev |
| Metric threads | (41) 0.1 – 14 mm |
| Inch threads | (60) 2 – 112 Days/1" |
| Tailstock quill diameter | 75 mm |
| Tailstock quill stroke | 185 mm |
| Steerer tube attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 3340 x 1150 x 1610 mm |
| Weight | 2720 kg |
Package Contents
• ES-12 V 3-axis digital display with LCD display
• 3-jaw self-centering chuck PS3-315 mm / D8
• Self-centering plate 450 mm

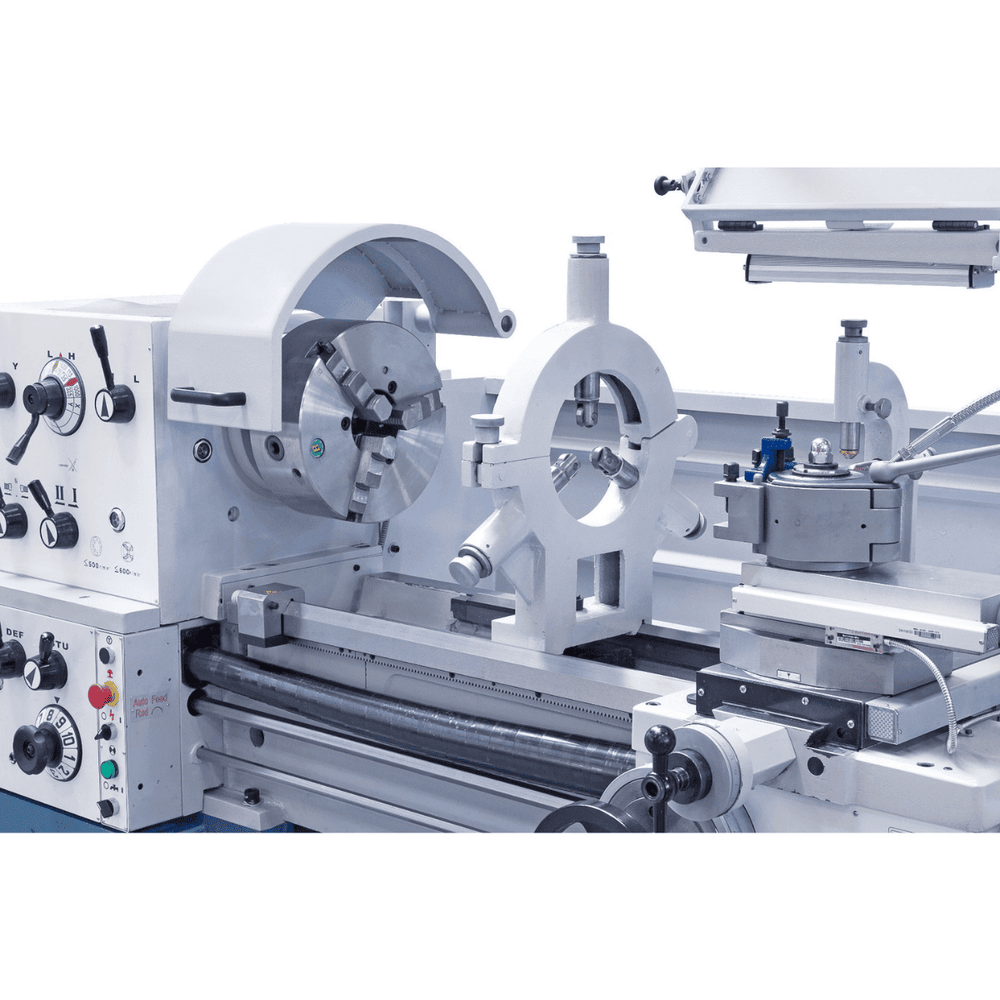

• Fixed bezel (Ø max 180 mm)
• Movable bezel (Ø max 120 mm)
• 2 counterpoints
• Initial fill with Shell Tellus 46
• Motor with CE compliant magnetic brake
• Pedal with CE compliant brake function
• Refrigeration system

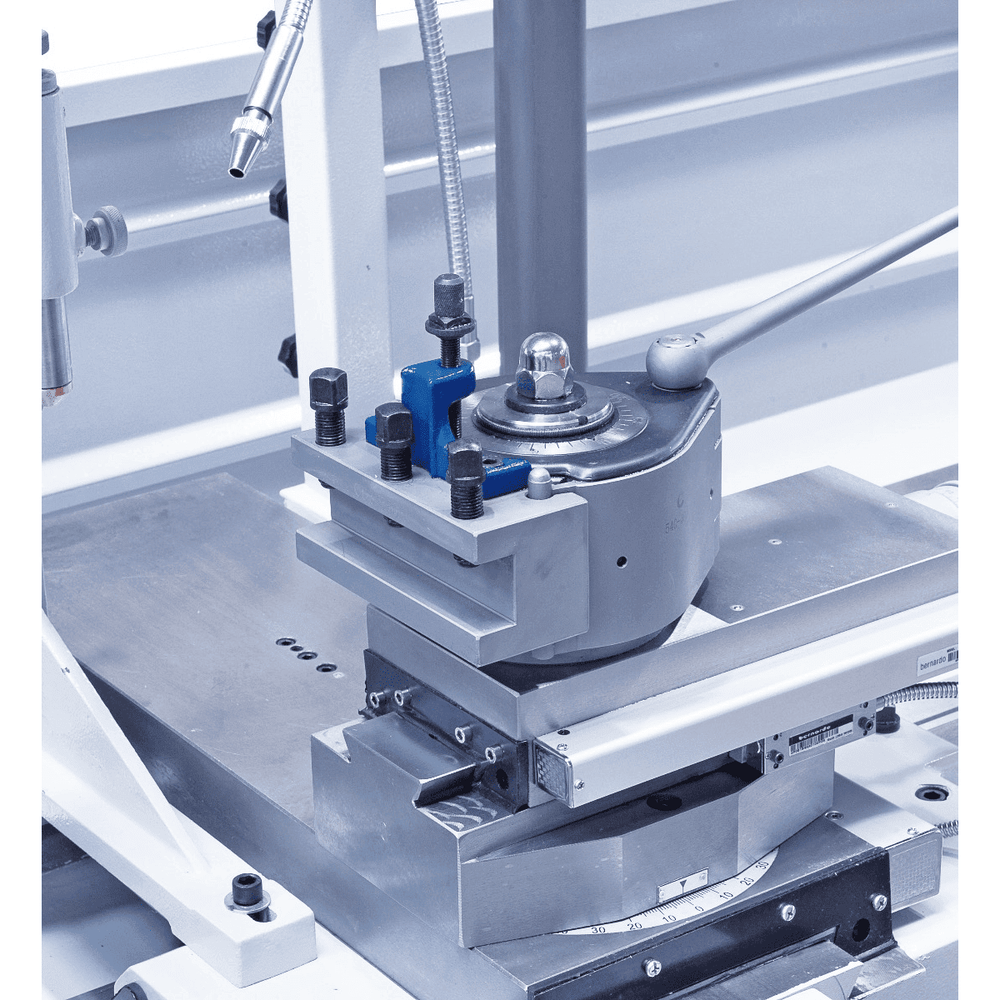

• Quick change tool holder with 4 inserts
• Tool holder protection
• Safety clutch
• Rapid longitudinal and frontal advances
• LED work lamp

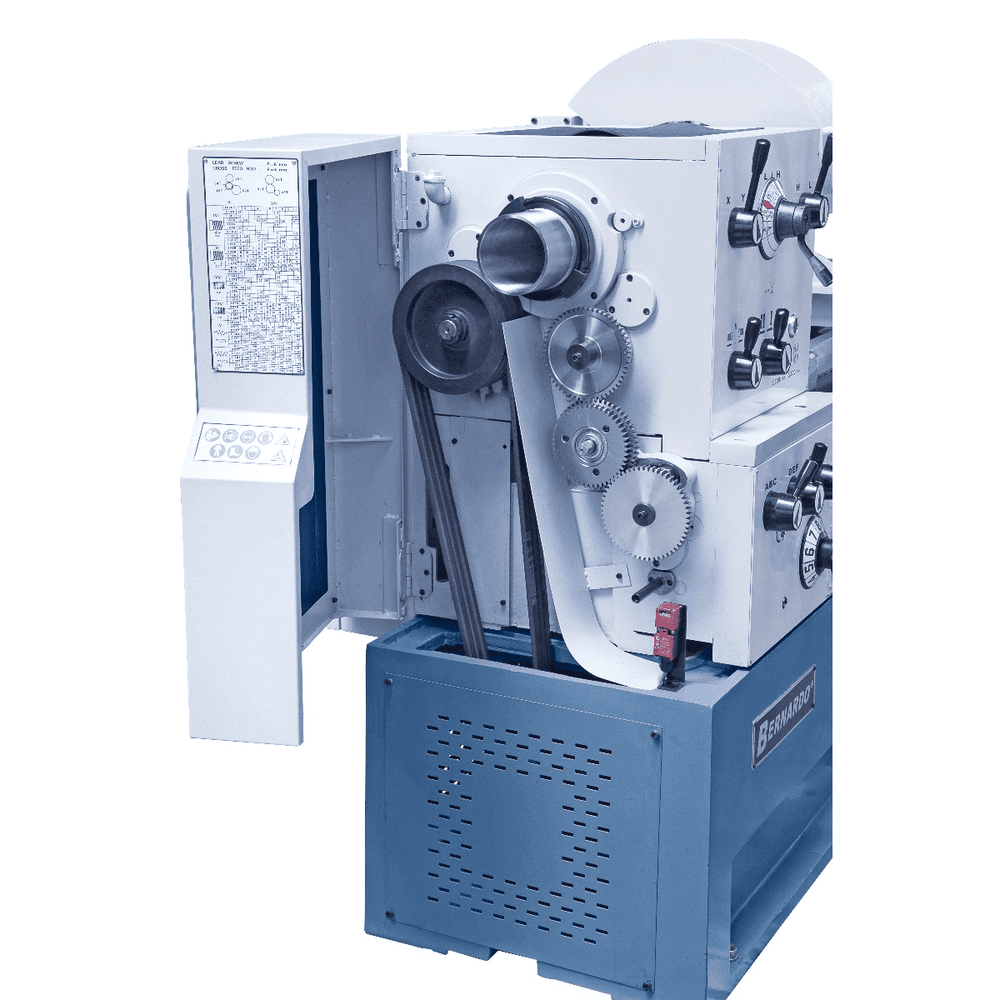

• Interchangeable gears
• Reducing compass
• Chip collection bulkhead
• Maintenance tool set
