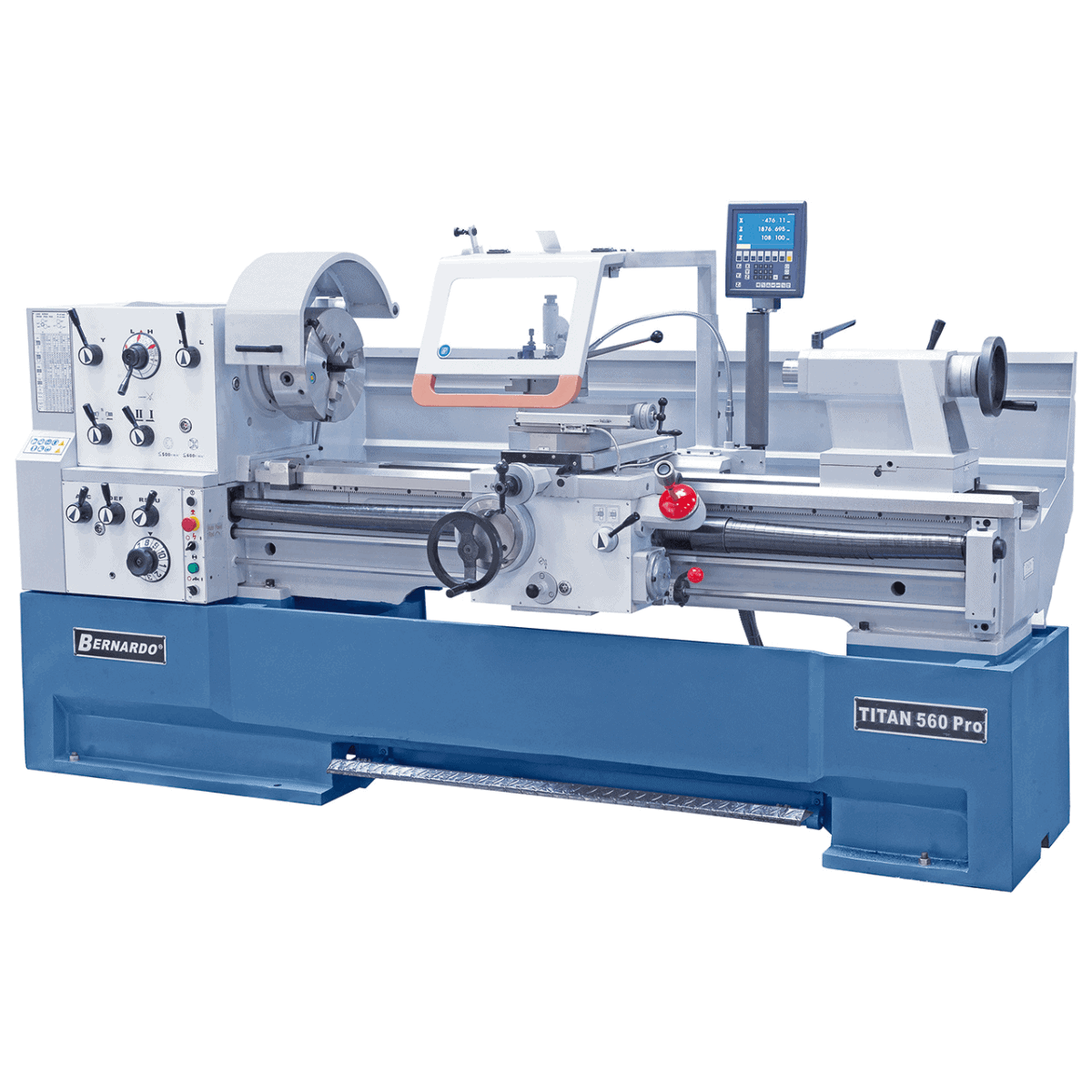

Titan 560 x 3000 Pro production lathe with 3-axis digital readout
The Titan 560 x 3000 Pro parallel lathe is designed for the efficient production of single parts, combining power, precision, and ease of use. Thanks to its extremely rigid, single-piece cast iron frame and extensive standard features, this machine is suitable for machine shops, custom production, and complex machining operations.
ā
Main features
ā¢ Monoblock cast iron structure for maximum rigidity and precision
ā¢ Extendable arm for processing large diameter pieces
ā¢ High versatility for workshops, plant construction and unit processing
ā¢ Reitstock with fine adjustment and conical turning function
ā¢ Precision bearings and main spindle with high capacity
ā¢ Longitudinal and frontal Eilgang to reduce downtime
ā¢ Centralized lubrication for the trolley
ā¢ Wide 105mm bar passage
Technical table
| Characteristic | Value |
|---|---|
| Distance between tips | 3000 mm |
| Tip height | 280 mm |
| Maximum turning diameter on bench | 560 mm |
| Max turning diameter with bridge removed | 785 mm |
| Max turning diameter on slide | 350 mm |
| Bench width | 350 mm |
| Spindle hole | 105 mm |
| Spindle attachment | DIN 55029, D1 - 8 |
| Spindle speed range | (12) 25 ā 1500 rpm |
| Longitudinal advances | (42) 0.055 ā 3.061 mm/rev |
| Transversal advances | (42) 0.025 ā 1.384 mm/rev |
| Metric threads | (41) 0.1 ā 14 mm |
| Inch threads | (60) 2 ā 112 Days/1" |
| Tailstock quill diameter | 75 mm |
| Tailstock quill stroke | 185 mm |
| Steerer tube attachment | MK 5 |
| Engine power | 7.5 kW (10.0 HP) |
| Machine dimensions (L x W x H) | 4340 x 1150 x 1610 mm |
| Weight | 3000 kg |
Package Contents
ā¢ ES-12 V 3-axis digital display with LCD display
ā¢ 3-jaw self-centering chuck PS3-315 mm / D8
ā¢ Self-centering plate 450 mm
ā¢ Fixed bezel (Ć max 180 mm)
ā¢ Movable bezel (Ć max 120 mm)
ā¢ 2 counterpoints
ā¢ Initial fill with Shell Tellus 46
ā¢ Motor with CE compliant magnetic brake
ā¢ CE compliant pedal with brake function
ā¢ Refrigeration system
ā¢ Quick change tool holder with 4 inserts
ā¢ Tool holder protection
ā¢ Safety clutch
ā¢ Rapid longitudinal and frontal advances
ā¢ LED work lamp
ā¢ Interchangeable gears
ā¢ Reducing compass
ā¢ Chip collection bulkhead
ā¢ Maintenance tool set
