Bernardo  |  SKU: 03-1177

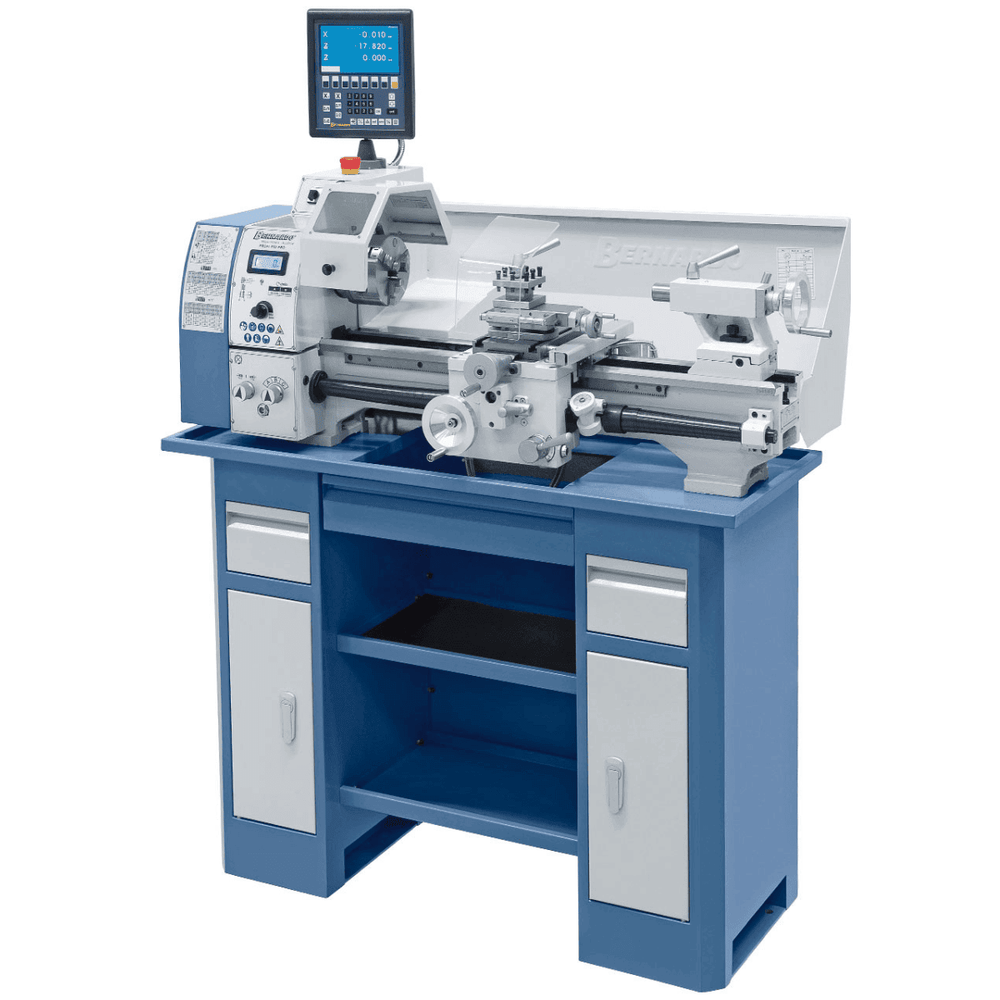

Lathe Profi 550 PRO / 400 V incl. ES-12V 2-axis digital display

€3.283,02 €3.647,80
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

The Profi 550 PRO / 400 V parallel lathe is designed for maximum precision and high performance thanks to its robust construction, speeds of up to 3000 rpm, and comprehensive features. Thanks to its frequency inverter motor, high-quality spindle with P5 tapered bearings, and included ES-12 V 2-axis digital readout, it is the ideal tool for the demanding user seeking reliability and versatility in metalworking.

Main features
• 3-jaw self-centering steel chuck for high speeds up to 3000 rpm
• Delta inverter for high torque at low speeds and constant speed under load
• Adjustable tapered spindle bearings in P5 quality for high precision
• Adjustable micrometric scale (0.02 mm) on the tailstock quill and handwheel
• Mandatory upper support sliding in the direction of the X axis
• Electronically adjustable speed with digital speed readout
• Expansion possible with optional milling unit
• High rotational accuracy ≤ 0.015 mm thanks to the ground spindle nose
• Solid bed with induction hardened and ground guides
• Compact and solid structure for maximum vibration absorption

Technical table

Function Value
Distance between tips 550 mm
Height of the tips 125 mm
Turning diameter on the bed 250 mm
Pallet width 135 mm
Spindle hole 26 mm
Spindle hole attachment MK 4
Speed range (continued) 30–450 / 150–3000 rpm
Longitudinal advances (6) 0.06–0.32 mm/rev
Frontal advances (4) 0.03–0.075 mm/rev
Metric threads (18) 0.2–3.5 mm
Inch threads (21) 8–56 TPI
Tailstock quill stroke 70 mm
Steerer tube attachment MK 2
Engine power S1 100% 1.5 kW / 400 V
Power consumption S6 40% 2.2 kW / 400 V
Machine dimensions (L x W x H)* 1210 x 610 x 450 mm
Weight approx. 137 kg

* Without base

Package Contents
• PO3-125 mm 3-jaw self-centering chuck in steel
• Spindle flange Ø 125 mm
• Fixed tips
• Replacement gear set
• 4-position tool holder
• Cross slide with upper support
• Delta frequency inverter
• Digital speed display
• Thread clock
• Spindle protection
• Chip protection bulkhead
• Covering of the mother screw

Frequently Asked Questions

FAQ Profi 550 PRO Lathe
Yes, it supports 18 metric threads (0.2–3.5 mm) and 21 inch threads (8–56 TPI) via interchangeable cogs.
Yes, an optional milling module is available for installation, which expands the functionality of the machine.
The concentricity of the spindle nose is ≤ 0.015 mm, ensuring high precision in machining.
Yes, this model includes a 2-axis ES-12 V digital readout and digital speed readout.
