Bernardo  |  SKU: 01-1312XL0

GB 60 Servo Geared Column Drill

€10.065,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

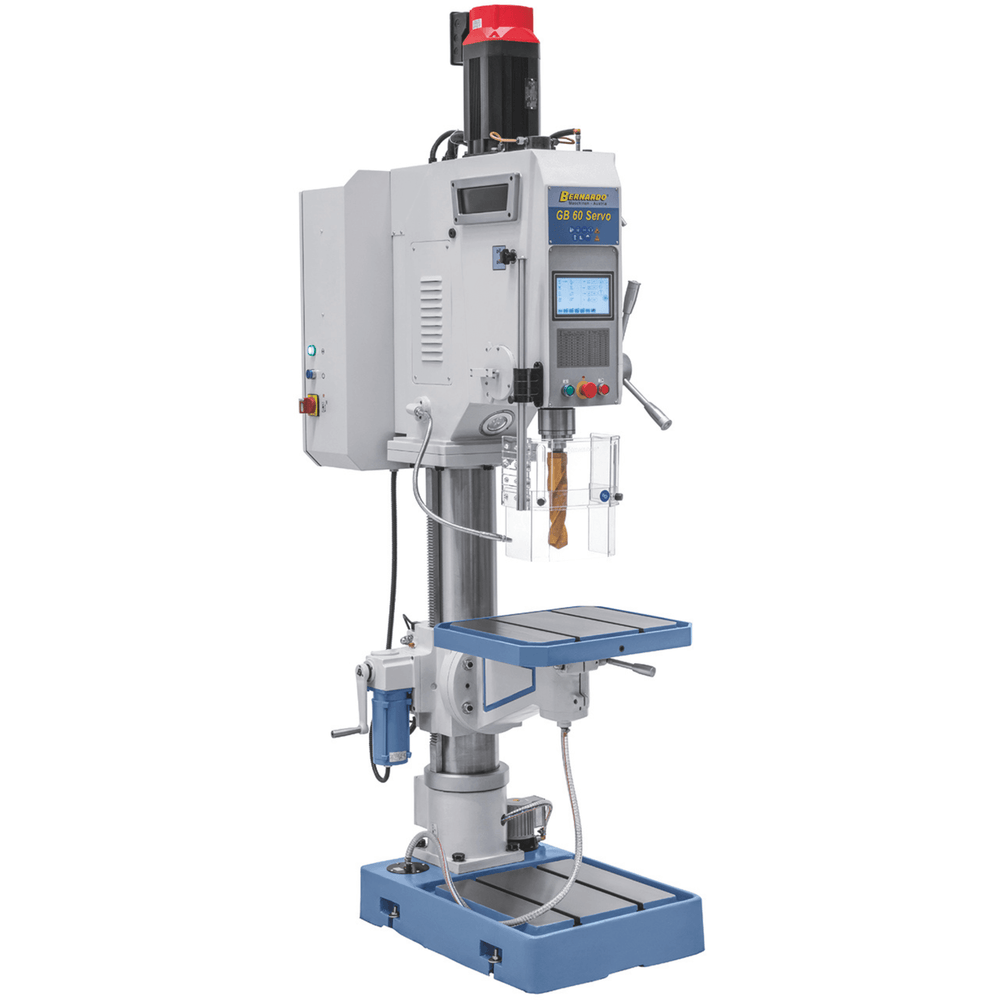

GB 60 Servo Geared Pillar Drill with Servo Motor and Touchscreen

The GB 60 Servo pillar drill represents the pinnacle of precision and automation in industrial drilling. Equipped with servo motors for feed and transmission, it offers continuous speed regulation and intuitive touchscreen control. Ideal for drilling and tapping steel, cast iron, and difficult materials, it is designed for production environments that require high performance and total versatility.

Main features

• Digital control via touchscreen with automatic calculation of speed and feed
• Servo motors for spindle and pin feed for maximum precision
• Large touch display to set all functions (drilling, deep drilling, tapping, etc.)
• Continuous speed regulation (50–2000 rpm) in 2 stages
• Solid cast iron table with tilting and rotating top
• Continuous feed of the pinola up to 765 mm/min
• Machined base plate with T-slots and integrated coolant pump
• Motorized table height adjustment
• Automatic tapping with integrated tool ejection
• Supplied complete and ready for professional use

Technical table

Characteristic Value
Drilling capacity on steel 50 mm
Drilling capacity on cast iron 60 mm
Tapping capacity M30
Spindle capacity 3 – 16 mm / B18
Spindle attachment MK 5
Spindle speed range 50 – 250 / 250 – 2000 rpm
Pinola advancement (adjustable) 0 – 765 mm/min
Distance between column and spindle 360 mm
Distance spindle – table (max) 570 mm
Distance between spindle and base 1170 mm
Pinola Race 245 mm
Column diameter 180 mm
Table size / T-slots 545 x 470 mm / 14 mm
Engine power 3.7 kW (400 V)
Machine dimensions (L x W x H) 700 x 1050 x 2430 mm
Weight approximately 755 kg

Package Contents

• Keyless chuck 3–16 mm / B18
• MK 5 / B18 adapter cone
• Conical reducers: MK 5/4, MK 4/3, MK 3/2
• Table with motorized lifting
• Integrated refrigeration system
• Multifunction touchscreen
• Servo for pinola advancement
• Automatic tapping function
• Automatic tool ejection
• First supply of Shell Tellus 46 oil
• LED lighting
• Digital speed indicator
• Digital drilling depth indicator
• Height-adjustable protection

Frequently Asked Questions

Yes, thanks to the integrated touchscreen and servomotors, the machine automatically calculates the ideal parameters based on the tool diameter and the material being machined.
Yes, it has an automatic tapping function with tool ejection and digital feed setting.
The GB 60 Servo is ideal for drilling and tapping steel, cast iron and non-ferrous materials.
Yes, the cast iron table rotates 360°, tilts from -45° to +45°, and is electric-powered to adjust the height.
Absolutely. Its robust construction, servomotors, and digital functions make it ideal for continuous and industrial use.
