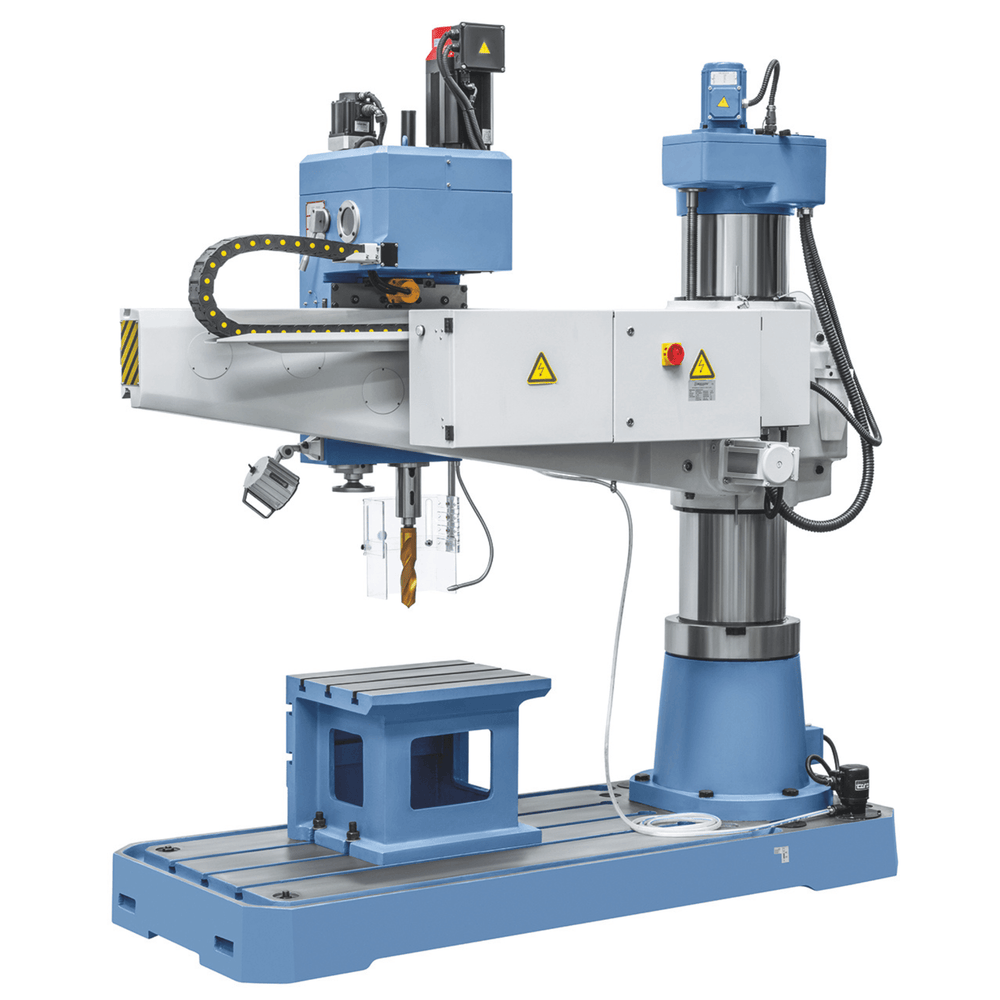

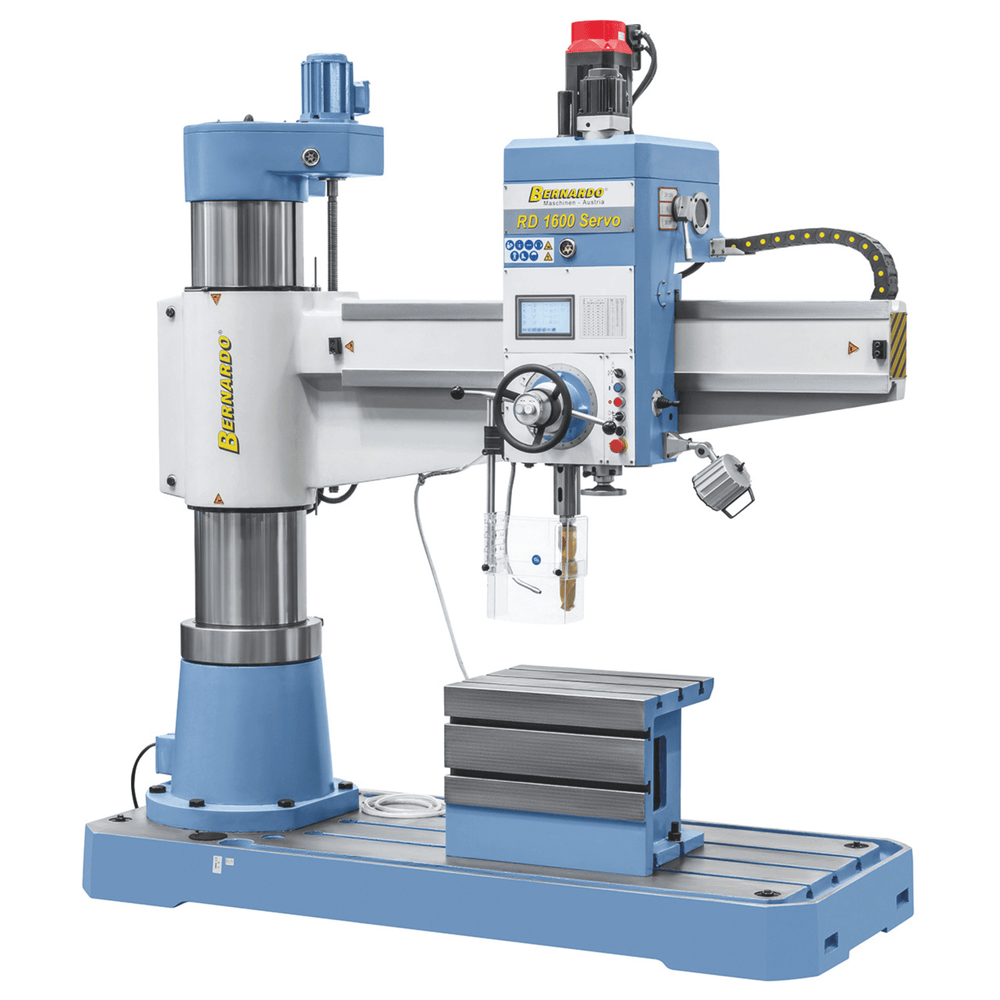

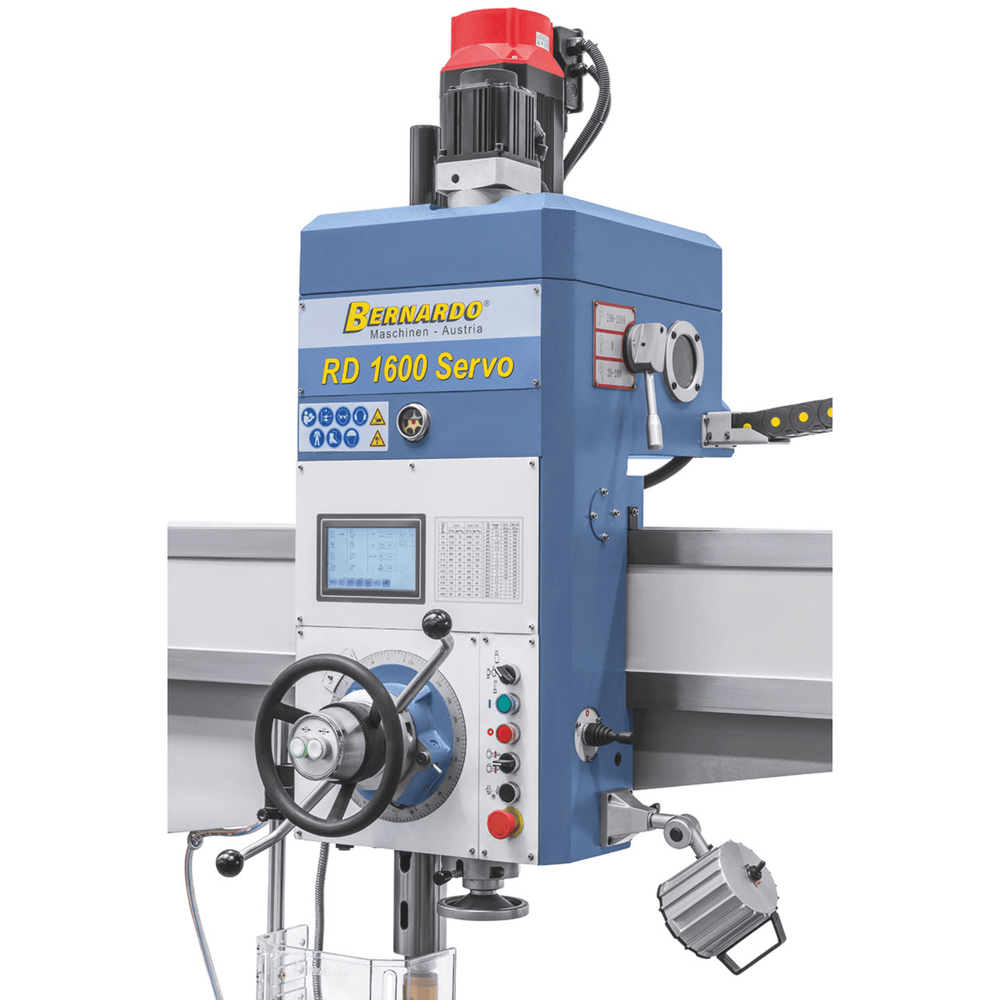

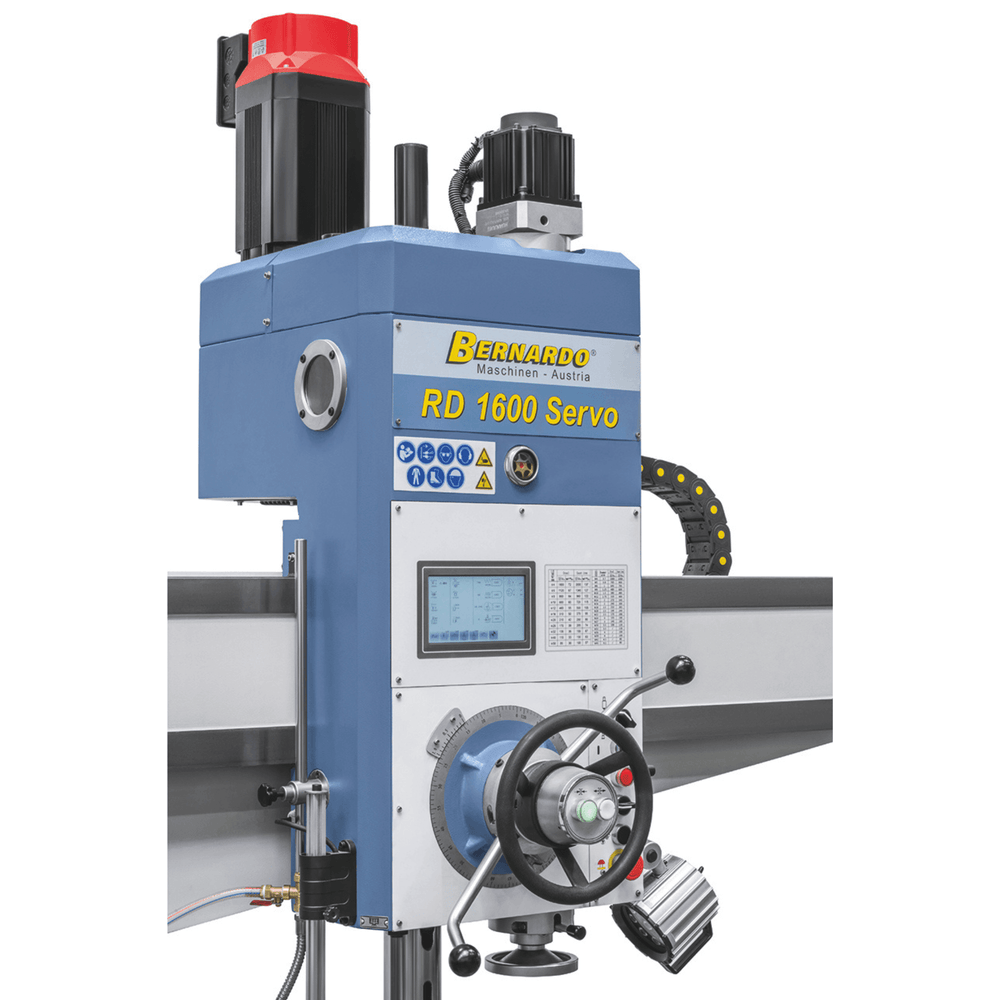

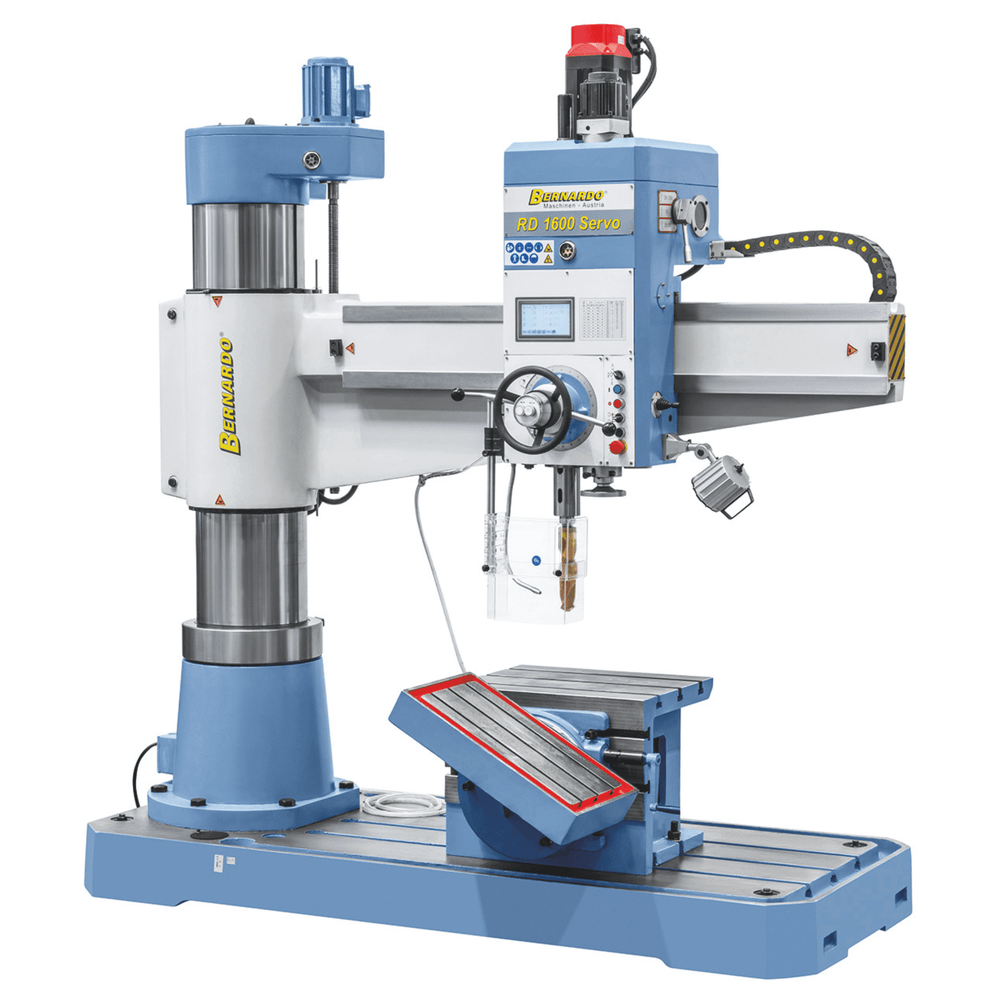

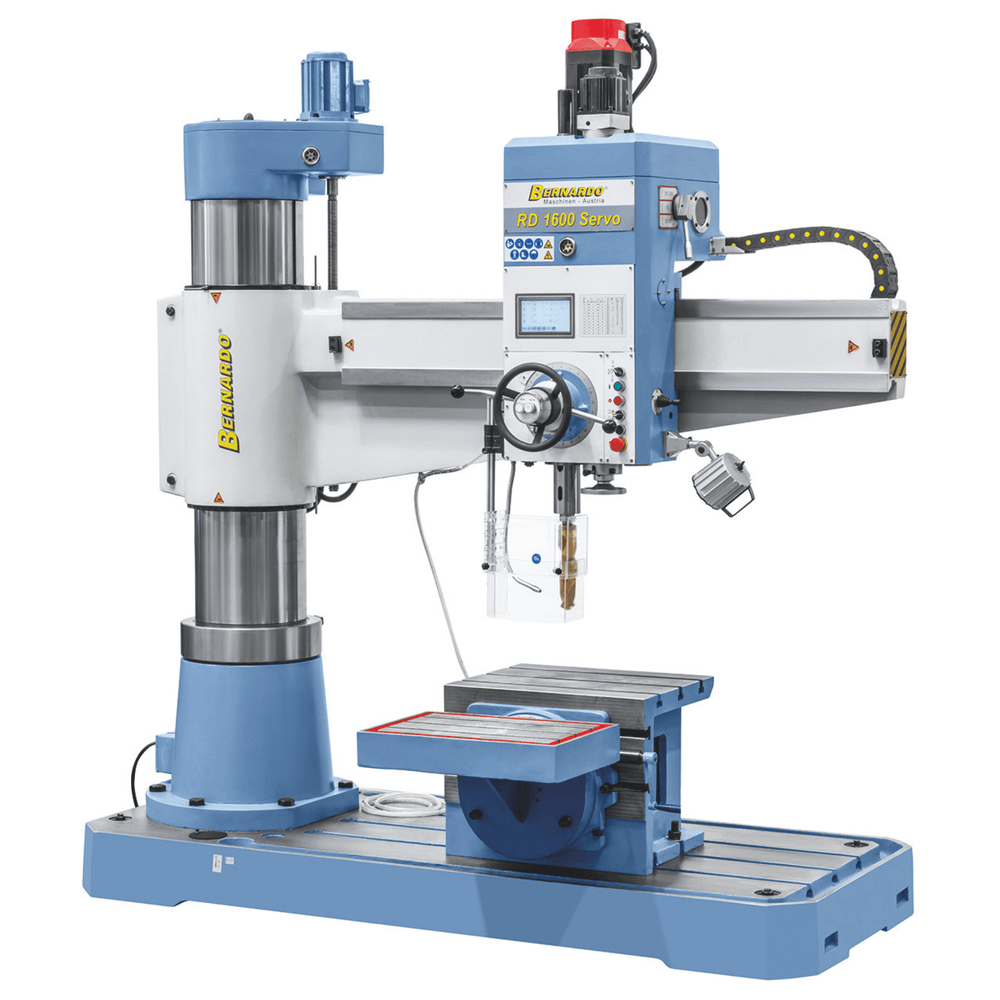

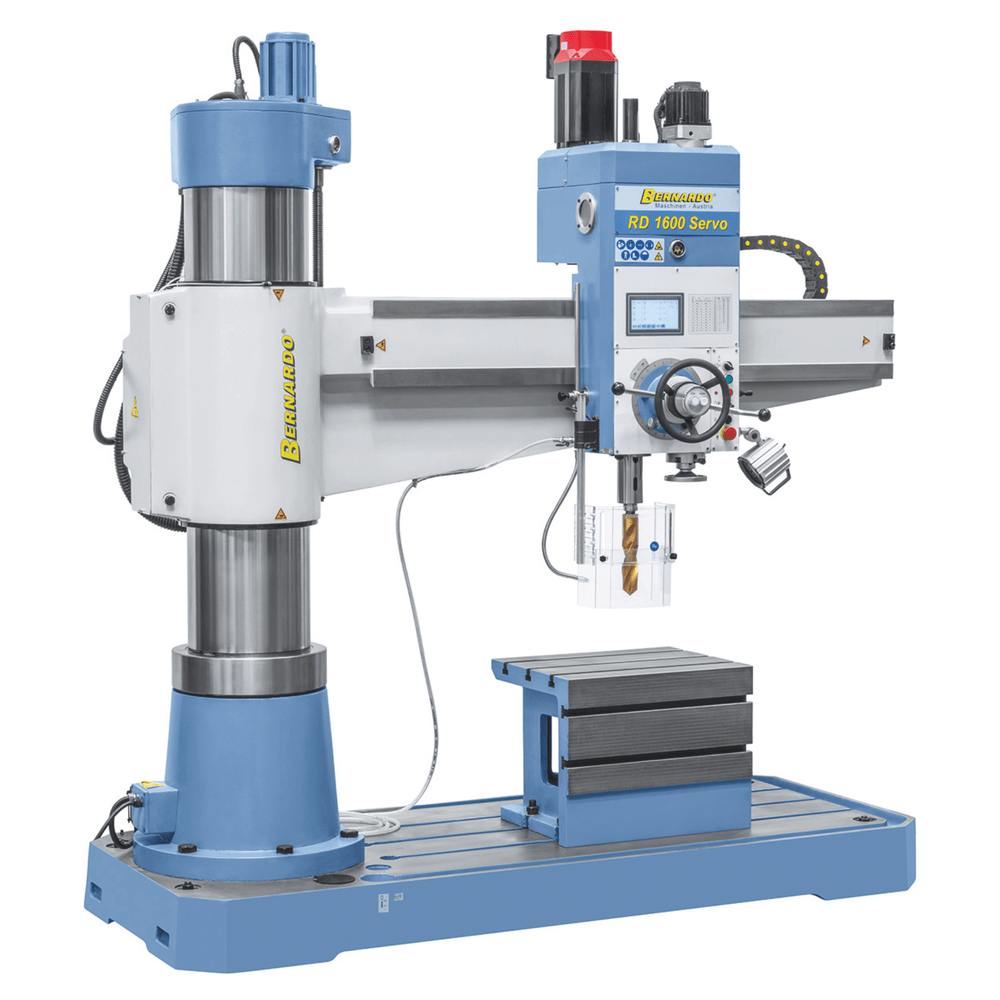

RD 1600 Servo radial drill with touchscreen and servomotors
The RD 1600 Servo is a high-end radial arm machine designed for heavy-duty machining operations such as deep drilling, countersinking, reaming, and tapping. Thanks to the large touchscreen and intelligent control system, the operator can precisely configure the ideal speed and feed rate based on the material and tool diameter. The motor-driven height-adjustable arm and integrated servomotors ensure maximum precision and repeatability in series machining.
Main features

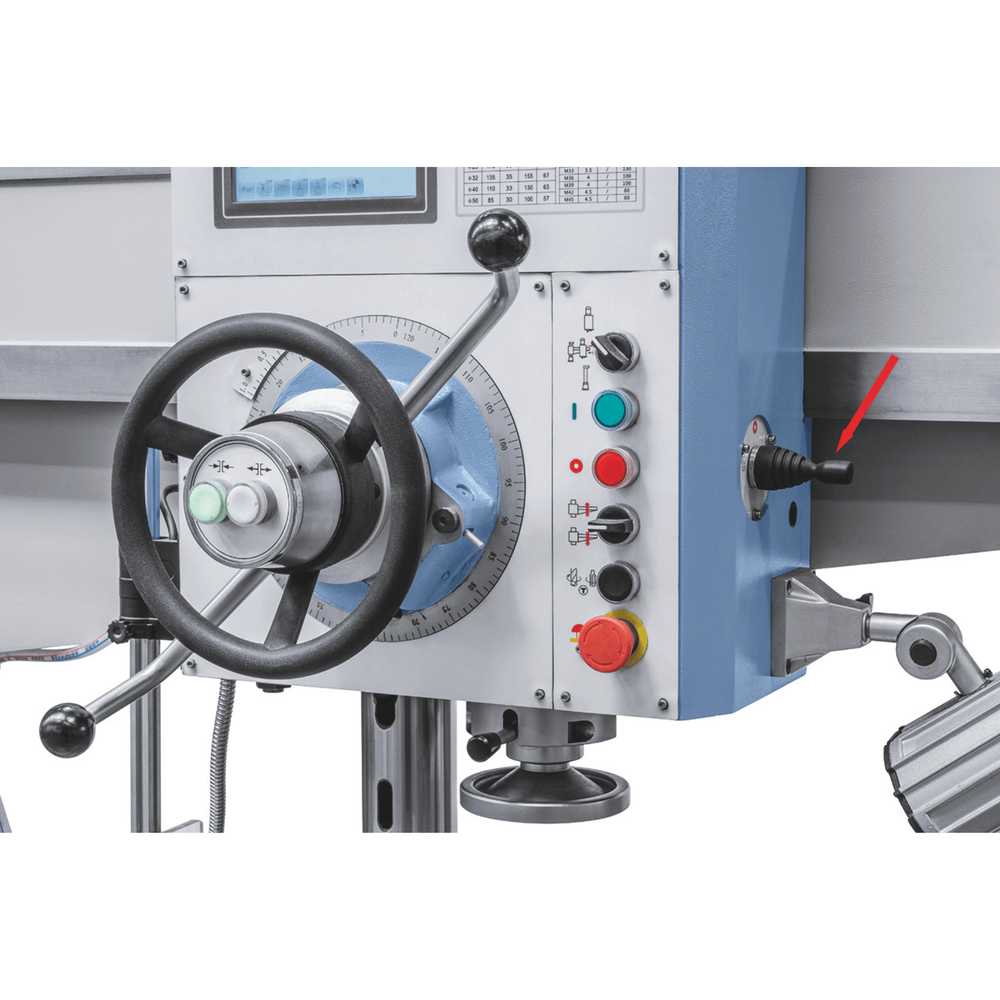

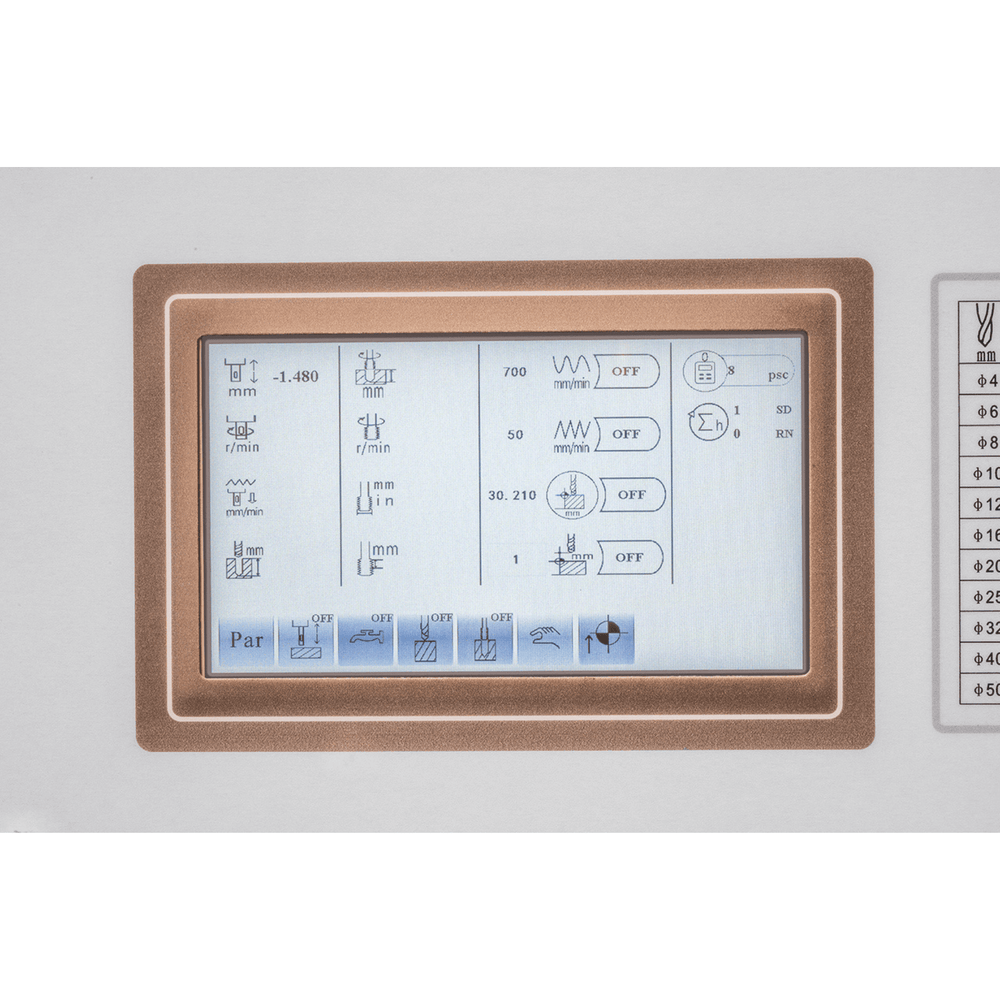

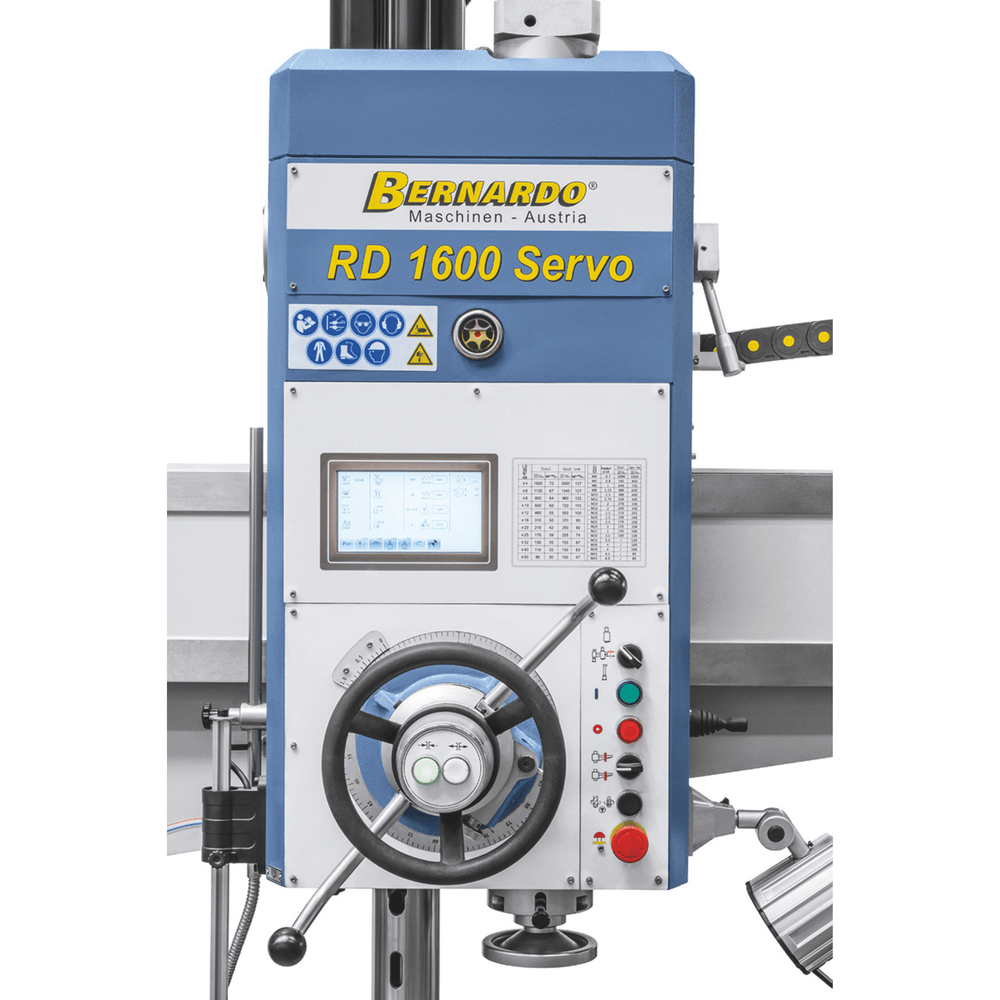

• Intuitive touchscreen interface for all operations: drilling, tapping, deep holes
• Automatic calculation of ideal parameters (speed/feed) based on material and tool
• Height-adjustable arm with constant head position: perfect for series production

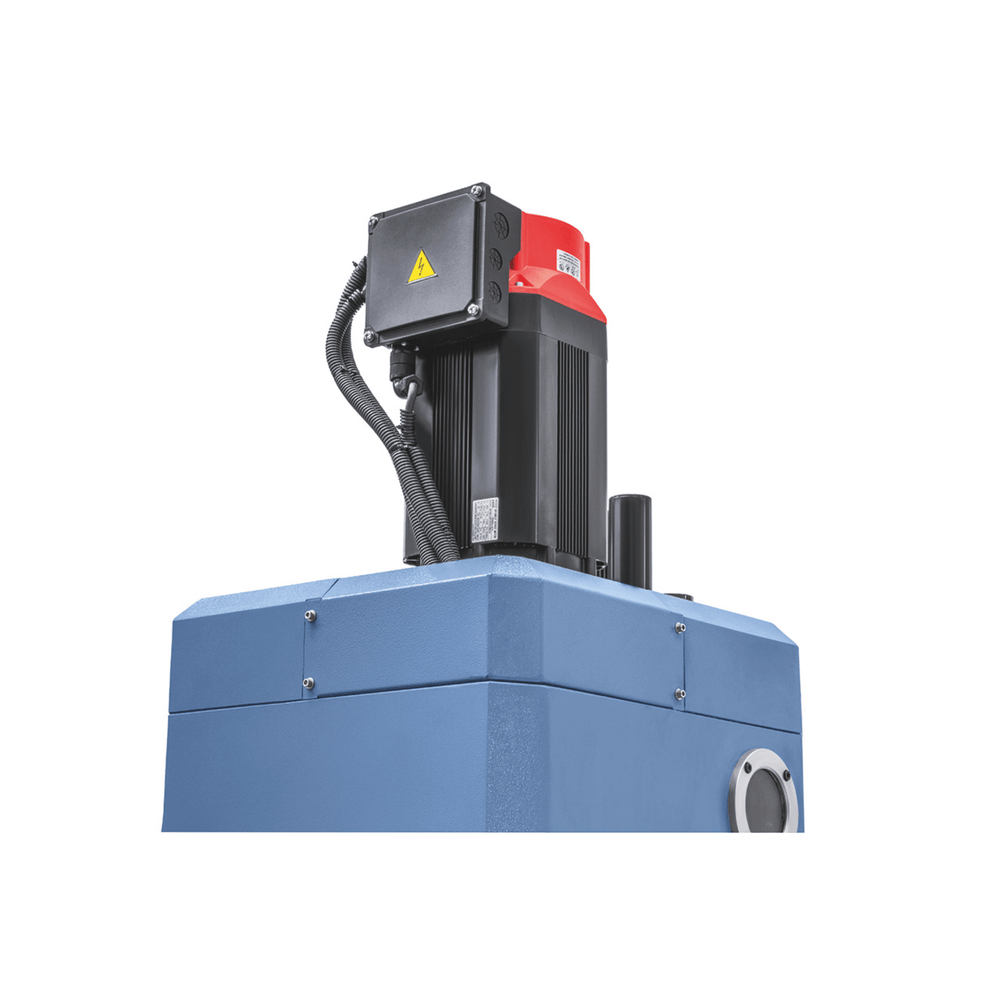

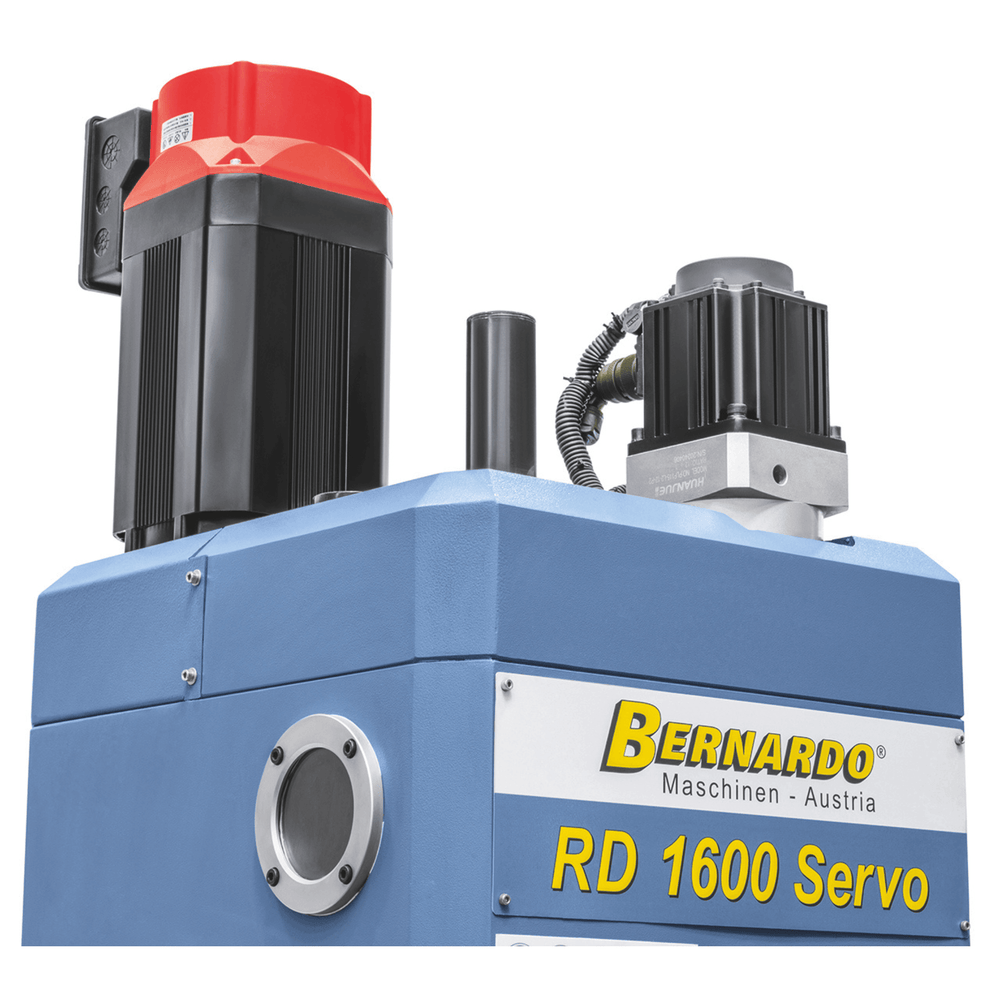

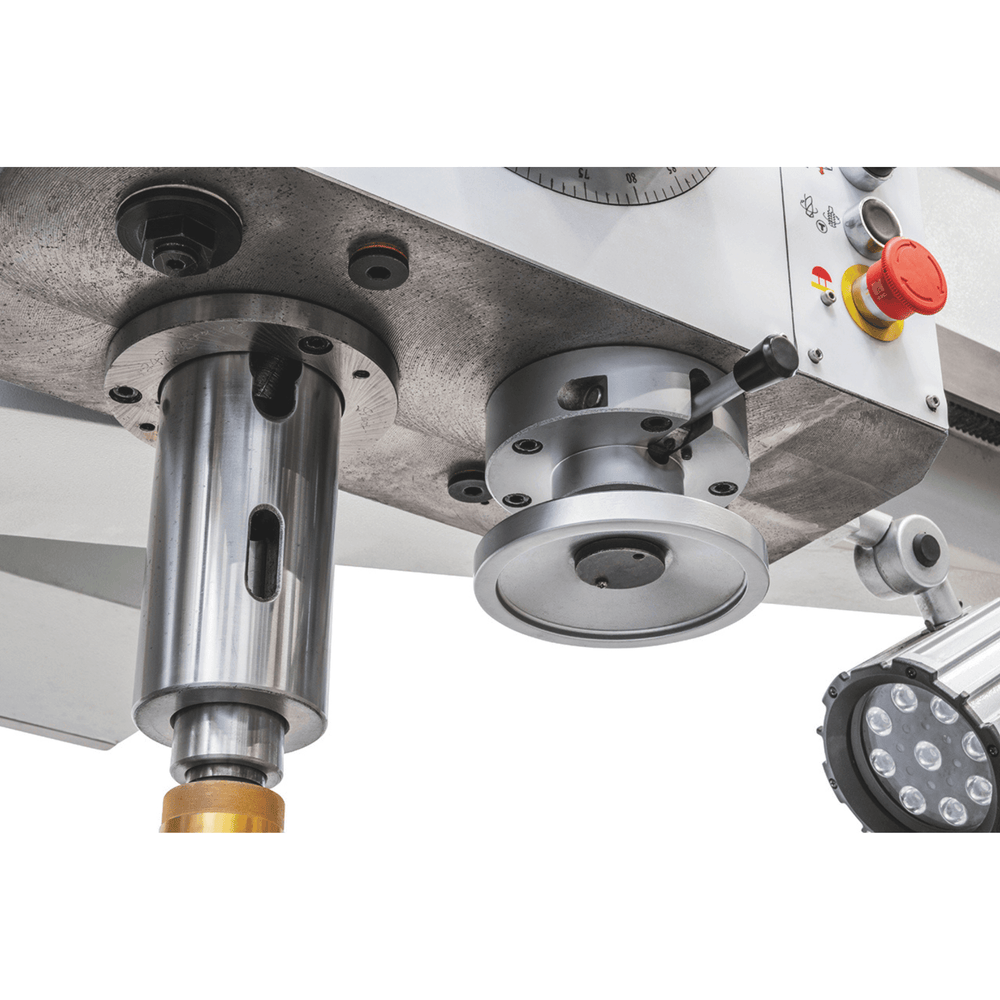

• Pinola advancement and transmission with high quality servomotors
• Continuous speed regulation with direct reading on the display
• Electronic setting of drilling depth with verification of the entered value
• Hardened and ground arm guides for high smoothness
• Ideal for complex operations on medium-large pieces: drilling, countersinking, boring, tapping
• Display in mm or inches selectable
Technical table
| Characteristic | Value |
|---|---|
| Max. drilling capacity | 50 mm |
| Max. tapping capacity | M45 |
| Arm excursion (min. – max.) | 350 – 1600 mm |
| Vertical arm lift | 580 mm |
| Horizontal head stroke | 1250 mm |
| Pinola race | 320 mm |
| Spindle attachment | MK 5 |
| Speed range (2 stages) | 20–200 / 200–2000 rpm |
| Pinola advancement | 0 – 795 mm/min |
| Distance between spindle and cube table | 155 – 735 mm |
| Distance spindle – base plate | 655 – 1230 mm |
| Basic work plan | 1750 x 980 mm |
| Cube table (L x W x H) | 635 x 500 x 500 mm |
| Engine power | 3.7 kW |
| Machine dimensions (L x W x H) | 2550 x 1100 x 2600 mm |
| Weight | approx. 3225 kg |
Package Contents

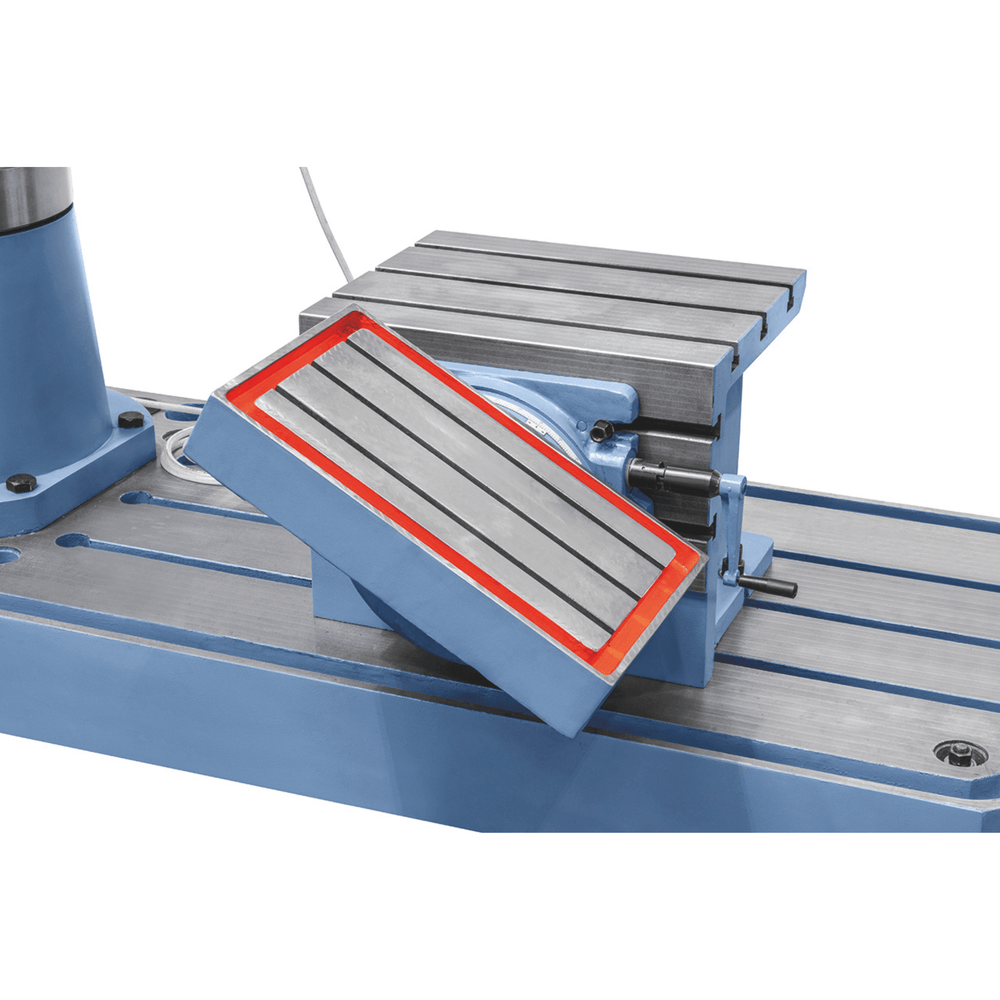

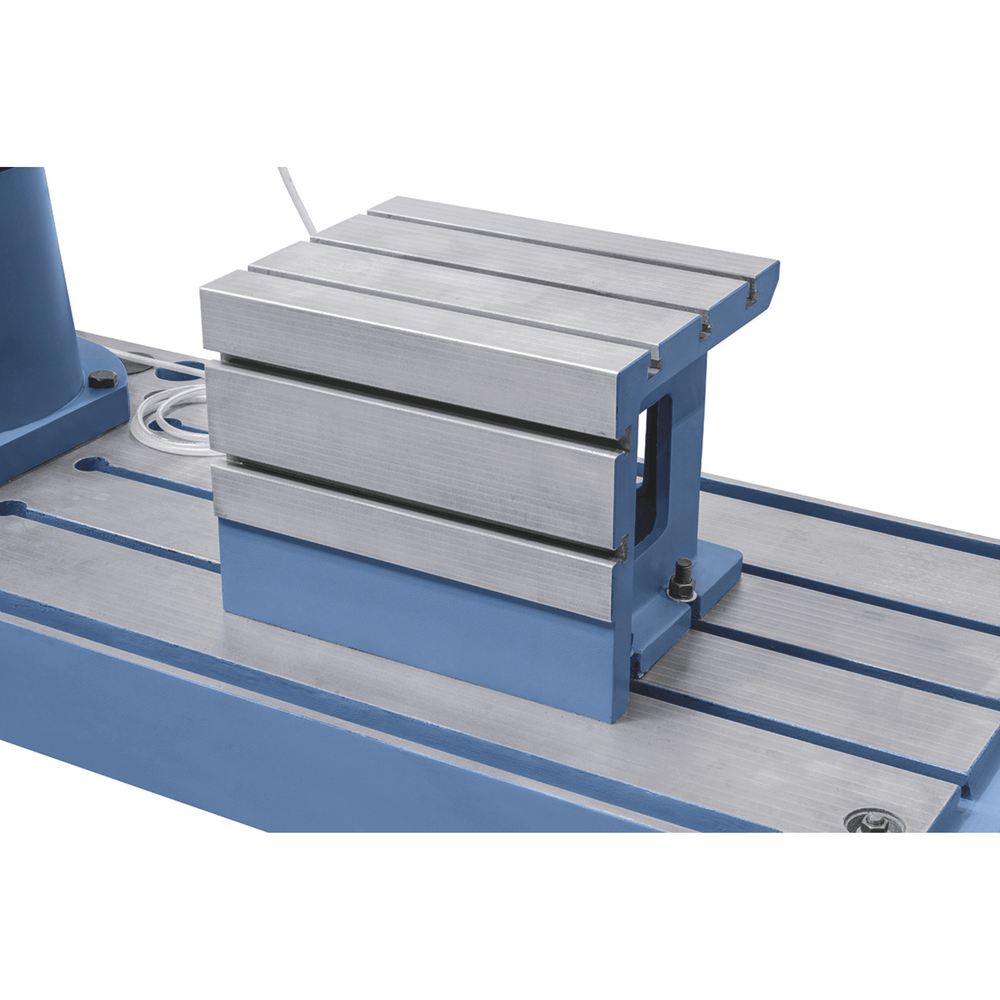

• Cube table
• Conical reducers MK 5/4, MK 4/3, MK 3/2
• LED lighting

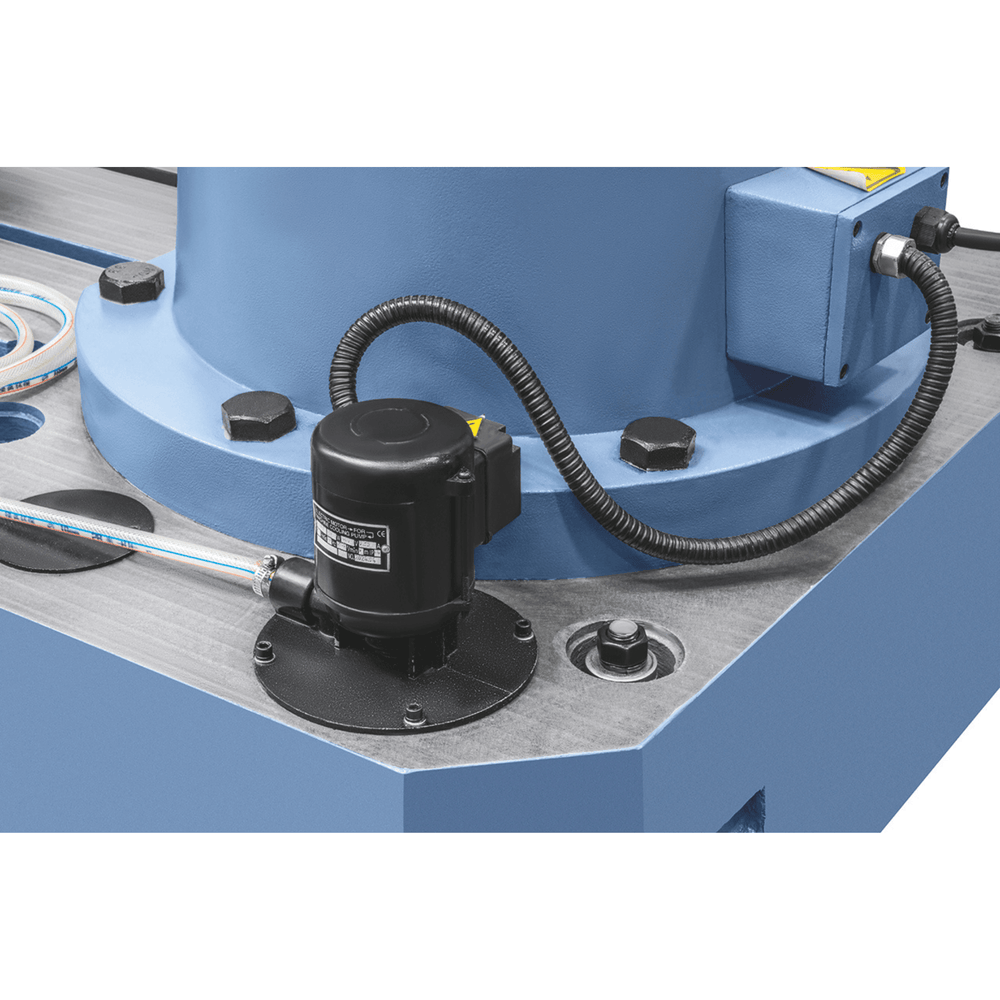

• Pump refrigeration

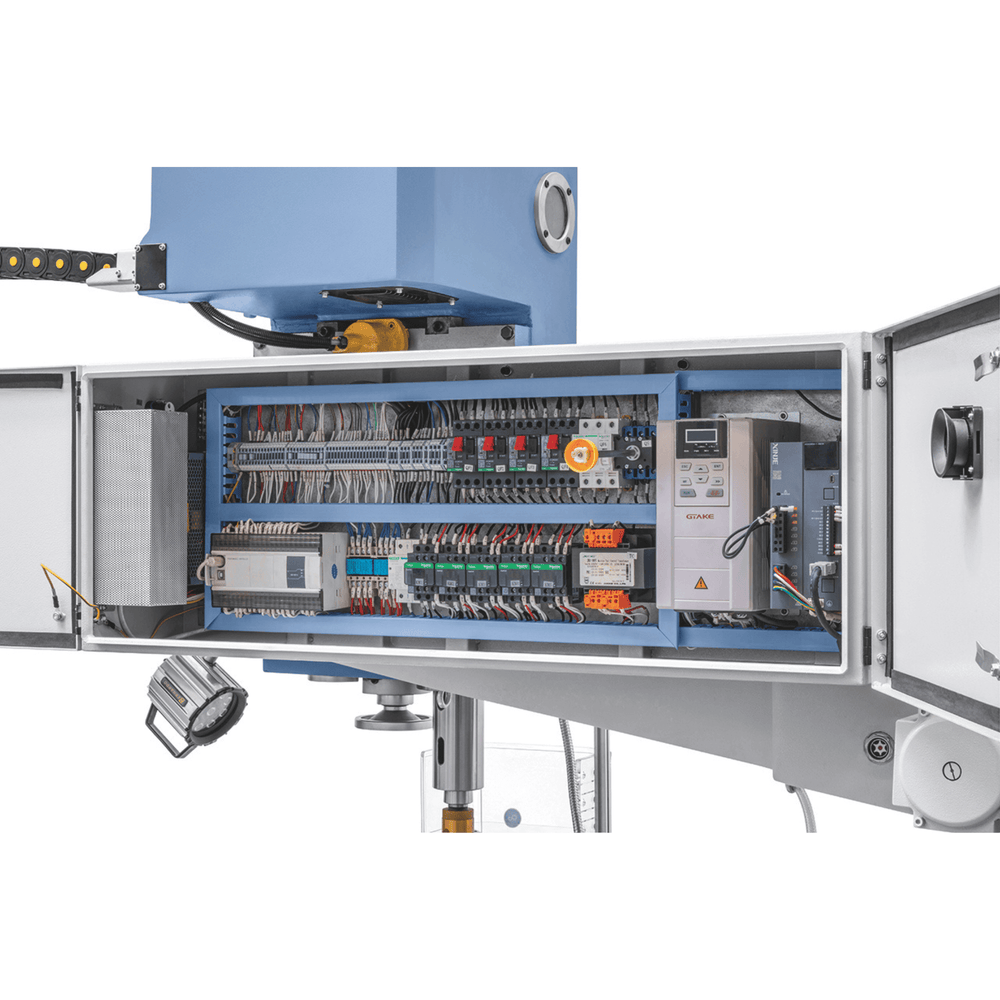

• Touchscreen control
• Servomotor for pinola advancement

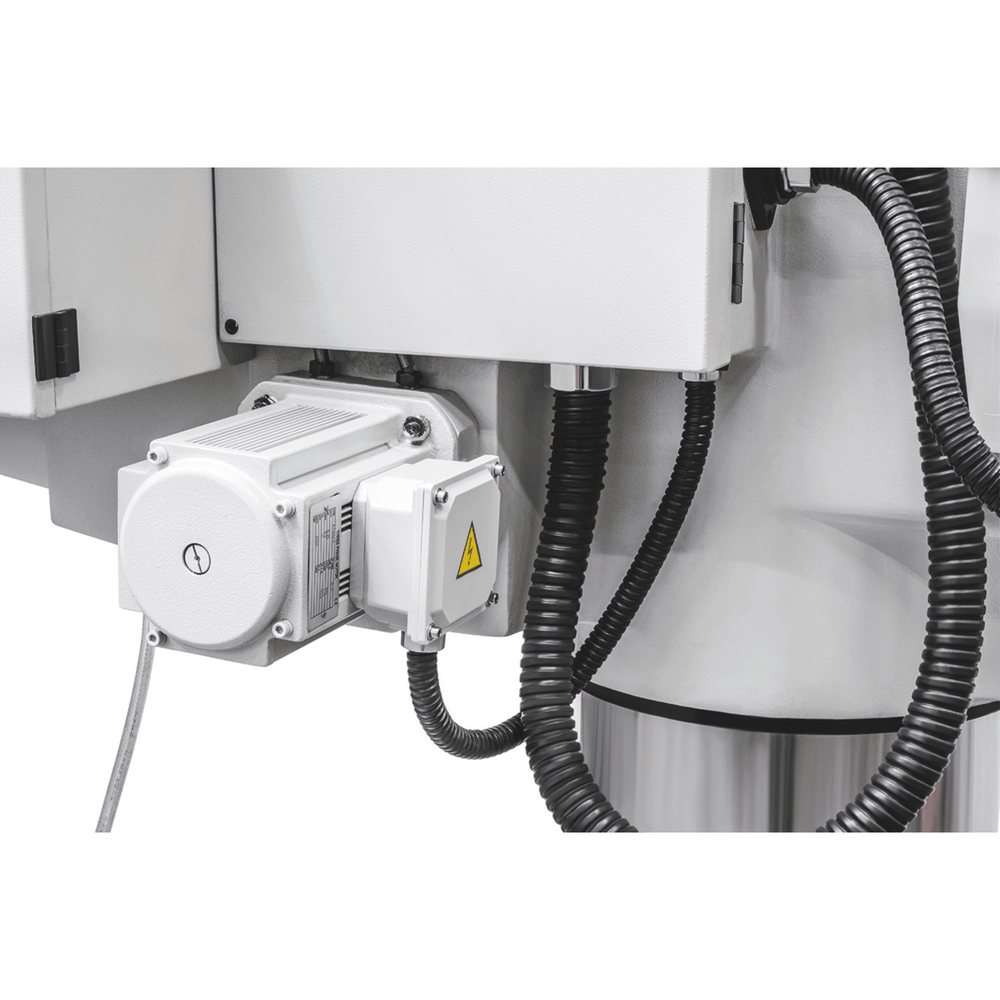

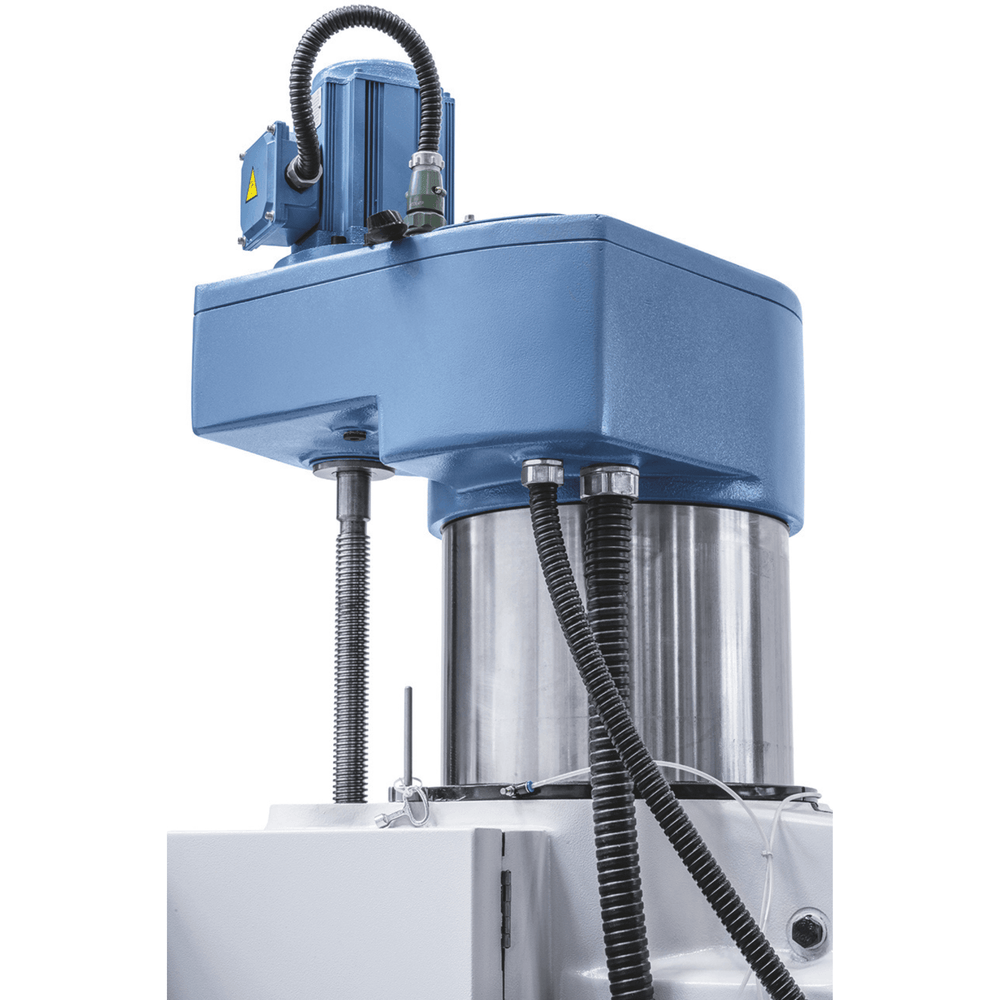

• Lifting motor (arm)
• Hydraulic motor

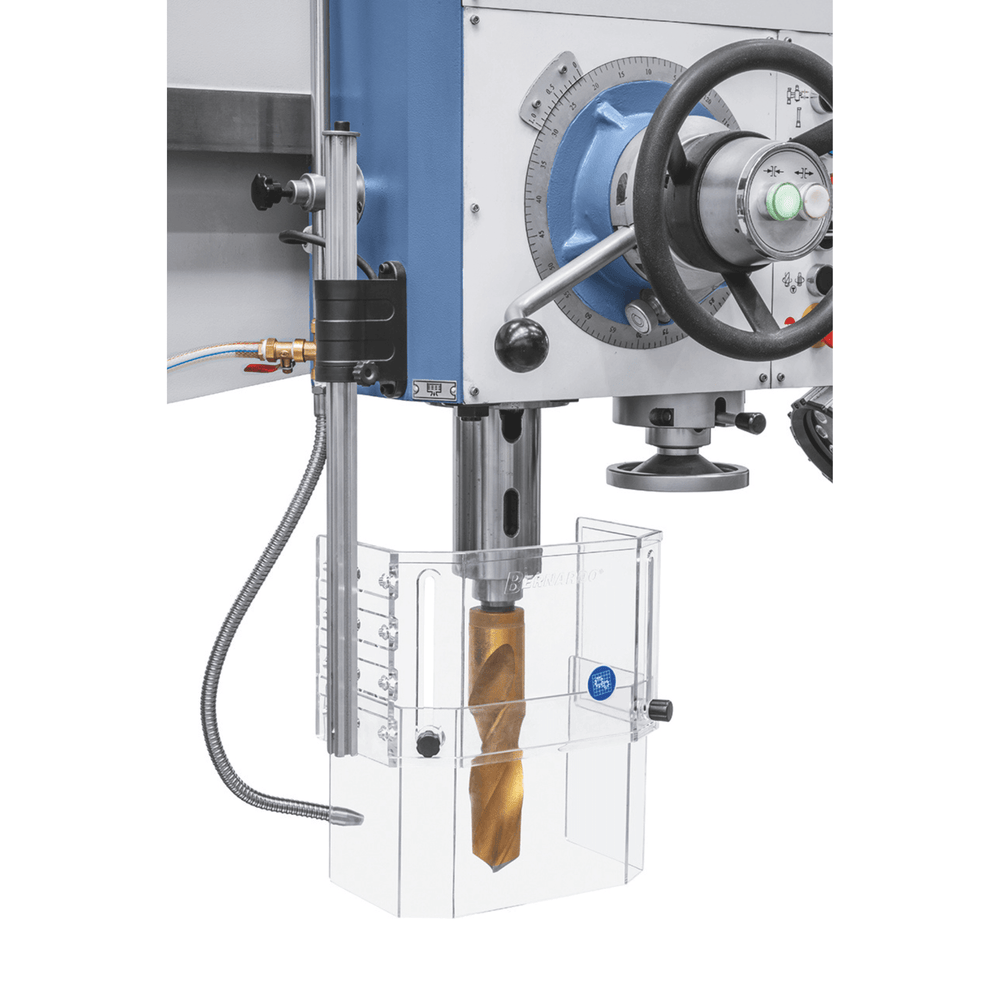

• Height-adjustable protection

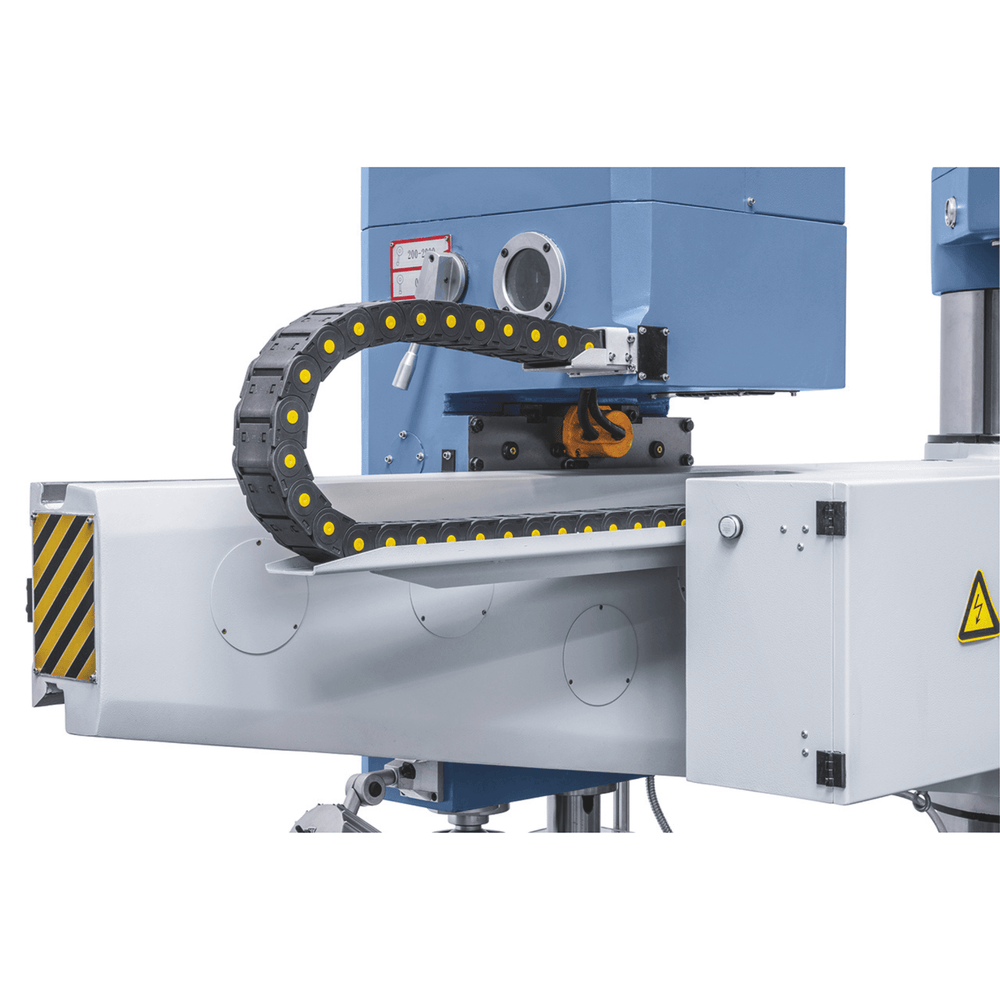

• Cable carrier chain
• Shell Tellus 46 Hydraulic Oil (First Charge)
